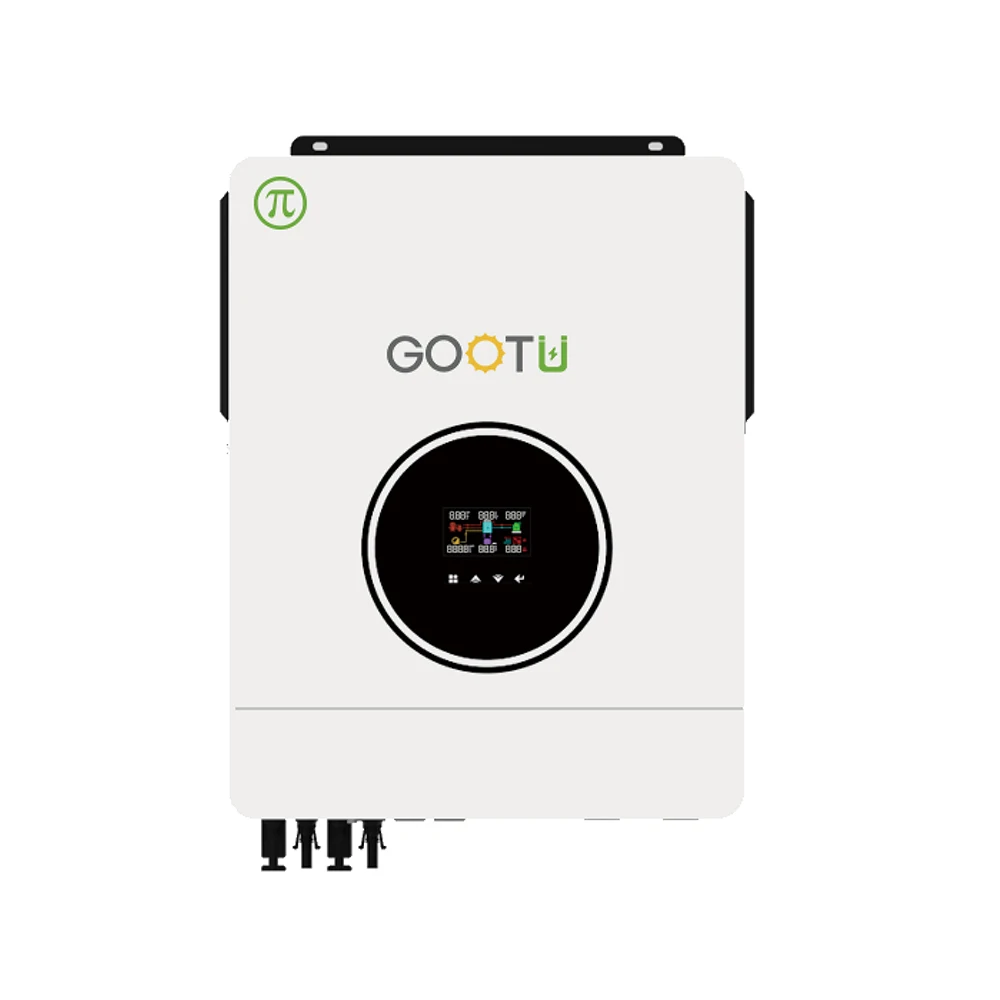

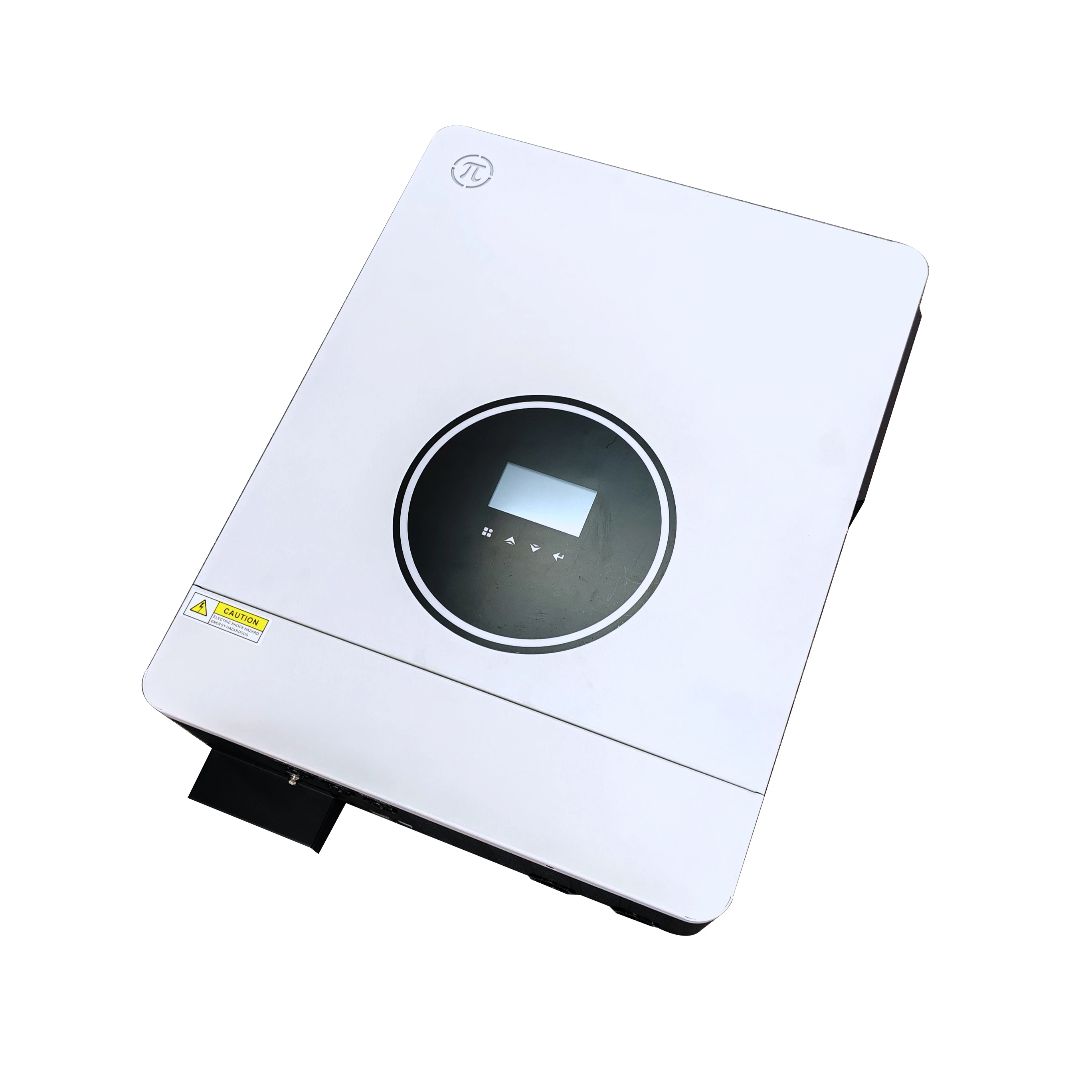

Оптовая продажа солнечный инвертор GOOTU OEM гибридный 6 кВт 7 8 10 однофазный Гибридный
- Категория: >>>
- Поставщик: Shenzhen Jiesaiyuan Electricity Co. Ltd.
Сохранить в закладки 1600901521138:
Описание и отзывы
Характеристики
Product Description
7.2/8.2/10.2KW 220/230/240VAC 48V 160A All In One Hybrid Solar Inverter
Main Features:

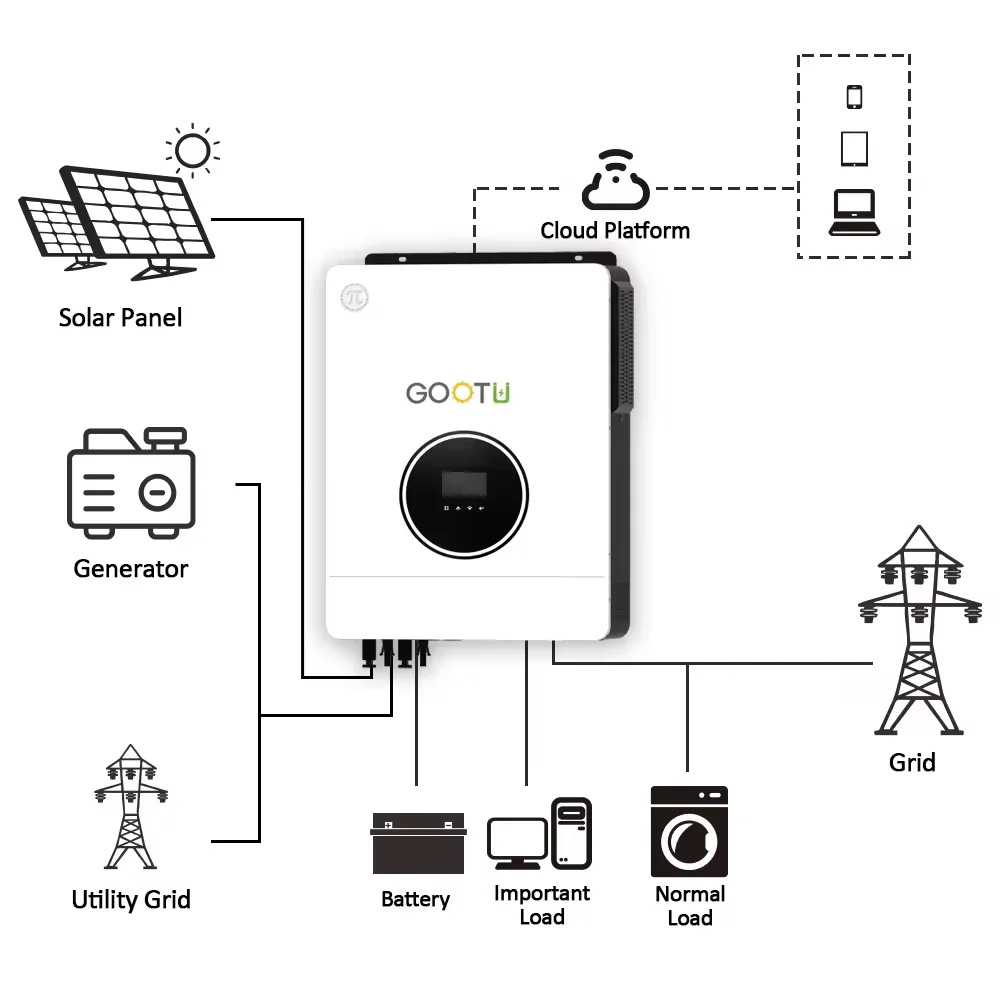

* Pure sine wave solar inverter (Grid Tie / Off Grid).
* 1.0 output power factor.
* WIFI & GPRS available for IOS and android.* Support running without battery.
* One click to restore factory settings.
* Built-in 160A MPPT solar charger.
* Built-in lithium battery automatic activation.
* Built-in anti-dusk kit for harsh environment(optional).
* High PV input voltage range(360~500VDC)

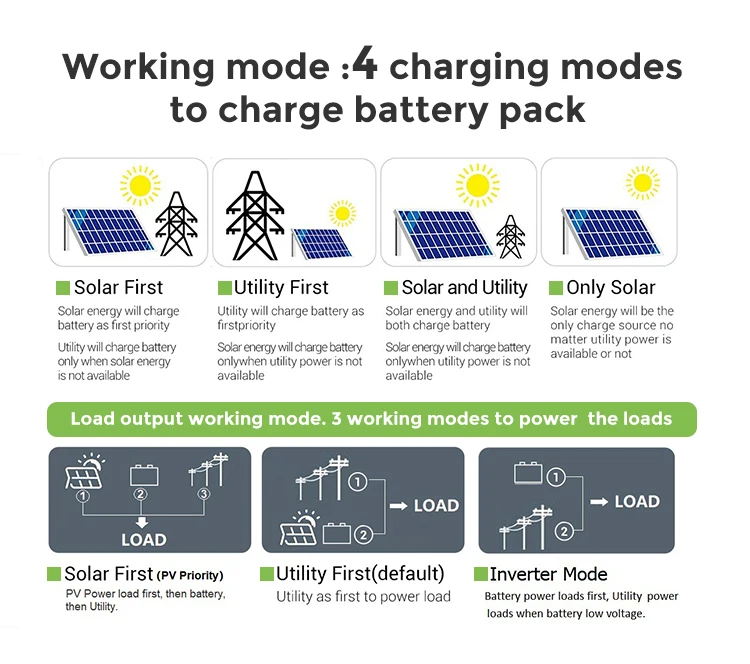

* Smart battery charge design to optimize battery life.
* Touch button, RGB light.
* Dual output.
* Built-in 160A MPPT solar charger.
* Built-in lithium battery automatic activation.
* Built-in anti-dusk kit for harsh environment(optional).
* High PV input voltage range(360~500VDC)
* Smart battery charge design to optimize battery life.
* Touch button, RGB light.
* Dual output.
Data Sheet
Model | JSY-H48102E160-D | |
Rated Output Power | 10200W/10200VA | |
Max. PV Input Power | 10200W | |
Max. Solar Charging Current | 160A | |
Grid Tie Operation | ||
PV Input(DC) | ||
Normal DC Voltage / Max. DC Voltage | 360VDC/500VDC | |
Start-up Voltage / Initial Feeding Voltage | 90VDC/120VDC | |
MPPT Voltage Range | 90VDC~450VDC | |
Number of MPPT Tracker / Max. Input Current | 1/27A | |
Grid Output(AC) | ||
Nominal Output Voltage | 220/230/240VAC | |
Output Voltage Range | 195~253VAC | |
Nominal Output Current | 44.3A | |
Power Factor | ＞0.99 | |
Feed-in Grid Frequency Range | 49~51±1HZ | |
Efficiency | ||
Max. Conversion Effeciency(DC/AC) | 98% | |
Two Load Output Power | ||
Full Load | 10200W | |
Max. Main Load | 10200W | |
Max. Second Load(Battery Mode) | 3400W | |
Main Load Cut Off Voltage | 44VDC | |
Main Load Return Voltage | 48VDC | |
Off Grid Operation | ||
AC Input | ||
AC Start-up Voltage / Auto Restart Voltage | 120-140VAC/180VAC | |
Acceptable Input Voltage Range | 90-280VAC/170-280VAC | |
Max. AC Input Current | 50A | |
Nominal Operatiing Frequency | 50/60HZ | |
Super Power | 20400W | |
PV Input(DC) | ||
Max. DC Voltage | 500VDC | |
MPPT Voltage Range | 90VDC~450VDC | |
Number Of MPPT Tracker/Max. Input Current | 1/27A | |
Battery Mode Output(AC) | ||
Normal Output Voltage | 48VDC | |
Output Waveform | Pure Sine Wave | |
Efficiency(DC to AC) | 94% | |
Battery & Charger | ||
Nominal DC Voltage | 48VDC | |
Max. Solar Charging Current | 180A | |
Max. AC Charging Current | 160A | |
General | ||
Physical | ||
Product Dimension | 420*310*110mm | |
Carton Dimension | 588*463*205mm | |
Net Weight | 14.5KGS | |
Gross Weight | 16.0KGS | |
Interface | ||
Communication Port | RS23/EIFI/Remove LCD /GPRS | |
Enviroment | ||
Operating Temperature | -10~50°C | |
Project
Company Profile
Shenzhen Jiesaiyuan Electricity Co., Ltd
Shenzhen Jiesaiyuan Electricity Co., Ltd is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters, energy storage battery. We always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter & battery technology, rigorous quality control and continuous improvement of customer service, and enjoys a high reputation in the industry with excellent product quality, good reputation and advanced innovation consciousness. We can provide different application systems, engineering services and optimal system solutions according to our customers' requests. Our company has a professional R&D team which is composed of experienced professors, senior engineers and technical persons. We have abundant technical strength and rich experience in engineering design and construction.We always adhere to provide customers with quality products and services, and actively work with customers around the world to create a better future.
Certificates
FAQ
Q: How about the warranty? What you will do if the inverter in problem during 1 or 2 years? If refund should i return the goods?
A: The inverters are of 3 years warranty, during the warranty we offer you free replacements for parts,no need to send back to china. The warranty period has expired , we will offer support but you need to pay for the parts component cost.
Q: How long the delivery time if i order? How soon can you send out the goods?
A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization.
Q: What happen if I meet problem during instalation? Will you support and how?
A: Yes that we are 24hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service.
Q: Does your company also provide other solar products except Pure Sine Wave Inverter?
A: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter,
on grid inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q: What certificates do you have for your products? Can you provide sample for testing?
A: Sure, please kindly contact us and we will provide sample for you. Our products have acquired RoHS, CE, FCC, UL, PSE certificates, which is able to satisfy most country’s importing requirements.
Q: How do you ship the goods and how long does it take?
A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB, CIF, DAP, etc. All terms are available.
A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB, CIF, DAP, etc. All terms are available.
Похожие товары

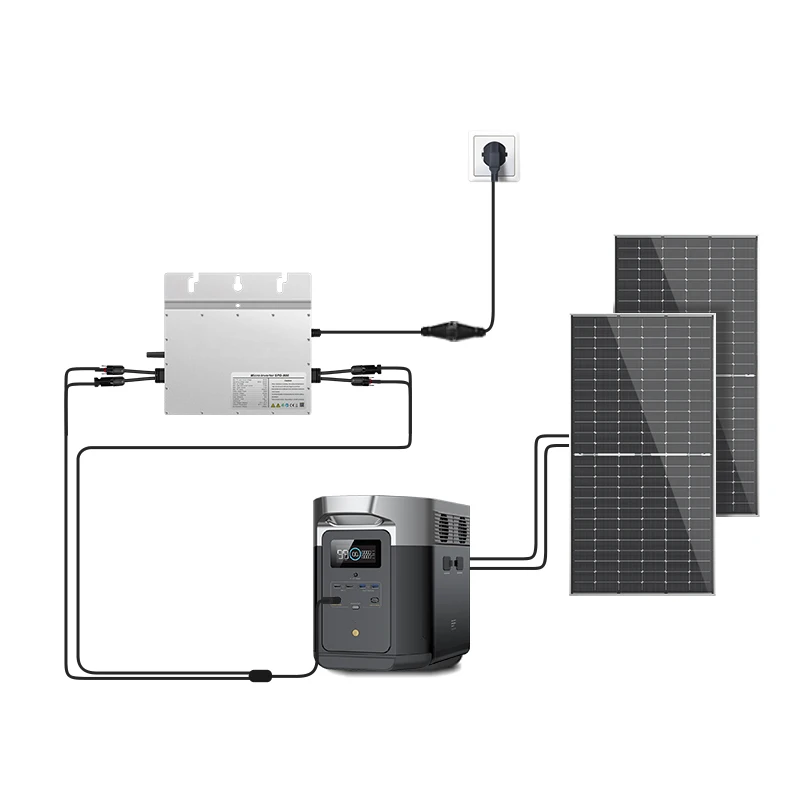

Электронный Гибридный микро инвертор 800 Вт может подзаряжать батареи Tuya Smart WIFI IP67 Водонепроницаемый Солнечный
8 727,28 ₽ - 9 293,98 ₽

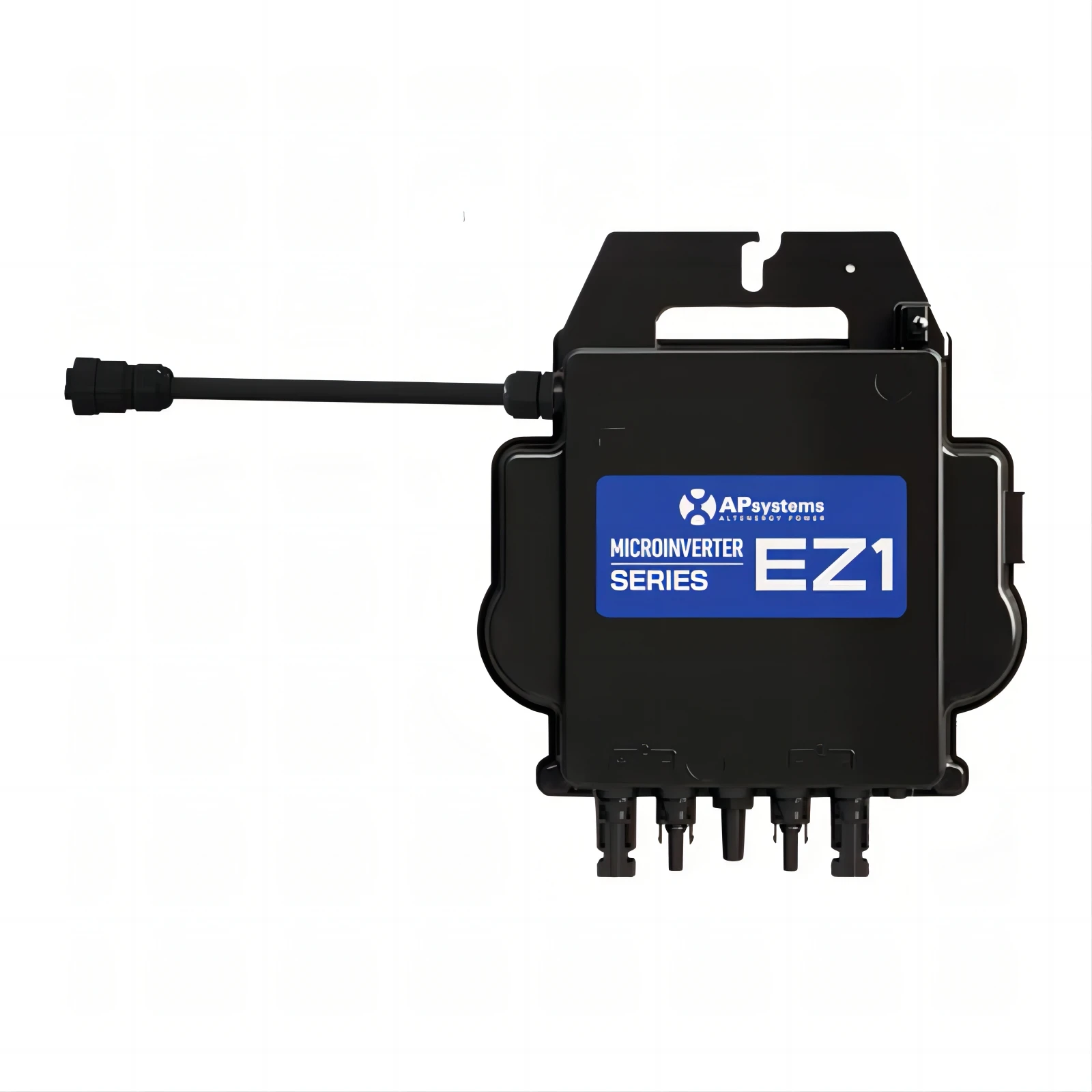

Микроинвертор APsystems 800 Вт с Wi-Fi реле 600 Регулировка мощности apsystems qt2 EZ1-M микро инвертор
17 056,20 ₽

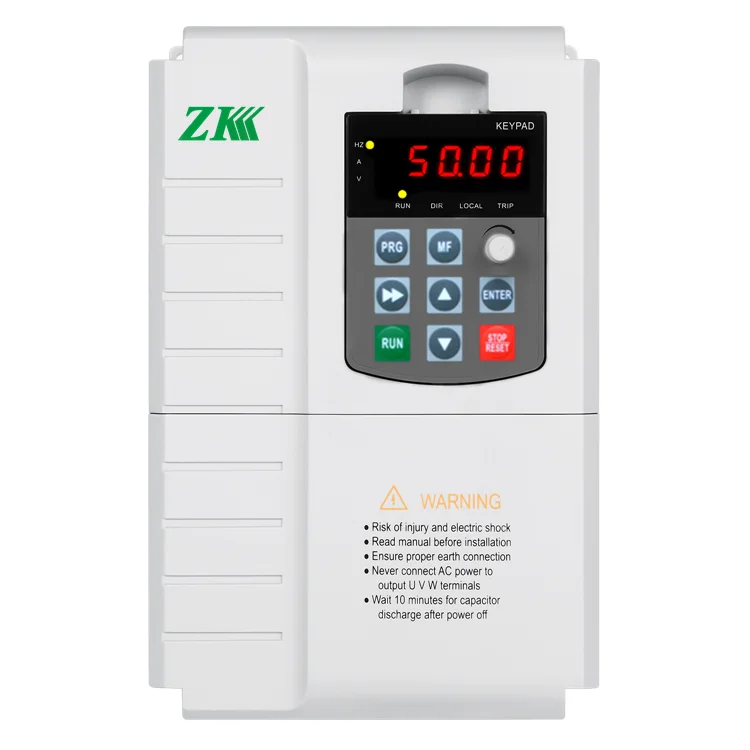

VFD VSD 1.5kw однофазный 70V-450Vdc DC к инвертору солнечного насоса переменного тока
9 133,32 ₽ - 11 004,00 ₽

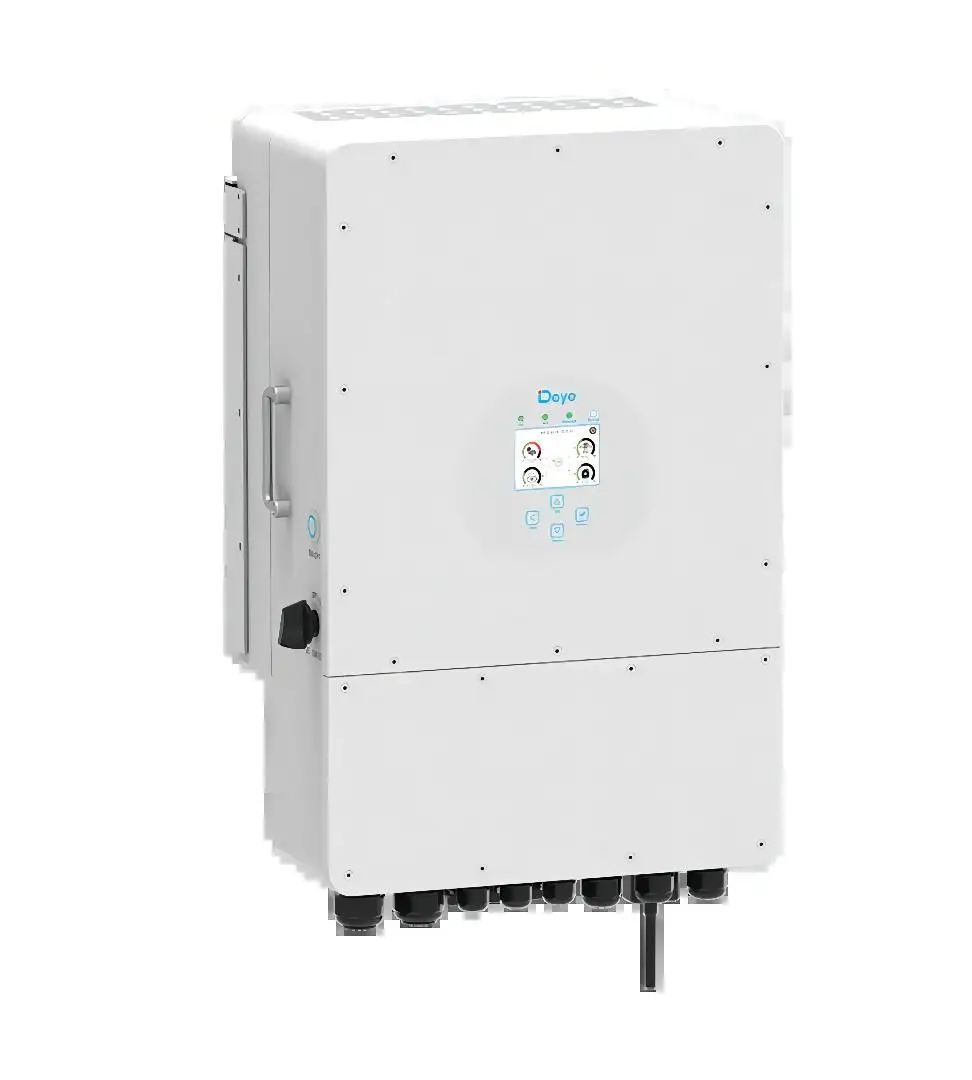

Deye Гибридный солнечный инвертор 8kw 10kw 12kw трехфазный низковольтный преобразователь ВКЛ-ВЫКЛ сетка SUN-12K-SG04LP3-EU поддержка дизель-генераторная установка
185 747,52 ₽ - 212 597,28 ₽
Солнечный инвертор Deye SUN-8K-SG05LP1-EU 40-60 В однофазный с MPPT sun 5k 6k 7 6 k 8k может запасать энергию от дизельного генератора
85 831,20 ₽ - 88 032,00 ₽

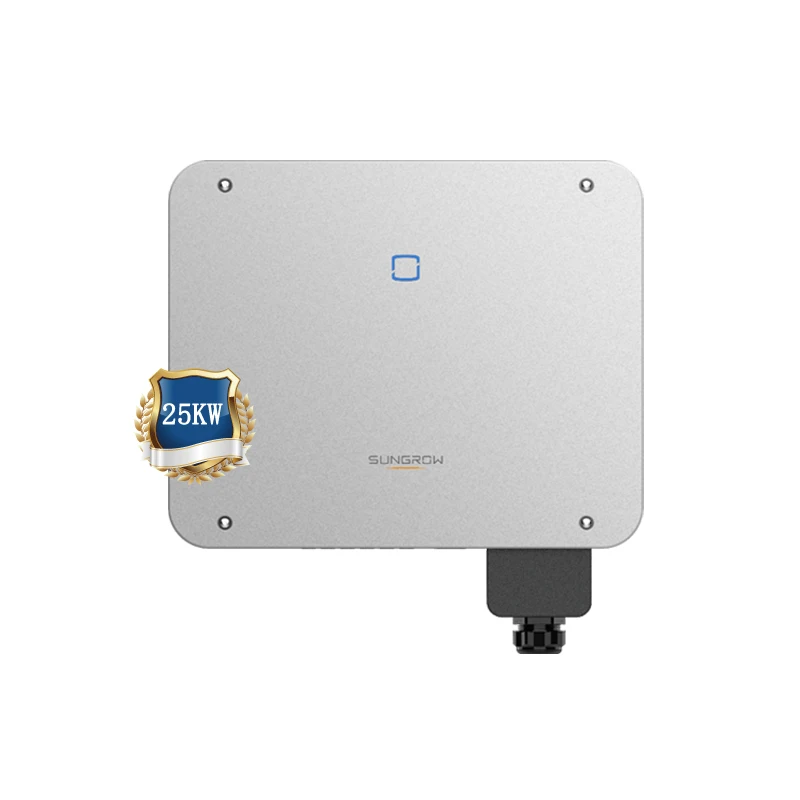

Sungrow цена от производителя на сетке 25 кВт трехфазный Солнечный инвертор
77 028,00 ₽ - 84 290,64 ₽

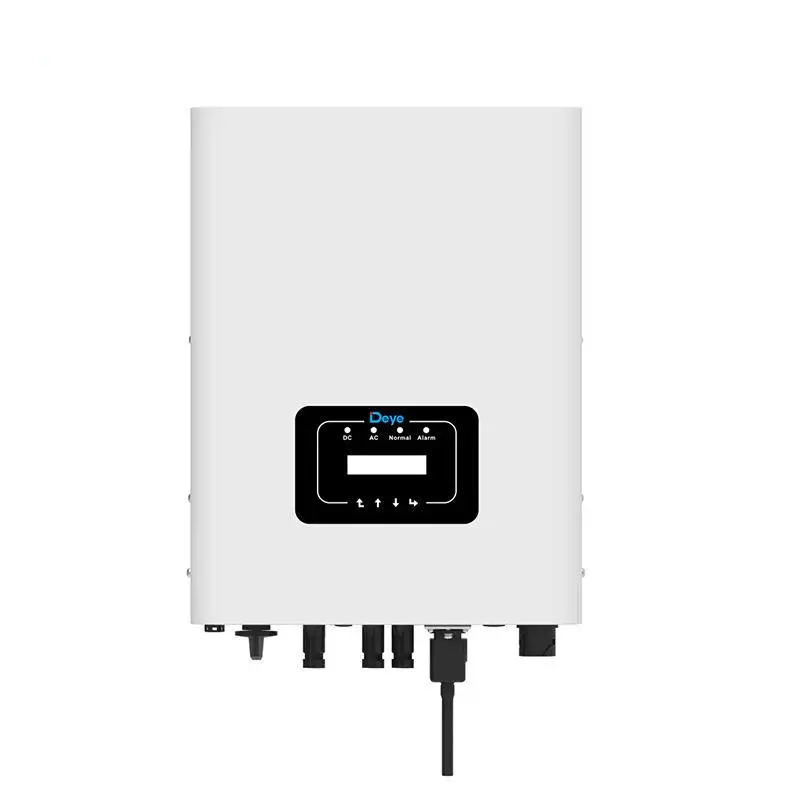

Трехфазные солнечные инверторы Deye SUN-15/17K-G05 380 В 15 кВт 17
