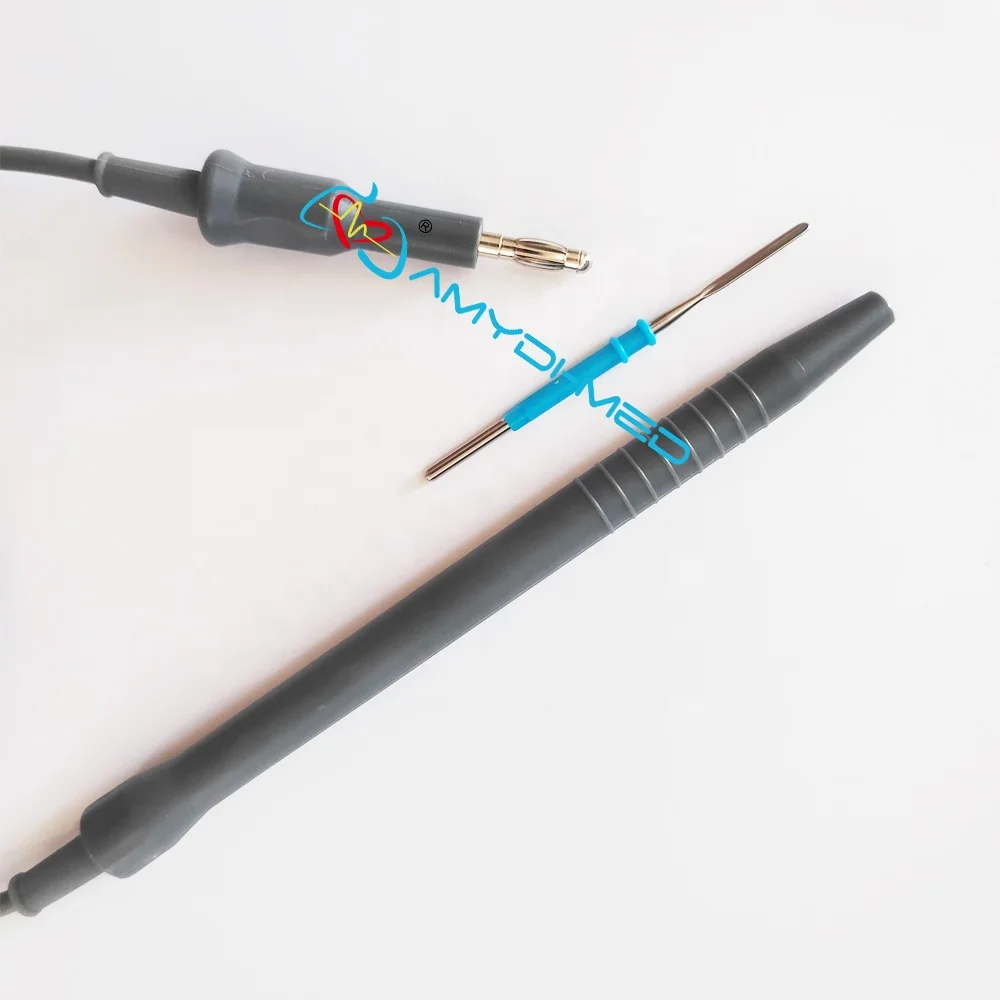

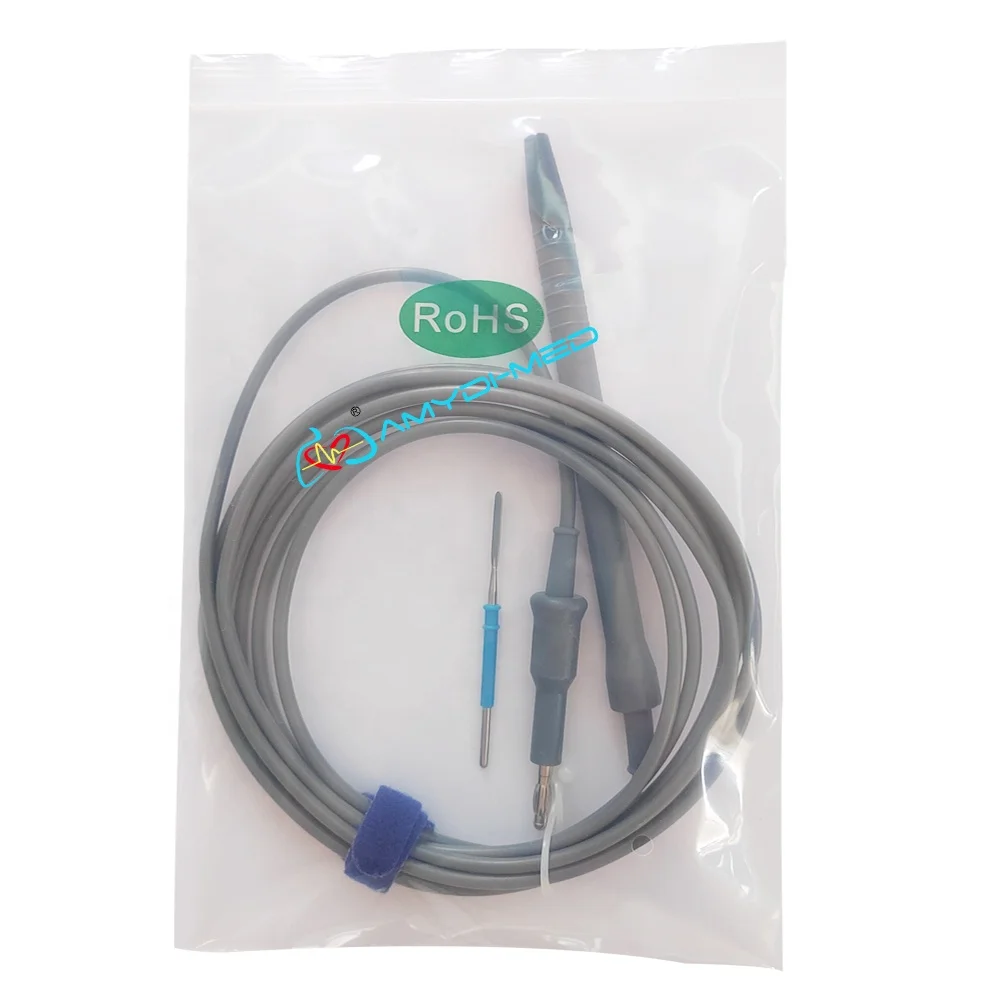

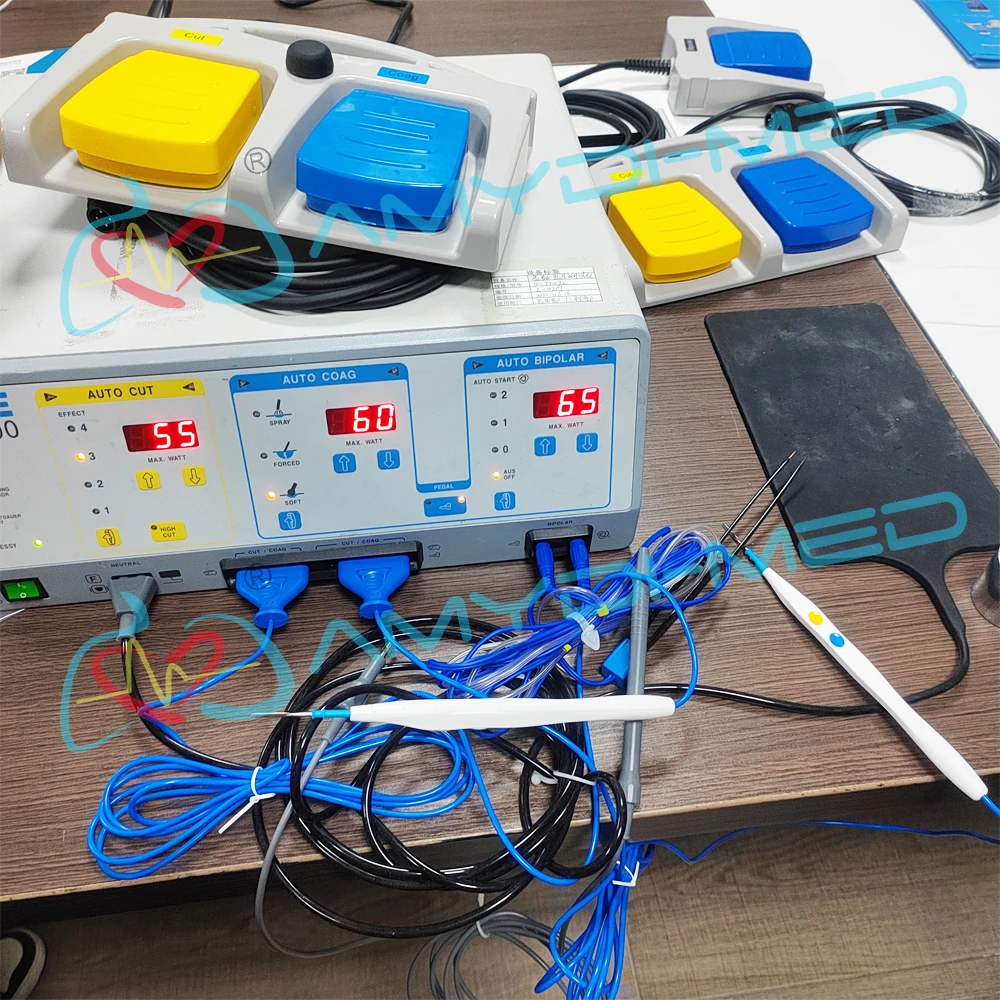

Product name | Reusable ESU Electrosurgical Pencil | ||||||
Compatible brand | Berchtold, Martin, and all with Φ4.0mm banana plug | ||||||
Cable color | Gray | ||||||

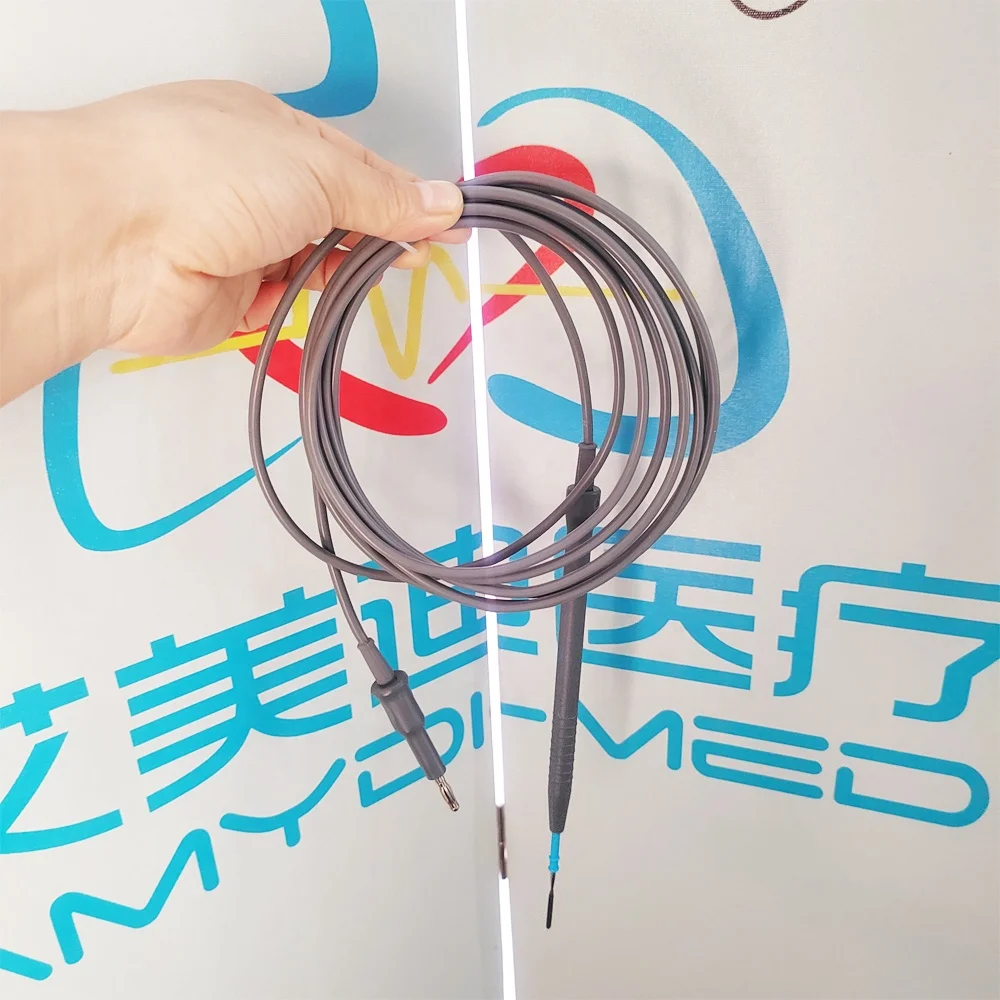

Cable length | 3m | ||||||
Applicable | Hospital Surgical room | ||||||
Usage | Electrocution and Electrocoagulation During surgery | ||||||
Technical Characteristics | A: Temperature resistance test: can withstand a maximum temperature of 150°C, the lowest temperature of minus 20°C. B:Conductivity test: 100% conductivity OK, no short circuit, no open circuit, no colour error. C: insulation impedance test: DC500V, core wire and core wire, core wire and shield≥100MΩ. D: High voltage test: all conductors and the outer were between the voltage 5000V (DC) leakage current≤0.5mA 1min. F: bending life: swinging rod to swing at an angle of 90°(vertical direction on each side of 45°) electrode handle of the cable about 30 times per minute speed swing 1000 times, electrode plug of the cable about 30 times per minute speed swing 5000 times. G: After the test, the cable shall not fail or have visible damage and its electrical continuity shall be checked with a direct current of not more than 1A. | ||||||
