Контроллер заряда солнечной батареи 12/24 В

Описание и отзывы

Характеристики

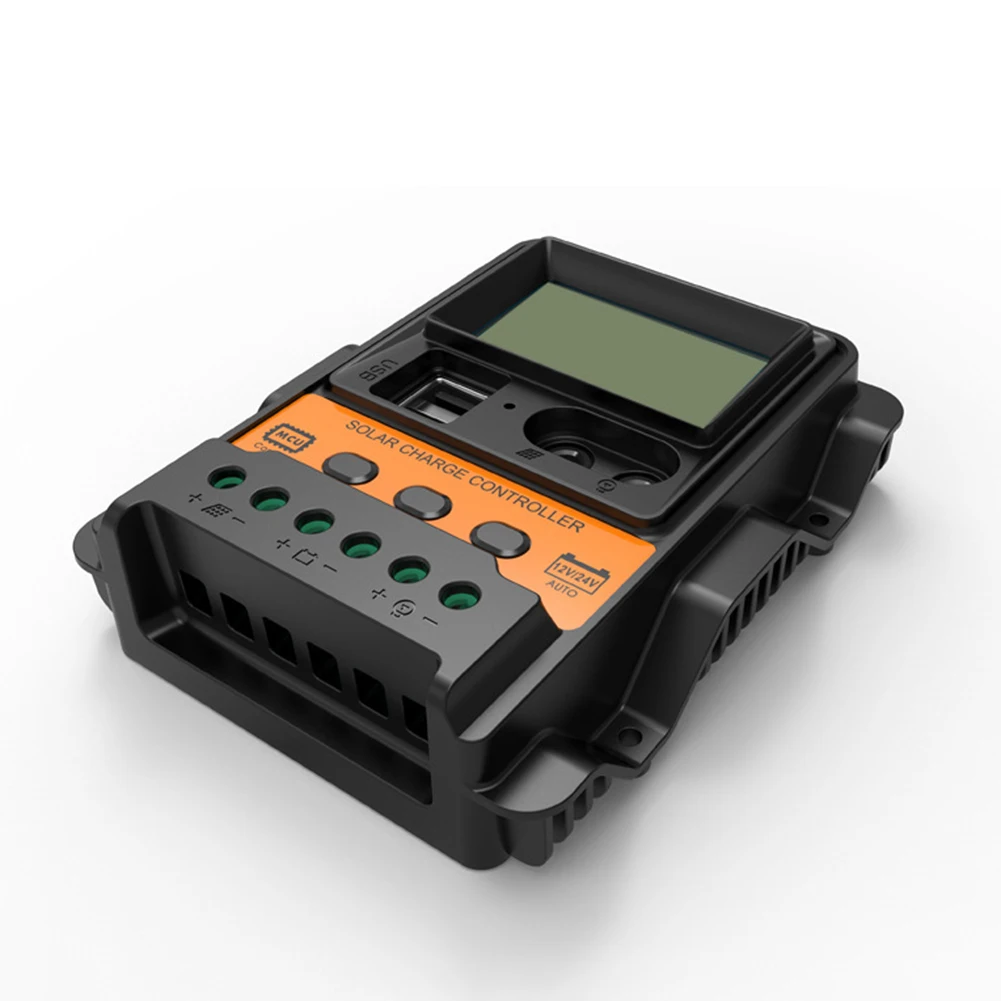

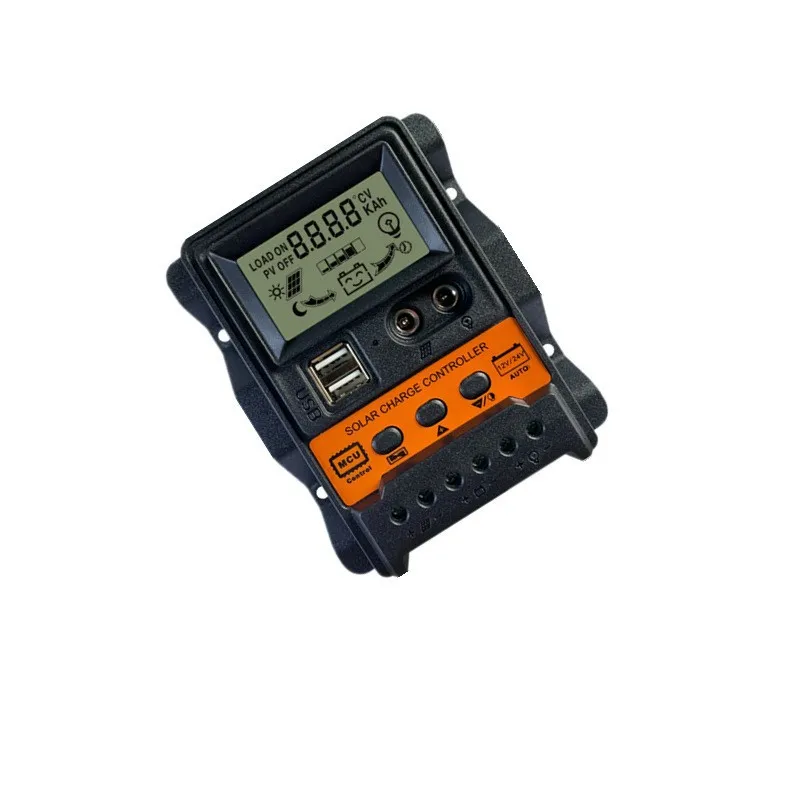

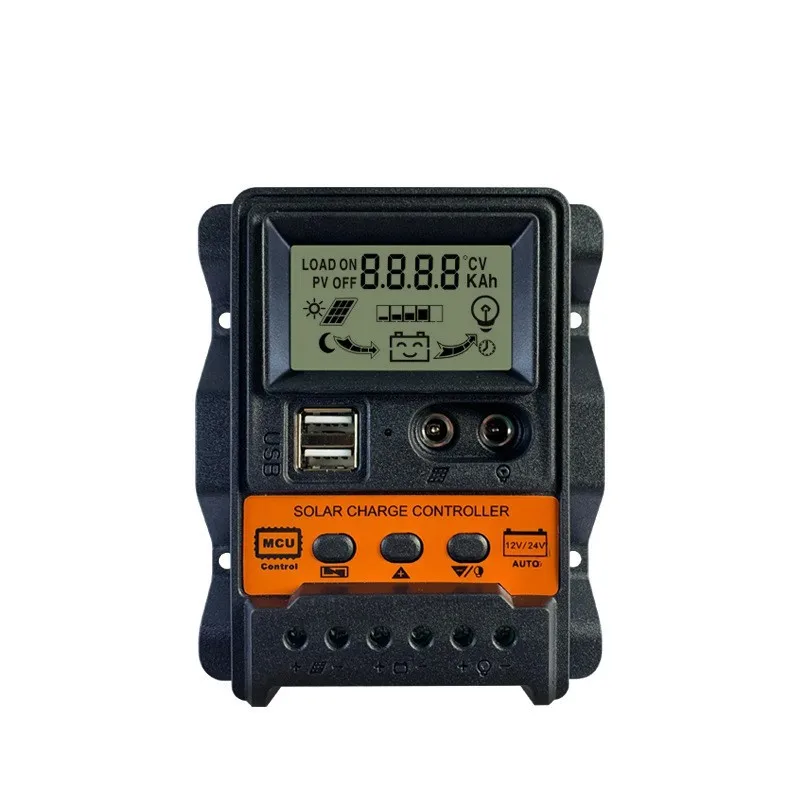

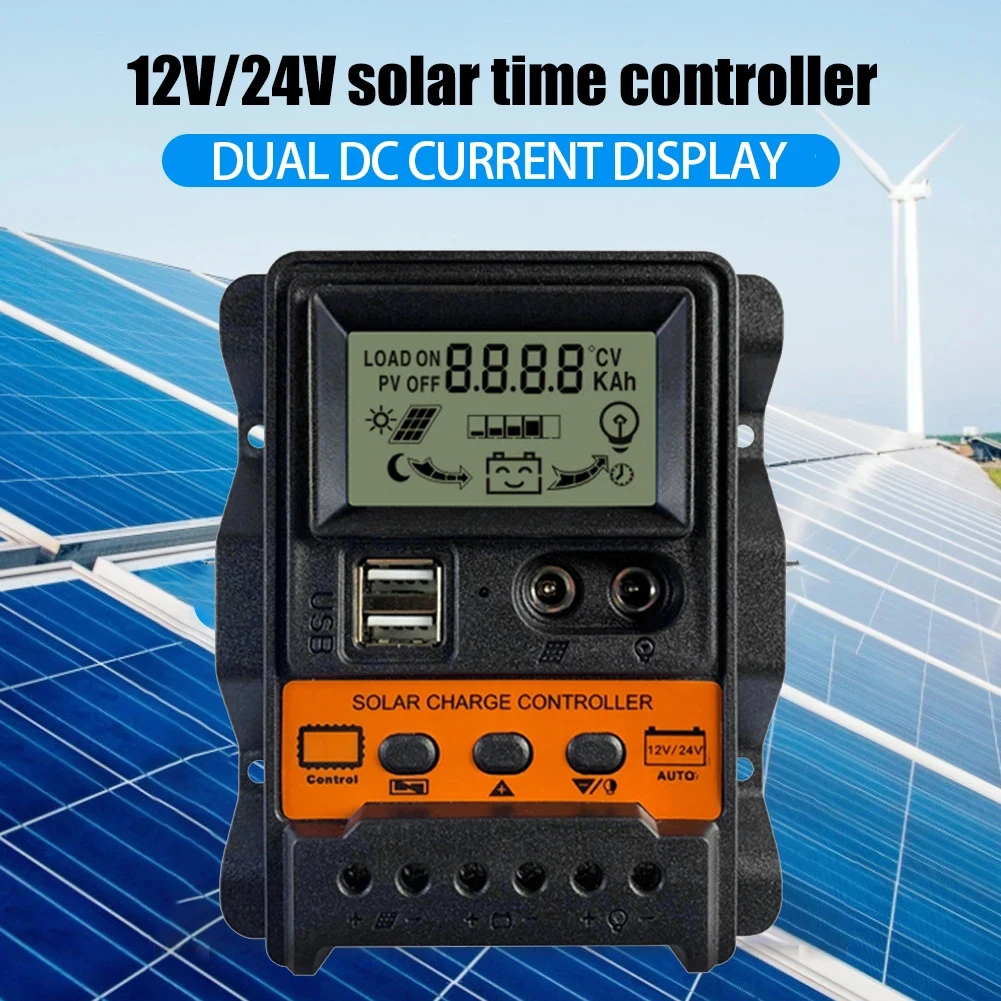

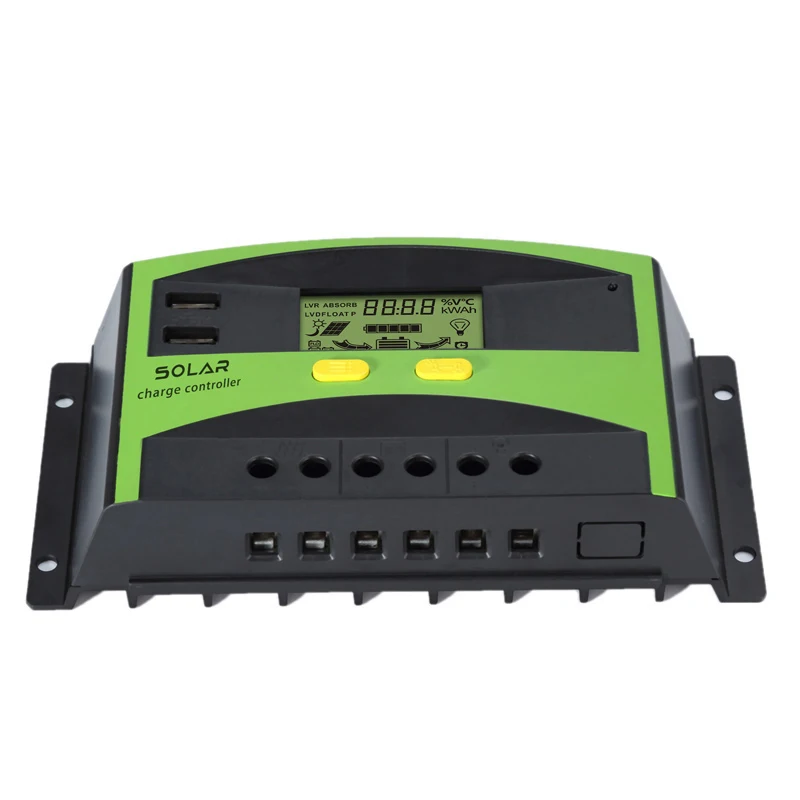

Dual USB LCD Solar Charge Controller 12/24V Solar Panel Charger Regulator Solar Cell Panel Solar Energy Charge Controller Parts

Package of solar charge controller:

1 x 10A/30A/60A/100A Solar Controller

Solar Charge Controller:

•


  Material: ABS + PC
  System voltage: 12V24V automatic adaptation
  Rated charging current (optional): 10A/20A/30A
  Maximum photovoltaic voltage: 23V for 12V battery; 46V for 24V battery
  Boost charging voltage: 14.4V
  Floating voltage: 13.7V (default value, adjustable)
  Discharge cut-off voltage: 10.7V (default value, adjustable)
  Discharge recovery voltage: 126V (default value, adjustable)
  Charging recovery voltage: 13V
  Light-controlled turn-on threshold Photovoltaic panel: 8V (light-controlled turn-on has a delay)
  USB output: 2 USB outputs, 5V/2.5A (maximum)
  Standby current: <10mA
  Working temperature: -35 - +60℃
  Size: 130x105x380mm/4.92x4.41x1.34in

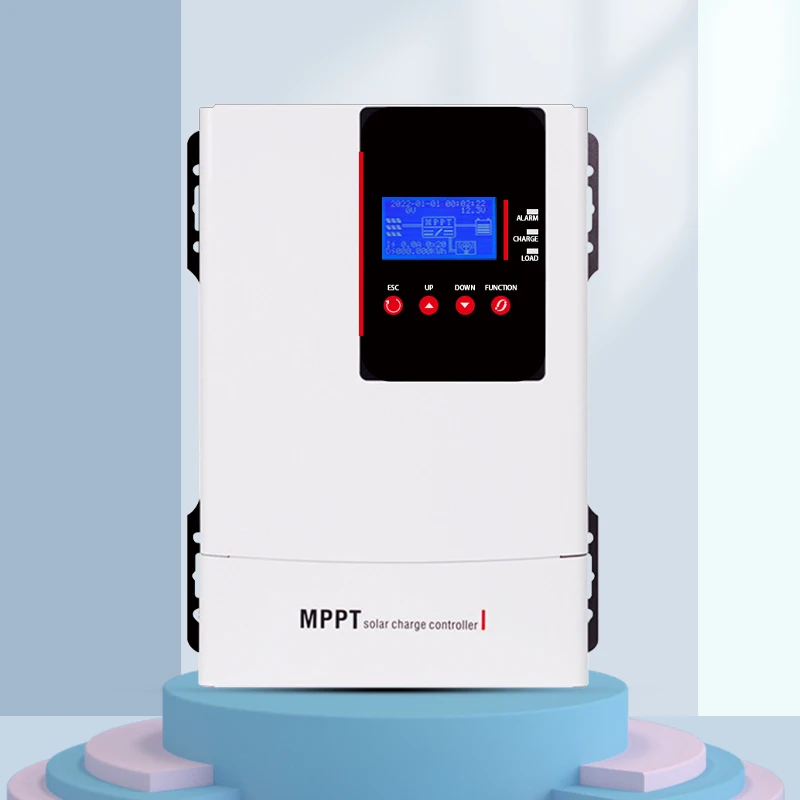

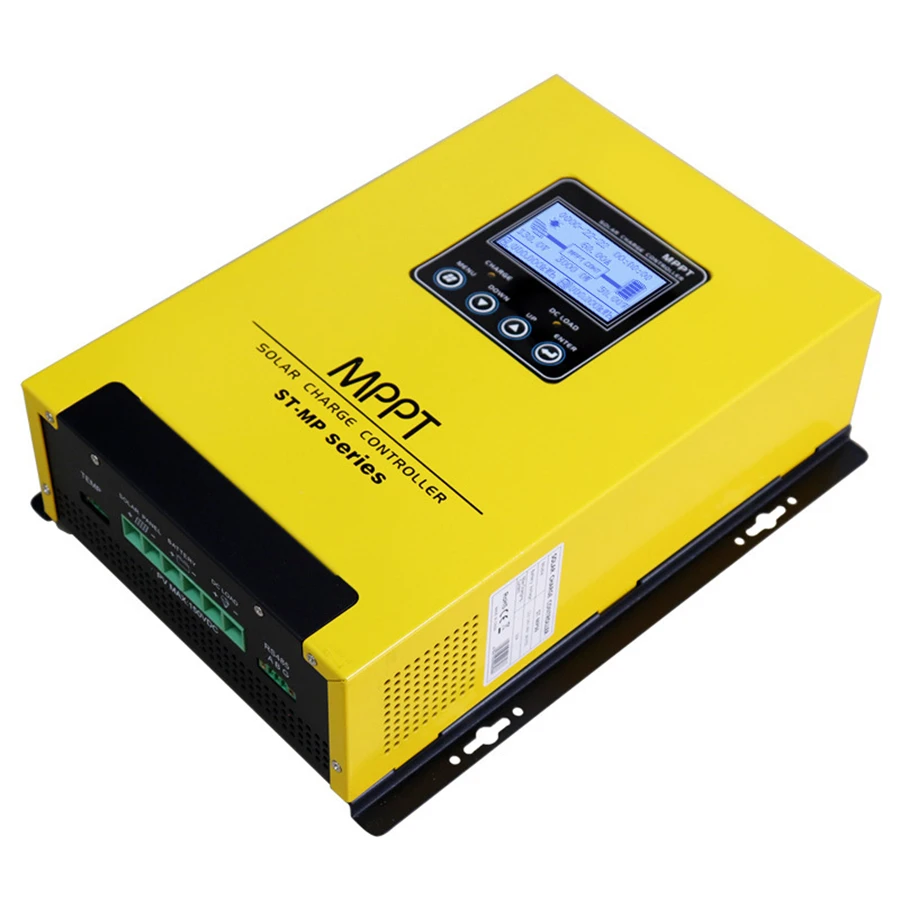

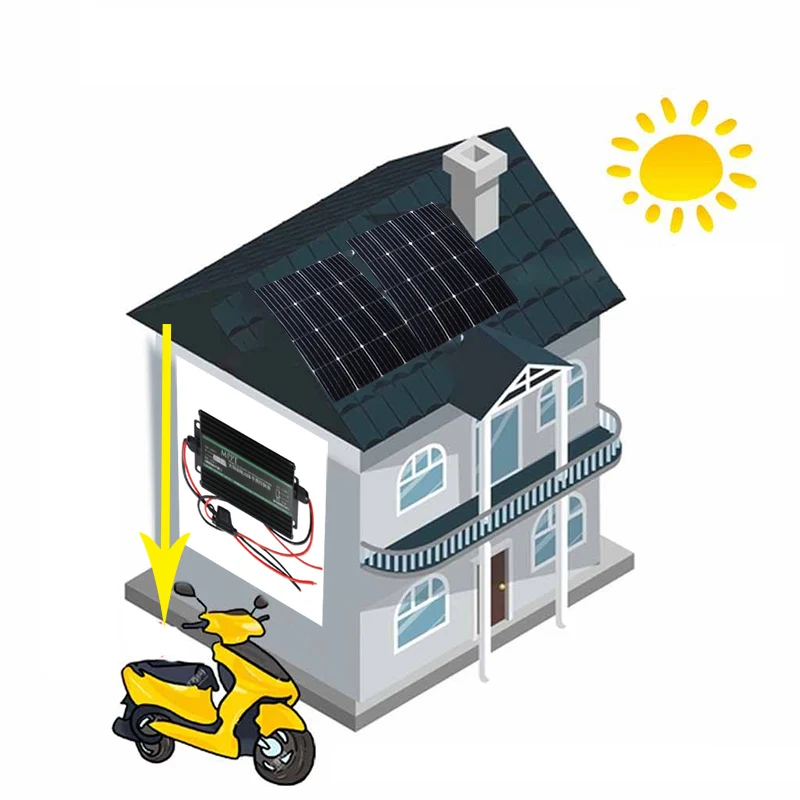

A solar charge controller is used to keep the battery from overcharging by regulating the voltage and current coming from the solar panel to the battery. It is programmed at 15-A/200-W unit and uses MPPT (maximum power point tracking) to accelerate solar charging of the battery up to 30% per day.

Q:Can you supply OEM &ODM service?
A:Yes, but there is a MOQ required.

Q:Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q:How long is the delivery time of solar charge controller?
A:It depends on order quantity of solar charge controller.

Q:How long is the warranty?
A:1 year warranty.

Q:Can you supply solar panels? Can you recommend the solar panels for each product?
A:We can provide solar panels, if the customer needs, we can take the one-stop solution services.

Q:How do you ship the solar charge controller since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.

Q:How long is the delivery time of the solar charge controller?
A:The delivery time of different solar charge controller is different, and the delivery time of portable solar charge controller is usually 1 month.

Q:Does your solar charge controller products have UPS function?
A:The portable solar charge controller has no UPS function, while the home systems has UPS function

Q:Can I get a solar portable solar charge controller sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.


Recommendations for safe use:

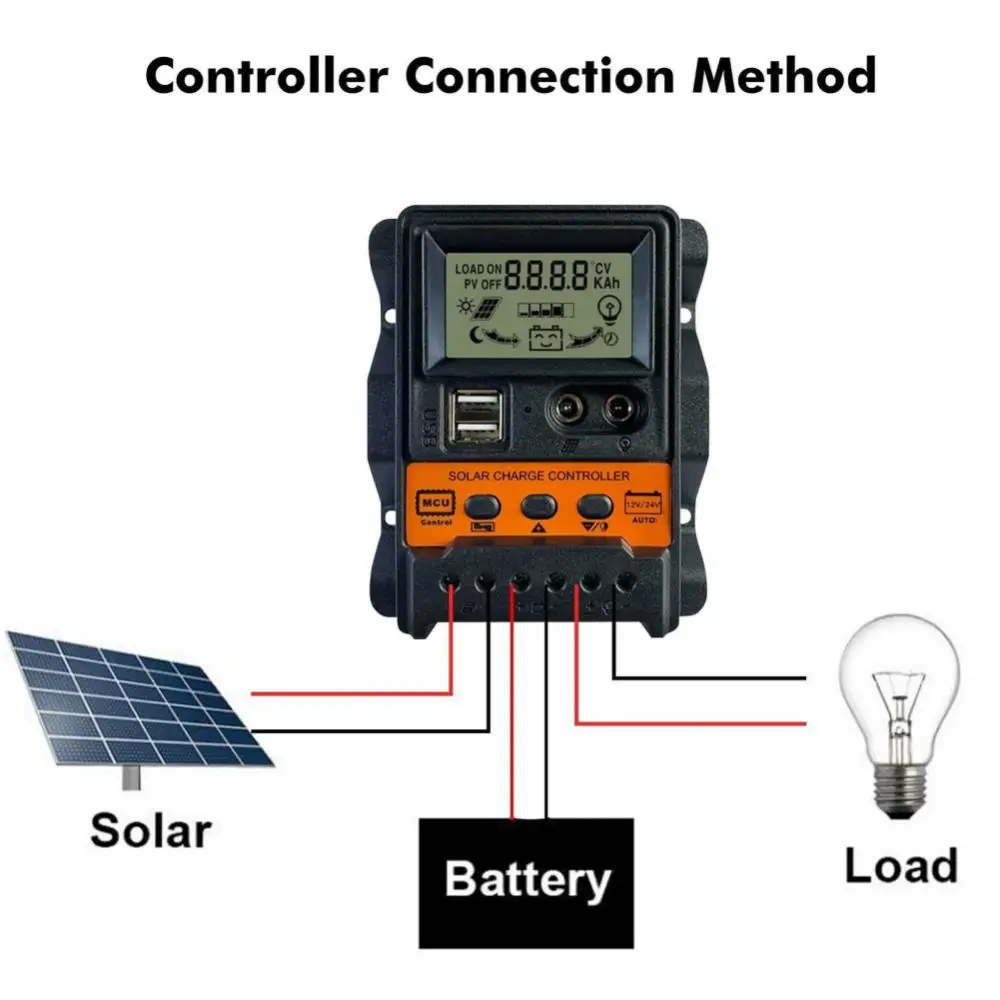

1. This solar controller automatically recognizes 12V24V. When installing for the first time, please make sure that the battery has enough voltage so that the solar controller can recognize the correct battery type.
2. Install the solar controller as close to the battery as possible to avoid voltage drop caused by excessively long wires and affect normal voltage judgment.
3. This solar controller is only suitable for all kinds of lead-acid batteries (including openings, seals, gels, etc.).
4. This solar charge controller can only use photovoltaic panels as the charging source. Do not use DC or other power sources as the charging source.
5. The solar charge controller will heat up when it is running, please pay attention to install the controller on a flat, well-ventilated surface.
