Digital TV Broadcasting Headend 12 in 1 multiplexer ISDBT 12 channels 2ASI IP multiplexer

Product Description

Summary

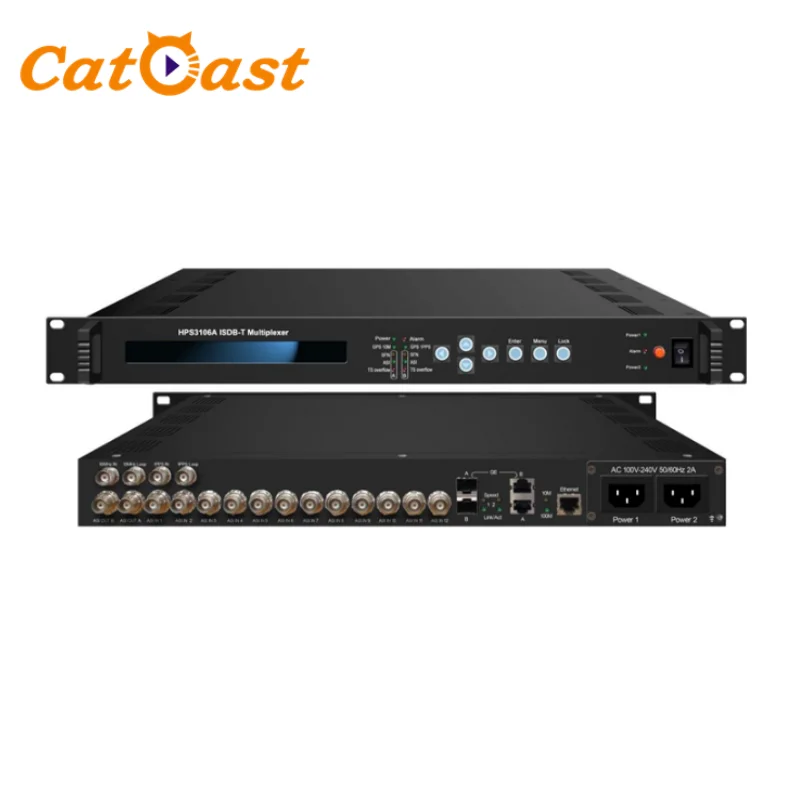

HPS3106A ISDB-T multiplexer is a TS re-multiplexer developed to adapt Japan and those South American countries such as Brazil and Argentina. It supports 2 separate multiplexers which are fully complying with ISDB-T/Tb standard. This multiplexer can transfer the head- end single program and multi-program to ISDB-T/Tb standard TS as required. Additionally, it also supports PSI/SI table editing and generating, single frequency network and IIP packet editing and inserting. What’s more, the HPS3106A ISDB-T multiplexer can support up to 12 channels input, 2 independent ASI output and 2 IP output, the transmission mode is compatible with hierarchy.
It is design with advanced management system which allows users to upgrade and control the multiplexer system online through network.

Key Features

* Fully complying with ISDB-T/Tb standard
* PSI/SI rebuilding, editing and generating; descriptor data inserting
* Support accurate PCR adjusting
* Support PID filtering, re-mapping
* Support IP output over UDP protocol
* Support network remote upgrade
* Two separate channels TS re-Multiplexing
* Huge buffer, suddenly code stream resistance
* Support input 188/204Byte transmission stream packet
* Supporting hierarchy transmission, support SFN
* Support set transmission interval of PSI/SI table
* Support IP packet editing and generator
* Support LCD/keyboard and net management, support NMS/SNMP

Specification

Signal inputting	12 ASI input
		188/204Byte transmission stream packet
		TS packet mode and suddenly code rate mode
		GPS 10mhz reference clock inputting
		GPS 1pps signal inputting
Re-multiplexing	2 separate channels TS re-multiplexer
		PCR accurate adjusting
		PSI/SI table automatically generating
Modulation parameter	Mode: mode1(2k) mode2(4k) mode3(8k)
		Guard interval: 1/4 1/8 1/16 1/32
		Coding rate: 1/2 2/3 3/4 5/6 7/8
		Constellation: DQPSK QPSK 16QAM 64QAM
		Layer: A A+B A+B+C
		Bandwidth: 6MHz 7MHz 8MHz
SFN parameter	Maximum time delay: 0ms - 1000ms
		Off set: -1000ms - +1000ms
		Device ID: 0 - 30
Output	2 ASI output(BNC)
		2 IP output(UDP protocol)
		RS encoding output supporting
		GPS 1pps and GPS 10Mhz loop-out(BNC)
General	Demission: 44mmx482mmx410mm
		Temperature: 0-45℃ (operation) -20-80℃ (storage)
		Power supply: 220VAC±10%, 50/60Hz, 10W

Principle Chart

Related Products

Packing&Shipping

Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box

Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
