Пневматический водородный азотный кислородный газовый бустерный насос высокого давления с реле
- Категория: >>>
- Поставщик: Dongguan Suncenter Fluid Control Equipment Co. Ltd.
Сохранить в закладки 1600903771369:
Описание и отзывы
Характеристики
Gas booster pump system
Suncenter - Gas booster systems are compact and delicacy solution tailored to customer specific requirements with gas boosters as well as all accessories to be fitted and installed in the frame or a closed cabinet.
To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator.
The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure.
Suncenter - Pneumatic booster system are used for oil free compression of clean shop air as well as industrial gases like Argon, Helium, Oxygen, Hydrogen and Nitrogen,CO2, etc..Driven air from 3 bar to 8 bar (from air compressor).
Operating pressure up to 80 MPa, for higher pressure, pump with double driven heads is an ideal option.
To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator.
The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure.
Suncenter - Pneumatic booster system are used for oil free compression of clean shop air as well as industrial gases like Argon, Helium, Oxygen, Hydrogen and Nitrogen,CO2, etc..Driven air from 3 bar to 8 bar (from air compressor).
Operating pressure up to 80 MPa, for higher pressure, pump with double driven heads is an ideal option.
Applications
Pressure test with gas
Gas transfer and filling
(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO22/CH4/LNG/LPG/CNG/FM200 etc.)
Charging of gas cylinder and accumulator with nitrogen
Supply for isolating gas systems
Gas assisted injection molding
Transfer of oxygen cylinders
Charging of breathing air bottles
Leak test
Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
Safety valve adjusting
Gas transfer and filling
(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO22/CH4/LNG/LPG/CNG/FM200 etc.)
Charging of gas cylinder and accumulator with nitrogen
Supply for isolating gas systems
Gas assisted injection molding
Transfer of oxygen cylinders
Charging of breathing air bottles
Leak test
Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
Safety valve adjusting

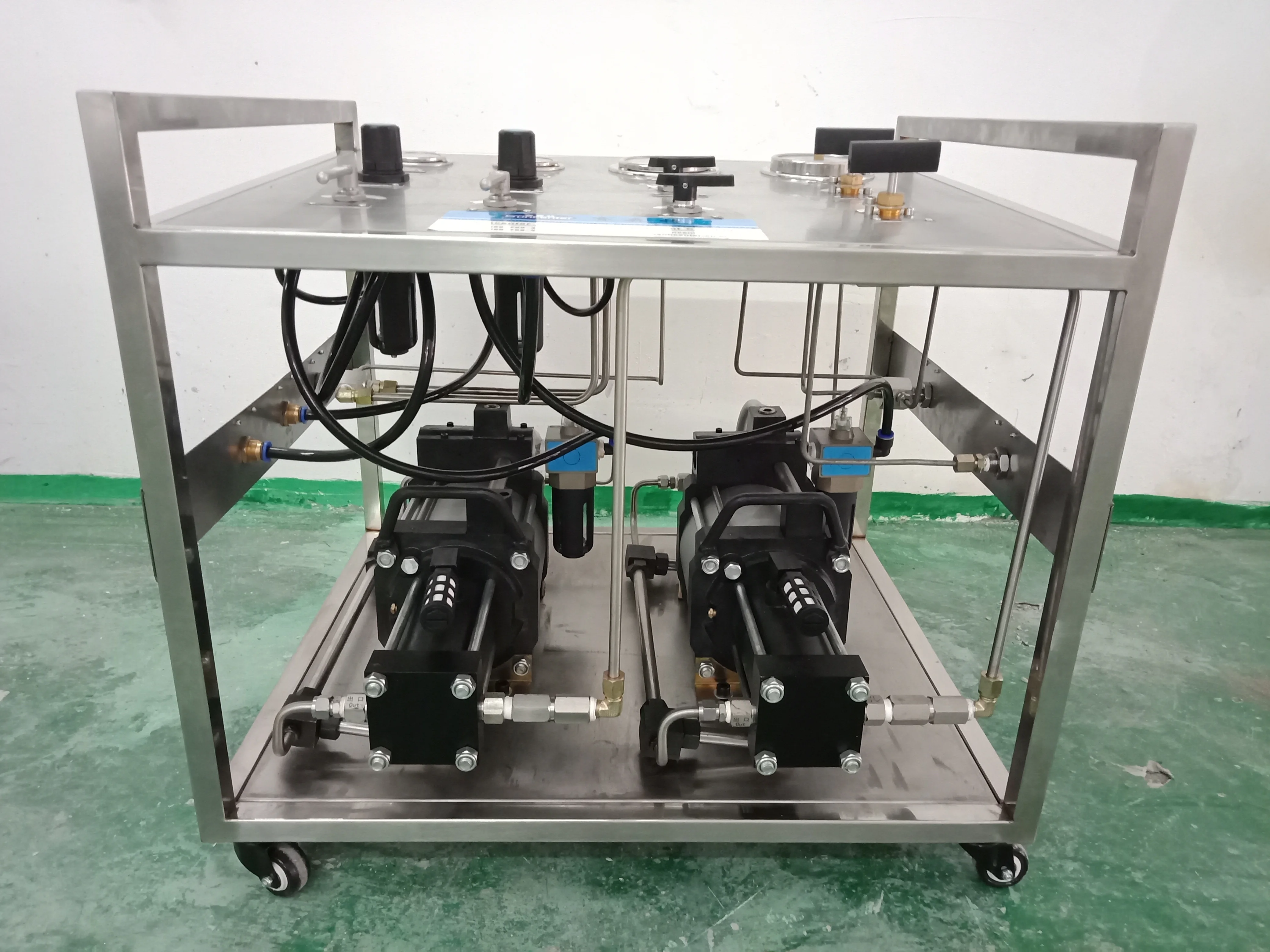

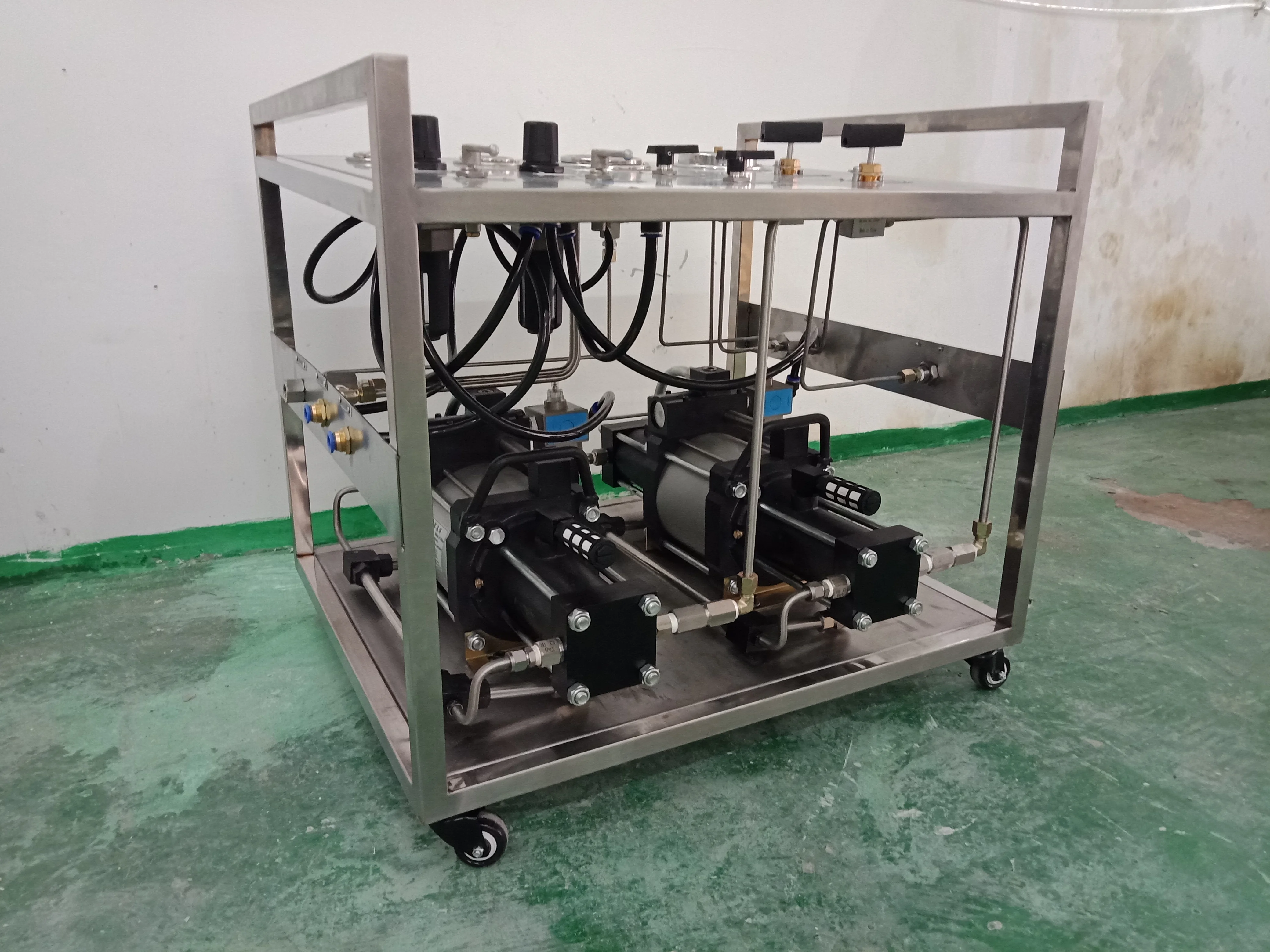

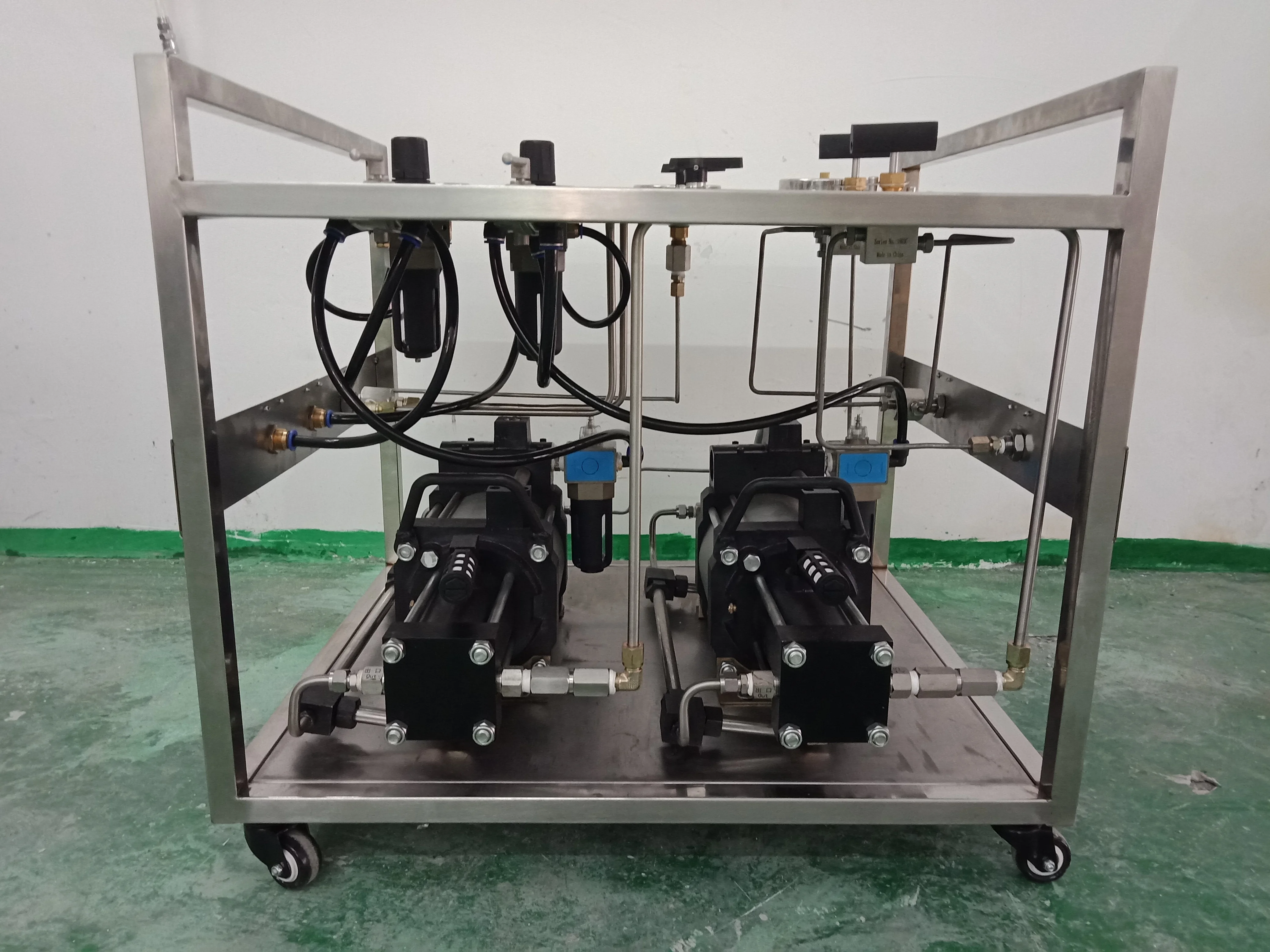

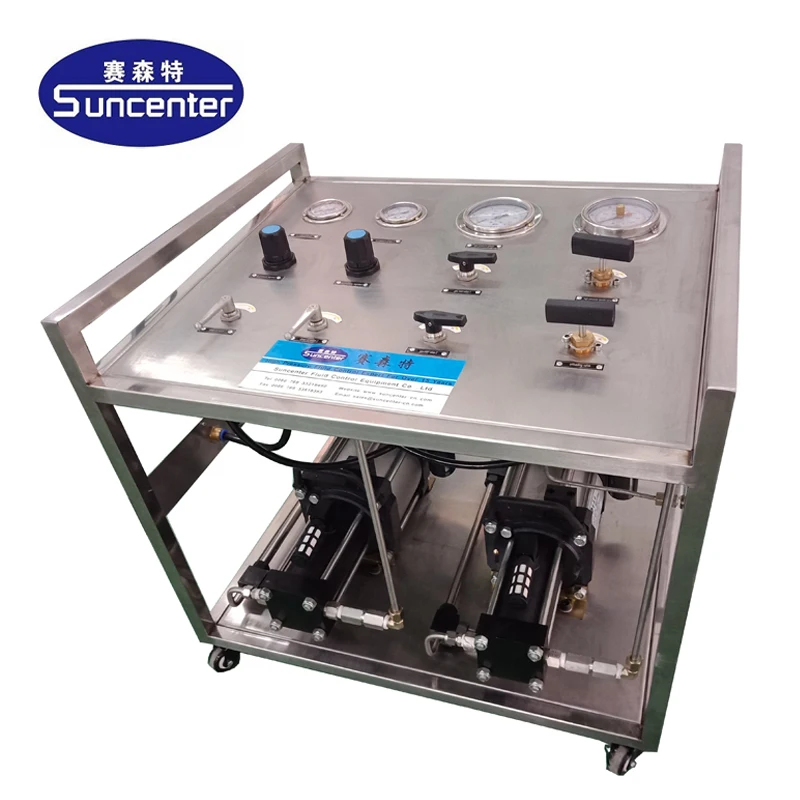

DGS gas booster system = booster pump+ following valves, gages, and parts
Stainless steel (carbon steel) material cabinet (Three models for choosing)
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and water filter)

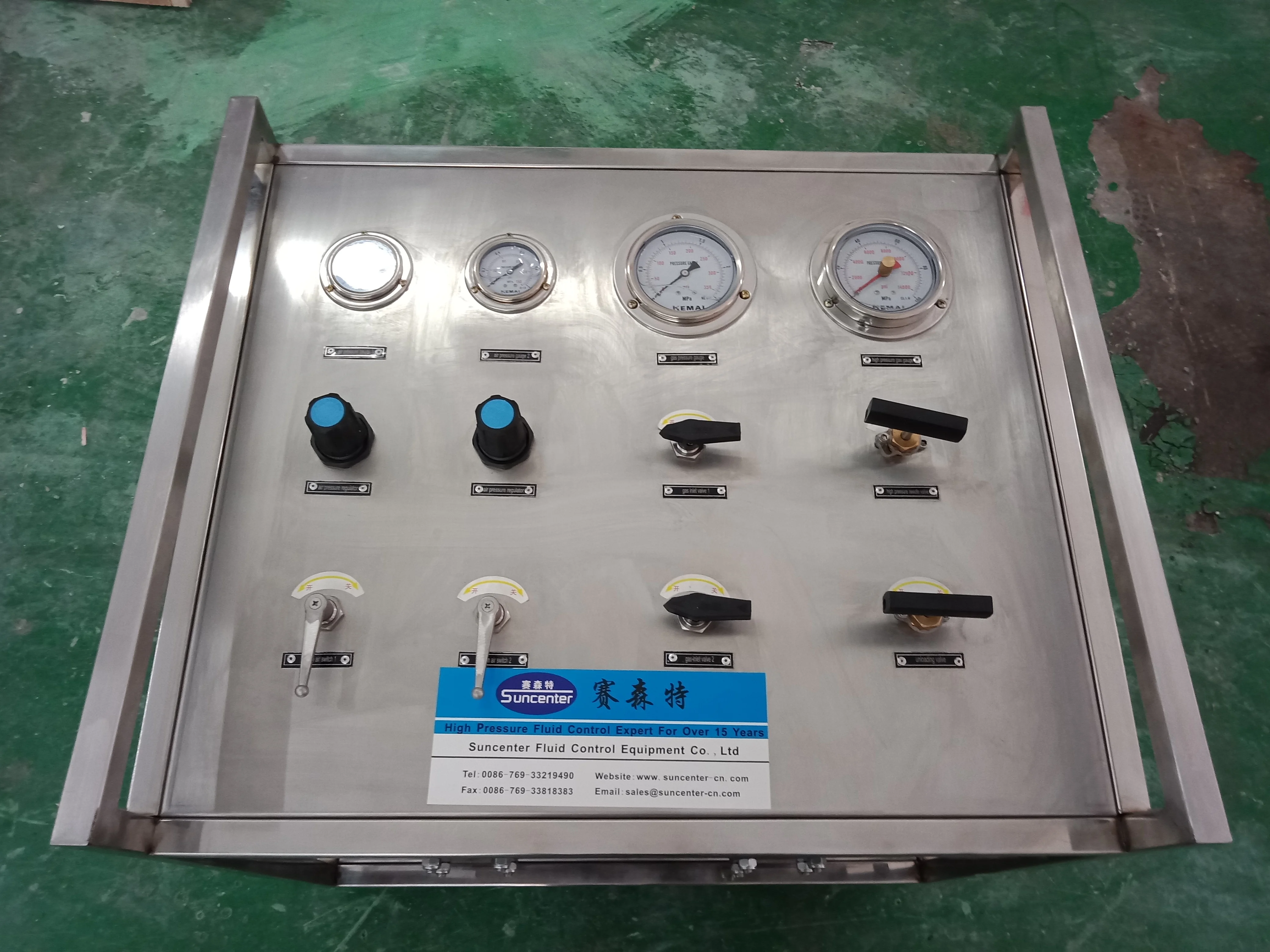

Driven air switch (Pump starting switch), driven air pressure gauge
Gas inlet switch, Gas inlet pressure gauge
Gas outlet switch, Gas outlet pressure gauge, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients’ special requirement.
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-DGA02 | 2：1 | 1.0 | 16 | 16 | 2bar-8 bar | 2X PL | 1/2 / 1/2 | 960 (at PA of 6 bar ) |
DGS-DGA05 | 5：1 | 0 | 40 | 40 | 2bar-8 bar | 5XPL | 1/2 / 1/2 | 680(at PA of 6 bar ) |
DGS-DGA06 | 6：1 | 2.0 | 48 | 48 | 2bar-8 bar | 6XPL | 1/2 / 1/2 | 360(at PA of 10 bar ) |
DGS-DGA10 | 10：1 | 3.5 | 80 | 80 | 2bar-8 bar | 10XPL | 3/8/ 3/8 | 210(at PA of 10 bar ) |
DGS-DGA15 | 15：1 | 3.5 | 120 | 120 | 2bar-8 bar | 15XPL | 3/8/ 3/8 | 190(at PA of 10 bar ) |
DGS-DGA25 | 25：1 | 7.0 | 200 | 200 | 2bar-8 bar | 25XPL | 1/4/ 1/4 | 120(at PA of 20 bar ) |
DGS-DGA40 | 40：1 | 10 | 320 | 320 | 2bar-8 bar | 40XPL | 1/4/ 1/4 | 200(at PA of 40 bar ) |
DGS-DGA60 | 60：1 | 20 | 480 | 480 | 2bar-8 bar | 60XPL | 1/4/ 1/4 | 180(at PA of 40 bar ) |
DGS-DGA100 | 100：1 | 25 | 800 | 800 | 2bar-8 bar | 100XPL | 1/4/ M14X1.5 | 136(at PA of 40 bar ) |
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-DGD10 | 10:1 | 3.5 | 80 | 80 | 2bar-8 bar | 10XPL+ PA | 3/8/3/8 | 410(at PA of 6 bar ) |
DGS-DGD15 | 15:1 | 5 | 120 | 120 | 2bar-8 bar | 15XPL+ PA | 3/8/3/8 | 350 (at PA of 6 bar ) |
DGS-DGD25 | 25:1 | 10 | 200 | 200 | 2bar-8 bar | 25XPL+ PA | 1/4/1/4 | 396(at PA of 20 bar ) |
DGS-DGD40 | 40:1 | 15 | 320 | 320 | 2bar-8 bar | 40XPL+ PA | 1/4/1/4 | 320(at PA of 40 bar ) |
DGS-DGD60 | 60:1 | 25 | 480 | 480 | 2bar-8 bar | 60XPL+ PA | 1/4/1/4 | 215(at PA of 40 bar ) |
DGS-DGD100 | 100:1 | 35 | 800 | 800 | 2bar-8 bar | 100XPL+ PA | 1/4/M14*1.5 | 300(at PA of 60 bar ) |
DGS-DGD130 | 130:1 | 50 | 1040 | 1040 | 2bar-8 bar | 130XPL+ PA | 1/4/M14*1.5 | 180(at PA of 60 bar ) |
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-2DGD10 | 10:1 | 3 | 80 | 80 | 2bar-8 bar | 10XPL+ PA | 1/2 / 1/2 | 980(at PA of 6 bar ) |
DGS-2DGD25 | 25:1 | 6 | 200 | 200 | 2bar-8 bar | 25XPL+ PA | 3/8 / 3/8 | 560(at PA of 10 bar ) |
DGS-2DGD40 | 40:1 | 25 | 320 | 320 | 2bar-8 bar | 40XPL+ PA | 3/8 / 3/8 | 480(at PA of 40 bar ) |
DGS-2DGD60 | 60:1 | 30 | 480 | 480 | 2bar-8 bar | 60XPL+ PA | 3/8 / 3/8 | 320(at PA of 40 bar ) |
Technical specification for DGS-DGT Series:
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-DGT15 | 15:1 | 0.1 | 56 | 120 | 2-8 bar | 15XPL | 3/8/ 1/4 | 230(at PA of 8 bar ) |
DGS-DGT25 | 25:1 | 0.1 | 10 | 200 | 2-8 bar | 25XPL | 3/8/ 1/4 | 156(at PA of 8 bar ) |
DGS-DGT7/25 | 25:1 | 5 | 56 | 200 | 2-8 bar | 25XPL | 3/8/ 1/4 | 156(at PA of 8 bar ) |
DGS-DGT40 | 40:1 | 0.1 | 10 | 320 | 2-8 bar | 40XPL | 3/8/ 1/4 | 124(at PA of 8 bar ) |
DGS-DGT15/40 | 40:1 | 5 | 120 | 320 | 2-8 bar | 40XPL | 3/8/ 1/4 | 124(at PA of 8 bar ) |
DGS-DGT60 | 60:1 | 0.1 | 10 | 480 | 2-8 bar | 60XPL | 3/8/ 1/4 | 80(at PA of 15 bar ) |
DGS-DGT15/60 | 60:1 | 6 | 120 | 480 | 2-8 bar | 60XPL | 3/8/ 1/4 | 80(at PA of 15 bar ) |
DGS-DGT100 | 100:1 | 0.1 | 10 | 800 | 2-8 bar | 100XPL | 3/8/ 1/4 | 63(at PA of 8 bar ) |
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas Inlet pressure PA (bar) | Max.gas Inlet pressure PA (bar) | Max. gas outlet pressure PB (bar) | Driven air pressure PL | Formula to calculate gas outlet pressure PB | Connection: Gas Inlet / Gas outlet (NPT thread) | Max. flow at driven air pressure of 6bar (L/min) |
DGS-2DGT7/15 | 15:1 | 4 | 56 | 120 | 2bar-8 bar | 15XPL | 3/8 / 3/8 | 430(at PA of 10 bar ) |
DGS-2DGT7/25 | 25:1 | 5 | 56 | 200 | 2bar-8 bar | 25XPL | 3/8 / 3/8 | 300(at PA of 10 bar ) |
DGS-2DGT15/40 | 40:1 | 7 | 120 | 320 | 2bar-8 bar | 40XPL | 3/8 / 3/8 | 180(at PA of 10 bar ) |
DGS-2DGT15/60 | 60:1 | 7 | 120 | 480 | 2bar-8 bar | 60XPL | 3/8 / 3/8 | 120(at PA of 10 bar ) |
Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure
In order to extend the lifetime of the pump, the driven air pressure should not be higher than 8 bar
In order to extend the lifetime of the pump, the driven air pressure should not be higher than 8 bar
In order to choose suitable booster pump or systems for you,
please kindly reply us the following questions:
1.What is your present gas pressure?( )bar
2.What is your gas?oxygen gas,nitrogen gas or other gases?
3.What outlet gas pressure do you want?( )bar
4.What driven air pressure (of your air compressor) can you offer?( )bar,
because our booster is completely air operated and no need any electricity
5.What outlet gas flow rate do you need?( )L/min
DGS Series Gas Boosters Working Pictures
DGS-DGD40 gas booster system for nitrogen gas spring filling
DGS-DGT series gas boosters for gas cylinder transfer and filling
Packing&Shipping
Package: pack in plywood case
Shipment: by air/sea/express
Company Introduction
Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of
Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide
various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best
product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide
various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best
product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Our main products including:
1. High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
2. High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube
Expanding Machine)
3. High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing
Machine, etc.)
4. Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)
1. High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
2. High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube
Expanding Machine)
3. High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing
Machine, etc.)
4. Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)
