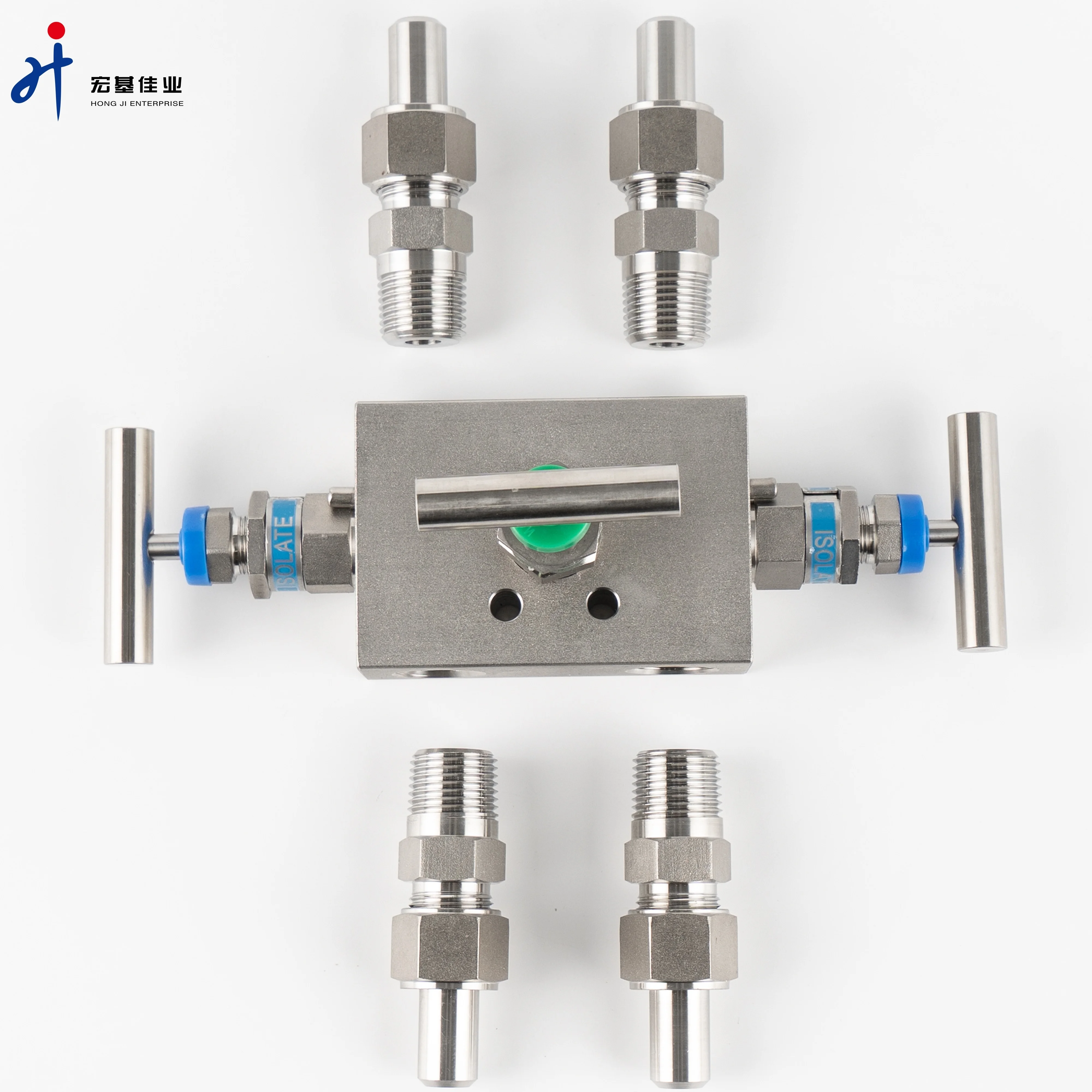

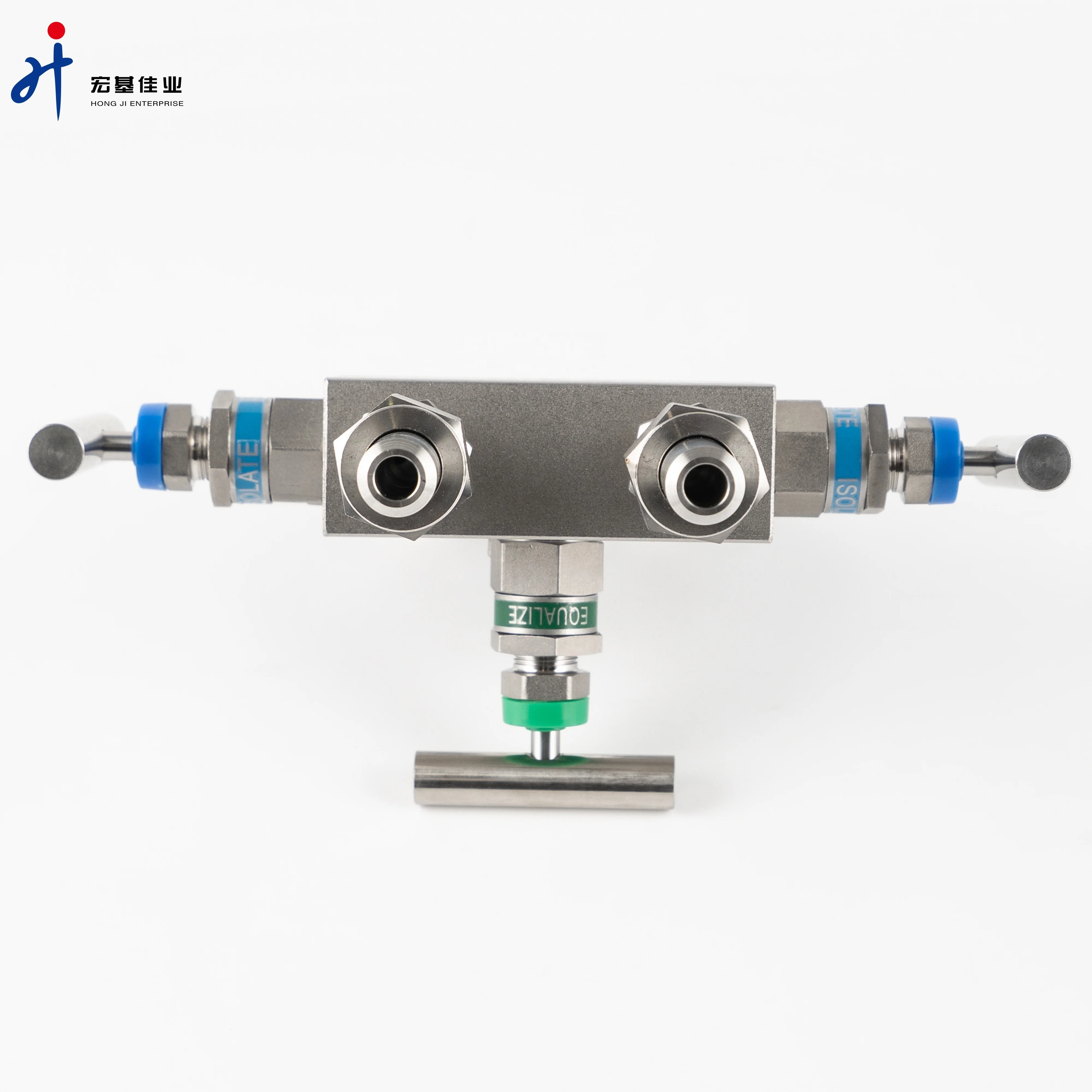

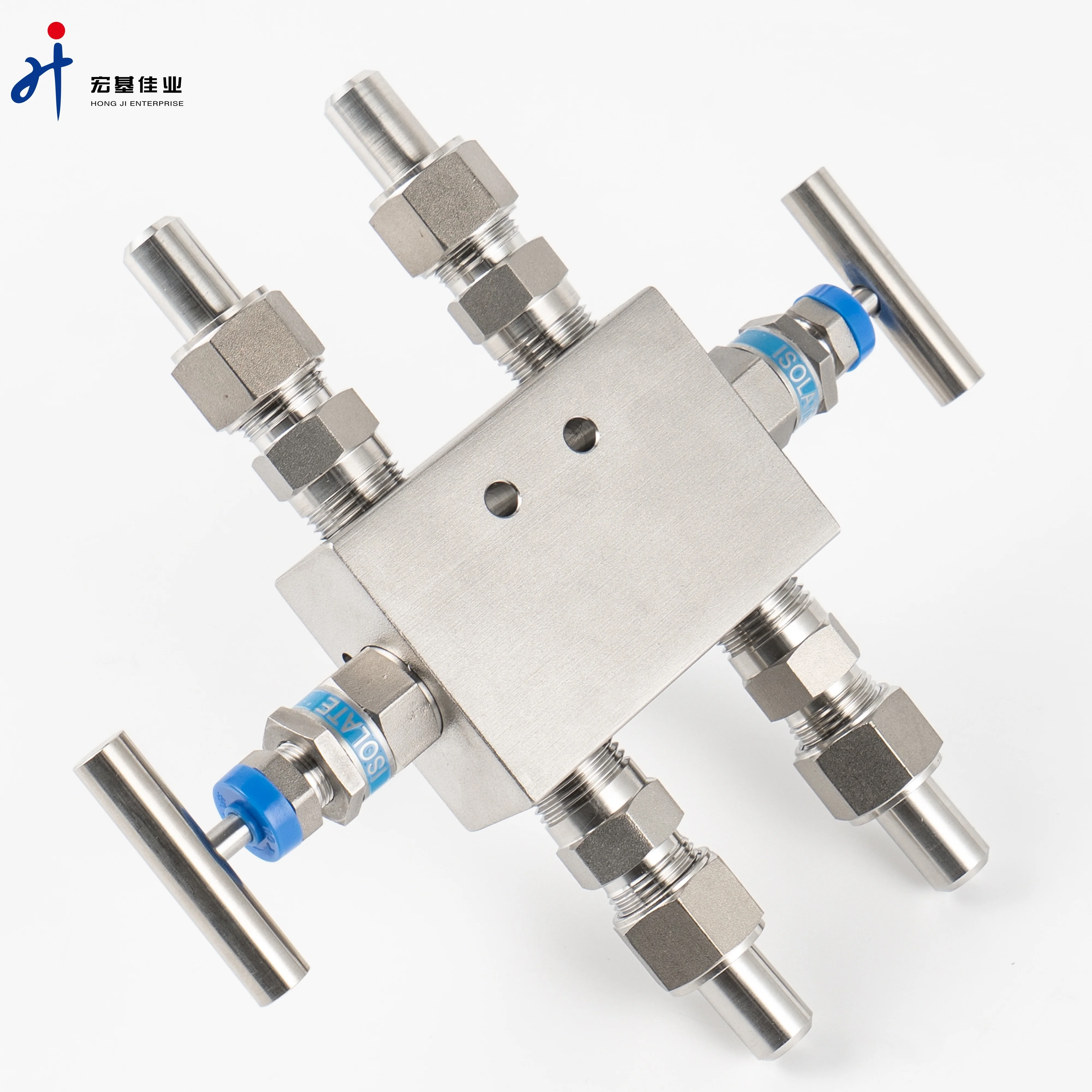

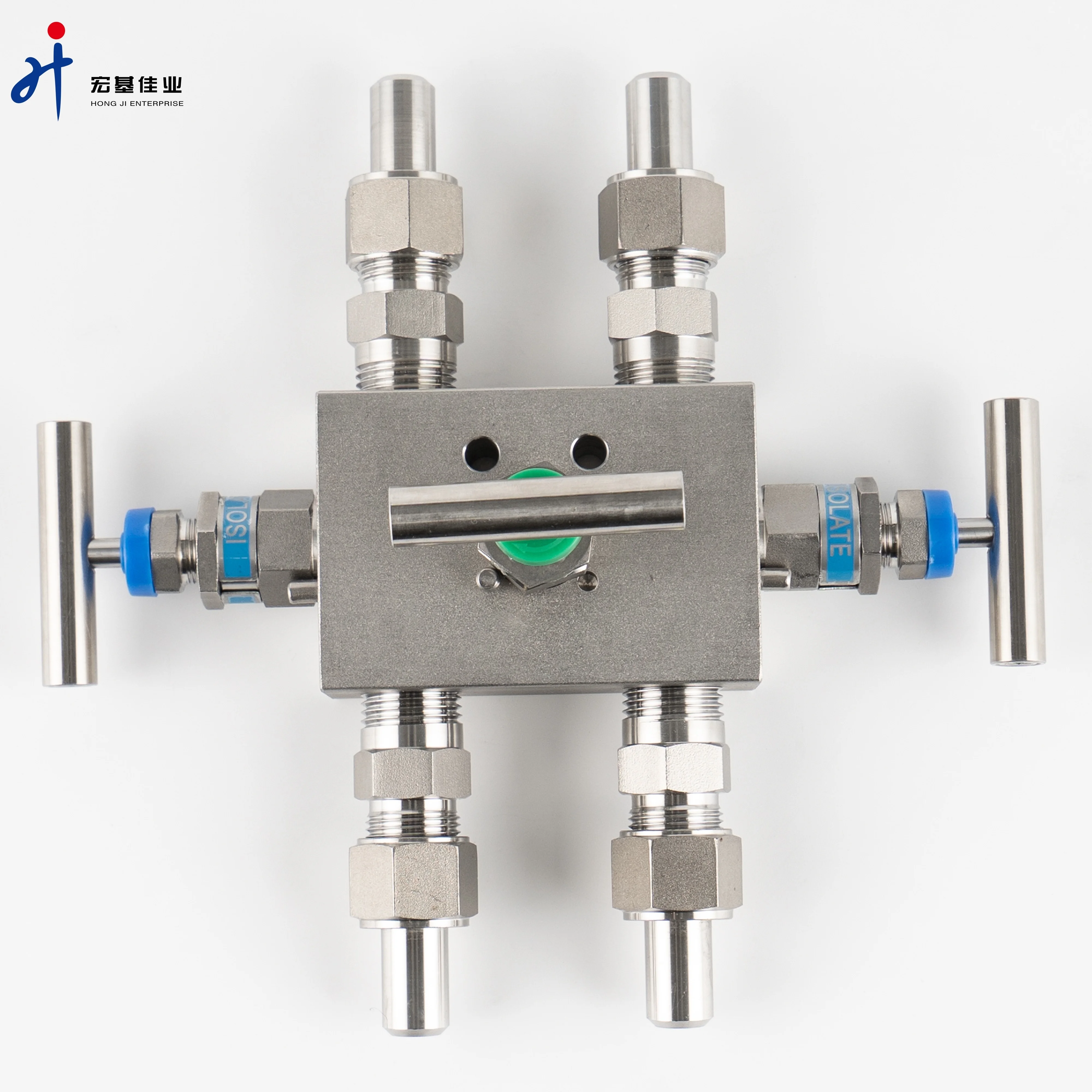

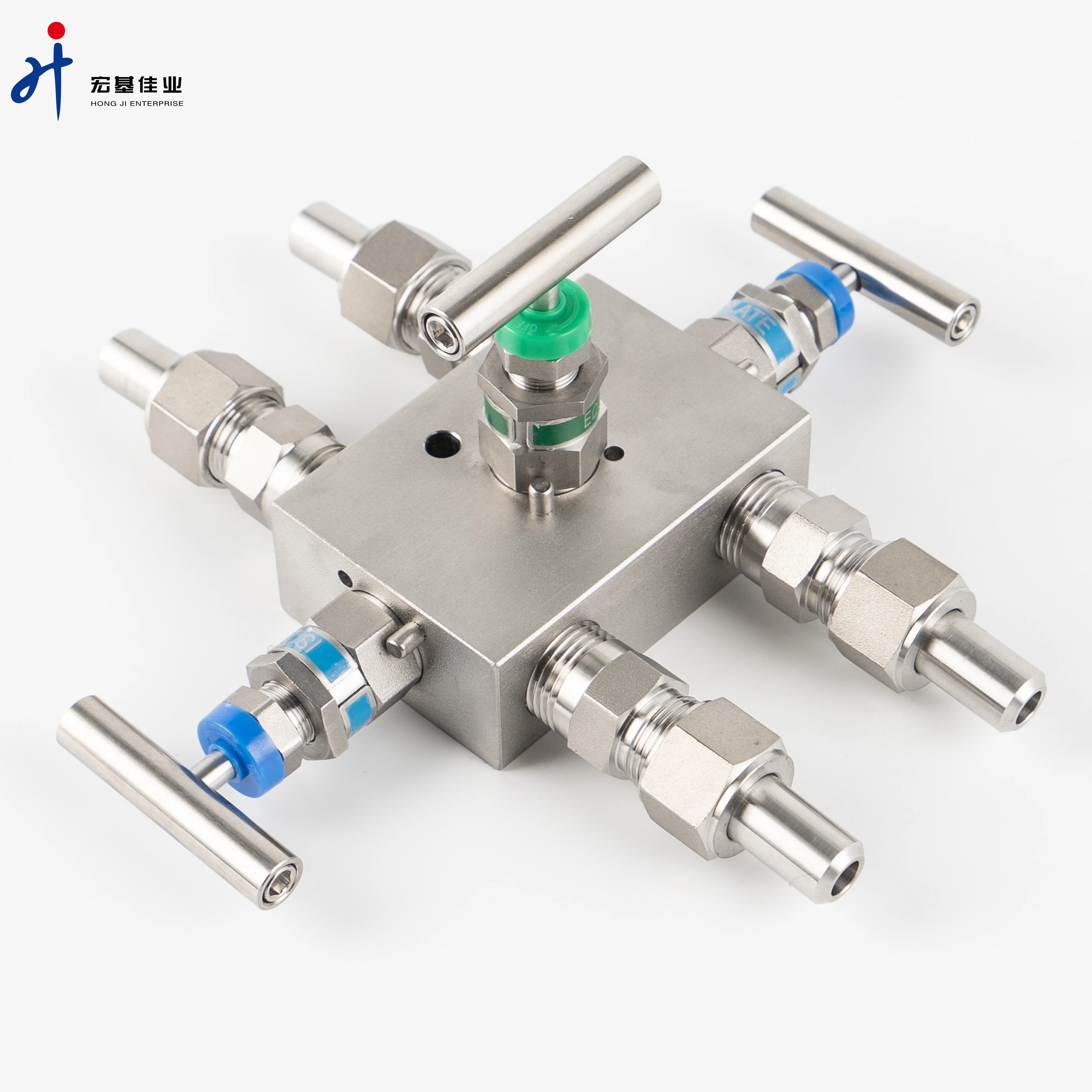

Flat Type 316L Stainless Steel 3 Valve Manifold
40,00-50,00 $
Клапан Hongji Qff3 инструментальные коллекторы высокого давления 3 ходовой клапан коллектор 6000psi
- Категория: >>>
- Поставщик: Anhui Hongji Intrustment Valve Co. Ltd.Anhui Ltd.
Сохранить в закладки 1600904030318:
Описание и отзывы
Характеристики
Products Description
Instrumentation Manifolds
Instrumentation manifolds made by Hongji Instrument& Valve Manufacturing Co., Ltd. combine several valves in one body with multiple connections. This equipment assists pressure instruments directly and indirectly in measuring andequalizing pressures, differential pressures, static, gauge, and variable in process instrumentation lines by bleeding, blocking, and
calibrating.
calibrating.
Production Details
Instrumentation Manifolds Features:
* Efficiency Improvement and Energy Saving.
* Suitable for confined spaces as its compact size.
* Installation cost-saving as its elaborate design.
* Miner leakage possibility leads to low maintenance.
* Fewer connections improve system layout.
* Suitable for confined spaces as its compact size.
* Installation cost-saving as its elaborate design.
* Miner leakage possibility leads to low maintenance.
* Fewer connections improve system layout.
Instrumentation Manifolds General data
* Pressure Range: 5000Psi 6000Psi(344Bar-413Bar)
* Working temperatures: 232°C-649°C (450°F-1200°F)
* Inlet/outlet/test/vent: NPT1/4-NPT1/2, flange, optional
* Application: Liquid or Gas, Steam, Water, Oil
* Body Material:316,316L, Alloy
* Working temperatures: 232°C-649°C (450°F-1200°F)
* Inlet/outlet/test/vent: NPT1/4-NPT1/2, flange, optional
* Application: Liquid or Gas, Steam, Water, Oil
* Body Material:316,316L, Alloy
Applications of Valve Manifold
* Oil and gas
* Chemical
* Power Plant
* Nuclear Energy
* Water Treatment
* Steel
* Pulp& Paper
* Chemical
* Power Plant
* Nuclear Energy
* Water Treatment
* Steel
* Pulp& Paper
Variety of Valve Manifolds
* Body Type: In-line, Coplanar, Integral
* Mounting Style: Remote mounting, Direct mounting
* Number of Valves / Layout: 2-way, 3-way, 5-way
* Mounting Style: Remote mounting, Direct mounting
* Number of Valves / Layout: 2-way, 3-way, 5-way
Product Paramenters
Model | HJHYSF-W- | Pack Material | PTFE/ Graphite |
Type | Valve Manifolds | Orifice Size | 0.157 in 4.0 mm |
Body Material | 316, Alloy | CV | 0.35 |
PTFE | -54—260°C/-65.2—500°F | Graphite | -54°C to 649°C/-65°F to 1200°F |
Seal Type | Hard Sealing | Net Weight | 1592g |
Manufacturing | Forging and CNC | Manufacturing Capacity | 800/Month |
Application | Nontoxic Liquid or Gas, Steam, Oil | Warranty | 1 year |
Pressure Range | 6000psi/414bar | Norms | ISO/GB/JB/DIN |
Type of Connection | Butt or Socket Welding/ Dual Ferrules | Test Norms | API 598/ GBT-13927-2008 |
Inlet/Vent | 1/2’’-1/4’’ | Certificate | ISO/TUV |
No. | Component | Material | ||
1 | Handle | SS 316 | Alloy 400 | |
1 | Handle | Stainless Steel | ||
2 | Set Screw | Stainless Steel | ||
3 | Packing Bolt | SS304 | ||
4 | Upper Stem | SS316 | ||
5 | Lock Nut | 17-4PH | ||
6 | Bonnet | SS316 | Alloy 400 | |
7 | Gland | SS316 | ||
8 | Packing | PTFE/Graphite | ||
9 | Lock Pin | Stainless Steel | ||
10 | Lower Stem | SS316 | Alloy 400 | |
11 | Body | SS316 | Alloy 400 | |
12 | Seat | Acetal/PEEK/PFA | ||
Recommend Products
Company Profile
Hongji Instrument& Valve Manufacturing Co., Ltd. Was founded in 2009. The campus of Hongji Instrument& Valve Manufacturing Co.,Ltd. Covers approximately 46000 square-meter lands and is located in Tianchang City, Anhui Province, China. Our plants and officebuildings have been established on a high standard level and applied to the ISO quality system to ensure the products we build andthe service we provide meet the highest requirement. Our company has committed to producing forged stainless steel or alloy ballvalves, needle valves, valve sets, pipe unions, air distributors, and welded joints. With years of dedication, we have developed and maintained a good business relationships with many leading companies in different industries, Such as Qinshan Nuclear Power Plant. Conventional Island Nuclear Power Plant, Siemens, Ningde Chemical, PetroChina, Sinopec, CNOOC, Saudi oil fields, etc., in order to fulfill the increasing needs in terms of harsh application usage from our client side, Hongji has made a partial acquisition of another valve plant in 2020, the engineering and technical team members have been increased up to 8 personals,total manufacturing capacity includes 36 CNCs, 28 high precision horizontal lathes, to utilize the fine manufacturing process effectively. Our target aims to provide clients with the best products and services.
FAQ
1. Can I get a Sample?
We do provide some small specific samples accordingly based on the process we situate in.
2. Do you provide customized products?
We are good to offer customized services in terms of logo labeling, manufacturing based on samples or blueprints, etc.
3. Will communication be a problem?
Our sales team had great knowledge of our products and acquired solid English communication skills in both written and speaking;
the communication can be accessed either literally or verbally via any social networking platform.
4. Payment Method.
L/C, T/T, PayPal, Western Union. Principally we do not accept third-party transactions via China's mainland region channel.
We do provide some small specific samples accordingly based on the process we situate in.
2. Do you provide customized products?
We are good to offer customized services in terms of logo labeling, manufacturing based on samples or blueprints, etc.
3. Will communication be a problem?
Our sales team had great knowledge of our products and acquired solid English communication skills in both written and speaking;
the communication can be accessed either literally or verbally via any social networking platform.
4. Payment Method.
L/C, T/T, PayPal, Western Union. Principally we do not accept third-party transactions via China's mainland region channel.
Why Choose Us
Похожие товары
Factory Supply Hot Sale U40 Pounds Liquefied Petroleum Hand Valve Safety Brass Gas LPG Compact Cylinder
5,70 $
YOULI J41W High-Performance Stainless Steel High Temperature 304 316 WCB PN160 Pressure Flanged Needle Globe Valve
28,00-30,00 $
SWAGELOK Hylok Type Instrumentation Valve SS316 Gas High Pressure 2-way for Needle
Stainless Steel Flow Meter 3 Way Tee Tube End Needle Valve

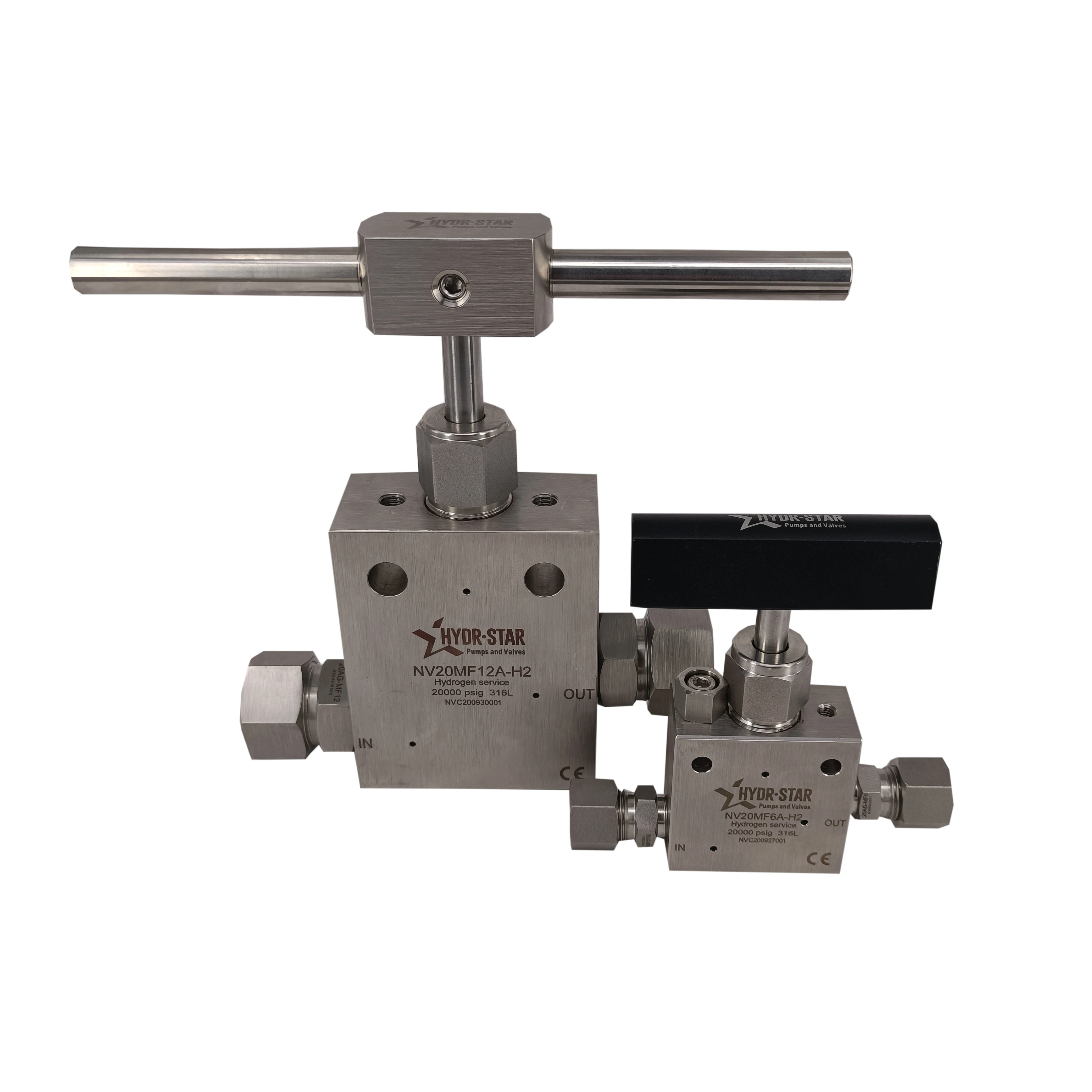

HYDR-STAR высокого давления из нержавеющей стали сменные сиденья игольчатый клапан
