NEW ORIGINAL Wire to Pcb Soldering Machine Pulse Usb 3.0
- Категория: >>>
- Поставщик: SINRAD TECHNOLOGY CO. LIMITEDSINRAD LIMITED
Сохранить в закладки 1600904261413:
Описание и отзывы
Характеристики
Product Description
NEW ORIGINAL wire to pcb soldering machine pulse usb 3.0
Pulse soldering machine is used to soldering FPC, PCB, LED display, HDM1, cable, terminal and other products.
Product details
| After-sales Service Provided | Engineers available to service machinery overseas |
| Application | high speed cable/lvds cable/FFC/FPC |
| Heating style | pulse heating |
| Pressure of indenter | 0.02-0.8Mpa Adjustable pressure accuracy, ± 0.05Mpa |
| Hold time | 1~100S |
| Warm-up time | 1~2S/SEGMENT |
| soldering method | press soldering |
| Working pressure | 0.4-0.8Mpa |
| Temperature range | 450℃ |
| Temperature accuracy | ± 3 ℃ |

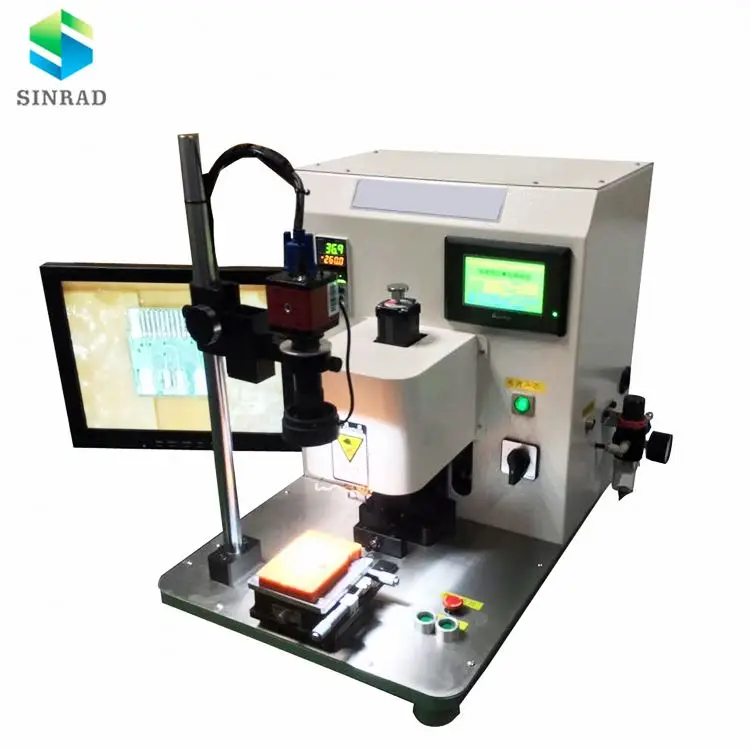

Product Introduction Of High speed pulse FPC, FFC, wire to PCB, HDM1, Type-C, USB connector hot bar soldering machine
Pulse soldering machine is used to soldering FPC, PCB, LED display, HDM1, cable, terminal and other products. Soldering machine uses pulse heating technology to work, so the temperature control is very accurate. This makes hot presses often used in places where temperature is very critical. When the hot press is working, the machine can be effectively controlled by multi-stage heating. The temperature of the hot press can be expressed by the real-time temperature curve, which is easy to understand and greatly facilitates the operation of the operator.
Main Features:
1.Japan high-speed temperature controlling system.
Pulse heating, easy set soldering parameter, can be set to different multi-zone temperature control sensor detected by the system.
2.Microcomputer control system used to keep the equipment stability.
3. High quality titanium alloy pressure of indenter and imported temperature sensor, to ensure accurate heating temperature.
4.Clamp fixed type, so that soldering is more sophisticated and efficient.
5. Applicable to all kinds of ordinary TAB, TCP crimping, and FPC, FFC and PCB soldering, high speed cable mini SAS, SAS cable, QSFP+, SFP+ and so on.
6. Temperature sensor detected by the system control, and equipped with password protection, the system self-test.
7. High definition CCD alignment position.
8. High quality heat seal application up to 0.25mm pitch.
9. Digital programmable temperature control with LCD display.
Related Products
Hot Selling (Click the machine name to go to the product page)
FAQ
1 Price terms
The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.
2 Can I send samples to check the machine quality.
Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.
3 How to learn the machine?
1) Offer free technology learning support in our factory
2) Provide detail user manual with detail video illustration
3) Support engineer service at site if clients asking for
4 How about the lead time and delivery time of order?
Standard model, can be ship out within 3~5days after confirmed order and deposit.
Customized model, normally lead time is 10~20 days, after confirmed all order detail deposit and got samples.
Contact Us
Company Information
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, winding, etc.) machine, automatic soldering machine, intelligent soldering machine, full automatic usb soldering machine, pulse heating soldering machine,high frequency soldering machine, other soldering machine, laser marking machine, laser engraving machines, laser welding machine, welding equipment, and other production equipment.
