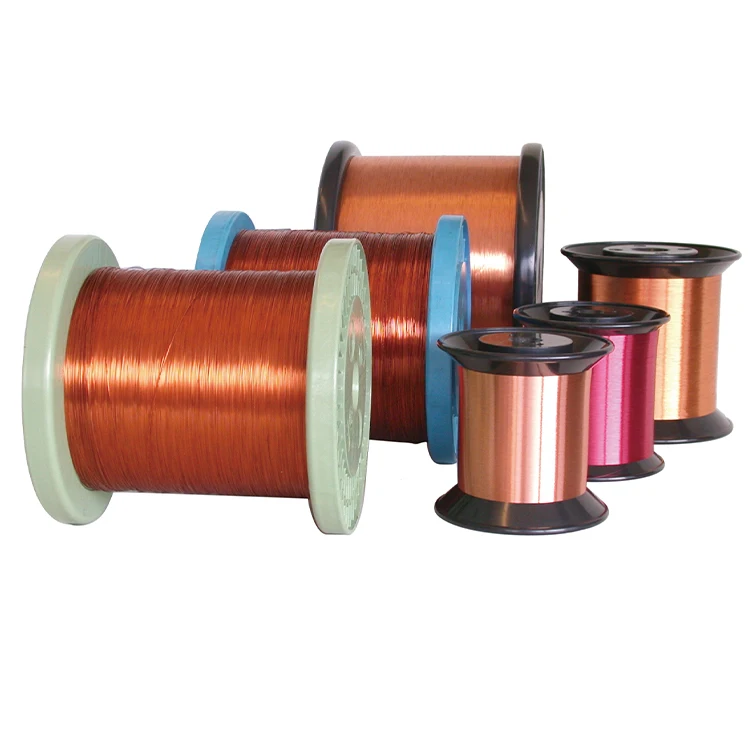

Jayuan новый дизайн магнит Ecca эмалированная медная алюминиевая проволока для намотки двигателя
- Категория: >>>
- Поставщик: Hangzhou Jayuan Industrial Co. Ltd.
Сохранить в закладки 1600906965500:
Описание и отзывы
Характеристики
Product Description
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | Jayuan |
Model Number | JY ECCA Wire |
Type | Bare |
Application | Inner Conductor |
Conductor Material | Copper |
Conductor Type | Solid |
Insulation Material | Bare Wire |
Product name | ECCA Wire |
Insulation | Bare |
MOQ | 500kg |
Size | 0.5mm-6mm |
Packing | Carton |
Material | Enameled Copper Wire |

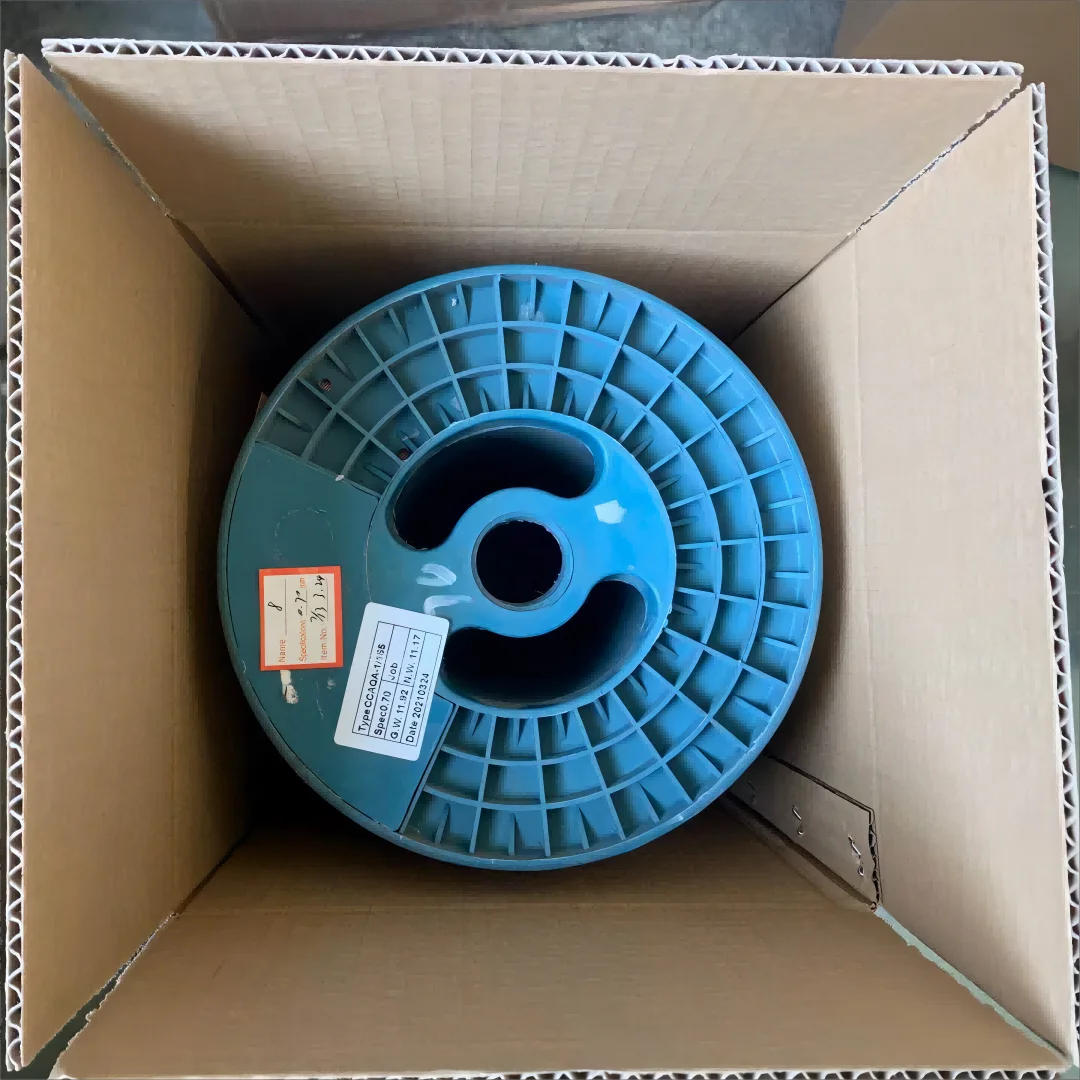

Packing & Delivery

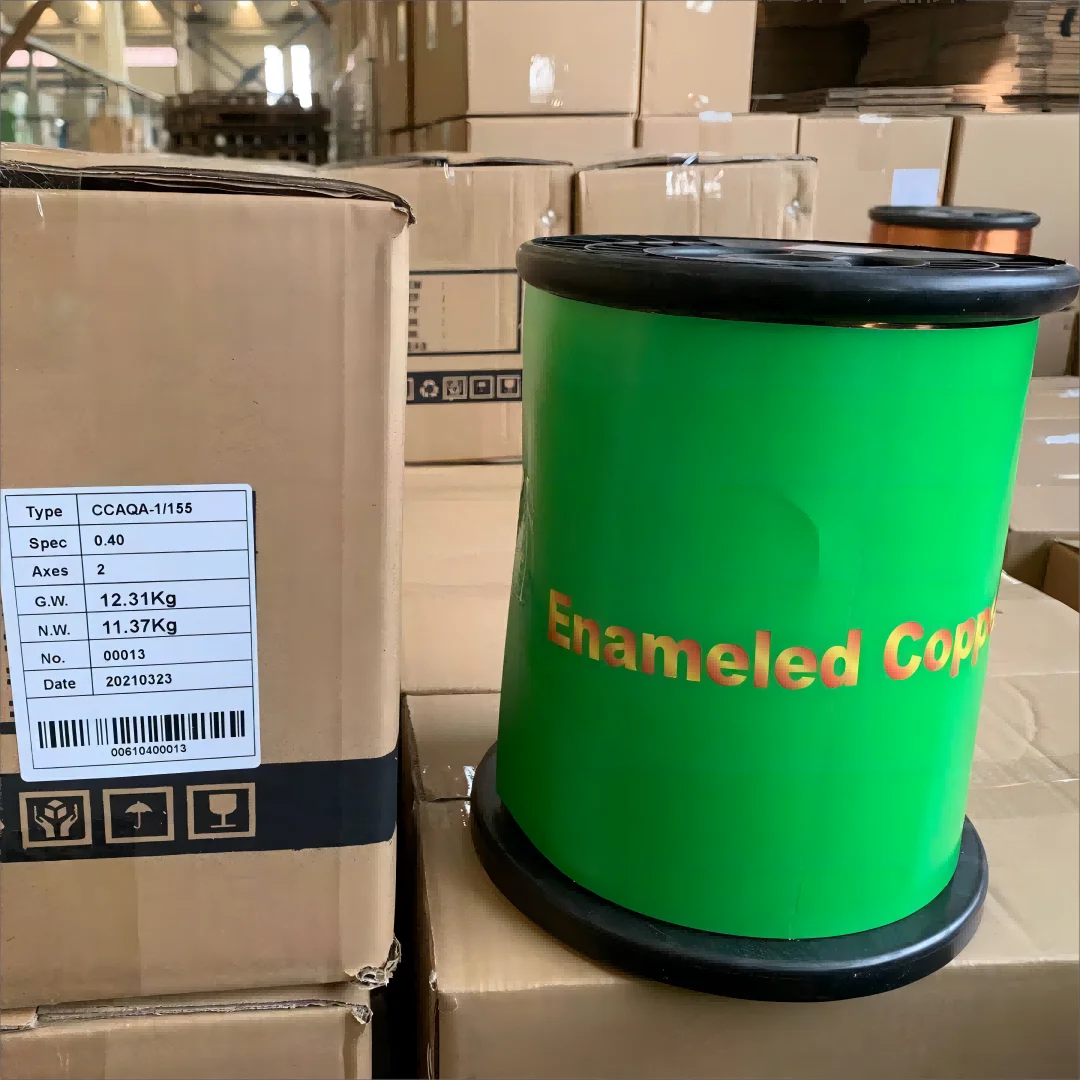

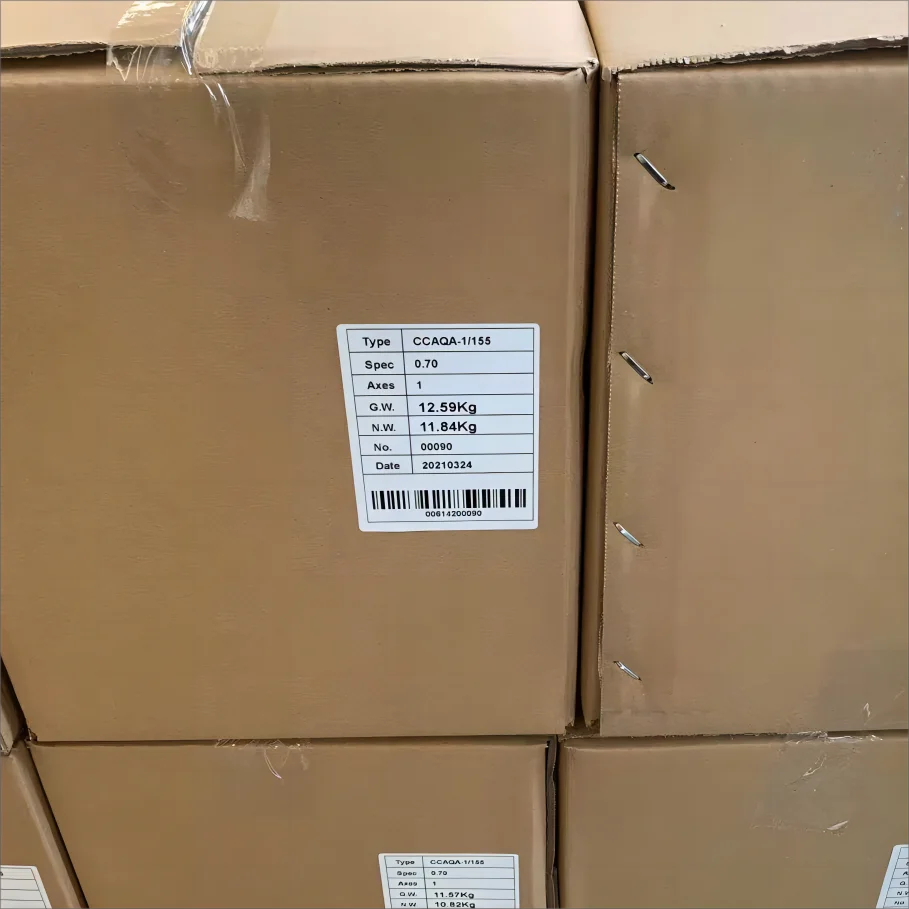

Roll,Carton,Pallets
Company Profile
Hangzhou Jayuan Industrial Co; Ltd. is specialized in the manufacturing and trading of copper wire, CCA wire, CCAM wire and various cable conductors.Our company is located in Hangzhou city, Lin'an district.With over 20 years of experience we built a strong reputation in the industry.
We provide supporting services and material to several cable manufacturers, with outstanding product quality and perfect after sale service we have won wide acclaim from the industry.Due to our cooperation with the partner companies we are able to supply various types of cables and semi-finished products to our clients abroad as well as in the domestic market.
We provide supporting services and material to several cable manufacturers, with outstanding product quality and perfect after sale service we have won wide acclaim from the industry.Due to our cooperation with the partner companies we are able to supply various types of cables and semi-finished products to our clients abroad as well as in the domestic market.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Domestic Market(90.00%),South America(4.00%),Mid East(4.00%),Africa(2.00%),South Asia(0.00%),Eastern Asia(0.00%),North America(0.00%),Oceania(0.00%),Western Europe(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Eastern Europe(0.00%),Southeast Asia(0.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Copper Wire; Copper Clad Aluminum Wire
4. why should you buy from us not from other suppliers?
30 Years Cable & Wire Manufacturer
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cash;
Language Spoken:English,Chinese,Hindi
We are based in Zhejiang, China, start from 2009,sell to Domestic Market(90.00%),South America(4.00%),Mid East(4.00%),Africa(2.00%),South Asia(0.00%),Eastern Asia(0.00%),North America(0.00%),Oceania(0.00%),Western Europe(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Eastern Europe(0.00%),Southeast Asia(0.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Copper Wire; Copper Clad Aluminum Wire
4. why should you buy from us not from other suppliers?
30 Years Cable & Wire Manufacturer
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cash;
Language Spoken:English,Chinese,Hindi
Products Description

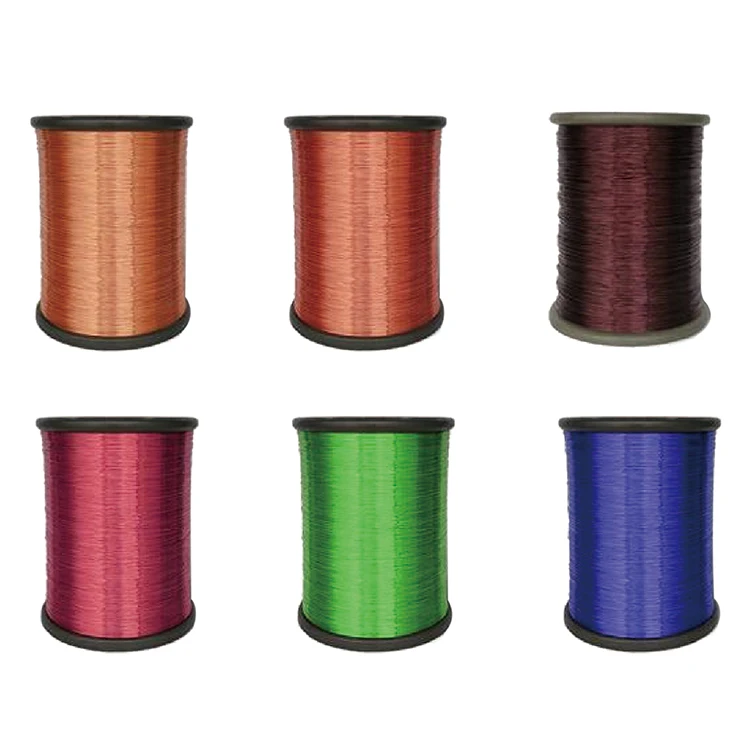

TYPES OF ENAMELED WIRE | ||
TYPES | FEATURES | |
Enameled Copper Wire (ECW) | 1. Wide Usage 2. Easy to Welding 3. Excellent Performance | |
Enameled Aluminum Wire (EAW) | Compare to ECW: 1. Save 60% Unit Weight 2. Save 80% Cost | |
Enameled Copper Clad Aluminum Wire (ECCA) | Compare to ECW: 1. Save 40% Unit Weight 2. Save 60% Cost 3. Same Solderbility & Stability | |
CODE | COATING | CORE FEATURE | THERMAL CLASS(℃) | INSULATION THICKNESS | STANDARD |
PEW (QZ) | Polyester | Solvent Resistance | 130/155 | 1 THIN 2 THICK 3 THICKER | IEC 60317, GB/T: 23312-2009, NEMA MW, JIS |
UEW (QA) | polyurethane | Directly Solderable | 155 | ||
EIW (QZY) | Polyester imide | Excellent Chemical Resistance | 180 | ||
EI/AIW (QZY/XY) | Polyamide & Polyimide | More Comprehensive Performance | 200 | ||
AIW (QXY) | Polyimide | Highest Heat Class | 220 |
ENAMELED COPPER WIRE ROLL DATA | ||||||
ROLL | SIZE RANGE | NET WEIGHT | PACKING | |||
DIN250 | 0.20~3.20 mm AWG 32~8 SWG 35.5~10 | 18~22 kg/Roll | 1 Roll/Carton | |||
PT25 | 0.55~3.20 mm AWG 23.5~8 SWG 24~10 | 25~32 kg/Roll | 1 Roll/Carton | |||
PT20 | 0.55~0.30 mm AWG 23.5~28.5 SWG 24~30.5 | 28~32 kg/Roll | 1 Roll/Carton | |||
PT15 | 0.20~0.55 mm AWG 32~23.5 SWG 35.5~24 | 18~22 kg/Roll | 2 Roll/Carton | |||
PT10 | 0.20~0.55 mm AWG 32~23.5 SWG 35.5~24 | 10~12 kg/Roll | 2 Roll/Carton | |||
PT4 | 0.10~0.30 mm AWG 38~28.5 SWG 42~30.5 | 5~6 kg/Roll | 4 Roll/Carton | |||
Technical Characteristics | CCA wire | ||||||||
Clad type | Plated type | ||||||||
10H | 10A | 15H | 15A | ||||||
Size range | 0.15-8.0 | 0.15-8.0 | 0.08-8.0 | 0.08-8.0 | 0.10-6.0 | ||||
(mm) | |||||||||
Copper content | 22.5-31 | 22.5-31 | 32-40 | 32-40 | 6-15 | ||||
(% by weight) | |||||||||
Tensile Strength | ≥152 | 110-172 | ≥152 | 110-172 | 90-120 | ||||
(Mpa) | |||||||||
Elongation | 1 | 10 | 1 | 10 | 10 | ||||
（%） | |||||||||
Conductivity | ≥64 | ≥64 | ≥66.5 | ≥66.5 | ≥62 | ||||
（%） | |||||||||
DC resistivity | ≤0.0268 | ≤0.0268 | ≤0.0260 | ≤0.0260 | ≤0.0260 | ||||
（Ω.mm²/m） | |||||||||
Density | 3.3±0.1 | 3.3±0.1 | 3.63±0.1 | 3.63±0.1 | 2.76-2.93 | ||||
（g/cm³） | |||||||||
Company Profile
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How can I get a sample?
A3: Sample fee required but refund after we begin regular order.
Q4: How about the quality?
A4: We have the best professional engineer and strict QA and QC system.
Q5: Can we be your distributor?
A5: We are looking for distributor and agent all over the world.
Q6: How’s the package?
A6: Normally are cartons, but also we can pack it according to your requirements.
Q7: How’s the delivery time?
A7: It depends on the quantity you need, 25 days usually.
