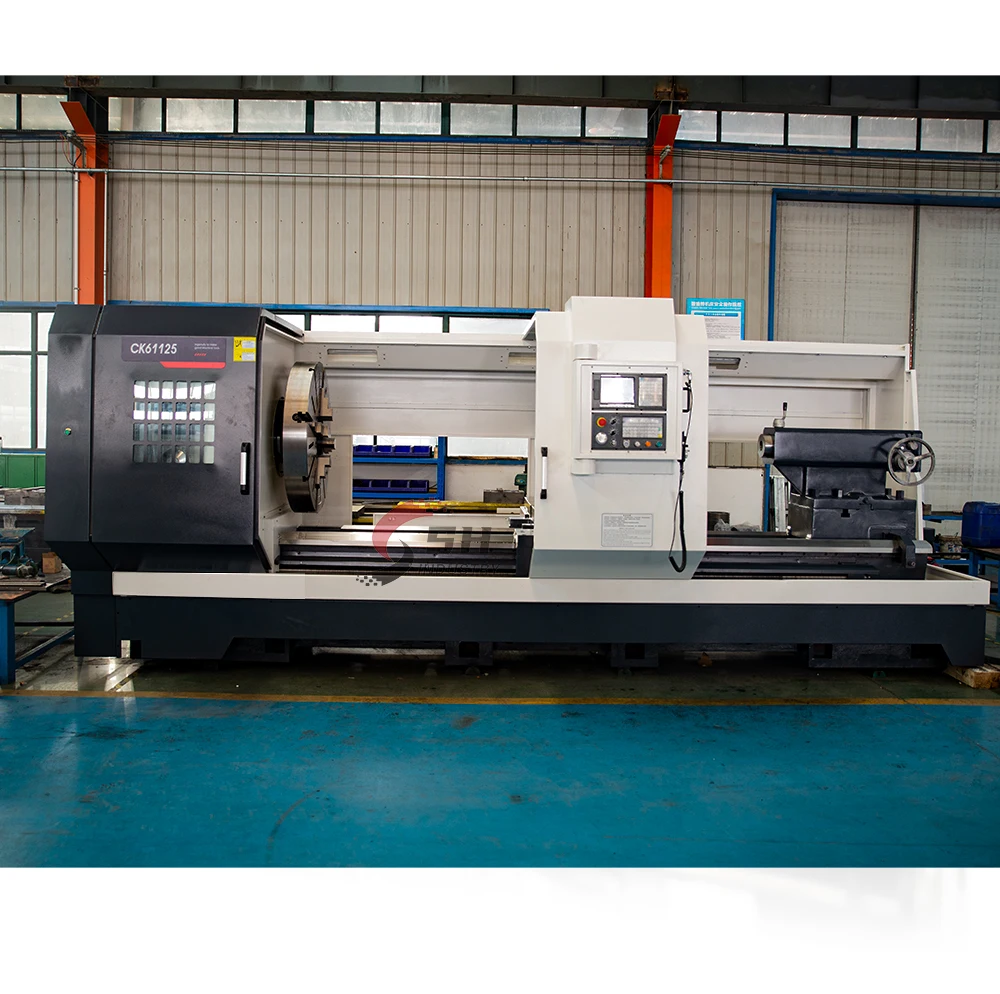

Токарный станок с ЧПУ автоматический CK6180 токарный горизонтальный параллельный CK61125
- Категория: >>>
- Поставщик: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Сохранить в закладки 1600908046557:
Описание и отзывы
Характеристики
CNC LATHE INTRODUCTION
The series CNC lathe is universal standard automatic machining equipment for metal processing, suitable to process shaft and plate work piece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well asturning various type of threads etc.
FEATURES

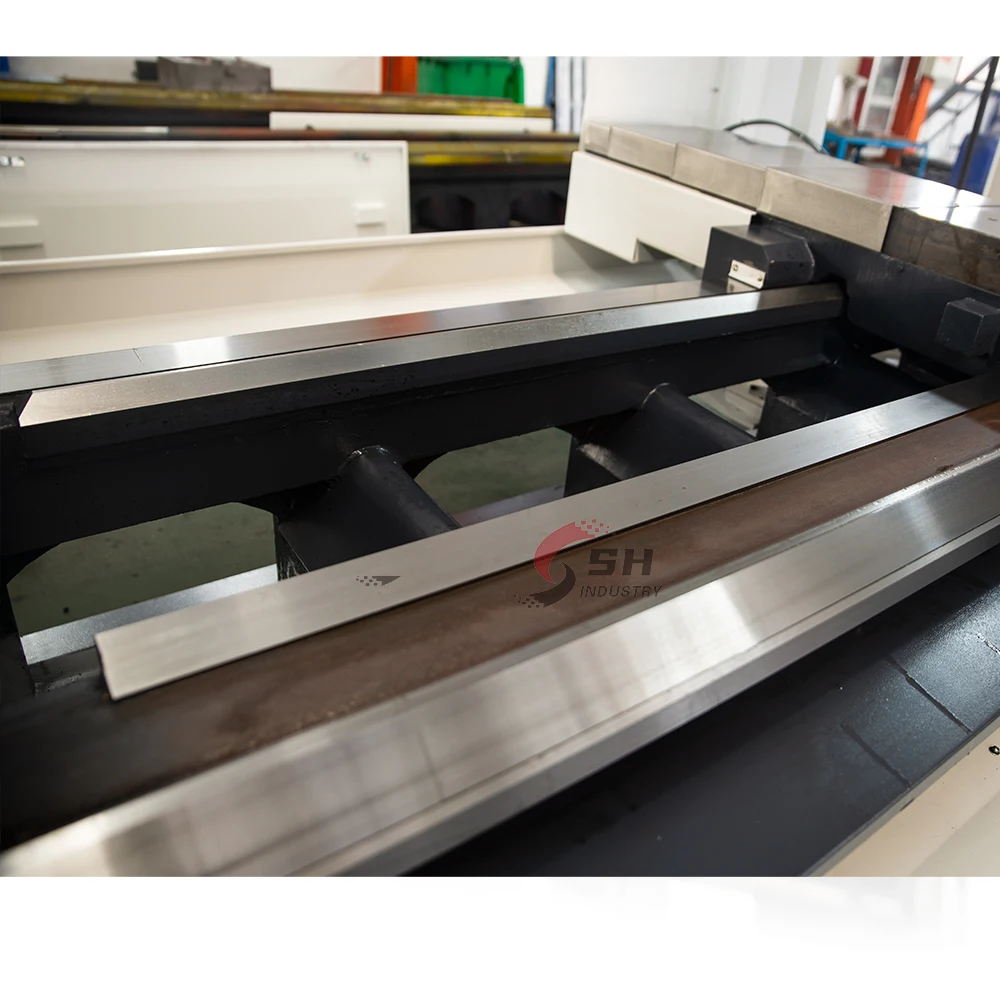

One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Carriage and guide-way contact surface use Turcite B to maintain accuracy
The series CNC lathe is universal standard automatic machining equipment for metal processing, suitable to process shaft and plate work piece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well asturning various type of threads etc.
FEATURES
One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Carriage and guide-way contact surface use Turcite B to maintain accuracy
Standard Configuration Optional Configuration

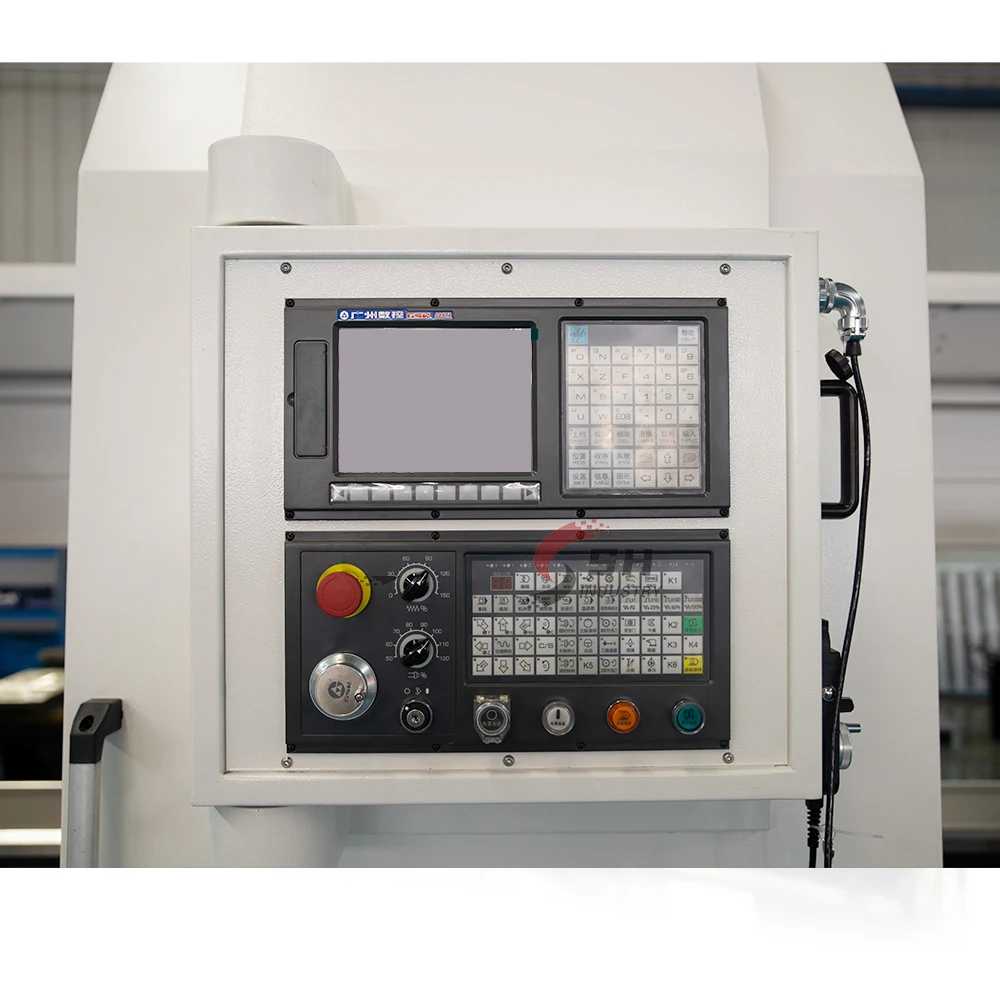

GSK980TB3 or GSK980TDC system Siemens or Fanuc system
Manual chuck,manual tailstock, Hydraulic chuck ,hydraulic tailstock

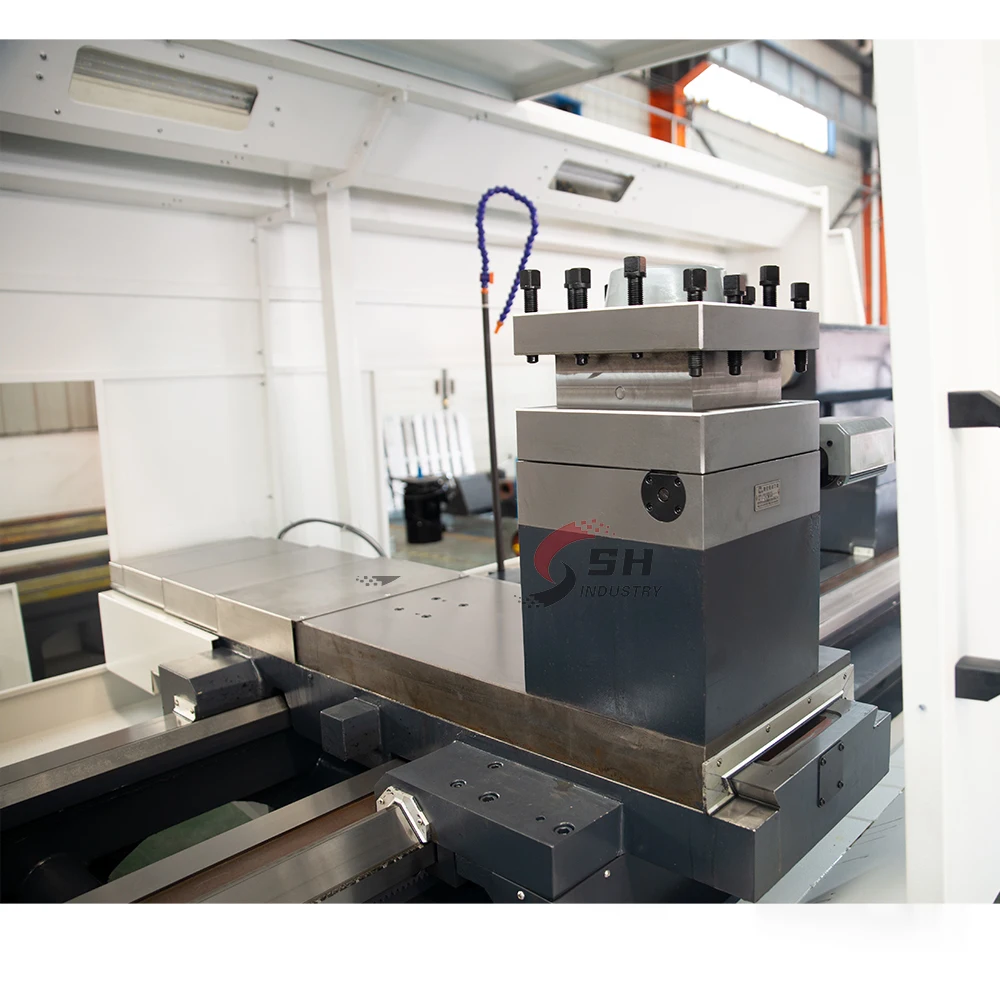

4 station electric tool post 6 or 8 station turret
Low-high two steps spindle speed Automatic chip conveyor
GSK980TB3 or GSK980TDC system Siemens or Fanuc system
Manual chuck,manual tailstock, Hydraulic chuck ,hydraulic tailstock
4 station electric tool post 6 or 8 station turret
Low-high two steps spindle speed Automatic chip conveyor
Technical parameter:
SPECIFICATIONS | Units | CK61100L | CK61125L |
Swing over bed | mm | 1000 | 1250 |
Swing over cross slide | mm | 610 | 850 |
Distance between centers | mm | 1500/3000/4000/ | 1500/3000/4000/ |
5000/6000 | 5000/6000 | ||
Guideway width | mm | 755 | 755 |
Max. load capacity | T | 6/10 | 6/10 |
Spindle bore | mm | 130 | 130 |
Spindle bore taper | - | Metric φ140/MT6 | Metric φ140/MT6 |
Spindle nose type | - | A2-15 | A2-15 |
Spindle speed steps | - | VF. 4 steps | VF. 4 steps |
Spindle speed range | rpm | 4-300 | 4-300 |

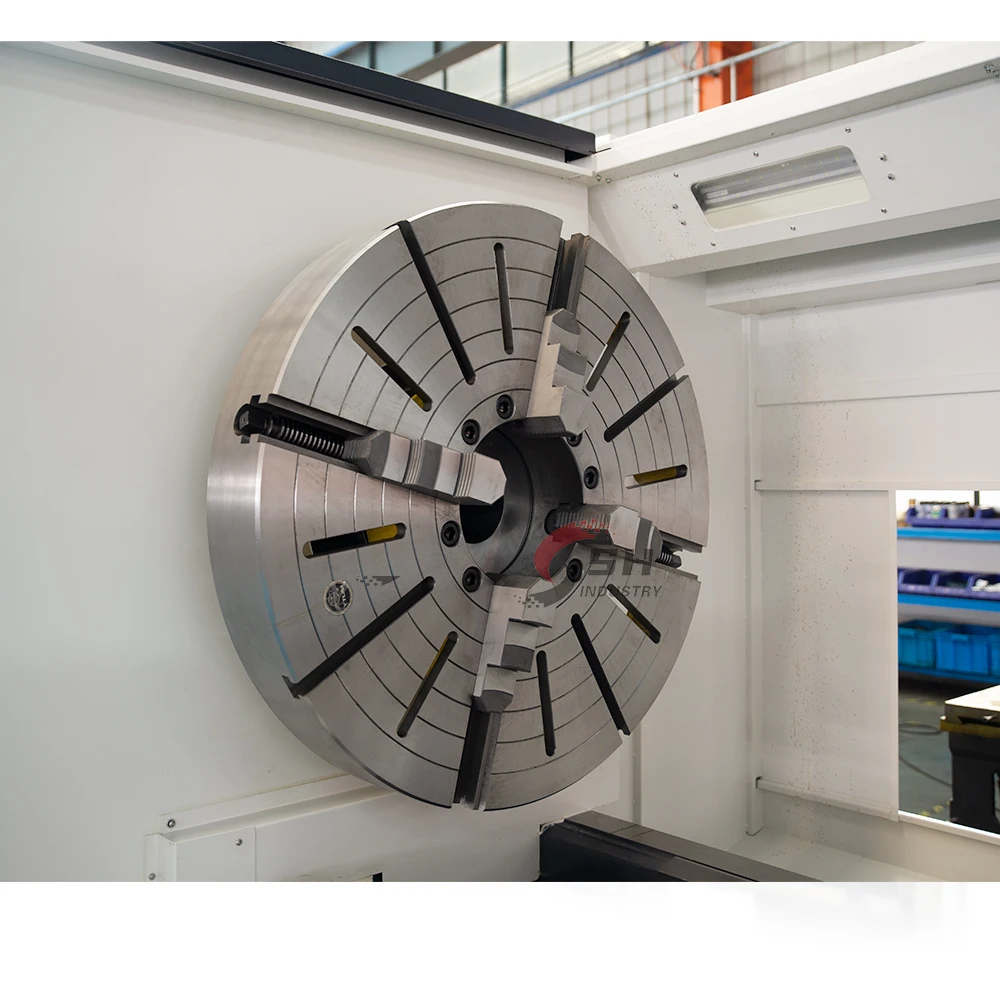

Chuck | mm | φ1000 4-jaw manual | φ1000 4-jaw manual |
Turret/tool post | - | Eletric 4 position | Eletric 4 position |
Tool size | mm | 40 x 40 | 40 x 40 |
X axis travel | mm | 520 | 620 |
Z axis travel | mm | 1350/2850/3850/ | 1350/2850/3850/ |
4850/5850 | 4850/5850 | ||
X axis rapid traverse | mm/min | 4000 | 4000 |
Z axis rapid traverse | mm/min | 6000 | 6000 |
Tailstock quill diameter | mm | φ160 | φ160 |
Tailstock quill taper | - | MT6 | MT6 |
Tailstock quill travel | mm | 300 | 300 |
Main spindle motor | kw | 22 | 22 |
Coolant pump motor | kw | 0.125 | 0.125 |
Weight for 1500 | kg | 10000 | 11000 |
Weight for 3000 | kg | 11500 | 12500 |
Weight for 4000 | kg | 12500 | 13500 |
Weight for 5000 | kg | 13500 | 14500 |
Weight for 6000 | kg | 14500 | 15500 |
Dimension for 1500 | mm | 5000x2100x2100 | 5000x2250x2300 |
Dimension for 3000 | mm | 6500x2100x2100 | 6500x2250x2300 |
Dimension for 4000 | mm | 7500x2100x2100 | 7500x2250x2300 |
Dimension for 5000 | mm | 8500x2100x2100 | 8500x2250x2300 |
Dimension for 6000 | mm | 9500x2100x2100 | 9500x2250x2300 |
Product Description
Certifications
Packing & Delivery
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia
(20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
(20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality? Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF; Accepted payment currency: US, yuan; Payment method: telegraphic transfer, letter of credit, D/P, D/A; Languages: English, Chinese, Russian
