Product Description

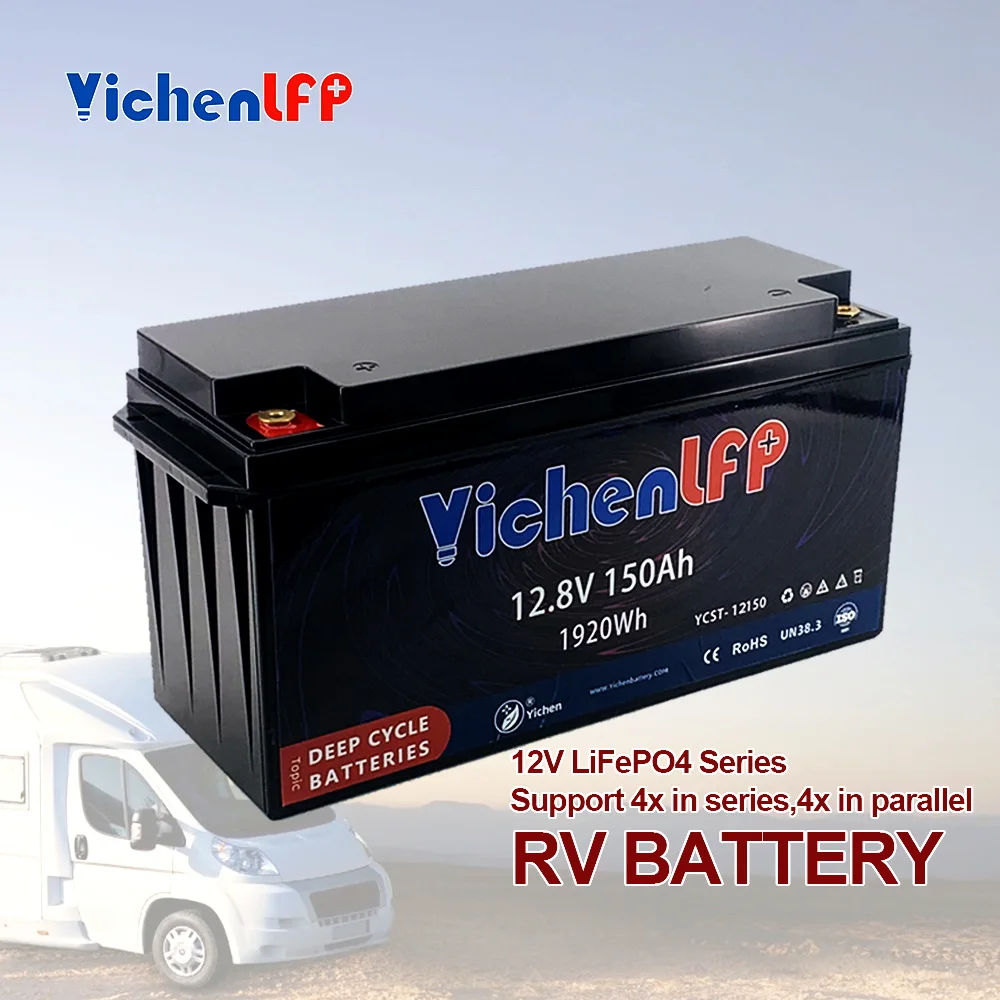

Longer lifespan RV Boat Marine Caravan Camper Car Solar 6000 cycles lifepo4 pack 12v 100Ah 150ah 200Ah lithium battery
1. The Lifepo4 battery pack is a new type of environmentally friendly backup power system, focusing on short-term high-rate discharge scenarios.
2. Environmentally friendly lithium-ion battery equipped with high-performance BMS. BMS with improved chip and MOS, with balancing function and double protection, has a wide range of performance and application advantages compared to conventional batteries.
3. It has low internal resistance and high, flat voltage characteristics in the process of strong electric discharge, ensuring a wider range of applications.
4. All are gradeA cells, with longer cycle life and comprehensive inspection before shipment.
2. Environmentally friendly lithium-ion battery equipped with high-performance BMS. BMS with improved chip and MOS, with balancing function and double protection, has a wide range of performance and application advantages compared to conventional batteries.
3. It has low internal resistance and high, flat voltage characteristics in the process of strong electric discharge, ensuring a wider range of applications.
4. All are gradeA cells, with longer cycle life and comprehensive inspection before shipment.
Noted:
This 12v 150Ah lifepo4 battery pack can add Bluetooth function to know the status of battery clearly on mobile App.
General sealed case: Protection grade IP67. It is really hard to open it if there is something inside need to be checked and repaired. And it maybe affect the waterproof performance.
The case with screws: Protection grade IP67. It is very easy to open the lid to check the interior of battery and repair if necessary. What's more, the waterproof performance will not be affected.
The case with screws: Protection grade IP67. It is very easy to open the lid to check the interior of battery and repair if necessary. What's more, the waterproof performance will not be affected.
Specification
Electrical Characteristics | Battery pack Nominal Voltage | 12.8V |
Battery pack Nominal capacity | 150Ah | |
Battery pack Energy | 1920Wh | |
Internal Resistance | ≤30mΩ | |
Battery pack Cycle life | ≥4000 cycles @1C 100%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
LiFePO4 battery Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Battery pack standard Charger Current | 75A | |
Battery pack charging time | about 3h | |
Charge Cut-off voltage | 10V±0.2V | |
Standard Discharge | Max Continuous discharge Current | 150A |
Peak discharge current | 170A | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 25℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Mechanical | Plastic Case | ABS |
Dimensions (mm) | 483*170*240mm Customizable | |
Weight | about 15.6KG | |
Color | Black,Red |
Application case
As a deep cycle rechargeable battery, it fits to various applications,such as Large Mobility scooter/Wheelchair,Golf buggy, RV caravans,Marine,Car Audio system,CCTV back up, Leisure,Solar,Wind,Off-grid,etc.
Suitable for cyclic and standby power applications.
LiFePO4 Battery series- for RV/Marine/Solar/Golf cart
Model No. | Voltage | Capacity | Dimension | Weight |
Y-PK-1260E | 12V | 60Ah | L260*W167*H210mm | 7kg |
Y-PK-1270E | 12V | L260*W167*H210mm | 8kg | |
Y-PK-1280E | 12V | L260*W167*H210mm | 9kg | |
Y-PK-12100E | 12V | L330*W174*H220mm | 11kg | |
Y-PK-12120E | 12V | L406*W173*H236mm L330*W174*H220mm | 13kg | |
Y-PK-12150E | 12V | L406*W173*H236mm L330*W174*H220mm | 15kg | |
Y-PK-12200E | 12V | L406*W173*H236mm | 18kg | |
Y-PK-12250E | 12V | L520*W268*H230mm | 22kg | |
Y-PK-12300E | 12V | |||
Y-PK-12400E | 12V | |||
Y-PK-2450E | 24V | L330*W174*H220mm | 11kg | |
Y-PK-2460E | 24V | 60Ah | L330*W174*H220mm | 12kg |
Y-PK-24100E | 24V | L520*W268*H230mm | 18kg | |
Y-PK-24150E | 24V | |||
Y-PK-24200E | 24V | |||
Y-PK-4850E | 48V | L520*W268*H230mm | 18kg | |
Y-PK-48100E | 48V |
WHAT WE CAN DO?
Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS/Bluetooth App/Rs485/Rs232/ solution, and developed battery self-heating and Self-cooling(Water cooling).Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power.These products are used on Solar, Home storage battery,UPS,AGV, RV,car, Telecom Base Station, Golf Trolley Cart,Fishing Boat, Car Start-Stop system battery.
LiFePO4 Car Start Batteries
We have 12V /24V 20Ah/40Ah/50Ah/ 60Ah/70Ah/80Ah/90Ah/100Ah/120Ah types in existence.
Also support customization.
LiFePO4 replacement of SLA
Normal 12V/24V 100Ah/120Ah/250Ah in existence.
Support customization to replace traditional SLA/Gel/AGM batteries in Solar ESS, RV, Marine and other ESS applications.
Powerwall Solar Home ESS Battery
Normal 5KWh, 7.5KWh,10KWh exsiting.
Support Battery OEM/ODEM.
Support solution design including Inverter.
High Voltage Batteries
Can Design and produce 115V/268V/ 384V/460V/537V/576V/614V/740V for you to the special use.
Certificates
The company has been certified by TUV, UL, CE, CSA, CEC, JET, etc. At present, it has customers in more than 50 countries and regions, The cumulative production capacity in the past 5 years is greater than 300MWh, <0.3% after sale problem in 5 years.
Company Profile
About US
Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system,offer global technical support,Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products.Currently, we can support CANBUS/Bluetooth App/Rs485/Rs232/ solution, and developed battery self-heating and Self-cooling(Water cooling).Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power.These products are used on Solar, Home storage battery,UPS,AGV, RVcar, Telecom Base Station, Golf Trolley Cart,Fishing Boat, Car Start-Stop system battery.
The products passed TUV , UL , CE ,CSA ,CEC ,JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co.,Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
The products passed TUV , UL , CE ,CSA ,CEC ,JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co.,Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
Our Workshop & equipment
Our Technology R&D
Our Batteries' waterproof test
Special batteries' reserved polarity protection test
Special batteries' short circuit protection test
High temperature protection test
Click in the PC
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us.
