LXB1500 гравитационный сепаратор спиральный желоб концентратор цена для минеральной меди золота марганца железа вольфрама угольной руды
314 204,15 ₽
Горный гравитационный сепаратор
- Категория: >>>
- Поставщик: Jiangxi Walker Machinery Co. Ltd.
Сохранить в закладки 1600909061877:
Описание и отзывы
Характеристики
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Brief Introduction:

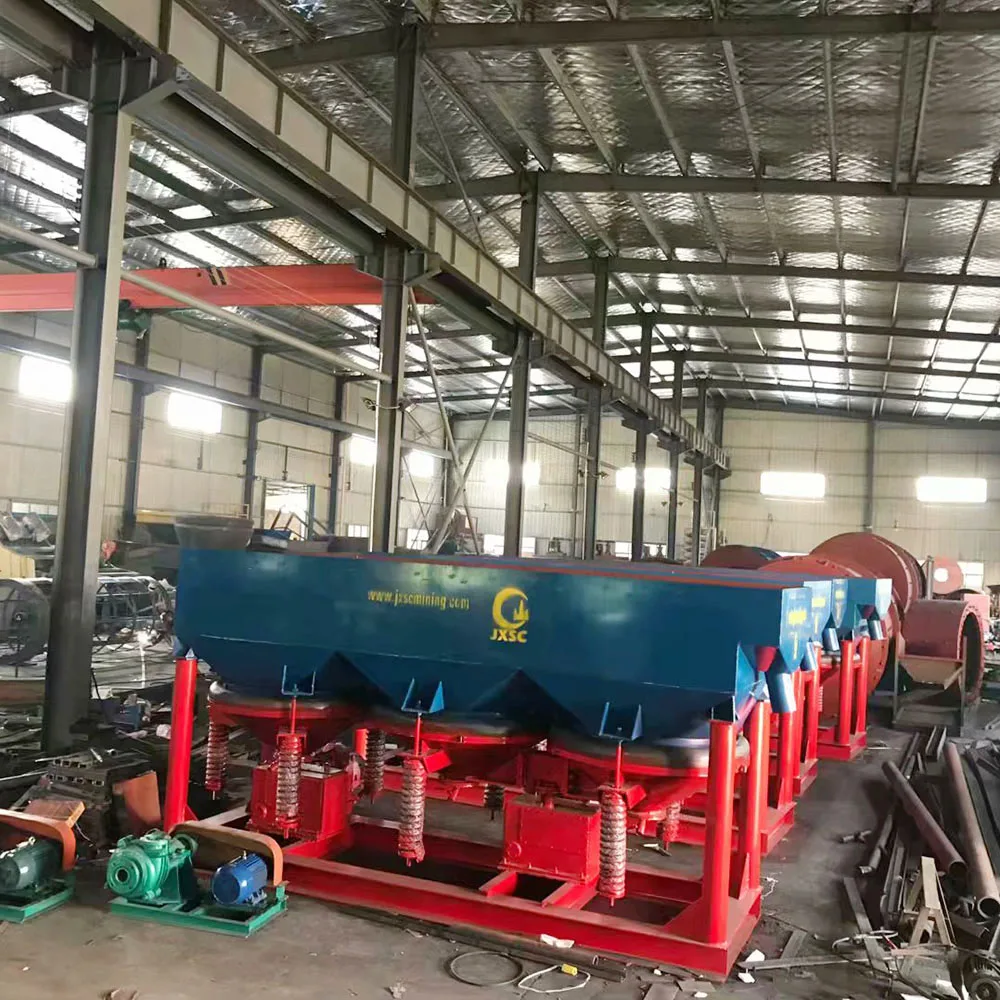

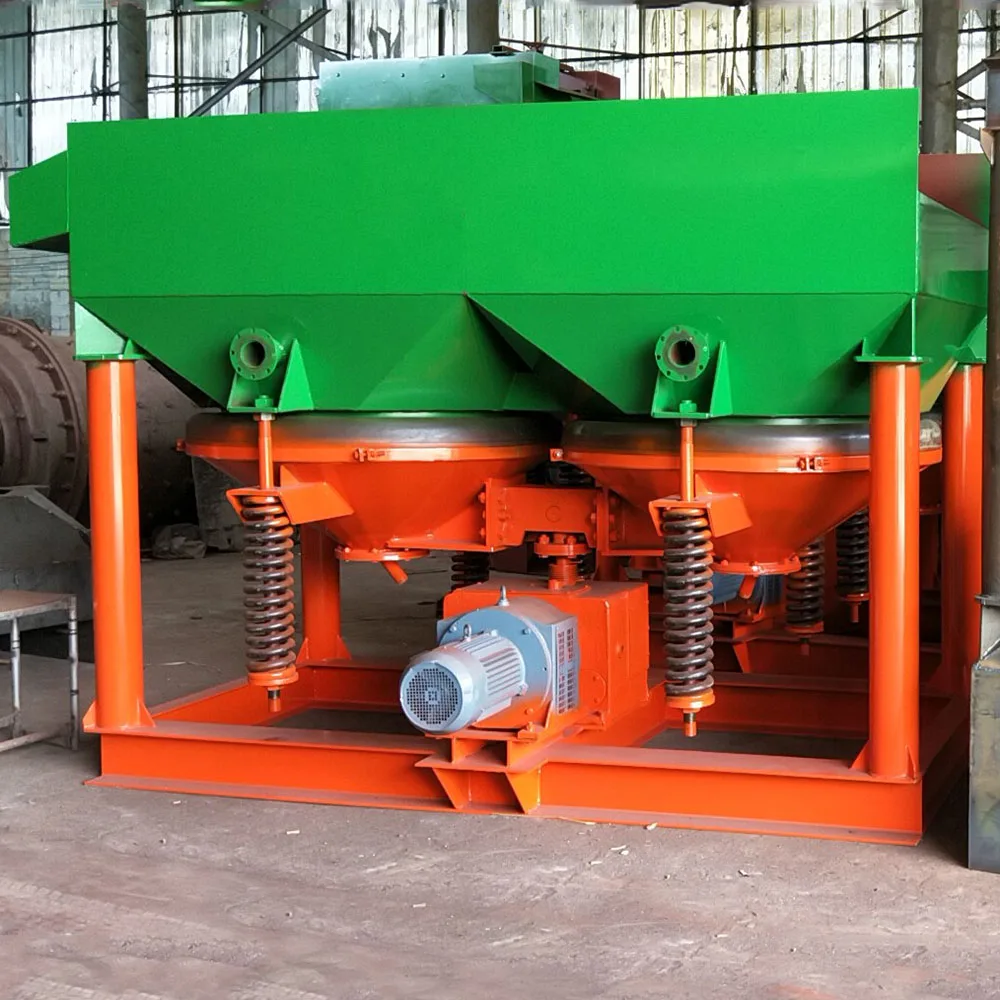

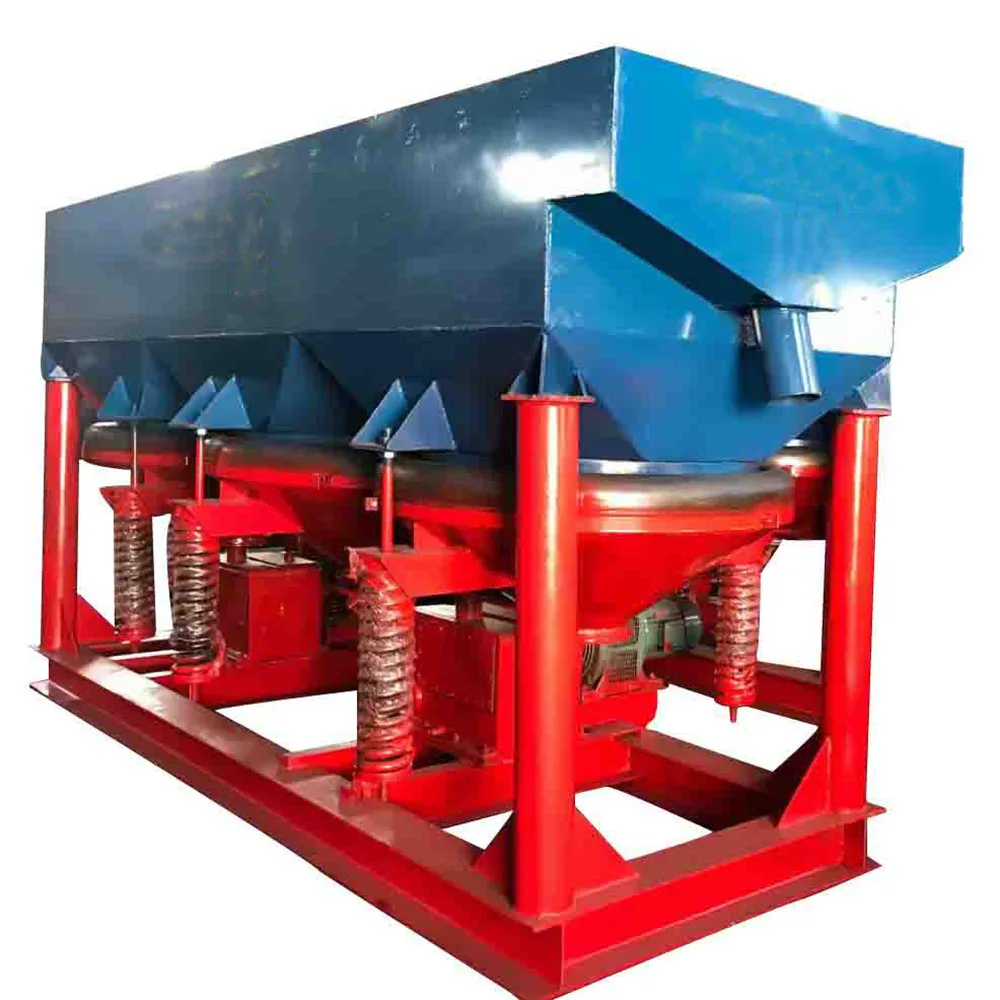

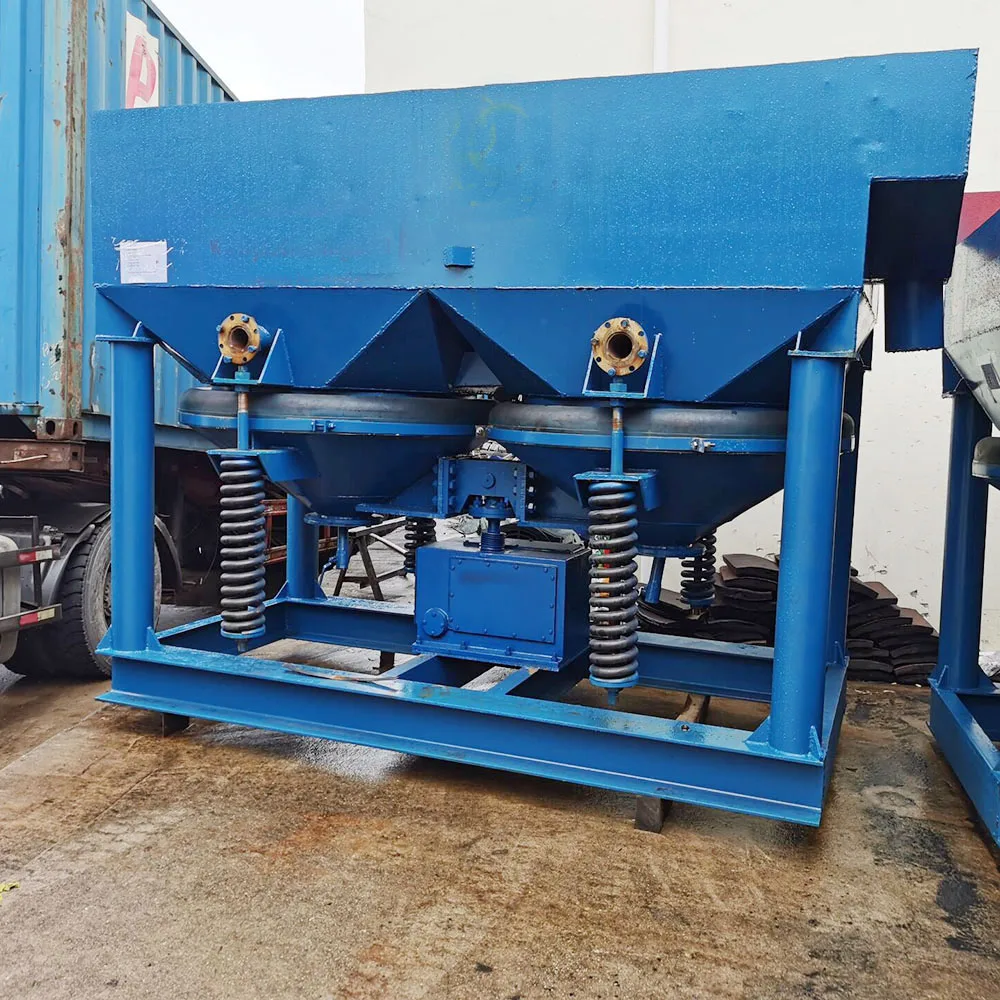

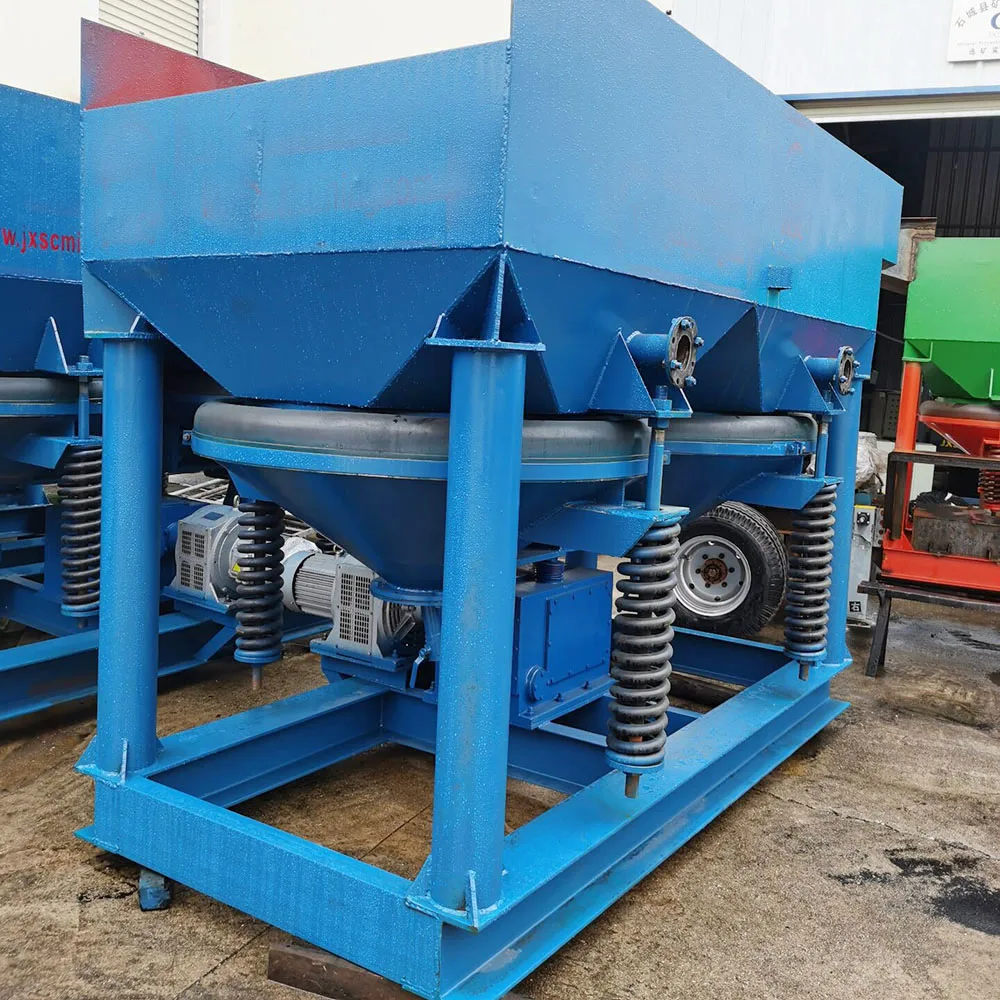

JXSC jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separator is one of the ideal devices in energy-saving gravity separation.

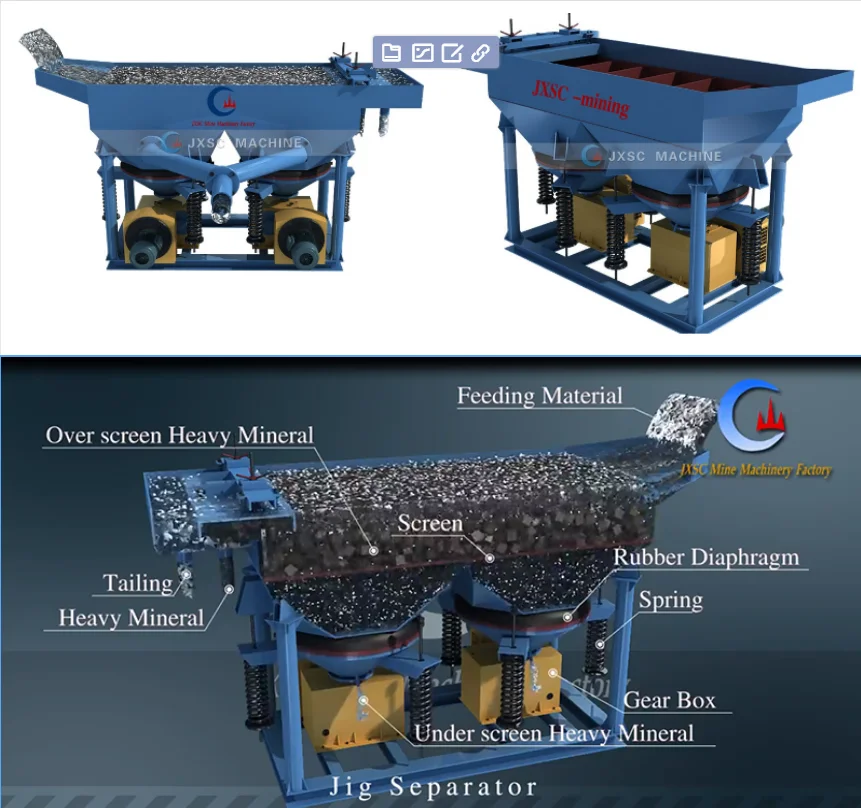

When processing the open-pit mines, the saw-tooth wave jigger is a key machine with the principle of gravity separation. Its pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.
JXSC jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separator is one of the ideal devices in energy-saving gravity separation.
When processing the open-pit mines, the saw-tooth wave jigger is a key machine with the principle of gravity separation. Its pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.
Procesible Material: gold ore/coltan ore/ tin ore/ tungsten ore/ diamond ore/ barite ore/ iron ore/ manganese ore,ect.
Application: Mainly applied for placer gold, alluvila gold, tantalum-niobium, titanium, coltan ore, tungsten, iron, tin, hematite,cope, manganese, barite, zirconium and chrome etc concentration.
Application: Mainly applied for placer gold, alluvila gold, tantalum-niobium, titanium, coltan ore, tungsten, iron, tin, hematite,cope, manganese, barite, zirconium and chrome etc concentration.
Features:
1.High capacity, high concentration ratio and high recovery ratio.
2.Fabricated with highest quality material
3.Easy to install, operate and maintain
4.Water conservation ,Saving water 30-40% than ordinary jig.
5.The pulsation speed very easy adjusted by regulator
6.Suitable to separate out big and small size heavy minerals.
1.High capacity, high concentration ratio and high recovery ratio.
2.Fabricated with highest quality material
3.Easy to install, operate and maintain
4.Water conservation ,Saving water 30-40% than ordinary jig.
5.The pulsation speed very easy adjusted by regulator
6.Suitable to separate out big and small size heavy minerals.

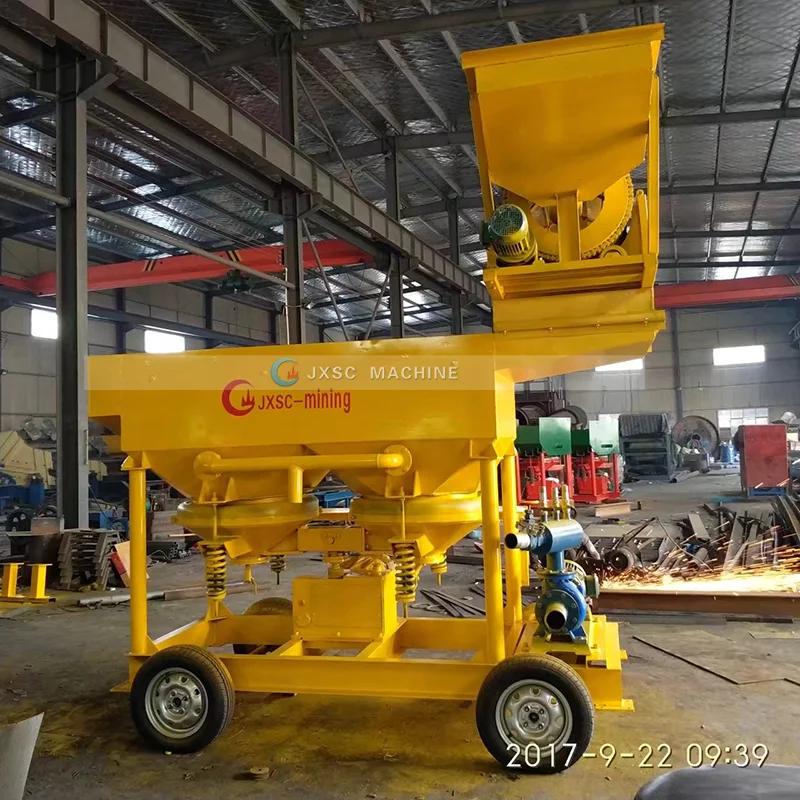

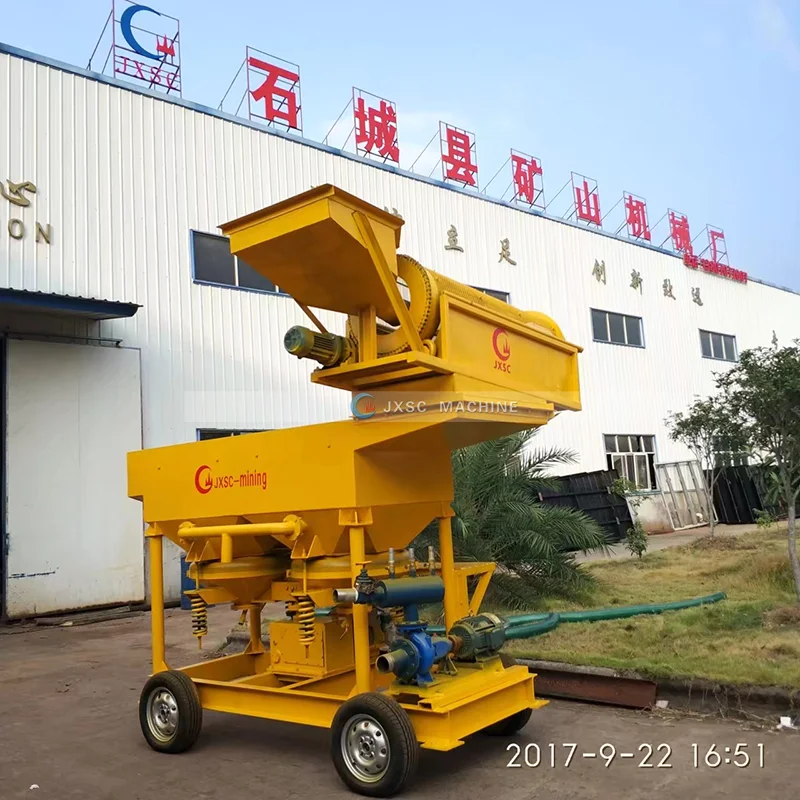

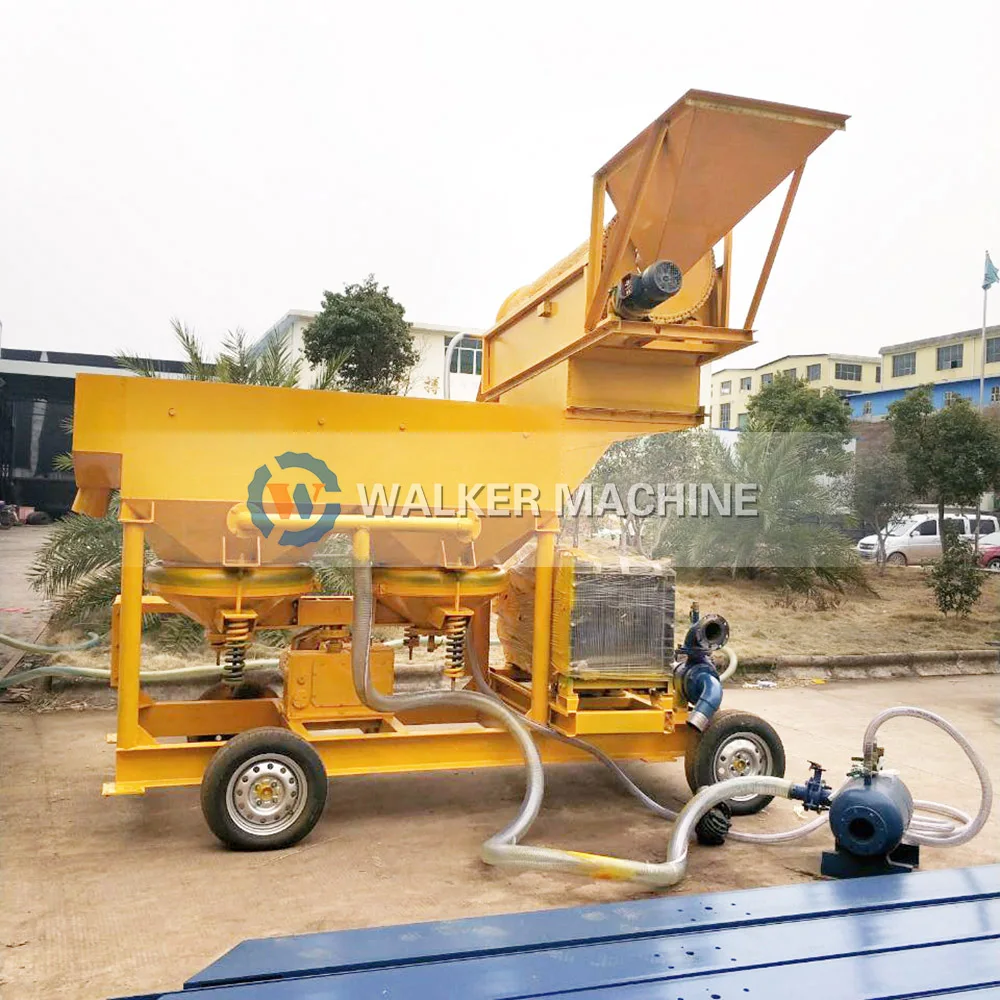

We also provide portable small processing plant with trommel screen, which can separator diamonds, gold and other minerals。
Technical data
Model | Jig Area (M2) | Stroke (R/Min) | Feeding size (mm) | Hutch Water ( T/H) | Pressure Water (kg/cm2) | Capacity (T/H) | Power (KW) | Overall dimensions (mm) | Weight (T) |
JT0.57-1 | 0.57 | 60-160 | <6 | 1-2 | ≥0.3 | 1-2.5 | 1.5 | 1560x820x1550 | 0.612 |
JT1-1 | 1.04 | 60-160 | <10 | 2-3 | ≥0.3 | 4-10 | 2.2 | 1322x1190x1915 | 0.9 |
JT2-2 | 2.28 | 60-160 | <10 | 2-4 | ≥0.3 | 8-15 | 3 | 3225x1550x2150 | 1.637 |
JT4-2 | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 7.5 | 4240x1990x2750 | 4.6 |
JT4-2A | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 8 | 4240x1990x2750 | 4.6 |
JT5-2 | 4.86 | 80-120 | <10 | 4-10 | ≥0.1 | 10-20 | 7.5 | 3940x2006x2580 | 4.6 |
after-sales service
We can send engineers to guide the installation and provide perfect after-sales service
We can send engineers to guide the installation and provide perfect after-sales service
\t\t\t\t\t\t\t\t\tProduct application \t\t\t\t\t\t\t
Jig Separator Mainly applied for placer gold, alluvial gold, tantalum-niobium, titanium, coltan ore, tungsten, iron, tin, hematite, cope, manganese, barite, zirconium, etc.

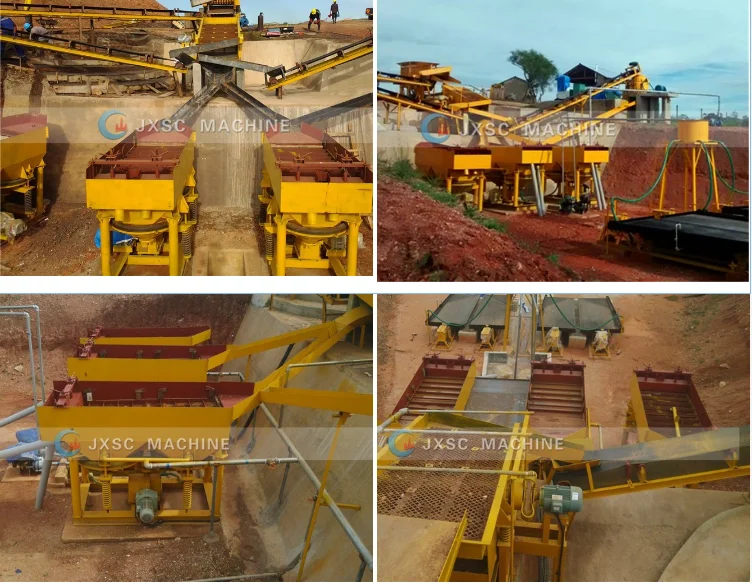

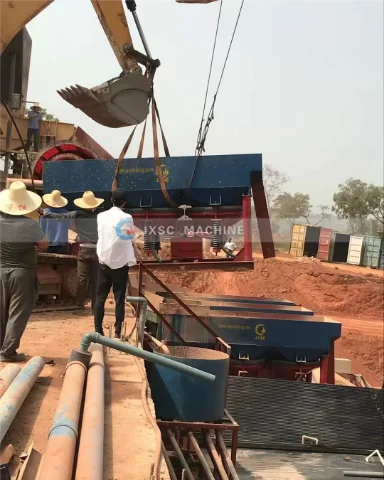

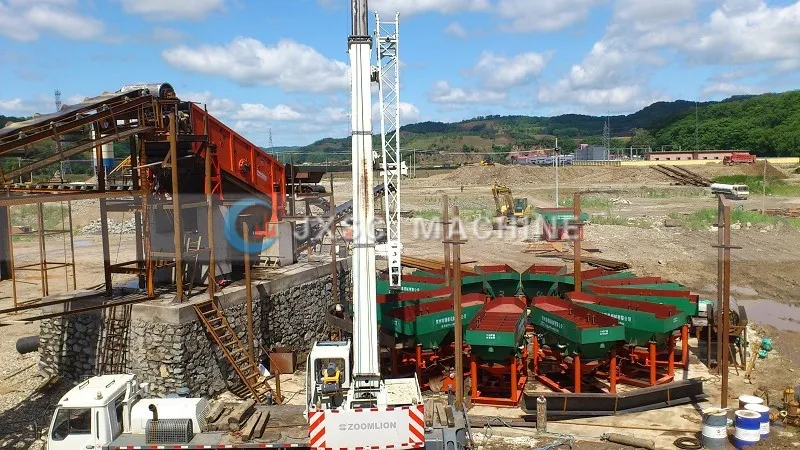

JXSC 100TPH Tantalum Niobium Project in Uganda
Capacity:100tph
site:Uganda
mineral:Tantalum niobium
machine:hopper,jig separator,belt conveyor,vibrating feeder,vibrating screen,pumps etc
We designed and offered the whole processing plant equipments,and offered the engineer there for commissioning and guidance.
100tph Complete Set Plant Tantalum-niobium Ore Processing in Nigeria
1) JXSC supplied complete Set Plant , including Jig Separator, Trommel Scrubber Washing Machine & Shaking Table etc. for this project.
2) JXSC sent Engineer Mr. Wen services at customer's mine site to guide for installation, commission, start up and training.
1) JXSC supplied complete Set Plant , including Jig Separator, Trommel Scrubber Washing Machine & Shaking Table etc. for this project.
2) JXSC sent Engineer Mr. Wen services at customer's mine site to guide for installation, commission, start up and training.
we have provided jig machine for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa, Uganda, Zambia,Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant, diamond washing plant, Iron ore washing plant,ect.
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t

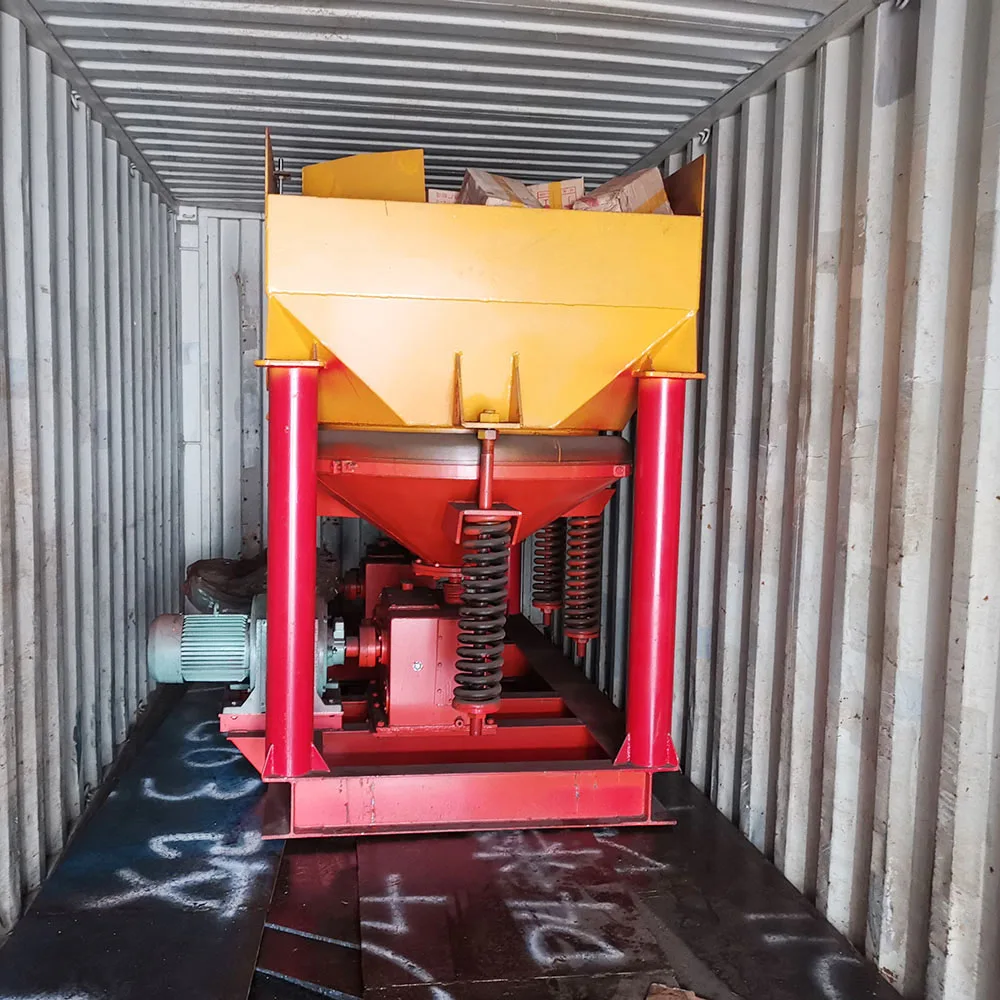

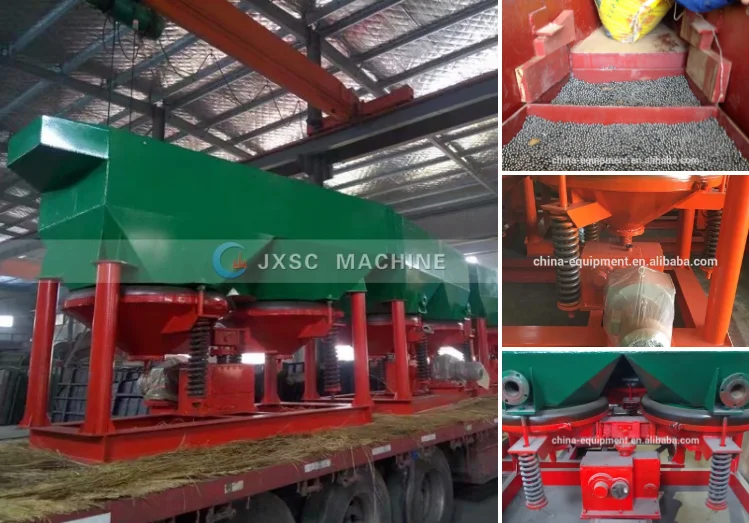

Jig concentration machine Packing/Loading
1. Some machines spare parts would be packed in wooden boxes to avoid broken.
2. Usually the machines are fixed and loaded in container directly.

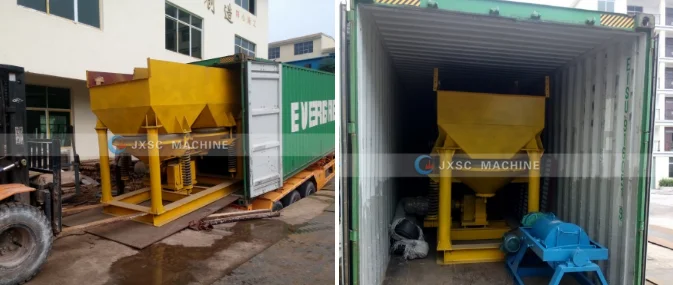

Jig Separator Shipping
1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Jiangxi walker Machinery Co.,Ltd, is a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province. professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed:
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
Our service
Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
Very good service help us win many clients from all over the world.
Похожие товары
Прочный Вихревого сепаратора с стабильной производительностью для массового разделения металла в промышленности
1 598 021,80 ₽ - 1 708 230,20 ₽
Сепаратор вихревого тока профессиональная машина для переработки лома алюминия установка отходов и сортировки
1 983 751,20 ₽ - 2 204 168,00 ₽
Рециркуляционная машина для переработки металлолома из нержавеющей стали
1 653 126,00 ₽
Сепаратор вихревого тока машина для переработки лома алюминиевый медный Цинковый ПВХ сортировщик
881 667,20 ₽ - 2 755 210,00 ₽
Тяговая система новый производитель небольшие Морские дизельные двигатели лодка для уборки мусора

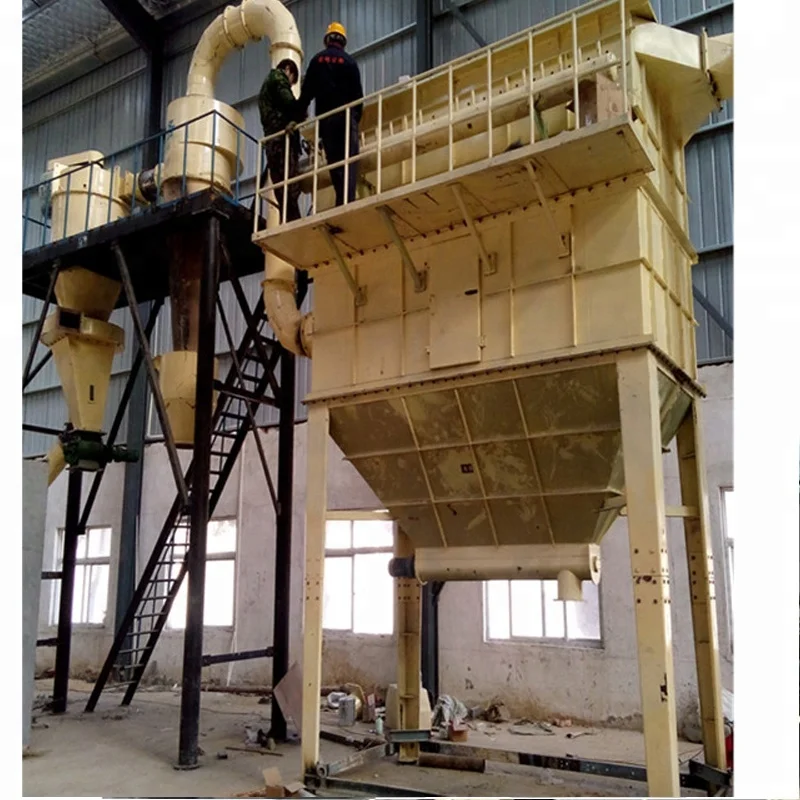

Пневматический циклонный классификатор сепаратор воздушного классификатора произведенный в Китае
