Прямая поставка с завода мини гусеничный экскаватор для садоводства
475 127,52-678 753,60 ₽
Высокоперфорированный сельскохозяйственный шахтно самосвалочный экскаватор с бревенчатым грейфером
- Категория: >>>
- Поставщик: Shandong Demao Machinery Equipment Co. Ltd.Shandong Ltd.
Сохранить в закладки 1600909100586:
Описание и отзывы
Характеристики
Products Description

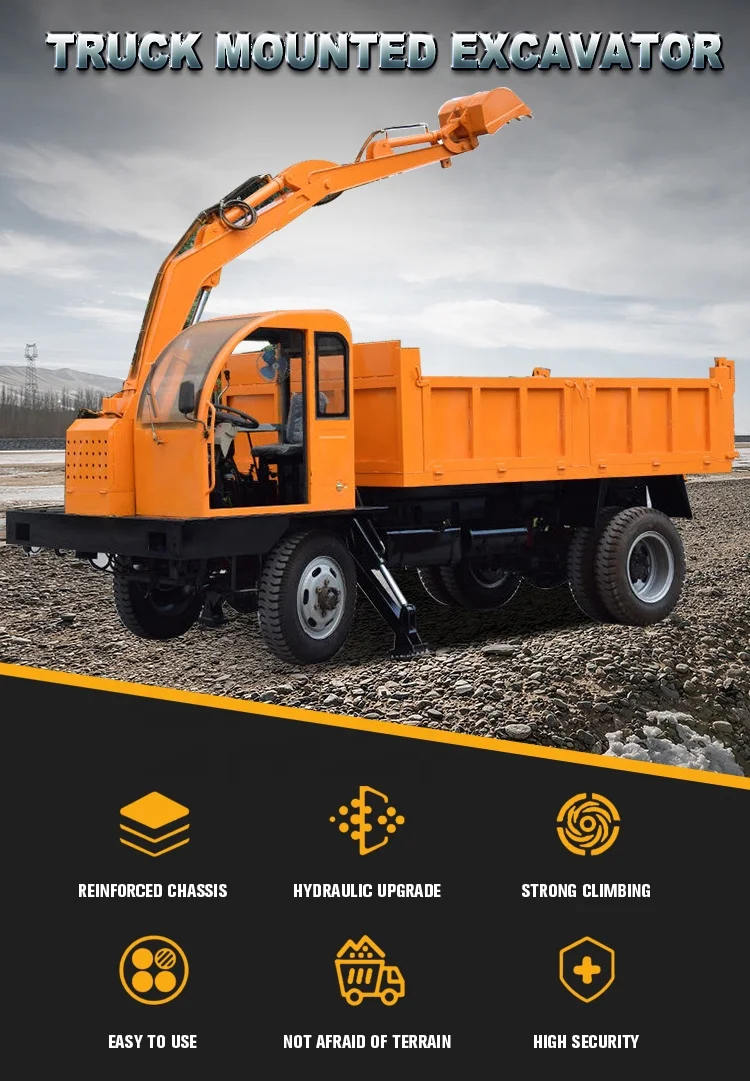

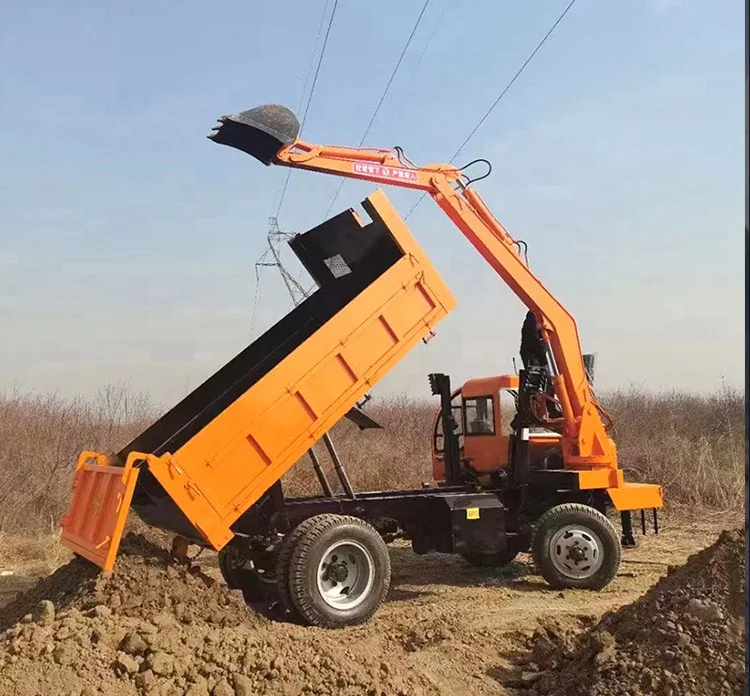

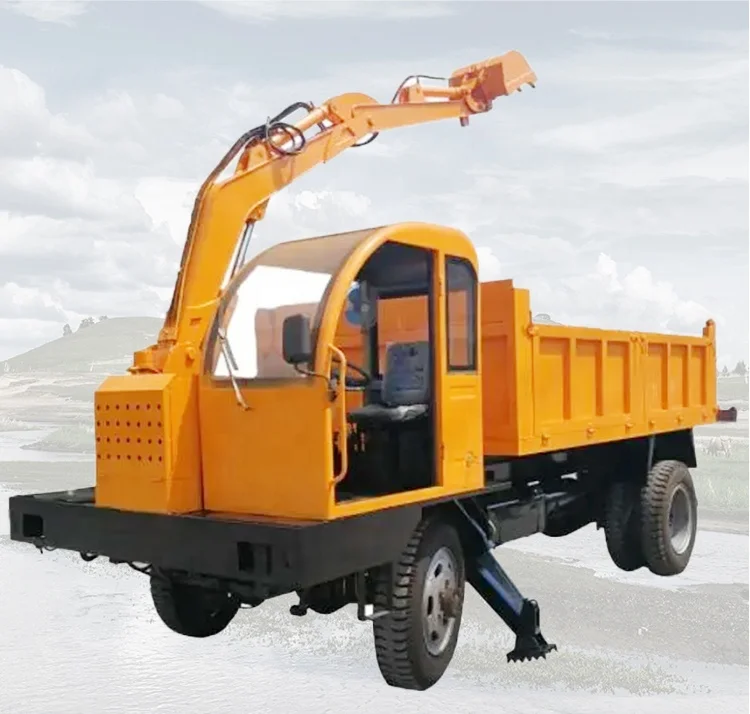

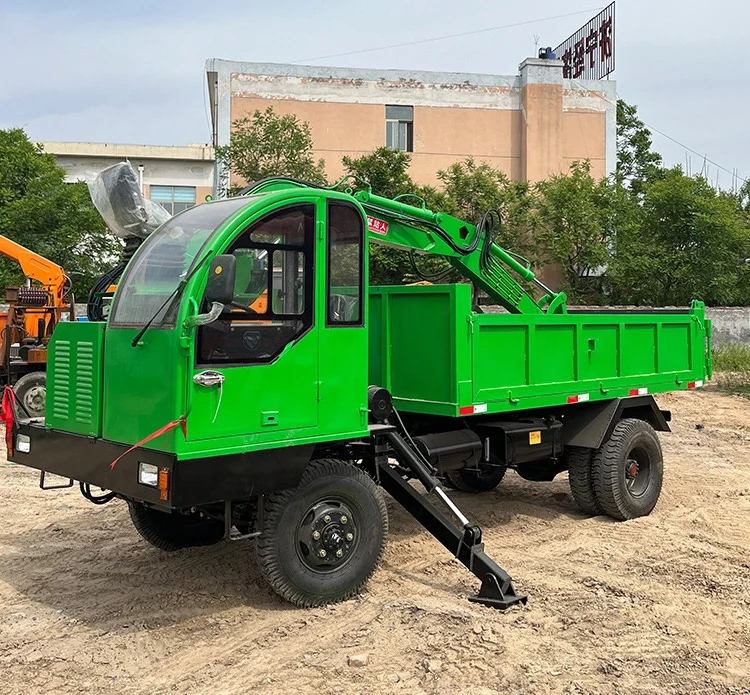

The vehicle excavator is a new type of engineering vehicle developed that integrates excavation, loading and transportation. The excavating arm is mounted on the frame and is used for digging the material above or below the surface of the carrier and loading it into the earth moving machinery of the transportation vehicle or discharging it to the stockyard. The materials are mainly soil, coal, and sediment, as well as the pre-spinning soil and rock. It can transport earth and sand, crops, fertilizers and other materials. It can also lift heavy objects through the lifting arm. It can also be replaced with mechanical claws for loading wood, stones, etc.
Configuration table | ||
Engine Model | 490 Engine | |
Engine Power | 42kw | |
Transmission Model | 140 gearbox | |
Gear | 5+1 gears air push high and low speeds | |
Front axle model | 2050 | |
Rear axle model | 1069 | |
Drive mode | Air push 4WD switching | |
Cabin Size | 3000*2000*500mm | |
Dimension of whole vehicle | 5200*2000*2700mm | |
Thickness of steel plate | Bottom 3 Side 3 | |
Tire type | 750-16 (Rear Dual Wheel) | |
Boom length | 5 meters (optional) | |
Bucket model | 60 (Optional) | |
Digging strength | 3 tons | |
Excavator operation | Top operation | |
Slewing | 360 degree swivel | |
Outrigger | Two tilting legs as standard | |
Battery | 24V | |
Load | 6-8 tons | |
Steering mode | Hydraulic power steering | |
Unloading method | Hydraulic dumping | |
Brake Type | Air brake | |
Cab | Single closed cab | |
Configuration table | ||
Engine Model | 4102 supercharged engine | |
Engine Power | 68kw | |
Transmission Model | 145 Transmission | |
Gear | 5+1 gears air push high and low speeds | |
Front axle model | 2050 | |
Rear axle model | 1080 | |
Drive mode | Pneumatic push four-wheel drive switching | |
Cabin Size | 3500*2100*600mm | |
Dimension of whole vehicle | 5700*2100*2750mm | |
Thickness of steel plate | Bottom 4 Side 3 | |
Tire type | 825-16 (Rear double wheels) | |
Boom length | 5 meters (optional) | |
Bucket model | 60 (Optional) | |
Digging strength | 3. 5 tons | |
Excavator operation | Upper operation | |
Slewing | 360 degree swivel | |
Outrigger | Two tilting legs as standard | |
Battery | 24V | |
Driver's cab | Single enclosed cab | |
Climbing capacity | 25 degrees | |
Traveling speed | 3-60km/h | |
Matching Auxiliary | Wood grabber, crushing hammer, etc. | |
Braking | Air brake | |
Steering | Hydraulic power steering | |
Unloading method | Hydraulic tipper | |
Load capacity | 8-10 tons | |
Configuration table | ||
Engine Model | 4105 Supercharged Engine | |
Engine Power | 76kw | |
Transmission Model | 145 Transmission | |
Gear | 5+1 gears High and low speed | |
Front axle model | 2060 | |
Rear axle model | 1080 | |
Drive mode | Pneumatic push four-wheel drive switching | |
Cabin Size | 3500*2200*600mm | |
Thickness of steel plate | Bottom 4 side 3 | |
Vehicle Size | 5800*2200*2800mm | |
Tire type | 825-16 (Rear double wheels) | |
Arm Size | 5.5m (Customizable) | |
Bucket model | 60 (Optional) | |
Digging strength | 4 tons | |
Excavator operation | Upper operation | |
Slewing | 360 degree swivel | |
Excavator cab | Optional simple awning | |
Legs | Two tilting legs as standard | |
Battery | 24V | |
Load | 12T | |
Steering mode | Hydraulic power steering | |
Unloading method | Hydraulic tipper | |
Brake Type | Air brake | |
Cab | Single closed cab | |
Option | Push shovel, fixed legs, etc. | |
Configuration table | ||
Engine Model | 4108 Supercharged Engine | |
Engine Power | 90kw | |
Transmission Model | 545 gearbox | |
Gear | 5+1 gears Air push high and low speeds | |
Front axle model | 20800 | |
Rear axle model | 153 | |
Drive mode | Pneumatic push four-wheel drive switching | |
Cabin Size | 3800*2300*800mm | |
Dimension of whole vehicle | 6000*2300*2800mm | |
Thickness of steel plate | Bottom 4 Side 3 | |
Tire type | 825-20 (Rear double wheels) | |
Boom length | 6 meters (optional) | |
Bucket model | 60 (Optional) | |
Digging strength | 4 tons | |
Excavator operation | Upper operation | |
Slewing | 360 degree swivel | |
leg | Two tilting legs as standard | |
Battery | 24V | |
Load | 15-20 tons | |
Steering mode | Hydraulic power steering | |
Unloading method | Hydraulic dumping | |
Brake Type | Air brake | |
Cab | Single closed cab | |
Product Display
1.High performance brand engine, durable power, fuel saving, strong and stable.
2. Excellent waterproof performance, the entire vehicle circuit and electrical appliances adopt high-level waterproof sealing treatment.
2. Excellent waterproof performance, the entire vehicle circuit and electrical appliances adopt high-level waterproof sealing treatment.
3.The cab and operation platform do not interfere with each other, the whole vehicle hydraulic system operation, stable performance.
4.Full automatic front and rear 6 legs, working state support stable hydraulic operation, respectively leveling.
4.Full automatic front and rear 6 legs, working state support stable hydraulic operation, respectively leveling.
5.All kinds of auxiliary tools can be selected to make it more flexible.
6. Large angle steering, smaller turning radius, suitable for complex situations with narrow roadways and multiple bends.
6. Large angle steering, smaller turning radius, suitable for complex situations with narrow roadways and multiple bends.
Details Images
Product Application
More Products
Product packaging
Company Profile
Shandong Demao Machinery Equipment Co., LTD., the founder has more than 20 years of work experience, independent research and development, design, production of all kinds of intelligent remote control terminal equipment. Mainly engaged in crawler transporter, hydraulic chassis, mechanical chassis, remote control lawn mower, small loader, roller and other agricultural machinery, engineering machinery. The company has all kinds of high-quality upstream supply chain, high-quality technical personnel, strict quality management system and years of service experience. Products are exported to Malaysia, Taiwan Province, Indonesia, Russia and other countries and regions, the company's leading technology and excellent performance won the industry praise.
FAQ
Q1. What is your advantage?
A1: We are a leading company in the industry that has been established for more than 20 years, with rich experience and leading technology, providing customers with high-quality services and products.
Our products enjoy high prestige in the world market for 20 years.
Q2: What are the advantages of your product?
A2: Our products have the advantages of high cost performance, stable and reliable quality, diversification, customization and good after-sales service.
Q3: How do you make our business long-term and good relationship?
A3: We keep good quality and competitive price to ensure our customers benefit . We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q4: What Products Dose Company Has?
A4: We Are Mainly Specializing In Producting and Exporting Of Truck mounted excavator From 6 Ton to 20 Ton.Also We Focus On Export Other Machine Like Such as water well drilling rigs, excavators, road rollers, remote control lawn mowers, Crawler dump truck and other agricultural and construction machinery.
A1: We are a leading company in the industry that has been established for more than 20 years, with rich experience and leading technology, providing customers with high-quality services and products.
Our products enjoy high prestige in the world market for 20 years.
Q2: What are the advantages of your product?
A2: Our products have the advantages of high cost performance, stable and reliable quality, diversification, customization and good after-sales service.
Q3: How do you make our business long-term and good relationship?
A3: We keep good quality and competitive price to ensure our customers benefit . We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q4: What Products Dose Company Has?
A4: We Are Mainly Specializing In Producting and Exporting Of Truck mounted excavator From 6 Ton to 20 Ton.Also We Focus On Export Other Machine Like Such as water well drilling rigs, excavators, road rollers, remote control lawn mowers, Crawler dump truck and other agricultural and construction machinery.
Похожие товары
1 2 тонный мини-экскаватор-погрузчик на продажу
769 254,08-790 747,95 ₽
Купить 2022 Kubota U55-4 экскаватора
395 939,60 ₽
Мини-экскаватор 3 тонны мини-экскаватор pc30 pc40 pc55 японский использованный экскаватор для продажи
905 004,80 ₽
В продаже Подержанный мини-экскаватор 4-х тонный экскаватор komstsu PC40 MR-2 для экскаваторов
769 254,08-995 505,28 ₽
Японский импортный небольшой мини-экскаватор komatsu pc01 pc18 pc20 pc30 pc35 pc40 pc50
565 628,00-905 004,80 ₽

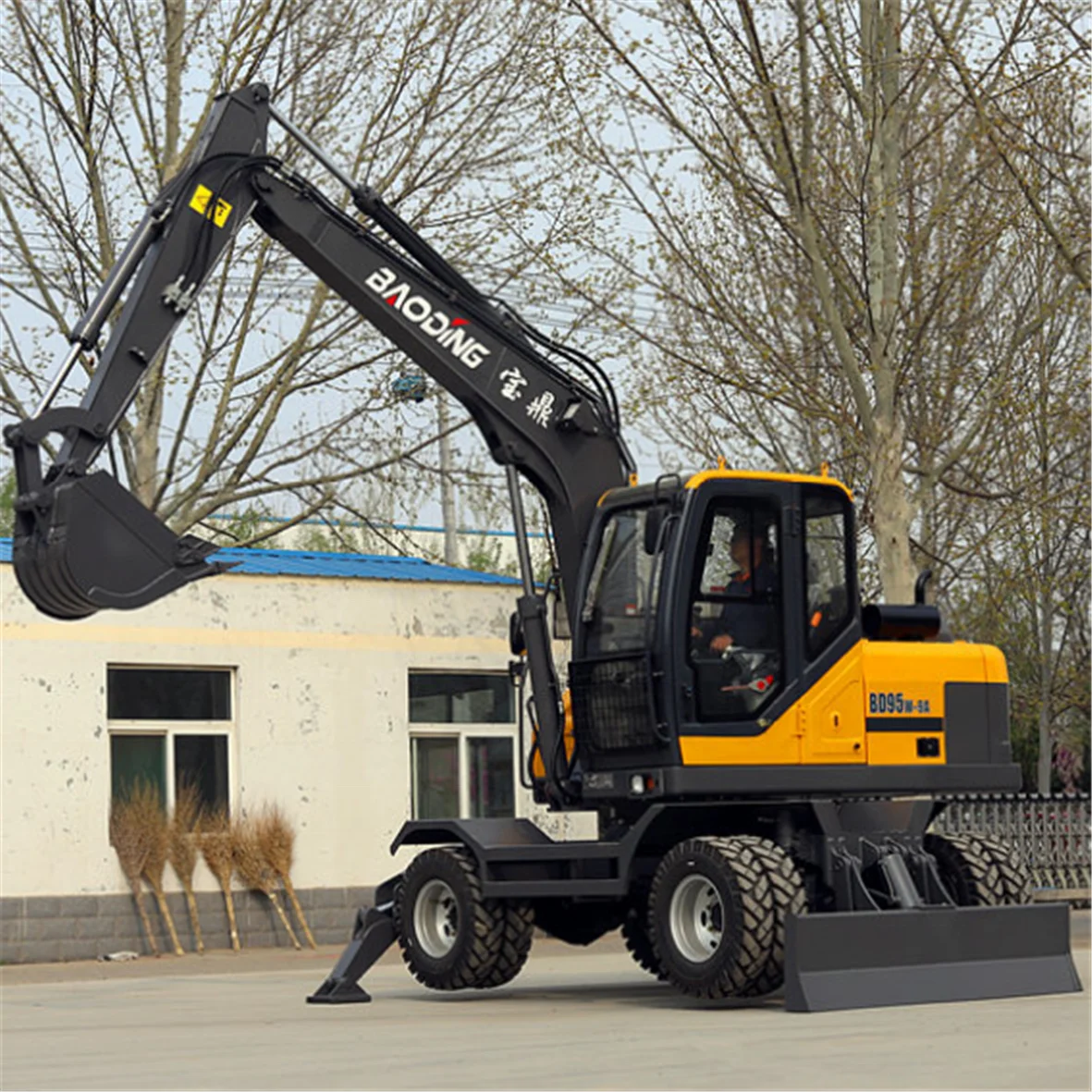

Хороший колесный экскаватор 8 тонн строительная машина BD95W цена
