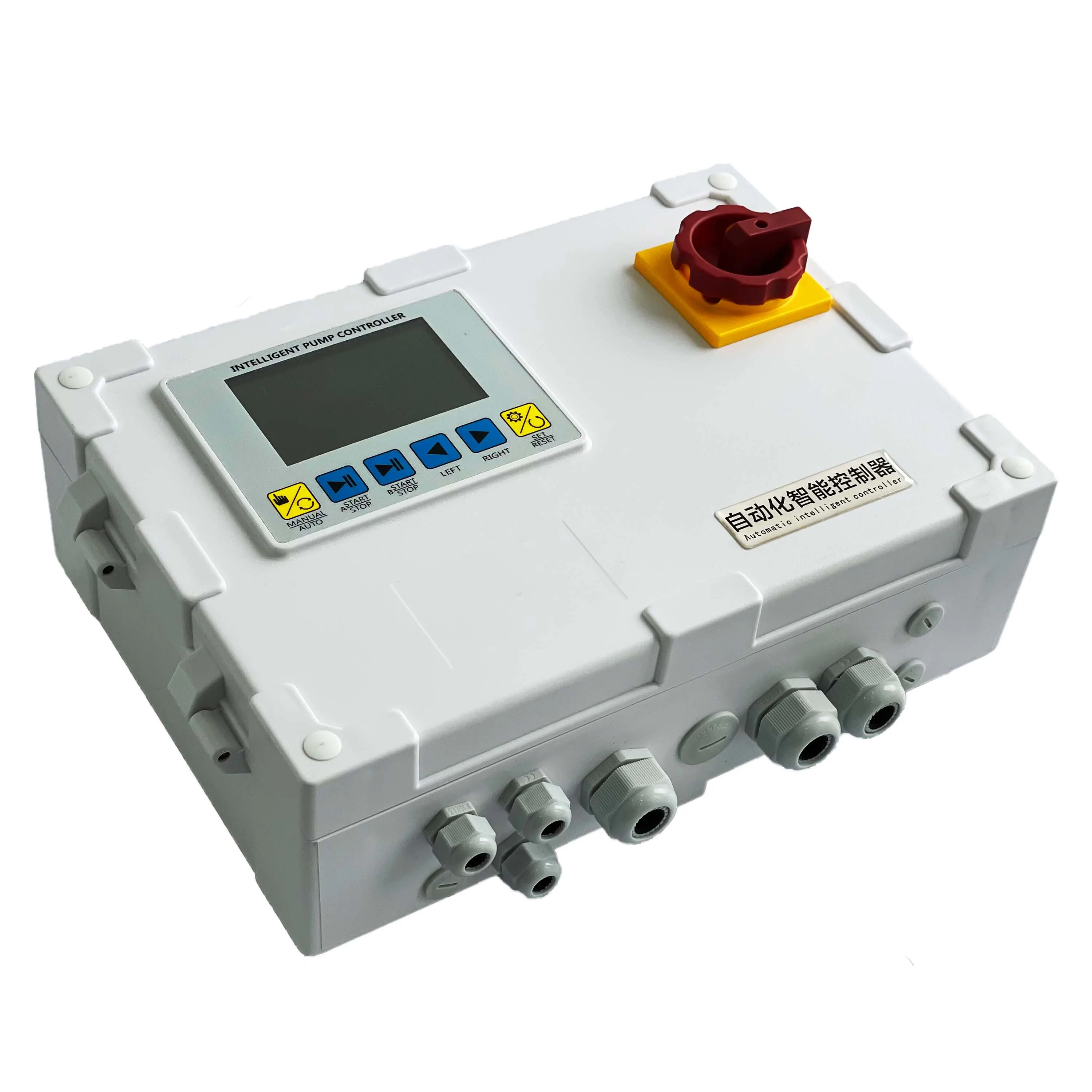

Aikon High Quality IP54 Automatic Sewage Pump Control Box Intelligent Controller with Lcd Screen
- Категория: >>>
- Поставщик: Shanghai Pumping Tech International Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1600909233083:
Описание и отзывы
Характеристики
Product Description

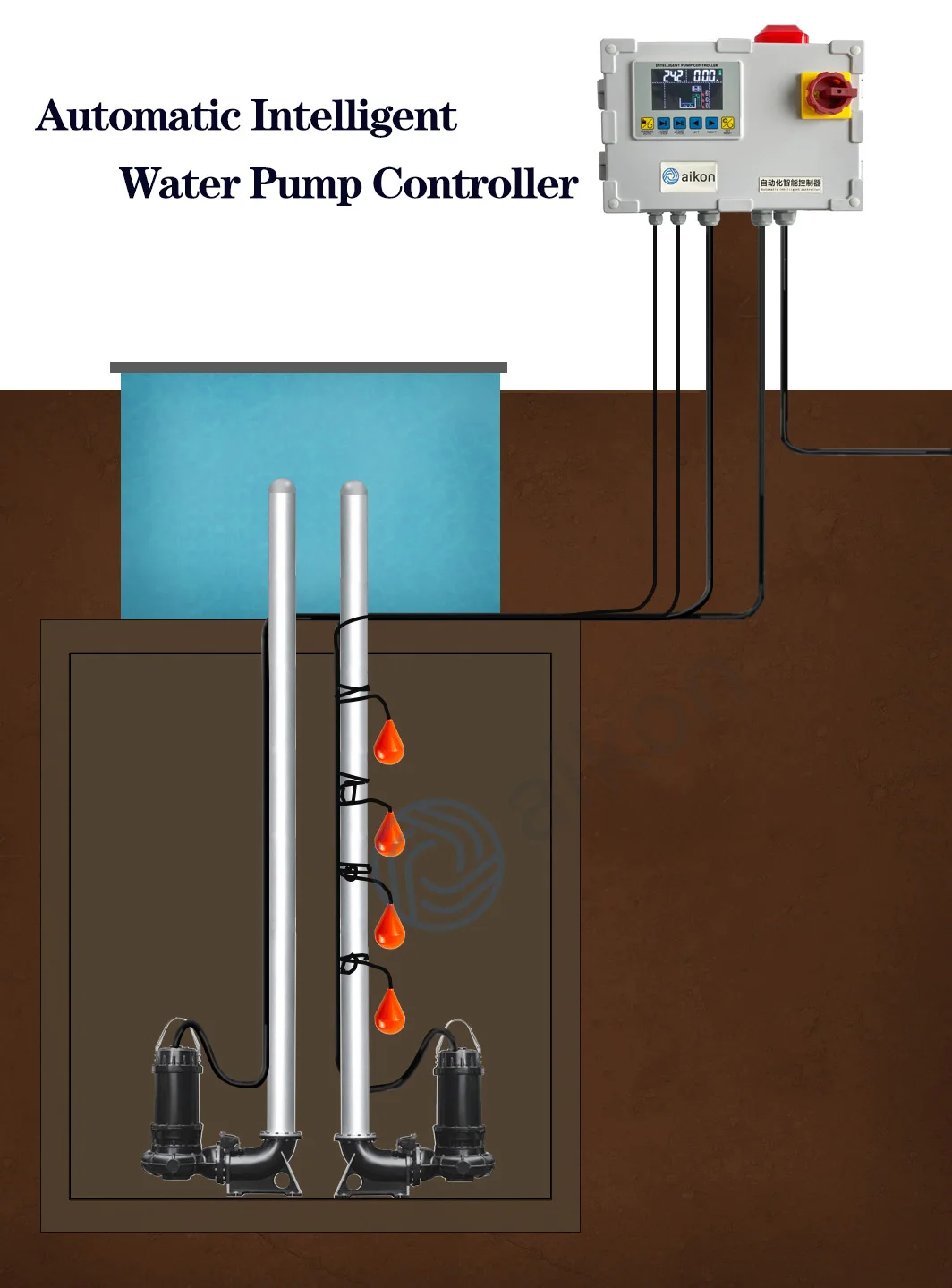

Automatic Intelligent
Water Pump Controller
Water Pump Controller
Scope of application:
protection and control of deep well pump/sinking pump/sewage pump/pipelinebooster pump/muti-stage pump/centrifugal pump...and underground blowdown, the level of the water supply in buildings, pressure and the control of float
ball.
ball.
Main Functions
（1）Manual/Auto.
（2）Dual pump alternating function.

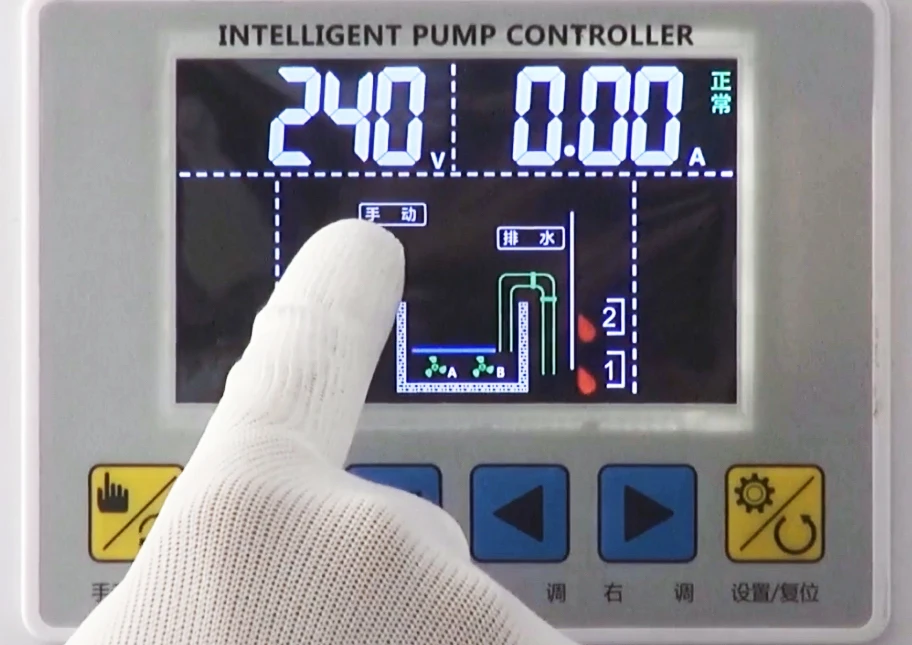

（3）Dynamic display of liquid level.
（4）24-hour inspection (anti-rust) function.
（5）One-key setting function in manual mode.
（6）Automatic identification current setting function.
（7）Water shortage protection stop pump function when manual start (prevent air from entering the pump)
（2）Dual pump alternating function.
（3）Dynamic display of liquid level.
（4）24-hour inspection (anti-rust) function.
（5）One-key setting function in manual mode.
（6）Automatic identification current setting function.
（7）Water shortage protection stop pump function when manual start (prevent air from entering the pump)
Protections
Pump stalled protection
Dry run protection
Over-load protection
Under-voltage protection
Over-voltage protection
Open phase protection
Short circuit protection
Dry run protection
Over-load protection
Under-voltage protection
Over-voltage protection
Open phase protection
Short circuit protection
Signal Transmission Mode
Level float switch
Level probe
Pressure switch
Electric contact pressure gauge
Level probe
Pressure switch
Electric contact pressure gauge
Controller Installing Size
Internal Structure

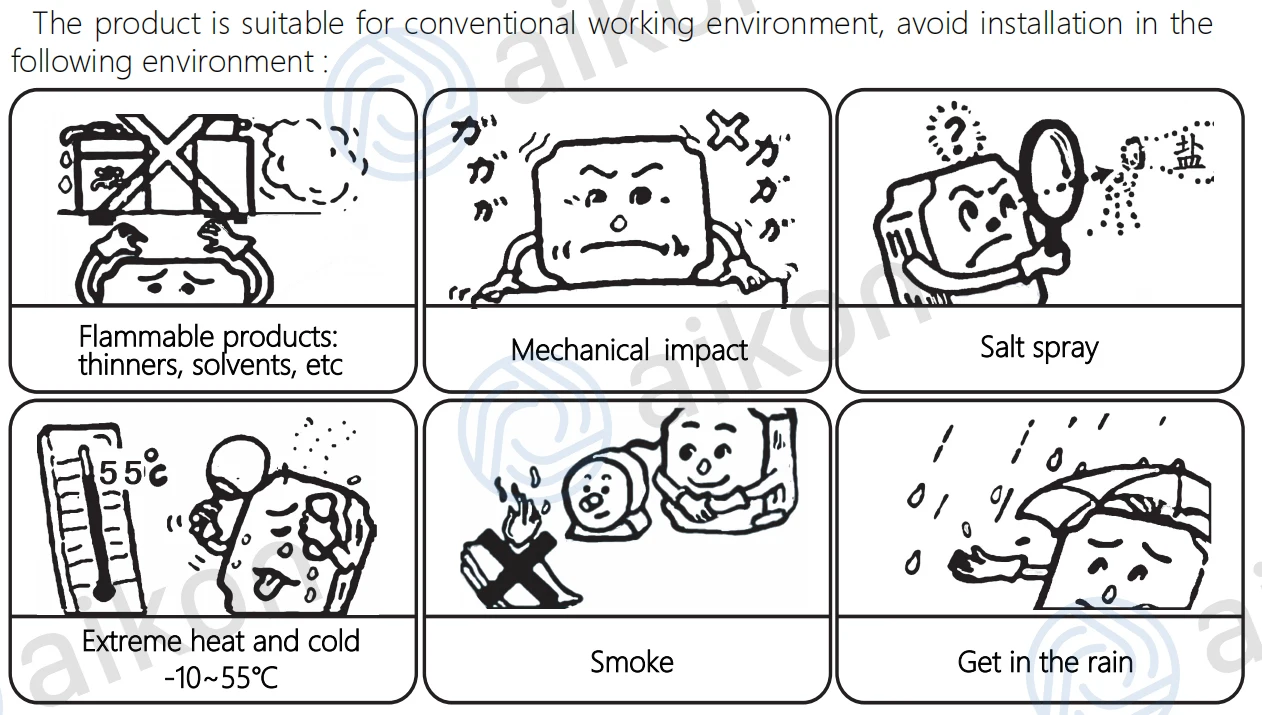

Caution
◆ Before installing and using the product, please read the instruction manual and keep it properly.
◆ The controller must be installed by professionals who are familiar with low-voltage electrical
technology.
◆ Power must be disconnected during installation, wiring, disassembly and maintenance.
◆ It is strictly forbidden to touch live components directly with your hands in the state of power.
◆ The controller must be reliably grounded before power on.
◆ If the generator is used as the power source of the controller, the power source of the generator is
stable, and the controller can be energized!
◆ If you do not install and debug according to the instruction manual or punch holes in the shell
without permission, the consequences shall be borne by yourself.
◆ The controller must be installed by professionals who are familiar with low-voltage electrical
technology.
◆ Power must be disconnected during installation, wiring, disassembly and maintenance.
◆ It is strictly forbidden to touch live components directly with your hands in the state of power.
◆ The controller must be reliably grounded before power on.
◆ If the generator is used as the power source of the controller, the power source of the generator is
stable, and the controller can be energized!
◆ If you do not install and debug according to the instruction manual or punch holes in the shell
without permission, the consequences shall be borne by yourself.
Specification
Specifications of the Water Pump controller | ||
Rated Power | 2.2KW-7.5KW For single phase pump 4KW-15KW For triple phase pump | |
Rated Input Voltage | 220V/380V 50Hz or 60Hz | |
Qty.of Controlled Pump | Single/Double pump | |
Display | LCD display | |
Water Level Indication | High/Middle/Low | |
Liquid level transmission distance | ≤1000m without strong electric and electromagnetic fields | |
Over/under-voltage Range | 176V-264V(adjustable) | |
Net Weight | 0.96KG | |
Underpressure operation time | <2s | |
Overpressure operation time | <2s | |
Overload operation time | <5s | |
Dry rotation time | <5s | |
Blocking rotation time | 1S | |
Short-circuit operation time | 0.1S | |
RS485 transmission distance | Within 1200 meters (using twisted-pair shielded cable STP-120Ω, 20 AWG) .「Percentage points (%) can be set for dry rotation protection/overload protection/blocked rotation protection. | |
Protection class | IP54 | |
Company Profile
Our factory
Mission
With constantly innovating and developing, brands that go out of China are no longer inferior to other international mega brands.
We simplify the complexity and push the best to the world. We aim number one.
We simplify the complexity and push the best to the world. We aim number one.
Certifications
Payment and shipping
FAQ
Q:Can you accept customized products?
A:Yes,of course. We provided OEM and ODM services for some internationally top brands.
Q:What’s the terms of payment?
A1:For OEM Orders, we accept 30% deposit,and 70% when goods ready to ship.
A2:For Ready to Ship In- Stock items, we need full payment paid before shipping.
Q : What's the different between inverter and solar inverter?
A:Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC input, it can save more power,but they cannot be used as battery.
Q: What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter. Remember to turn on the inverter before turn on the appliance.
Q: Do we need to set the parameter before using ?
A:No need for Solar inverter , our preset parameters have already meet your normal use. And our inverter is AI intelligent
working.
Pump Variable frequency driver need set the target pressure and RS485 communication for multi-pumps.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q:what kind of product quality your factory offer?
A:We offer the most competitive prices with best quality.
Q:Can you give me a discount?
A:We mainly do wholesale service,our discount is based on your order quantity.
Q:What is your main market?
A:Our brands are well known in Russia,Europe, Africa, Middle East, Southeast Asia and South America,etc.
Q:What's the cargo ready time?
A: If less than 100 pcs, the delivery is 15 days after the receipt of the payment. If more than 100 pcs, please contact us with more details.
A:Yes,of course. We provided OEM and ODM services for some internationally top brands.
Q:What’s the terms of payment?
A1:For OEM Orders, we accept 30% deposit,and 70% when goods ready to ship.
A2:For Ready to Ship In- Stock items, we need full payment paid before shipping.
Q : What's the different between inverter and solar inverter?
A:Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC input, it can save more power,but they cannot be used as battery.
Q: What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter. Remember to turn on the inverter before turn on the appliance.
Q: Do we need to set the parameter before using ?
A:No need for Solar inverter , our preset parameters have already meet your normal use. And our inverter is AI intelligent
working.
Pump Variable frequency driver need set the target pressure and RS485 communication for multi-pumps.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q:what kind of product quality your factory offer?
A:We offer the most competitive prices with best quality.
Q:Can you give me a discount?
A:We mainly do wholesale service,our discount is based on your order quantity.
Q:What is your main market?
A:Our brands are well known in Russia,Europe, Africa, Middle East, Southeast Asia and South America,etc.
Q:What's the cargo ready time?
A: If less than 100 pcs, the delivery is 15 days after the receipt of the payment. If more than 100 pcs, please contact us with more details.
Похожие товары
Для дренажа сточных вод промышленный грязный насос шлифовальный для насосы
450,00-500,00 $
Качественный медный моторный чугунный канализационный насос для бытовых грязных сточных вод подводного использования погружной водяной 4HP

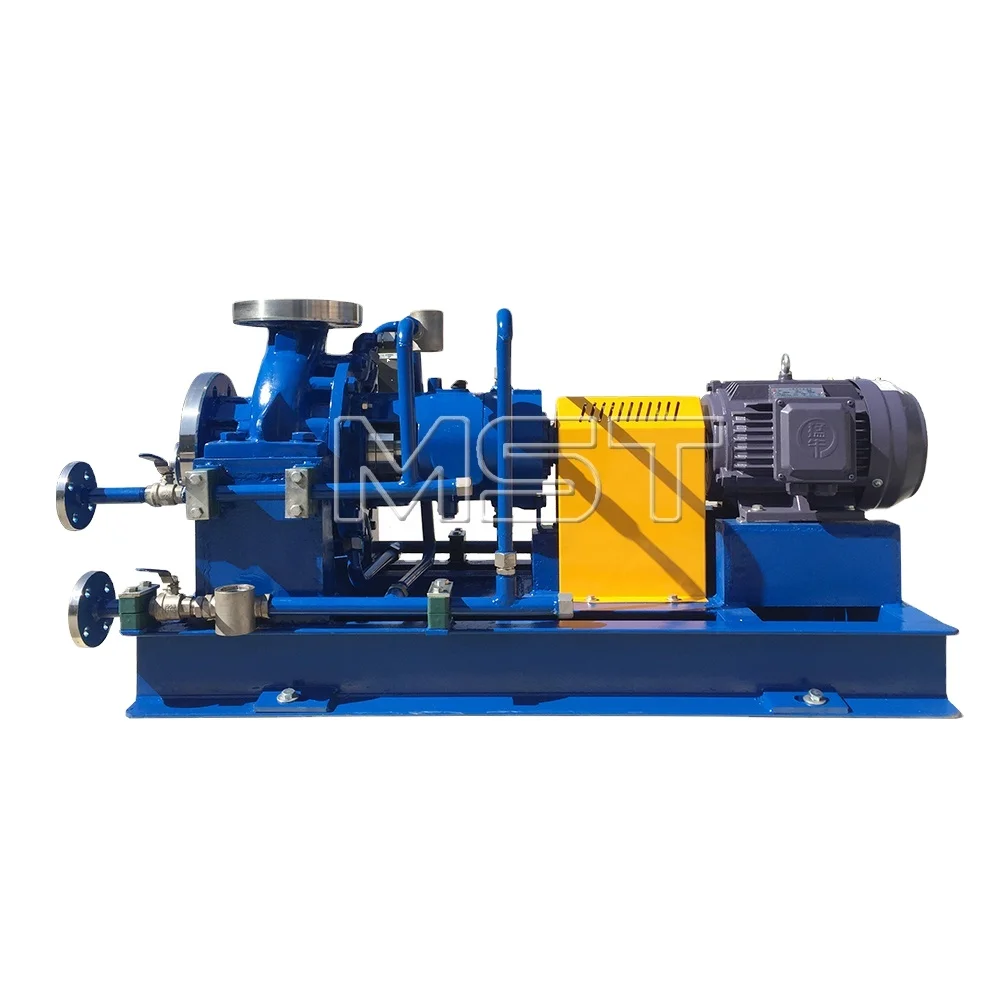

Chemical Pump Motor Acid and Alkali Resistance Cleaning
500,00 $

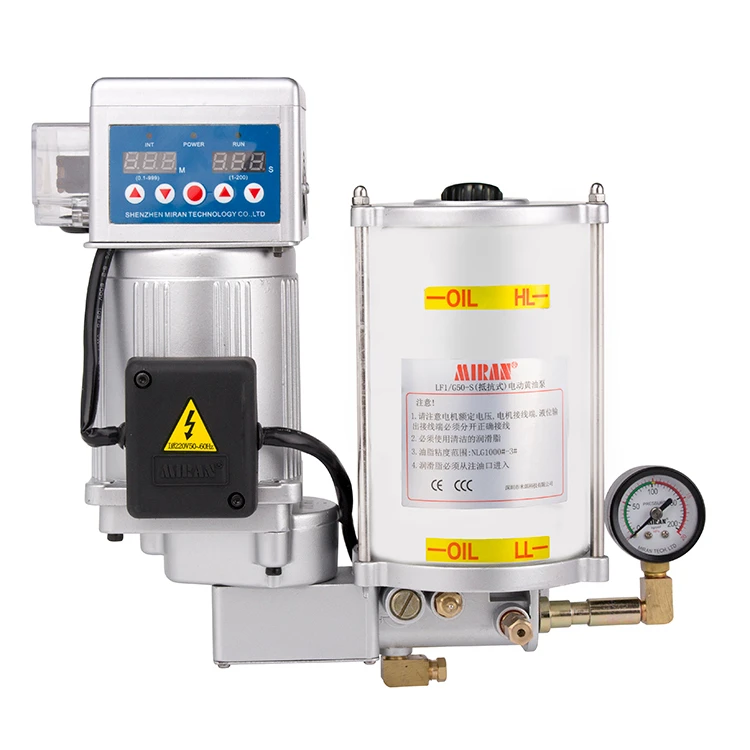

Miran Factory Supply 1L Automatic Greaser Lubrication Grease Pump

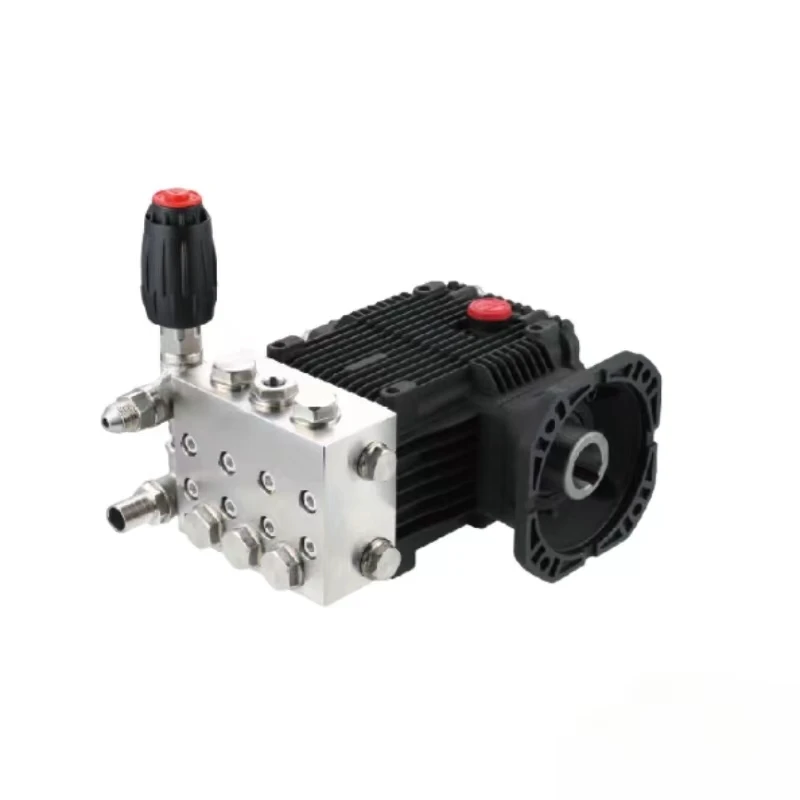

KY590-2014B Car Cleaning Pump 200 Bar Commercial High Pressure Triplex Plunger Replaceable
240,00-270,00 $

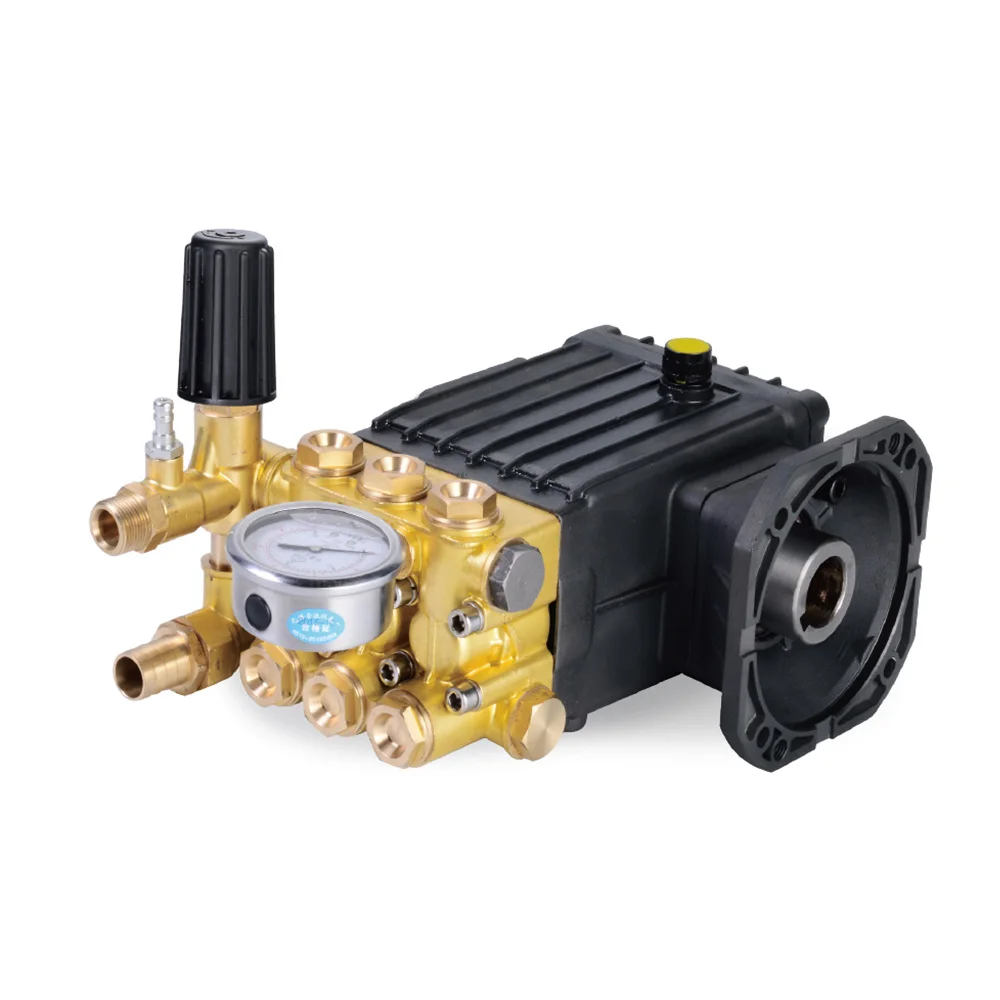

Electric High Pressure Triplex Plunger Water Pump for Washer
