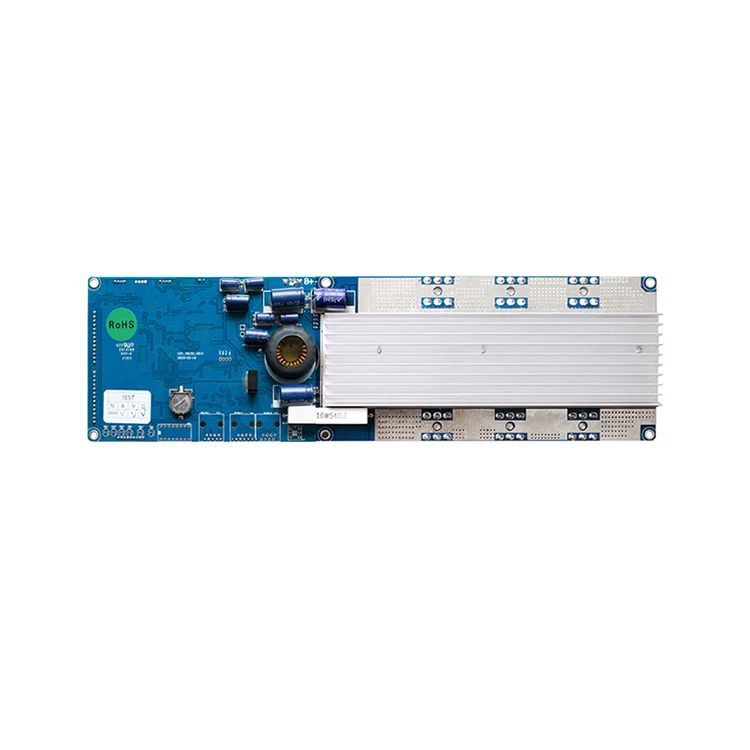

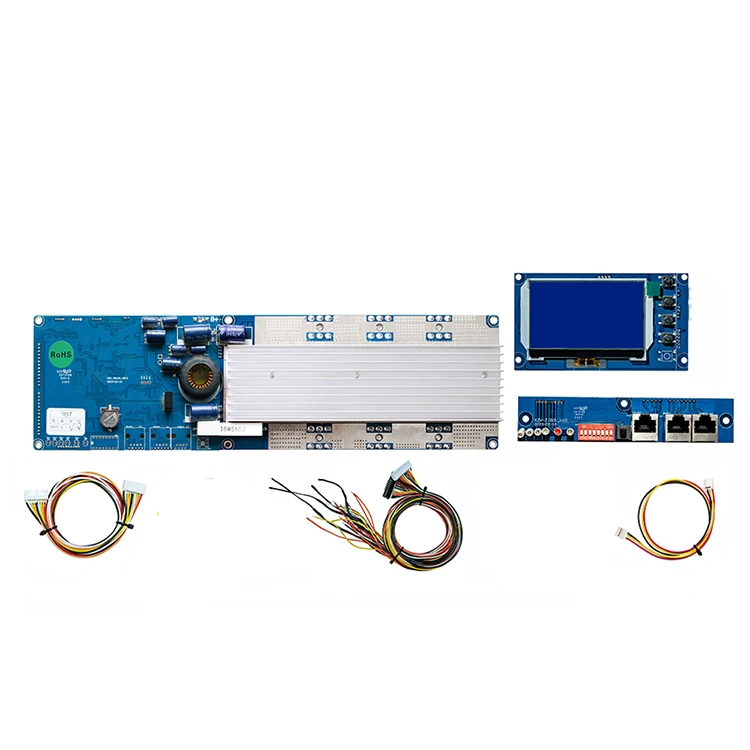

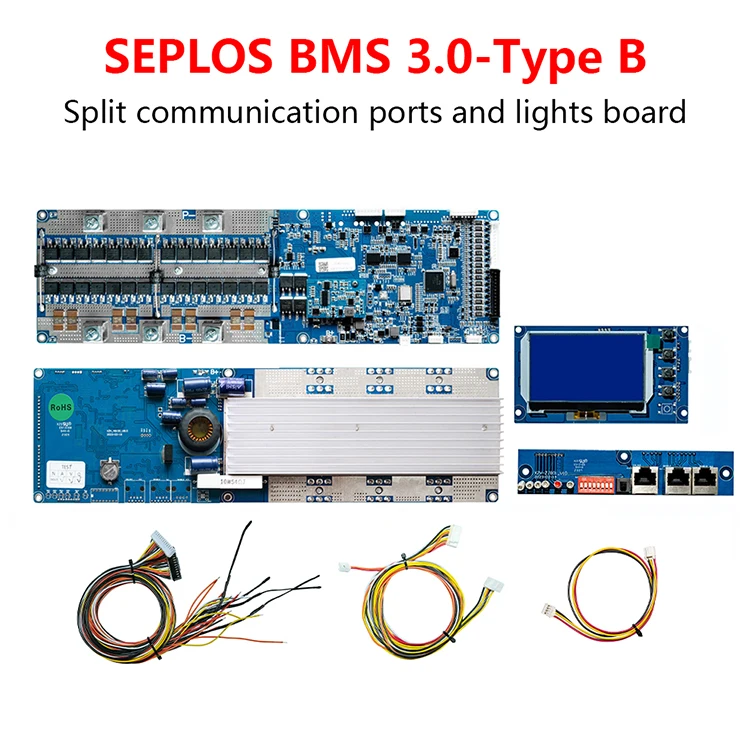

Seplos LFP Smart BMS 3 0 B 48V 200Ah для батареи LiFePO4 BlueTooth
- Категория: >>>
- Поставщик: Dongguan Seplos Technology Co. Ltd.
Сохранить в закладки 1600909255420:
Описание и отзывы
Характеристики
Products Description
1. We can provide seplos CANBUS/RS485 24V/48V 50A/100A/150A/200A Lifepo4/NCM BMS,for prismatic or Cylindrical lithium battery pack
2.We can provide two kinds of BMS boards with different communication modes, one is BMS using CANBUS communication protocol and the other is BMS using RS485 communication protocol, so that customers can have more flexible choices3.Our BMS can support up to 16 units in parallel operation.
4.The main functions are: CANBUS communication、RS485 communication、Passive balance、Individual cell over voltage protection、Over（under）voltage protection、temperature protect、over charge（discharge） protection, over current protection, Short circuit protection etc.
Attention: when we want to view the battery pack parameters through the battery parameter monitoring software, we need to use the Rj45 to USB Adapter to connect the battery pack to the computer. We recommend that you purchase an Rj45 to USB Adapter from us.Adapters purchased from the market may not work properly due to the definition of the hardware.
2.We can provide two kinds of BMS boards with different communication modes, one is BMS using CANBUS communication protocol and the other is BMS using RS485 communication protocol, so that customers can have more flexible choices3.Our BMS can support up to 16 units in parallel operation.
4.The main functions are: CANBUS communication、RS485 communication、Passive balance、Individual cell over voltage protection、Over（under）voltage protection、temperature protect、over charge（discharge） protection, over current protection, Short circuit protection etc.
Attention: when we want to view the battery pack parameters through the battery parameter monitoring software, we need to use the Rj45 to USB Adapter to connect the battery pack to the computer. We recommend that you purchase an Rj45 to USB Adapter from us.Adapters purchased from the market may not work properly due to the definition of the hardware.
Communication methods
CANBUS main board
Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:
Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:
*The default is the Pylontech CANBUS protocol
* Goodwe
* Growatt (The default is SPF(off-grid) protocol. If your inverter is SPH(on-grid) , please contact the sales person)
* Victron
* LUX POWER
* Sofar
* DEYE
* Sermatec
* RENAC
* TBB POWER
* SOLIS
* SMA
* FoxESS
* IMEON
If the inverter brand not in the listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help
confirm that.
* Growatt (The default is SPF(off-grid) protocol. If your inverter is SPH(on-grid) , please contact the sales person)
* Victron
* LUX POWER
* Sofar
* DEYE
* Sermatec
* RENAC
* TBB POWER
* SOLIS
* SMA
* FoxESS
* IMEON
If the inverter brand not in the listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help
confirm that.
RS485 mian board
Now our RS485 communication board supports these brands of inverters,The BMS with RS485 communication has a built-in RS485 protocol, please confirm with the salesman before buying what you need is that one RS485 protocol.
Now our RS485 communication board supports these brands of inverters,The BMS with RS485 communication has a built-in RS485 protocol, please confirm with the salesman before buying what you need is that one RS485 protocol.
*The default is the Pylontech RS485 protocol
* Voltronic
* Phocos
* Growatt
If the inverter brand not in the listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help confirm that.
* Voltronic
* Phocos
* Growatt
If the inverter brand not in the listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help confirm that.
Product Parameters
Battery type and serial number | LFP(16S/15S) | NCM(14S/13S) | |||||||||||||||
Continuously charging/discharging current | 50A | 100A | 150A | 200A | 50A | 100A | 150A | 200A | |||||||||
Communication protocol | CANBUS（defult） RS485(Please contact Sale man) | ||||||||||||||||
Custom function | Heating function、External switch、RS485 protocol | ||||||||||||||||
Discharge Output Impedance | <2mΩ | ||||||||||||||||
Working Temperture | -20℃-70℃ | ||||||||||||||||
compensating impedance | 10mΩ | ||||||||||||||||
Pre-charging | 0-3000ms | ||||||||||||||||
Current Balance | Passive balance | 150mA(Max) | |||||||||||||||
Power consumption | Working mode power consumption | <40mA | |||||||||||||||
Sleeping mode power consumption | 0uA | ||||||||||||||||
Capacity protection | Nominal capacity | 5-500Ah | |||||||||||||||
Remaining capacity protection | 5% | ||||||||||||||||
Short Circuit protection | Short circuit protection lock | Continuously short in the output circuit | |||||||||||||||
Short circuit protection lock times | 5 times | ||||||||||||||||
Short circuit protection lock release | Connected with charger | ||||||||||||||||
Individual cell voltage protection | Over voltage protection | 3650mV | 4200mV | ||||||||||||||
Under voltage protection | 2700mV | 2900mV | |||||||||||||||
Voltage protection | Over voltage protection | 57.6V | 58V | ||||||||||||||
Under voltage protection | 41.6V | 40.6V | |||||||||||||||
Current protection | Over current protection | 60A | 110A | 160A | 210A | 60A | 110A | 160A | 210A | ||||||||
Over current protection time delay | 30mS | ||||||||||||||||
Current limiting(charging) | Passive current limiting | 10A | |||||||||||||||
Heating function | Start | 0℃ | |||||||||||||||
Stop | 10℃ | ||||||||||||||||
Product principle and application
Certifications
Company Profile
Dongguan seplos technology company is a manufacturer of lithium ion battery pack with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electric vehicle and storage system
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electric vehicle and storage system
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q：Does your BMS have current balance?
A：yes,We have the current passive balance function, the passive balance function module is integrated on the BMS board, do not need external balance device.
Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and view the upper computer software we provide installed on the computer.
Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and view the upper computer software we provide installed on the computer.
Похожие товары

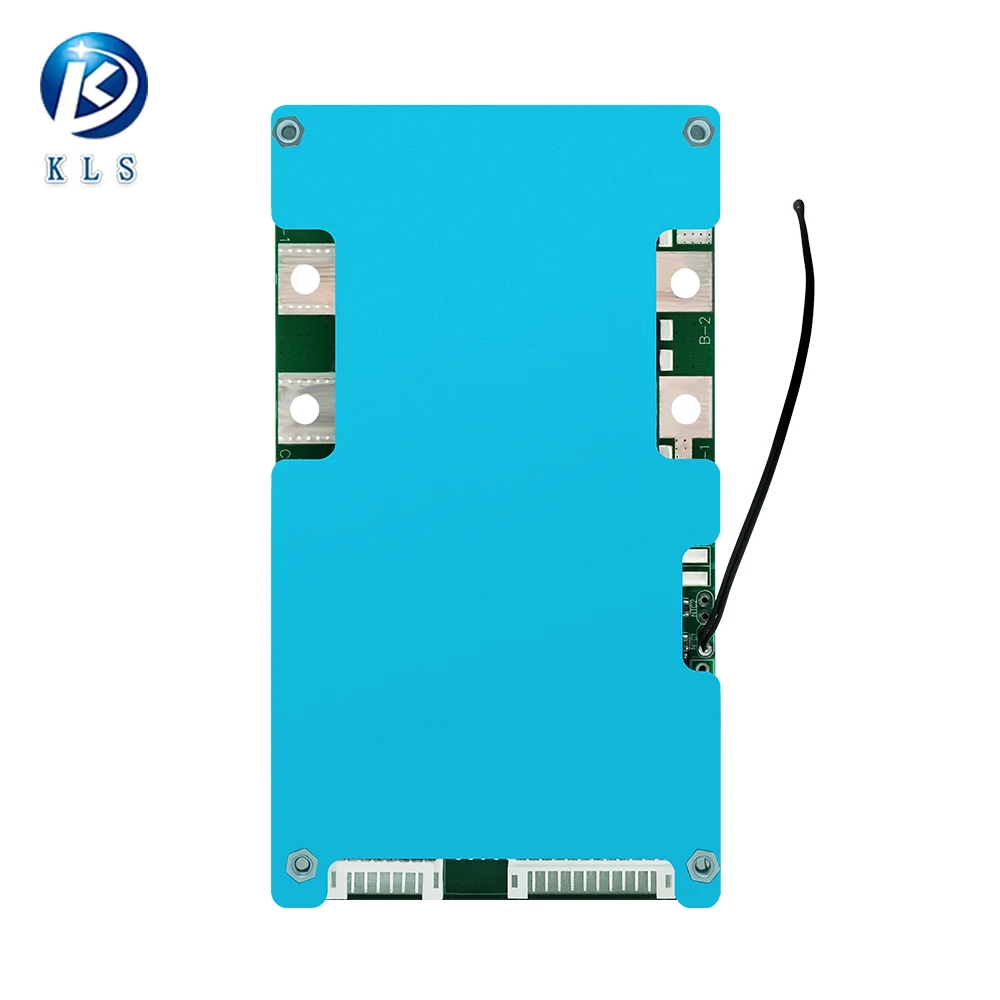

KLS, бестселлер, Bms Lifepo4 Smart 3s 16s Bms, система управления батареей Daly bms, производитель в Китае
1 063,31 ₽ - 1 115,82 ₽

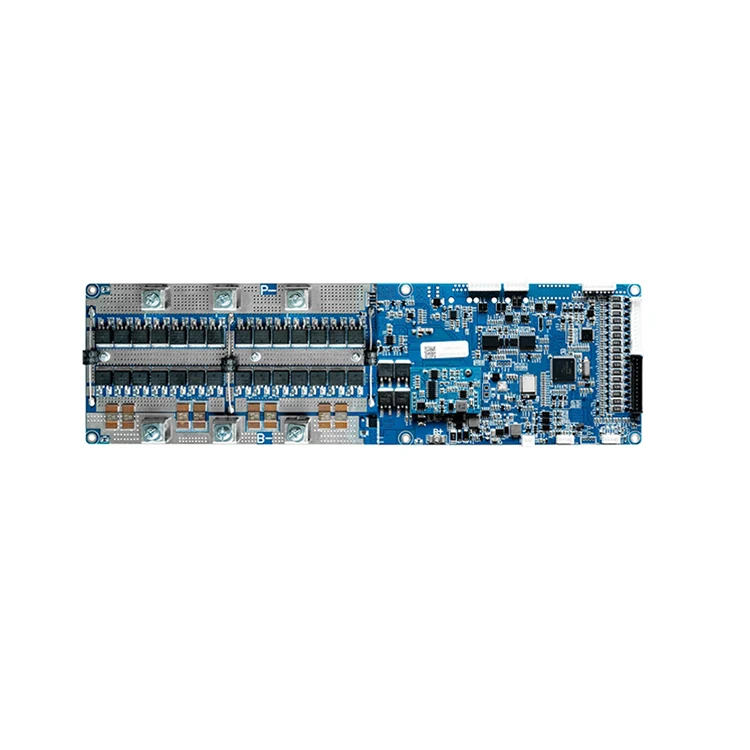

Zlion высоковольтные 45S 48S 60-200A BMS системы управления батареей для LiFePO4 для ESS UPS
21 112,93 ₽ - 25 160,49 ₽

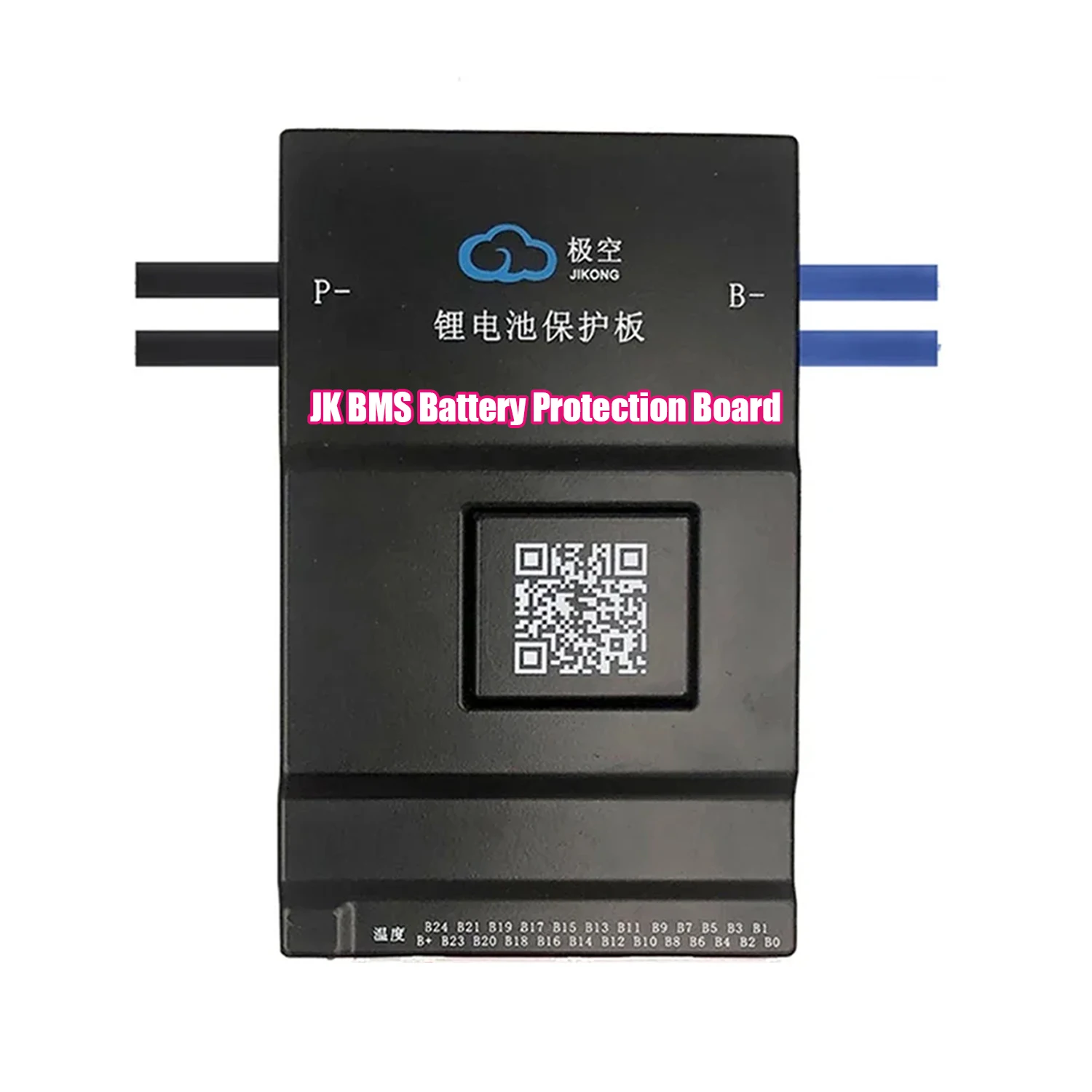

Jk 2A активный балансир BMS LiFePO4 24V/36V/48V/60V/72V 200ah BMS 8s16s Jkbms умная система управления батареей BMS
10 808,07 ₽ - 11 978,58 ₽

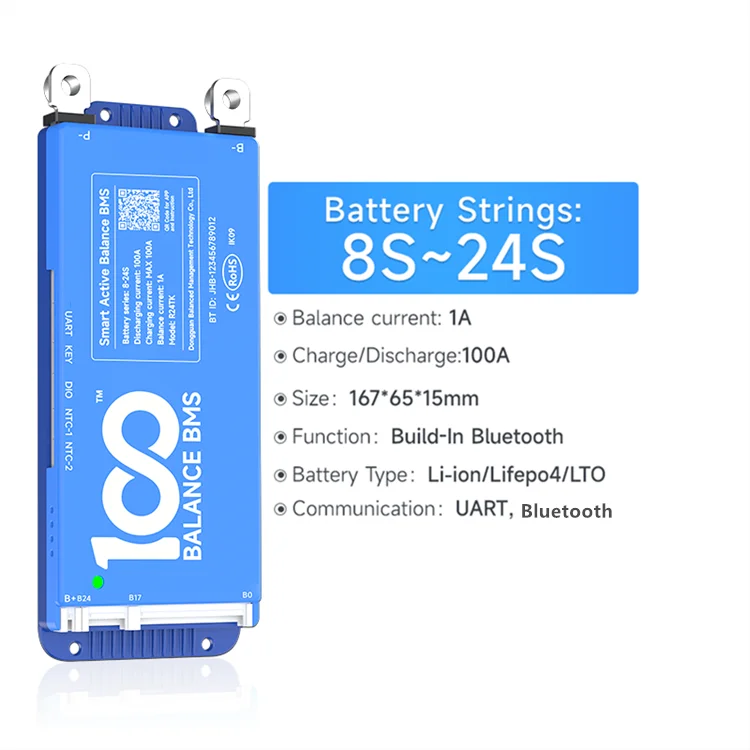

Smart BMS 8 ~ 24S 100A 48v литий-ионные батареи 16s 10p 32v батарея bms 23s lifepo4 плата 10s UART встроенный Bluetooth
4 889,89 ₽ - 6 640,18 ₽

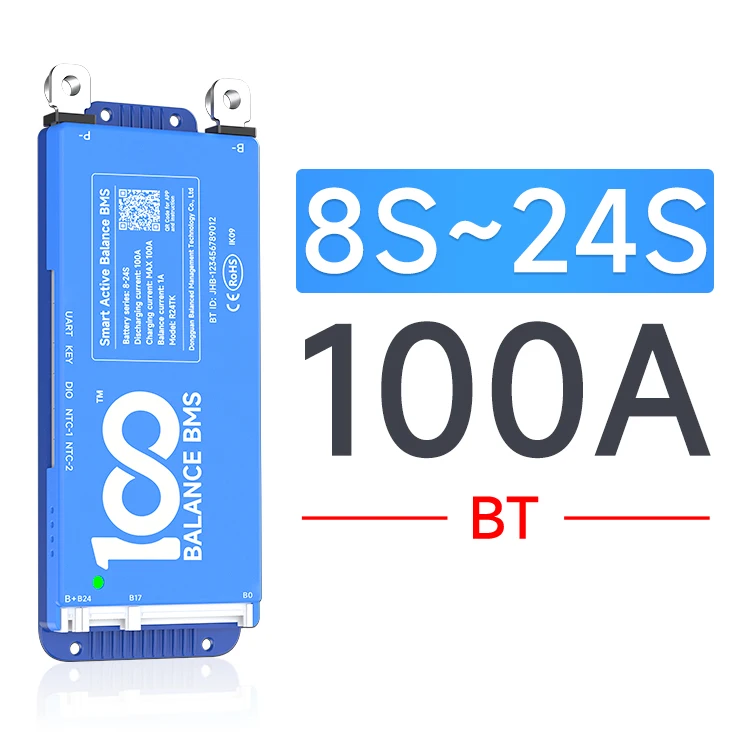

Новейшие Смарт BMS LFP 16s 48v ev lifepo4 аккумуляторные батареи 8-24S 100A BMS интегрированы с активным балансируающим током 1A с BT UART
4 419,50 ₽ - 5 918,19 ₽

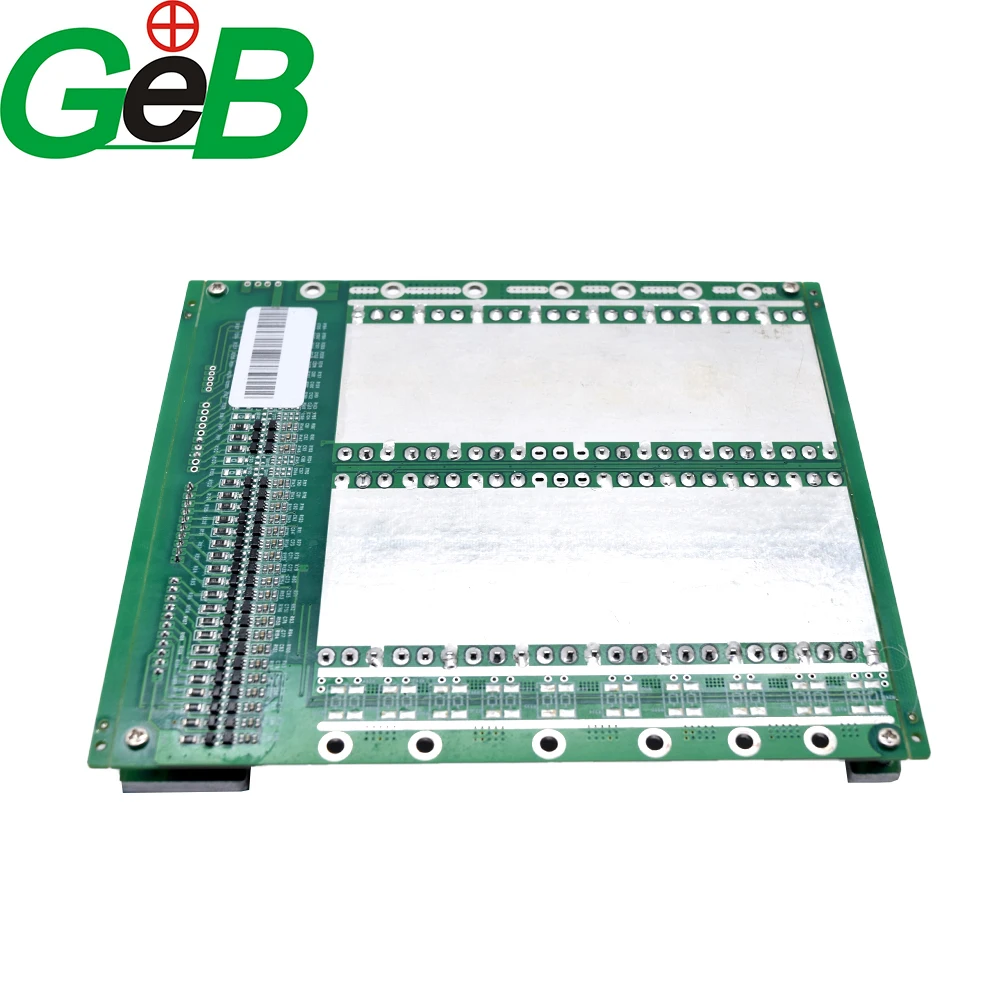

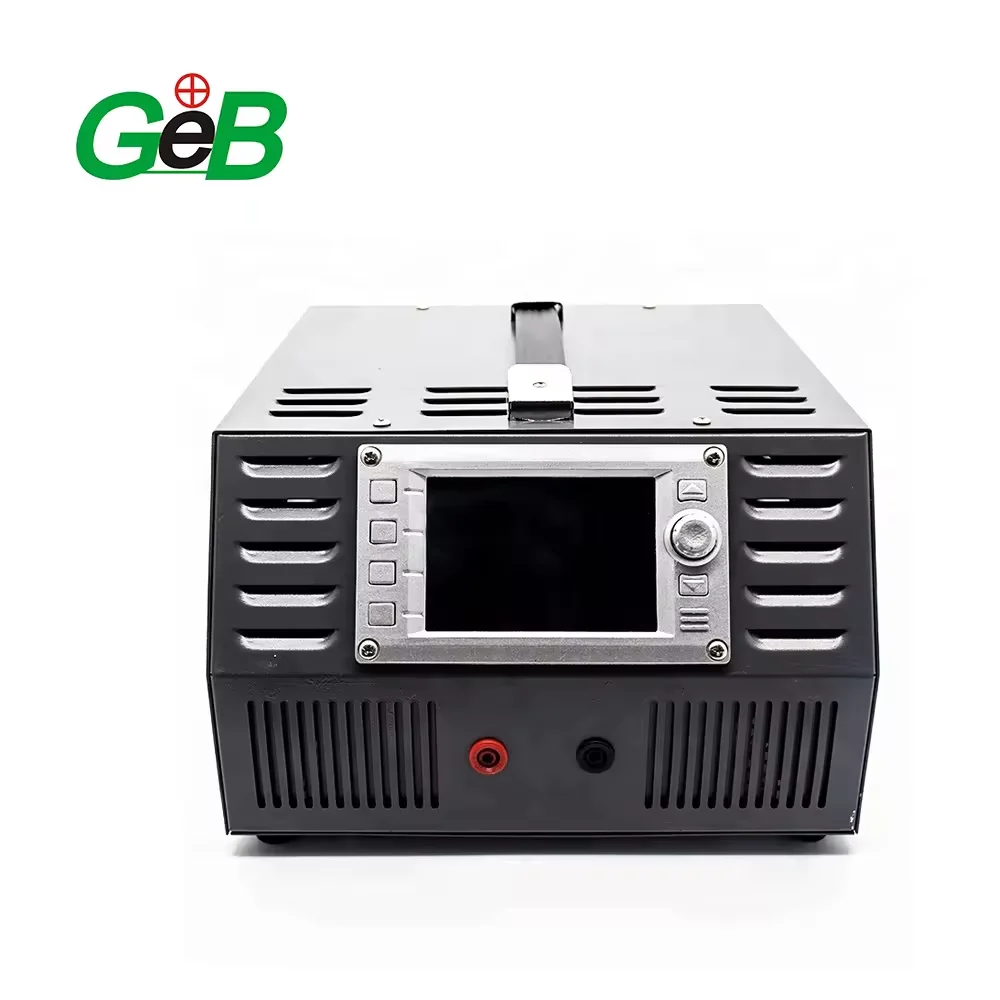

GEB 48 В интеллектуальный тестер разрядной емкости с ЖК-дисплеем для тестирования Емкости разрядки литий-ионных и свинцово-кислотных аккумуляторов
