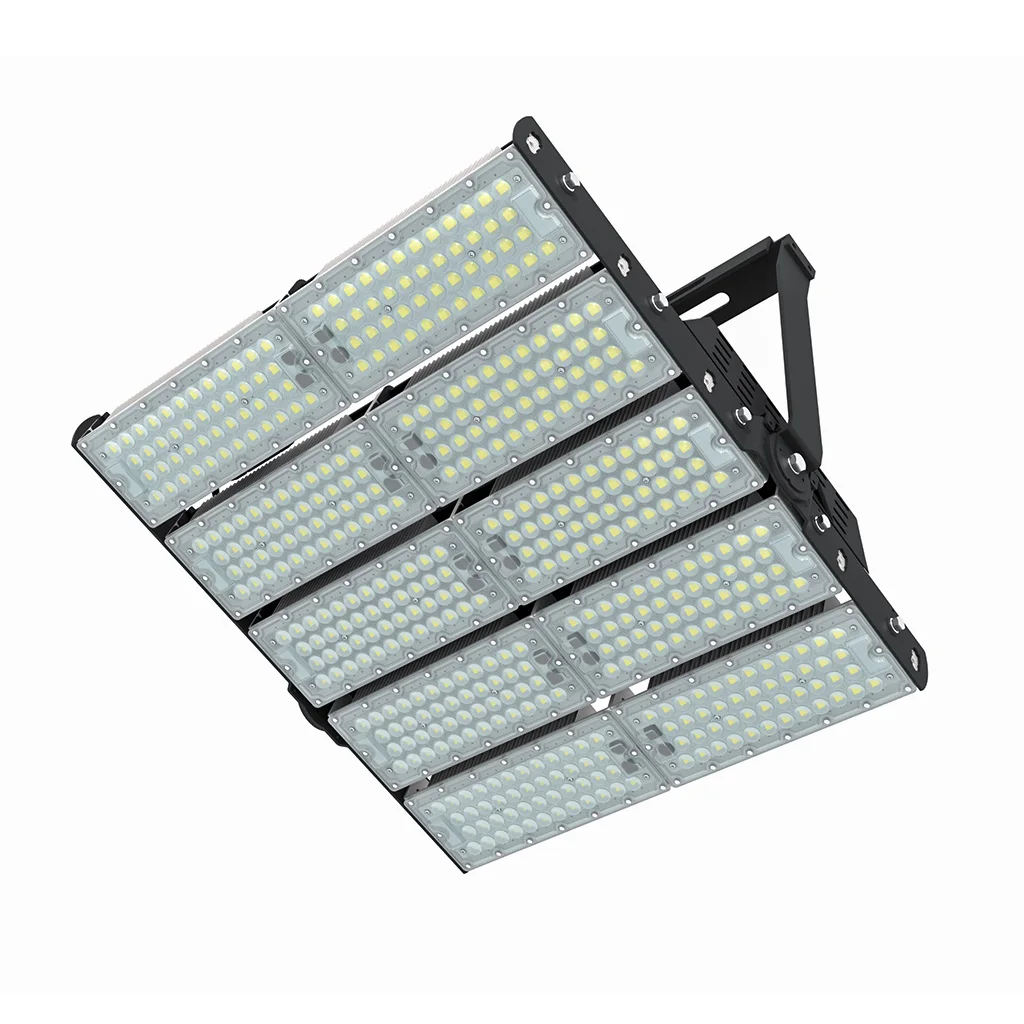

Светильники для стадиона 750 Вт 1000 1500 2000
- Категория: >>>
- Поставщик: Shenzhen Yongxinrui Lighting Technology Co. Limited
Сохранить в закладки 1600909296044:
Описание и отзывы
Характеристики
Product Description
1.Strong bracket, more solid installation
2.Optical PC lens, no-yellowing material.
3.Silicone waterproof sealing strip. UV-resistant material, reliable without failure.
4.3030 SMD light source design, luminous efficiency 140lm/W.
5.High thermal conductivity aluminum substrate, fast heat dissipation, reduce light decay.
6.ADC12 die-casting aluminum heat sink, the efficiency is up to 96W / M.K.
7.With laser light locator, easily adjust the direction of illumination to achieve maximum lux and uniformity.
8. The design of the heat dissipation respirator can avoid the problem of sealing failure caused by thermal expansion and contraction.
9.External waterproof power supply is installed on the special iron case, no contact with the lamp body, thermoelectric separation, longer life.
2.Optical PC lens, no-yellowing material.
3.Silicone waterproof sealing strip. UV-resistant material, reliable without failure.
4.3030 SMD light source design, luminous efficiency 140lm/W.
5.High thermal conductivity aluminum substrate, fast heat dissipation, reduce light decay.
6.ADC12 die-casting aluminum heat sink, the efficiency is up to 96W / M.K.
7.With laser light locator, easily adjust the direction of illumination to achieve maximum lux and uniformity.
8. The design of the heat dissipation respirator can avoid the problem of sealing failure caused by thermal expansion and contraction.
9.External waterproof power supply is installed on the special iron case, no contact with the lamp body, thermoelectric separation, longer life.
Product Sizes
Specification
Model G YXR-QC- | 250W-G | 500W-G | 750W-G | 1000W-G | 1250W-G | 1500W-G | 2000W-G | 2500W-G | ||||||||
Power | 250W | 500W | 750W | 1000W | 1250W | 1500W | 2000W | 2500W | ||||||||
Lumens(lm) | 35000 | 70000 | 105000 | 140000 | 175000 | 210000 | 280000 | 350000 | ||||||||
Efficacy | 140lm/W | |||||||||||||||
CCT | 2700-6500K | |||||||||||||||
CRI | ≥80Ra | |||||||||||||||
LED | San'an/Lumileds/Osram SMD 3030 | |||||||||||||||
PF | >0.97 | |||||||||||||||
Input Voltage | AC100-277V(Normal); AC100-305V(Meanwell) | |||||||||||||||
Weight(kg) | 5.7 | 13.5 | 18.7 | 24.1 | 29.5 | 37.4 | 48.2 | 59 | ||||||||
Sizes(mm) | 436*284* 163 | 436*499* 183 | 464*689* 183 | 464*879* 183 | 464*1069* 183 | 865*692* 189 | 865*882* 189 | 865*1072* 189 | ||||||||
Beam Angle | 30°/40°/60°/90° | |||||||||||||||
Work Temp | -35~55℃ | |||||||||||||||
Humidity | 15%~90% RH, no condensing | |||||||||||||||
Finish | Sprayed with outdoor special powder | |||||||||||||||
Life Span | ≥50,000 Hrs (LM70 @ 35℃ ) | |||||||||||||||
IP Grade | IP66 | |||||||||||||||
IK Grade | IK08 | |||||||||||||||
Product Material | ||||||||||||||||
Power Wire | Body material | Body material | Electronic safety grade | |||||||||||||
Rubber cable(3*1mm²) L=0.5m | PC lens + Aluminum housing | Class I | ||||||||||||||
Package

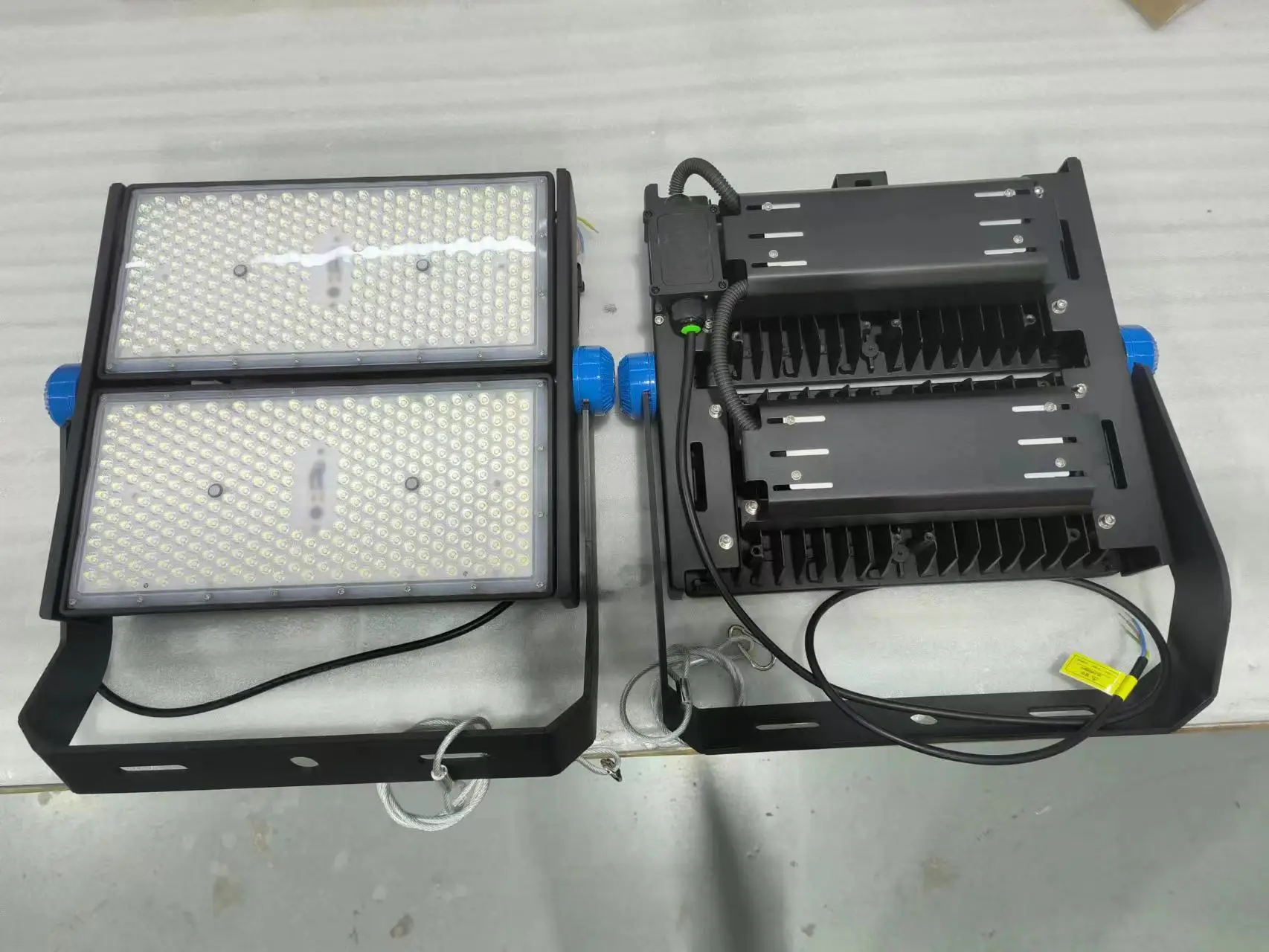

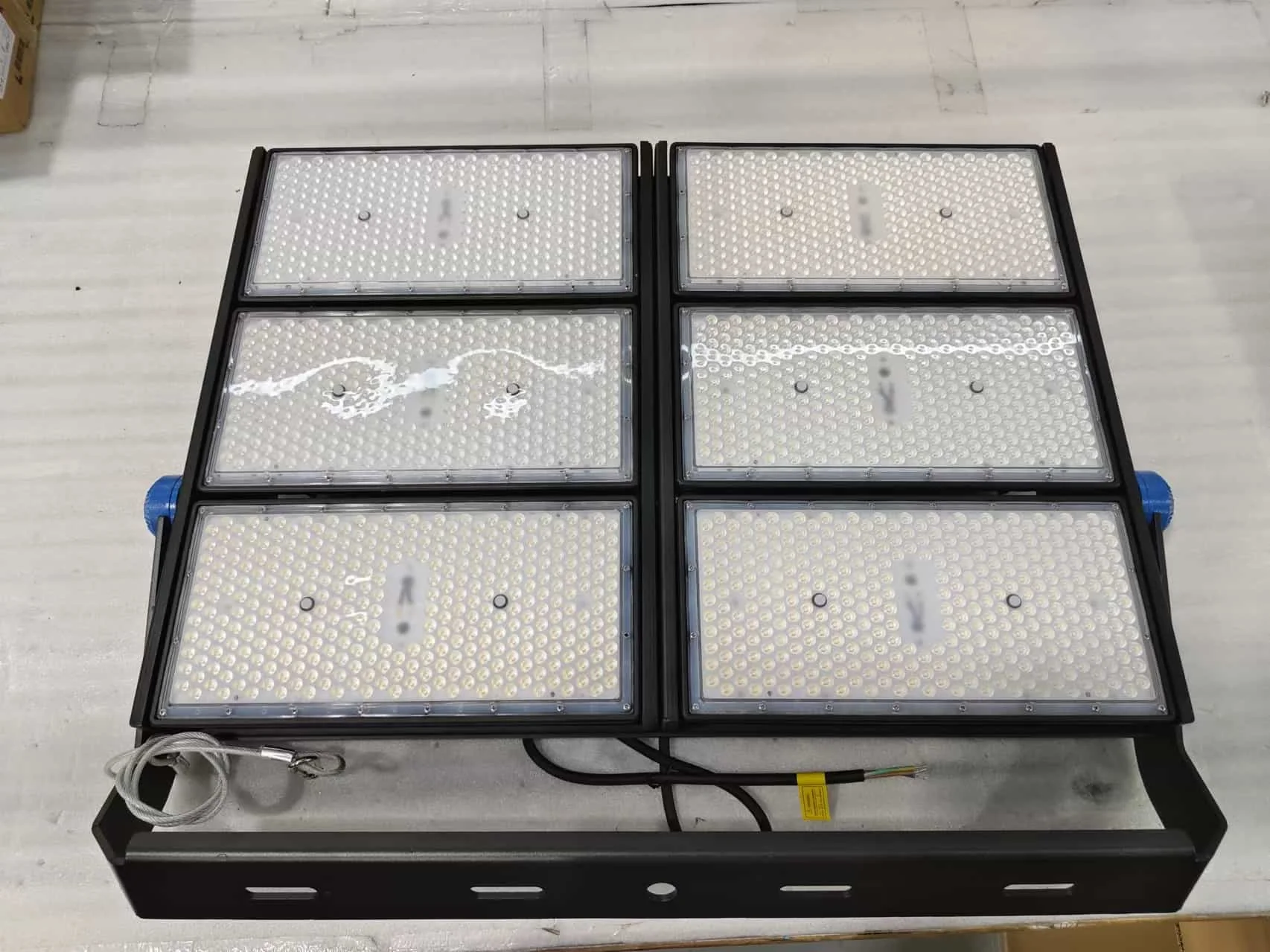

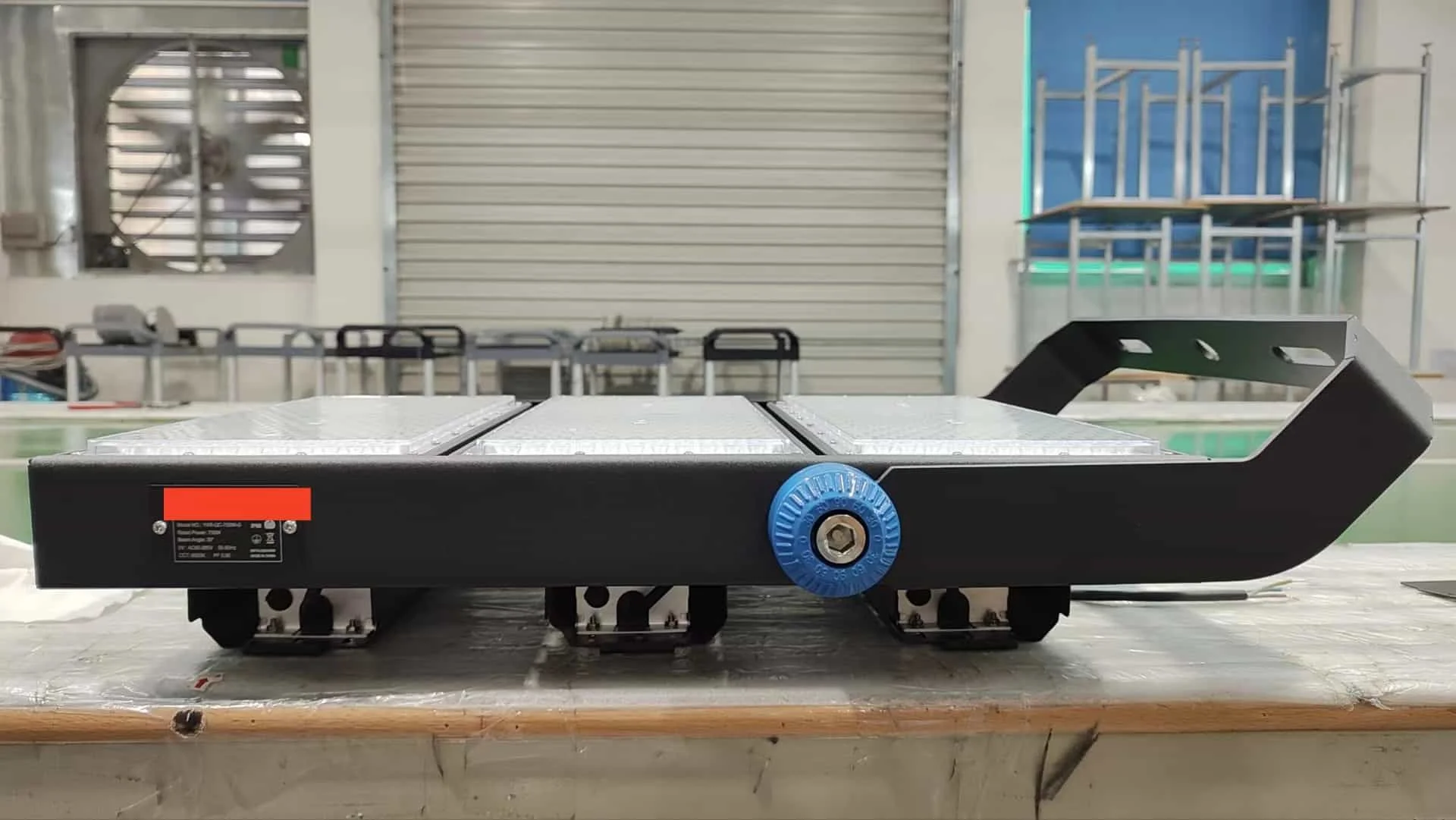

Details Images

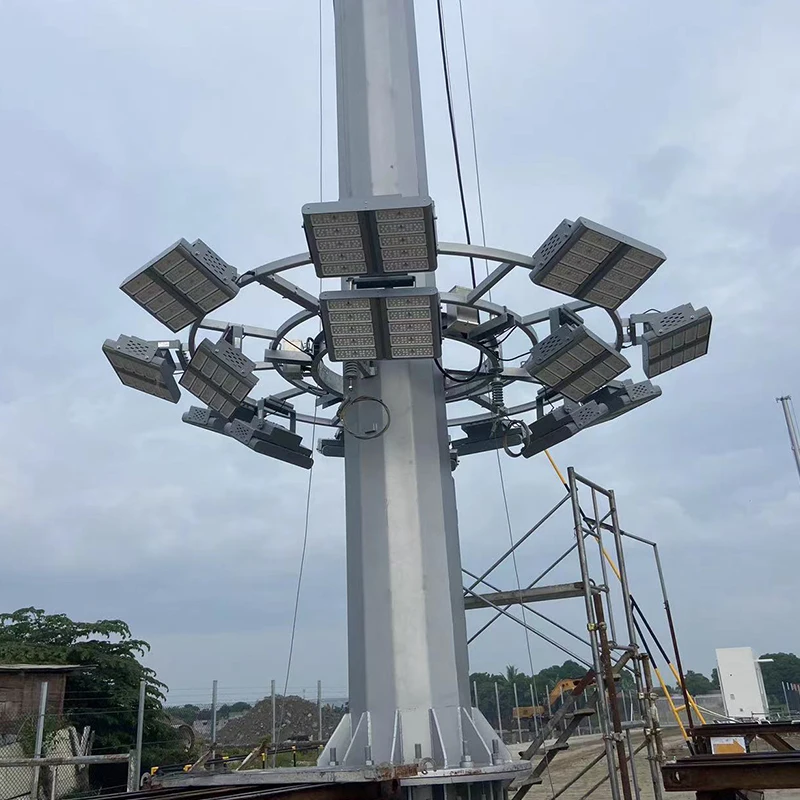

Applications
Company Profile
Shenzhen YongXinRui Lighting Technology Co., Ltd, estalished in 2010, we are a manufacturing and trading combo, specialized in Outdoor LED Lighting: LED Stadium Lights, LED Flood Lights, LED Street Lights and Tunnel Lights etc.
Our main markets are in Europe, South America, Southeast Asia, Oceania, and also we exported to North America and some Middle East countries; all of our LED lights are with CE, RoHS, and some of them are with ETL, DLC, TUV etc.
YongXinRui Lighting is committed to R&D and promoting of semiconductor lighting products and has accumulated a wealth of experience. We provide high-quality products, excellent pre-sales and after-sales service to customers.
Mutual benefit and common development is our aim. We sincerely look forward to cooperate with more customers in the world.
Provided service from Yongxinrui:
OEM/ODM(Lighting product design)
Providing LED energy saving program
Free lighting consultation
Lighting and circuitry design
DIALux caculation and visualization
Auto CAD layout
Combined with your on-site project needs, we will wholeheartedly provide you with professional and detailed light distribution advice and light simulation solutions.
Combined with your on-site project needs, we will wholeheartedly provide you with professional and detailed light distribution advice and light simulation solutions.
FAQ
Q1. Are you a manufacturer?
Yes, we have our own factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for led light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of the LED Stadium Lights?
Our standard lead time for samples is 3-5 days, and the normal bulk order lead time is 7-10 days, for the large bulk order lead time, please check with our sales team.
Q5. Can you provide OEM and ODM services?
OEM and ODM services can be provided, we can provide the services of customized design box and carton as well as laser print logo on the lamp fixture, besides, our engineer can design the lighting products according to your idea.
Q6. What are the payment terms of your formal order?
We accept payment via TT, Alibaba Trade Insurance payment, Paypal, and Western Union, and we offer Ex-works, FOB, CIF price terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 3- 5 years warranty for this product, if there is any defective during the warranty, please provide a picture or video of the working situation of the defective lights, we will ship the new lights to you within a few days or send them together with your next order.
Yes, we have our own factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.
Q2. Do you have any MOQ limit for led light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q4. How about the lead time of the LED Stadium Lights?
Our standard lead time for samples is 3-5 days, and the normal bulk order lead time is 7-10 days, for the large bulk order lead time, please check with our sales team.
Q5. Can you provide OEM and ODM services?
OEM and ODM services can be provided, we can provide the services of customized design box and carton as well as laser print logo on the lamp fixture, besides, our engineer can design the lighting products according to your idea.
Q6. What are the payment terms of your formal order?
We accept payment via TT, Alibaba Trade Insurance payment, Paypal, and Western Union, and we offer Ex-works, FOB, CIF price terms.
Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 3- 5 years warranty for this product, if there is any defective during the warranty, please provide a picture or video of the working situation of the defective lights, we will ship the new lights to you within a few days or send them together with your next order.
Похожие товары

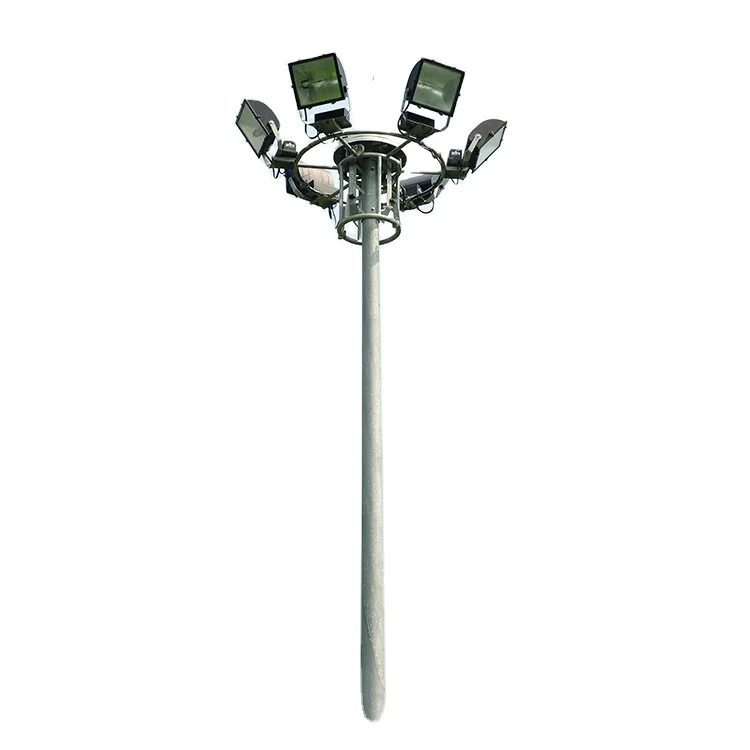

Shuntai заводская цена высокая мачта освещение Солнечная светодиодная прожектор для шоссе квадрат
134 140,38 ₽ - 142 199,84 ₽
Светильники светодиодные с высокой мачтой телескопическая башня водонепроницаемая алюминиевая 600 Вт 150 1000 Светодиодный прожектор для стадиона переменного тока
Заводская цена высокая мощность мачты уличный водонепроницаемый модуль IP66 240 ватт 360 Вт 480 720 960 светодиодный прожектор
Заводская цена высокая мачта освещения Солнечная светодиодная прожектор для шоссе
141 316,61 ₽ - 143 524,68 ₽
Хорошее качество 25 м высокий полюс светодиодное освещение высокой мачты цена
Площадь док шоссе аэропорт высокая мачта освещения для 15 м 20 25 опорная башня светодиодная уличная подсветка
9 715,52 ₽ - 9 936,33 ₽

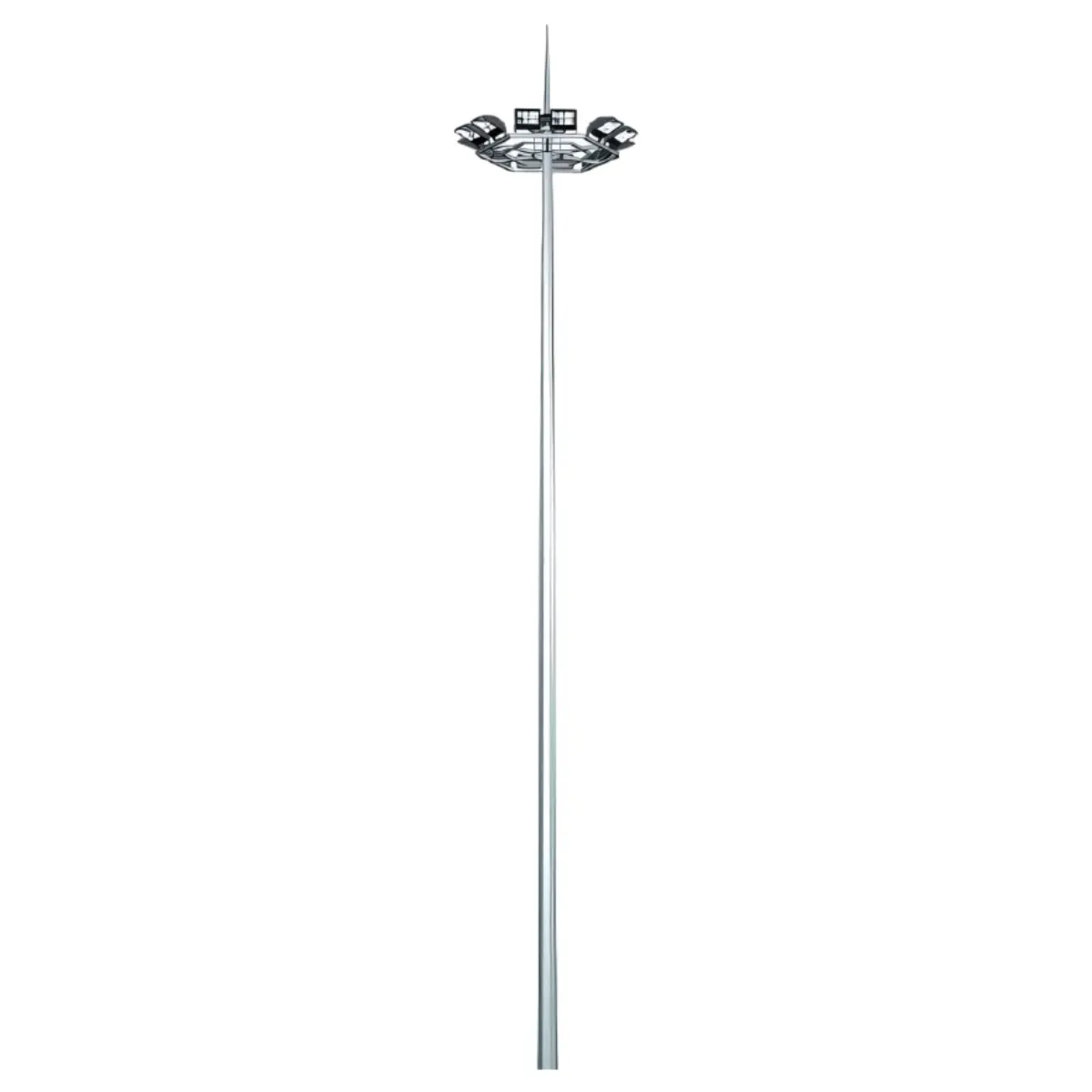

Мачта высотой 18 м 24 28 36 40 со светодиодным освещением восьмиугольная стальная опора
