Китай высокое качество двухслойная металлическая кровельная плитка пресс-машина IBR формовочная машина
1 692 139,78 ₽ - 5 042 915,97 ₽

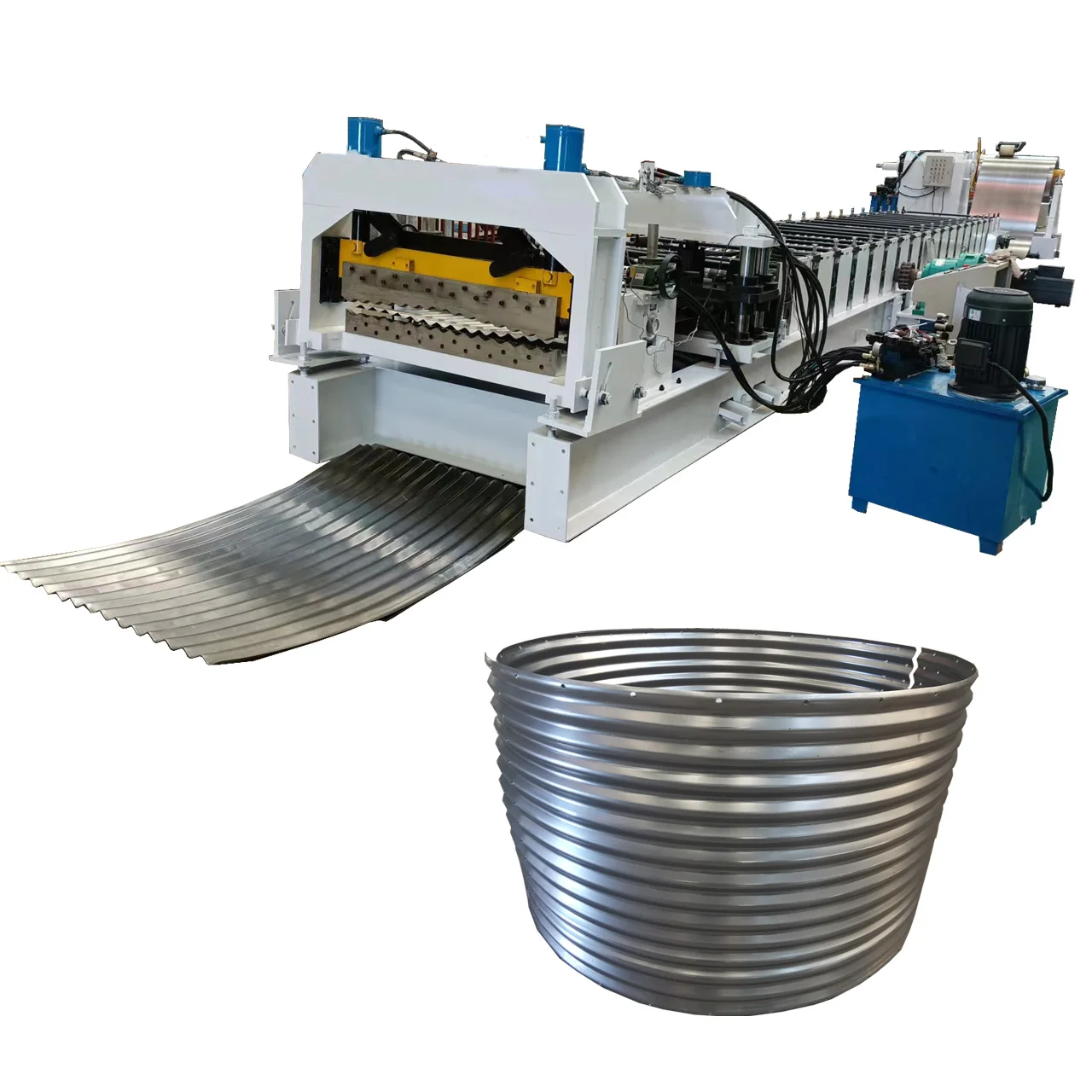

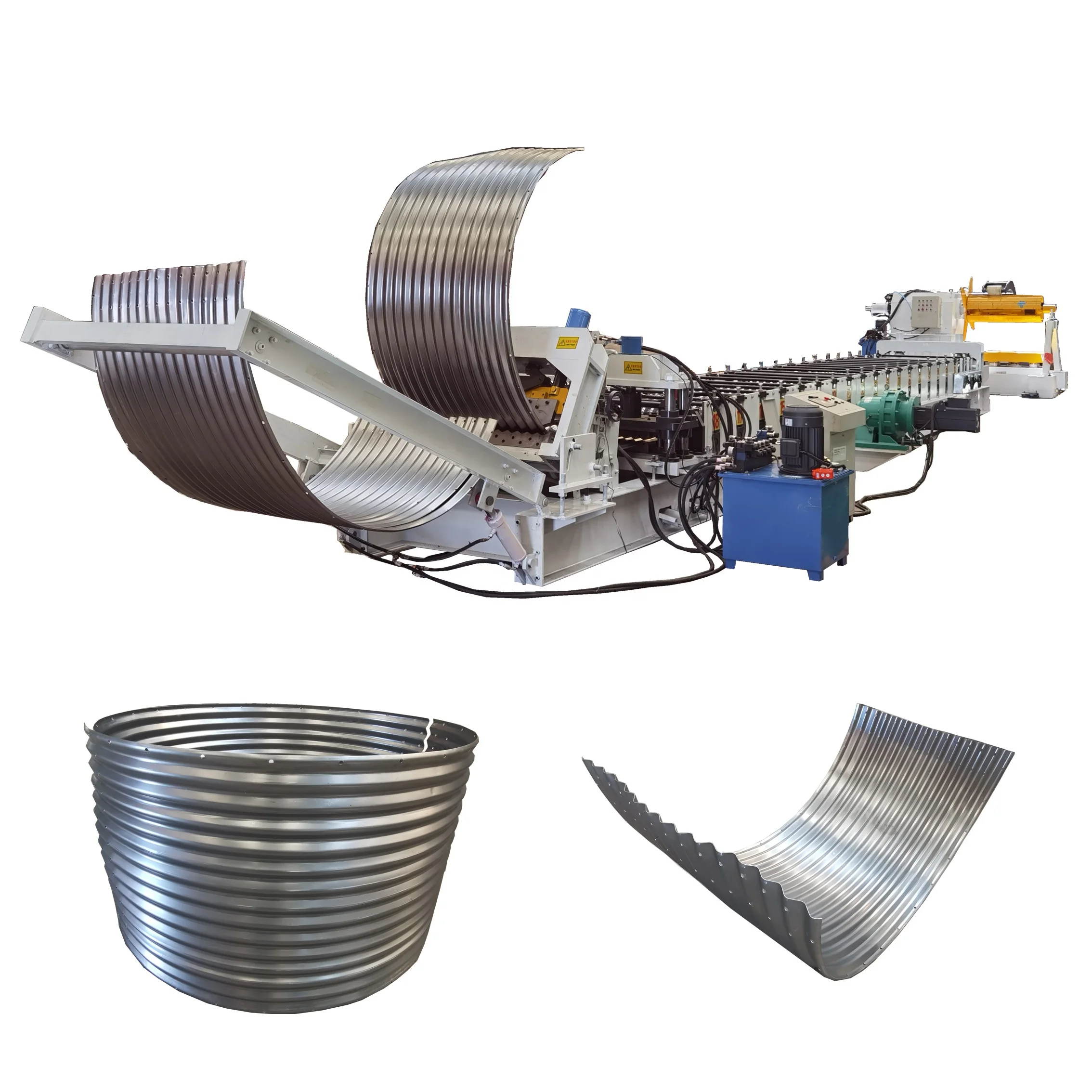

Машина для формовки листового бункера хранения зерна
- Категория: >>>
- Поставщик: Cangzhou Dingtuo Machinery Equipment Co. Ltd.
Сохранить в закладки 1600911119982:
Описание и отзывы
Характеристики
Product Overview

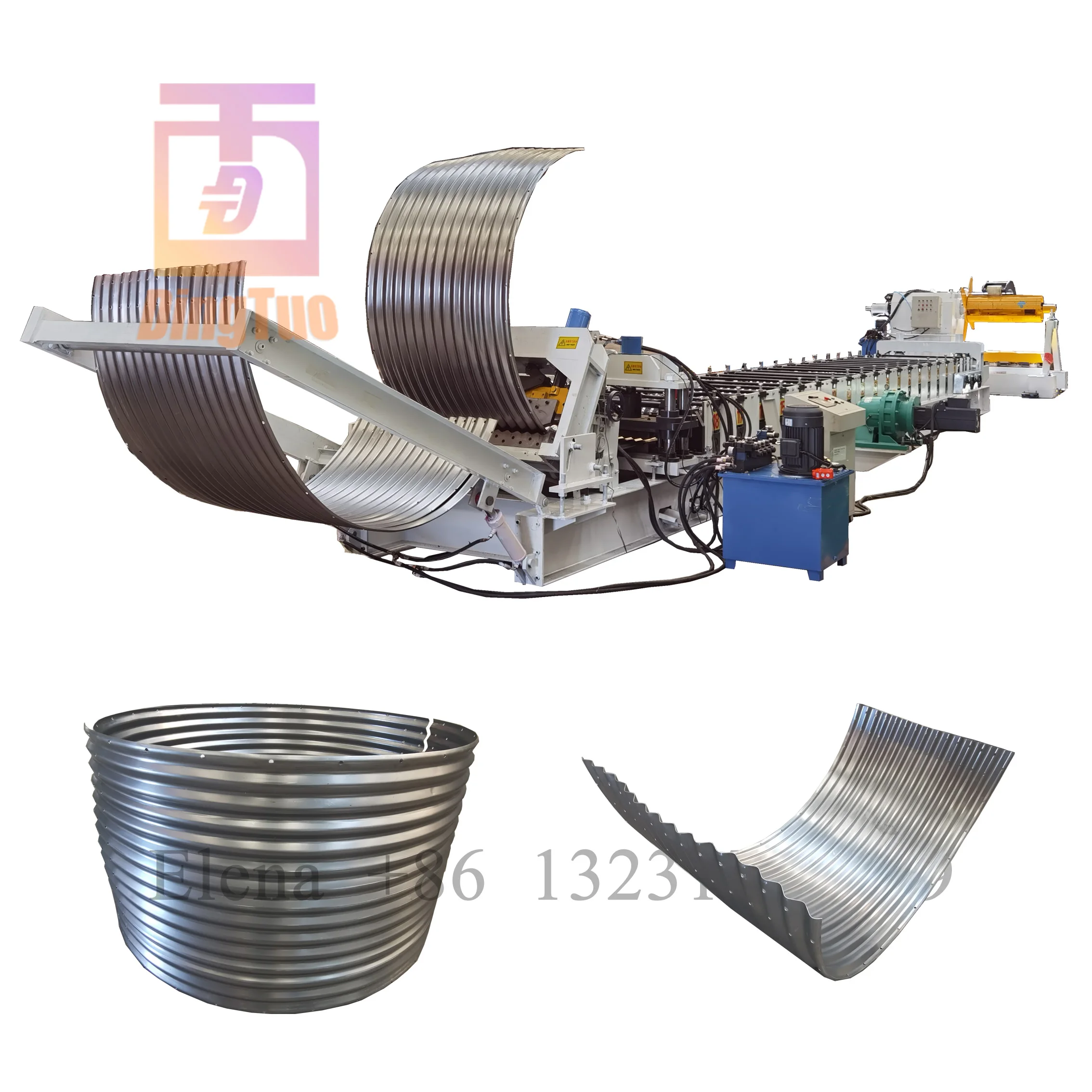

1250 *3 MM GALVANIZED STEEL CORRUGATED SHEET ROLL FORMING MACHINE FOR SILO GRANARY AND GRAIN BINS AND WATER TANKS
Our company is a company that develops and produces supporting equipment such as metal granaries, steel silos, water silos, and supporting long and short ladders, upper and lower vertebral bodies, upper and lower adapters, and protective rings. R&D and manufacturing of molding machines. Now has a unique management model and product research and development capabilities. Thousands of series of profiled steel production lines have been developed and manufactured, such as: wall roof panel production line; floor steel bearing plate production line series C-shaped steel, Z-shaped steel CNC belt production line, beam and column-free arched roof production equipment, The shielding room uses internal and external decorative board equipment, etc.; the company also produces electronic shielding room pressing equipment, steel coil slitting units, steel coil leveling and cross-cutting units and other equipment. The products are favored by various industries because of their light structure, reasonable design and continuous updating. The company's main business: granary processing equipment, water silo processing equipment, steel silo processing equipment, storage silo processing equipment, feed silo processing equipment, granary production equipment, water silo production equipment, steel silo production equipment, storage silo production equipment, feed Warehouse production equipment, welcome to buy more information or call for specific consultation!
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
NO.\t Description\t Quantity
1 ELECTRIC/HYDRAULIC DECOILER 1
2 FEEDING PLATFORM 1
2 FEEDING PLATFORM 1
3 FORMING PART\t 1
4 SIDE HOLE PUNCNIHNG PART 1
5 HEAD HOLE PUNCHING PART 1
6 3-AXIS AUTOMATIC BENDING PART 1
7 CUTTING PART 1
8 ELECTRIC CONTROL CABINET 1
9 HYDRAULIC PUMP STATION 1
10 RUN OUT TABLE 1
11 ACCESSORIES 1
No | Item | Data | Note |
1 | raw material | Galvanized steel / G550 | |
2 | raw material thickness | 22 gauge to 18 gauge (0.8-1.27mm) | |
3 | sheet coil width / | 1220MM/ 1250mm | can customzied the effective width,too. If you need , welcome to connect Ms.Elena 0086-13231741939 |
4 | cover width | 1120 mm | customzied the machine sheet sizes as your drawing . Any requests , welcome to connect Ms.Elena 0086-13231741939 |
5 | machine power | 11kw (K serious main motor power)+5.5KW(hydraulic pump station motor power) | 16.5kw.h |
6 | machine stands thickness | 20mm | any request, welcome to connect Ms.Elena 0086-13231741939 |
7 | machine transmission way | 1 inches Double hanging drive chain | any request, welcome to connect Ms.Elena 0086-13231741939 |
8 | base frame material | 400H beam welded | any request, welcome to connect Ms.Elena 0086-13231741939 |
9 | Length counting method | OMRON (JAPAN ) brand encoder | |
10 | Electric Control brands | PLC,Inverter : DELTA Touch Screen: DELTA Hydraulic brand: HUADE | can do other brands as clients' requests |
11 | Voltage | 415V/ 480V/220V ,50HZ/60HZ, 3 Phases or customized | voltage can be customzied as clients' request. Any requests , welcome to connect Ms.Elena 0086-13231741939 |
12 | Side Perforation Part | 2 groups, cylinder diameter 80mm, manual adjustment of punching position | |
13 | Horizontal head perforation part | Cylinder: 110mm diameter * 2, the head hole punches 1 row of holes at a time, the punching range, 0.8-1.2 mm thick. | |
14 | Curving part | Bending arc computer PLC automatic type change, 3-axis form, equipped with 2 * 5-ton lifts. | |
15 | Forming Shaft | 45# steel with tempering treatment | |
16 | cutting Die Material | Material : Cr12 processing technology: rough material milling machine processing - vacuum heat treatment HRC58-60 - flat grinding processing end face - wire cutting processing outline - engraving machine fine carving shape. | |
17 | Cutting type | Enlarged and thickened mid-plate shear style with 2 * 100mm hydraulic cylinders | |
18 | Bearing brand | 6212 type bearings HRB brand | |
19 | Forming Roller | Gcr15 Bearing steel with hard chrome coating adjust different sizes manually | |
20 | Forming Speed | 1-3 m/min | |
21 | Machine size | L13.5m*W1.95m*H1.2m | ( 31.59CBM) |
22 | machine weight | 8000 KGS | |
23 | Forming station | 15stations | |
24 | shafts' diameter | 90 mm solid shafts | |
25 | decoiler | with one 8tons electric decoiler | can be customized to hydraulic decoiler |
26 | run out table | 1 piece | High-quality |
PRODUCT CONFIGURATION
8 Tons Electric Decoiler
Features:Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement;
Power: powered;
Power of the open and closure of segments: electric way;
Power of rotation of segment: manual;
Number of segment: 4;\t
Range of segment expansion:480 ~ 520mm;
Height of center of the mandrel: 0.65m;
Approximate Size: 1.5 m * 1.1m *1.2 m;
Speed control: By mechanical brake;
Methods of operation: mechanical;
Bearing Weight: 8 Tons
Power: powered;
Power of the open and closure of segments: electric way;
Power of rotation of segment: manual;
Number of segment: 4;\t
Range of segment expansion:480 ~ 520mm;
Height of center of the mandrel: 0.65m;
Approximate Size: 1.5 m * 1.1m *1.2 m;
Speed control: By mechanical brake;
Methods of operation: mechanical;
Bearing Weight: 8 Tons
Feeding platform and leveling shafts
feed material : 2 pinch rollers + 2 guide rollers
leveling part: upper 3 and lower 4
Silo Granary Machine Base Frame
400 H beam welded

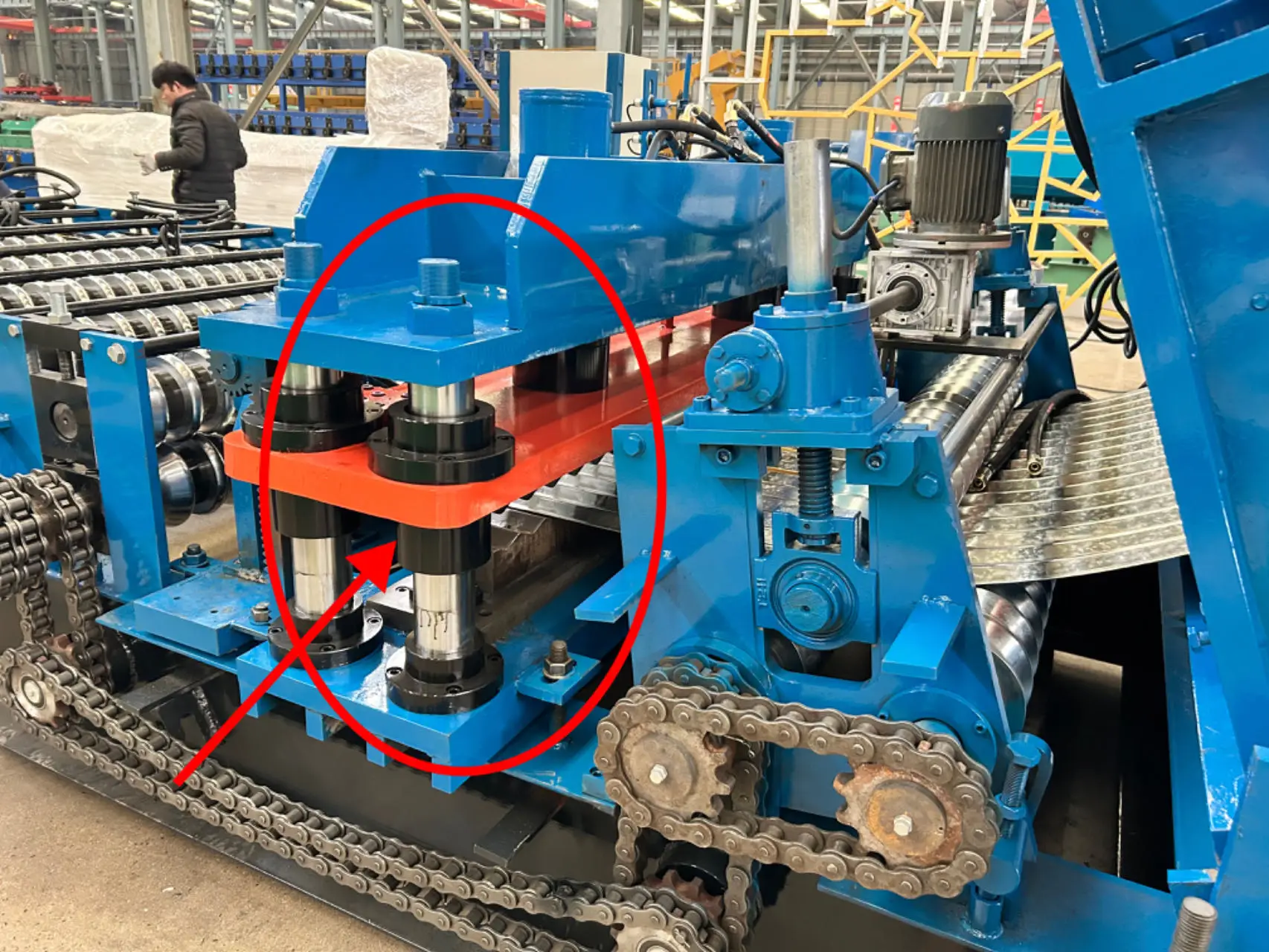

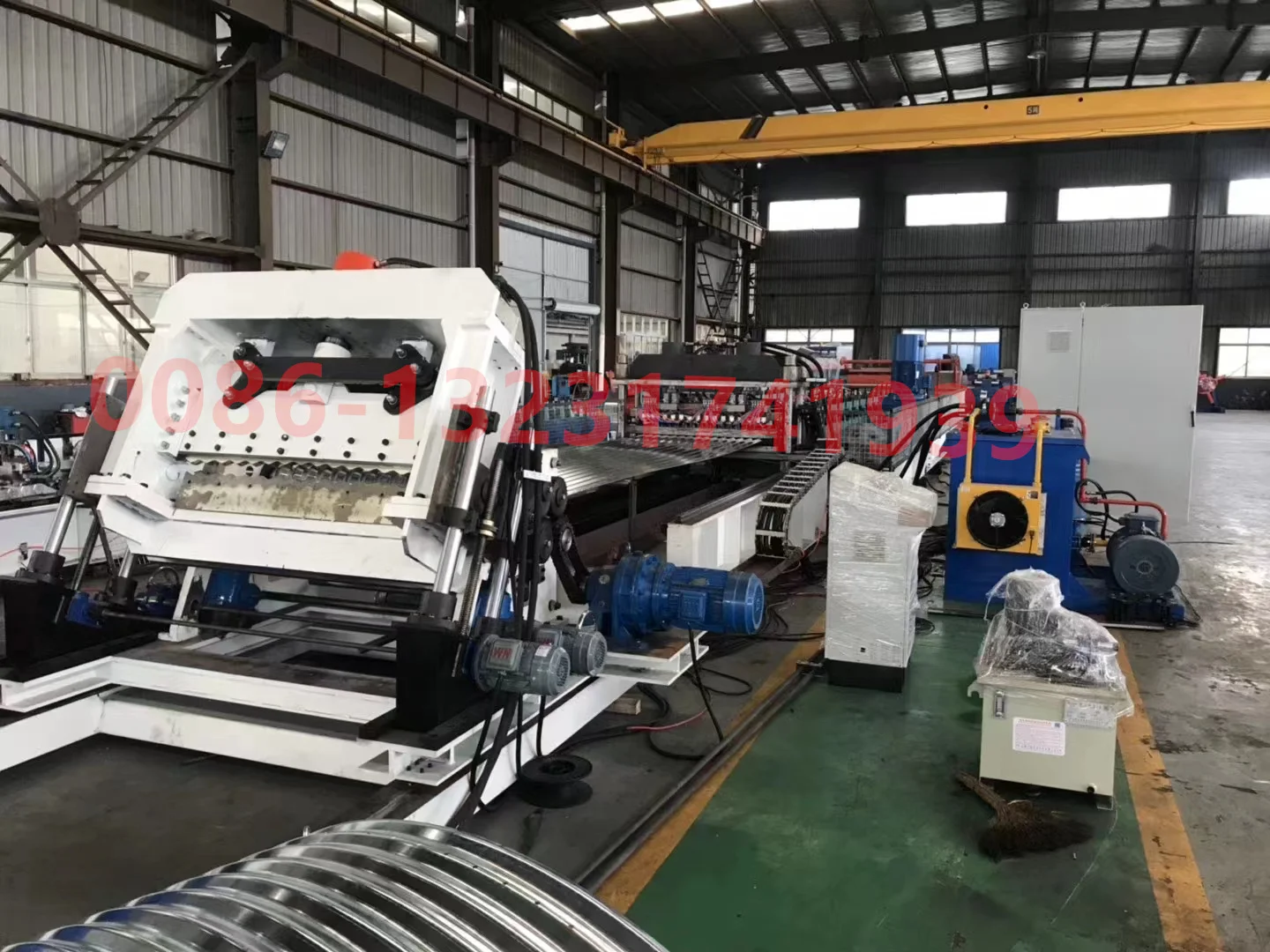

Forming Part
90mm solid shaft .
45# steel with hard chrome coating
Base Frame: 400H steel welded
Machine Stand Thickness: 20mm thick
Chain: 1 inches * 2 with chain guard
45# steel with hard chrome coating
Base Frame: 400H steel welded
Machine Stand Thickness: 20mm thick
Chain: 1 inches * 2 with chain guard

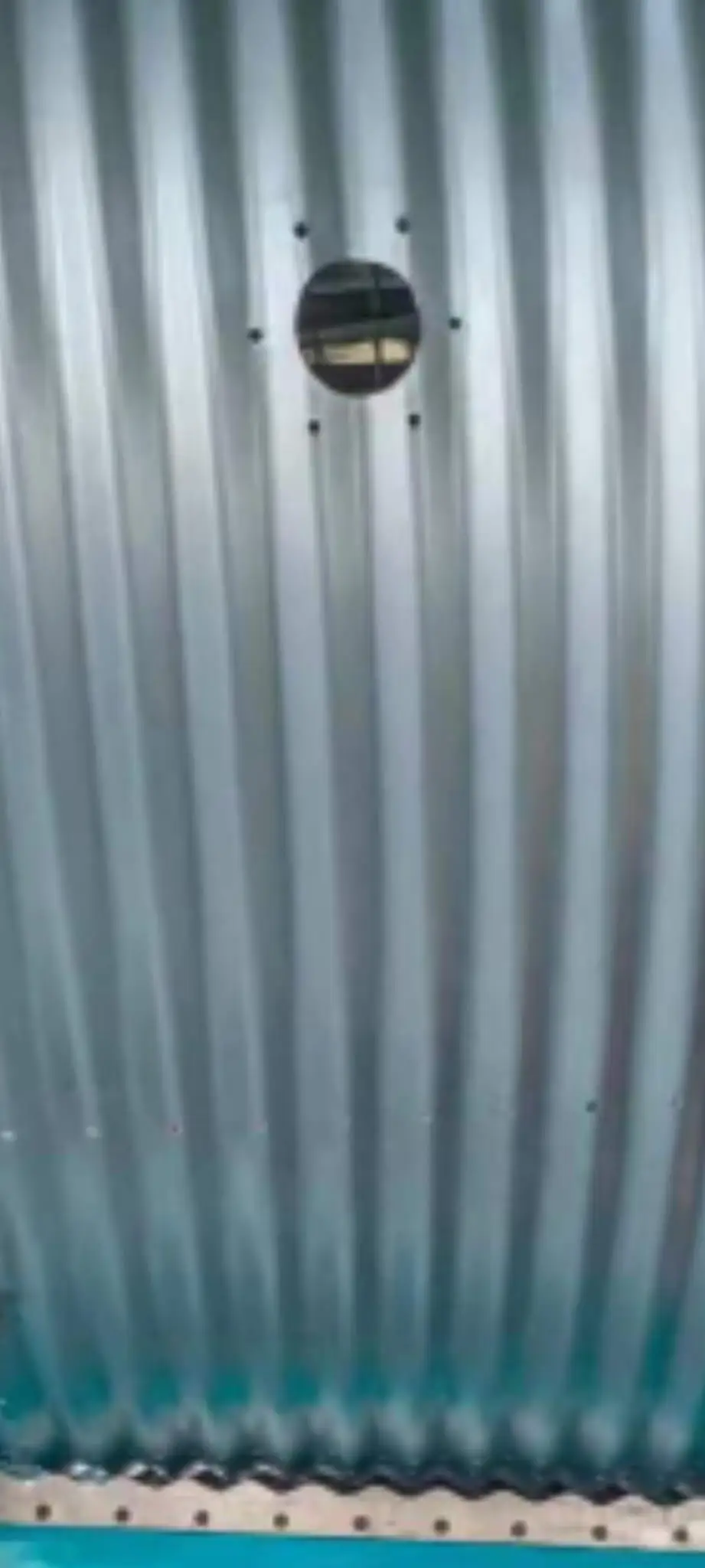

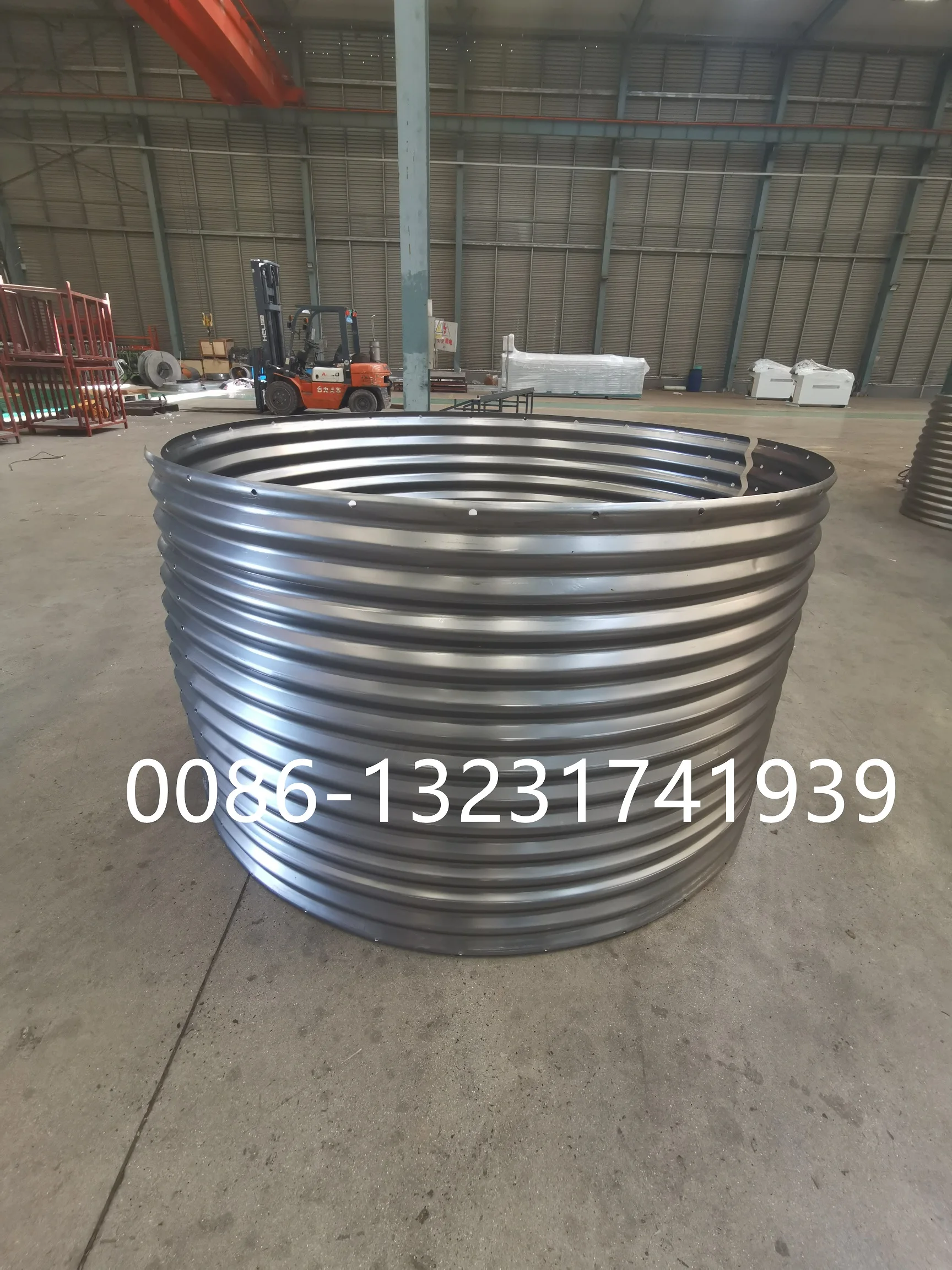

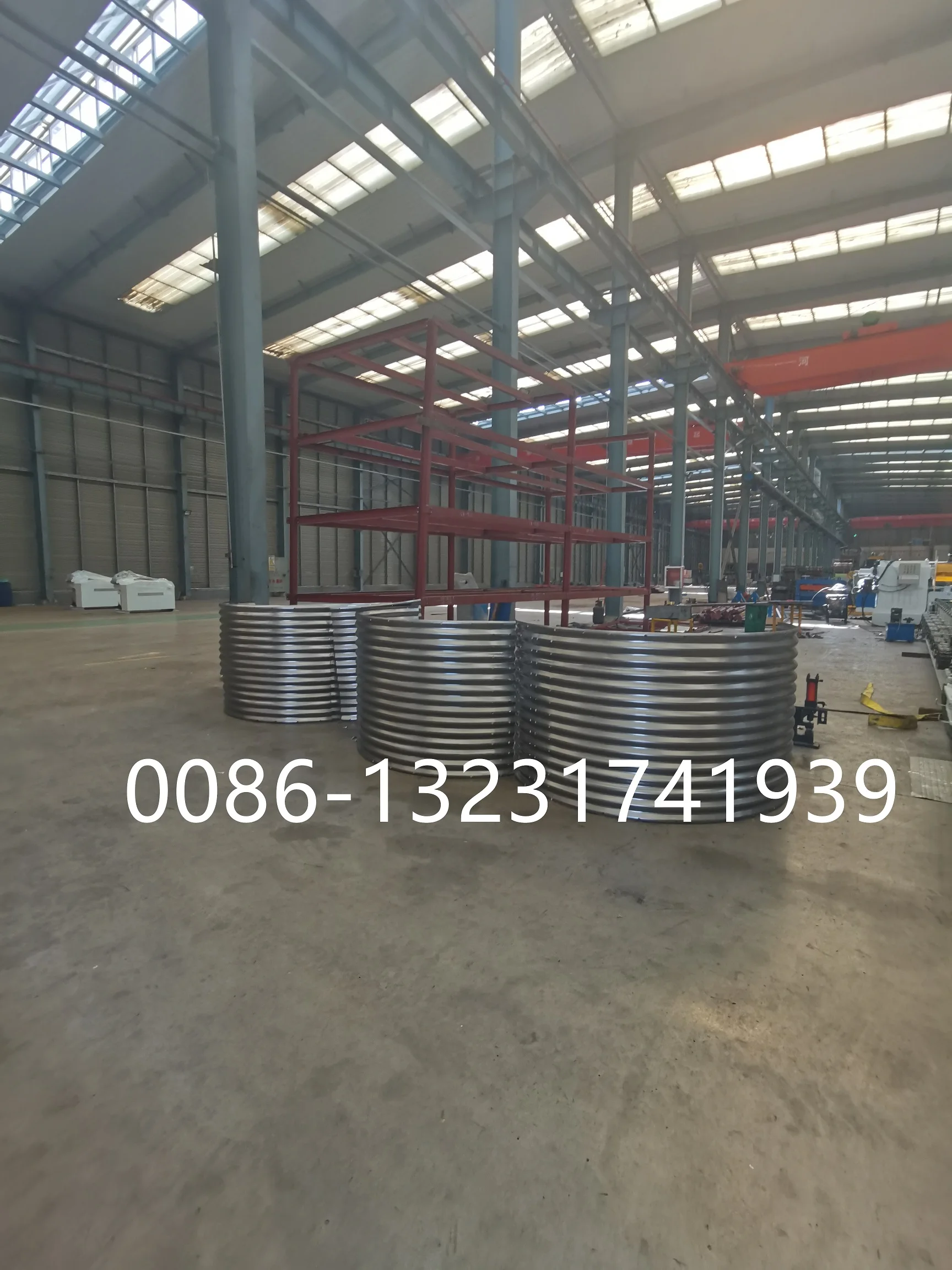

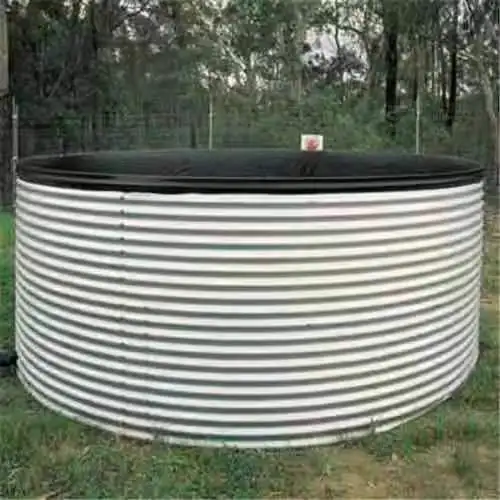

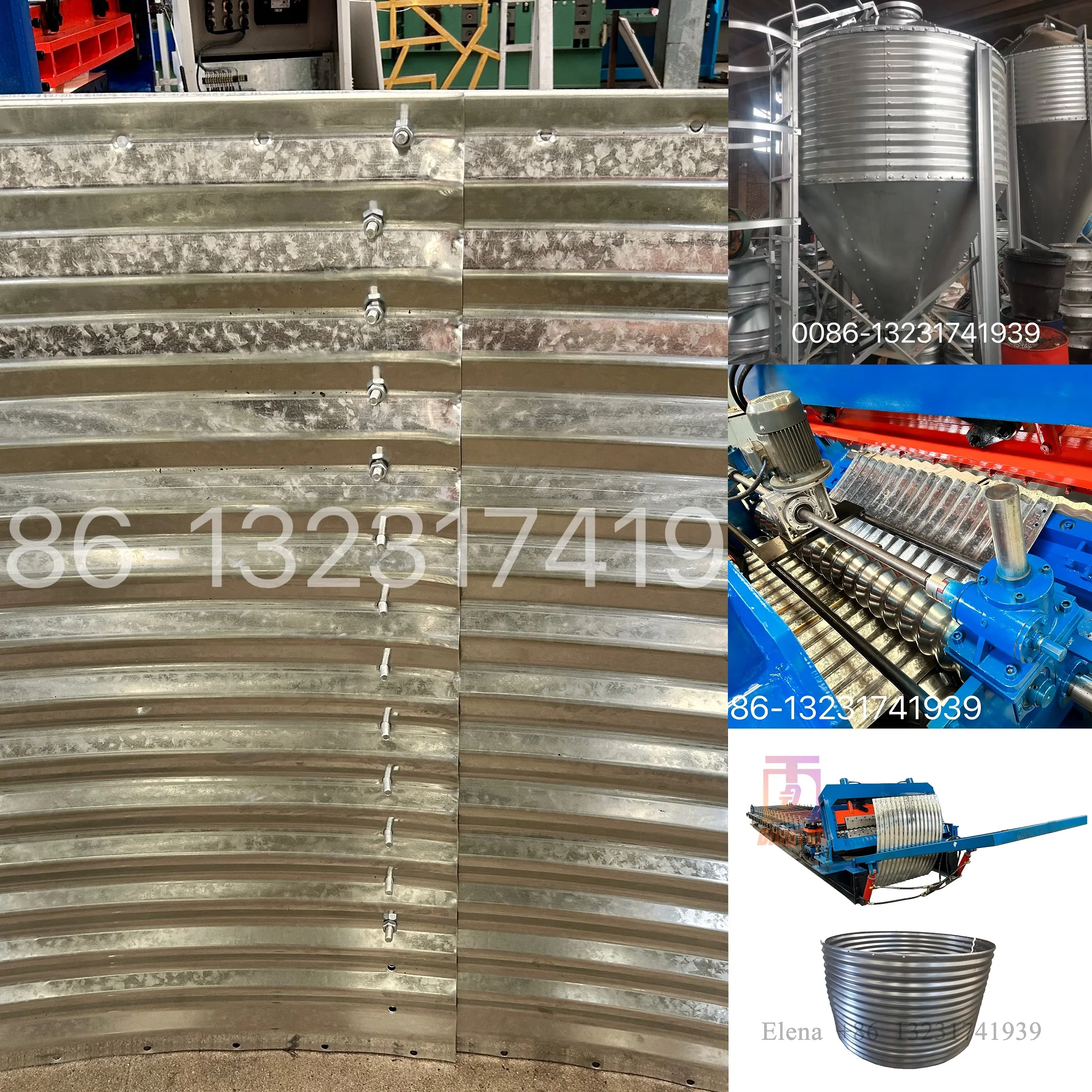

Finished water tank / silo granary/ grain bin Effects
overlapping effects great

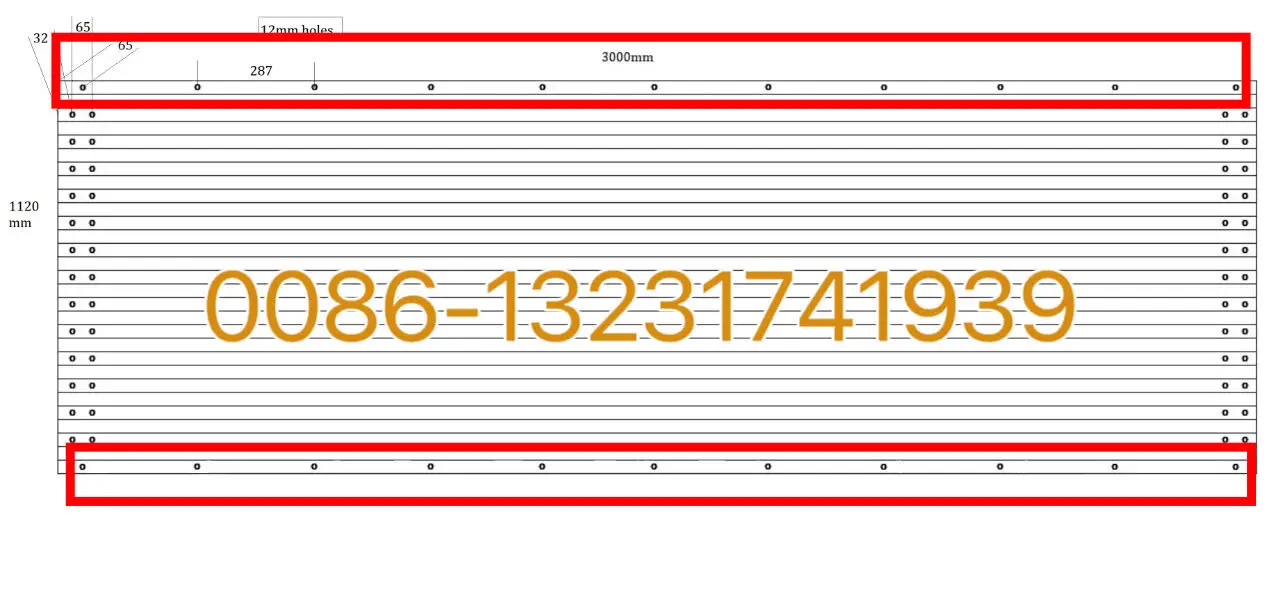

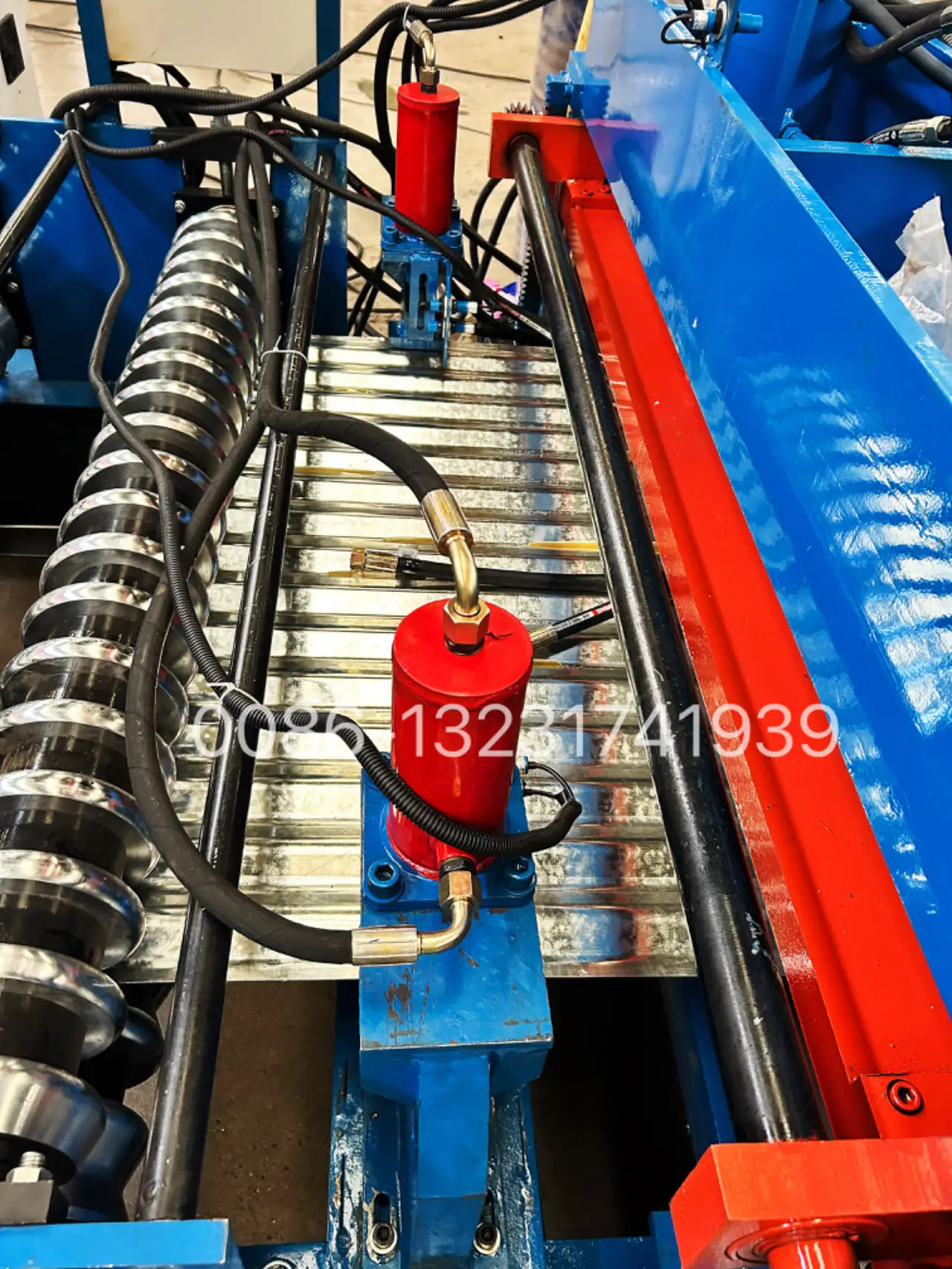

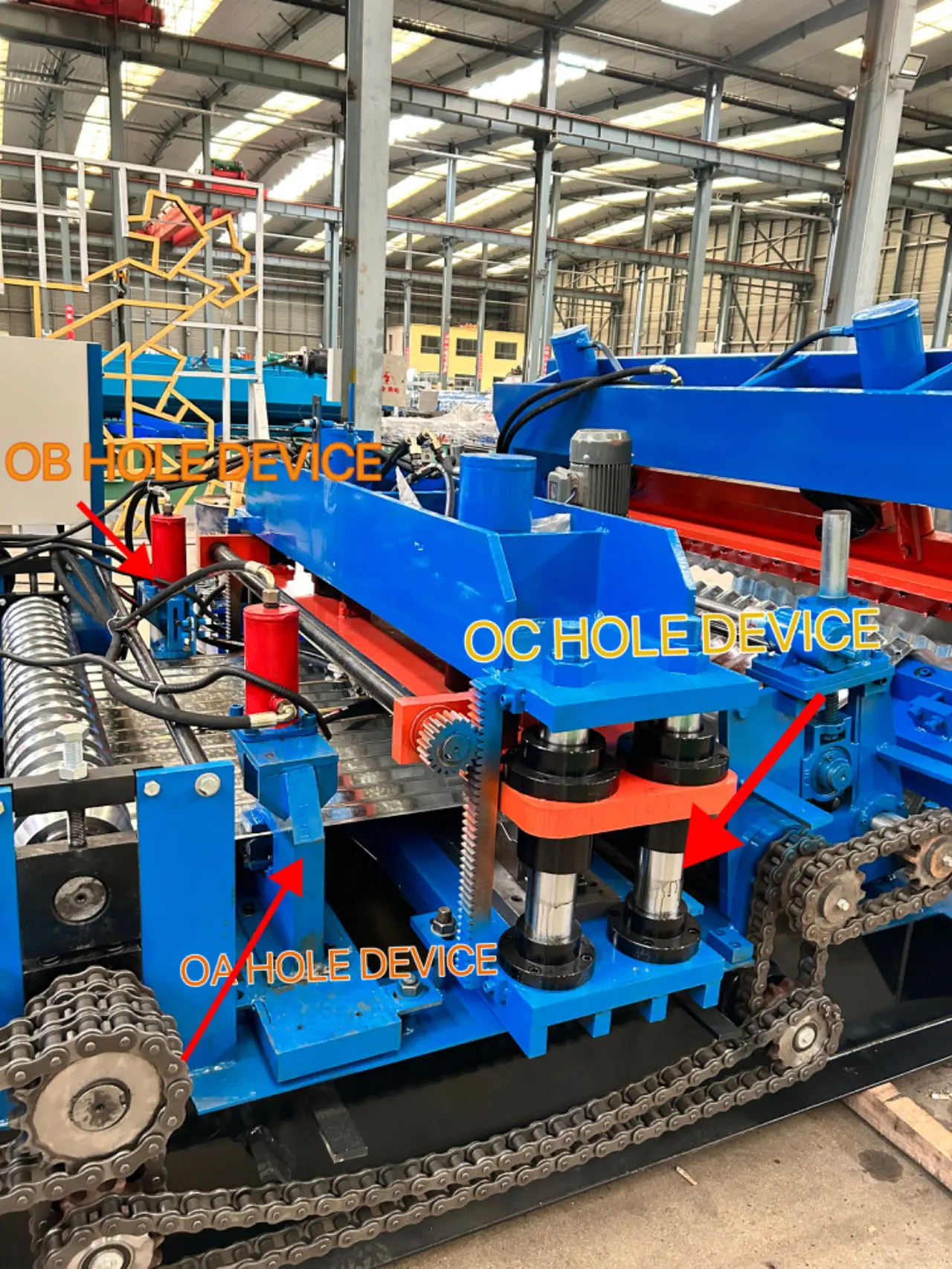

Side punching devices

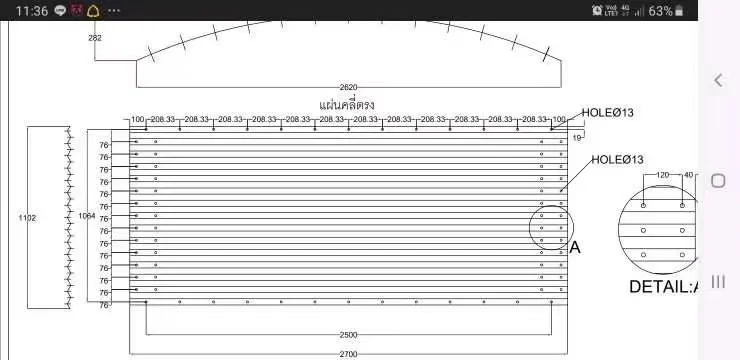

perforations customized as clients needed
Cylinder: 110mm diameter * 2, the head hole punches 1 row of holes at a time, the punching range, 0.8-1.2 mm thick.
The punch is a consumable part, and 10 pieces are included with the machine
The punch is a consumable part, and 10 pieces are included with the machine

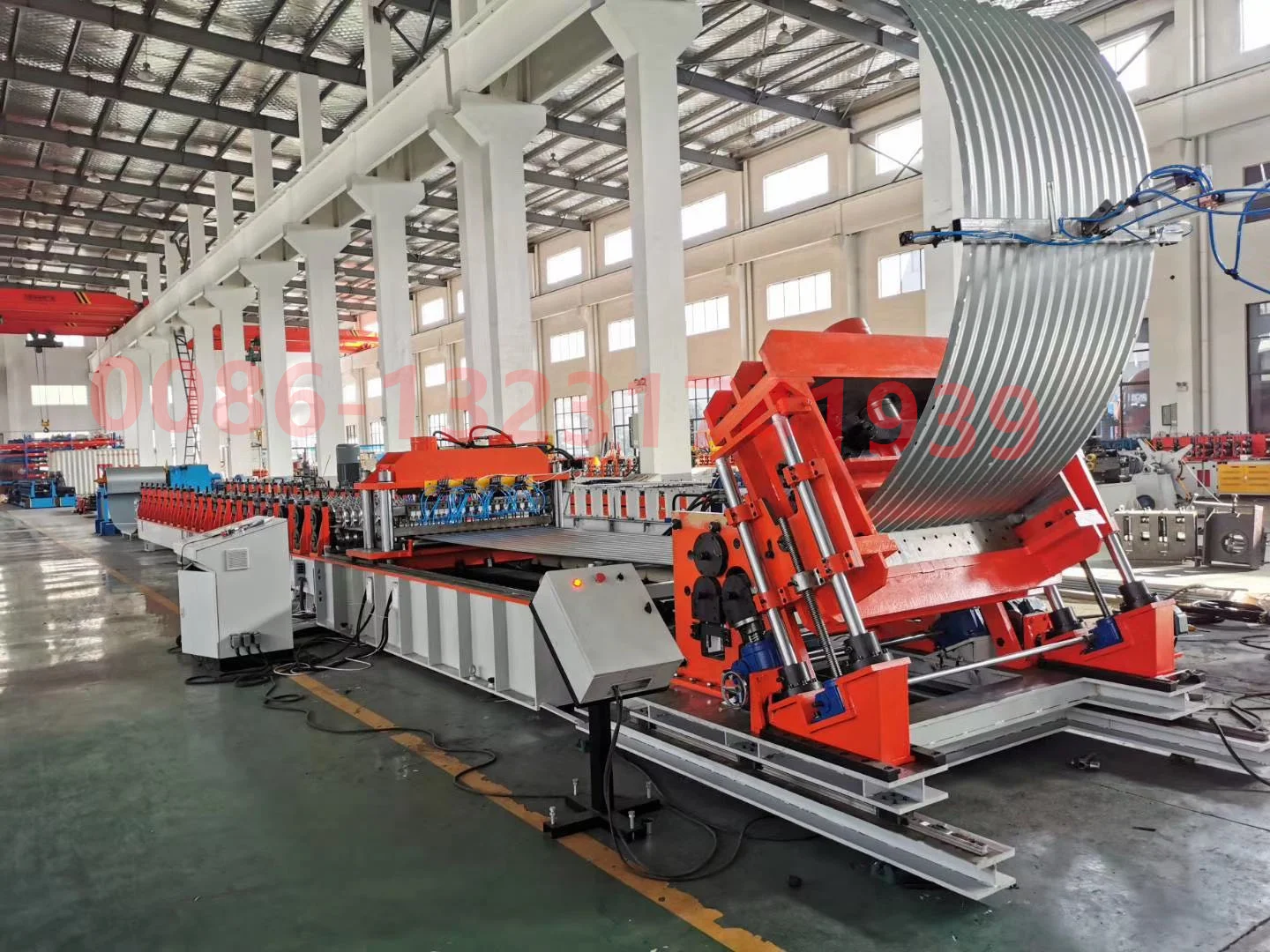

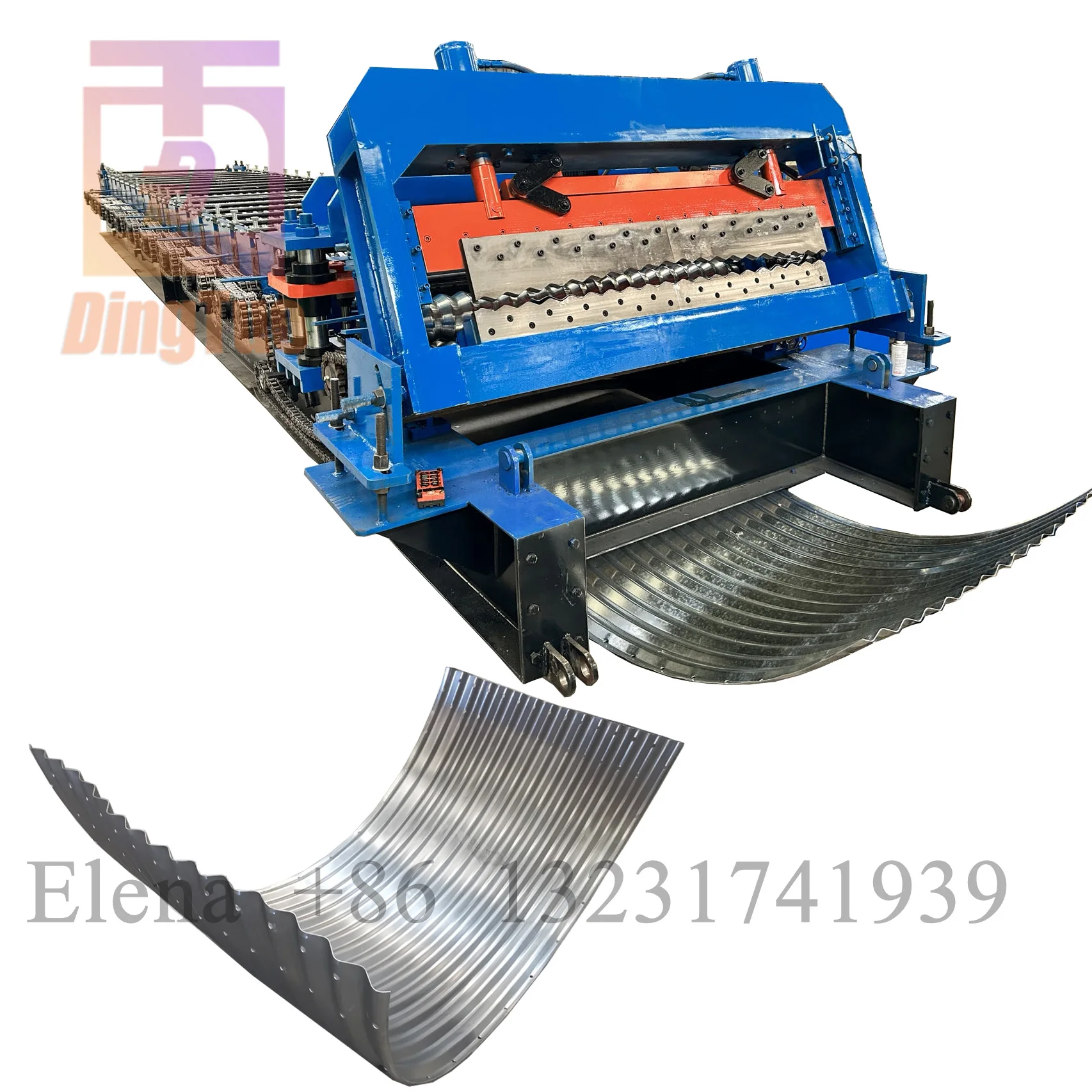

Bending arc computer PLC automatic type change, 3-axis form, equipped with 2 * 5-ton lifts.
Suitable for curving your 1.2 mm galvanized material
Inside Type Motor And Hydraulic Pump Station
1. main motor power:11 kw
2. Hydraulic motor power:5.5 kw
2. Hydraulic motor power:5.5 kw
electric control cabinet
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Length measurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:415V, 3 Phases 50Hz （ voltage can be customized as your needed)
1.Control the cutting length automatically
2.Automatic Length measurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:415V, 3 Phases 50Hz （ voltage can be customized as your needed)
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
2.Power supply: 5.5kw hydraulic pump station
3.Frame: 400H beam welding
4.Stroke switch: non-contact photoelectric switch
5.Cut : cut the sheet after roll forming to required length
6.Length measuring: automatic length measuring
7. Blade material:Cr12 material with finishing
2.Power supply: 5.5kw hydraulic pump station
3.Frame: 400H beam welding
4.Stroke switch: non-contact photoelectric switch
5.Cut : cut the sheet after roll forming to required length
6.Length measuring: automatic length measuring
7. Blade material:Cr12 material with finishing

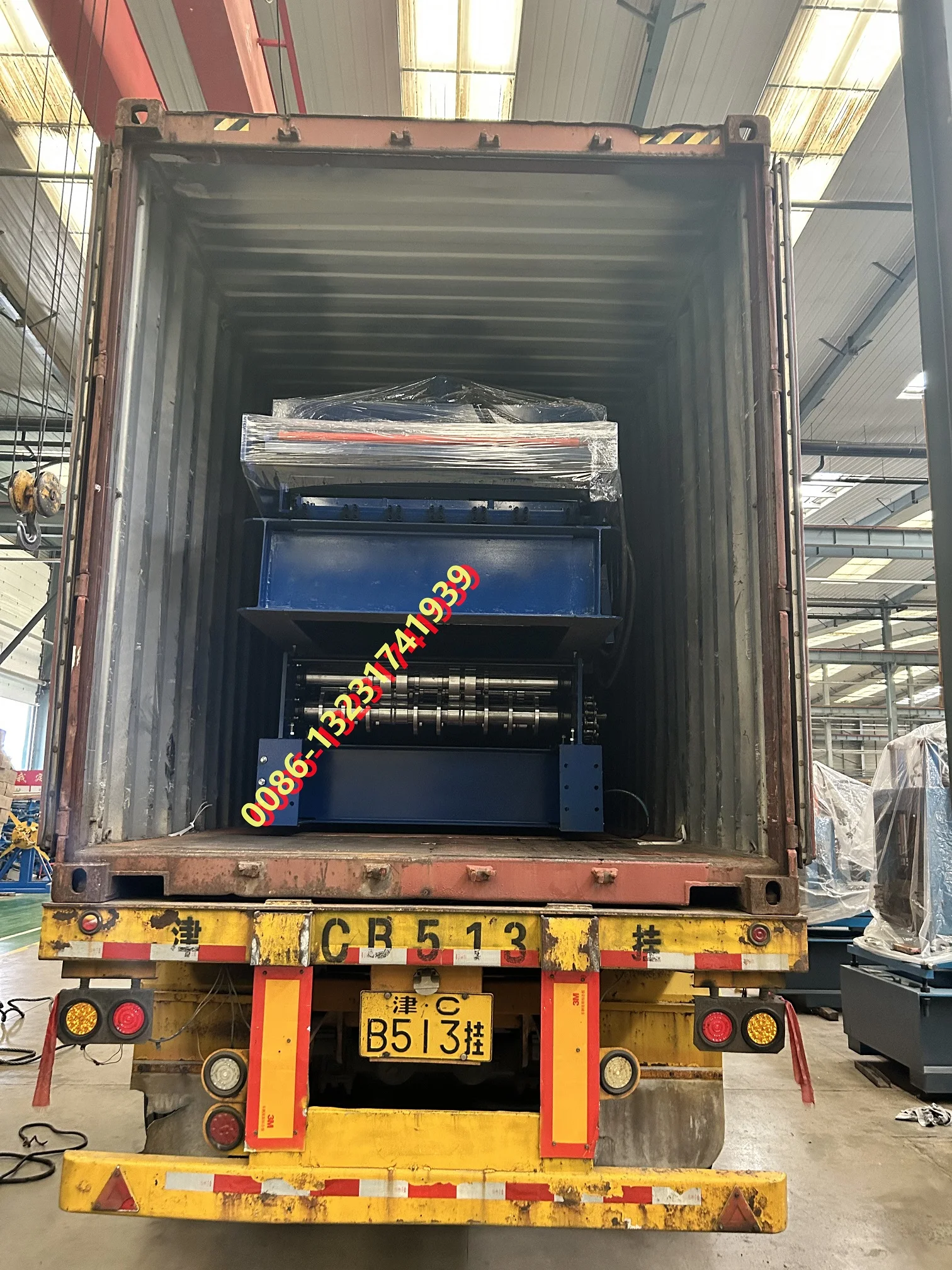

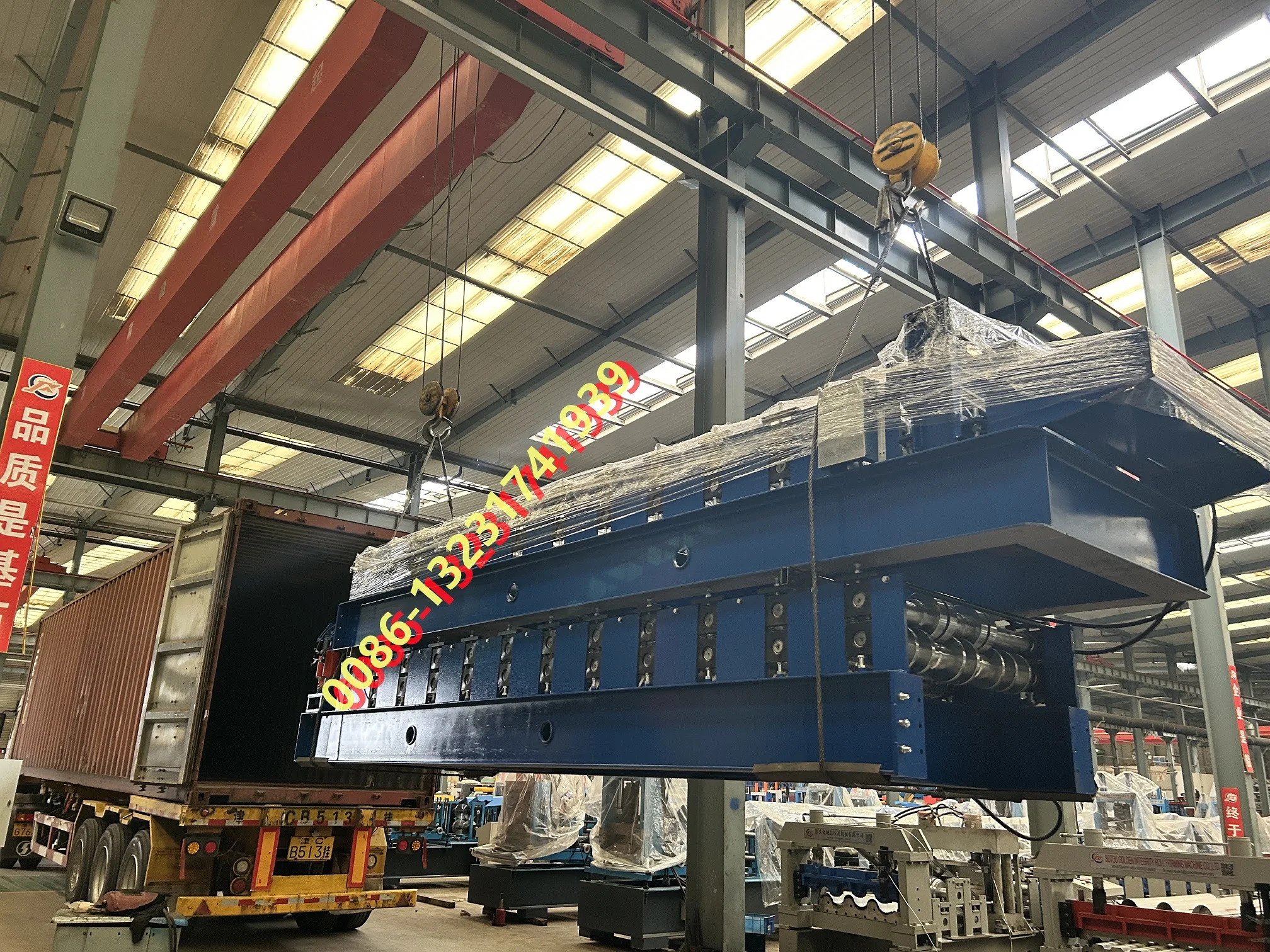

Product packaging
SALES AND SERVICE NETWORK
Successful Project
Water tank Project in UK

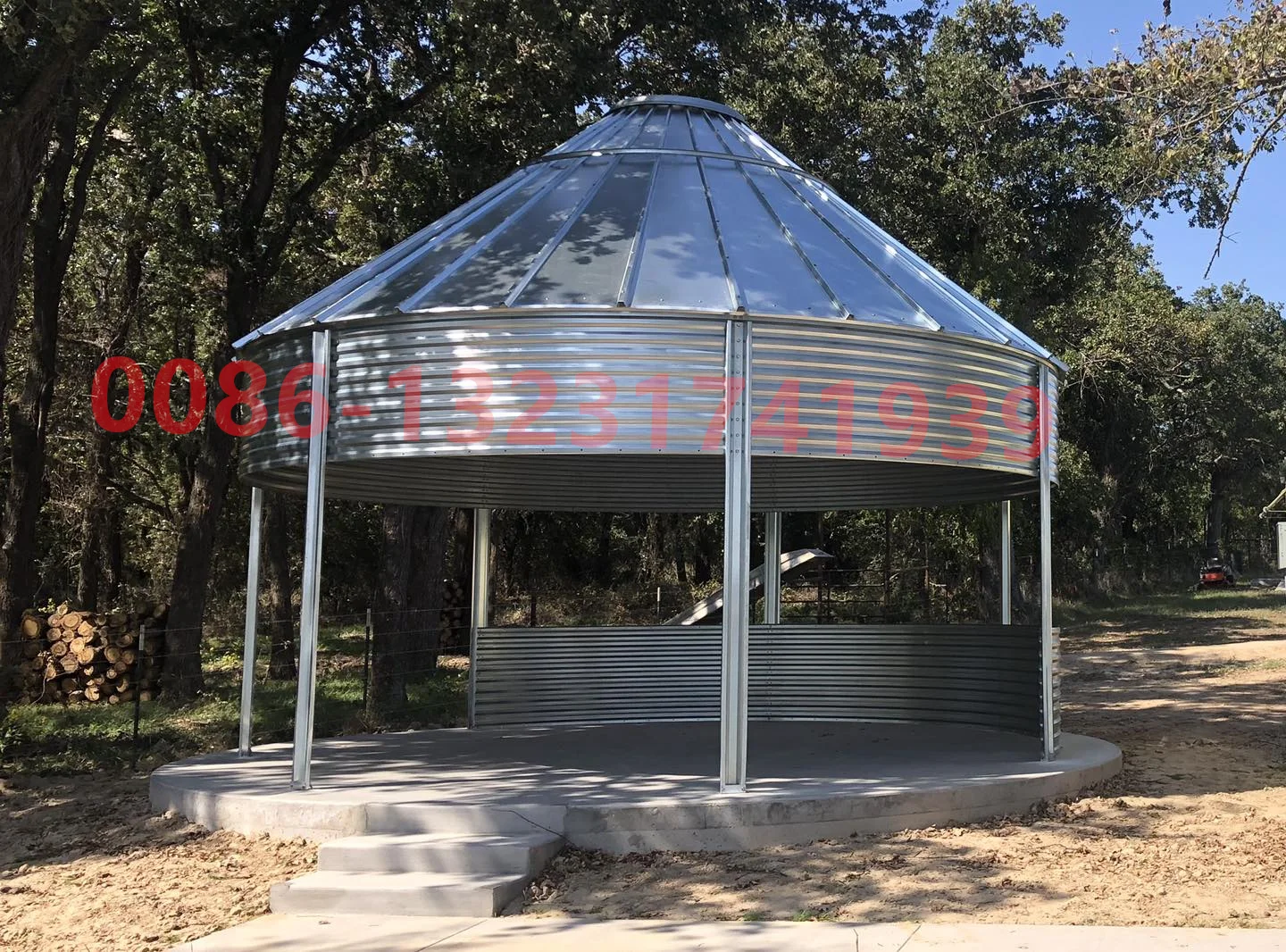

gazebo Project in USA
Project in Spain
RECOMMENDED PRODUCTS PROFILES
CE certificate
CE Certificate
EXHIBITION AND CLIENTS

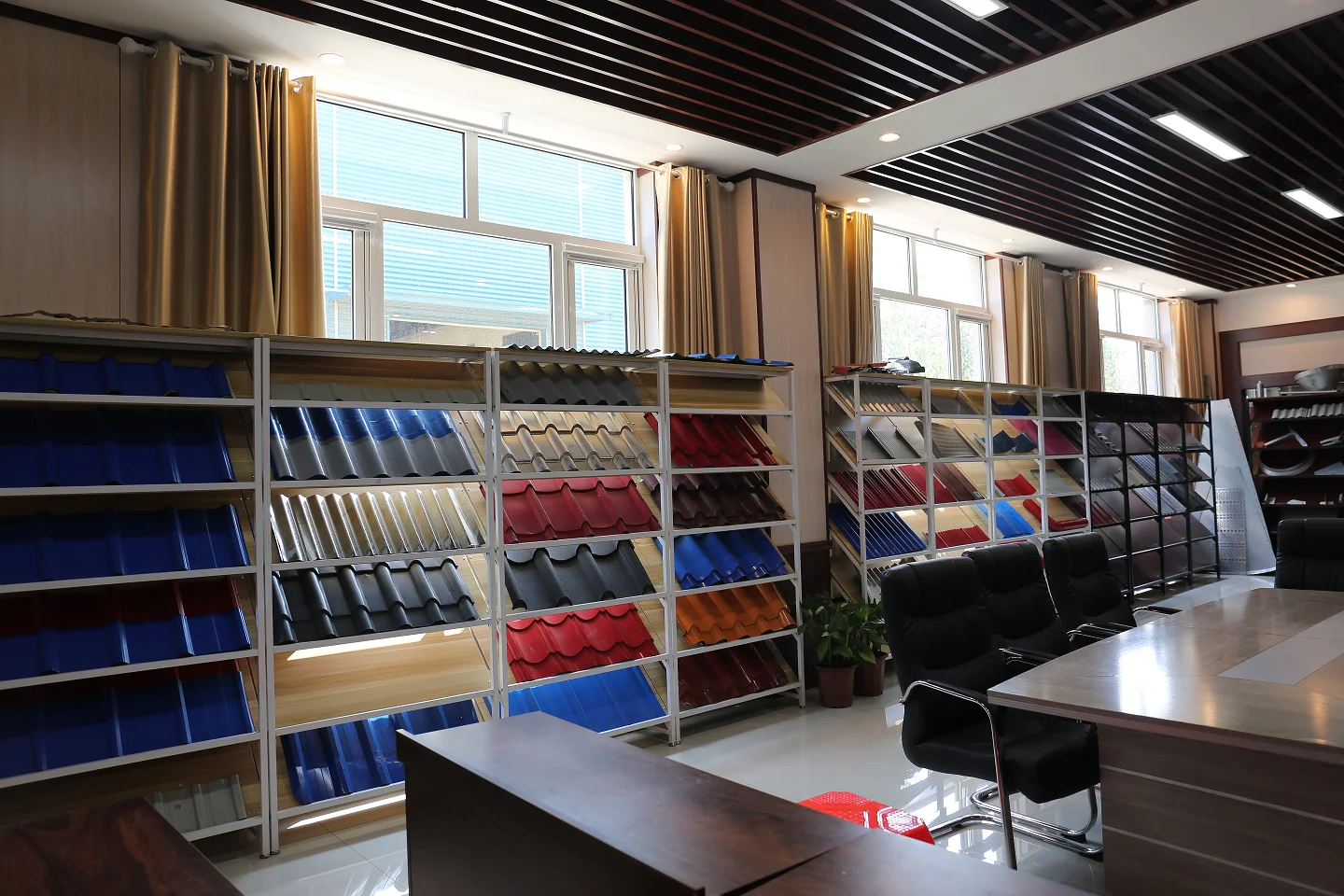

SAMPLE ROOM
FAQ

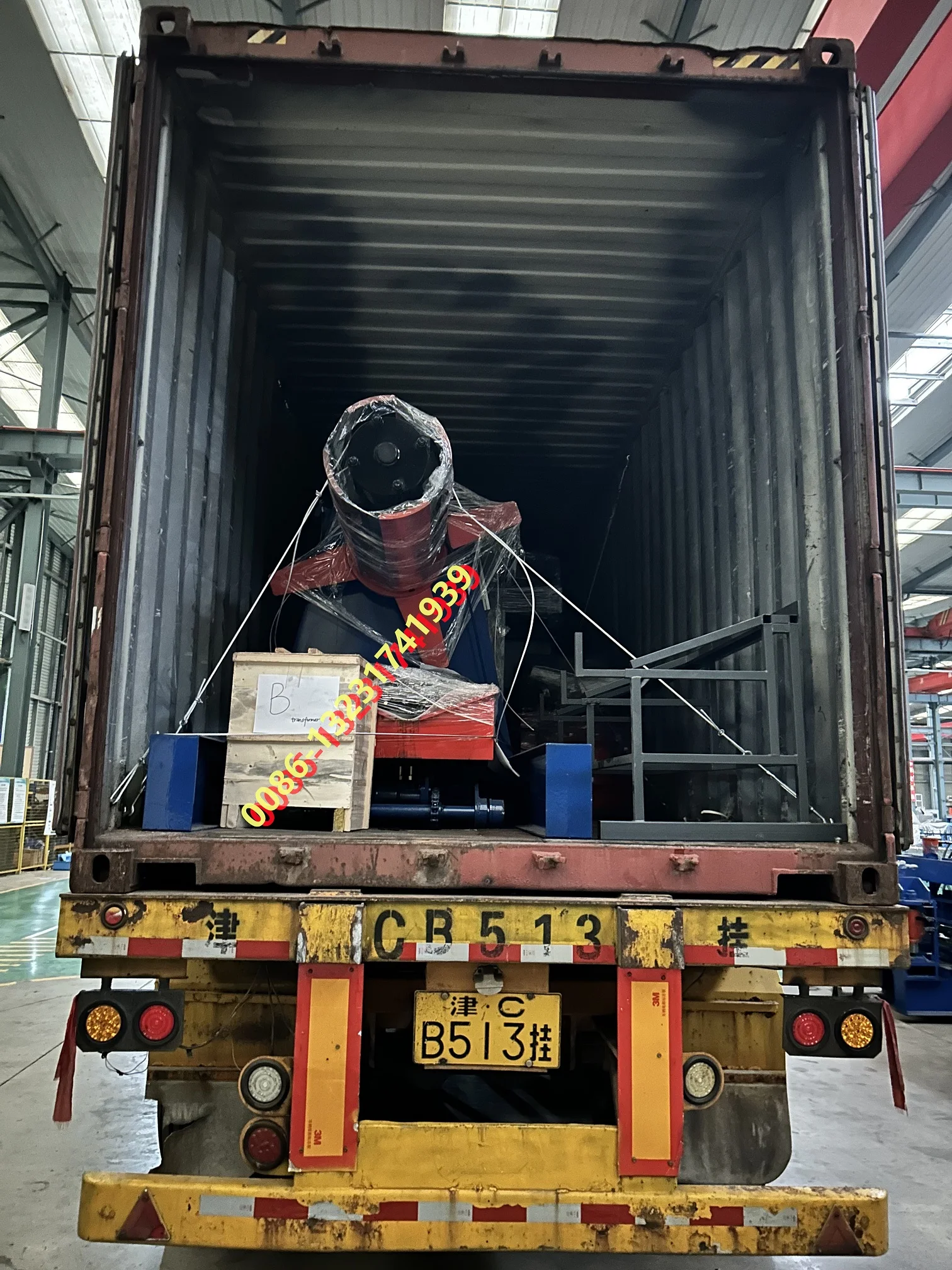

1. Package
1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.
2. Delivery Time
50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.
3. Payment
30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty
15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.
5. Assembly (Optional)
1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded by one 40ft FCL shipping.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.
2. Delivery Time
50 days (not include Chinese holiday) from order acceptance, deposit receipt and technical details agreement.
3. Payment
30% paid by T/T as deposit, 70% paid by T/T before loading.
4. Quality Warranty
15 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.
Free technical supporting and maintenance consulting in lifetime.
5. Assembly (Optional)
1). Machine will be tested completely in working before delivery to you.After receiving the machine and just need to connect the main power wires and can start to work. I will send you operation video , operation manual,too. very easy to operate.
2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
2). If you need engineer overseas serviceas, the installation charge can be discuss with Elena Whastapp 0086-13231741939 If you need engineer overseas services, the buyer has to pay the seller’s technician: Travel cost outside China (Including round flight charges), accommodation and foods (At least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.
WHY CHOOSE US?
Point 1: We are a big factory which has been developed 12 years. During the 12 years, we service each customers sincerity.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
Point 2: Our company has great engineers who can design your profile perfectly. If you want to do a better machine, the first thing is to do a better design for profiles. We are a big and old factory so we have enough experience for designing the profiles.
Point 3: I am a very easy-going female salesperson, please tell me all your requirements for the machine, I can do my best to meet your needs. I can give you the best after-sale services. The machine is customized .So, about the machines' prices which have many .We can do your needed machine according to your request.
Point 4: About the machines' production, we have more than 50 machine making workers in our workshop and we have more than 20 sets of CNC machines to do processing rollers, shafts, base frames , cutters......About the machine making time, we guarantee you .
Point 5: About the machine acceptance , we can make videos and you see the machine running through videos . And also i will shoot the machine's opertaion video, connection video to you. Before machine loading, i will send you all necessary documemnts: operation video , wires connected videos, wiring diagram, floor diagram, oil circuit diagram, operation manual .....If necessary, we can send engineer to your there. No worries about the machine usage. We give you the best after-sale services.
Point 6: The warranty time is 15 months from the machine delivery from our factory. During the period, any problems about the machine, we replace the spare parts and helping you to solve problems freely. Exceed this period, we will also solve the problems freely for you , if need to replace some spare parts, only charge the spare parts and freight for you. Solving problems through videos is free for you. We give you the best after sale services.
Point 7：About the shipment, we have several long cooperated forwarder who can quote us the lowest sea freight . if you need us to ship for you, i can give u the best suitable sea freight . You don't need to worry about you can not deal with the shipment. Also , you can choose your own forwarder and I will cooperate with them throughout.
Похожие товары

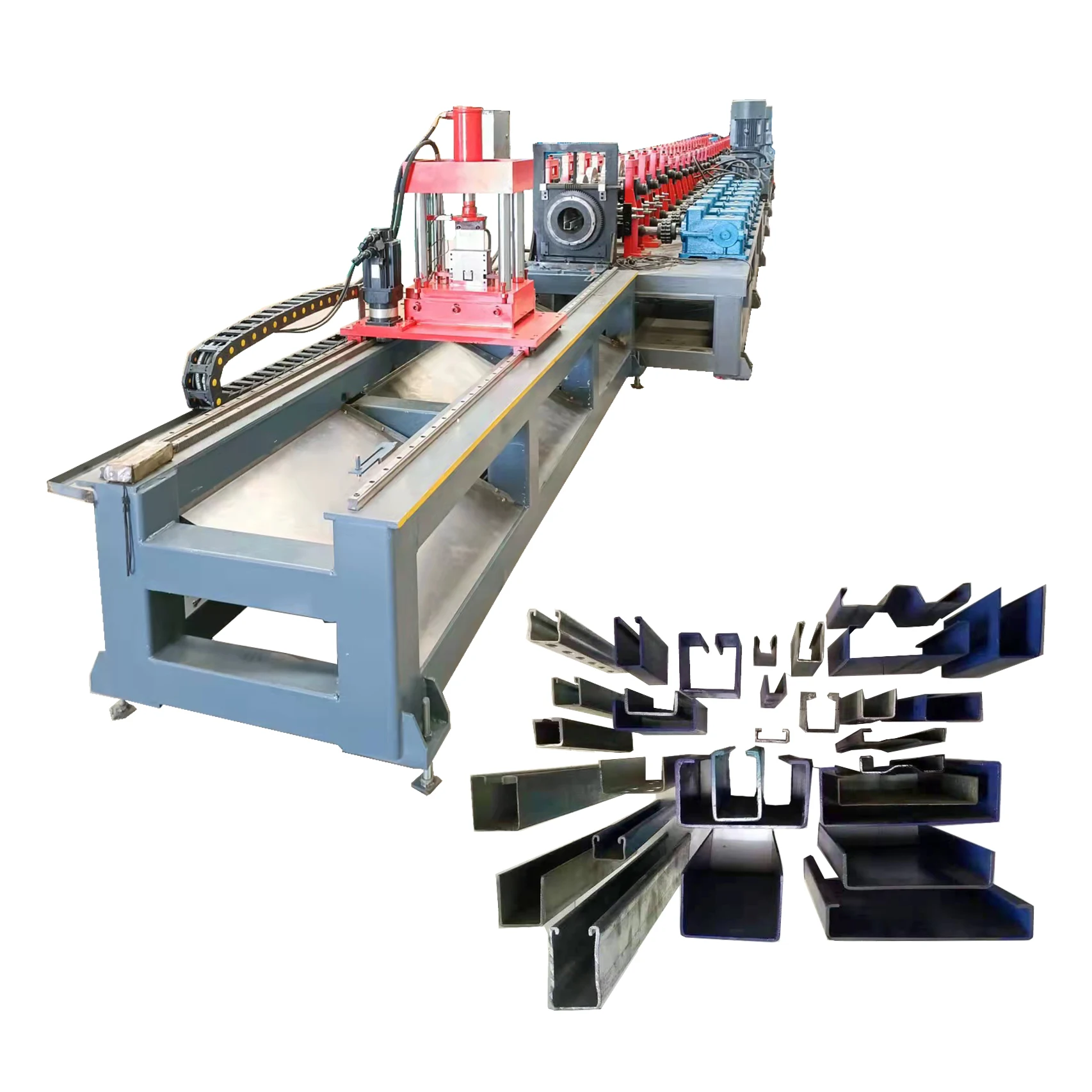

C U-образный кронштейн для солнечной панели рулонная машина структуры
3 526 668,80 ₽ - 3 857 294,00 ₽

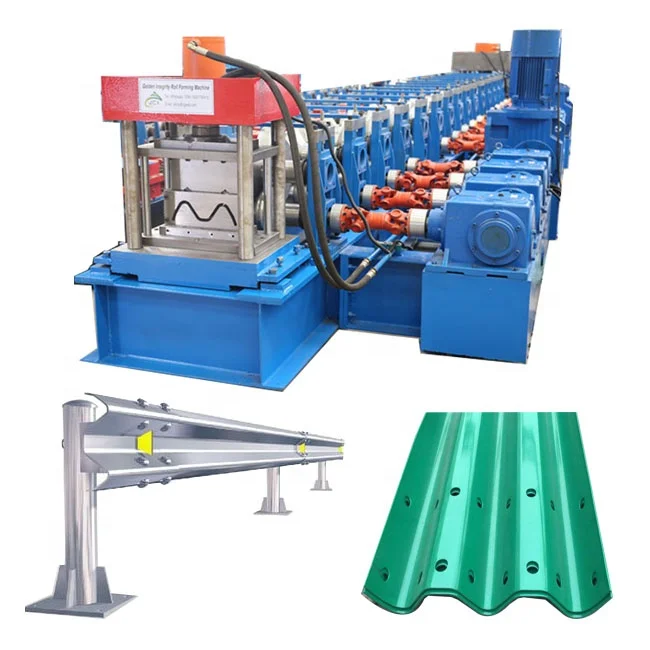

W луч сталь защитное ограждение кассы доска роликогибочная машина для шоссе
