SeeYA SY103WAM01 oed 1 03 дюймов 2560*2560 1800nits ooled панели гибкий экран для дисплея

SeeYA SY103WAM01 oed 1 03 дюймов 2560*2560 1800nits ooled панели гибкий экран для дисплея

Категория: >>>
Поставщик: Shanghai Top Display Optoelectronics Limited

Цена:140,00 $ - 200,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

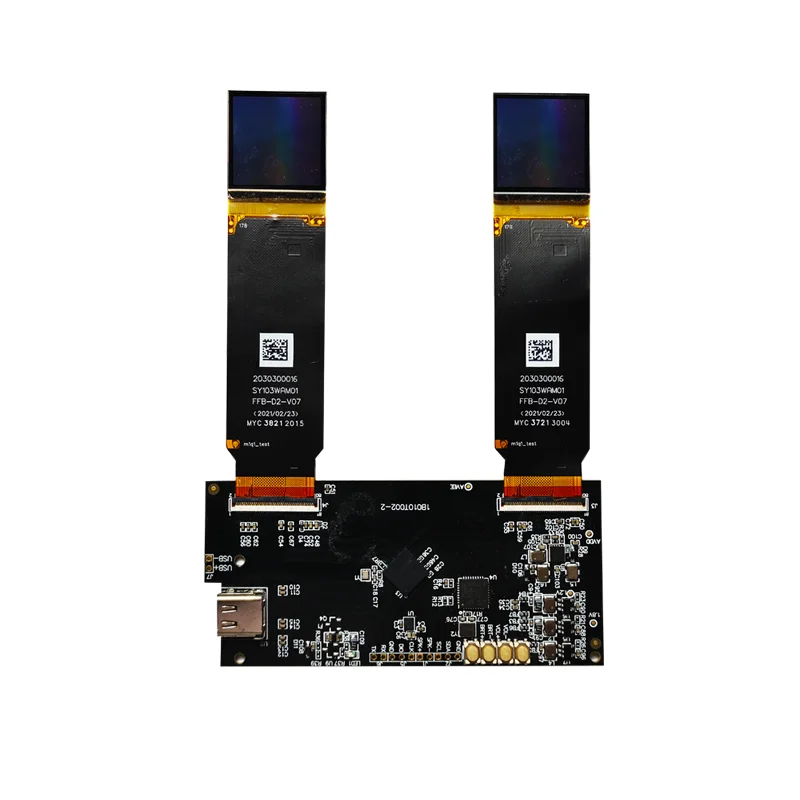

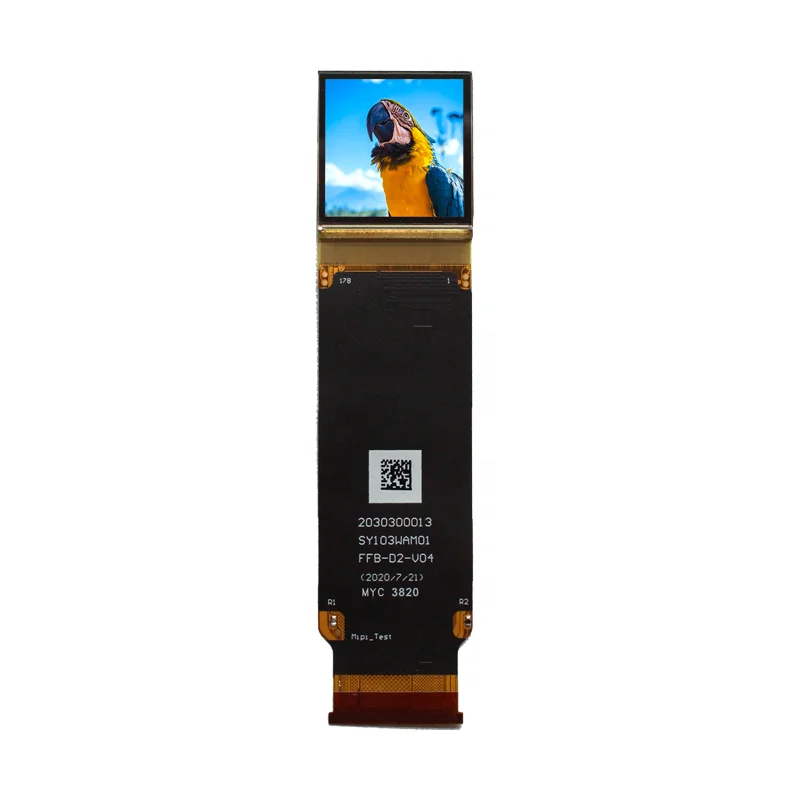

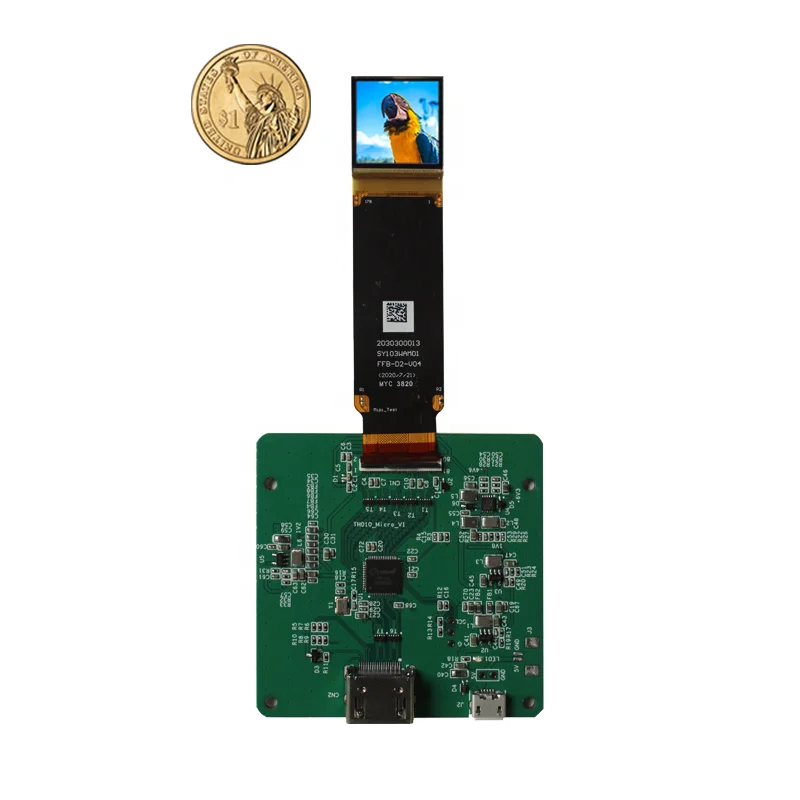

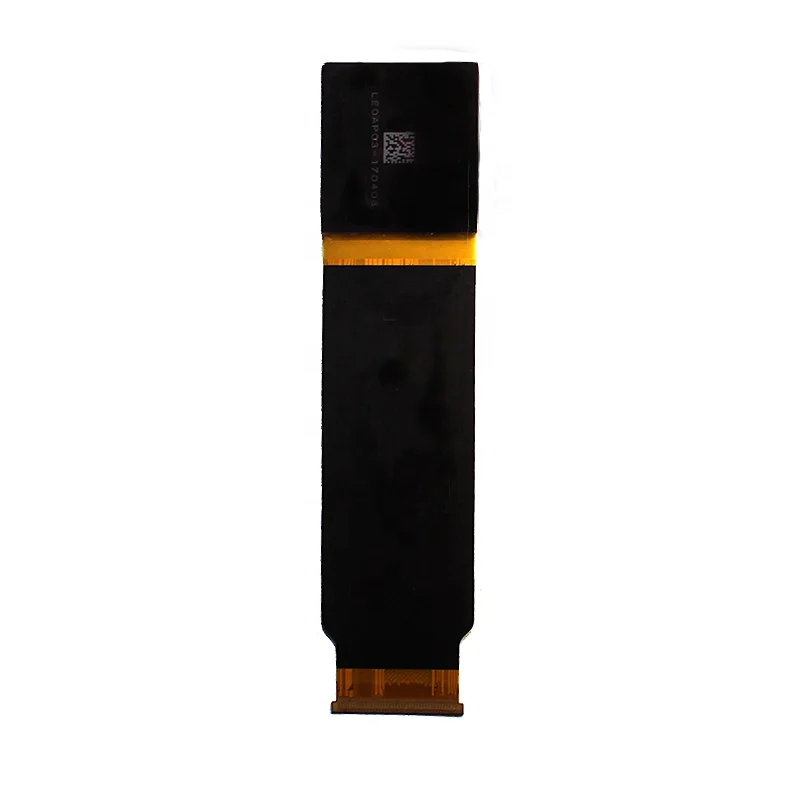

1.03 inch Si-OLED micro display
Product Number	SY103WAM01
Display Type	Micro OLED
Resolution	2560 x 2560
Screen Size	21.09mm x 22.77mm x 1.5mm
Active Area	18.432mm x 18.432mm/ 1.03" diagonal
Luminance(Brightness)	1800nits(Typ.)
Color	Full RGB
Contrast Ratio	50,0000:1
Interface	MIPI+I2C
Frame Rate	60Hz~90Hz
Operating Temperature	-20℃ to +70℃
Storage Temperature	-40℃ to +80℃
Plan	Mass Production
Application	AR VR devices, EVF, Night vision, sight...

Application

Si OLED Introduction

Product Overview

Si-OLED micro display

Size

Resolution

Model Number

Active Area(mm)

Brightness

Interface

Remark

0.32"

800x600

SY032WEM01

6.48*4.86

1800(TYP.)

RGB/MIPI

Color

0.4"

1440x1080

SY040WDM01

6.065*8.09

1800(TYP.)

MIPI

Color

0.49"

1920x1080

SY049WDM01

6.065*10.783

1800(TYP.)

MIPI

Color/ Muit-lens for EVF available

0.49"

1920x1080

SY049WDM02

6.065*10.783

1800(TYP.)

MIPI

Longer FPC/color/Birdbath optic for AR headsets available

0.49"

1920x1080

SY049LDM01

6.065*10.783

3000(TYP.)

MIPI

color

0.49"

1920x1080

SY049LDM02

6.065*10.783

20000(TYP.)

MIPI

Mono green

0.57"

800x600

SY057WAM01

11.52*8.64

1800(TYP.)

MIPI

color

0.62"

1728x1368

SY062WAM01

12.4416*9.8496

1800(TYP.)

MIPI

color

0.83"

2560x1440

SY083WAM01

18.432*10.368

1800(TYP.)

MIPI

color

color/pancake optical module for VR

1.03"

2560x2560

SY103WAM10

18.432*18.432

20000(TYP.)

MIPI

Mono green

Company Profile

Founded in 2014, Shanghai Top Display Optoelectronics Limited(TDO) was cooperated with shareholder SeeYA technology specialize in high-performance Near-Eye Displays (NED) solution in design, development, manufacture micro oled, optic module and display solution for VR&AR, video glasses, camera viewfinders, medical imaging devices, military products and many other professional devices worldwide.

We commit to provide our clients with high-value products and outstanding services and Toward a high industrial standard and environment friendly manufacturer. More than 90% of the team members have R&D, design, and process experiences. By January 2021, we has 28 patents and 160 patent applications in process and has been granted Integrated Management Systems Certificate, including ISO14001,ISO45001, ISO9001.

Packaging&Delivery

FAQ

Q1: How to test the products?

A1: All our products are plug and play. No additional settings are needed.

Q2: Is there any technical support?

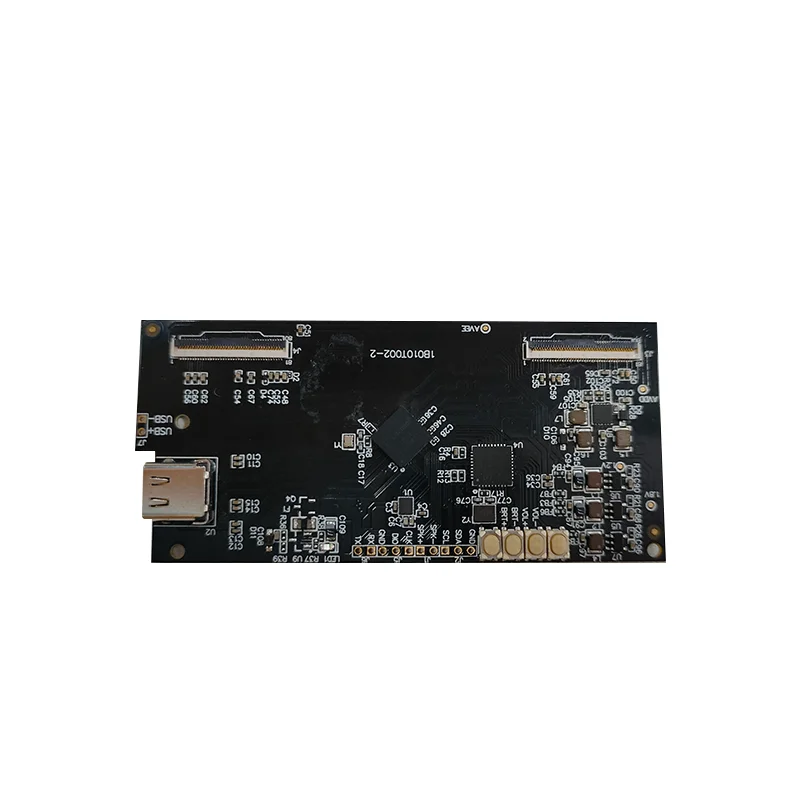

A2: Yes. We are not a trading company. So we have a professional R&D team who can solve your technical problems about micro OLED display and driver solution in time. Also full specifications, drawing and schematic are available.

Q3: Is there a MOQ?

A3: No MOQ for standard products.

Q4: How long is the delivery time?

A4: 2 working days for samples. Normally all products are in stock.

Q5. What is the delivery term, payment method and delivery method?
A5: Accepted Delivery Terms: EXW, FOB, CFR, CIF, DAP；

Accepted Delivery Method: DHL, UPS, FedEx, TNT, SF
Accepted Payment Currency: USD, EURO, RMB.
Accepted Payment Type: T/T, Credit Card, PayPal, Apple Pay, Western Union, L/C,D/P D/A.
