500w 350w 600w 700w 1000w/12/24v микро-инвертор 1200w решеточный преобразователь Чистая синусоида 220vac
5 430,03-6 335,04 ₽
Конвертер солнечной энергии для склада GOOTU EU мощность 6 2 кВт 48 В постоянного тока в 230VAC инвертор переменного
- Категория: >>>
- Поставщик: Shenzhen Jiesaiyuan Electricity Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600911463083:
Описание и отзывы
Характеристики

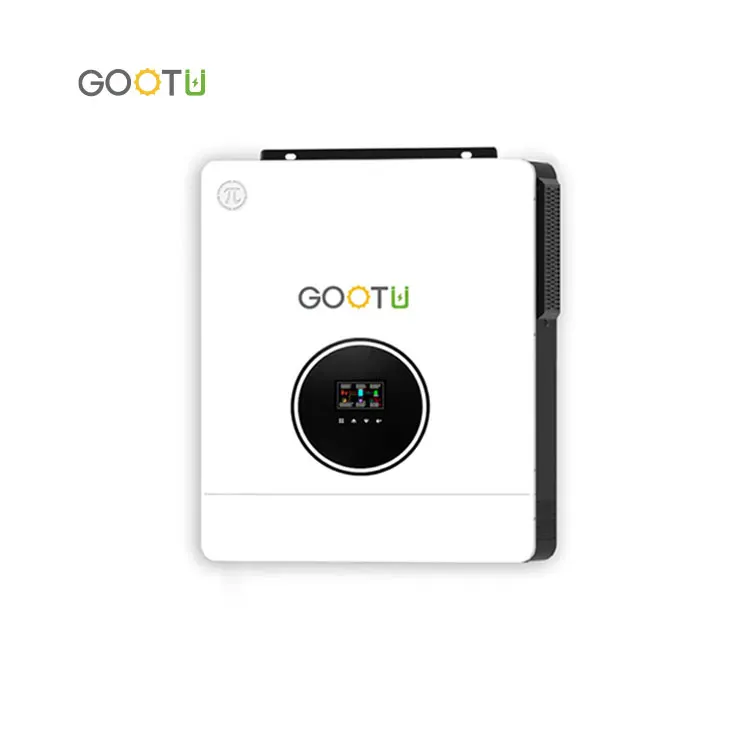

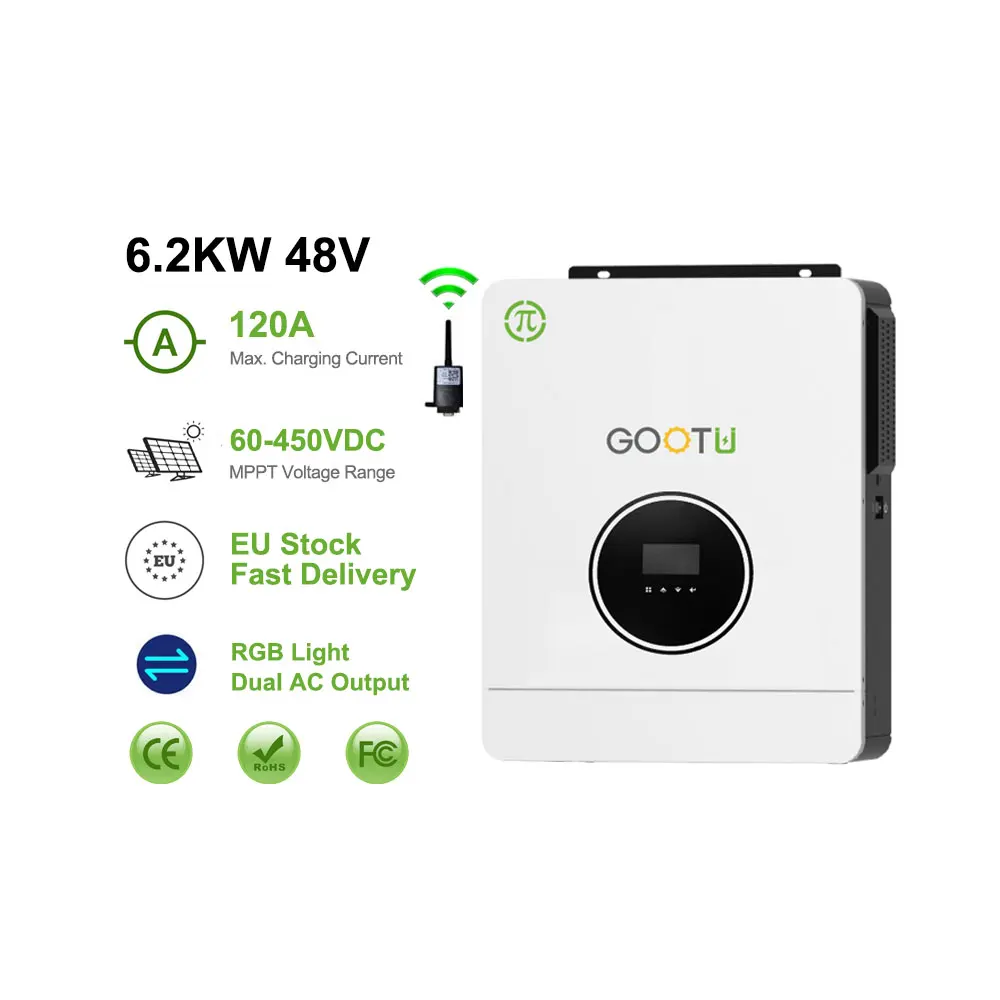

Product Description

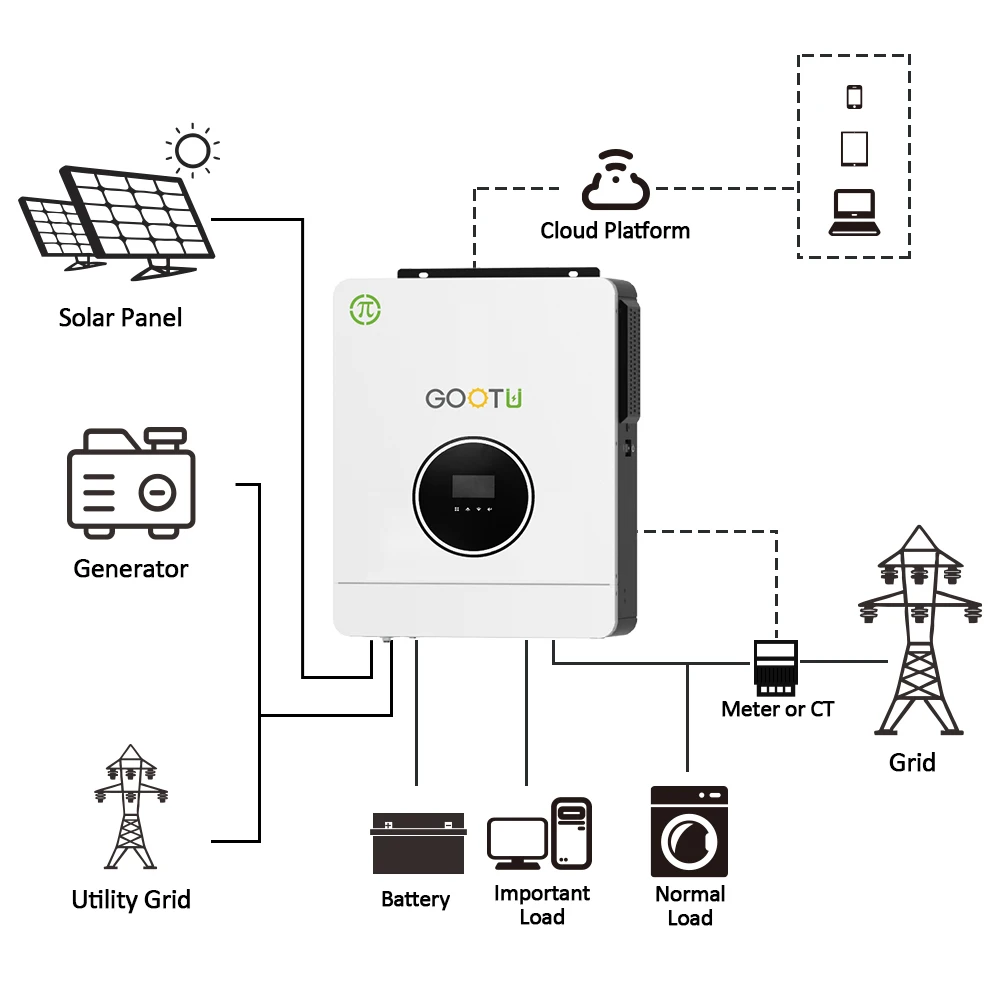

GOOTU 6.2KW dual output hybrid solar inverter is a type of solar inverter that has two separate AC outputs. This allows for the inverter to be used in a variety of different applications, such as powering two separate buildings or powering a home and a backup generator simultaneously. The dual output feature also allows for greater flexibility in system design, as it can be used to optimize energy production and distribution. Dual output solar inverters are commonly used in larger residential and commercial solar installations.

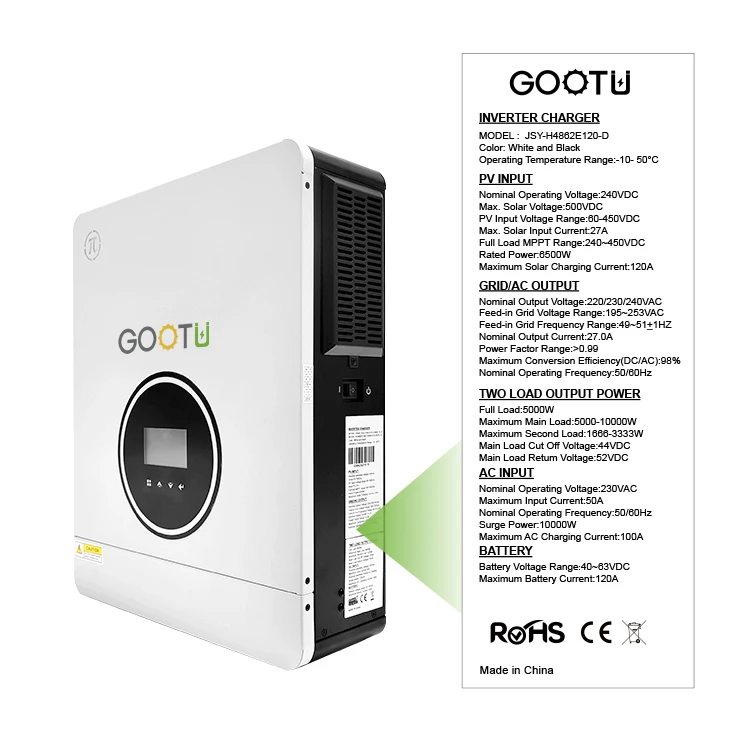

Data Sheet
Model | JSY-H4862E120-D | |
Maximum PV Input Power | 6500W | |
Rated Output Power | 6200W | |
Maximum Solar Charging Current | 120A | |
GRID TIE OPERATION | ||
PV INPUT(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360VDC / 500VDC | |
Start-up Voltage/lnitial Feeding Voltage | 90VDC / 120VDC | |
MPPT Voltage Range | 90VDC - 450VDC | |
Number of MPPT Trackers/Maximum Input Current | 1 / 27A | |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | |
Output Voltage Range | 195.5-253VAC | |
Nominal Output Current | 27A | |
Power Factor | >0.99 | |
Feed-in Grid Frequency Range | 49~51±1Hz | |
EFFICIENCY | ||
Maximum Conversion Efficiency(DC/AC) | 98% | |
TWO LOAD OUTPUT POWER | ||
Full Load | 6200W | |
Maximum Main Load | 6200W | |
Maximum Second Load(battery mode) | 2067W | |
Main Load Cut Off Voltage | 44V DC | |
Main Load Return Voltage | 54V DC | |
OFF-GRID OPERATION | ||
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage | 120-140V AC/180V AC | |
Acceptable Input Voltage Range | 90-280 V AC or 170-280V AC | |
Maximum AC Input Current | 40A | |
Nominal operating frequency | 50/60Hz | |
Surge power | 12400W | |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240V AC | |
Output Waveform | Pure sine wave | |
Efficiency(DC to AC) | 94% | |
BATTERY&CHARGER | ||
Nominal DC Voltage | 48V DC | |
Maximum Solar Charging Current | 120A | |
Maximum AC Charging Current | 100A | |
GENERAL | ||
PHYSICAL | ||
Dimension,D X W X H(mm) | 420*310*110 | |
Net Weight(kgs) | 11 | |
INTERFACE | ||
Communication Port | RS232/WIFI/Remove LCD/GPRS | |
ENVIRONMENT | ||
Operating Temperature | -10-50℃ | |
Project
Company Profile
Shenzhen Jiesaiyuan Electricity Co., Ltd
Shenzhen Jiesaiyuan Electricity Co., Ltd is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters, energy storage battery. We always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter & battery technology, rigorous quality control and continuous improvement of customer service, and enjoys a high reputation in the industry with excellent product quality, good reputation and advanced innovation consciousness. We can provide different application systems, engineering services and optimal system solutions according to our customers' requests. Our company has a professional R&D team which is composed of experienced professors, senior engineers and technical persons. We have abundant technical strength and rich experience in engineering design and construction.We always adhere to provide customers with quality products and services, and actively work with customers around the world to create a better future.
Certificates
FAQ
Q: How about the warranty? What you will do if the inverter in problem during 1 or 2 years? If refund should i return the goods?
A: The inverters are of 2 years warranty, during the warranty we offer you free replacements for parts,no need to send back to china. The warranty period has expired , we will offer support but you need to pay for the parts component cost.
Q: How long the delivery time if i order? How soon can you send out the goods?
A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization.
Q: What happen if I meet problem during instalation? Will you support and how?
A: Yes that we are 24hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service.
Q: Does your company also provide other solar products except Pure Sine Wave Inverter?
A: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter,
on grid inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q: What certificates do you have for your products? Can you provide sample for testing?
A: Sure, please kindly contact us and we will provide sample for you. Our products have acquired RoHS, CE, FCC, UL, PSE certificates, which is able to satisfy most country’s importing requirements.
Q: How do you ship the goods and how long does it take?
A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB, CIF, DAP, etc. All terms are available.
A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB, CIF, DAP, etc. All terms are available.
