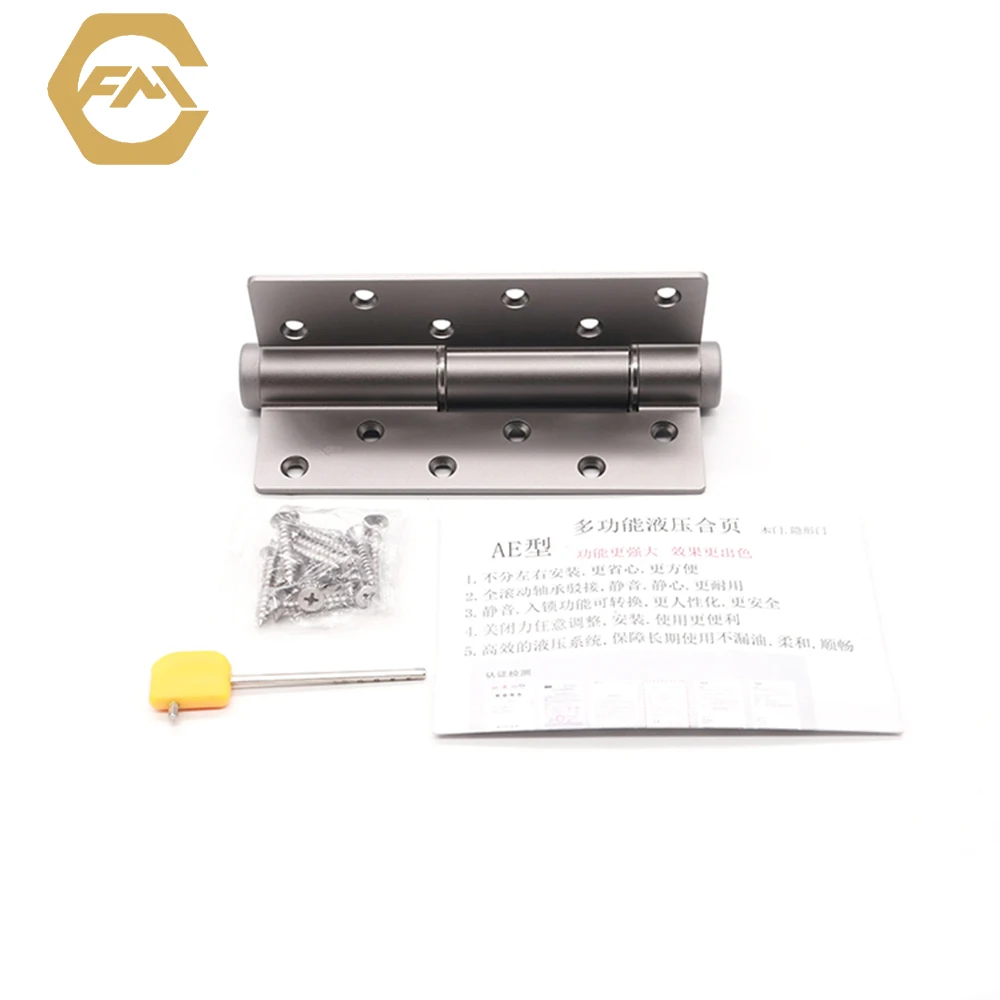

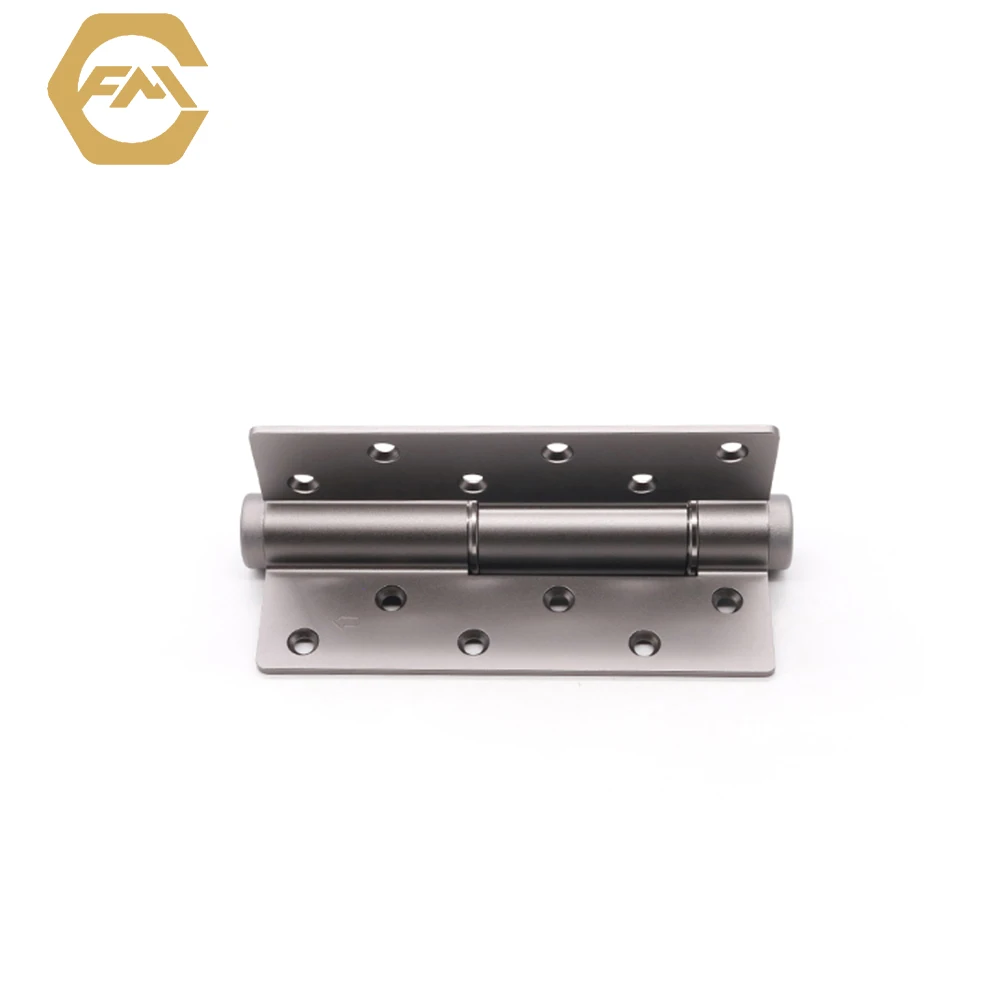

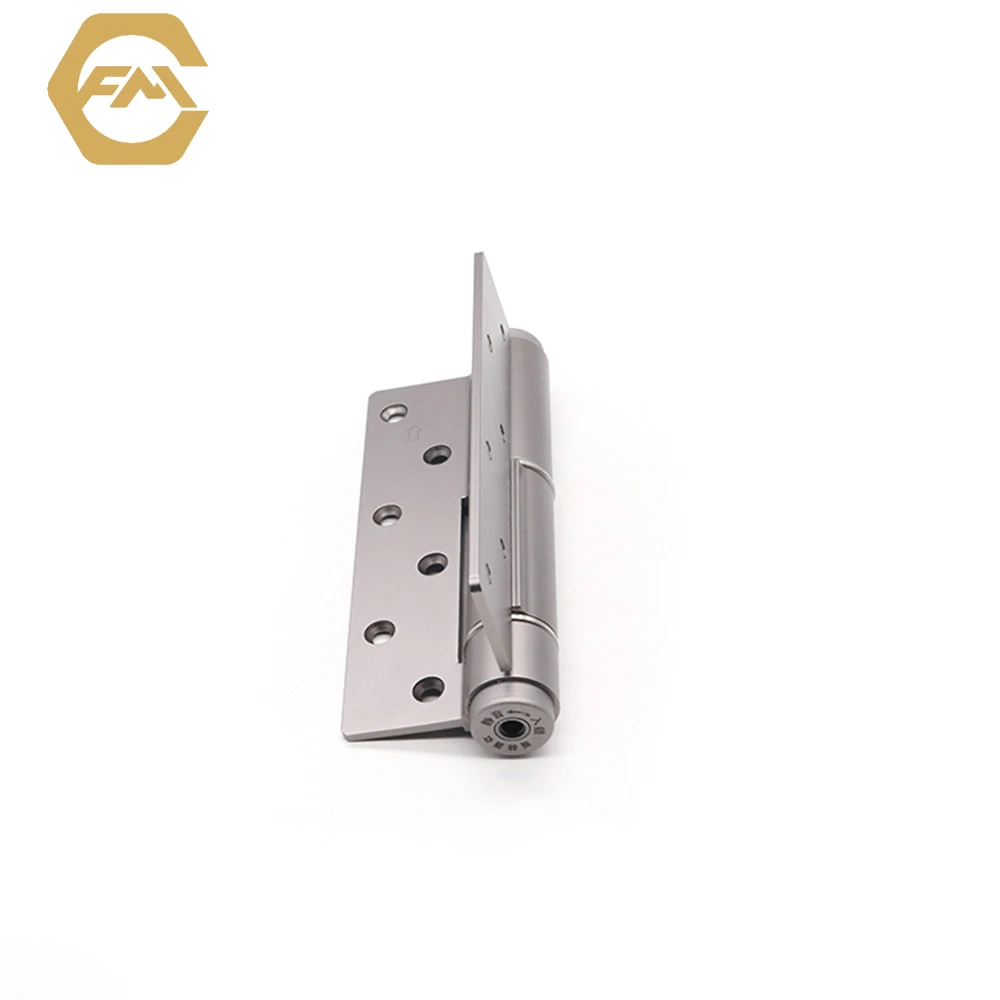

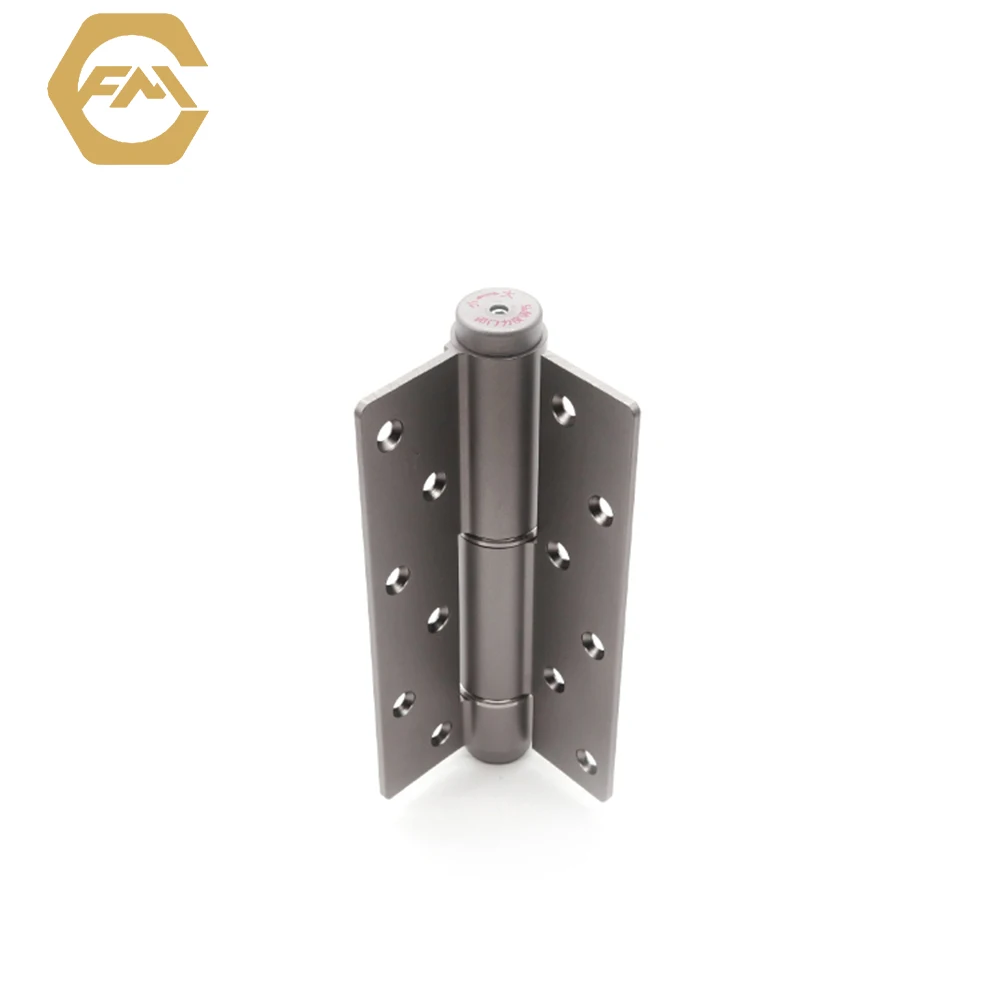

Chinese Factory FAM-AE-02 Stainless Steel 304 Sliding Self Closing Pivot Door Hinge Wooden Hydraulic Concealed Door Hinges
Model | FAM-AE-02 |
Material | SS304 |
Finish | Polish/Satin |
Color | Placer silver,iron gray,placer gold,red bronze,green broneze,black |
Size | 172.5mm*36mm*8.5mm |
Fuction | Closing force adjustment,Needle roller bearing connection |
Shape | Rectangular |
Angle interval | 0°-180° |
Application | Easy to install |
Service | OEM & ODM |
Hydraulic Hinge
FAM-AE-02
High efficiency hydraulic system
High rigidity integral shaft core design, central shaft diameter 12mm, high quality pressure energy storage spring, ten years of
pressure still maintain more than 90%. Alloy steel piston, cylinder liner after superb heat treatment technology, longer life.
pressure still maintain more than 90%. Alloy steel piston, cylinder liner after superb heat treatment technology, longer life.
Finish
*Surface treatment is divided into oxidation and electroplating treatment.
* If the customer needs a different color, you can choose to customize.
* If the customer needs a different color, you can choose to customize.
High Grade Aluminium Alloy
Products are made of aviation aluminum for hot and cold two kinds of processing, with strong corrosion resistance, hardness and weight bearing farther than ordinary hinge.
Closed door force adjustment
Use the matching hexagonal wrench with a graduated end inserted into the adjustment hole to adjust the closing force of the door
freely (the adjustment depth should not exceed 23mm)
freely (the adjustment depth should not exceed 23mm)
Mute and lock switch at will
*If you want to close the door and mute it, turn the key to 0-3mm.
*If you want to close the door and lock it, turn the adjusting key 3-5mm.
*If you want to close the door and lock it, turn the adjusting key 3-5mm.
Optional functions:
positioning (default selection), normally closed (need to specify)
Lock, mute door function users can adjust the conversion
Locate Function
1. The maximum opening Angle is 180°
2. 140-180° will reset to 150° suction position (to prevent collision with the wall)
3. 130°-140° will automatically reset to any stay interval
4. 85°-130° is an arbitrary stay interval
5.*Less than 80° will automatically close
* 80-30° is the faster closing speed
*30°-150° is the slow closing Angle
*15°-0° Slightly fast closing and slow closing can be convertedclosing can be converted
3. 130°-140° will automatically reset to any stay interval
4. 85°-130° is an arbitrary stay interval
5.*Less than 80° will automatically close
* 80-30° is the faster closing speed
*30°-150° is the slow closing Angle
*15°-0° Slightly fast closing and slow closing can be convertedclosing can be converted
Normally Closed Function
1. The maximum opening Angle is 180°
2. 160°-30° fast closing speed
3. 30°-15° slow closure
4. 15°-0° slightly fast closing and slow closing can be converted
3. 30°-15° slow closure
4. 15°-0° slightly fast closing and slow closing can be converted
Installation Method
When installing the hinge, the direction of the arrow is upward. After the hinge is installed, the door closing strength will beadjusted by clockwise rotation to increase the door closing strength, which will be adjusted according to the actual situation.
The force should not exceed the 23mm scale on the adjusting key, otherwise it will cause oil leakage and destroy the hinge closingeffect.
The force should not exceed the 23mm scale on the adjusting key, otherwise it will cause oil leakage and destroy the hinge closingeffect.
Foshan TaoLang Trading Co., Ltd. is a professional foreign trade company based on Guangdong Saiya Precision Technology Co., Ltd., which owns two brands: SVA and FAM(Fairman).Founded on January 1, 2020, the company is located in Foshan City, Guangdong Province.As a professional foreign trade company, with independent export rights.
Fireman is a brand with a full line of glass hardware.Onthe basis of the original sliding door series, bathroom hinge, fixed clip and door handle, the door control products are developed and improved.Our tenet is "quality is the life of the enterprise".We will pursue more recognition with high quality products and professional services.We look forward to long term, stable and happy relationships with friends from all over the world.
VR
1、Q：How are the qualities ahout the products?
A：Our products are through rigorous workmanship, multi-layer screening inspection, and the third party certification, product quality can be assured.
2、Q：Where is your company?
A：Foshan Taolang Tradimg CO., LTD is located in Jinli Town, Gaoyao District, Zhaoqing City, Guangdong Province, China.Foshan Taolang Tradimg CO., LTD specializes in the production of shower hinge, sliding door accessories series, glass door handle and bathroom hardware.If you want to visit our company, you can contact our business manager.
3、Q：How long is the delivery period of your company?
A：Under normal conditions,the delivery period of the conventional products, such as shower hinge, glass clamp, sliding door fitting and door handle ,is 7-15 working days.
4、Q：Do you only produce zinc-alloy glass door locks?
A：The glass door locks produced by Foshan Taolang Tradimg CO., LTD are made of stainless steel, zinc alloy and SS304.
5、Q：What are your company of payment?
A：T/T , L/C , Alibaba trade assurance ect.
6、Q：Can your company provide free sampling?
A：Some products like shower hinge,glass clamp,glass door lock,can provide 1-2 samples for free.Some bulky products do not provide samples.
7、Q:What services can you supply?
A:We have our brand products and provide OEM & ODM services.
