SCU 30 кВА 60 кВА 100 кВА 200 кВА 300 кВА 500 кВА трехфазный источник бесперебойного питания для центра обработки данных
99 652,60 ₽ - 100 845,39 ₽
ИБП источник бесперебойного питания однофазный онлайн 2kva 650va 3000 3 фазный 3 кВА UPS 220v Встроенный аккумулятор
- Категория: >>>
- Поставщик: Shenzhen Upsen Electronic Co. Ltd.
Сохранить в закладки 1600911789538:
Описание и отзывы
Характеристики
Key Features

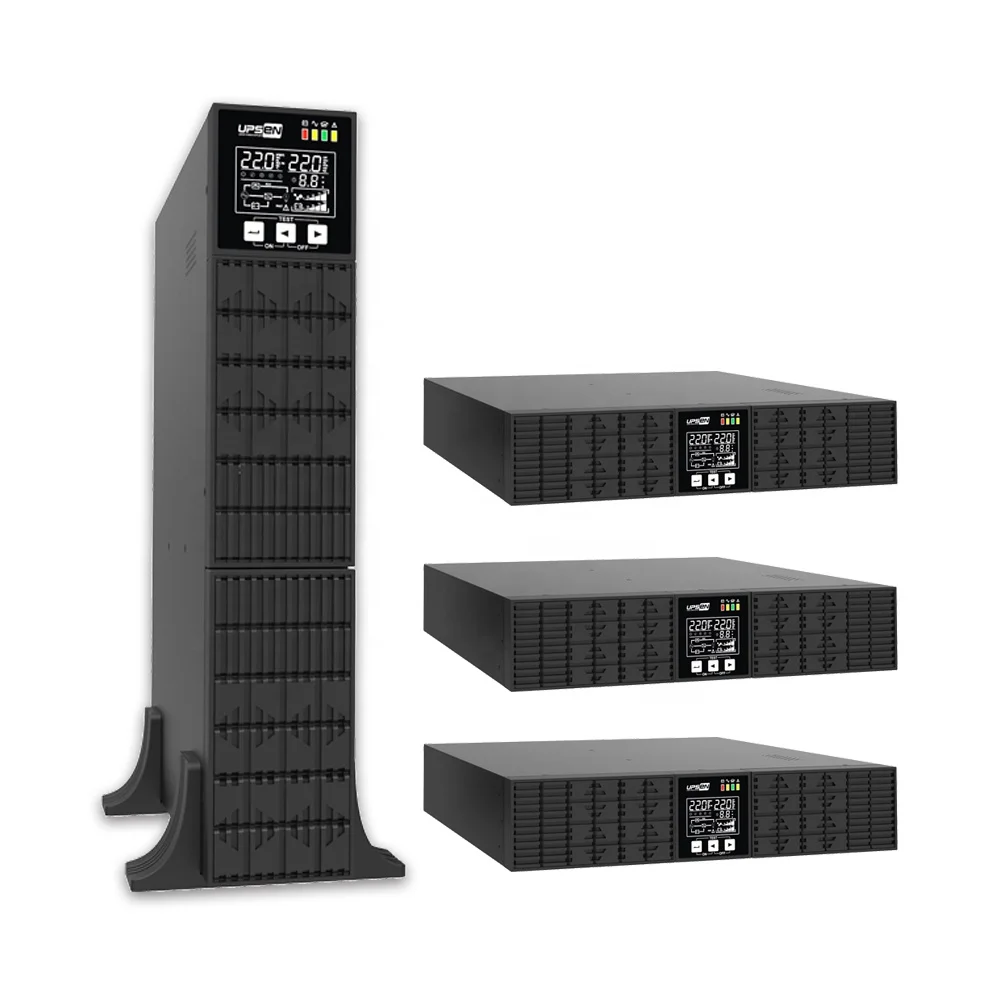

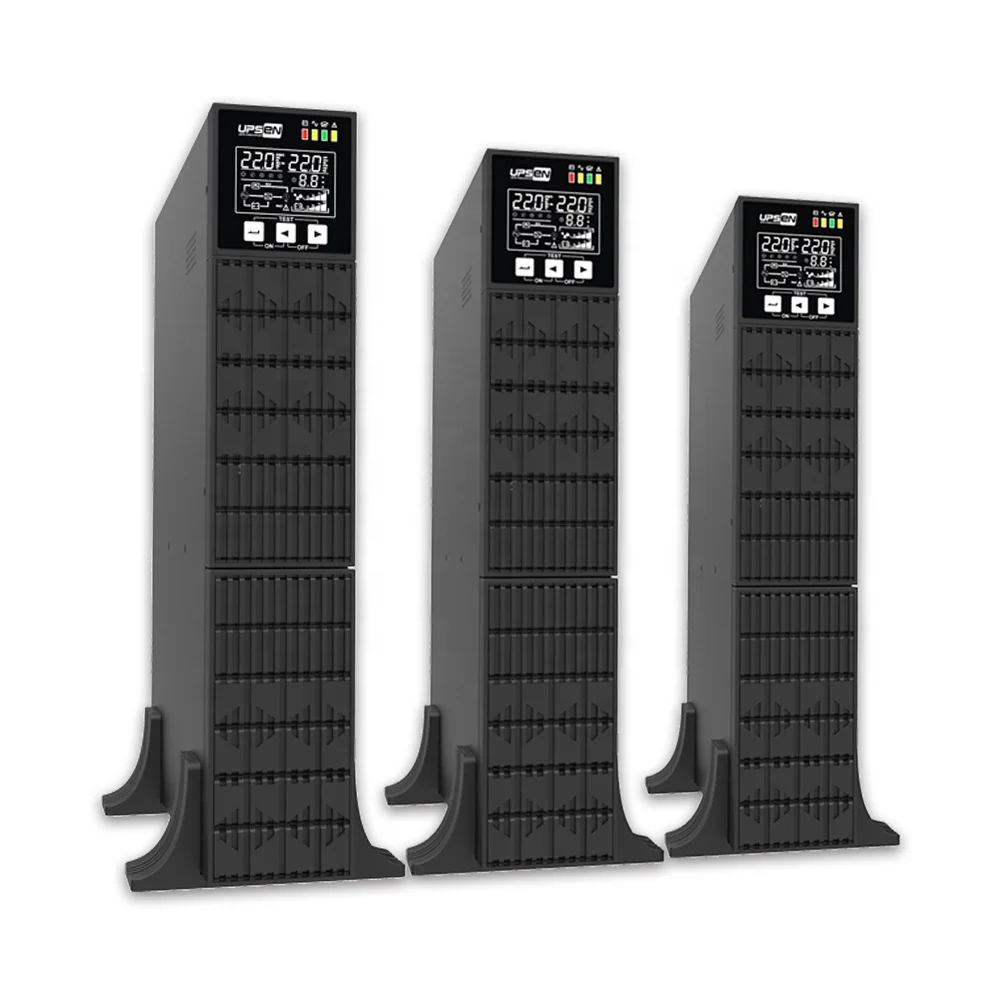

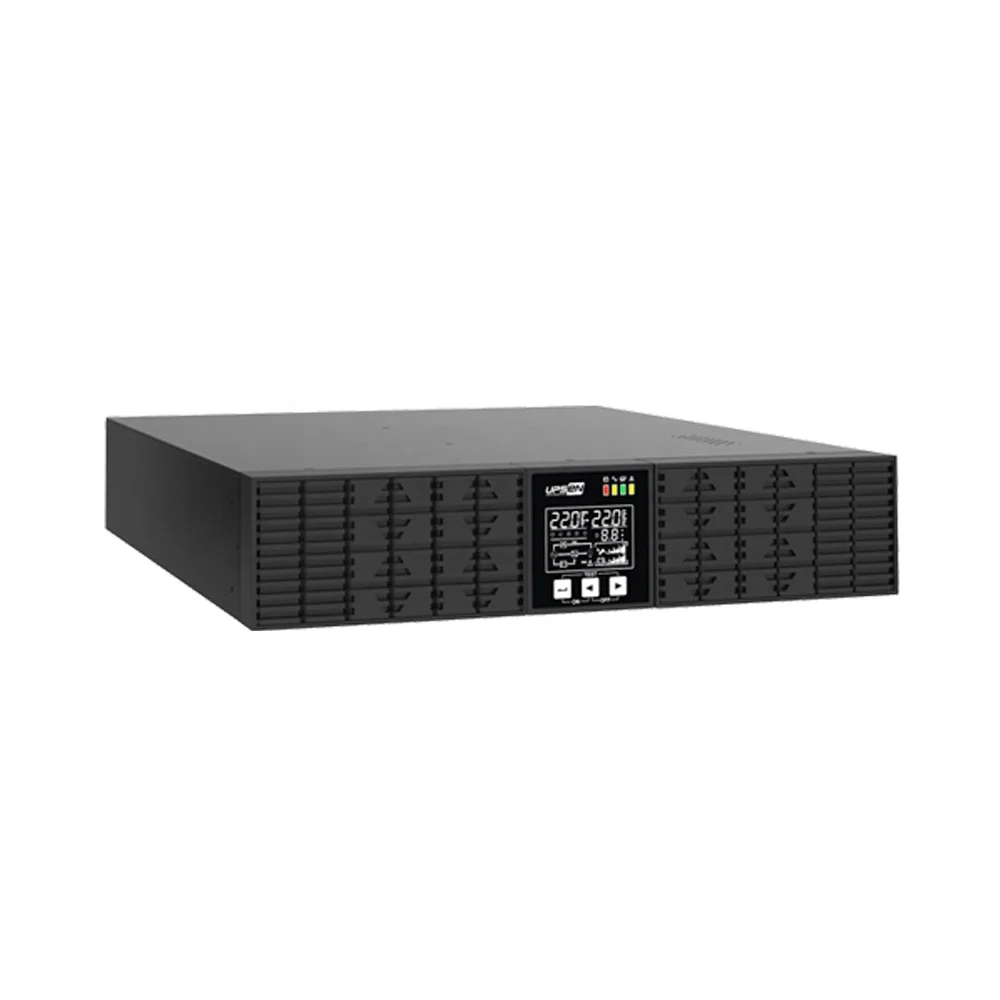

High Frequency Online UPS Rack Tower Converitable RP 1K-3KVA(1Ph in/1Ph out)

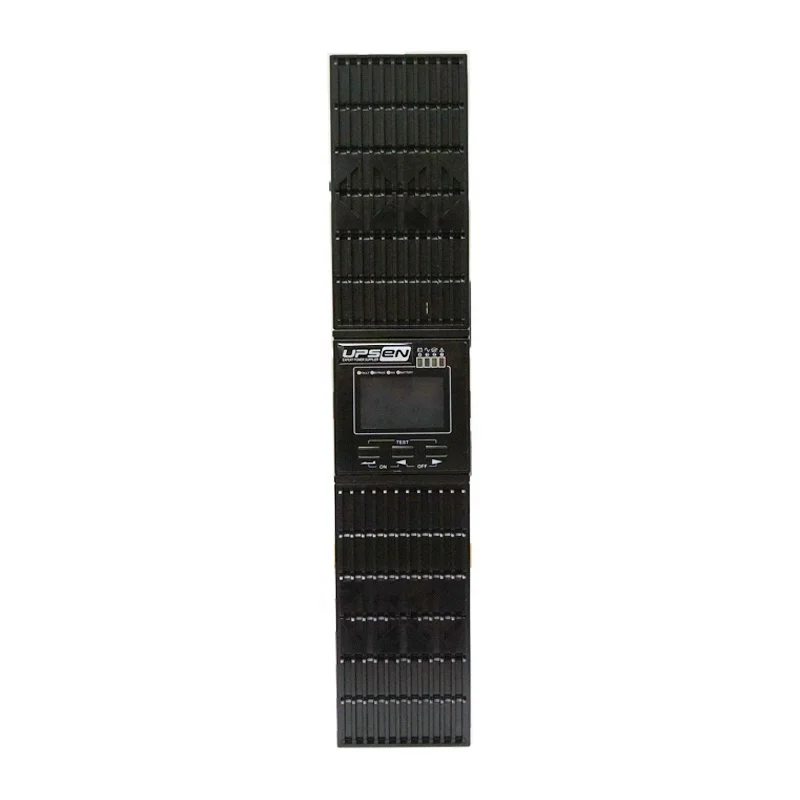

* Manual Rotatable LCD Screen
* Rack Tower Convertiable Design
* Different Power Configuration Flexibility To Achieve a Multi - purpose Machine, Power Customized Available
* Selectable Digital Charger Form 1A ~ 12A, Match For Different Applicance
* Wide Input Voltage Range : 208 / 220 / 230 / 240Vac For Option
* High Efficiency up to 95.5%, Lower Power Loss and Save Cost
* Output Power Factor up to 1.0, As an Industry Leader,Super High Load Efficiency
* Green Power ECO Mode, Power Efficiency up to 98.5%
* Smart Adjustable Setting, Support Voltage Compensation of Output to Transformer
* Rack Tower Convertiable Design
* Different Power Configuration Flexibility To Achieve a Multi - purpose Machine, Power Customized Available
* Selectable Digital Charger Form 1A ~ 12A, Match For Different Applicance
* Wide Input Voltage Range : 208 / 220 / 230 / 240Vac For Option
* High Efficiency up to 95.5%, Lower Power Loss and Save Cost
* Output Power Factor up to 1.0, As an Industry Leader,Super High Load Efficiency
* Green Power ECO Mode, Power Efficiency up to 98.5%
* Smart Adjustable Setting, Support Voltage Compensation of Output to Transformer
Model | RP1K | RP1KL | RP1.5K | RP1.5KL | RP2K | RP2KL | RP3K | RP3KL | ||||||||
Rated Capacity | 1KVA/ 1KW | 1.5KVA/1.5KW | 2KVA/ 2KW | 3KVA3KW(72v) 3KVA3KW 3KVA/2.4KW(48v) | ||||||||||||
INPUT | ||||||||||||||||
lnput Formats | L+N+PE | |||||||||||||||
Rated lnput Voltage | 2081 2201 230/240Vac | |||||||||||||||
Voltage Range | 110~ 300Vac (110~176Vac,280~300Vac Power Limited) | |||||||||||||||
Frequency Range | 50/60Hz±60Hz,±10Hz(Setable) | |||||||||||||||
lnput Power Factor | ≥0.99 | |||||||||||||||
Input Harmonic Distortion | ≤1%THD(Line Load),≤5%THD(Non-linear Load)PF=O.8 | |||||||||||||||
OUTPUT | ||||||||||||||||
Output Formats | L+N+PE | |||||||||||||||
Output Voiltage | 208/220/230/240Vac | |||||||||||||||
Output Accuracy | ±1% | |||||||||||||||
Output Frequency | AC Mode : same as AC，Battery Mode : 50/60Hz ± 1% | |||||||||||||||
Output Harmonic Distortion | ≤1%THD(Line Load),≤3% THD(Non-linearLoad)PF=0.8 | |||||||||||||||
Output Power Factor | 1 | |||||||||||||||
Transform Time | ACMode to Batt.Mode : 0ms，lnverter Mode to Bypass Mode : 4ms | |||||||||||||||
Load Capacity | ACMode: Battery Mode: 30min@102%-110%Load 1min@102%~110%Load 10min@110%~130%Load 10s@110%~130%Load 30s@130%~150%Load 3s@130%~ 150%Load 200ms@>150%Load 200ms@>150% Load | |||||||||||||||
MACHINE EFFICIENCY | ||||||||||||||||
ACMode | Full Load Efficiency 94.5%@220Vac | Full Load Efficiency 95.5%@220Vac | Full Load Efficiency 95.5%@220Vac | |||||||||||||
Battery Mode | Full Load Efficiency 89.5%@36vdc | Full Load Efficiency 91.5%@72Vdc | Full Load Efficioncy 91.5%@96Vdc | |||||||||||||
Full Load Efficiency 89.5%@24Vdc | Full Load Efficiency 91.5%@48Vdc | Full Load Efficiency 91.5%@72Vdc | ||||||||||||||
BATTERY | ||||||||||||||||
Battery Quantity | 7Ah-2/7ah"3 | 36v | 7Ah*4/7ah"6 | 72v | 7Ah-4/7ah"6 | 72V | 7Ah"47ah*6 | 96v | ||||||||
Backup Time | Depend on user's requirement and configuration | |||||||||||||||
Charge Current | RP1K- 3K:1.OA(Default)。1-2A(Adustable)External Battery Back RP1KL- 3KL: 5.OA(Default).1-12A(Adjustable) | |||||||||||||||
wORKING ENVIRONMENT | ||||||||||||||||
AmbientTemperature | 0~ 40℃ | |||||||||||||||
Ambient Humidity | 20%~95%(No condensation) | |||||||||||||||
Storage Temperature | -15~60℃(Battery : 0~40℃) | |||||||||||||||
Altitude | <1000m,derating at above 1000m, maximun 4000m, refer to IEC62040 | |||||||||||||||
DISPLAY | ||||||||||||||||
LCD | Working Mode / Load/Battery Power / lnput / Output ect. | |||||||||||||||
STANDARD & CERTIFICATION | ||||||||||||||||
Standard & Certification | EN/IEC 6100,EN/ IEC 62040,GB/T4943,TDIT1095,TLC etc. | |||||||||||||||
COMUNICATION INTERFACE | ||||||||||||||||

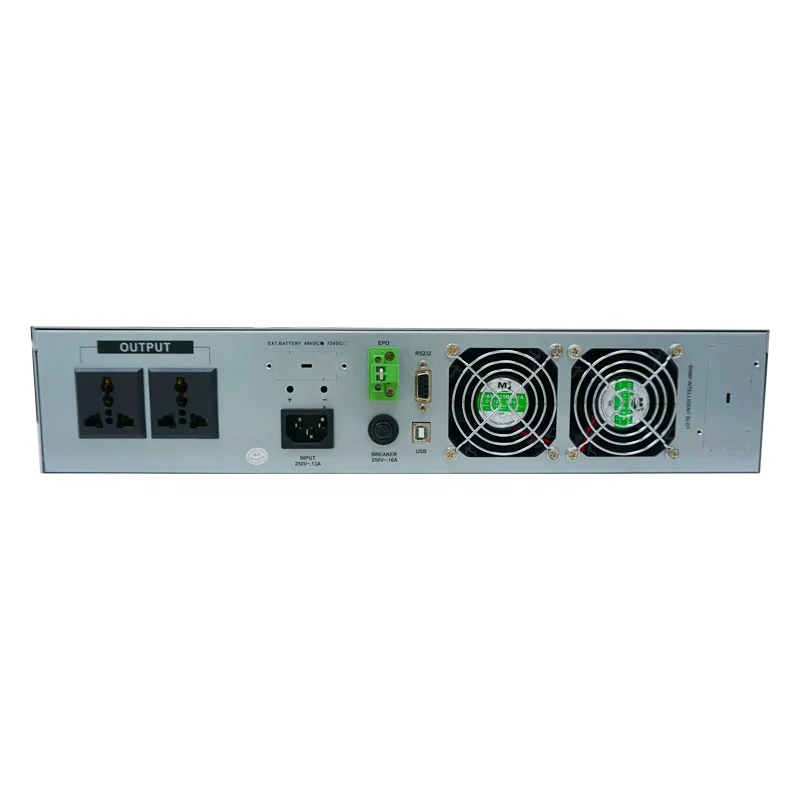

lnterface | 1*USB, 1*RS232,1*EPO | |||||||||||||||
*Product Specifications are Subject to Change Without Notice. | ||||||||||||||||
Product Paramenters
Our Company
Shenzhen UPSEN Electronic CO., Ltd. locates in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center,Telecom, Bank, Hospital, Transportation, Industry, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems.We are sure UPSEN can achieve more successes with our efforts and your support.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center,Telecom, Bank, Hospital, Transportation, Industry, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems.We are sure UPSEN can achieve more successes with our efforts and your support.
Certifications
Packing & Delivery
Our Advantages
1: High working efficiency and production, to be sure compeitive price
2: Strict material quality control, to be sure all materials meet CE standards
3: Independent test equipment suitable for most international standard tests
4:Each process been tested before assembling which can assure low fault rate, and improve shortages
5: Professional R&D Engineers with average bachelor degree
6: Products average upgrading every 1.5~2 years
7: 1% free unit or 2% free parts for timely warranty service
8: Free technical support before and after sales
2: Strict material quality control, to be sure all materials meet CE standards
3: Independent test equipment suitable for most international standard tests
4:Each process been tested before assembling which can assure low fault rate, and improve shortages
5: Professional R&D Engineers with average bachelor degree
6: Products average upgrading every 1.5~2 years
7: 1% free unit or 2% free parts for timely warranty service
8: Free technical support before and after sales
FAQ
Q1. What is packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-20 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service is available for volume order too.
Q6. Do you test all your goods before delivery?
A: Yes, all our products have more than 6~8 hours for againg, and strict test before dispatch
Q7. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q8. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q9. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-20 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service is available for volume order too.
Q6. Do you test all your goods before delivery?
A: Yes, all our products have more than 6~8 hours for againg, and strict test before dispatch
Q7. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q8. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q9. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.
