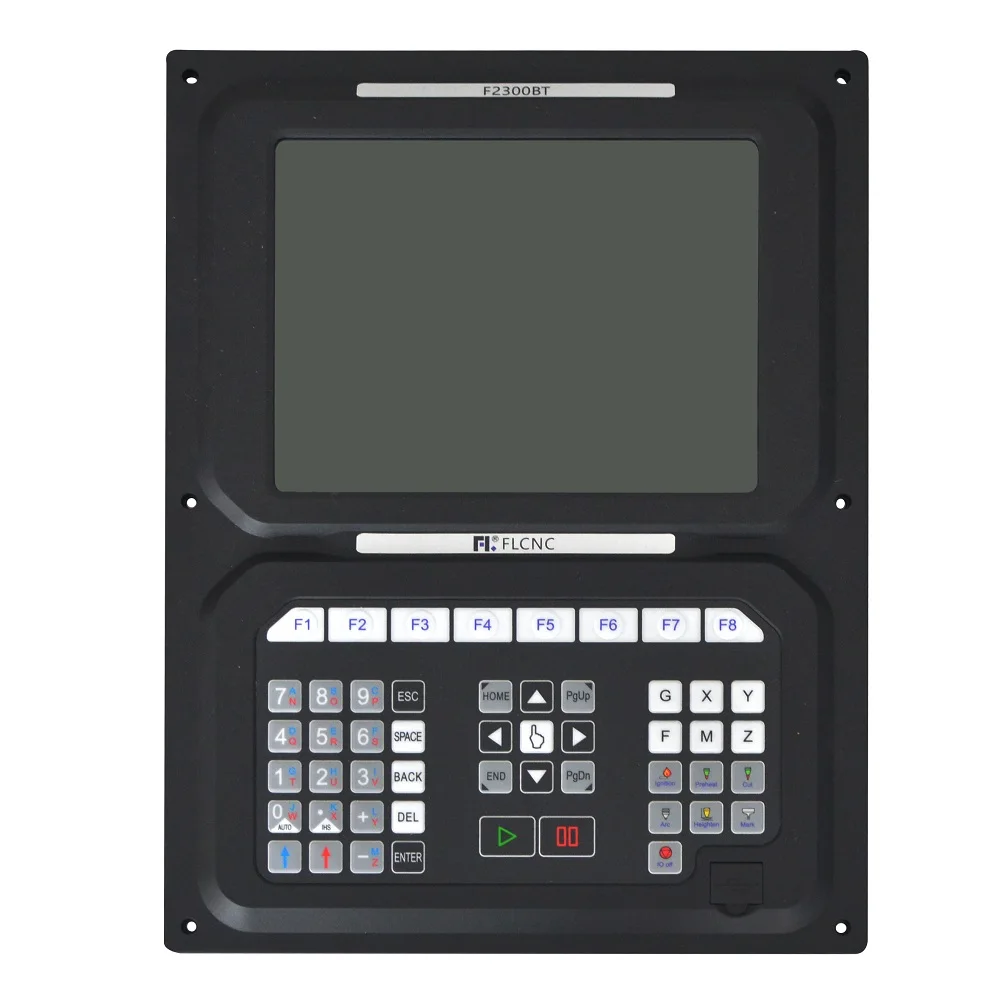

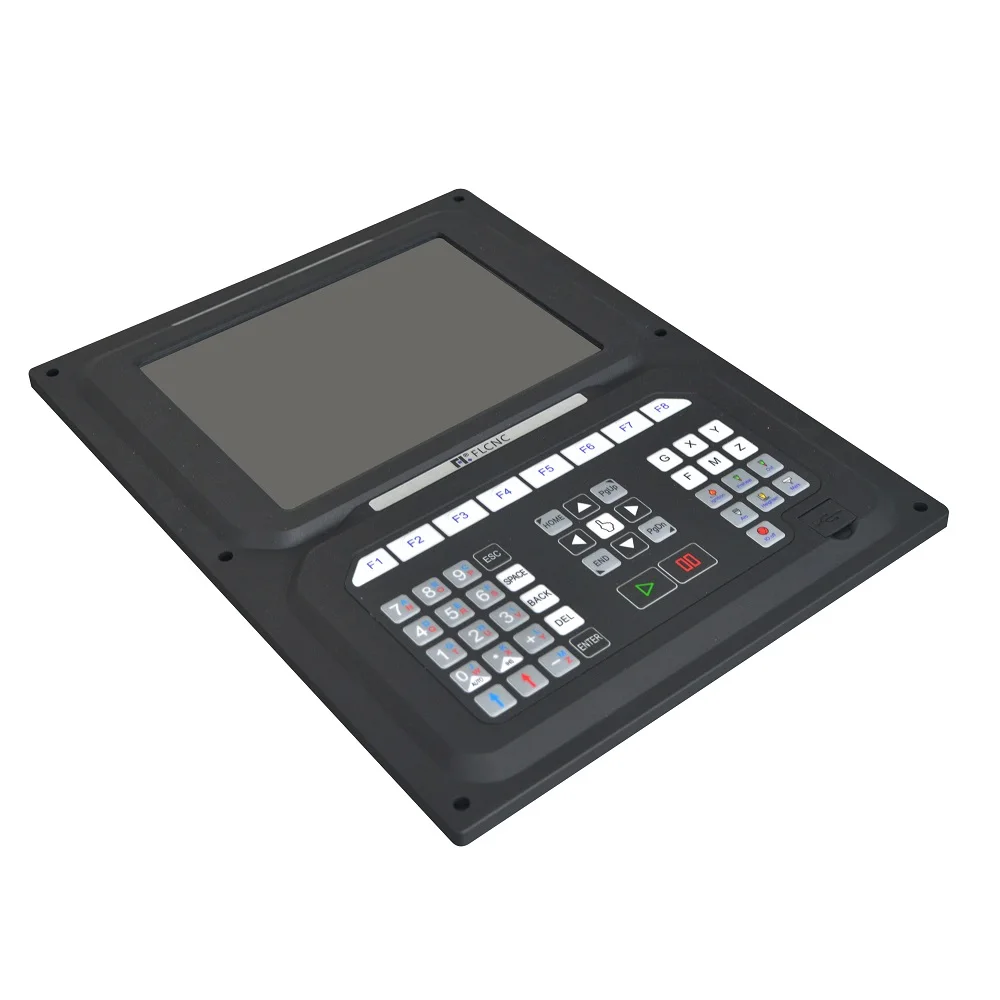

Хорошее обслуживание Fangling F2300BT Встроенный 2 оси THC плазменной резки CNC контроллер
- Категория: >>>
- Поставщик: Shanghai Fangling Computer Software Co. Ltd.
Сохранить в закладки 1600911839059:
Описание и отзывы
Характеристики
Product Description
Technical Specification | ||
Control Axis | 2 Axis Linkage (3 Axis Customizable) | |
Operating System | High-performance ARM | |
Control Accuracy | +/-0.001mm | |
Max Pulses | 200 kHz | |
Max Speed | 15,000 mm/m | |
Space | 256M | |
Working Voltage | DC +24V | |
Support | Plasma Cutting, Flame Cutting, Powder Marking, Demo | |
Fangling F2300BT CNC controller is a new product, absorbing the advantages of many CNC controller, which is more user-friendly, more convenient and more cost-effective. The controller can control the motion of two axes, which is apt to the application of flame, plasma or laser cutting. This series is suitable for all two axis CNC machines which support position control mode.
The controller high performance ARM chip and ultra large scale programmable device FPGA, runs multi task real-time operating system and adopts the method of combining software interpolation with hardware interpolation, making high-speed operation more stable and reliable. Reflect speed is very fast. Based on Fangling's research of CNC system for many years, the machines control is more stable and the protection mechanism is quite good.
The controller high performance ARM chip and ultra large scale programmable device FPGA, runs multi task real-time operating system and adopts the method of combining software interpolation with hardware interpolation, making high-speed operation more stable and reliable. Reflect speed is very fast. Based on Fangling's research of CNC system for many years, the machines control is more stable and the protection mechanism is quite good.
F2300BT(Integrated THC)
1. Integrated Torch Height Control function.
2. External voltage divider with good anti-interference ability.
2. External voltage divider with good anti-interference ability.
3. Option operating panel for voltage ajustment(Mark your model).
Details Images

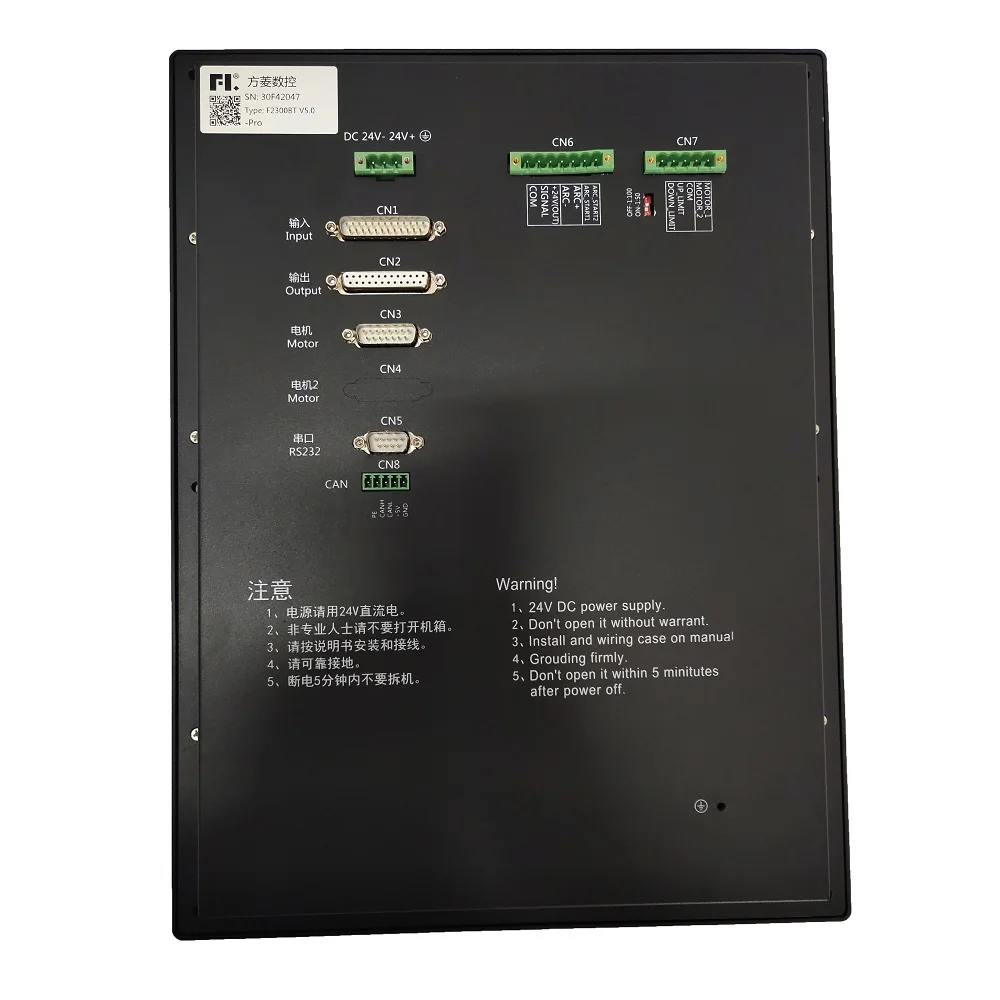

1. All devices are connected by CAN bus.
2. More convenient and stable connection.
3. More stable signal transfer.
4. Double wire serial bus communication.
4. Double wire serial bus communication.
5. Better anti-inteference ability.
1. User can directly import the presave cutting parameters.
2. Automatically syschronize THC parameters.3. No more repeat setting.
4. Improve the working efficiency.
Certifications
Characteristics
1. Chinese/English/French/Portuguese/Russian/Denmark/Korean language are supported, the language can be switched easily. In addition to Chinese and English, it need customer to provide language translation documents. In addition to Arabic, other languages are all available.
2. System can be upgrade by USB. Lifetime Software upgrade service.
3. Support CAN bus connection.
4. Cutting technique parameters library.
5. Support Multi-stations(Multiple THC and its panel) configuration.
6. Support Laser pointing function.
7. Support Plasma cutting dynamic perforation function.
8. Process workpieces, Running time and perforation times statistics.
9. Support Edge cutting, lesser preheat time for thick plate.
10. Corner limit speed depends on the thickness of the plate, prevent overburn.
11. The view for cutting shape, zoom in/out, easy to track the cutting cursor.
12. Blackout, breakpoint memory function.
13. "Offset cutting”function can prevent the waste of the workpiece when miscalculation happened.
14. Can set different levels of administration, passoword setting can protect your rights.
2. System can be upgrade by USB. Lifetime Software upgrade service.
3. Support CAN bus connection.
4. Cutting technique parameters library.
5. Support Multi-stations(Multiple THC and its panel) configuration.
6. Support Laser pointing function.
7. Support Plasma cutting dynamic perforation function.
8. Process workpieces, Running time and perforation times statistics.
9. Support Edge cutting, lesser preheat time for thick plate.
10. Corner limit speed depends on the thickness of the plate, prevent overburn.
11. The view for cutting shape, zoom in/out, easy to track the cutting cursor.
12. Blackout, breakpoint memory function.
13. "Offset cutting”function can prevent the waste of the workpiece when miscalculation happened.
14. Can set different levels of administration, passoword setting can protect your rights.
Application&Cutting Samples
Company Profile
Shanghai Fangling Computer Software Co., Ltd is the high-tech enterprise which has more than 15 years’ experience in research, development, production and marketing of Computer Numerical Control (CNC) Field. Nowadays, the company has successfully launched several product lines that include Plasma/Flame plate cutting controller, Built-up Welding Control System, Drilling Control System, Tube Cutting CNC controller, C-beam/H-beam Cutting CNC controller and other related CNC field control systems.
These products are widely being used in multiple manufacturing businesses such as Marine Engineering, Mineral Engineering, Construction, and Automobile manufactory. The market is not only covering China, but also covering Southeast Asia, Russian, Africa, Europe, and South America, etc.. The products are being highly spoken because of their performance and cost-effectiveness.
These products are widely being used in multiple manufacturing businesses such as Marine Engineering, Mineral Engineering, Construction, and Automobile manufactory. The market is not only covering China, but also covering Southeast Asia, Russian, Africa, Europe, and South America, etc.. The products are being highly spoken because of their performance and cost-effectiveness.
Our Factory
Packing & Delivery
Pre-sales service:
1. Office visit
2. Pre-consult and technical guidance
3. Pipe cutting solution guidance
2. Pre-consult and technical guidance
3. Pipe cutting solution guidance
After-sales service:
1. Network technical support and guidance
2. Related documents access
3. Cutting Solution consulting
2. Related documents access
3. Cutting Solution consulting
Exhibition
FAQ
Q: How do you guarantee the quality?
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
