BESS солнечная батарея 50kwh 60kwh 100kwh 200kwh 500kwh промышленная коммерческая система хранения энергии 200kw 500kw аккумуляторы lifepo4
0,21-0,25 $

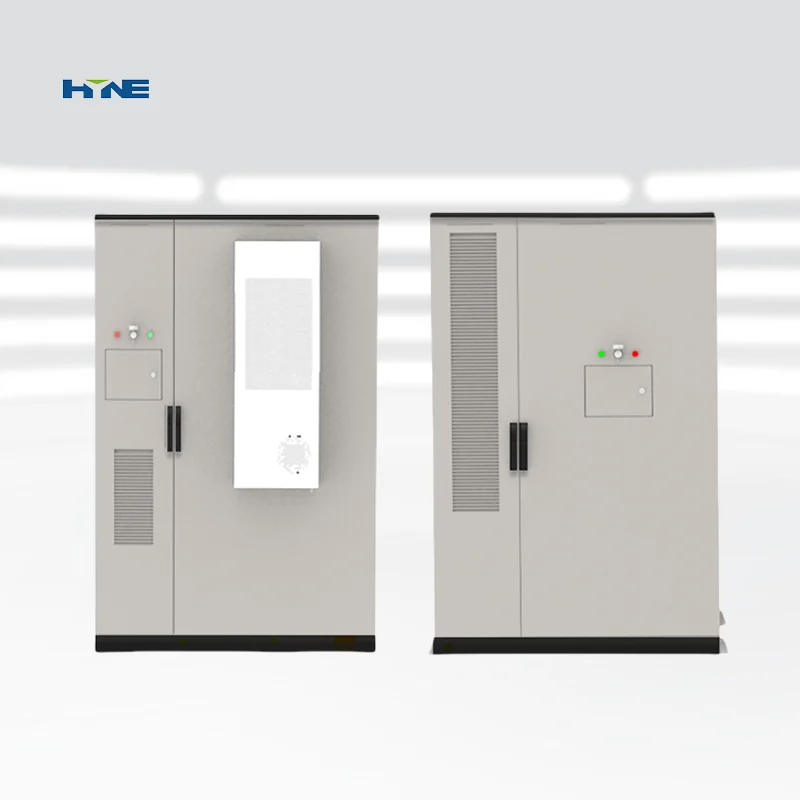

C & I Application 30 кВт встроенный шкаф открытый 89 кВтч 90 143 для хранения энергии аккумуляторной системы
- Категория: >>>
- Поставщик: Shenzhen First Tech Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600912280487:
Описание и отзывы
Характеристики
Products Description
The whole system is plug-and-play, easy to be transported, installed and maintained. It is an one-stop integration system and consist of battery module, PCS, PV controler(MPPT) (optional), control system, fire control system, temperature control system and monitoring system. The synergy of the system components can achieve effective charging and discharging. It adopts AC coupled micro-grid structure, PCS, load, grid, and access to AC bus, and the corresponding control strategy is developed according to the actual case to ensure the safety of power supply.
The battery cluster consists of modules connected in series, and the whole battery system is controlled by BCM to monitor the cluster voltage and current in real time. The battery module consists of LiFePo4 battery cells. It adopts distributed BMM control system with functions of collecting the battery voltage, battery temperature and battery equalization to ensure the module works effectively and safely.
The battery cluster consists of modules connected in series, and the whole battery system is controlled by BCM to monitor the cluster voltage and current in real time. The battery module consists of LiFePo4 battery cells. It adopts distributed BMM control system with functions of collecting the battery voltage, battery temperature and battery equalization to ensure the module works effectively and safely.
PRODUCT FEATURES
1) High-performance LiFePo4 battery to ensure high safety and reliability for energy storage.
2) Intelligent temperature control to ensure the optimal temperature environment and lower system power consumption.
3) Real-time data backup.
4) Automatic fire fighting system with high safety.
5) Patented design with pressure relief and flame arrest.
6) One-button start, automatic operating and it support multiple parallel connection.
7) Protection class IP55, suitable for outdoor use.
8) Four layers of safety protection design for higher safety and reliability.
9) Remote viewing service.
2) Intelligent temperature control to ensure the optimal temperature environment and lower system power consumption.
3) Real-time data backup.
4) Automatic fire fighting system with high safety.
5) Patented design with pressure relief and flame arrest.
6) One-button start, automatic operating and it support multiple parallel connection.
7) Protection class IP55, suitable for outdoor use.
8) Four layers of safety protection design for higher safety and reliability.
9) Remote viewing service.
On-grid Industrial Park
Integrated Outdoor BESS
*Cormbined with EMS to achieve intelligent operation.
*Apply to green emergency power backup.
*Suitble for peak- load shifting and saving electricity bills.
*Flexibly meet the requirement of load expansion, demand, management, investment saving, energy conservation ard emission reduction.
Energy Management System
*Combined with the third party cloud to realize intelligent operation and maintenance.
*Remote visual management.
*High-performance edge computing, real-time security control.
*Real-time storing of system operation log, which is convenient for fault tracing.
*Multiple business operation modes to focus on maximizing revenue, and precise & efficient control strategies.
*Cormbined with EMS to achieve intelligent operation.
*Apply to green emergency power backup.
*Suitble for peak- load shifting and saving electricity bills.
*Flexibly meet the requirement of load expansion, demand, management, investment saving, energy conservation ard emission reduction.
Energy Management System
*Combined with the third party cloud to realize intelligent operation and maintenance.
*Remote visual management.
*High-performance edge computing, real-time security control.
*Real-time storing of system operation log, which is convenient for fault tracing.
*Multiple business operation modes to focus on maximizing revenue, and precise & efficient control strategies.
0ff-grid Powerless and Power-deficient Areas
Integrated Outdoor BESS
*On-grid/off-grid switching in milliseconds to realize noninductive shifting between utility grid and PV or wind energy storage systems.
*Suitable for remote villages, farms, etc. where no power deployment or lack of power.
*Wind power or PV give priority to supplying power to the load and charging BESS, when insufficient, the BESS will provide power to the load.
*Flexibly meet the access of other backup power sources such as diesel generators and gas generators.
*On-grid/off-grid switching in milliseconds to realize noninductive shifting between utility grid and PV or wind energy storage systems.
*Suitable for remote villages, farms, etc. where no power deployment or lack of power.
*Wind power or PV give priority to supplying power to the load and charging BESS, when insufficient, the BESS will provide power to the load.
*Flexibly meet the access of other backup power sources such as diesel generators and gas generators.
Business District & Mall
Integrated Outdoor BESS
*Patented safety design, automotive-grade, high-performance LiFeP04 battery, safe and reliable.
*Suitable for direct access of PV modules and boost green buildings develpment.
*Peak and valley operation, effectively reducing electricity bills and operating expenses.
Bidirectional 3 phases smart electricity meter
*Patented safety design, automotive-grade, high-performance LiFeP04 battery, safe and reliable.
*Suitable for direct access of PV modules and boost green buildings develpment.
*Peak and valley operation, effectively reducing electricity bills and operating expenses.
Bidirectional 3 phases smart electricity meter
Integrated Solar+ESS Charging Station
Integrated Outdoor BESS
*Integrated Solar+ESS design, suitable for access of PV.
*New energy vehicles use PV clean electricity as priority.
*Off-grid operation can ensure that chargers will work even when there is a power outage.
*Power transfer and peak-load shifting to achieve electricity cost saving.
*Integrated Solar+ESS design, suitable for access of PV.
*New energy vehicles use PV clean electricity as priority.
*Off-grid operation can ensure that chargers will work even when there is a power outage.
*Power transfer and peak-load shifting to achieve electricity cost saving.
Product Paramenters
PRODUCT PARAMETERS | ||||||
Model | EnerArk2.0-30P | EnerArk2.0-60P | EnerArk2.0-100P | |||
Battery parameters | ||||||
Cell Type | LFP-280Ah | LFP-280Ah | LFP-280Ah | |||
Module Model | IP20S | IP20S | IP20S | |||
System Configuration | 1P100S~1P160S | 1P240S | 1P240S | |||
Battery Capacity（BOL） | 89kWh~143kWh | 215kWh | 215kWh | |||
Battery voltage range | 280V-576V | 672V-864V | 672V-864V | |||
AC on-grid parameters | ||||||
Grid Type | 3P4W | 3P4W | 3P4W | |||
Rated charge/discharge power | 30KW | 60kW | 100kW | |||
Rated grid voltage | AC400V | |||||
Grid Voltage range | -15%~+15% | |||||
Rated grid frequency | 50Hz | |||||
Frequency range | ±5Hz | |||||
Rated current | 43A | 86A | 172A | |||
Power Factor | 0.8（Leading）~0.8（Lagging） | |||||
Output Harmonics（Rated power） | ≤3% | |||||
General parameters | ||||||
Dimension (W*H*D) | 1500*2100*1230mm | 1900*2100*1230mm | 1900*2100*1230mm | |||
Max Weight | 2000kg | 2500kg | 2500kg | |||
IP Protection Rating | IP54（Battery room） IP54（Electrical room） | |||||
Seismic Intensity Rating | 8 degree（IEC60980） | |||||
Anti-corrosion grade | C3 | |||||
Operating temperature | -20℃～50℃ | |||||
Relative Humidity | 0-95%（Non-condensing） | |||||
Altitude | ＜2000m | ＜2000m | ＜2000m | |||
Cooling method | Battery room: air conditioning Electrical room: forced air cooling | |||||
Noise | ≤75dB | |||||
System efficiency | ≥85% | |||||
Cycle life | 10years or＞ 6000cycles | |||||
Fire fighting System | Automatic fire extinguishing | |||||
Fire extinguishing media | FM200 | |||||
Communication Interface | RS485、Ethernet | |||||
Communication protocols | Modbus RTU、Modbus TCP/IP | |||||
Warranty | 5years | |||||
Photovoltaic side parameters (Optional) | ||||||
Maximum input module power | 30KW | 60KW/120KW | 60kW/120KW | |||
MPPT Voltage Range | 200V-850V | |||||
Number of MPPT paths | 1 | 1/2 | ||||
Number of PV input channels | 1 | 1/2 | ||||
Maximum input current | 100A | 100A/200A | ||||
Details Images
Recommend Products
Company Profile
Shenzhen First Tech Co., Ltd is a manufacturer and an one stop solution provider of energy storage system products, the founder and core engineers have more then 10years working experience in the industry. We fully grasp the ESS project integration key technology, and familiar with the industry technical standards.
Our main products are including solar inverter, portable energy storage system, LiFePO4 battery pack, LiFePO4 battery module for container, residential energy storage system, customized container energy storage system etc. And we have accumulated participation in global BESS projects exceed 1GWh since 2017.
Why Choose Us
Certifications
FAQ
1.Who are we?
We are based in Shenzhen Guangdong, China, start from 2017, a manufacturer and solution provider of energy storage system products, sell to Africa, Europe, Southeast Asia, Mid East, Eastern Asia.
2.What products I can buy from you?
Inverter, storage lithium battery, portable storage system, residential energy storage system, container energy storage system, etc.
3.Can you supply OEM & ODM service?
Yes, we can do OEM & ODM as your requirements for you.
4.What’s your MOQ?
Sample order is acceptable, but for customized product the MOQ is different based on different model.
Need more details please feel free to contact us online or by mail (info@1stess.com) at any time.
5.How you guarantee your products quality?
Our factory have ISO90001 certification, from incoming materials to production, and then to delivery, we have a very complete quality control management system to guarantee the quality of every step.
6.What’s the lead time for mass production?
It depends on the stock situation, if have stock it will be 3-5working days, if out of stock it will be around 20-45days according to different quantity and models.
7.What kind of certificates do you have for your product?
Our products have the certificates of CE, MSDS, IEC, UN38.3, etc.
8.Can I become your dealer and what's the requirement?
Yes, we are glad to work with you, but the requirements are different according to different area, for details information welcome to contact us online or by mail (info@1stess.com) at any time.
We are based in Shenzhen Guangdong, China, start from 2017, a manufacturer and solution provider of energy storage system products, sell to Africa, Europe, Southeast Asia, Mid East, Eastern Asia.
2.What products I can buy from you?
Inverter, storage lithium battery, portable storage system, residential energy storage system, container energy storage system, etc.
3.Can you supply OEM & ODM service?
Yes, we can do OEM & ODM as your requirements for you.
4.What’s your MOQ?
Sample order is acceptable, but for customized product the MOQ is different based on different model.
Need more details please feel free to contact us online or by mail (info@1stess.com) at any time.
5.How you guarantee your products quality?
Our factory have ISO90001 certification, from incoming materials to production, and then to delivery, we have a very complete quality control management system to guarantee the quality of every step.
6.What’s the lead time for mass production?
It depends on the stock situation, if have stock it will be 3-5working days, if out of stock it will be around 20-45days according to different quantity and models.
7.What kind of certificates do you have for your product?
Our products have the certificates of CE, MSDS, IEC, UN38.3, etc.
8.Can I become your dealer and what's the requirement?
Yes, we are glad to work with you, but the requirements are different according to different area, for details information welcome to contact us online or by mail (info@1stess.com) at any time.
Похожие товары

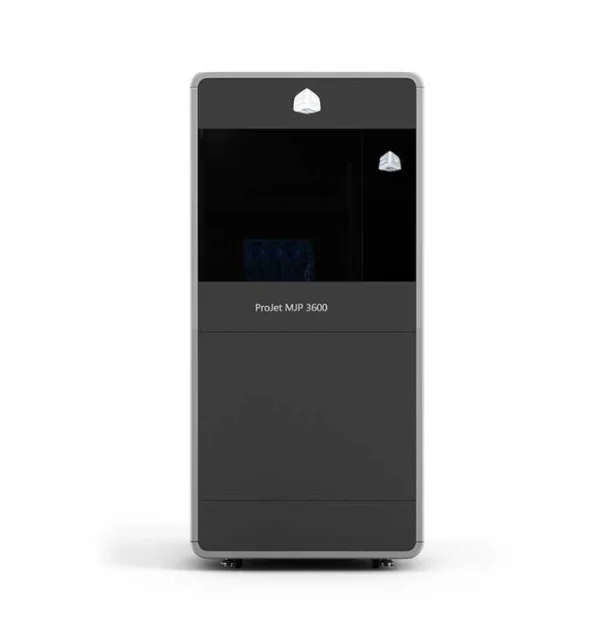

MJP3600W восковой 3D Принтер Высокоточный принтер 203*183*203 мм 0 032 точности
129 000,00 $
Литий-ионные аккумуляторы высокого напряжения 50 кВт 100 кВтч коммерческие системы хранения энергии для промышленного шкафа
18 197,00 $

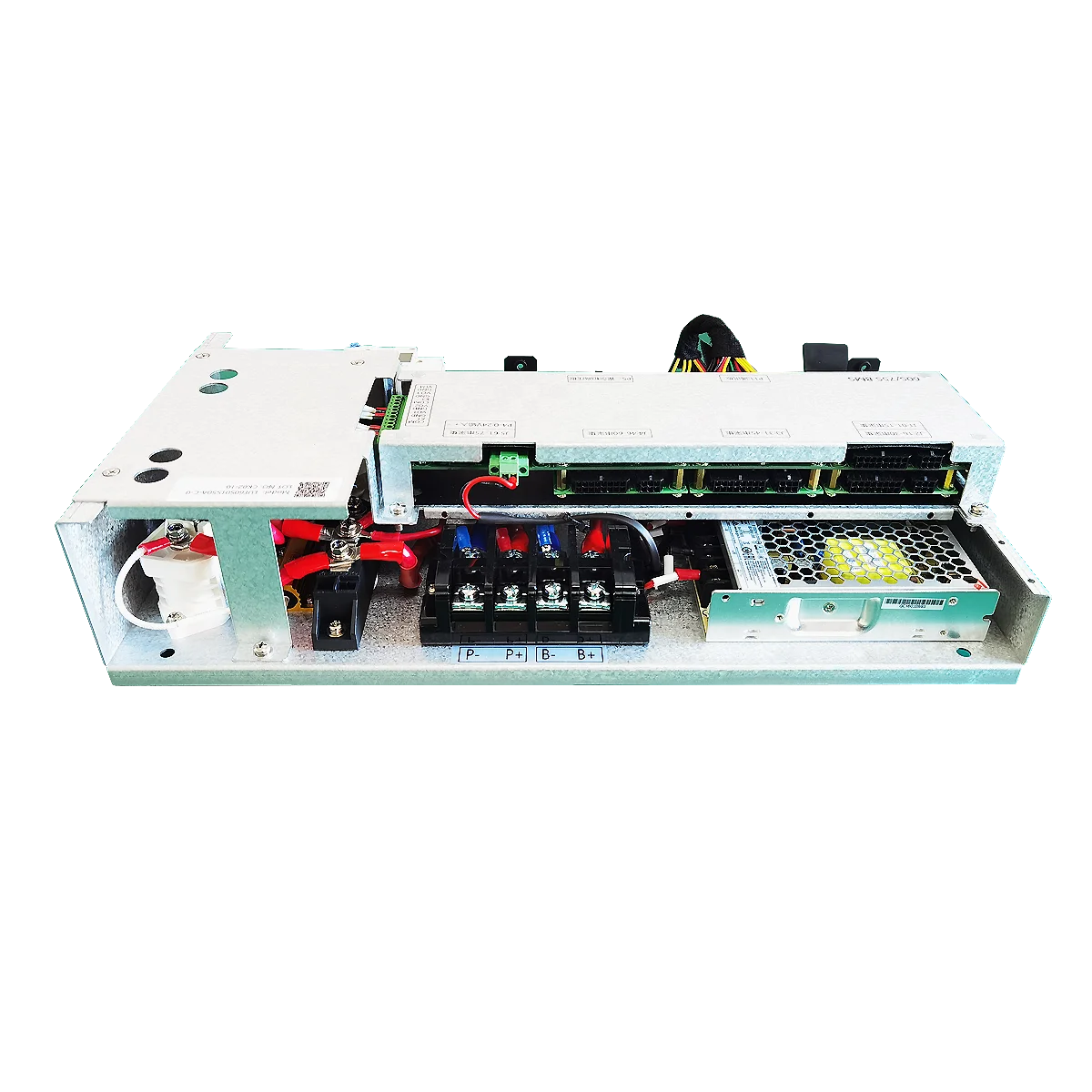

Лидер продаж высокое напряжение BMS для литиевого аккумулятора 50A 100A интегрированный BESS UPS решение питания
570,00 $

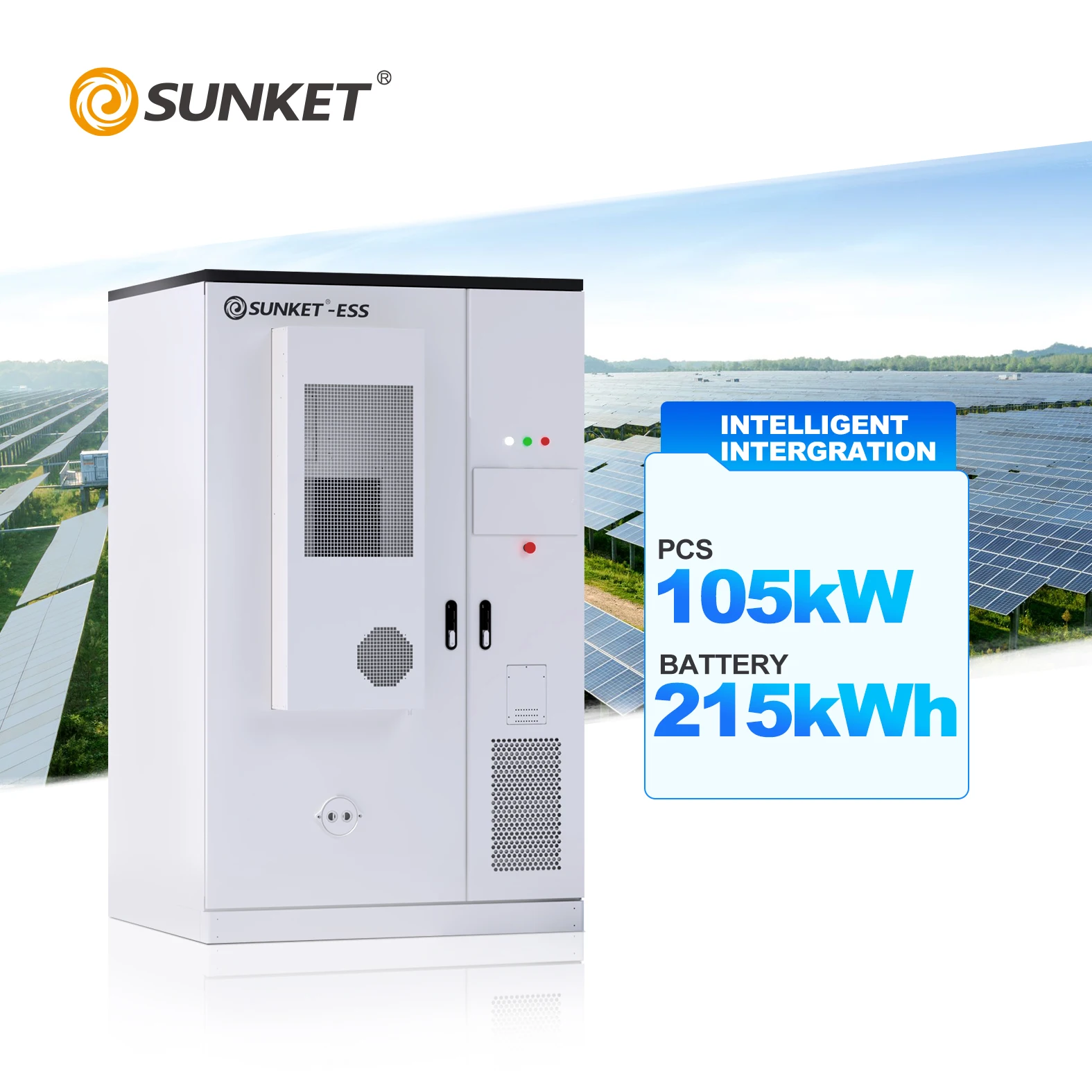

Высококачественная компания 100 кВт/215 кВтч все-в-одном технологии системы хранения энергии EcoPower Cube L215 жилая жидкость для охлаждения
Высококачественная компания 100 кВт/215 кВтч все-в-одном технологии системы аккумулирования энергии EcoPower Cube L215 жилая жидкость для охлаждения

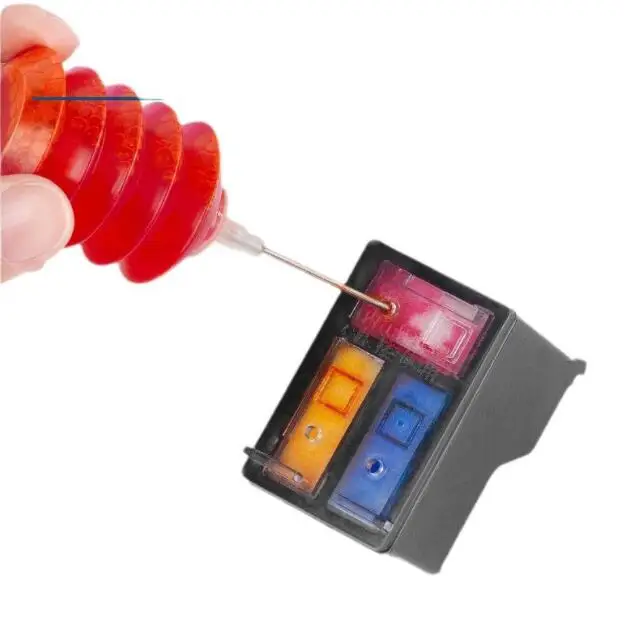

HP 805 чернильный картридж 2700 2720 2721 2722 2723 2330 2332 1212 12
