Алюминиевая сцена
1,00 $
TUV Stage Lighting Light Hook Clamps Aluminum Quick Release Pro Swivel Coupler Tube Truss Clamp
- Категория: >>>
- Поставщик: Shenzhen Kkmark Event Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600912541440:
Описание и отзывы
Характеристики

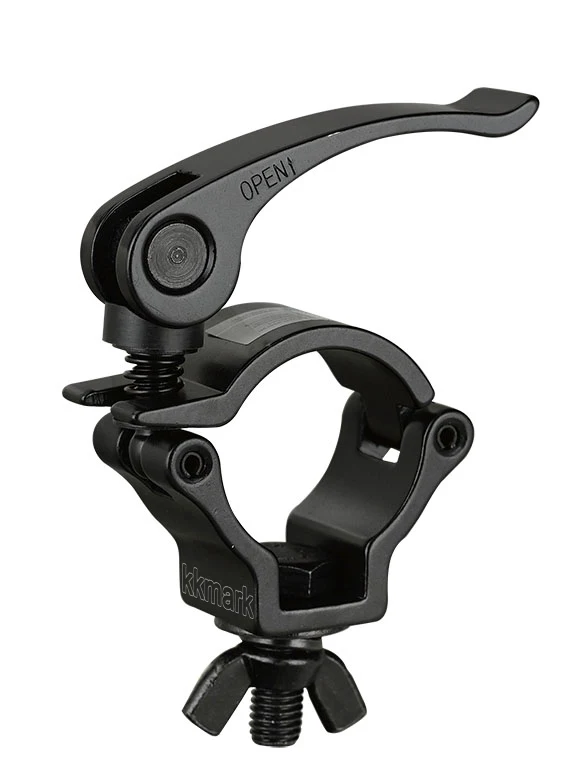

TUV Stage Lighting Light hook Clamps Aluminum Quick Release Pro Swivel Coupler Tube Truss Clamp
Product Description

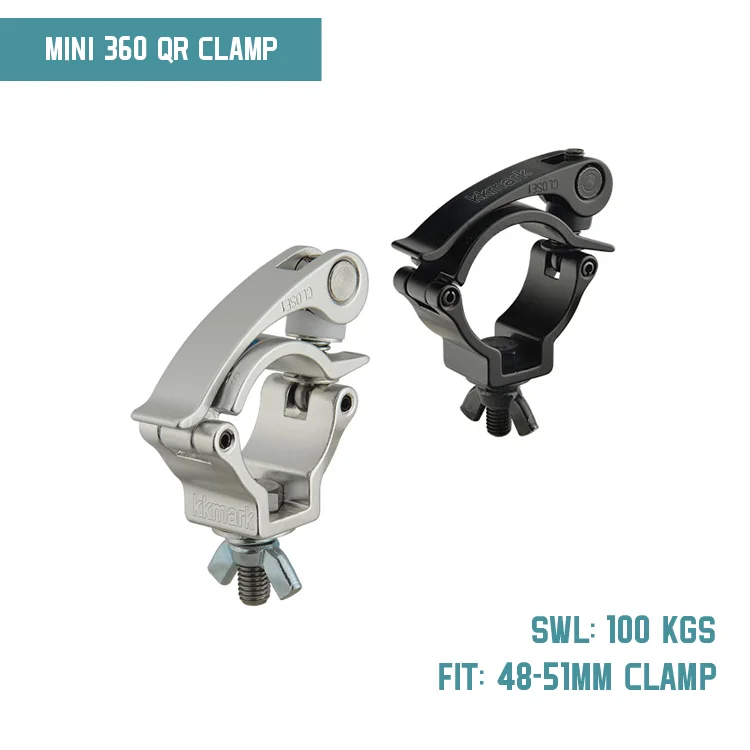

Mini 360 QR
Light Duty 2-Inch Clamp with Quick Release Fastening Handle
Hook Style clamps with large T-Handle
Fits F31, F32, F33, F34 and F44P Trussing
Minimum Tube Size 48mm
Maximum Tube Size 51mm
Maximum Load 100 Kgs.
Profile Width 30mm
Weight - 0.40 Lbs.
Product Name | Mini 360 QR Clamp |
Brand | kkmark |
Material | Aluminum Alloy T6-6082 |
Color | Sliver |
Size | 48 ~ 51mm |
Certification | TUV |
Place of Product | Guangdong Province, China |
Modes of packing | Packed in carton |

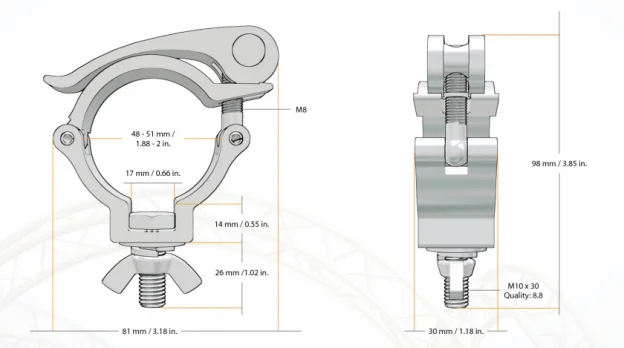

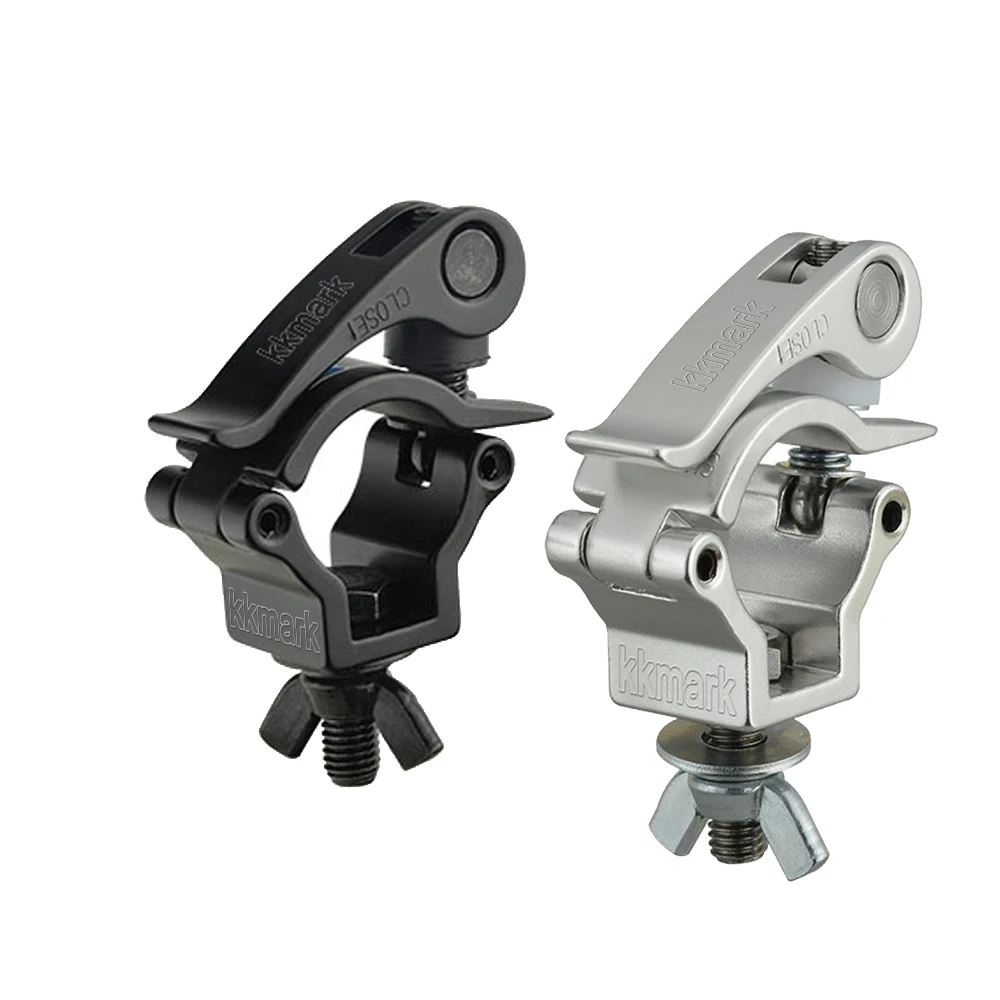

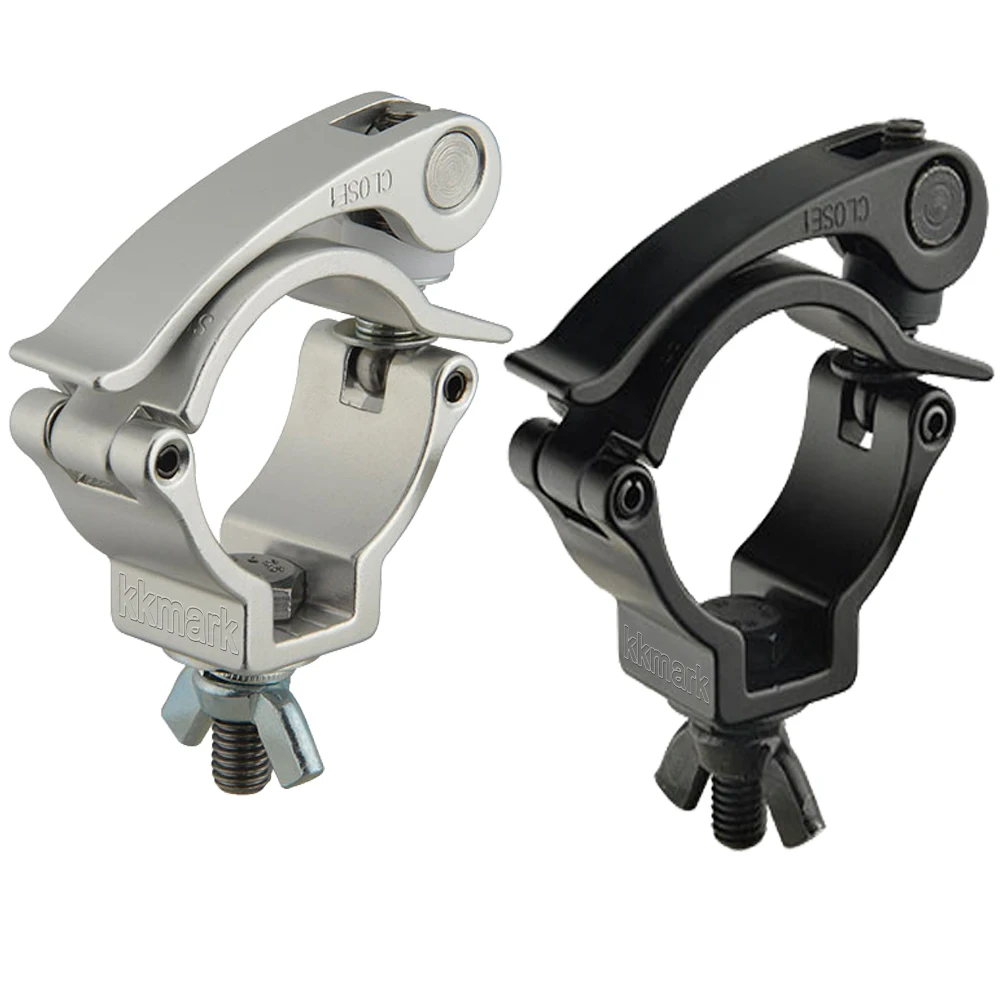

Detailed Images
How to attach Mini 360 QR Clamp to Trussing, Tube or Pipe
1. Release the quick release handle by turning it counterclockwise to release and open the collar.
2. Place the Mini 360 QR Clamp on the Truss, Tube or Pipe and close the collar.
3. Put the quick release handle back into place with the washer and above the collar.
4. Make sure the Mini 360 QR Clamp is located in its proper area of the Truss, Tube or Pipe before tightening the quick release handle.
5. Turn the quick release handle clockwise to tighten and secure the Mini 360 QR Clamp into place.
Related Products
Certificate
Below is our TUV certificate for clamps.
You can scan to see on www.tuv.com
Each year will update.
It's real TUV.
Packing&Shipping
Shipping time | By sea | 15-60 days | |
By air | 4-9 days | ||
By express | 4-9 days | ||
Delivery time | 7-15 working or as your requires | ||
Packaging | By carton or as you want | ||
Company Introduction
FAQ
1.when can I get the offer?
We take your inquire very serious and we will reply you in 2 hours .
2.Do you do custom case?
Yes, with about twenty years' experience, we have professional team with rich experience could help you to design the flight case according your equipment or requirment.
3.How to place an order?
Pls send email to us first or send inquire to us with your requirement. We have professional team to follow up your enquiry.
4.How long can I expect to get my sample?
Generally, sample will be ready for delivery in 3-15 days.
5.Could we make our logo on the case?
Yes,we have silk print one ,embroidered one and metal logo for option, we also can customized for you.
6.For more questions pls contact us and we will give you a professional answer.
2.Do you do custom case?
Yes, with about twenty years' experience, we have professional team with rich experience could help you to design the flight case according your equipment or requirment.
3.How to place an order?
Pls send email to us first or send inquire to us with your requirement. We have professional team to follow up your enquiry.
4.How long can I expect to get my sample?
Generally, sample will be ready for delivery in 3-15 days.
5.Could we make our logo on the case?
Yes,we have silk print one ,embroidered one and metal logo for option, we also can customized for you.
6.For more questions pls contact us and we will give you a professional answer.
