Products Description

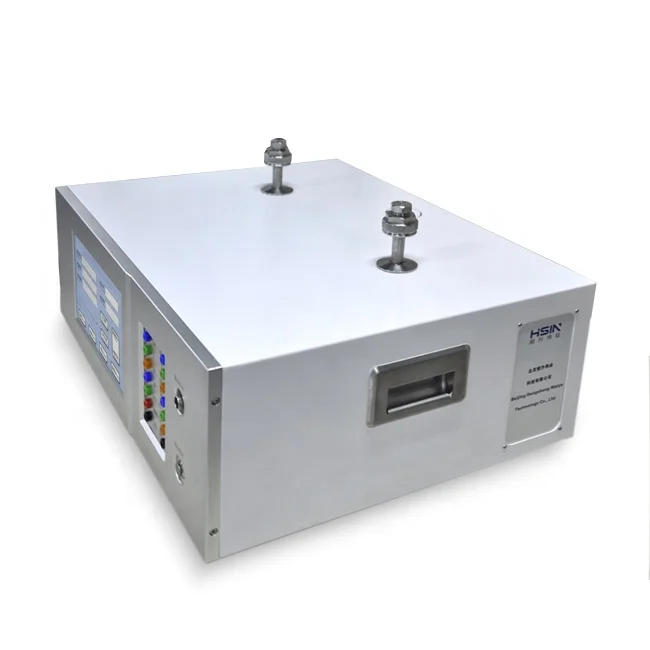

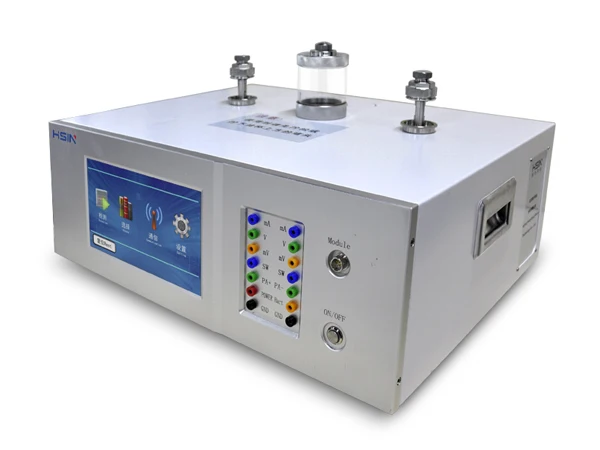

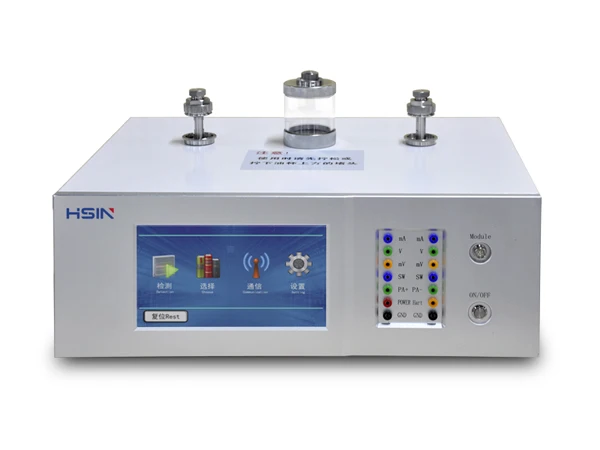

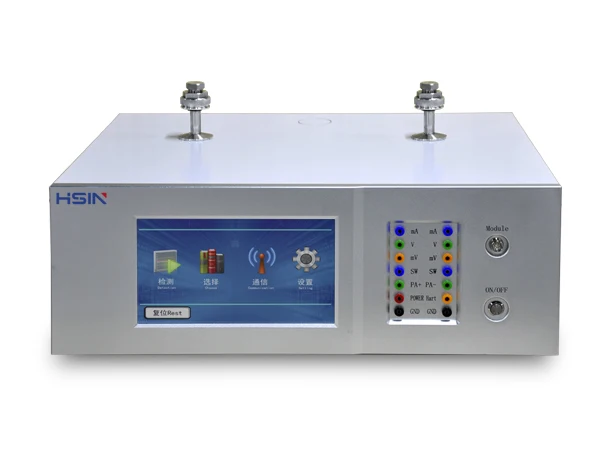

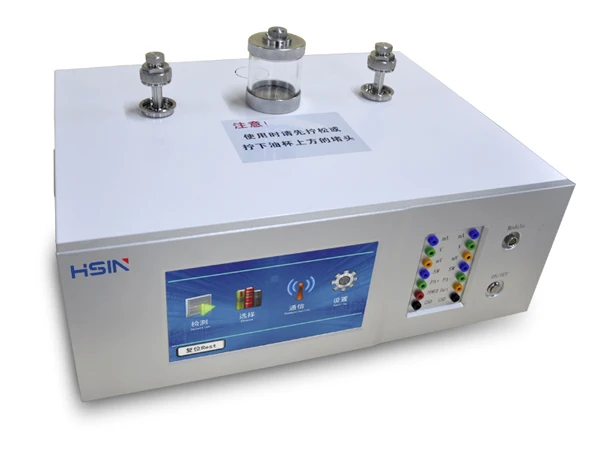

6000T Automatic Pressure Calibrator 10000psi
HSIN6000T automatic pressure instrument calibration system(including vacuum, pneumatic calibration system, hydraulic system and other three products) is designed with blue LCD and keys, showing the high-end design concept and accurate control. The automatic. calibration system can be controlled by keyboard or upper computer freely. No matter what kind of control, it can realize the automatic verification function and realize the automatic verification of instruments. It can be used for the calibration of pressure gauge, pressure sensor and pressure gauge with reasonable structure.
VR
Specification
Main features
1. The double closed-loop control scheme of pressure and pressure change rate is adopted, which is simple to operate. It's convenient to set the pressure output, fast and stable to control the pressure without overshoot, and meets the verification regulations of relevant pressure instruments.
2. The automatic pressure making system has the function of anti overload protection. It can be switched automatically or manually in the verification process.
3. It has the function of combining automatic control and fine adjustment, which is conductive to the verification of pointer pressure gauge.
4. Real time display of pressure rise and fall curve and error curve.
5. The upper computer software and the lower computer touch screen can realize the control instrument calibration table.
6. Verifiable Hart pressure transmitter.
Product name | Micro pressure type | Barometric type | Hydraulic type |
Pressure range | (-10～10)kPa | (-0.095～0.6/2.5/4/6)MPa | (0～60)MPa |
Pressure stability | 0.01%F.S/s | 0.001%F.S/s | 0.01%F.S/s |
Working medium | Air | Air | Oil or purified water |
Holding time | ≤15seconds | ≤10seconds | ≤15seconds |
Pressure interface | 2*M20*1.5 | 2*M20*1.5 | 2*M20*1.5 |
Overall dimension | (650×400×400)mm | (650×400×400)mm | (650×400×400)mm |
Electrical measurement function | Range | Accuracy |
Current measurement | (0～30)mA | 0.02%F.S+0.003%RD |
Voltage measurement | (0～30)V | 0.02%F.S+0.003%RD |
DC output | DC24V ±0.5V | DC24V ±0.5V |
Company Profile
FAQ
1.Why choose us?Beijing Spake Technology Co., Ltd is one of the most professional manufacturers of calibration instruments in
China with 13 years ‘experience. So far, “HSIN” brand calibration instruments have been used in over 70 countries worldwide and
enjoy good reputation.
2. What can you buy from us?
We have been successfully manufactured Pressure/ Temperature calibration instruments such as high accuracy Digital Pressure
Gauge,Pressure Calibrator, Pressure Calibration Comparator Pumps as well as Process Calibrator and Temperature Calibrator Dry
Blocks.
3. Do you have your own factory？
Yes. Our factory is located in Beijing, China.
4. Delivery time and payment?
Samples Leading Time: 3-7 working days
Delivery Time: Within 7-15 days after payment
Payment: T/T, Western Union, Paypal
