Аппарат сварочный для ювелирных изделий 100 А
- Категория: >>>
- Поставщик: Guangzhou Yali Jewelry Technology Co. Ltd.
Сохранить в закладки 1600913314602:
Описание и отзывы
Характеристики
Product Description

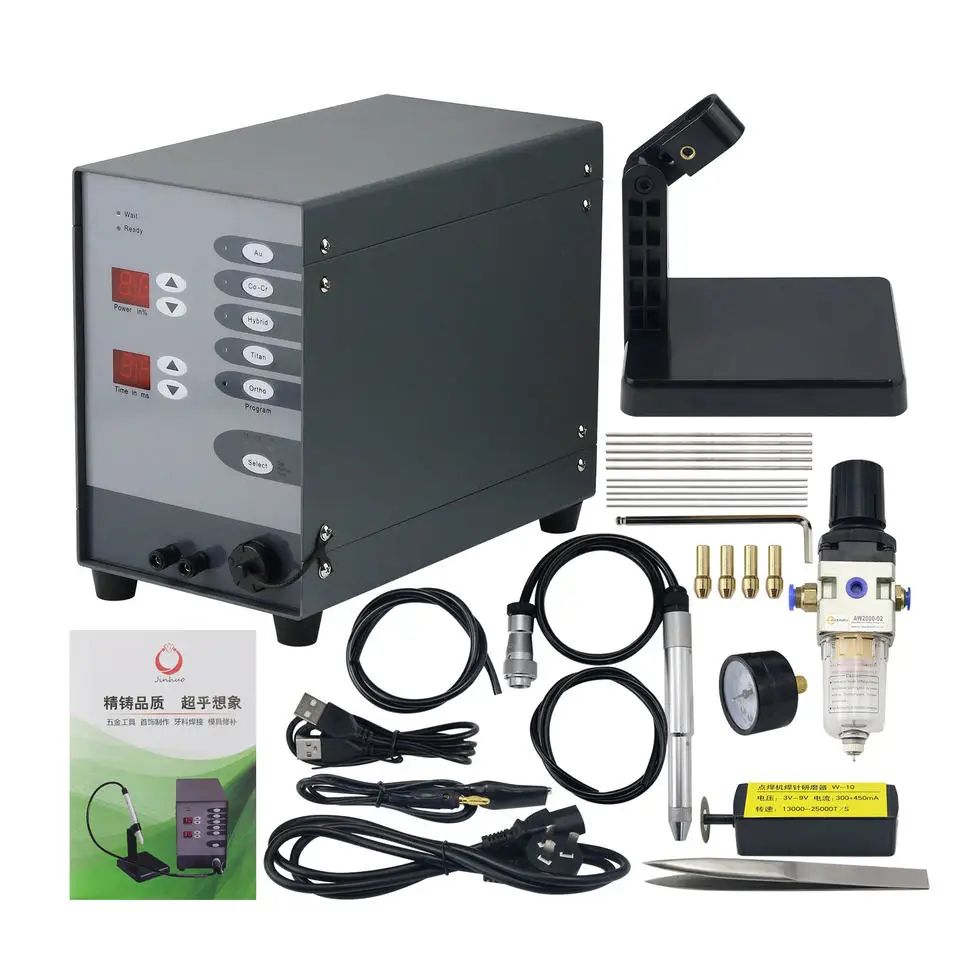

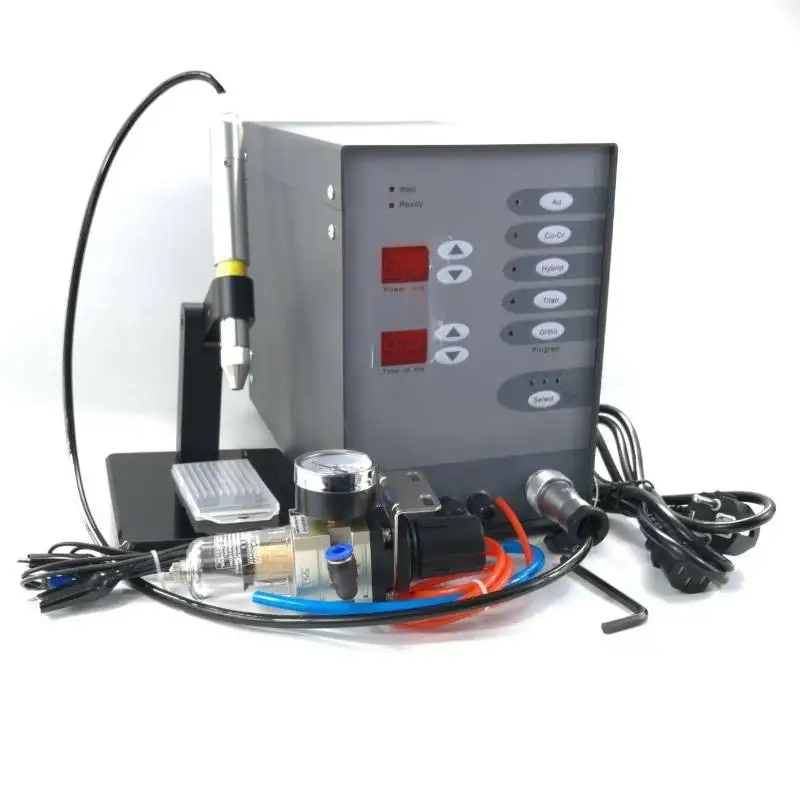

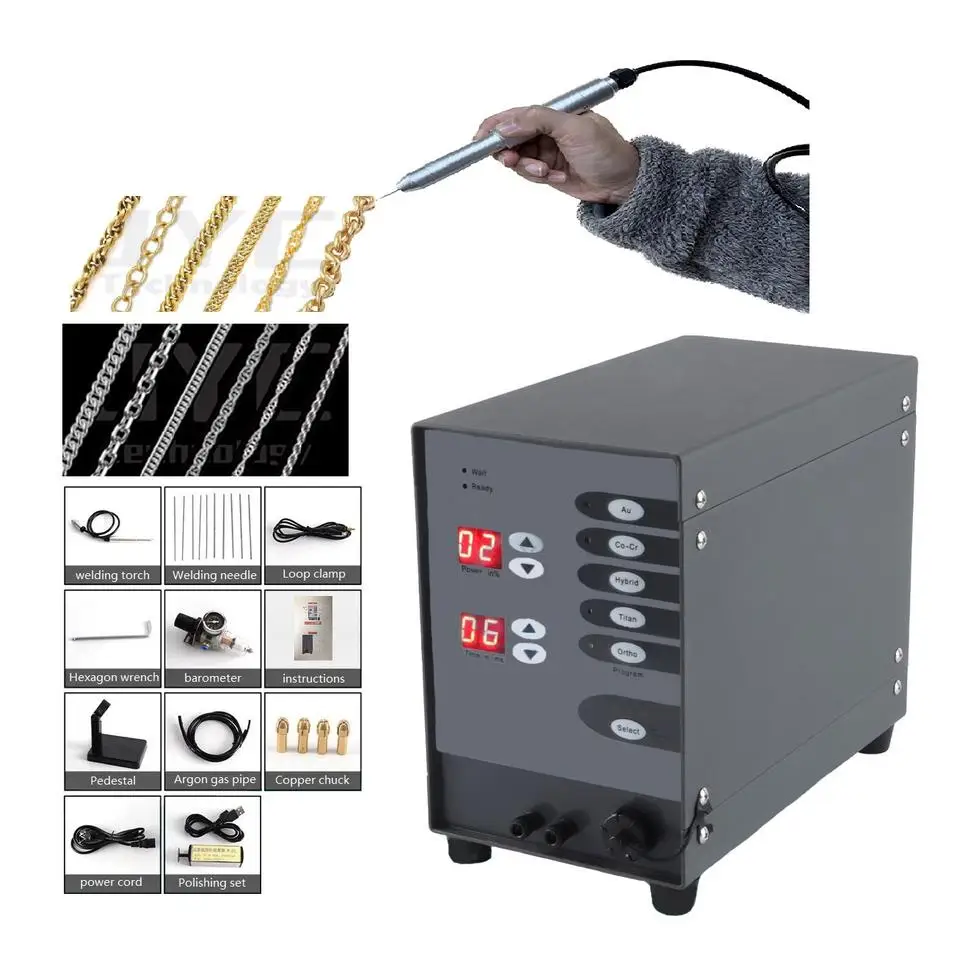

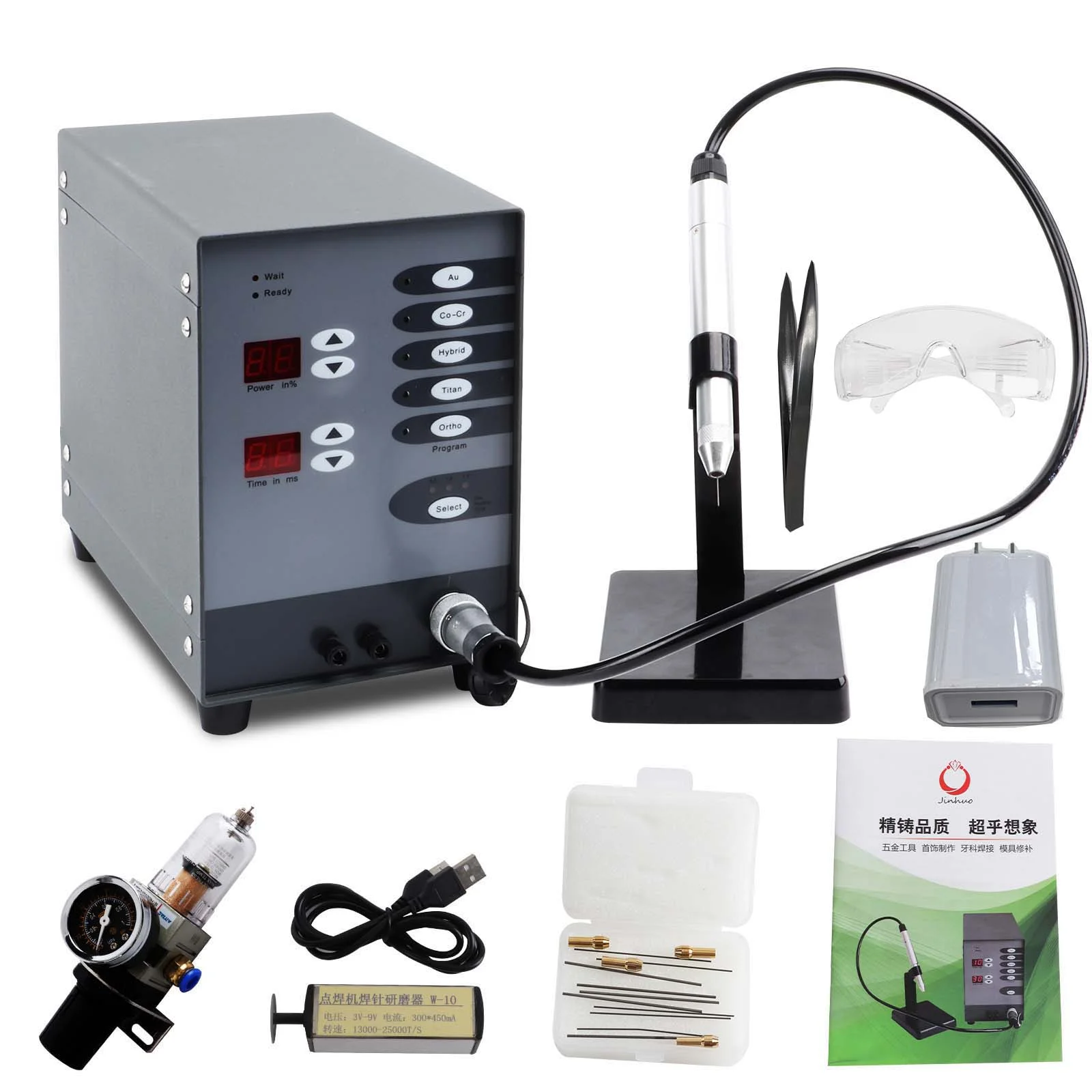

110/220V steel spot laser welding machine automatic numerical control handheld pulse argon arc welder for soldering jewelry
Feature:
Feature:

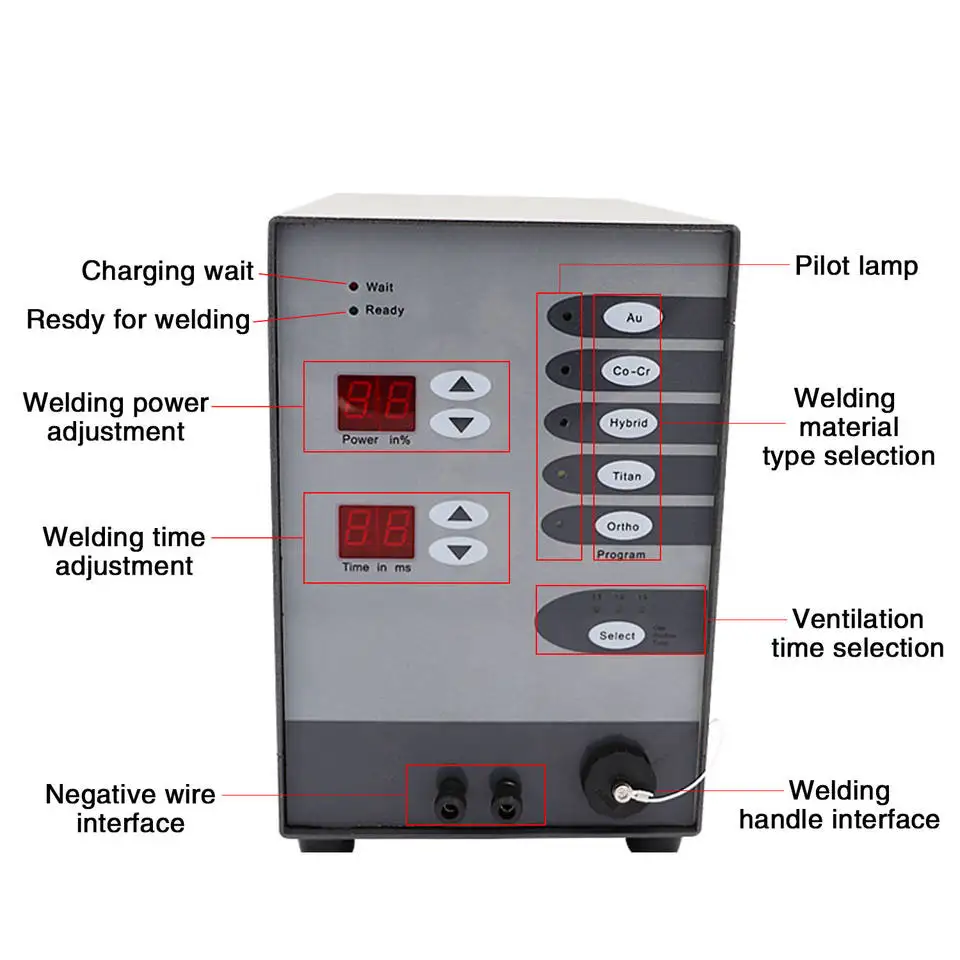

Argon-arc Spot Welders includes five preset basic programs for gold (Au), cobalt chrome (co-cr), hybrid-welding (such as
precious to non precious), titanium (Ti) and orthodontics.Besides its features compact size, safe and stable system, easy
operations, low noise and maintenance. It requires minimum working space, and the adjustable power and pulse settings allows
adjustment of penetration depth and welding spot diameter. This unit will switch to Ortho mode if there is no operations within 5
minutes to prevent any damage to the workpiece. It's great for jewelry and dental welding.
Application:
The argon arc spot welder can be used to weld:
1. Alloys of precious metal like gold, silver, platinum and palladium, titanium, and high grad steel
2. With restriction aluminum, tin and brass alloys.
3. Alloys with different attributes.
This machine is suitable for all types of dental welding jobs, jewelry welding works, for both new restorations and repairs, the
range of application equals at least to a laser welding unit, and the machine cost is much cheaper than a laser welding unit.
precious to non precious), titanium (Ti) and orthodontics.Besides its features compact size, safe and stable system, easy
operations, low noise and maintenance. It requires minimum working space, and the adjustable power and pulse settings allows
adjustment of penetration depth and welding spot diameter. This unit will switch to Ortho mode if there is no operations within 5
minutes to prevent any damage to the workpiece. It's great for jewelry and dental welding.
Application:
The argon arc spot welder can be used to weld:
1. Alloys of precious metal like gold, silver, platinum and palladium, titanium, and high grad steel
2. With restriction aluminum, tin and brass alloys.
3. Alloys with different attributes.
This machine is suitable for all types of dental welding jobs, jewelry welding works, for both new restorations and repairs, the
range of application equals at least to a laser welding unit, and the machine cost is much cheaper than a laser welding unit.
Product Specification
Item | 100A high power spot welder | ||||||
Power supply | 110V-220V 50Hz/60Hz | ||||||
Power | 200W | ||||||
Welding current | 0-100A | ||||||
Welding voltage | 40V | ||||||
Welding time | 3ms-30ms | ||||||
Air supply pressure | ≥0.1Mpa | ||||||
Maximum Argon Consumption | 5L/Min | ||||||
Maximum welding thickness | 0.2-2.0mm | ||||||
Details Images

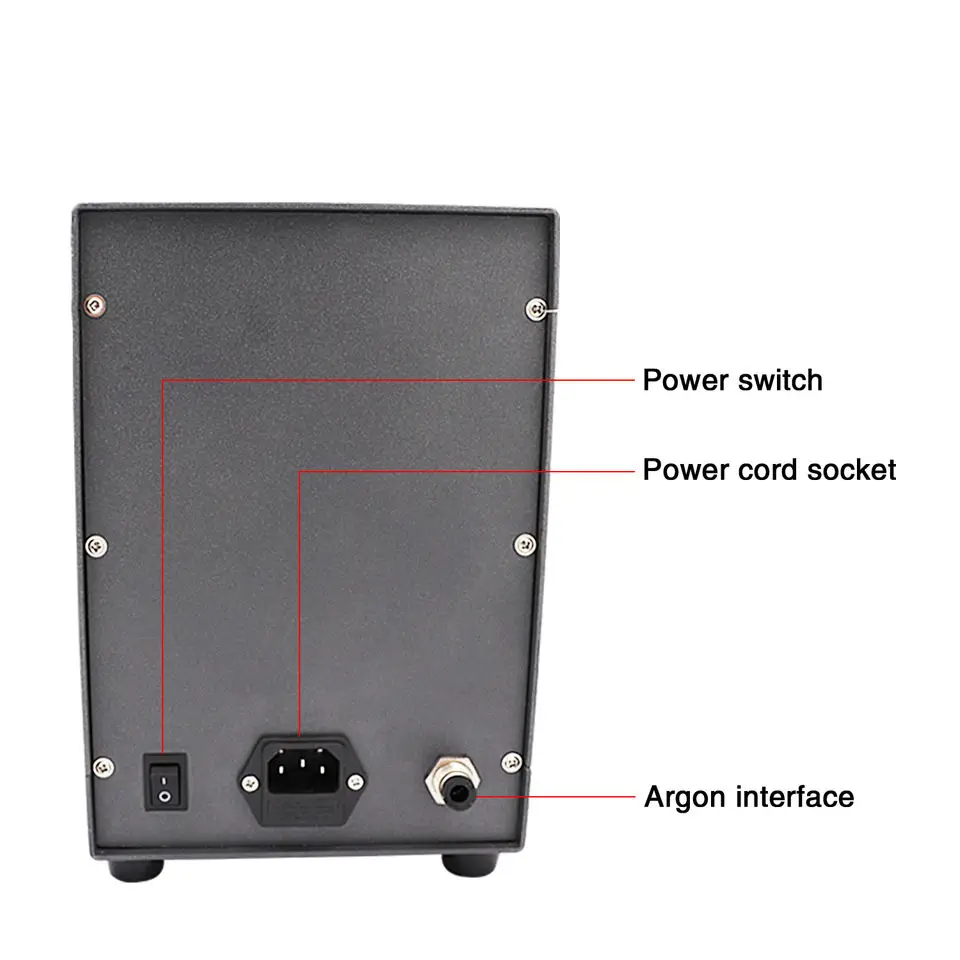

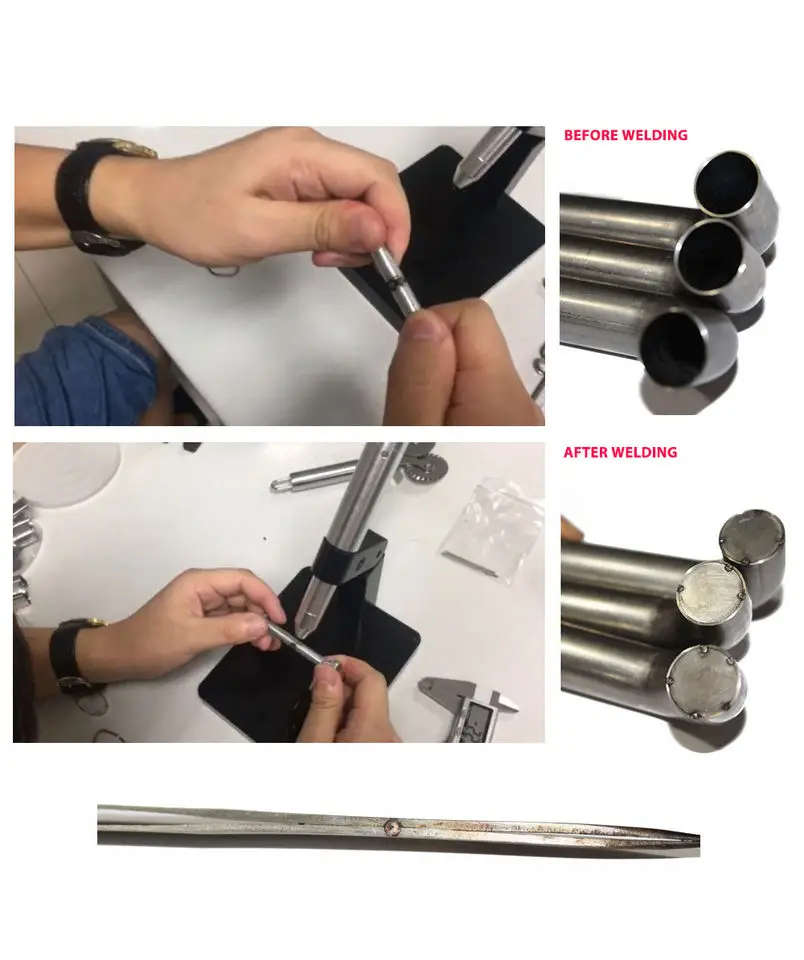

usage method
FAQ
1.How can I get a sample?
For our machines, all samples need cost, you could contact with our customer service, tell her your style and shipping address,she will help you check the shipping cost and make a final invoice for you, then you could pay for the sample on Alibaba.
2.How much shipping cost to my country?
Different countries have different shipping cost, please send us your shipping address, then we will help you check a competitive shipping cost.
3.Which capacity melting furnace you could provide?
For mini style, we could provide 500 grams - 6KG Gold capacity induction melting furnace. For large style, we also can provide 10kg-50kg copper capacity melting furnace. For more larger styles, can do 100kg -2 tons copper capacity melting furnace. Please tell me your requirement, then we will introduce them for you.
4.How about your free sample policy?
For consumable of jewelry tools, such as investment powder or jewelry wax, you could pay the sample with 1 bag first, after your order quantity reach 200 bags next time, we will give the sample cost back to you. This is our policy for sample . Welcome to order our samples for testing.
5.How many years of the machine warranty?
There is 1 year machine warranty. But it has not included that damaging the machine by manual mistake. More warranty details we have made them into the manual book.
For our machines, all samples need cost, you could contact with our customer service, tell her your style and shipping address,she will help you check the shipping cost and make a final invoice for you, then you could pay for the sample on Alibaba.
2.How much shipping cost to my country?
Different countries have different shipping cost, please send us your shipping address, then we will help you check a competitive shipping cost.
3.Which capacity melting furnace you could provide?
For mini style, we could provide 500 grams - 6KG Gold capacity induction melting furnace. For large style, we also can provide 10kg-50kg copper capacity melting furnace. For more larger styles, can do 100kg -2 tons copper capacity melting furnace. Please tell me your requirement, then we will introduce them for you.
4.How about your free sample policy?
For consumable of jewelry tools, such as investment powder or jewelry wax, you could pay the sample with 1 bag first, after your order quantity reach 200 bags next time, we will give the sample cost back to you. This is our policy for sample . Welcome to order our samples for testing.
5.How many years of the machine warranty?
There is 1 year machine warranty. But it has not included that damaging the machine by manual mistake. More warranty details we have made them into the manual book.
Похожие товары

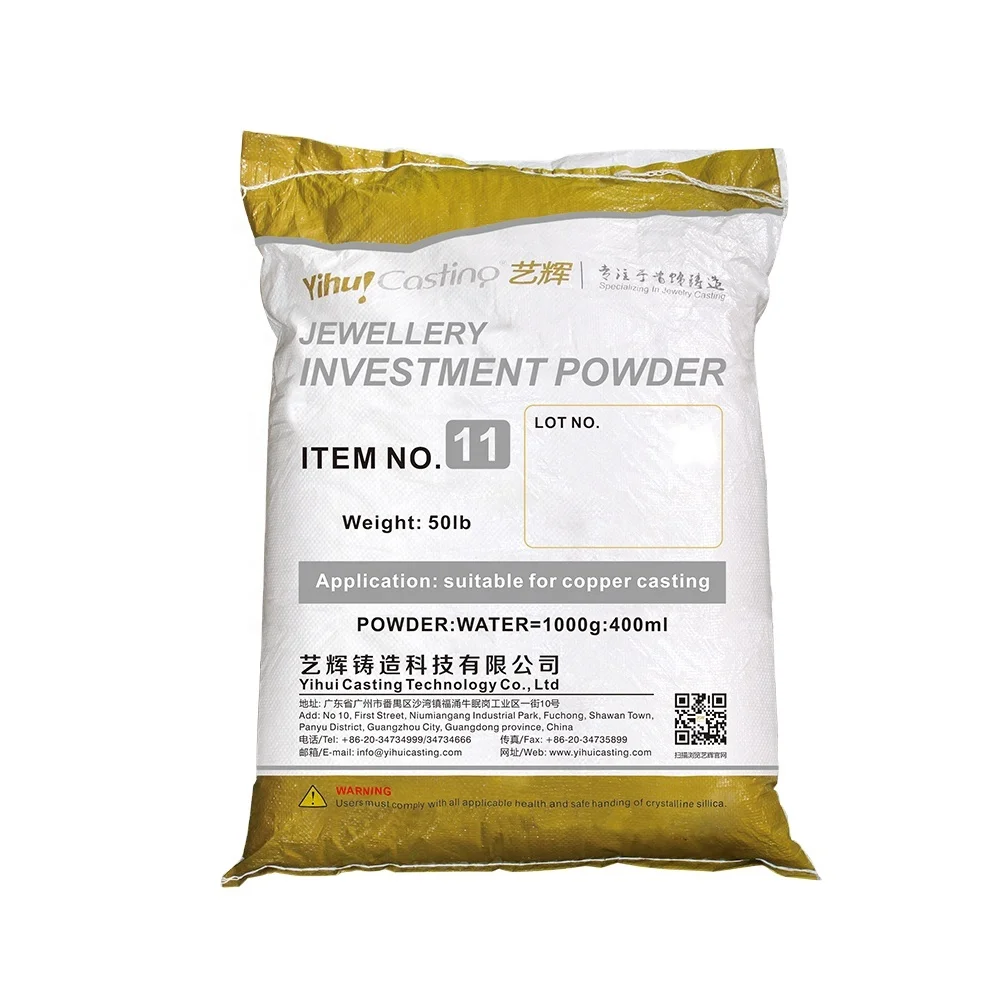

Бренд Yihui Литейный порошок заводская цена медь серебро инвестиционный для ювелирного литья
1 425,43 ₽ - 1 754,38 ₽

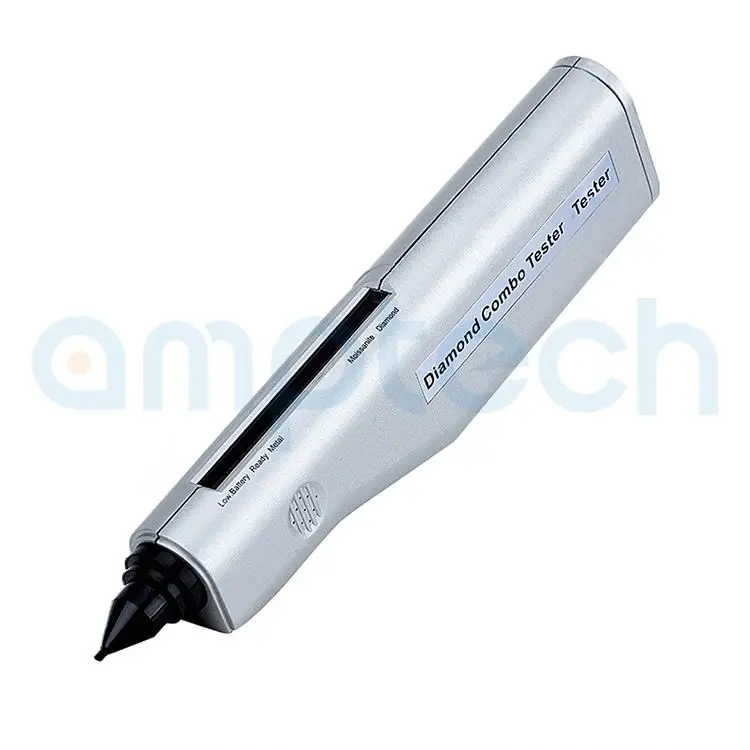

Селектор 2 синтетический тестер для синтезисного обнаружения
5 910,05 ₽ - 8 103,02 ₽

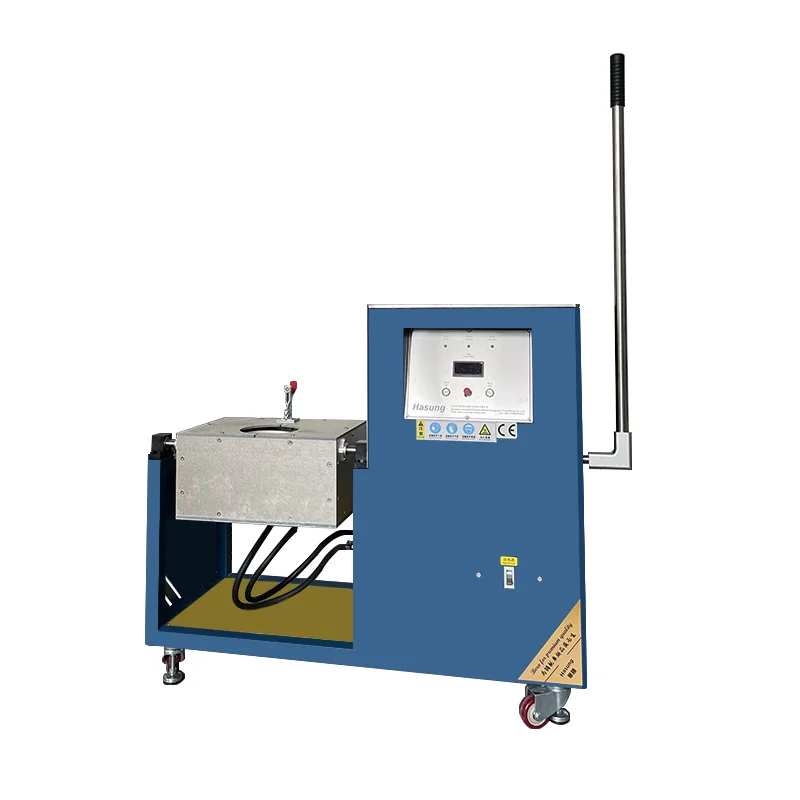

20 кг 50 кВт ручная индукционная плавильная печь для платины и золота медная

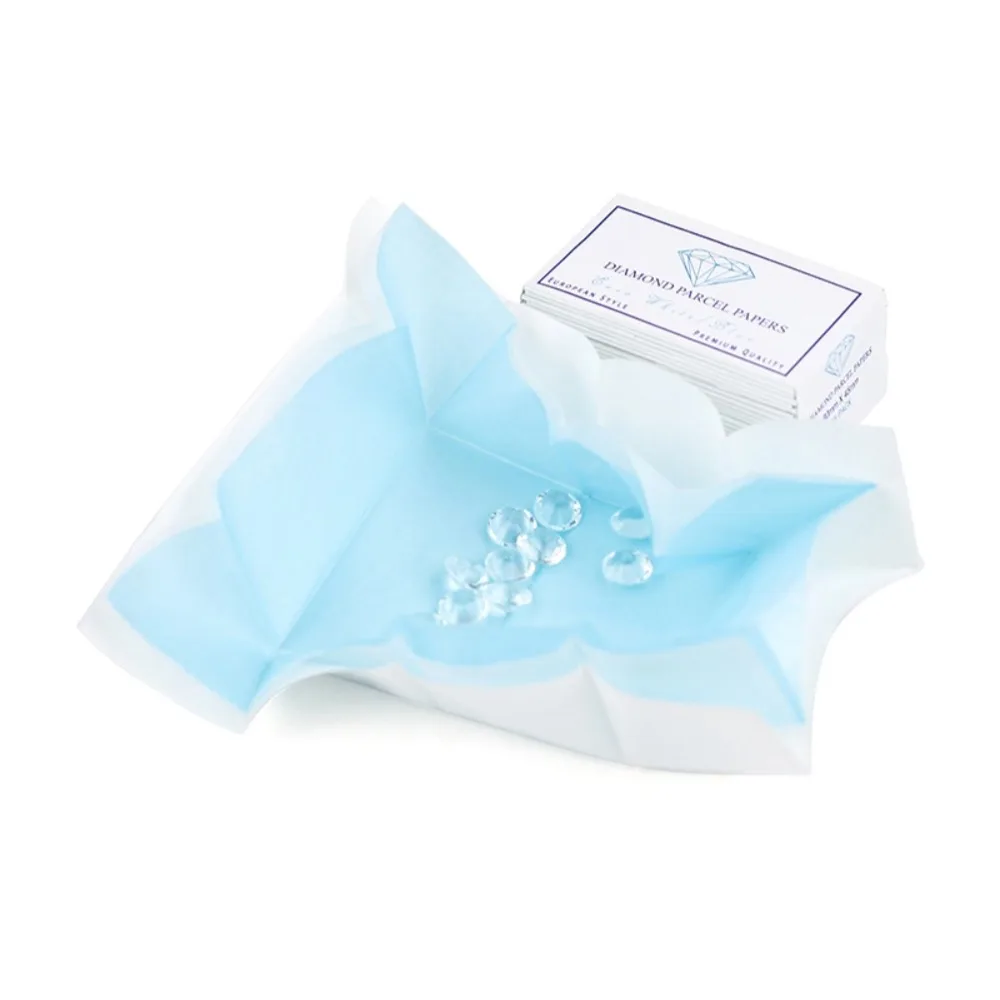

Однотонная упаковочная Алмазная бумага

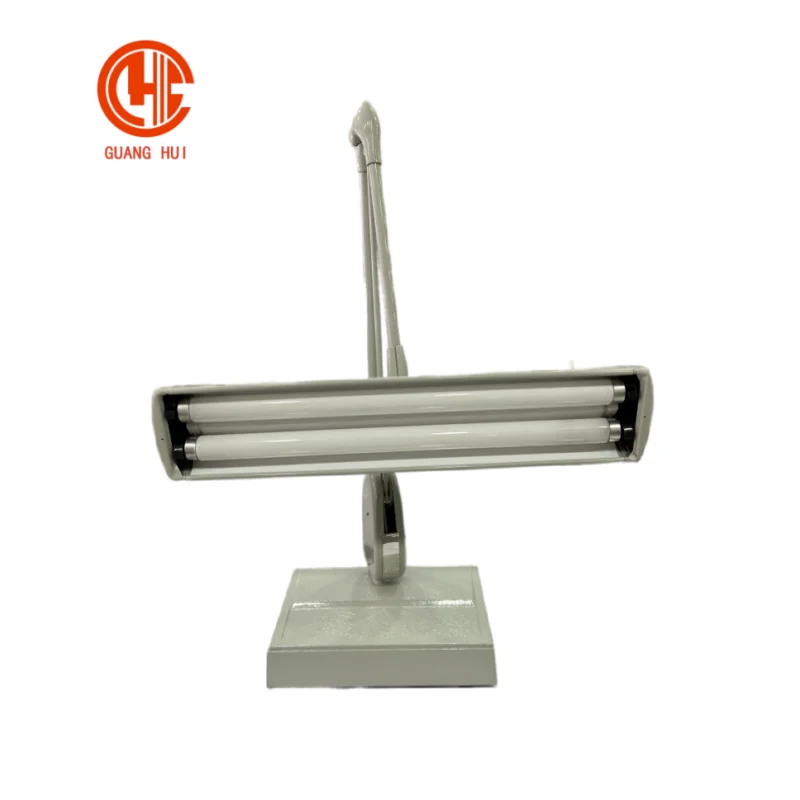

220V держатель Регулируемый 30W Дневной люминесцентный светильник Ювелирная лампа для алмазной сортировки
8 223,63 ₽

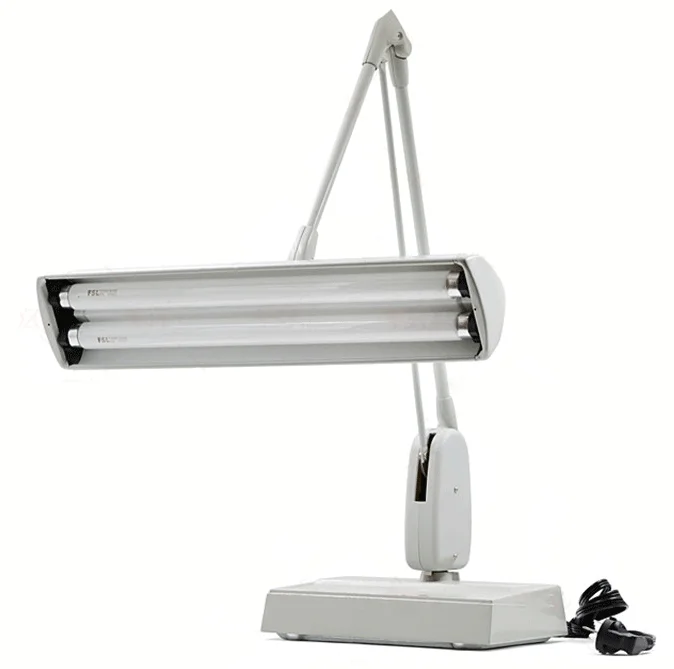

2 м 50 Вт настольная Складная сортировочная лампа для ювелирных изделий металлическая Алмазная магазина инструментов
