LH-1050FF

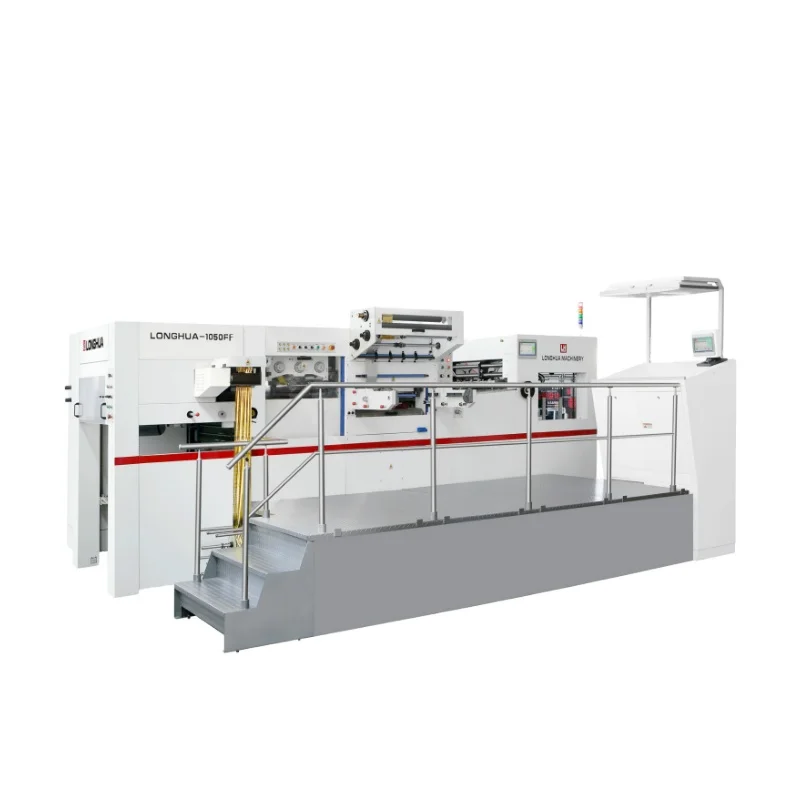

Automatic Holographic Positioning Foil Stamping Die Cutting Machine
Wenzhou Longhua Machinery Co.,Ltd in order to meet various request of printing and packing market, we designed 1050FF Automatic
1、Holographic Positioning Foil Stamping Die Cutting Machine, which is the greatest research and development and manufacturing of new equipment with a higher degree of intelligence.
2、This machine adopts numerous advanced pneumatic and servo driving processing technology from abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.
3、It could foil stamping, creasing and die cutting after printing products, such as more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
4、Good quality and design makes machine work stably and safety when machine’s speed reach 7500 sheets/h. This machine will provide you to enjoy the comfortable operation and faster return on investment.
1、Holographic Positioning Foil Stamping Die Cutting Machine, which is the greatest research and development and manufacturing of new equipment with a higher degree of intelligence.
2、This machine adopts numerous advanced pneumatic and servo driving processing technology from abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.
3、It could foil stamping, creasing and die cutting after printing products, such as more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
4、Good quality and design makes machine work stably and safety when machine’s speed reach 7500 sheets/h. This machine will provide you to enjoy the comfortable operation and faster return on investment.
Model | 1050FF |
Name | Automatic Holographic Positioning Foil Stamping Die Cutting Machine |
Max. Sheet Size | 1050×750mm |
Min. Sheet Size | 400×360mm |
Max. Cutting Range | 1040×720mm |
Inner Chase Size | 1080×745mm |
Die Cutting Steel Plate Size | 1080×736mm |
Paper Thickness | 80-2000 g/m2 Cardboard Corrugated paper≤4mm |
Min. Waster Side Width | 8mm |
Max. Mechanical Speed | 7500 sheets/h |
Max. Die Cutting Pressure | 300T |
Max. Feeding Pile Height | 1550mm |
Max. Delivery Pile Height | 1400mm |
Total Weight | 18T |
Dimensions | 7060(5600)×4669×2230mm |
Max. Foil Stamping Range | 1020×600mm |
Die Cutting Precision | ≤ ± 0.075mm |
General Foil Stamp Precision | ≤ ± 0.075mm |
Holographic Positioning Precision | ≤ ± 0.20mm |
Stamping Temperature Range | 0°C-200°C |
Heated Plate Power | 24kw |
Total Power | 57kw |
Voltage Requirements | 380V 50Hz |
Air compressor | 0.8Mpa, 0.36m3/min, 3kw |
Machine features
1.Feeder/Feeding Section
The design of stacker preparatory stage was improved, it could use prepared car sheet piling. Also could use ordinary hydraulic
car sheet piling to stacker directly. The machine has four suction nozzles and four sending nozzles in feeder, ensure feed
smoothly. Adopt import screw air-blowing device, it could make the sheet send smoothly.
.
2.Feeding Positioning Section
location. Side location adopt dual purpose side device with pull guide and push guide, accounting to paper choose, it makes switch
easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper’s location.
3. Cutting Section/Horizontal and vertical foil stamping system
Adopt advanced technology with single gripper location could adjust the front-and-back registration. Horizontal hot stamping
dual-anxis/Vertical hot stamping collection of waste foil frame into operation side, it is benefit of operation. 12 electric heating areas have timing penumatic temperature controller function, each area can be controlled separately. It makes foil-delivering servo curve tracking the speed variation of machine in time for using motion controller. So it could reach the foil-delivering smoothly.
dual-anxis/Vertical hot stamping collection of waste foil frame into operation side, it is benefit of operation. 12 electric heating areas have timing penumatic temperature controller function, each area can be controlled separately. It makes foil-delivering servo curve tracking the speed variation of machine in time for using motion controller. So it could reach the foil-delivering smoothly.
4. Foil Stamping/ Die Cutting Section
Die Cutting Plate
Foil Stamping Plate
Embossing Plate
The driving gear ensures high speed of die cutting together. The pneumatic locking mechanism and air clutch are fast and stable. The die cutting frame can prevent the die cutting plate from drooping or separating effectively.
FAQ
1. Q:Whether your company are manufacturer ?
A:Yes ,We are the factory for automatic die cutting machine , Hot stamping machine ,embossing machine.
A:Yes ,We are the factory for automatic die cutting machine , Hot stamping machine ,embossing machine.
2. Q:Whether you have export licence ?
A:Yes ,we have export licence and we already have many experience export to other countries to service the abroad clients also.
A:Yes ,we have export licence and we already have many experience export to other countries to service the abroad clients also.
3.Q:Can you customize the equipment according to my needs?
A:Yes,the specification,configuration,function and appearance can be customized.
A:Yes,the specification,configuration,function and appearance can be customized.
4. Q:Where you are located ?
A:We located in Pingyang ,Wenzhou city ,Zhejiang pronvice , china .
5. Q:How to travel to your city ?
A:Our nearest airport Wenzhou Longwan international airport , our nearest high speed train station , Ruian / Wenzhou station; Our company can arrange car to pick you up if you need
6. Q:About quality control and delivery?
A .We have inspection department for every process. Every machine must be debugging before delivery by our experienced engineer to make sure the machine are best condition, The third party inspection are acceptable ,our delivery time is 20-30 days normally, But details need confirm before place order.
7. Q:The samples whether acceptable before place the order ?
A:Yes. We can offer the samples before your company place the order .
8. what services can we provide?
We offer 12 month warranty, long term technical support. Any time your company need help,Just contact with our sales. We will make the solution as soonest.
9. Whether offer engineer to client company to installation.train,and guide your production?
Yes , We can arrange clients to your company if you need.
Accepted Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Cash
A:We located in Pingyang ,Wenzhou city ,Zhejiang pronvice , china .
5. Q:How to travel to your city ?
A:Our nearest airport Wenzhou Longwan international airport , our nearest high speed train station , Ruian / Wenzhou station; Our company can arrange car to pick you up if you need
6. Q:About quality control and delivery?
A .We have inspection department for every process. Every machine must be debugging before delivery by our experienced engineer to make sure the machine are best condition, The third party inspection are acceptable ,our delivery time is 20-30 days normally, But details need confirm before place order.
7. Q:The samples whether acceptable before place the order ?
A:Yes. We can offer the samples before your company place the order .
8. what services can we provide?
We offer 12 month warranty, long term technical support. Any time your company need help,Just contact with our sales. We will make the solution as soonest.
9. Whether offer engineer to client company to installation.train,and guide your production?
Yes , We can arrange clients to your company if you need.
Accepted Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Cash
Language Spoken:English,Chinese.
