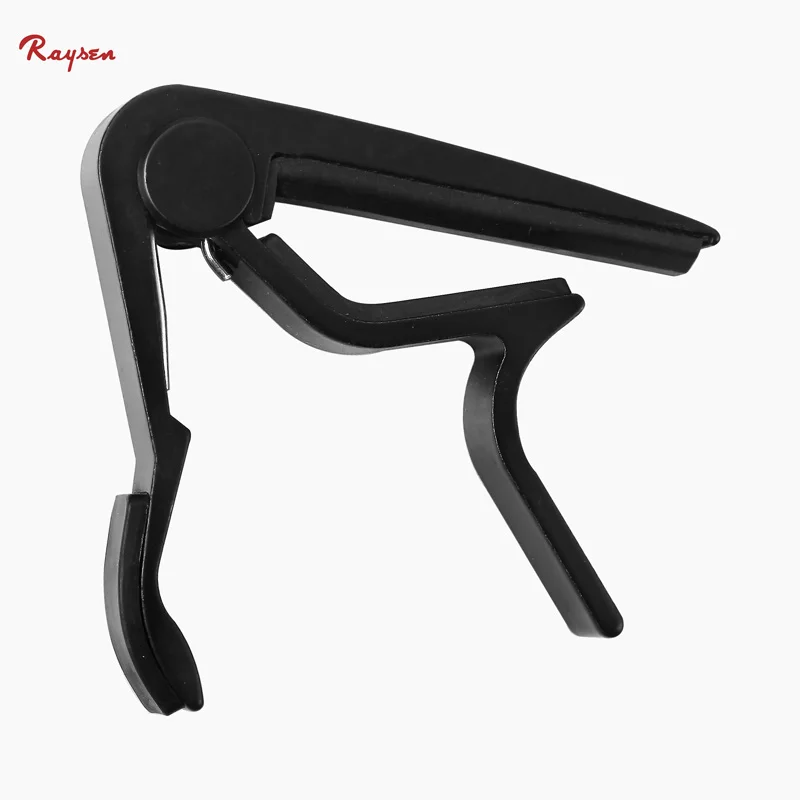

Дешевый классический гитарный каподастр с маленьким захватом, гитарный каподастр из алюминиевого сплава, Заводские аксессуары
0,61 $ - 0,66 $
Изолятор 6860 GA 6003 конического покрытия тестер оправки гибочная машина для лакокрасочной пленки
- Категория: >>>
- Поставщик: Hunan Gonoava Instrument Co. Ltd.
Сохранить в закладки 1600914268084:
Описание и отзывы
Характеристики
Product Description
GA-6003 Coating Conical Mandrel Tester Paint Film Flexibility Bending Machine ISO 6860
Standards
ASTM D 522 Standard Test Methods for Mandrel Bend Test of Attached Organic Coatings
ISO 6860 Paints and varnishes - Bend test (conical mandrel)
ASTM D 522 Standard Test Methods for Mandrel Bend Test of Attached Organic Coatings
ISO 6860 Paints and varnishes - Bend test (conical mandrel)
GA-6003 Coating Conical Mandrel Tester Paint Film Flexibility Bending Machine ISO 6860
Introduction

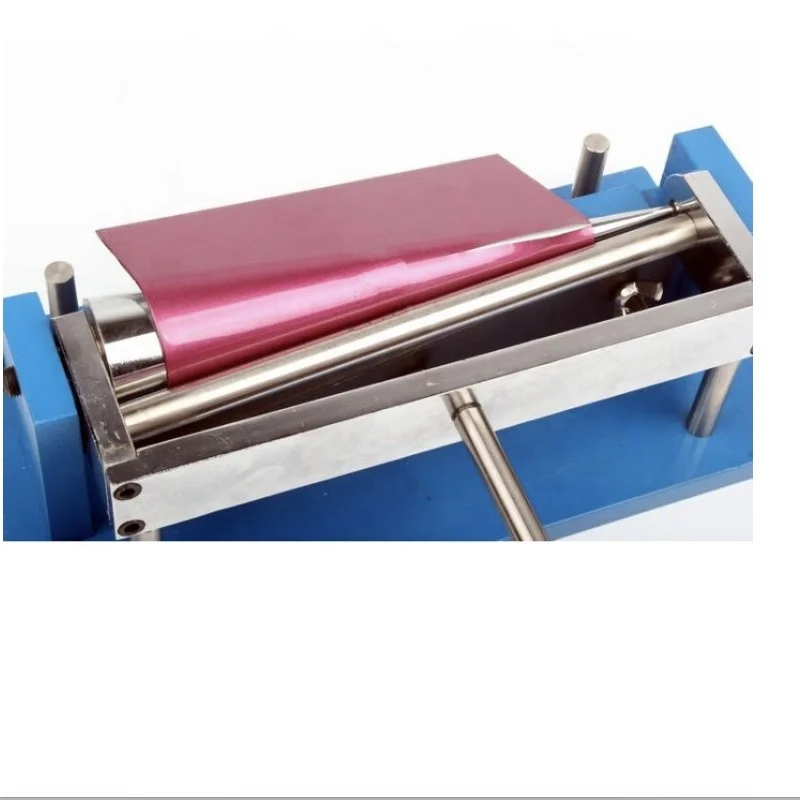

The varying mandrel diameter (3.2 mm - 38.1 mm) stretches a coating
through a gradient of distension, allowing precise determination of adhesion characteristics.
* Panels up to 20 cm and 1.6 mm thickness can be tested
* Durable sturdy stainless steel mandrel
GA-6003 Coating Conical Mandrel Tester Paint Film Flexibility Bending Machine ISO 6860
Introduction
The varying mandrel diameter (3.2 mm - 38.1 mm) stretches a coating
through a gradient of distension, allowing precise determination of adhesion characteristics.
* Panels up to 20 cm and 1.6 mm thickness can be tested
* Durable sturdy stainless steel mandrel
GA-6003 Coating Conical Mandrel Tester Paint Film Flexibility Bending Machine ISO 6860
Procedure

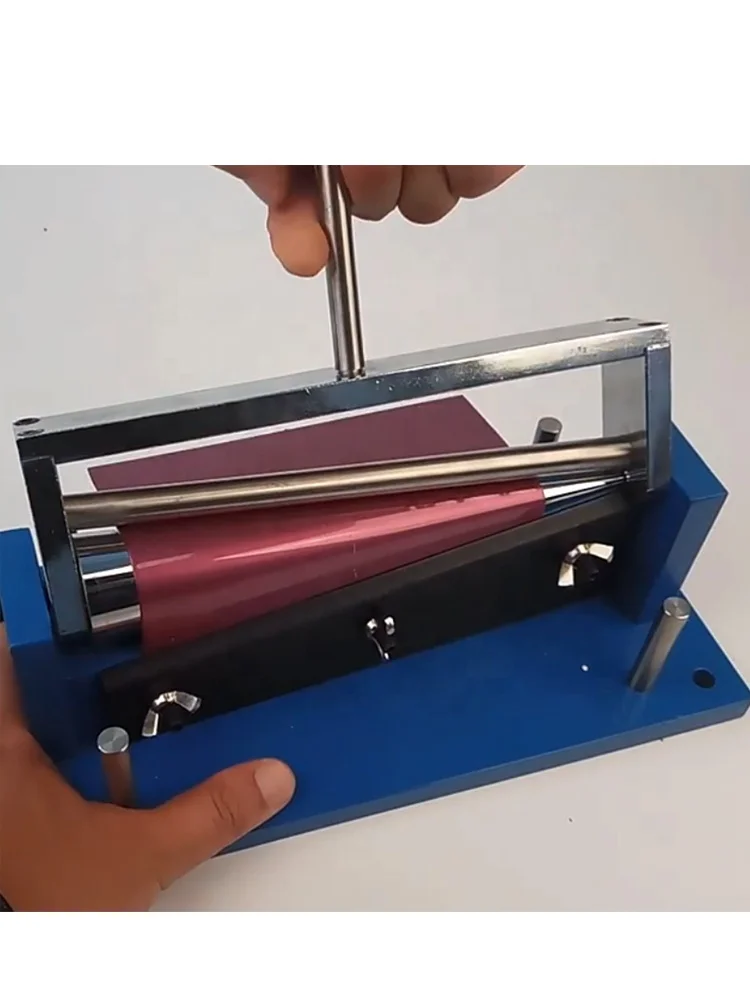

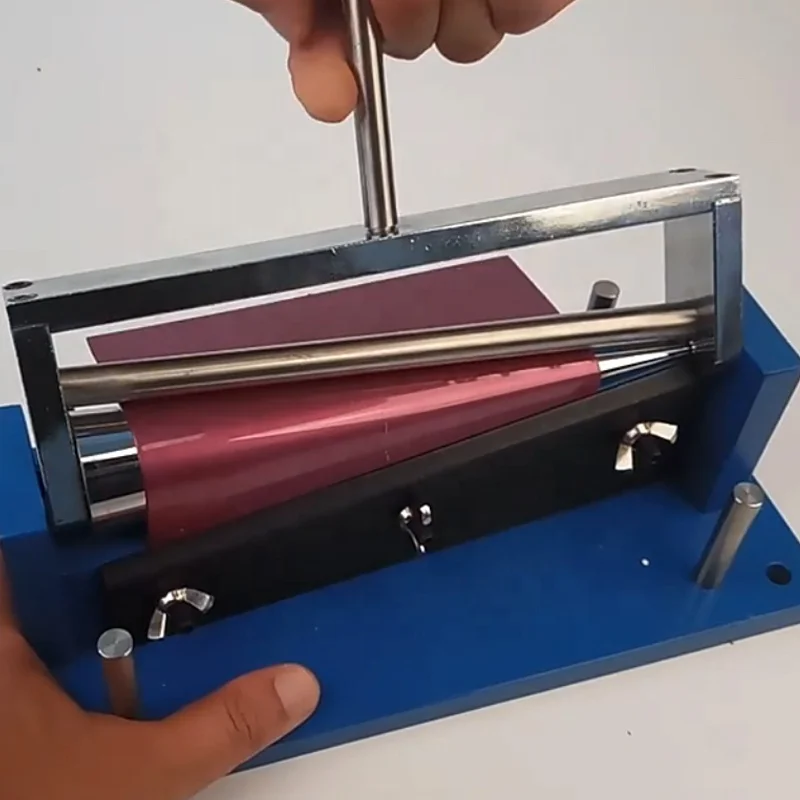

- Cover test panel with paper between mandrel and draw bar and clamp the probe.
- Fold the panel around the cone by using the manually operated arm.
- Bend uniformly at 180 degrees within 15 seconds.
- Remove panel and examine the coating for cracks.
- Mark the point at which the cracking stops.
- Measure the distance from the farthest end of the crack to the small end of the mandrel.
- Appropriate calibration curves also permit determination of the elongation values of the paint film.
- Cover test panel with paper between mandrel and draw bar and clamp the probe.
- Fold the panel around the cone by using the manually operated arm.
- Bend uniformly at 180 degrees within 15 seconds.
- Remove panel and examine the coating for cracks.
- Mark the point at which the cracking stops.
- Measure the distance from the farthest end of the crack to the small end of the mandrel.
- Appropriate calibration curves also permit determination of the elongation values of the paint film.
Specification
Ordering & Technical Specifications
Cat.No. | Dimensions | Net Weight | Shipping weight |
2696 | 340×120×300 mm | 7.5 kg | 10 kg |
ASTM D 522 ISO 6860 Coating cone bending tester Paint Film Conical Mandrel Testing Machine
Our Advantages
Company Profile
HUNAN GONOAVA INSTRUMENT CO LTD Professionally supply kinds of testing machines for different industries,it is a collection development,research,production and sales of high accuracy testing machines,products meet UL,ASTM,JIS,ISO,GB,TAPPI,IEC,EN,DIN BS and other domestic and international standards.Provide customers with better overall laboratory solution,including lab design,machine customize and drawing, instrument selection,installation,
training,maintenance,become one stop for testing instrument and machines.
We have many years export experience,products are exported more than 50 countries,welcome abroad instruments dealer to become our sales agent.Our products is widly used in many industries,such as metal,gold,Ore,Raw material,plastic,packaging,paint,printing ink,leather,shoes,fabric,keyboard,Electronic product,auto and motorcycle ,Toys, mobile phone computer ,Sports equipment,Electroplating industry.
training,maintenance,become one stop for testing instrument and machines.
We have many years export experience,products are exported more than 50 countries,welcome abroad instruments dealer to become our sales agent.Our products is widly used in many industries,such as metal,gold,Ore,Raw material,plastic,packaging,paint,printing ink,leather,shoes,fabric,keyboard,Electronic product,auto and motorcycle ,Toys, mobile phone computer ,Sports equipment,Electroplating industry.
Exhibition
Certifications
Packing & Delivery
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start production once getting the payment.
A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
Похожие товары

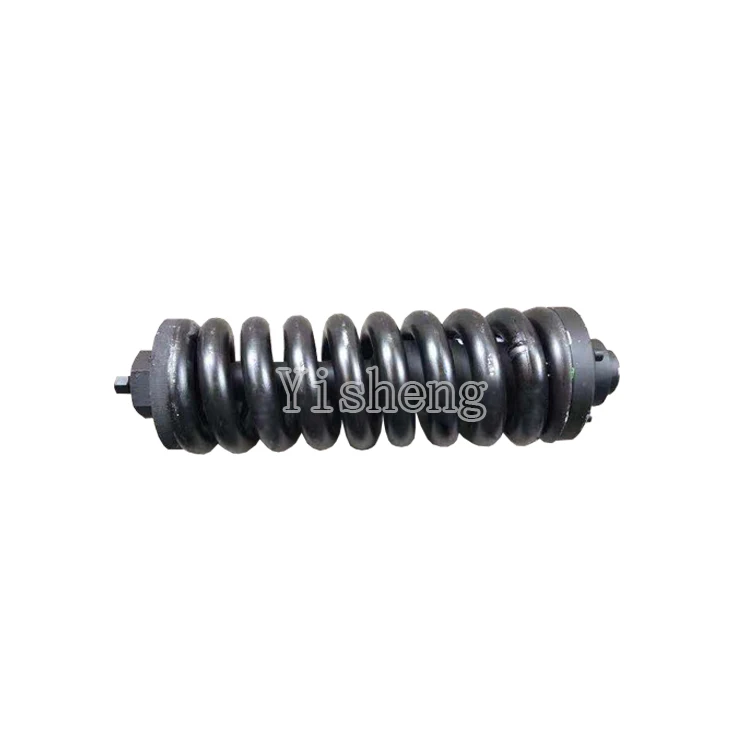

ZX200 гусеничный регулятор для экскаватора ZX210, направляющий пружинный редуктор в сборе для ZX225, ZX230, ZX240, ZX270, ZX300, ZX330, ZX360, удерживающее устройство
Excalibur 1 цилиндр S192FE 12HP 13HP 4 Sroke дизельного топлива дизельного двигателя
239,00 $ - 247,00 $

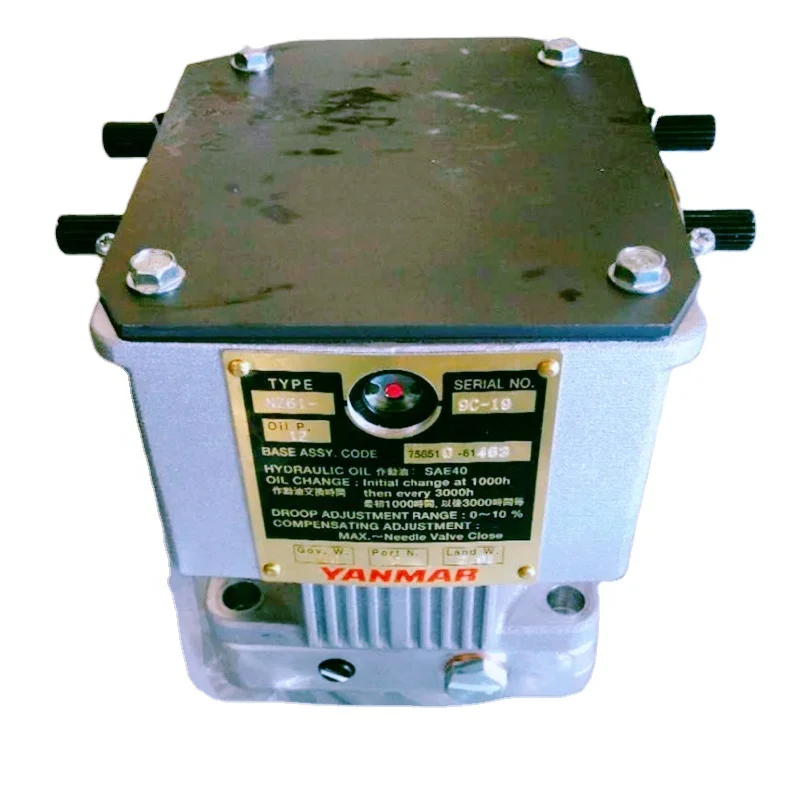

Высококачественный контроллер двигателя дизельного генератора для модели NZ61 к дизельному двигателю EY18AL
Алюминиевая фольга для упаковки шоколада и

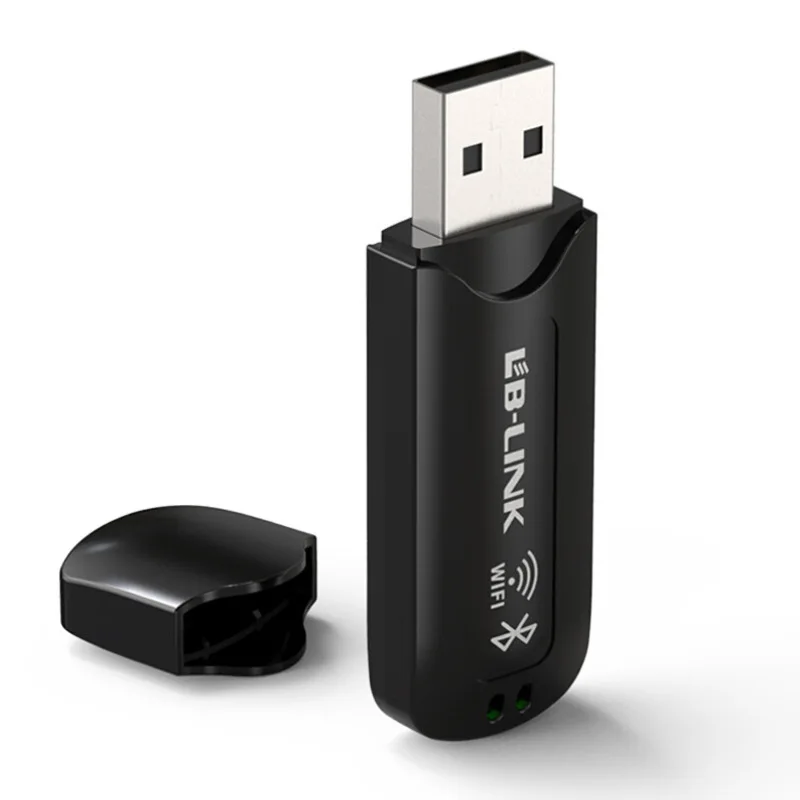

BL-WN300BT адаптер Wi-Fi передатчик приемник Mini USB 2-в-1 адаптер беспроводной адаптер Wi-Fi
2,78 $ - 2,98 $

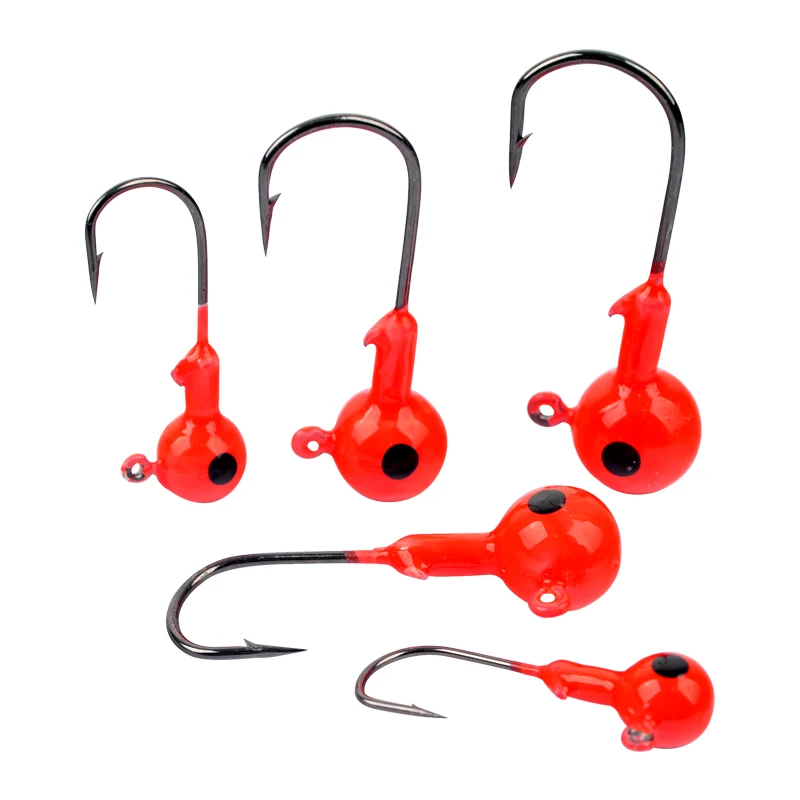

Оптовая продажа, набор рыболовных крючков 3,5g5g7g10g14g
