3x40 футов каркасный бортовой контейнер полуприцеп для пикапов стальной шасси палубный грузовой прицеп с высокой платформой

3x40 футов каркасный бортовой контейнер полуприцеп для пикапов стальной шасси палубный грузовой прицеп с высокой платформой

Категория: >>>
Поставщик: Zhengzhou Jiujun Mechanical Equipment Co. Ltd.Zhengzhou Ltd.

Цена:3 700,00-4 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

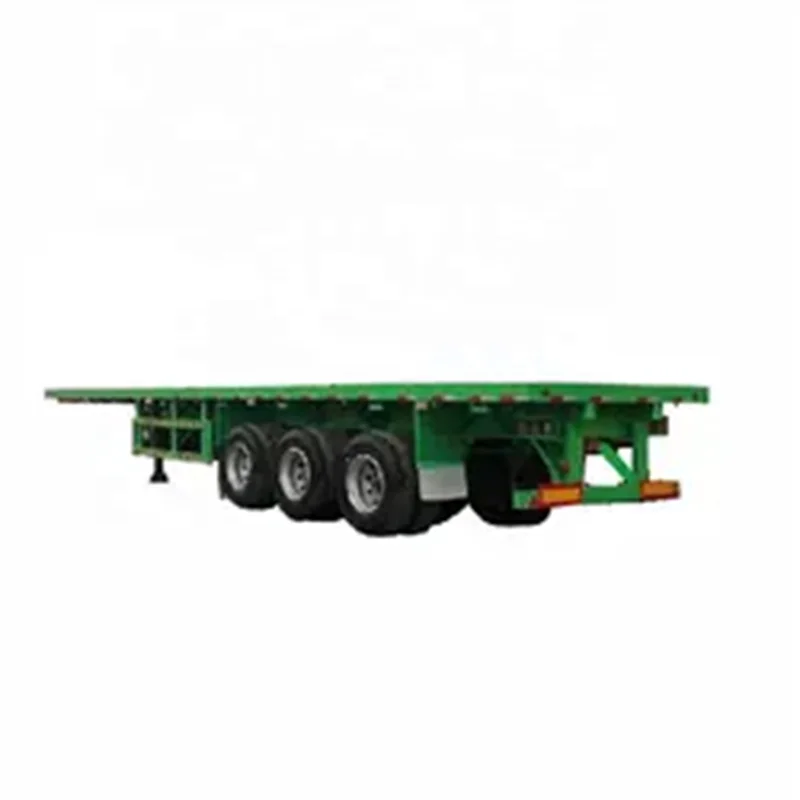

3 Axl 40ft Frame Flatbed Container Semi Trailer For Pickup Trucks Steel Chassis Deck Load Container Cargo High Bed Truck Trailer

For Sale

2 Axles 40FT Flatbed Semi Trailer

Our flat bed semi trailers usually have 13 or 16 ton axles. For braking, we use brake pads with a width of 220 mm, which improves
braking performance by 20%.

2 Axles 40FT Flatbed Semi Trailer

We use high quality container locks to ensure that your goods can be safely delivered to the destination.

2 Axles 40FT Flatbed Semi Trailer

We use high quality container locks to ensure that your goods can be safely delivered to the destination.

2 Axles 40FT Flatbed Semi Trailer

Automatic welding construction of submerged arc welding, strengthening of key parts, targeted welding, avoiding some parts prone
to welding leakage, to ensure that vehicles work for a long time without maintenance.

Specifications

Dimension	12.4m×2.50m×1.55m (Outside)
Payload	40T
Tare Weight	About 5.7 T
Twist Lock	12uints
Chassis
Main Beam	Heavy duty and extra durability designed I beam; Opting for high tensile steel T700, welded by automatic Submerged-Arc processes.
Frame Beam	Top Flange 12mm,width 140mm; Middle Flange 8mm; Bottom Flange 12mm,width 140mm, main beam height 500mm
Frame Floor	The Thickness is 3mm pattern
Axle	2 Axles, 13Ton 16ton brake pads
Landing Gear	Fuwa BRAND 28T lifting capacity with two speed
King Pin	2.00 inch bolt-in king pin
Suspension	Mechanical suspension reinforced type
Leaf Spring	90mm(W)13mm(T)10 Layer
Pneumatic Braking System	Dual line pneumatic brake system,T30 air chamber ,40L x2 air tanks, Emergency relay valve
Rim	9.0-20*9 pcs
Tire	12R22.5*9 pcs Triangle tire
Accessories	One standard tool box
Spare Tire Rack	One
Electrical System	24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors

Product detail

We offer rugged trucks in all configurations of heavy duty designs, China Trailer -trucks

are in great demand from customers,the proven product, which features reliable structure , great loading capacity, excellent power, reliable performance.
