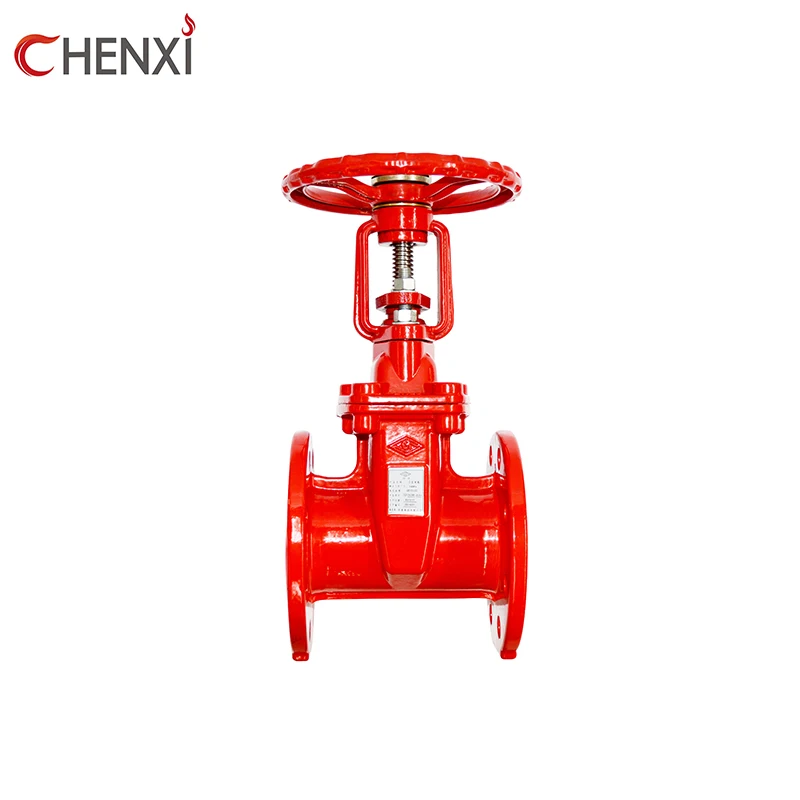

4 дюйма 6 дюймов 100 мм ручной углеродистой стали поднимающийся шток фланец шлюзовой запорный клапан
- Категория: >>>
- Поставщик: Gongyi Runda Pipeline Manufacturing Co. Ltd.Gongyi Ltd.
Сохранить в закладки 1600914532956:
Описание и отзывы
Характеристики
Why Choose us
Production Introduction
Name | 4 inch 6 inch 100mm manual carbon steel rising stem flange sluice gate valve |
Size | DN40-DN500 |
Pressure | PN10/16/25 |
Body | Carbon steel |
Temp | 0~80℃ |
Suitable Medium | Water,steam,oil,etc. |
Application | Municipal construction, water supply and drainage, water treatment,etc. |
Product parameter
NO | Name | Materuals |
1 | Body | Ductile iron |
2 | Disc | EPDM+Ductile iron |
3 | Bonnet Gasket | NBR |
4 | Stem | AISI420 Stainless steel |
5 | Bonnet | Ductile iron |
6 | Gland | Ductile iron |
7 | Bolt | AISI304 Stainless steel |
8 | Washer | AISI304 Stainless steel |
9 | Nut | AISI304 Stainless steel |
10 | Hand Wheel | AISI304 Stainless steel |
11 | Nut | CuZn39Pb1 Brass |
12 | Friction Pads | AISI304 Stainless steel |
13 | hoIder | Ductile iron |
14 | Gasket | POM |
15 | O Ring | NBR |
16 | O Ring | NBR |
17 | Washer | Phenolic PF |
18 | Core | Ductile iron |
Datas above are only for reference, If you want to know more details of our products,pls click here to contact us on alibaba.com!
Attention:
1.The valve is installed independent of the flow direction of the medium.
2.After the valve is assembled, the thread of the bolt/stem shall be greased to prevent corrosion and facilitate subsequent disassembly.
3.Do not use the valve for pipe pressure regulation, gate valves generally play the role of a switch, to achieve a good adjustment effect, it is recommended to choose a professional regulating valve, water erosion will affect the service life of the valve disc.
4.Do not use valves with EDPM for gaseous fluids.
1.The valve is installed independent of the flow direction of the medium.
2.After the valve is assembled, the thread of the bolt/stem shall be greased to prevent corrosion and facilitate subsequent disassembly.
3.Do not use the valve for pipe pressure regulation, gate valves generally play the role of a switch, to achieve a good adjustment effect, it is recommended to choose a professional regulating valve, water erosion will affect the service life of the valve disc.
4.Do not use valves with EDPM for gaseous fluids.
Product application cases
Installation instructions
1.Notice of water stop shall be issued before construction.
2.The water in the road should be avoided in the front row of construction.
3.Electricity for construction must be guaranteed.
4.It is strictly prohibited to use hand wheel, handle and transmission mechanism for hoisting and collision is strictly prohibited.
5.Lubricate the valve at least once a month if it is in frequent use.
1.Notice of water stop shall be issued before construction.
2.The water in the road should be avoided in the front row of construction.
3.Electricity for construction must be guaranteed.
4.It is strictly prohibited to use hand wheel, handle and transmission mechanism for hoisting and collision is strictly prohibited.
5.Lubricate the valve at least once a month if it is in frequent use.
Packing & delivery
Packaging
Inside:Plastic film packaging.
Outside:Export wooden cases.
Shipping
1.Fed Ex/DHL/UPS/TNT for sample.Door-to-Door.
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving.
3.Customers specified freight forwarders or negotiable shipping methods!
4.Delivery Time: a.in stock:immediately b.sample:2 days c.OEM/ODM:3-15 DAYS.
Company Information
Gongyi Runda Pipeline Manufacturing Co., Ltd.
Our mission:Make the pipeline operation safer.
Our values:Quality first, service first, integrity and responsibility,Loyal to the goal, efficient execution, trust and cooperation.
The main products:bellows seal globe valve, check valve, butterfly valve, gate valve, ball valve, rubber expansion joint, repair clamp, bellow expansion joint, flexible metal hose, etc.
Our mission:Make the pipeline operation safer.
Our values:Quality first, service first, integrity and responsibility,Loyal to the goal, efficient execution, trust and cooperation.
The main products:bellows seal globe valve, check valve, butterfly valve, gate valve, ball valve, rubber expansion joint, repair clamp, bellow expansion joint, flexible metal hose, etc.
We will provide high quality products and first-class service.
We will take every customer's goods seriously to ensure customer satisfaction.
Welcome to contact us for advice and order.
Welcome to contact us for advice and order.
FAQ
Q:Can you make the product as per client's requirement?
A:Yes, we can make it with your exact requirement.
Q:What are your payment terms?
A:T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q:Where is your nearest loading port?
A:Shanghai, Qingdao or Tianjin, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Give us a trust, we will not let you down, welcome to inquire and place an order.
A:Yes, we can make it with your exact requirement.
Q:What are your payment terms?
A:T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q:Where is your nearest loading port?
A:Shanghai, Qingdao or Tianjin, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Give us a trust, we will not let you down, welcome to inquire and place an order.
Похожие товары

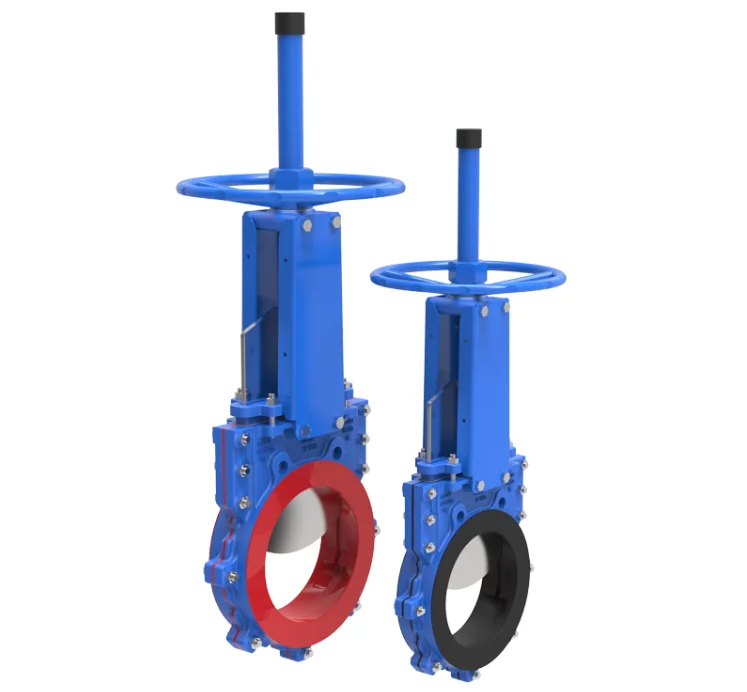

Двунаправленное уплотнение QJseries резиновая подкладка ручной затвор для ножа
Латунный запорный клапан с медным бронзовым корпусом 1/2 дюймов-4 дюйма
1,45-5,88 $

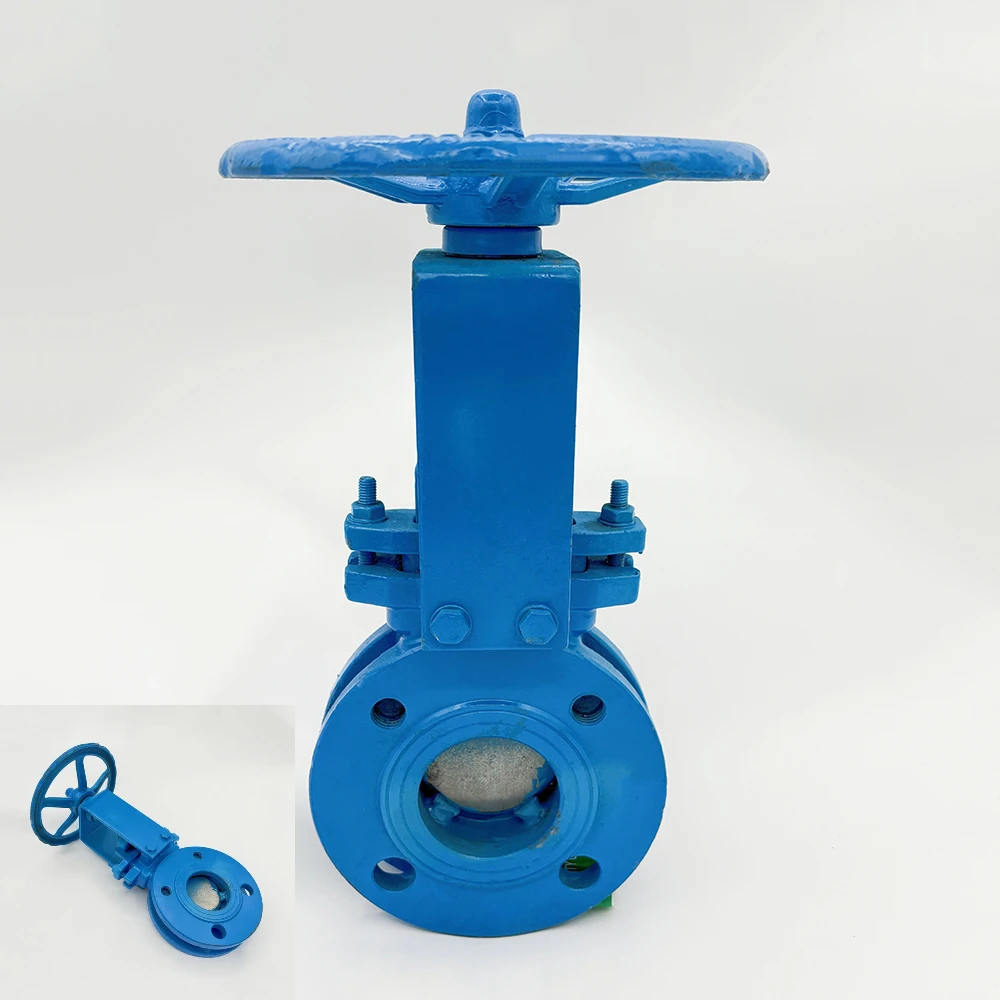

Пневматический регулирующий клапан из чугунной углеродистой стали нержавеющей расширяемый двунаправленный EPDM/NBR герметичный затвор для ножей
28,00-30,00 $
Американский стандарт API600 с замком Противоугонная запорная задвижка из литой стали WCB фланец трубопроводного маховика запорным клапаном
19,00-20,00 $

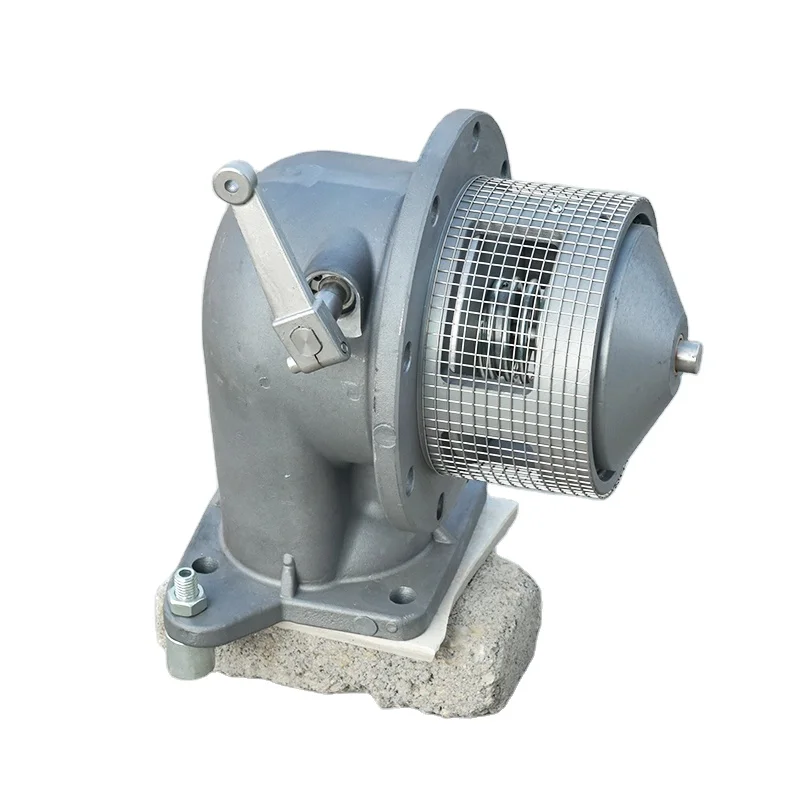

Клапан аварийного запорного клапана для пневматического танкера из алюминиевого сплава
69,00-71,00 $

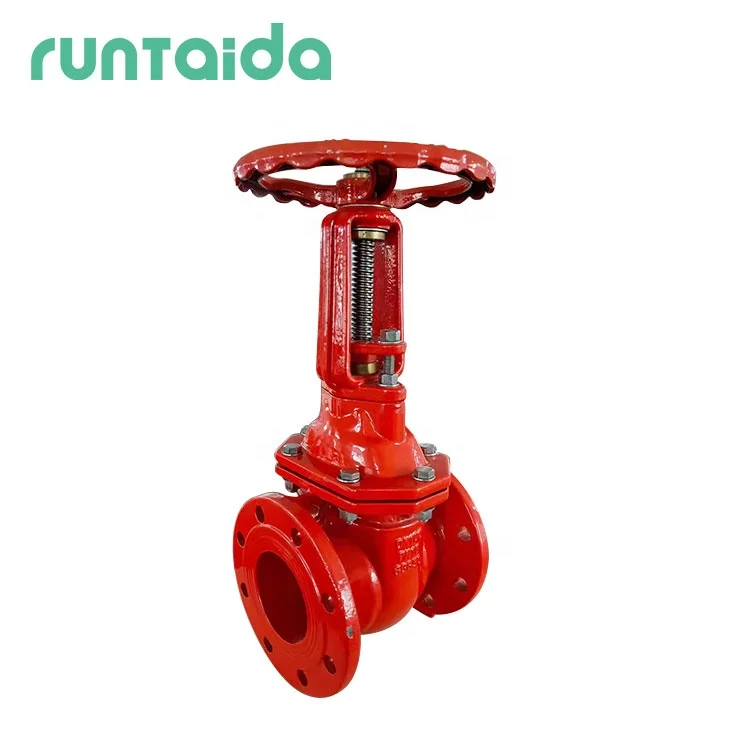

150 мм Диаметр рифленый фланцевый концевой клапан os & y fire gate с сертификатом UL/FM
