Taidacent 100 мА до 1А регулируемый 1 10 струнный светодиодный постоянный ток PT4115 модуль драйвера плата привода светодиодной панели
- Категория: >>>
- Поставщик: Shenzhen Taida Century Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600916809219:
Описание и отзывы
Характеристики

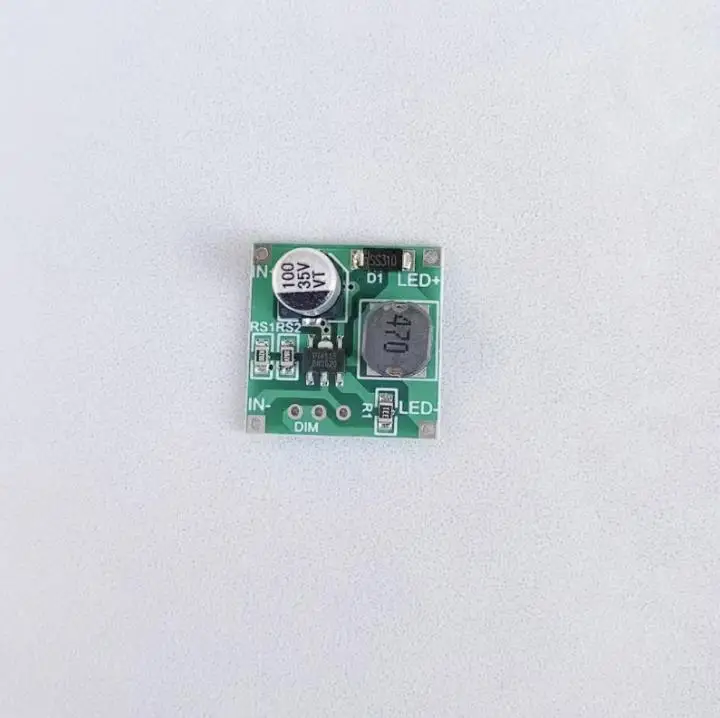

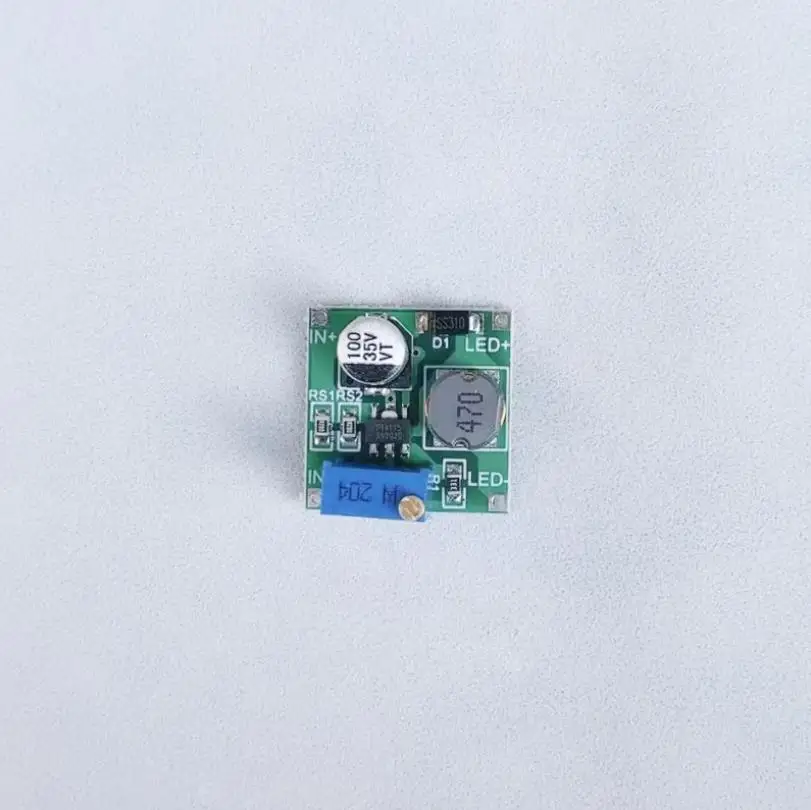

Taidacent 100mA to 1A Adjustable 1-10 String LED Constant Current PT4115 Driver Module Power Drive Board Led Panel Light Driver
Product Description

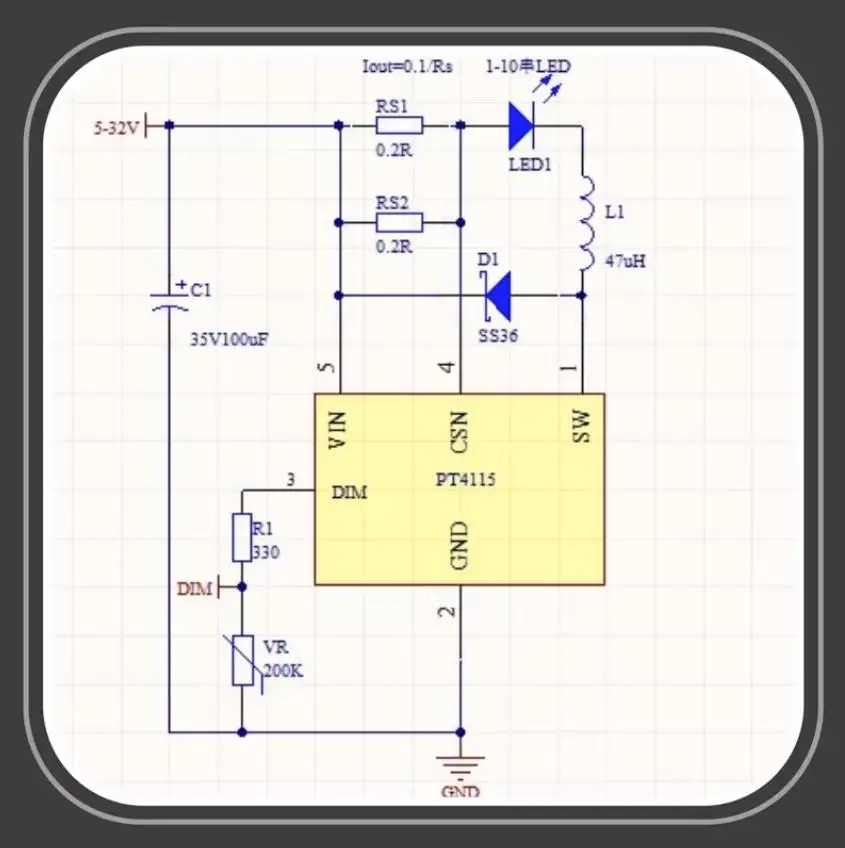

This is a step-down constant current board, input 5-32v, the input voltage must be 1v higher than the voltage required by the LED lamp, otherwise the current will not reach the set value, this is a constant current board, not a step-down regulator board, Many people always ask how many volts to output. The board only controls the current, and the voltage will automatically adjust to the voltage required by the LED. For example, if the load is connected to a 3V LED bead, the input voltage is 5-32V, and the voltage at both ends of the LED light is always the same. About 3V, the two strings are about 6V, do not measure the output voltage with no load, the no-load output voltage is equal to the input voltage, it is a virtual voltage, this is a step-down constant current, not a boost constant current, for example, two strings of LED lights can only be turned on at 6V On, the input 5V is not on, the input voltage must be above 7, as mentioned above, the input voltage must be greater than the voltage required by the LED lamp by 1V or more, the output current calculation formula: l=0.1/RCs, the current sampling resistor RS1 on the board and RS2 is connected in parallel, you can know how much current the board is by looking at the resistance value, R200=500mA, R330=300mA, 1R=100mA, there is only one sampling resistor on the board, 1R=100mA, two 1R resistors are 100mA+100mA=200mA, 1 One R330=300mA, two R330=600mA, R200=500mA, R200+R200=1A, R200+R330=800mA.
Specification
item | value |

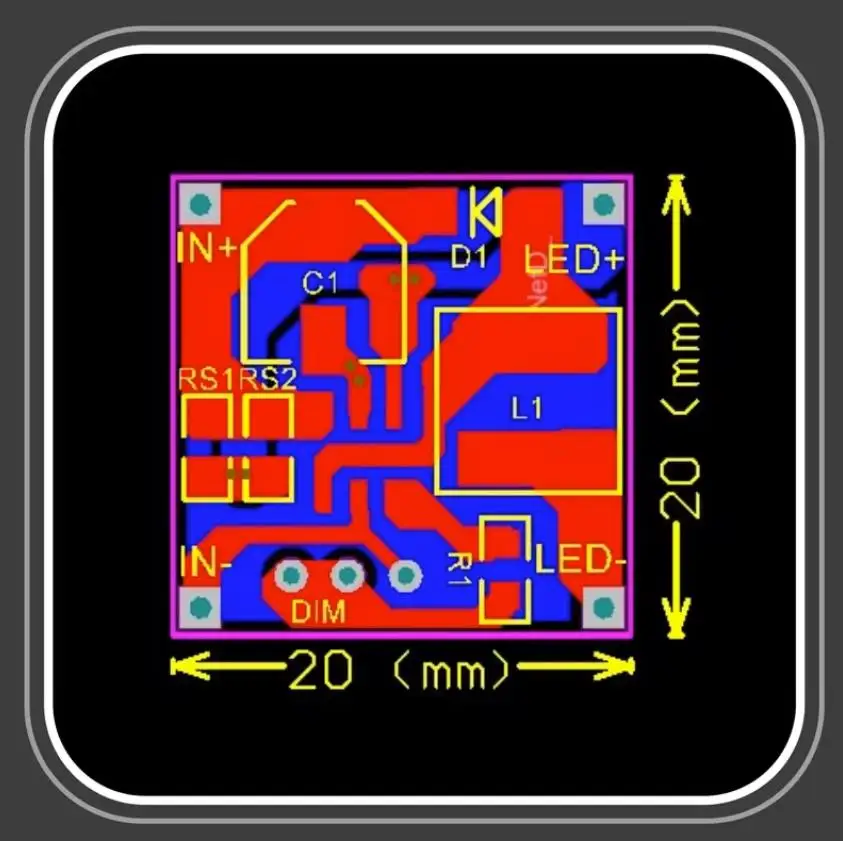

Dimension (L x W x H) | 20*20mm |
Input voltage | 5V-32V |
Current | 100/200/300/400/500/600/700/800mA |
Packing & Delivery
Box package
Company Profile
Shenzhen Taida Century Technology Co., Ltd. was born in Shenzhen in 2013. It was founded by several geeks who graduated from the top universities in China. In 2016, it moved to Guangzhou, the largest city in South China (110 km away from Shenzhen). Nowadays, Shenzhen Taida Century Technolog Co., Ltd. focuses on electronic communication product design, development, production and sales. The products are exported to the United States, Europe, Japan, Korea, Australia and Brazil, and so on.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(20.00%),Eastern Asia(15.00%),Western Europe(15.00%),Domestic Market(15.00%),South America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Europe(2.00%),Africa(2.00%),Mid East(2.00%),Oceania(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Integrated Circuits,Relay Module,Sensor,Switch and Sockets,Display Module
4. why should you buy from us not from other suppliers?
Taida was founded by several geeks who graduated from the top universities of China. In 2016, it moved to Guangzhou. Taida focuses on electronic communication product design, development. Its products exported to all over the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian
We are based in Guangdong, China, start from 2013,sell to North America(20.00%),Eastern Asia(15.00%),Western Europe(15.00%),Domestic Market(15.00%),South America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Europe(2.00%),Africa(2.00%),Mid East(2.00%),Oceania(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Integrated Circuits,Relay Module,Sensor,Switch and Sockets,Display Module
4. why should you buy from us not from other suppliers?
Taida was founded by several geeks who graduated from the top universities of China. In 2016, it moved to Guangzhou. Taida focuses on electronic communication product design, development. Its products exported to all over the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian
Похожие товары

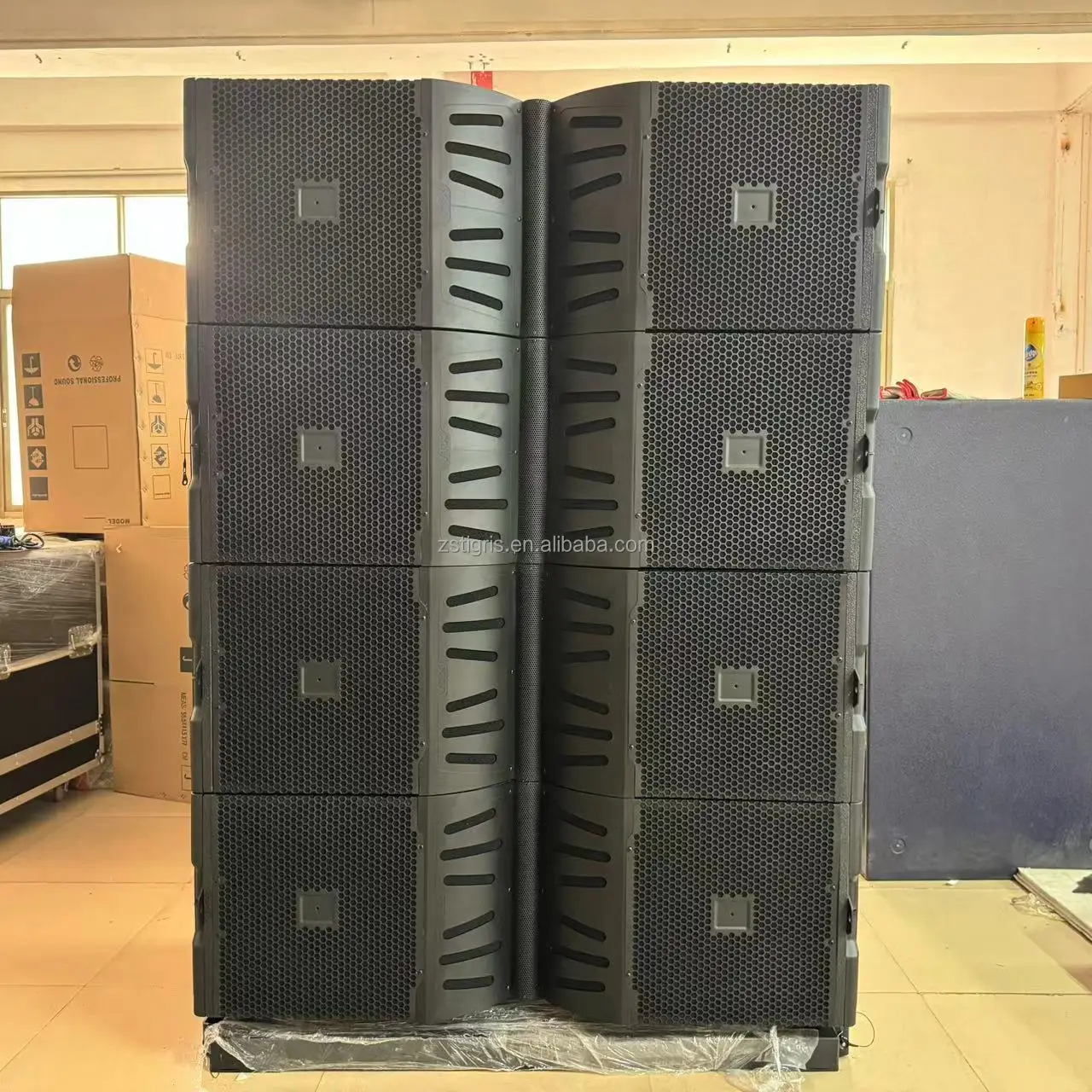

VR10 10 дюймов 2 полосная АС S30 двойной 15-дюймовый сабвуфер на открытом воздухе система линейного массива
39 028,34 ₽

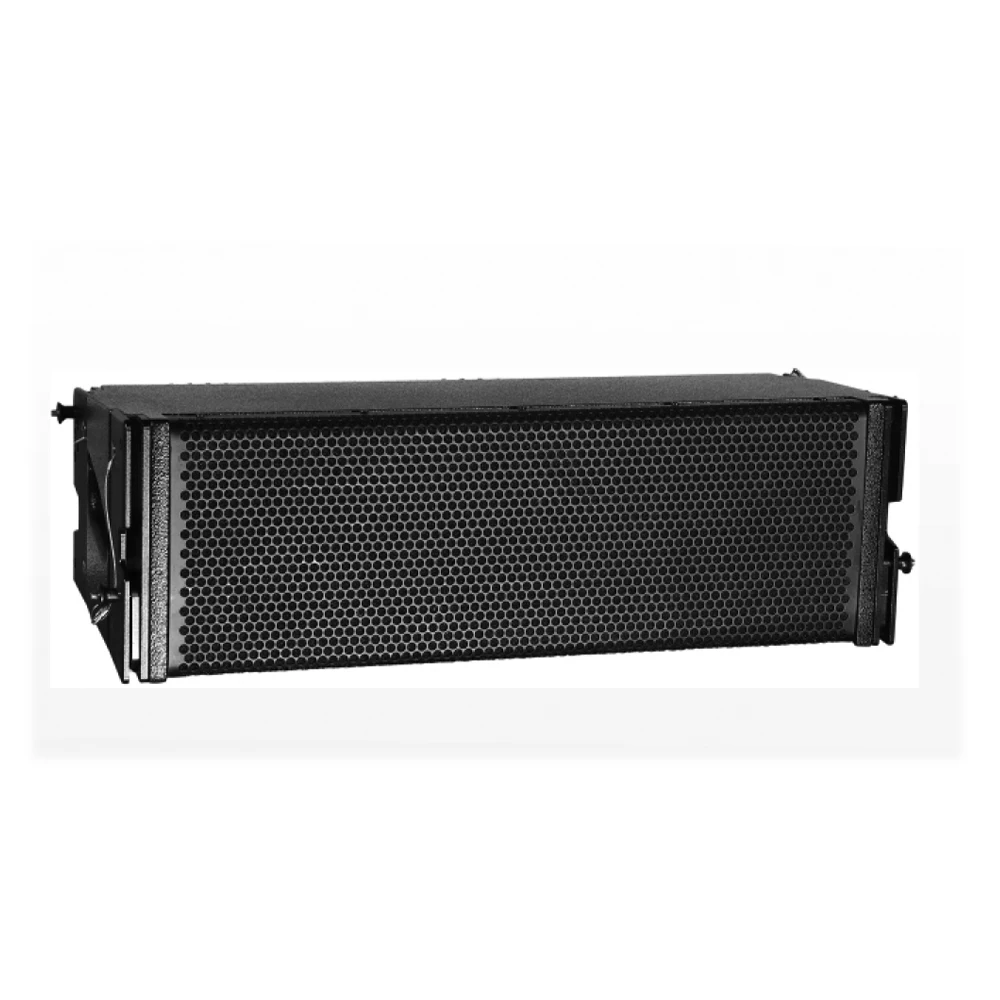

ЦВР новый дизайн активный мини линейного массива мероприятий на свежем воздухе оборудование 8 дюймов
5 дюймов линейного массива DLA-5 & DLA-512 открытый звуковых систем
32 806,43 ₽

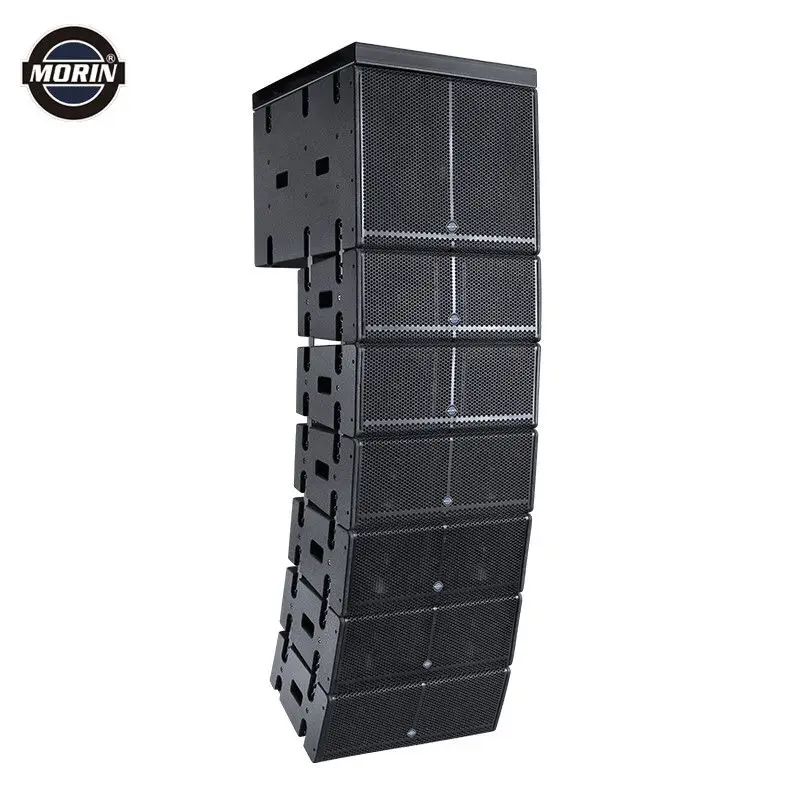

K3 лучшая продажа двойной 12-дюймовый новый дизайн линейный массив высокопроизводительный модный с низким уровнем искажений
Массив звуковой линии двойной 12-дюймовый двухъядерный линейный массив psssive profesional de 12 pulgadas
103 509,93 ₽

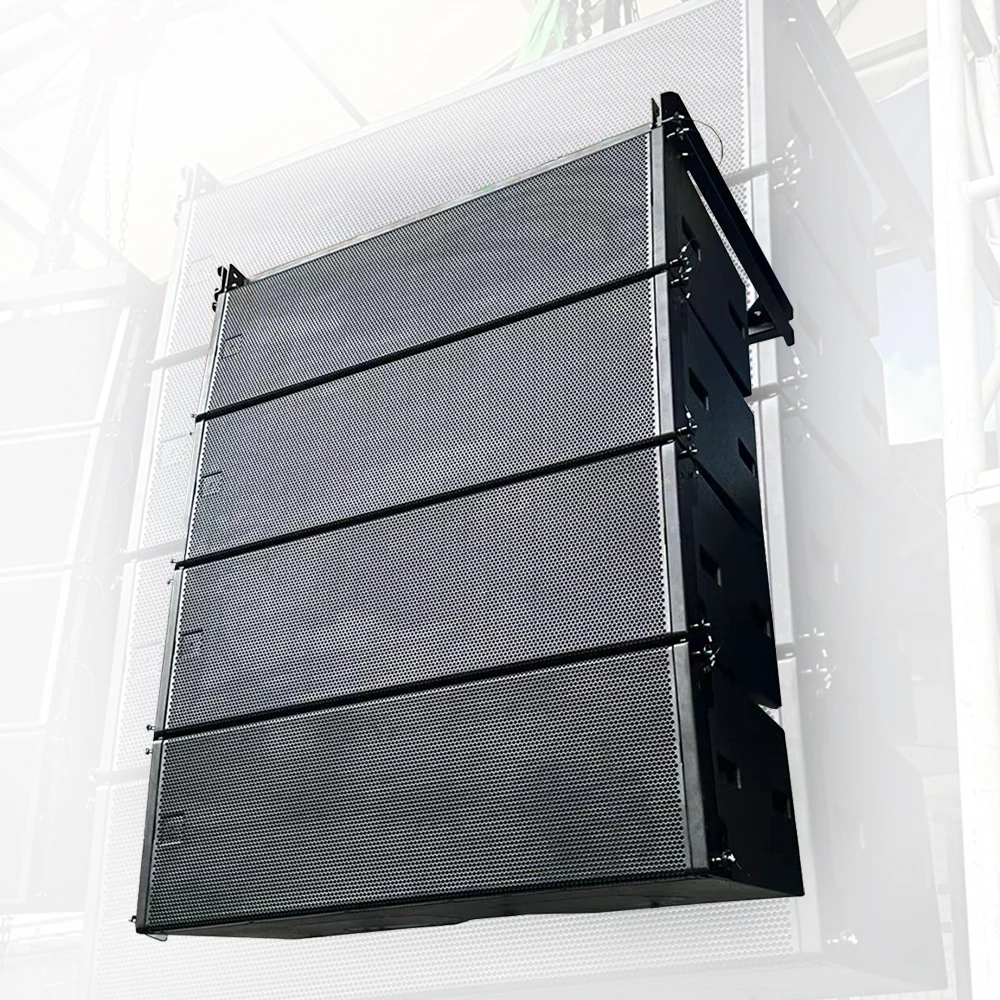

Профессиональный активный линейный массив акустическая система с сертификатом CE
