Лучшее Качество высокой четкости картонная упаковочная коробка печатная машина для резки
43 430,00 $
Автоматический высокоскоростной принтер для передающего ролика
- Категория: >>>
- Поставщик: Cangzhou Yuyuan Imp & Exp Trade Co. Ltd.Cangzhou Ltd.
Сохранить в закладки 1600917021349:
Описание и отзывы
Характеристики
Product Description

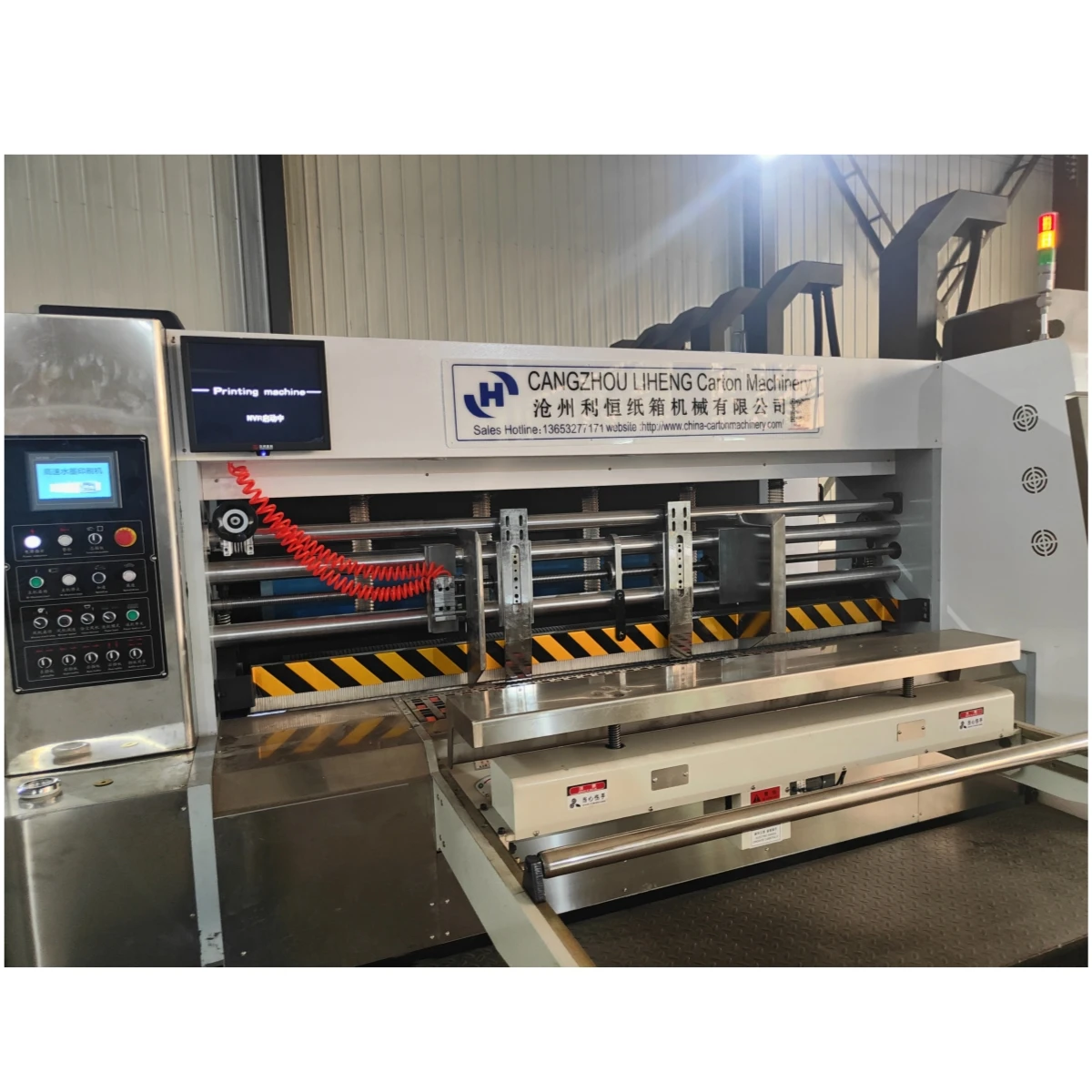

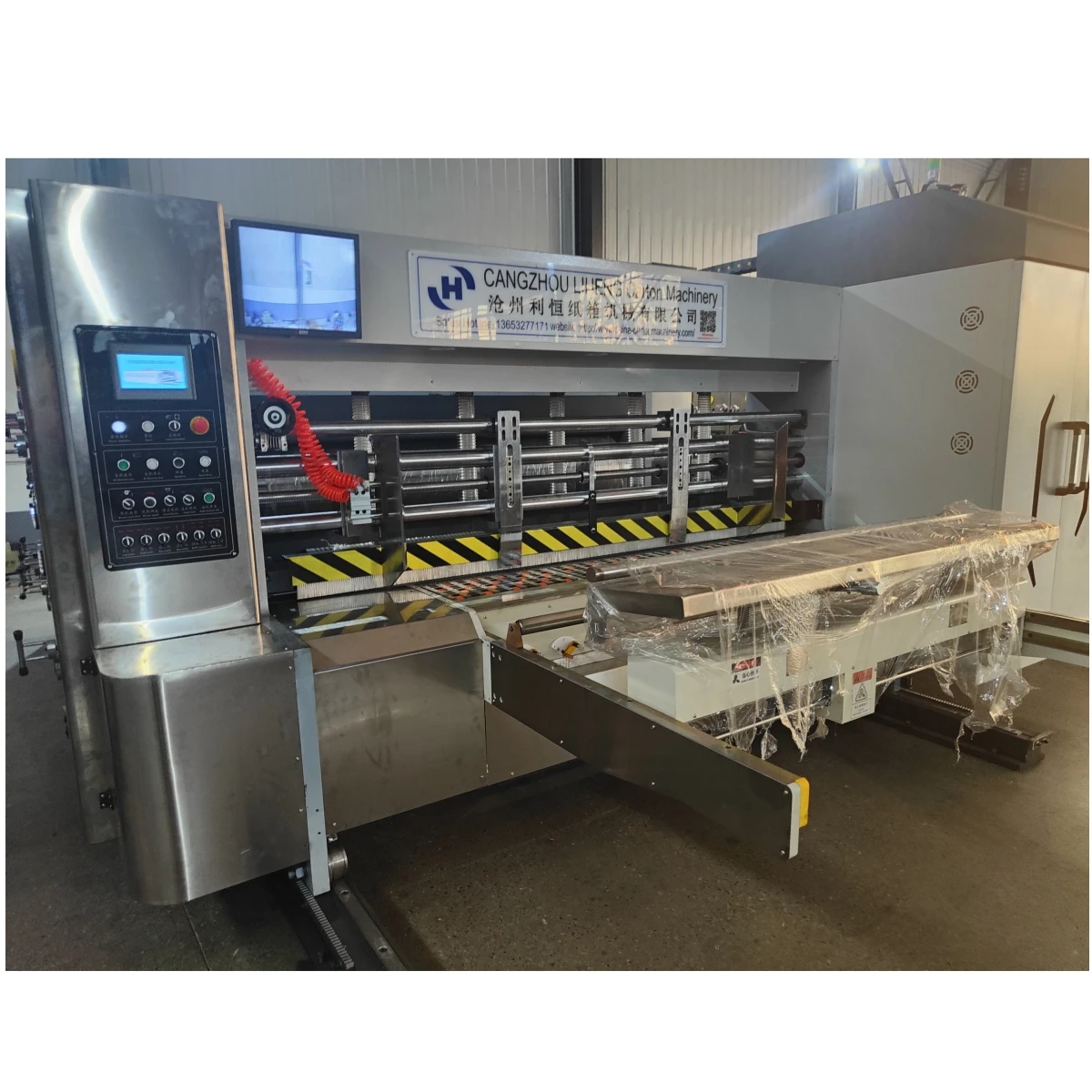

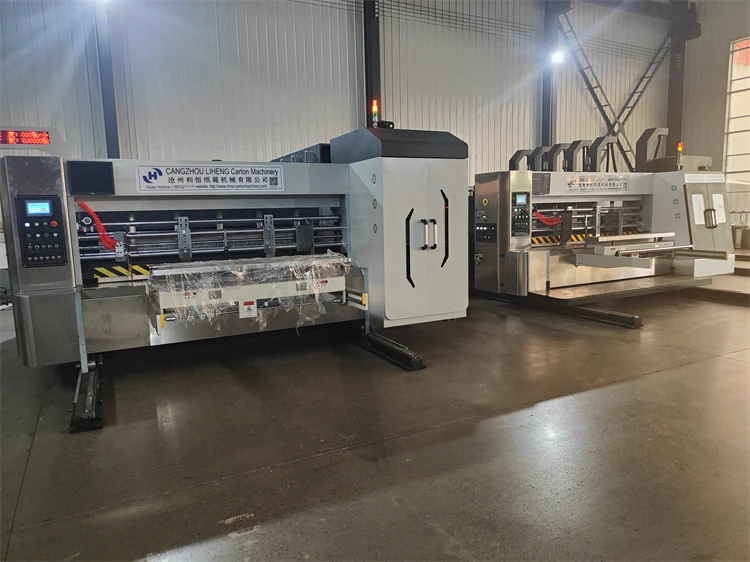

Product name | water ink carton printer die cutting machine |
Size | 2800*1600 mm |
Delivery time | 90 days after received your payment |
Loading port | Tianjin port |
Warranty time | Two year |
Payment | 30%TT as deposit ,The balance T/T before shipping |
FOB Price | 87,500USD |
1.Whole machine electric parts was choice the domestic famous brand, good and steady quality .
2.Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digital controlled grinder.
3.All the transmission axles and rollers are made by high quality steel, and processed through tempering and dynamic balance; plated with rigid chrome and grinded surface.
4.All the transmission gears was used the 48# alloy steel, which is grinded after heat treatment, and it was made by rubbing. It still maintains the high topping precision.
5.Pneumatic combined control the whole machine. It has the function of counting, alarming, and operating at the back of the machine.
6.Planetary gear structure. All gears are after fine grinding.
7.Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.
2.Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digital controlled grinder.
3.All the transmission axles and rollers are made by high quality steel, and processed through tempering and dynamic balance; plated with rigid chrome and grinded surface.
4.All the transmission gears was used the 48# alloy steel, which is grinded after heat treatment, and it was made by rubbing. It still maintains the high topping precision.
5.Pneumatic combined control the whole machine. It has the function of counting, alarming, and operating at the back of the machine.
6.Planetary gear structure. All gears are after fine grinding.
7.Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.
Feeding unit:
1.Paper feeding type: auto leadpaper feeding.
2.Control face-plate function button putting concentrate and simple, operated convenient.
3.Electrically controlled the connecting and separated for the every unit with alarm to ensure the operator’s safety during its proceeding.
4.Infrared photo-electricity counter can presetting the order paper quantity.
5.One lock function for whole machine, which can avoid the damaged the machine with error operation (The mainframe can not running when the every unit have not connected)
6.Pressure model elasticity feeding rubber roller, which can not to damaged the strength for corrugated cardboard.
3.Electrically controlled the connecting and separated for the every unit with alarm to ensure the operator’s safety during its proceeding.
4.Infrared photo-electricity counter can presetting the order paper quantity.
5.One lock function for whole machine, which can avoid the damaged the machine with error operation (The mainframe can not running when the every unit have not connected)
6.Pressure model elasticity feeding rubber roller, which can not to damaged the strength for corrugated cardboard.

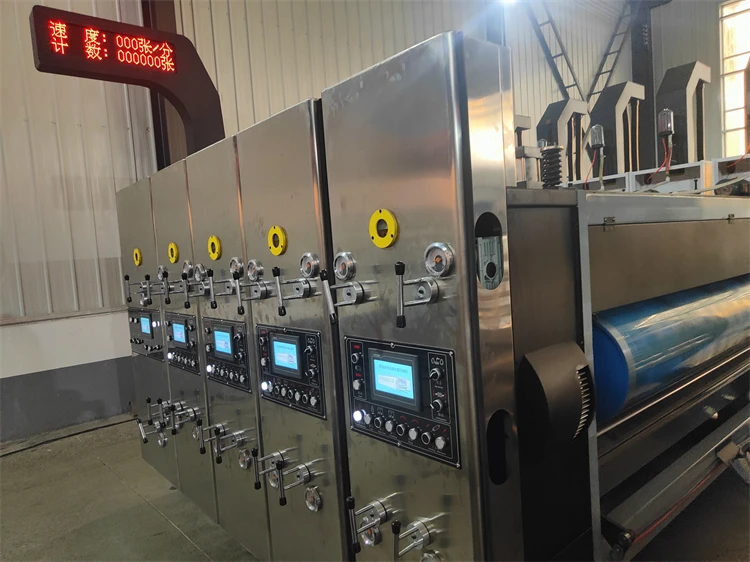

Printing unit：
1.Printing roller: made of high quality alloy steel, precise grinded with chrome lated.
2.Printing phases was adopted the planetary gear structure, the electric digital 360°adjustment, digital display(stop, running can adjustment).
3.Printing roller landscape orientation was adopted electric digital adjustment, the adjustment scope is 20mm.
4.Hanging plate device , total hanging and half hanging slotting notch, foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate.
5.Fixing the oil interval, printing pressure roller, lead roller interval were used the self-lock worm wheel and worm device adjustment and fix.
6.Printing phase fix was used the pneumatic brake structure, the brake structure will stop the mainframe running when the every unit separated, which can keep the origin gear fix position can not move.
7.The steel anilox roller: 180-250 lines combined anilox roller. Steel surface chrome, pressure the anilox and rigid chrome.
8.Option: re-position function, computer memory printing plate position, which can automatic re-position when scrub the plate.
Pneumatic uplift plate device, the anilox roller break away pneumatic, smooth the oil automatic when the mainframe stop, it can prevent the oil dry.
2.Printing phases was adopted the planetary gear structure, the electric digital 360°adjustment, digital display(stop, running can adjustment).
3.Printing roller landscape orientation was adopted electric digital adjustment, the adjustment scope is 20mm.
4.Hanging plate device , total hanging and half hanging slotting notch, foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate.
5.Fixing the oil interval, printing pressure roller, lead roller interval were used the self-lock worm wheel and worm device adjustment and fix.
6.Printing phase fix was used the pneumatic brake structure, the brake structure will stop the mainframe running when the every unit separated, which can keep the origin gear fix position can not move.
7.The steel anilox roller: 180-250 lines combined anilox roller. Steel surface chrome, pressure the anilox and rigid chrome.
8.Option: re-position function, computer memory printing plate position, which can automatic re-position when scrub the plate.
Pneumatic uplift plate device, the anilox roller break away pneumatic, smooth the oil automatic when the mainframe stop, it can prevent the oil dry.
Slotting unit：
1.Slotting phases was adopted the planetary gear structure, the electric digital 360° adjustment, show the digit (stop, running can adjustment).
2.Slotting tool rest, pressure wheel, horizontal move by manual mechanic joint adjustment.
3.The height of box size was adjustment by synchronous.4.Pressure interval was used the self-lock worm wheel and worm device adjustment and fix.
5.The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.
6.Slotting knife was choice with the high quality alloy steel , which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used,it could be equipped with portable punching die holder.
2.Slotting tool rest, pressure wheel, horizontal move by manual mechanic joint adjustment.
3.The height of box size was adjustment by synchronous.4.Pressure interval was used the self-lock worm wheel and worm device adjustment and fix.
5.The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.
6.Slotting knife was choice with the high quality alloy steel , which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used,it could be equipped with portable punching die holder.
Die cutter unit：
1.The side to side 50mm mechanical spiral movement device adopted on the anvil drum.
2.The die drum transverse movement can prolong the service life of anvil drum.
3.Die cutting phase is digitally controlled by motor and PLC.
4.The die cutting cylinder lateral register is digitally controlled by motor and PLC, rang about ±10mm.
5.Motorized caliper adjustment between anvil roll and die drum.
6.Self-locking system is adopted on feeding rolls.
7.Anvil Rubber roller speed compensation adopted independent motor for driving to control the rubber roller speed, the compensation scopes ±3mm.
8.Anvil trimmer to keep surface of the anvil covers flat and smooth.
2.The die drum transverse movement can prolong the service life of anvil drum.
3.Die cutting phase is digitally controlled by motor and PLC.
4.The die cutting cylinder lateral register is digitally controlled by motor and PLC, rang about ±10mm.
5.Motorized caliper adjustment between anvil roll and die drum.
6.Self-locking system is adopted on feeding rolls.
7.Anvil Rubber roller speed compensation adopted independent motor for driving to control the rubber roller speed, the compensation scopes ±3mm.
8.Anvil trimmer to keep surface of the anvil covers flat and smooth.
Vibrator machine：
* The unit is designed to remove burrs (trimmings) remaining after cutting blanks on the corrugated box production line;
* Removal of trimmings is performed using round belts in section, vibrating under the influence of impacts of two rectangular rollers;
* The unit is equipped with two coolers for pressing the blanks and directed removal of the burr from the blanks on the conveyor table;
* The unit is made according to the parameters of the line.
* Removal of trimmings is performed using round belts in section, vibrating under the influence of impacts of two rectangular rollers;
* The unit is equipped with two coolers for pressing the blanks and directed removal of the burr from the blanks on the conveyor table;
* The unit is made according to the parameters of the line.
Stacker unit:
Answer the paper arm：
(1). can choose manual type or automatic type operation.
(2). answer the paper arm transmission belt, individually tuning firmness, do not suffer belt nearly restrictions.
Bed lifting platform：
(1). Puissant chain drive.
(2). stack height is 1600mm.
(3). bed sets lifting transmission motor attached brake function, bed sets to maintain fixed position, and from slipping.
(4). adding the safety protection devices, make fluctuation bed sets in, ensure control of homework personnel safety.
(5). graphic wrinkles hill-climbing belt, prevent cardboard slide.
(1). can choose manual type or automatic type operation.
(2). answer the paper arm transmission belt, individually tuning firmness, do not suffer belt nearly restrictions.
Bed lifting platform：
(1). Puissant chain drive.
(2). stack height is 1600mm.
(3). bed sets lifting transmission motor attached brake function, bed sets to maintain fixed position, and from slipping.
(4). adding the safety protection devices, make fluctuation bed sets in, ensure control of homework personnel safety.
(5). graphic wrinkles hill-climbing belt, prevent cardboard slide.
Specification
Parameter | Unit | Model | ||||||||||
HL-A 950-1800 | HL-A 950-2000 | HL-A 950-2200 | HL-A 4212-2200 | HL-A 4212-2400 | ||||||||
Max machinery speed | pcs/min | 120 | 120 | 120 | 120 | 120 | ||||||
Economic printing speed | pcs/min | 100 | 100 | 100 | 100 | 100 | ||||||
Max size of paperboard | mm | 950*2000 | 950*2200 | 950*2400 | 1300*2400 | 1300*2600 | ||||||
Min size of paperboard | mm | 260*500 | 260*500 | 260*500 | 350*800 | 350*800 | ||||||
Min space of slotting | Obverse knife | mm | 140*140*140*140 | 150*150*150*150 | ||||||||
Reverse knife | mm | 260*60*260*60 | 280*60*280*60 | |||||||||
Max depth of slot | mm | 240 | 240 | 240 | 300 | 300 | ||||||
Skip feed size | mm | 1200*2000 | 1200*2200 | 1200*2400 | 1500*2400 | 1500*2600 | ||||||
Max printing area | mm ² | 950*1800 | 950*2000 | 950*2200 | 1300*2200 | 1300*2400 | ||||||
Thickness of standard plate | mm | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | ||||||
Packing & Delivery
Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.
Company Profile
Hebei LIHENG Packaging machinery Co.,LTD, located at DONGGUANG county economic development zone east. Beilian jingjin, south by shandong, with cangzhou iron lion, wuqiao acrobatic world adjacent; The beijing-shanghai railway, 104 national highway and beijing-fuzhou expressway adjacent to it, has convenient transportation and excellent production environment.
Our factory specializing in the production of all kinds printing machine and a complete set of packaging machinery and equipment, with independent development and research ability, to achieve sustainable development of high-tech equipment level, and constantly improve the deficiency existing in international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, the safety of automated machinery and equipment. Enterprise recruitment of talent, strong technical force, with high-tech design, sophisticated production equipment, advanced detection means, strict quality management system and a skilled production team, in order to ensure the quality of the product performance has laid a solid foundation.
Over the years, enterprises follow the "innovation, the pursuit of excellence, frolic in the waves waves, have the courage to
lead," the purpose, make the product quality improved steadily. And has a reputation for timely delivery and thoughtful service well received by new and old customers.
I plant to the revitalization of China's packaging industry as own duty, sincerely cooperate with the masses of users. In the
future, we will be quality products and perfect after-sales service to meet customers needs.
Our factory specializing in the production of all kinds printing machine and a complete set of packaging machinery and equipment, with independent development and research ability, to achieve sustainable development of high-tech equipment level, and constantly improve the deficiency existing in international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, the safety of automated machinery and equipment. Enterprise recruitment of talent, strong technical force, with high-tech design, sophisticated production equipment, advanced detection means, strict quality management system and a skilled production team, in order to ensure the quality of the product performance has laid a solid foundation.
Over the years, enterprises follow the "innovation, the pursuit of excellence, frolic in the waves waves, have the courage to
lead," the purpose, make the product quality improved steadily. And has a reputation for timely delivery and thoughtful service well received by new and old customers.
I plant to the revitalization of China's packaging industry as own duty, sincerely cooperate with the masses of users. In the
future, we will be quality products and perfect after-sales service to meet customers needs.
Certifications
FAQ
1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(20.00%),South America(15.00%),Eastern Europe(15.00%),South
Asia(10.00%),Africa(8.00%),Eastern Asia(8.00%),Southeast Asia(7.00%),Mid East(7.00%),North America(5.00%),Oceania(5.00%). There
are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line/Printer Slotter Die Cutting Machine/Folder Gluer
4. why should you buy from us not from other suppliers?
Cangzhou Yuyuan IMP&EXP CO.,LTD is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2017,sell to Domestic Market(20.00%),South America(15.00%),Eastern Europe(15.00%),South
Asia(10.00%),Africa(8.00%),Eastern Asia(8.00%),Southeast Asia(7.00%),Mid East(7.00%),North America(5.00%),Oceania(5.00%). There
are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line/Printer Slotter Die Cutting Machine/Folder Gluer
4. why should you buy from us not from other suppliers?
Cangzhou Yuyuan IMP&EXP CO.,LTD is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
Похожие товары

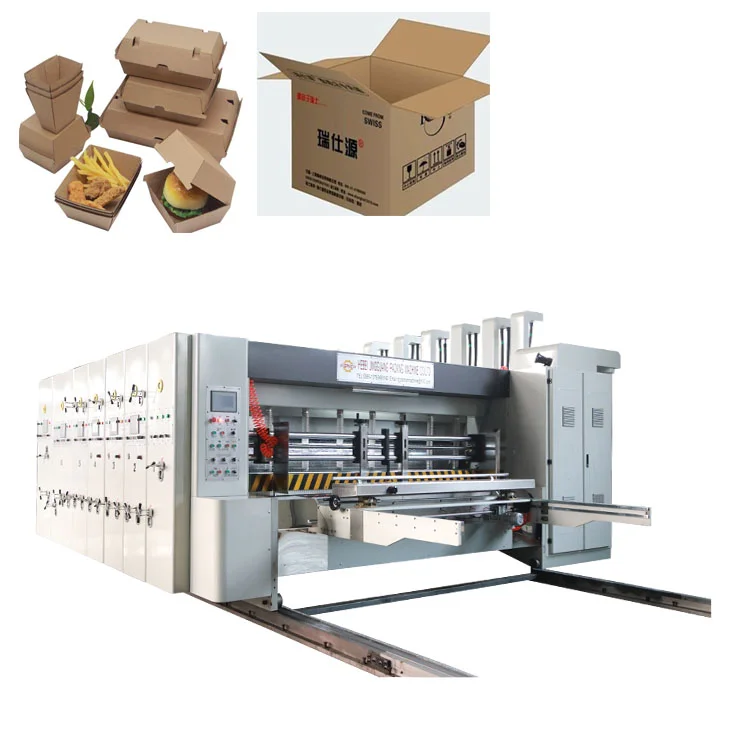

Флексографская печатная машина цена свинцовая кромка 2 цвета штамповочный штабелер двухцветный принтер долбежный
18 000,00 $

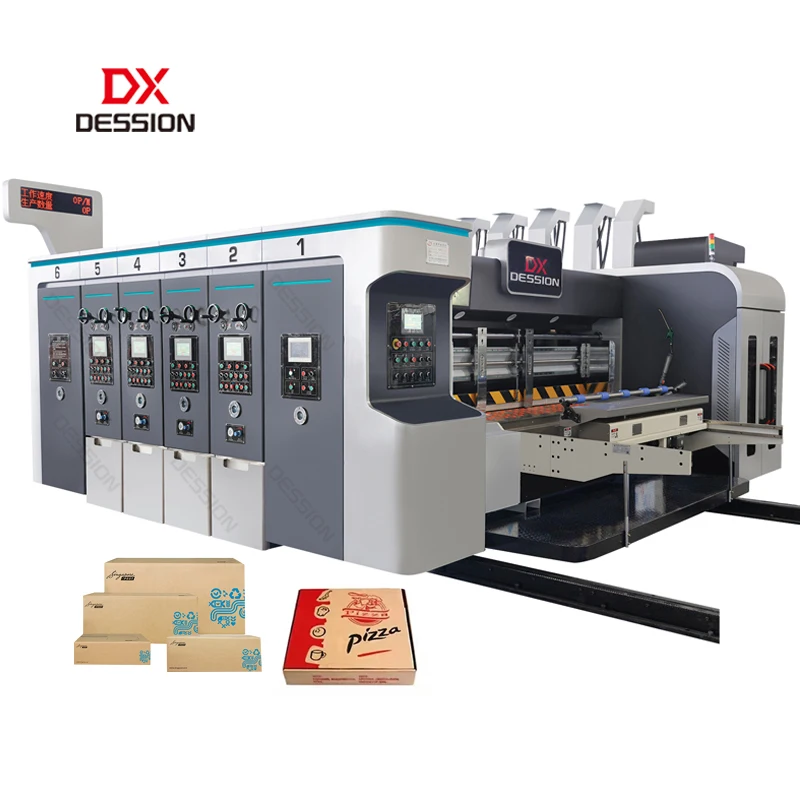

Carton Printing Slotting Die-cutting Machine Industrial 2 Color Printer Slotter Die Cutter
