Модуль наклона PAN PT series FH8852V201 2MP камера HD IPC PCB IP модуль камеры wifi модуль
- Категория: >>>
- Поставщик: Hangzhou Topsvision Technology Co. Ltd.
Сохранить в закладки 1600917307413:
Описание и отзывы
Характеристики
We have our own factory and professional R&D team, worry-free after-sales.
Welcome to visit the factory! Looking forward to working with you！
There are 400 PCS in one box.
PRODUCT DESCRIPTION
Features
* Fullhan FH8852V201 chip;
* 4MP pixels, 1/2.9" target surface, standard,52.6mm*38.3mm board;
* Support H.264/H.265, dual stream (main stream and auxiliary stream) output;
* Support IE, Edge,Chrome,Safaribrowser browsing;
* Support audio input and output, realize video monitoring;
* Support inductive infrared day and night switching to achieve 24-hour monitoring;
* Support human form detection;
* Support many protocols such as onvif protocol and Hikvision private protocol, and can access many large-scale platform management systems at home and abroad;
* Support mobile phone monitoring (iOS, Android), Web terminal, VMS monitoring;
* Support PoE power supply (optional);
* 4MP pixels, 1/2.9" target surface, standard,52.6mm*38.3mm board;
* Support H.264/H.265, dual stream (main stream and auxiliary stream) output;
* Support IE, Edge,Chrome,Safaribrowser browsing;
* Support audio input and output, realize video monitoring;
* Support inductive infrared day and night switching to achieve 24-hour monitoring;
* Support human form detection;
* Support many protocols such as onvif protocol and Hikvision private protocol, and can access many large-scale platform management systems at home and abroad;
* Support mobile phone monitoring (iOS, Android), Web terminal, VMS monitoring;
* Support PoE power supply (optional);

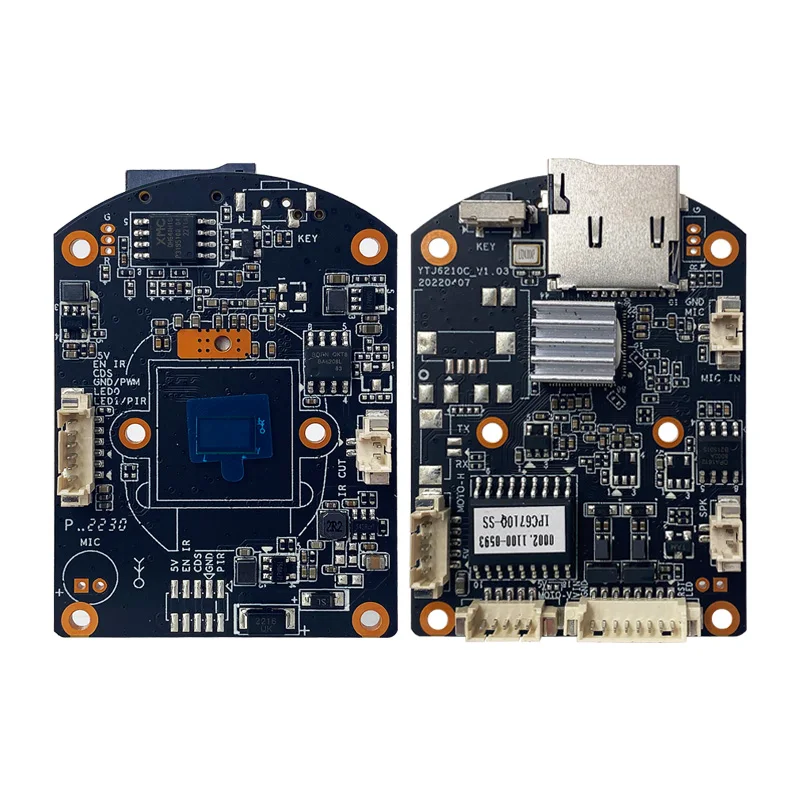

Front | ||
J1 (2PIN 1.25mm spacing socket, IR_CUT interface) | ||
1 | IR_CUT Control Signal 1 (Black line) | |
2 | IR_CUT Control Signal 2 (Red Line) | |
J2 (6PIN 1.25mm Spacing socket, lamp board interface) | ||
1 | 5VOUT(5V output) | |
2 | EN IR (IR control signal output (high and low level)) | |
3 | CDS (Analog input detection, ordinary infrared light board interface) | |
4 | GND | |
5 | LED (Reserved indicator lamp IO port) | |
6 | WL(Warm light control signal output (high and low level)) | |
4 | GND | |
5 | LED (reserved indicator IO port) | |
6 | WL(Warm light control signal output (high and low level)) | |

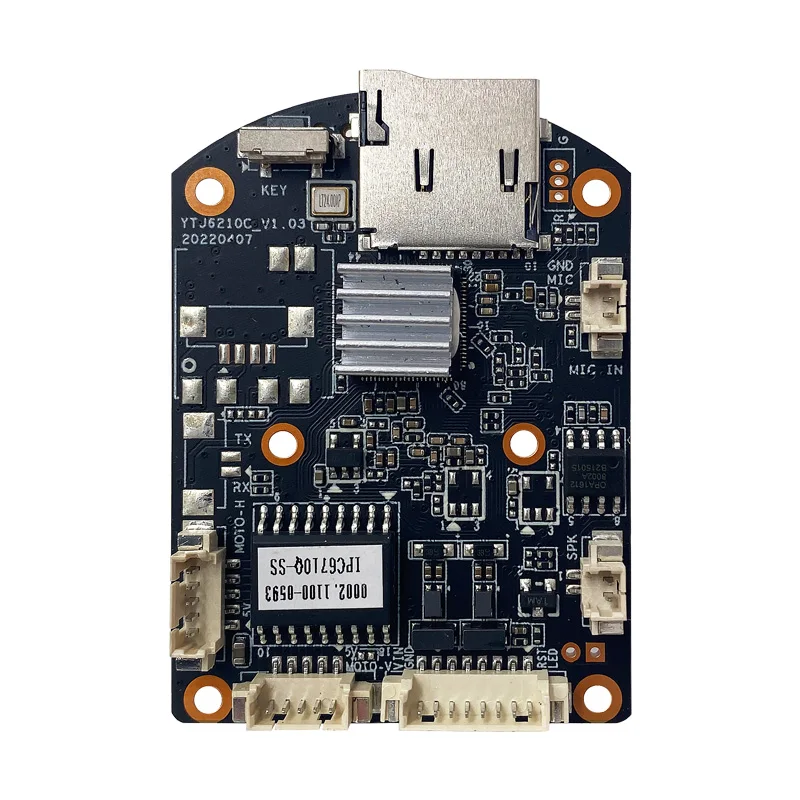

Reverse | ||
J3 (2PIN 1.25mm spacing socket, MIC interface) | ||
1 | GND | |
2 | MIC (MIC signal input) | |
J4 (2PIN 1.25mm spacing socket, horn interface) | ||
1 | Horn interface (Horn output signal) | |
2 | Horn interface (Horn output signal) | |
J5 (8PIN 1.25mm spacing socket, power input and network interface) | ||
1 | LED (Network act lamp) | |
2 | RST（Reset） | |
3 | RJ6（Rx- receipt signal -） | |
4 | RJ3（Rx+ receipt signal +） | |
5 | RJ2（Tx- sending signal -） | |
6 | RJ1（Tx+ sending signal +） | |
7 | GND | |
8 | 12V IN (12V power supply input) | |
J6 (5PIN 1.25mm spaced motor interface (Vertical direction)) | ||
1 | 5V_MOTOR | |
2 | V HB1 (Vertical Motor Signal 1) | |
3 | V HB2 (Vertical Motor Signal 2) | |
4 | V HB3 (Vertical Motor Signal 3) | |
5 | V HB4 (Vertical Motor Signal 4) | |
J7 (5PIN 1.25mm spaced motor interface (Vorizontal direction)) | ||
1 | 5V_MOTOR | |
2 | H MB1 (Horizontal Motor Signal 1) | |
3 | H MB2 (Horizontal Motor Signal 2) | |
4 | H MB3 (Horizontal Motor Signal 3) | |
5 | H MB4 (Horizontal Motor Signal 4) | |
J8 (Reset button) | ||
J9 (TF card ) | ||
PRODUCT PARAMENTERS
Module | IPC6708DQ-SS |
Main chip | FH8852V201 |
Sensor | 4MP pixel , 1/2.9″ CMOS sensor |
Encoding format | H.264, H.265 encoding, support dual stream |
Maximum frame rate | PAL:4M:25fps/s;3M:25fps/s; 2M:25fps/s; NTSC:4M:30fps/s;3M:30fps/s;2M:30fps/s |
Image Resolution | Main stream: 2560*1440,2304*1296,1920*1080； Auxiliary stream: 704*576,640*480,352*288 Snap stream: 704*576、640*480、352*288 |
Subtitle overlay | Support channel name, date and time overlay, overlay position is adjustable |
Alarm data transmission | FTP, E-mail, browser, management software |
Protocol support | TCP/IP、RTSP、RTP、HTTP、DNS、DDNS、DHCP、FTP、NTP、UPNP |
ONVIF protocol | Standard ONVIF protocol |
Client browsing | Client browsing supports IE8.0 and above (device embedded Web Server), Edge,Chrome,Safari browser browsing |
Mobile client | Support iOS, Android platforms |
Audio format | G.711A |
Audio input | 1 audio input |
Audio output | 1 audio output |
Powered by | DC12V |
Equipment power | Bare board 1.2W (MAX) |
Dimension | 52.6(L) * 38.3(W) |
IR-CUT hole distance | 20mm |
Equipment weight | 0.1 kg |
Equipment weight | 0.1 kg |
HangZhou TaoShi Technology Co., Ltd. was established in November 2012. It is an excellent enterprise focusing on the design of video surveillance products. The company's main products include XVR five-in-one series, AHD five-in-one series, and H.265 NVR and IPC. The company has a strong R&D team, the team members are vigorous, active, united, harmonious, and endowed with innovative spirit, and constantly expand new knowledge fields, gaining knowledge and accumulating, accumulate and develop！As a young company, TaoShi Technology adheres to the corporate spirit of "Integrity, Responsibility, Efficiency, and Pursue Excellence". It is customer-centric, provides the most comprehensive technical support, assists customers in expanding the market, and strives to create a win-win cooperation.
333
Q1: Are you a factory?
A: Yes, we have our own factory in Shenzhen. Welcom to visit our company if you have free time.
Q2: Do you provide free sample?
A: Yes, we could offer free sample for some items, but do not pay the cost of freight.
Q3: Can I make my own logo on it?
A: Of course. We suppot OEM and ODM service, including color, logo, package, size etc.
Q4: What's your MOQ?
A: For orders supply from stock, the MOQ is 1 pcs. For OEM or ODM orders, the MOQ is 500 pcs.
Q5: Can I add or delete items from my order if I change my mind?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
