Строительные оцинкованные строительные леса система Ringlock
4,18 $
Оцинкованная кольцовая система для строительных лесов
- Категория: Scaffoldings >>>
- Поставщик: Changli Xingminweiye Architecture Equipment Limited Corporation
Сохранить в закладки 1600917480991:
Описание и отзывы
Характеристики
Products Description

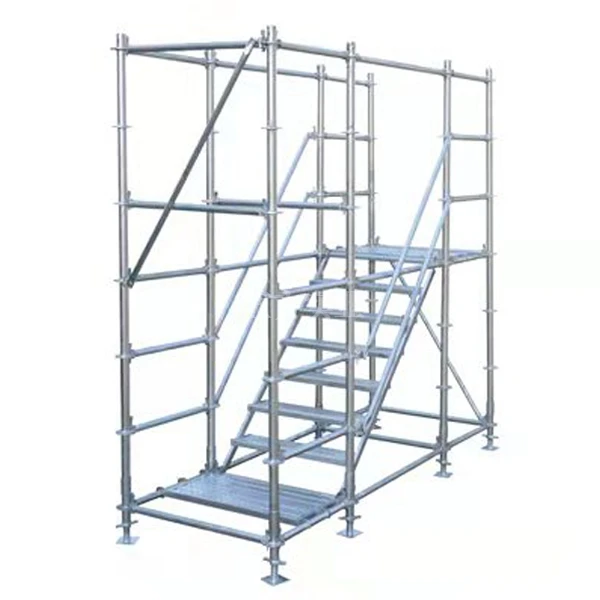

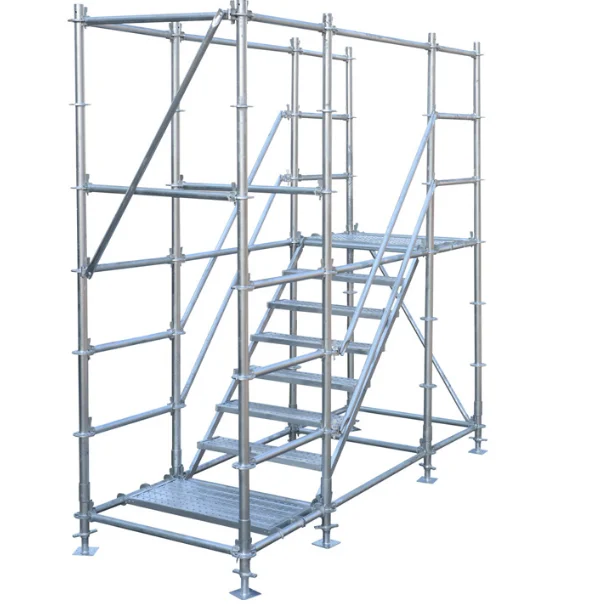

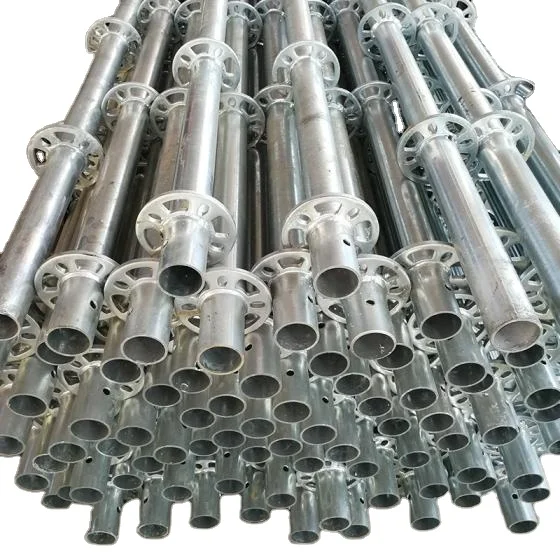

Ringlock Scaffolding System
Ringlock scaffolding System is composed of standard, ledger, diagonal brace, adjustable base and other accessories. The standard has a diameter of 48mm and 60mm, respectively corresponding to two types of connection, external connection and internal connection. External connection adopts sleeve connection, 75mm and 110mm two specifications. The internal connection is connected by connecting rod socket. The ledger and the diagonal brace are clamped into the connecting rosette with the rod end buckle joint and are quickly connected with the wedge latch. Hot dip galvanized surface treatment process, strong adhesion, excellent anti-corrosion performance, longer service life.
Details Images
Specification
Name | Size(mm) | Weight(kg) | Name | Size(mm) | Weight(kg) |
Standard Dia 48mm | 500*48*3.25 | 3.2 | Standard Dia 60mm | 500*60*3.25 | 4.1 |
1000*48*3.25 | 5.4 | 1000*60*3.25 | 6.8 | ||
1500*48*3.25 | 7.8 | 1500*60*3.25 | 9.8 | ||
2000*48*3.25 | 10.0 | 2000*60*3.25 | 12.5 | ||
2500*48*3.25 | 12.7 | 2500*6.*3.25 | 15.8 | ||
3000*48*3.25 | 17.5 | 3000*60*3.25 | 21.8 | ||
Ledger Dia 48mm | 600*48*2.75 | 2.3 | Diagonal Brace Dia 42mm | 600*1500*42*2.5 | 6.5 |
900*48*2.75 | 3..3 | 900*1500*42*2.5 | 5.95 | ||
1200*48*2.75 | 4.2 | 1200*1500*42*2.5 | 6.5 | ||
1500*48*2.75 | 5.4 | 1500*1500*42*2.5 | 7.2 | ||
1800*48*2.75 | 6.5 | 1800*1500*42*2.5 | 7.95 | ||
Adjustable U-Head Screw | Φ38*5.0*600 | 4.5 | Adjustable Base Jack | Φ38*5.0*600 | 3.9 |
Φ48*6.5*600 | 7.7 | Φ48*6.5*600 | 6.2 |
Unite weight is based on spot checks.

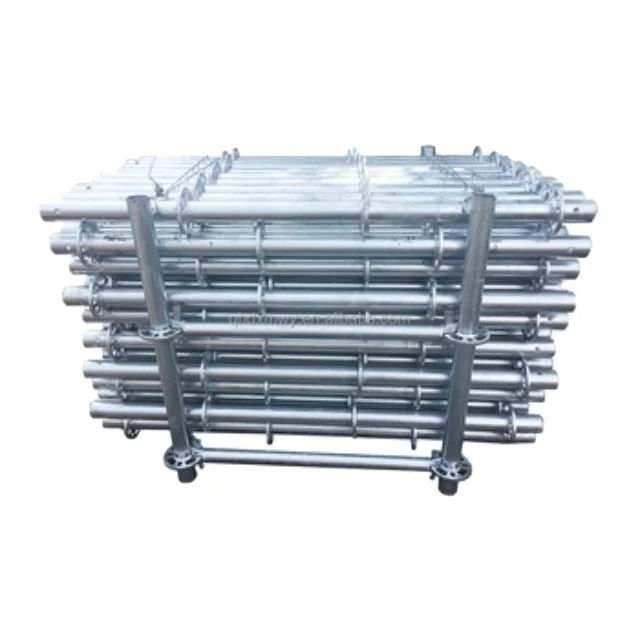

Product packaging
Company Profile
Xingmin Weiye (XMWY) Architecture Equipment Co., Ltd. is a large modern joint-stock enterprise specializing in the research and development and production of a new type of digital steel building support composite system. It is located in the beautiful seaside city of Beidaihe New District, Qinhuangdao. The company has two factory areas with a total area of more than 240,000 square meters. It integrates research and development and production and is mainly committed to the development and research of building formwork support systems.
Our company took the lead in participating in the compilation of many local and national construction specifications and construction standards. The product production standard of “Building Formwork Composite Support System” formulated by the company has been released as a local standard in Hebei Province. The company has a strong R&D team, self-owned mold development, stamping, casting, molding and other complete production supporting systems. It can develop and produce according to customer requirements.
Certifications
Our company has made major technological breakthroughs in the new building formwork support composite system and has obtained more than 60 independent intellectual property rights such as national invention and utility model patents. This technology is called a revolutionary initiative in the formwork support structure by the domestic and foreign construction industry.
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4.Provide good service and help to find the question when customers are in trouble, solve the problem as soon as i know.
5.Precise calculate drawings depends on CAD to save money. make a plan for you and let you know how to save money and let customers feel comfortable the process they plan to purchase.
6.make a quotation for customers
7.Reception customers see factory
5.Precise calculate drawings depends on CAD to save money. make a plan for you and let you know how to save money and let customers feel comfortable the process they plan to purchase.
6.make a quotation for customers
7.Reception customers see factory
8. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me feedback. If you have any questions about the problem, contact with us, we will offer
the solve way for you. Whatever quality, price, deliver times, and service are the best can satisfy with your demand.
sincerely hope you come to see our factory and introduce the details about products.
Choose XMWY, you will really feel comfortable and at ease.
goods, test them, and give me feedback. If you have any questions about the problem, contact with us, we will offer
the solve way for you. Whatever quality, price, deliver times, and service are the best can satisfy with your demand.
sincerely hope you come to see our factory and introduce the details about products.
Choose XMWY, you will really feel comfortable and at ease.
Why Choose Us
1. Q: What's your MOQ(minimum order quantity)?
A: One full 20ft container, mixed acceptable.
2. Q: What's your packing methods?
A: Packed in bundle or bulk (customed is accepted).
3. Q: What's your payment terms?
T/T 30% in advance by T/T ,70% will be before shipment under FOB.
T/T 30% in advance by T/T ,70% against the copy of BL under CIF.
T/T 30% in advance by T/T ,70% LC at sight under CIF.
4. Q: What's your delivery time?
A: 10-20 days after received the advance payment.
5. Q: Are you manufacturer or trader?
A: We are the manufacturer of construction materials for decade years ,xmwy Group do domestic market and export business.
6. Q: Where's your factory?
A: Our factory is in changli city (near Beijing) afforded enough production ability and earlier delivery time.
7. Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
8. Q: Can you supply other scaffolding materials?
A: Yes. All related construction materials.
(1) scaffolding system (cup-lock system, ring lock system, scaffolding steel frame, pipe&coupler system)
(2) scaffolding pipes (1.5'-2.0') x(0.3-12m), hot dipped galvanized/Pre-galvanized /black. BS1139
(3) steel pipes (ERW steel pipes, Square/ Rectangular tube, black annealed steel tube)
(4) steel coupler (pressed/drop forged coupler)
(5) steel plank with hooks or without hooks
(6) steel stair case
(7) screw adjustable base jack
(8) Construction Metal Formwork
A: One full 20ft container, mixed acceptable.
2. Q: What's your packing methods?
A: Packed in bundle or bulk (customed is accepted).
3. Q: What's your payment terms?
T/T 30% in advance by T/T ,70% will be before shipment under FOB.
T/T 30% in advance by T/T ,70% against the copy of BL under CIF.
T/T 30% in advance by T/T ,70% LC at sight under CIF.
4. Q: What's your delivery time?
A: 10-20 days after received the advance payment.
5. Q: Are you manufacturer or trader?
A: We are the manufacturer of construction materials for decade years ,xmwy Group do domestic market and export business.
6. Q: Where's your factory?
A: Our factory is in changli city (near Beijing) afforded enough production ability and earlier delivery time.
7. Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
8. Q: Can you supply other scaffolding materials?
A: Yes. All related construction materials.
(1) scaffolding system (cup-lock system, ring lock system, scaffolding steel frame, pipe&coupler system)
(2) scaffolding pipes (1.5'-2.0') x(0.3-12m), hot dipped galvanized/Pre-galvanized /black. BS1139
(3) steel pipes (ERW steel pipes, Square/ Rectangular tube, black annealed steel tube)
(4) steel coupler (pressed/drop forged coupler)
(5) steel plank with hooks or without hooks
(6) steel stair case
(7) screw adjustable base jack
(8) Construction Metal Formwork
Похожие товары
Вертикальная лестничная башня 6 м подвижные алюминиевые металлические леса испытанная на заводе легкая алюминиевая складная
780,00 $ - 980,00 $

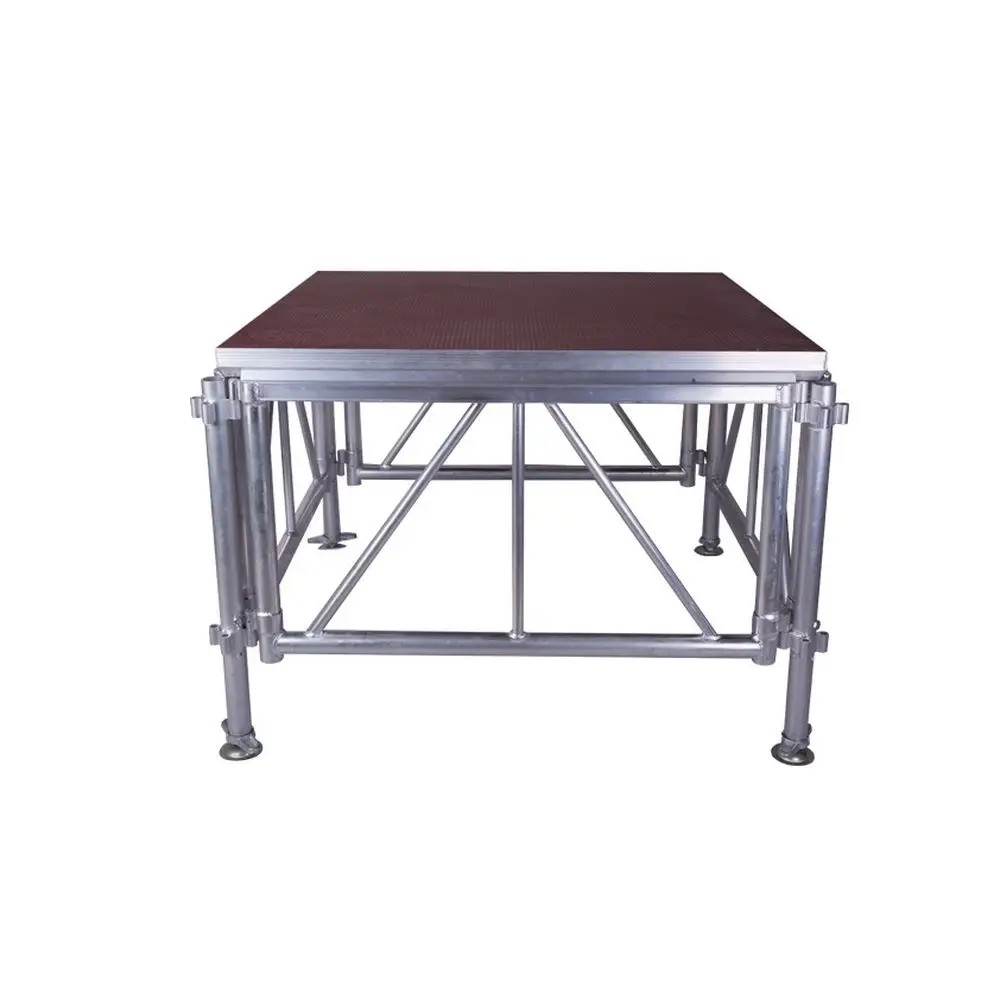

Prima Truss наружные концертные представления фермы алюминиевое Освещение сцены
7,60 $ - 9,80 $
2023 Лучшая цена горячеоцинкованные гальванизаторы Q195 Q235 стальная рама движущаяся оцинкованная многослойная башня кольцевая
15,00 $ - 30,00 $

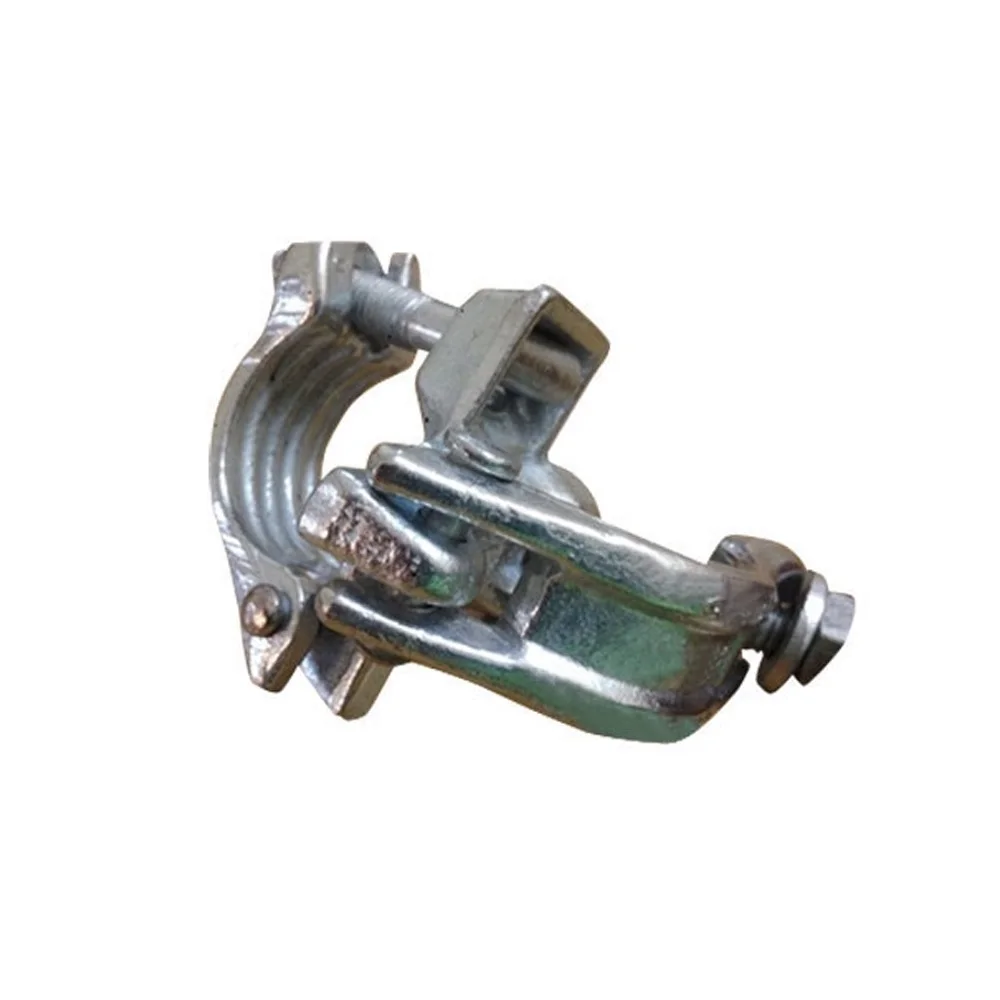

УГЛЕРОДНЫЙ Железный двойной соединитель
Многонаправленные строительные леса круглая система строительных лесов layher

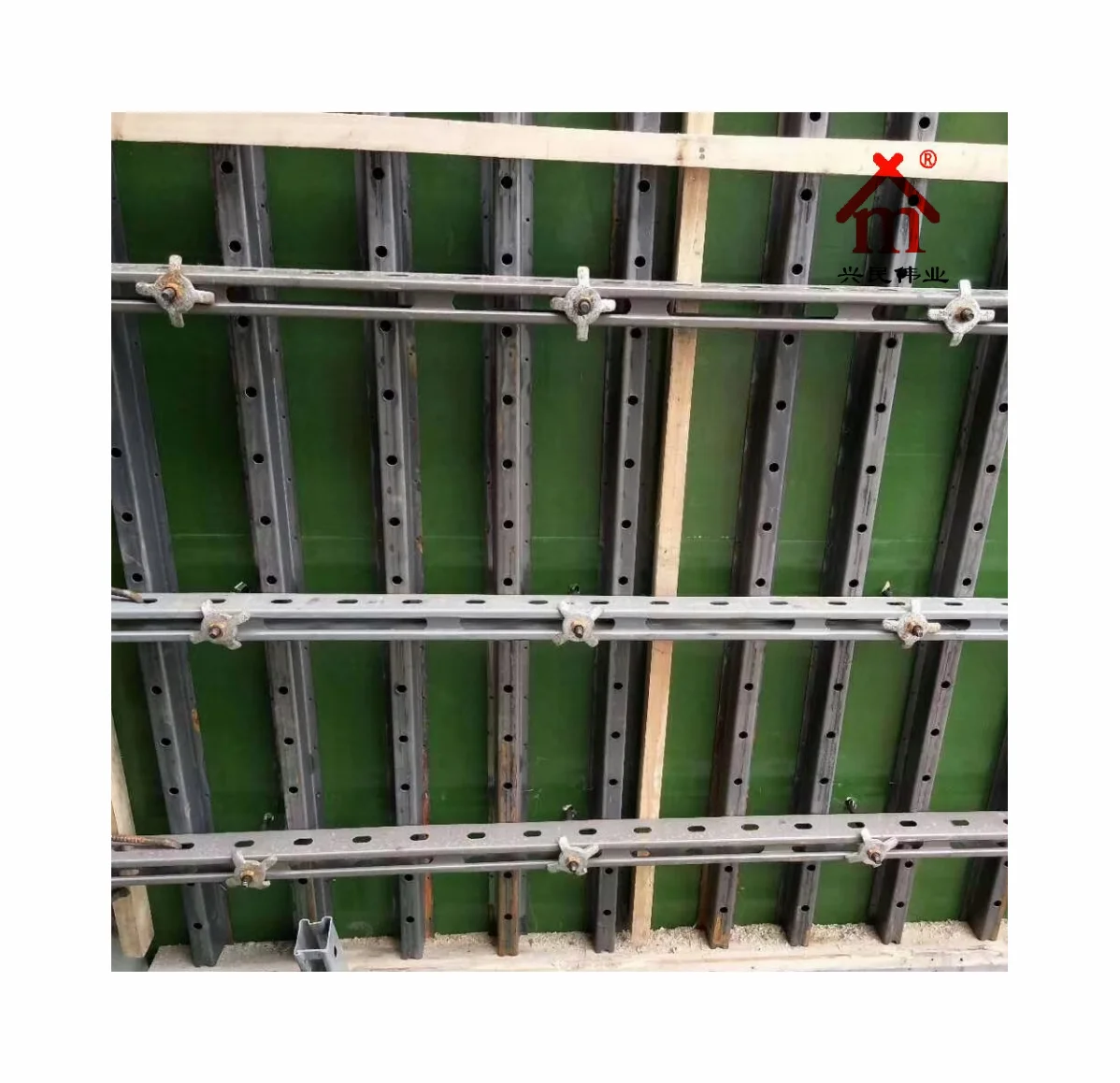

Опалубка плита стальная опалубка бетонный строительный

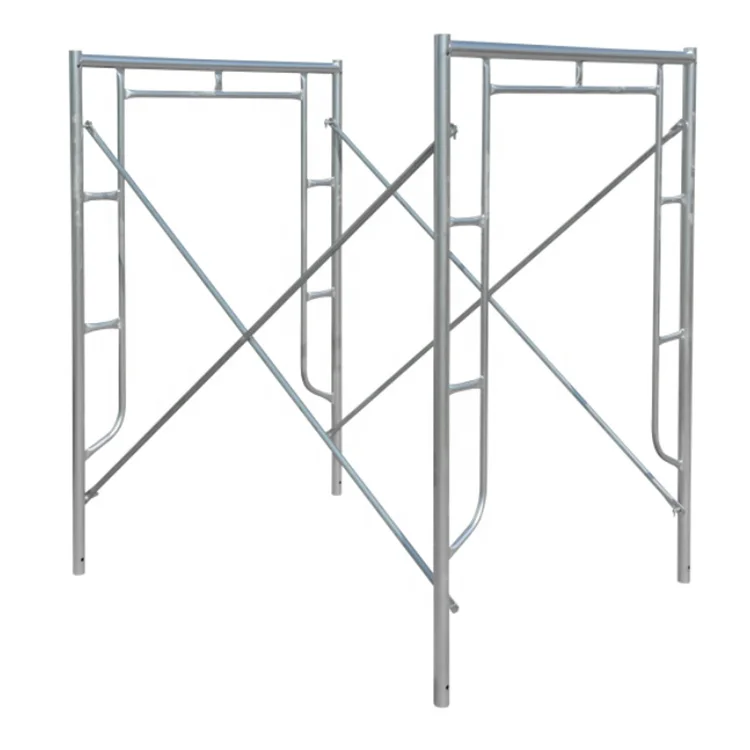

Оцинкованная окрашенная Порошковая лестница с порошковым покрытием дверная рама для опалубки строительное
