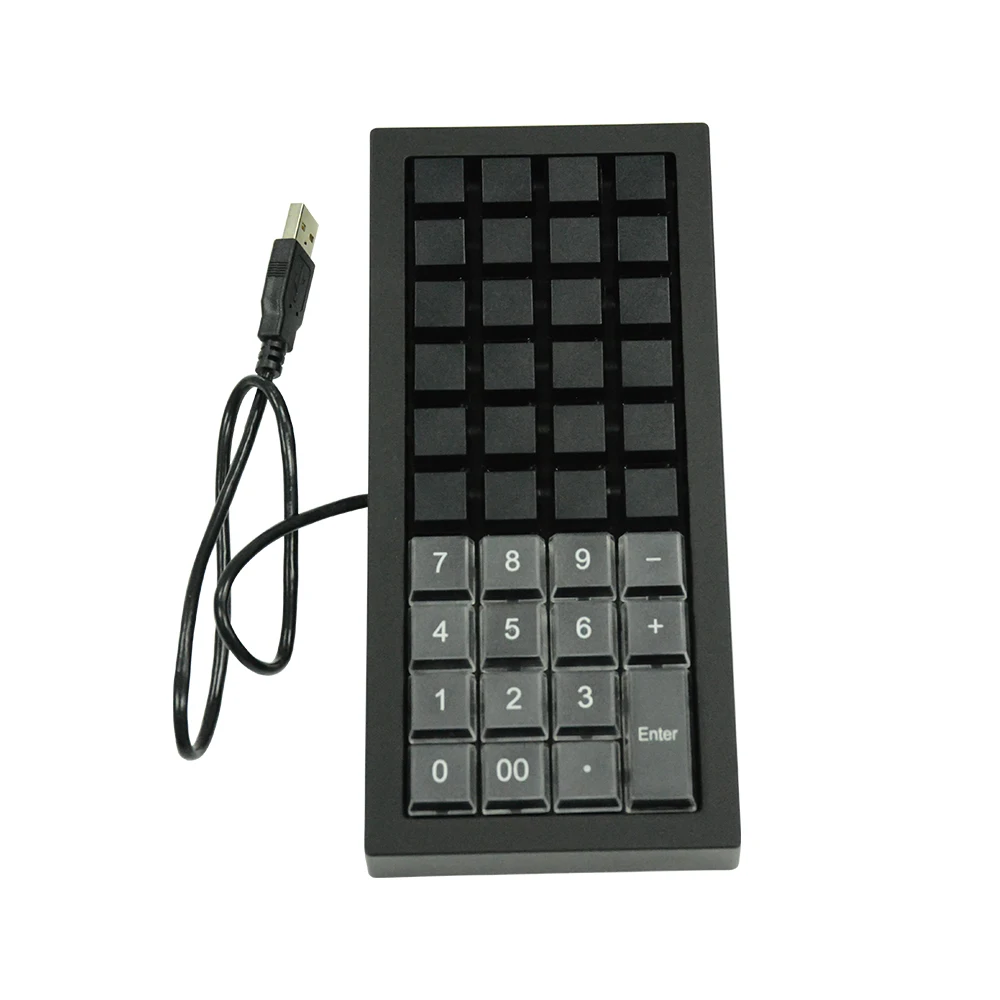

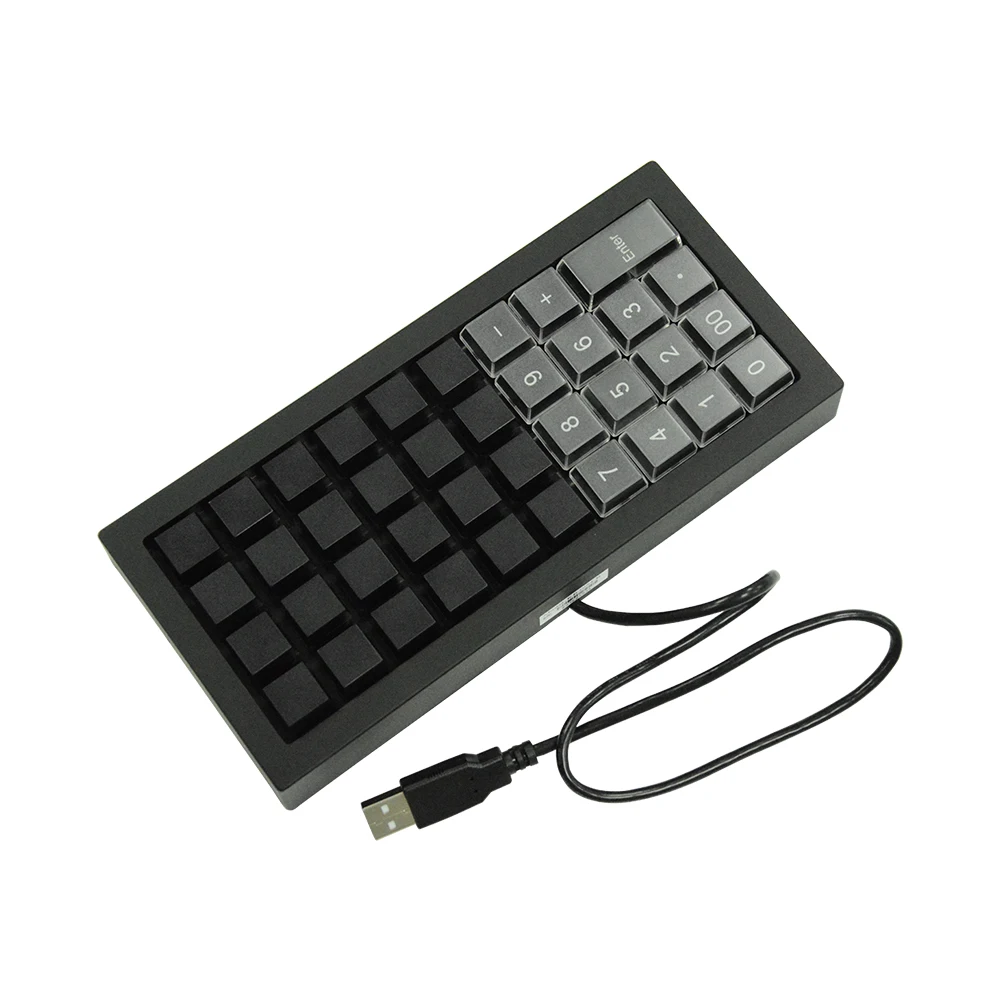

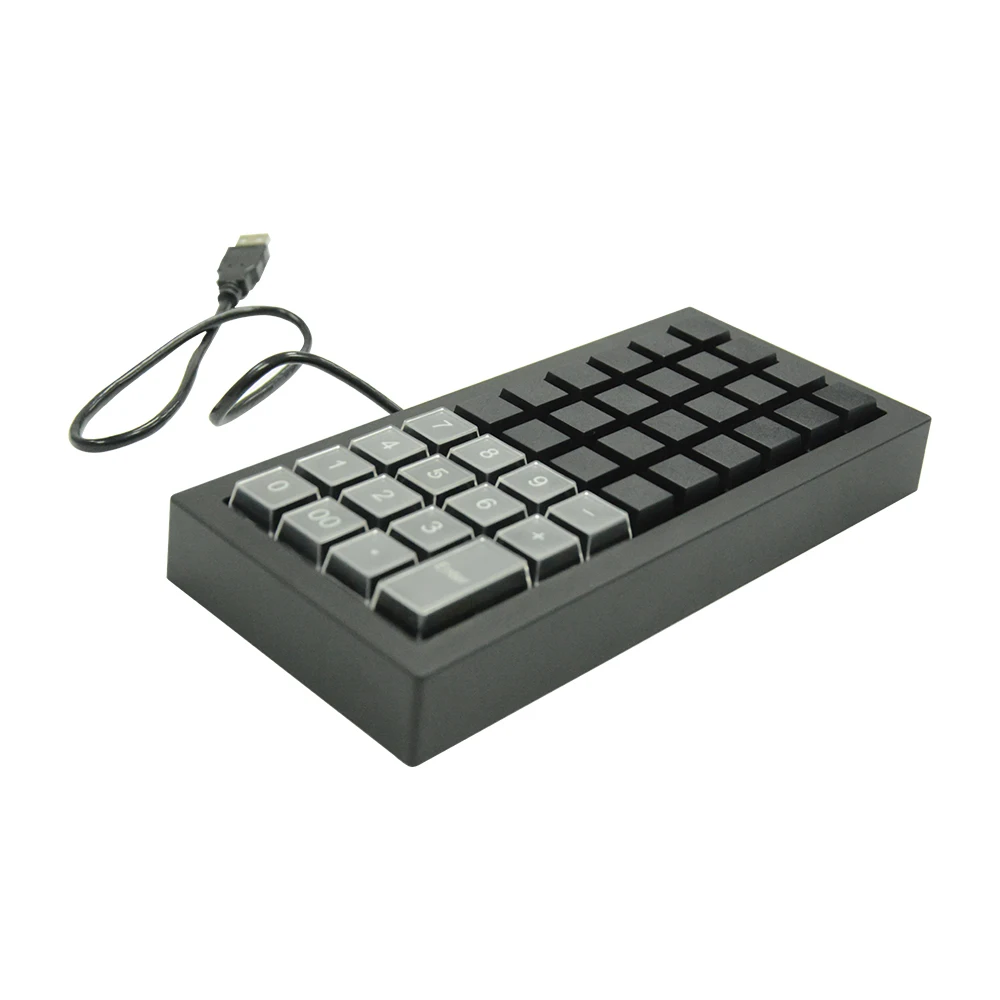

40-клавишная Проводная USB-клавиатура Mini POS, кассовый программируемый KB40 для использования в кассовом аппарате
1 626,54 ₽ - 1 951,85 ₽
40 клавиш usb cherry механическая мини программируемая клавиатура KB40
- Категория: >>>
- Поставщик: Shenzhen Hcc Technology Co. Ltd.
Сохранить в закладки 1600918678589:
Описание и отзывы
Характеристики
Product Description
KB40 serials are the kind of fully programmable keyboards, Membrane type, Black color, USB interface. There are following configurations for option:

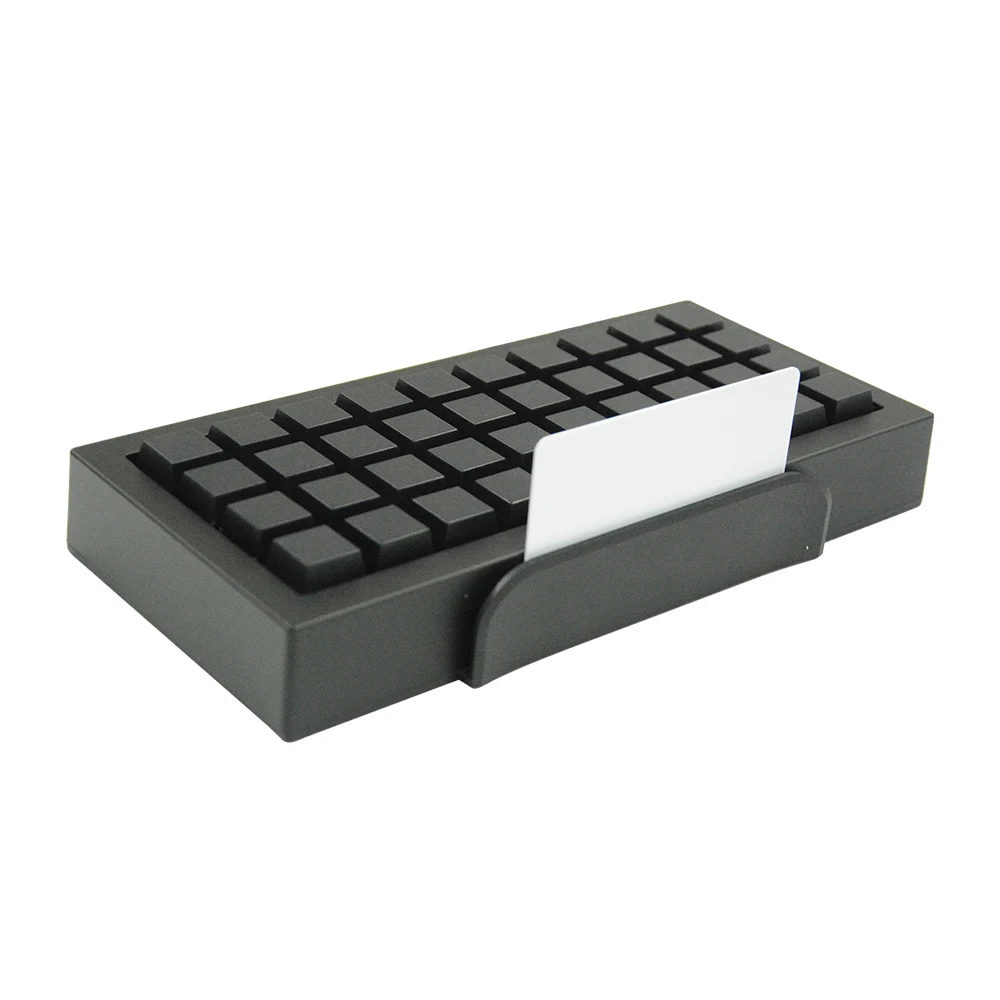

1.Magnetic card reader;
2.The numeric zone.
1.Magnetic card reader;
2.The numeric zone.
Feature:
1.Main Material: ABS;
2.1000,0000 times press;
3.40 keys fully programmable keys, 10 * 4 matrix;
4.Membrane type, Stand alone push rod struction, good tactile feelings;
5.Magstripe reader settings are programmable by Matrix Maker;
6.Programmable functions are powered by the Matrix Maker;
7.With internal strong metal plate to enhance the protection against ESD is increased;
8.EMC radiation meets Class B requirements, antistatic design（Refer to GB 4943、GB/T 1762);
9.Different relegendable keycaps (1 fold, 2 fold and 4 fold) are available;
10.Numeric profile keycaps are available;
11.Non-detachable cable, Direct outlet.
1.Main Material: ABS;
2.1000,0000 times press;
3.40 keys fully programmable keys, 10 * 4 matrix;
4.Membrane type, Stand alone push rod struction, good tactile feelings;
5.Magstripe reader settings are programmable by Matrix Maker;
6.Programmable functions are powered by the Matrix Maker;
7.With internal strong metal plate to enhance the protection against ESD is increased;
8.EMC radiation meets Class B requirements, antistatic design（Refer to GB 4943、GB/T 1762);
9.Different relegendable keycaps (1 fold, 2 fold and 4 fold) are available;
10.Numeric profile keycaps are available;
11.Non-detachable cable, Direct outlet.
Product Paramenters
Model | KB40 | KB40M | ||
Keyboard type | Mechanical | Membrane keys | ||
Press times | 5000,0000 | 1000,0000 | ||
Physical Properties | ||||
Main Material | ABS | |||
N.W | With MSR: 560g/PCS;12.5kg/CTN Without MSR: 400g/PCS;9.5kg/CTN | |||
Cable | 0.4M(Customized) | |||
Electrical Specification | ||||
Working Voltage | +5VDC ±5% | |||
Working Current | ≤150mA | |||
Insulation Resistance | >50MΩ | |||
Contact Resistance | <1KΩ | |||
Conductivity | 60±5gf | |||
Initial Strength | 40gf | |||
Total Stroke Strength | 60±5gf | |||
Key Pressure | 55±10g | |||
Pre-stroke | 2.0±0.3mm | |||
Total Stroke | 4.0mm | |||
Key Lifetime | Cherry Mechanical switch:50 million times Membrane: 10 million times; | |||
Support Interface | USB | |||
Operating System | DOS, Win9X, Me, Win2K,XP ,Win7,Win8,Win10 | |||
MSR Specification | ||||
ISO 7812, IBM standards, AAMVA, JIS-2 | ||||
Swipe Speed | 10-120cm/s | |||
Head Lifetime | 500,000times | |||
Coercivity Range | 300-4000 Oe | |||
The Density of Magnetic Stripe | Track 1: 210BPI with max 76 characters | |||
Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters | ||||
Track 3: 210BPI with max 107 characters | ||||
Track | 1 or 2 or 3 track; 1,2 track; 2,3 track; 1,2,3 track | |||
Power Supply | DC+3.3V | |||
Environmental Characteristics | ||||
Operating Temperature | 0℃ to ±45℃ | |||
Operating Humidity | 10% to 90% | |||
Storage Temperature | -20℃ to +50℃ | |||
Insulation Resistance | >50MΩ | |||
Contact Resistance | <1KΩ | |||
Atmosphere | 86-106kpa | |||
Support | OPOS, JPOS, UPOS | |||
Programming | Up to 16 layers, Max to 180 charactors for one single layer | |||
Optional | Magnetic card reader module (MSR) | |||
