PDKJ бесмаркировочный точечный сварочный аппарат тип платформы инвертора MF для сварки различной ориентации
2 190 775,04 ₽
Xinzhou MF сопротивление точечной сварки проволочной сетки сварочный аппарат
- Категория: >>>
- Поставщик: Ningbo Xinzhou Welding Equipment Co. Ltd.
Сохранить в закладки 1600919160538:
Описание и отзывы
Характеристики
Product Description
Features:
* Intermediate frequency DC inverter spot projection welding machine is the international advanced solder resistance products. * The welding transformer is widely used, and the volume is small and the output energy is large. The application of one type transformer welding pliers in the automotive industry is more advantageous.
* Its superior performance is because the frequency of the welding transformer is increased from the current 50/60HZ of the mains to 1000HZ, which greatly reduces the weight of the core material, and the rectifier diode in the secondary circuit of the transformer converts the electrical energy into DC power supply for welding use; This can greatly improve the secondary circuit induction coefficient value, which is an important factor leading to capacity loss, and can almost be ignored in the DC welding circuit, thus reducing the production cost to an extremely low level.
Advantage:
1.High energy saving: Lower welding current and electrode pressure.
2.High quality: Compared with the conventional welding machine, the stability of its welding electricity is unmatched by other machines.
3.Low cost: Three-phase power supply balanced input, high power factor, electrode life more than 1 times more durable than traditional.
4.High efficiency: A solder joint can be completed in a shorter welding time than traditional machines, increasing production speed.
Intelligent welding control system
Intelligent Touch Screen Controller
Input and read welding parameters.
Input and read welding parameters.
Raw materials made to standard

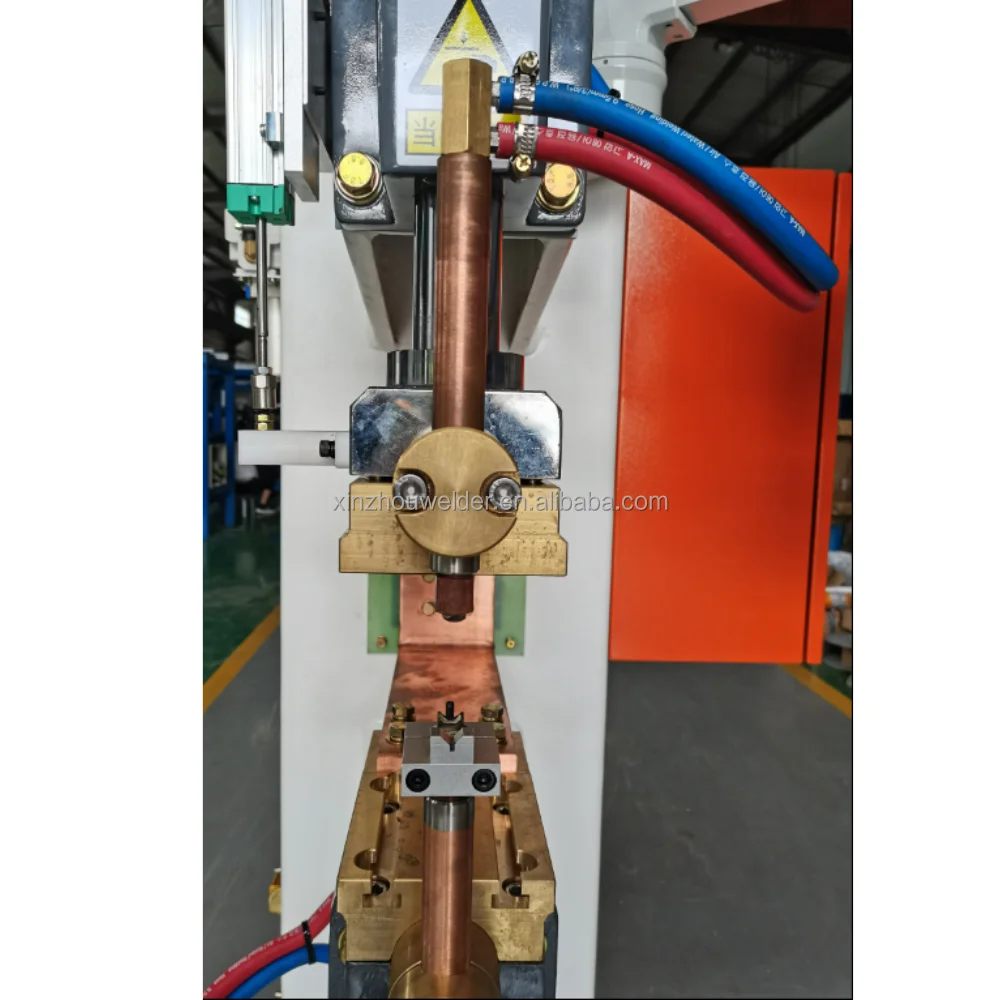

Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Shape structure and welding method
Design the right machine shape and mold according to the welding product.
Industry Of Application

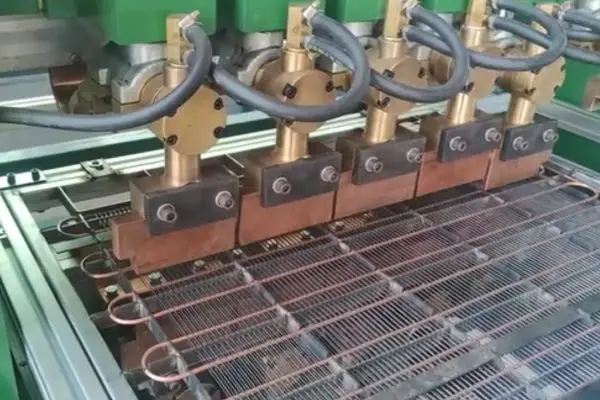

Welding Sample Display
Welding Results
Product Parameter
Model | Rated Capacity (KVA) | Primary voltage (V) | Primary input maximum current (A) | Secondary maximum output current (KA) | Secondary no-load voltage (V) | Cooling water flow (L/min) | Duty cycle (%) | Atmospheric temperature in use (℃) | Temperature in use (℃) |
DTM-50 | 50 | 500 | 340 | 20 | 12 | 8 | 20 | 0-30 | 90 |
DTM-90 | 60 | 500 | 600 | 25 | 13 | 8 | 20 | 0-30 | 90 |
DTM-160 | 160 | 500 | 840 | 30 | 16.6 | 10 | 20 | 0-30 | 90 |
DTM-250 | 250 | 500 | 1280 | 42.9 | 21 | 10 | 20 | 0-30 | 90 |
DTM-2x160 | 320 | 500 | 1680 | 60 | 16.6 | 12 | 20 | 0-30 | 90 |
DTM-2x250 | 500 | 500 | 2560 | 80 | 21 | 12 | 20 | 0-30 | 90 |
Company Introduction
PRICE
We provide good quality machine with competitive price.
CUSTOMIZE
We will customize the machine according to your requirement.
QUALITY
We have strict QC procedure to ensure the machine quality before shipment.
AFTER-SALES
Free online guidance and overseas commissioning service available.
Ningbo Xinzhou Welding Equipment Co., Ltd. was founded in 1998, is a company mainly engaged in researching, designing, manufacturing and selling automation welding equipment, which is also a national high-new tech enterprises in China. Its products are widely used in home appliances,hardware, auto parts production, petrochemical, liquid packaging, nuclear power station，hydropower station, steel structure platform, expressway, high-speed railway, rail transit and other large-scale infrastructure construction and precast constructions. With excellent quality and perfect service, the company has been widely recognized and unanimously praised by customers, products sell well in more than 80 countries and regions, and cooperate with a number of well-known enterprises to establish a long-term strategic partnership.
Intelligent Production Plant
covers an area of 130 acres and more than 35,000 square meters, with large-scale modern production workshop, finished product testing workshop and Technology Research and Development Center.
Global Sales Network
Our machines have been exported to more than 80 countries in the world. Local service team available in some specific area and increasing every year.
Technical Service Team
Professional engineering team with more than 20 years experience in welding industry to serve you. 24-hour fast online service available.
Certification
We have obtained ISO9001 certificate and CE certificate. We got more than 70 patents qualified by Chinese National Patent Office.
Certificate
Certificate of compiance
qualty management syatem
factory production control
Customer visit
Exhibition
Since its establishment 25 years ago, xinzhou has traveled to all corners of the world, participated in more than 100 exhibitions and served more than 9,000 customers
Packing&Shipping
Acceptable Delivery Terms
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials,processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional Package
1. Whole film packaging machine; 2. Anti-collision package edge; 3. Wooden box and pallets with iron binding belt.
FAQ
Q1: What is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us thefollowing information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
Technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us thefollowing information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
Technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
