Солнечная панель SUNERGY высокая 435 Вт все черные солнечные модули эффективная 430 440 солнечная система питания
9,49-10,68 ₽

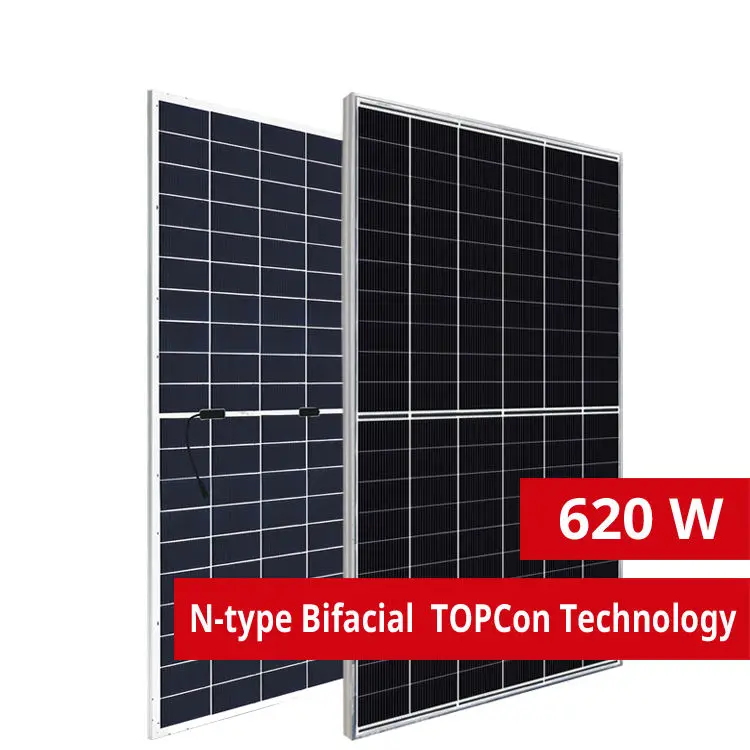

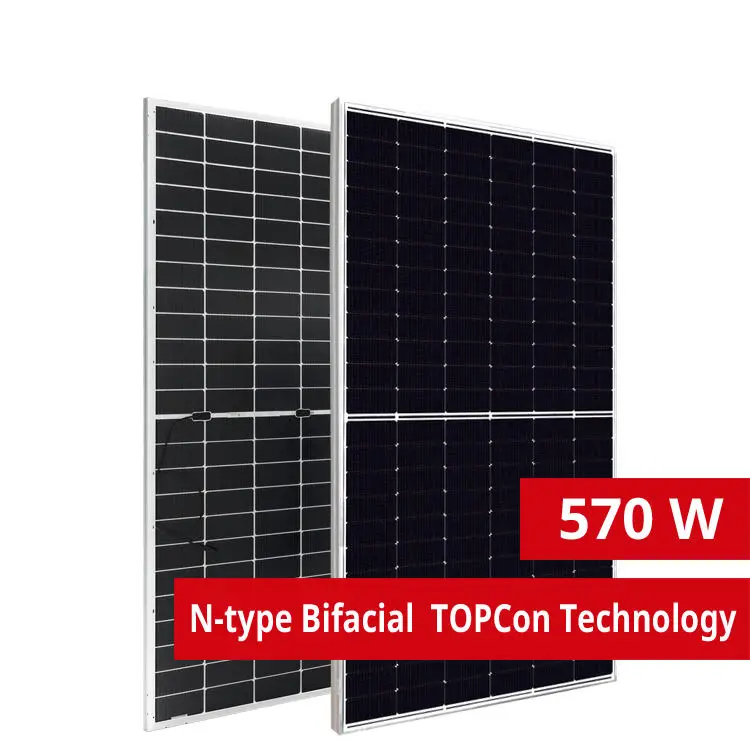

Солнечная энергия N типа моно для лица Topcon 560 Вт 565 570 575 580 портативная солнечная панель новая технология
- Категория: >>>
- Поставщик: Csi Solartronics (suzhou) Co. Ltd.Csi Ltd.
Сохранить в закладки 1600919332303:
Описание и отзывы
Характеристики
FEATURES AT A GLANCE
Module
Up to 85% Power Bifaciality,
more power from the back side
Excellent anti-LeTID & anti-PID performance.
Low power degradation, high energy yield
Lower temperature coefficient (Pmax): -0.30%/°C,increases energy yield in hot climate
Lower LCOE & system cost
more power from the back side
Excellent anti-LeTID & anti-PID performance.
Low power degradation, high energy yield
Lower temperature coefficient (Pmax): -0.30%/°C,increases energy yield in hot climate
Lower LCOE & system cost
MORE RELIABLE
Heavy snow load up to 5400 Pa,
wind load up to 2400 Pa*
JUNCTION BOX
· IP68 split junction boxes:
Better heat dissipation & higher safety
· Smaller size:
No shading on cells & greater energy yield

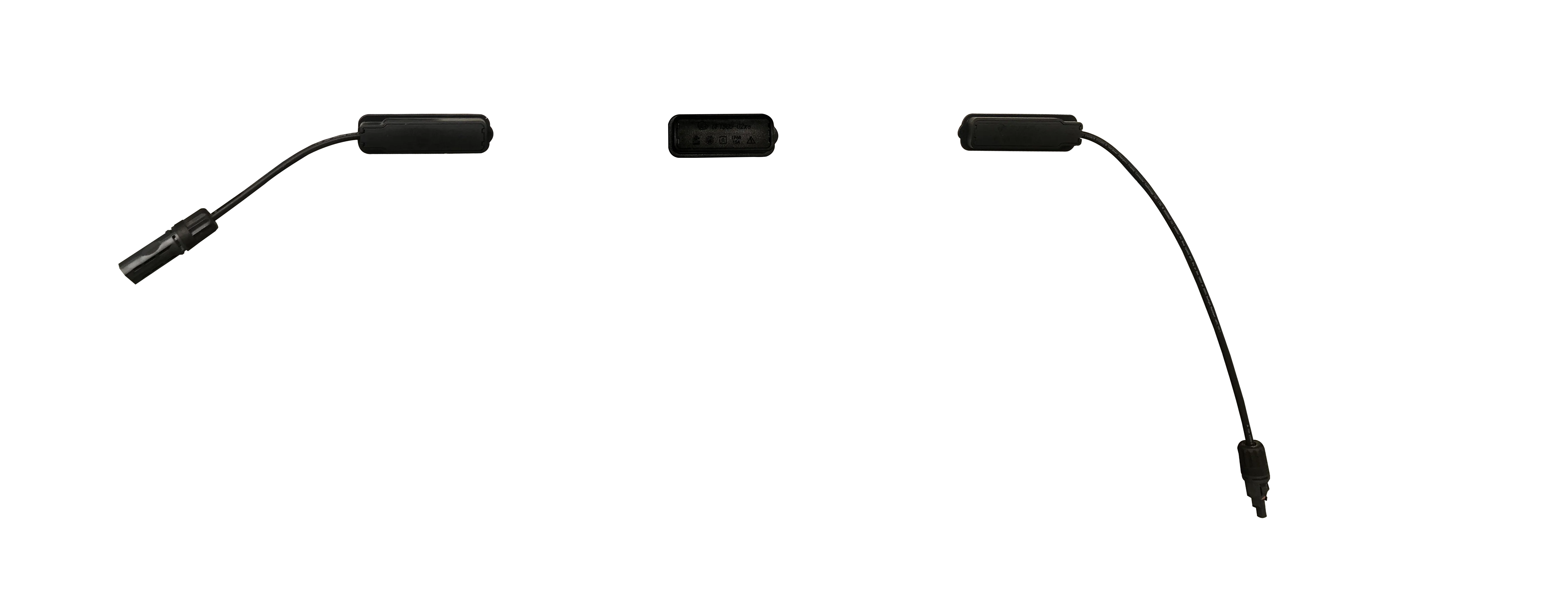

CABLE
· Optimised cable length: Simplified wire fix, reduced energy loss in cable
· IP68 split junction boxes:
Better heat dissipation & higher safety
· Smaller size:
No shading on cells & greater energy yield
CABLE
· Optimised cable length: Simplified wire fix, reduced energy loss in cable
ELECTRICAL DATA
Operating Temperature： -40°C ~ +85°C
Max. System Voltage ：1500 V (IEC/UL) or 1000 V (IEC/UL)
Module Fire Performance： TYPE 29 (UL 61730) or CLASS C (IEC61730)
Max. Series Fuse Rating： 30 A
Application Classification ：Class A
Power Tolerance：0 ~ + 10 W
Power Bifaciality： 80 %
* Power Bifaciality = Pmaxrear / Pmaxfront, both Pmax
Max. System Voltage ：1500 V (IEC/UL) or 1000 V (IEC/UL)
Module Fire Performance： TYPE 29 (UL 61730) or CLASS C (IEC61730)
Max. Series Fuse Rating： 30 A
Application Classification ：Class A
Power Tolerance：0 ~ + 10 W
Power Bifaciality： 80 %
* Power Bifaciality = Pmaxrear / Pmaxfront, both Pmax
MECHANICAL DATA
Cell Type TOPCon cells
Cell Arrangement : 144 [2 x (12 x 6) ]
Dimensions : 2278 ˣ 1134 ˣ 30 mm (89.7 ˣ 44.6 ˣ 1.18 in)
Weight: 32.3 kg (71.2 lbs)
Front Glass : 2.0 mm heat strengthened glass with antireflective coating
Back Glass ：2.0 mm heat strengthened glass
Frame： Anodized aluminium alloy
J-Box IP68, 3 bypass diodes
Cable ：4.0 mm² (IEC), 12 AWG (UL)
Cable Length (Including Connector)：350 mm (13.8 in) (+) / 250 mm (9.8 in) (-) or
customized length*
Connector ：T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet ： 35 pieces
Per Container (40' HQ)：700 pieces or 560 pieces (only for US &
Canada)
* For detailed information, please contact
Cell Arrangement : 144 [2 x (12 x 6) ]
Dimensions : 2278 ˣ 1134 ˣ 30 mm (89.7 ˣ 44.6 ˣ 1.18 in)
Weight: 32.3 kg (71.2 lbs)
Front Glass : 2.0 mm heat strengthened glass with antireflective coating
Back Glass ：2.0 mm heat strengthened glass
Frame： Anodized aluminium alloy
J-Box IP68, 3 bypass diodes
Cable ：4.0 mm² (IEC), 12 AWG (UL)
Cable Length (Including Connector)：350 mm (13.8 in) (+) / 250 mm (9.8 in) (-) or
customized length*
Connector ：T6 or MC4-EVO2 or MC4-EVO2A
Per Pallet ： 35 pieces
Per Container (40' HQ)：700 pieces or 560 pieces (only for US &
Canada)
* For detailed information, please contact
If You Are Interested In Our Producs
PRODUCT SPECIFICATIONS
More New Products and Information >Click Here To Get<
Company Profile
OUR HISTORY
Dr. Shawn Qu, Chairman, President and Chief Executive Officer founded Canadian Solar (NASDAQ: CSIQ) in 2001 in Canada, with a bold mission: to foster sustainable development and to create a better and cleaner earth for future generations by bringing electricity powered by the sun to millions of people worldwide. Under Dr. Qu’s leadership, we have grown into one of the world’s largest solar photovoltaic products and energy solutions providers, as well as one of the largest solar power plant developers globally.
OUR ACHIEVEMENTS
* More than 46 GW solar modules shipped
* 14 GW module capacity and 10 GW cell capacity
* 17 manufacturing facilities in Asia & Americas
* Active buying customers in more than 150 countries
* Subsidiaries in 20 countries & regions on 6 continents
* 14 GW module capacity and 10 GW cell capacity
* 17 manufacturing facilities in Asia & Americas
* Active buying customers in more than 150 countries
* Subsidiaries in 20 countries & regions on 6 continents
Team & Exhibition
Successful Project
Garland Solar Plant Project in
CA, USA
CA, USA
NC 102 Solar Plant Project in
NC, USA
NC, USA
Commercial Solar Rooftop Project in
Aliso Viejo, CA, USA
Aliso Viejo, CA, USA
Awards
· No. 1 Top Bankable Manufacturer Rated by BloombergNEF in 2020*
· Tier 1 Solar Company by BloombergNEF 2017-2020
· Leading company in PHOTON PV TRIATHALON 2017
· No. 1 Module Supplier for Quality and Performance/Price Ratio in IHS Module Customer Insight Survey in 2016
· The Best PV Module Manufacturer Award in Brazil by Smart Energy 2016
· No. 1 Silicon module solar plant developer by Greentech Media Research in 2017
· Best Structured Project Bond Award by Environmental Finance
· 2017 TWO DEAL OF THE YEAR AWARDS FROM POWER FINANCE & RISK in 2018
· Intersolar North America 2012 Solar Project Award Finalist
*100% of respondents surveyed by BloombergNEF considered Canadian Solar's modules bankable. Note that it is the respondents considering this, not BNEF.
Certifications
FAQ
Q1: Can the product be shipped to my area？
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
Q3: What about the lead time?
A3: 10 days for＜200kW requirements, we need to negotiate if your needs ≥200kW.
Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport？
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what’s the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
Q3: What about the lead time?
A3: 10 days for＜200kW requirements, we need to negotiate if your needs ≥200kW.
Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport？
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what’s the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement
Welcome to visit our website>>csisolar.en.alibaba.com
Wish You Have A Pleasant Purchasing Time! Pls Click >>Contact Us
Wish You Have A Pleasant Purchasing Time! Pls Click >>Contact Us
Похожие товары
Двойное стекло JA SOLAR 440 Вт-465 Вт монокристаллическая Солнечная энергия для домашнего/коммерческого использования
22,54-23,73 ₽
Солнечная Высокоэффективная 180 Вт моно солнечная панель PV система
1 779,13-2 134,96 ₽

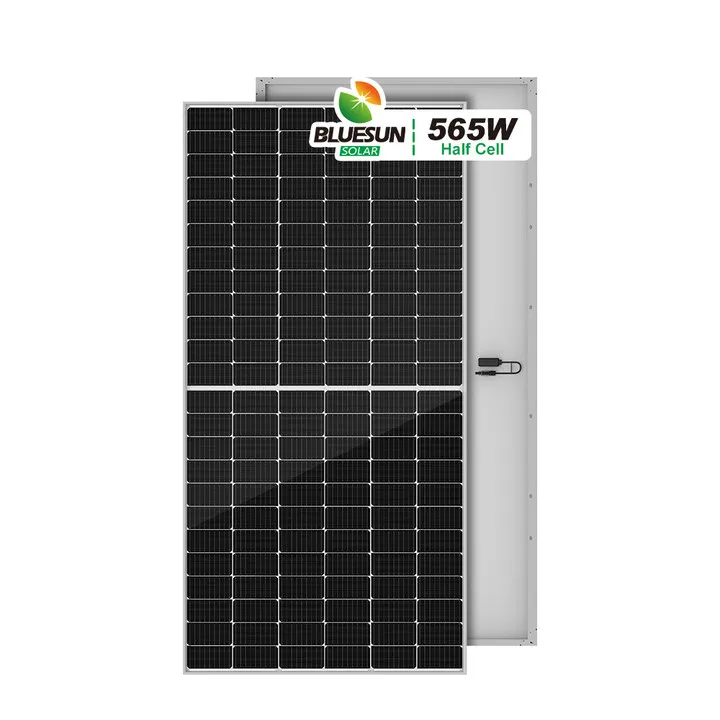

Bluesun лидер продаж солнечные панели высокой мощности для дома электричество 550 Вт 560 565 570 на крыше
