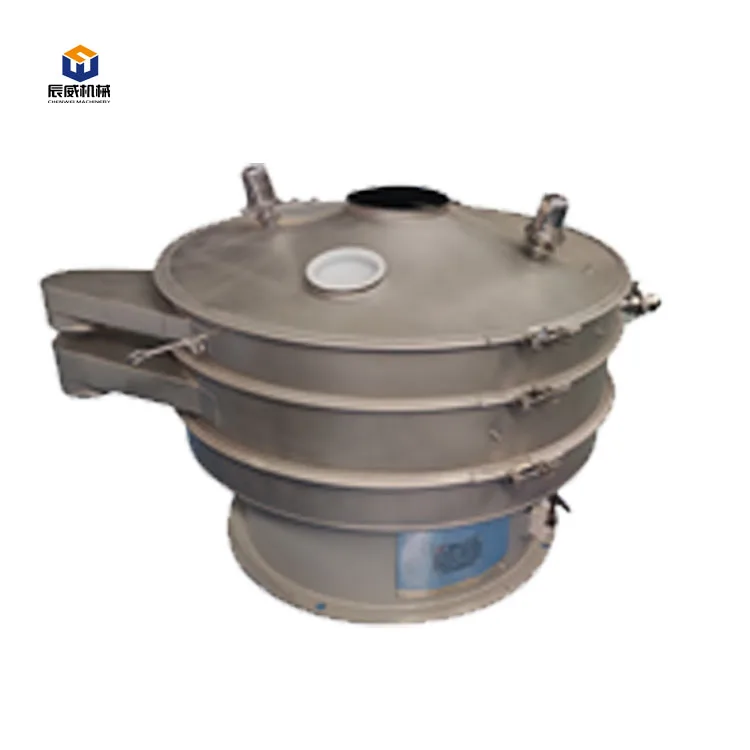

Аппарат для просеивания порошка Вибрационный xxnxx силикагель песок вибрирующий скрининг молочного коричневый сахар ПВХ печенье порошок почва
134 281,62 ₽ - 165 100,35 ₽

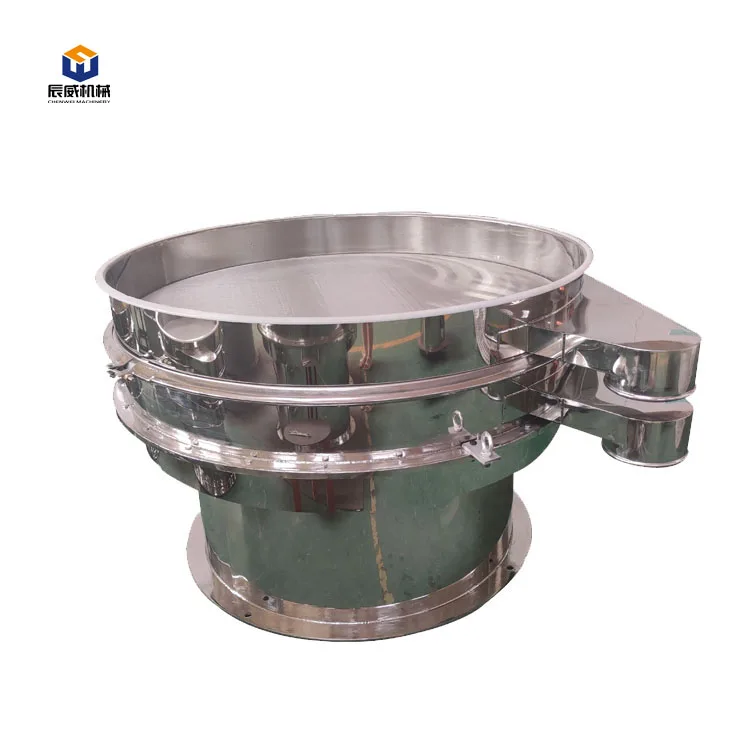

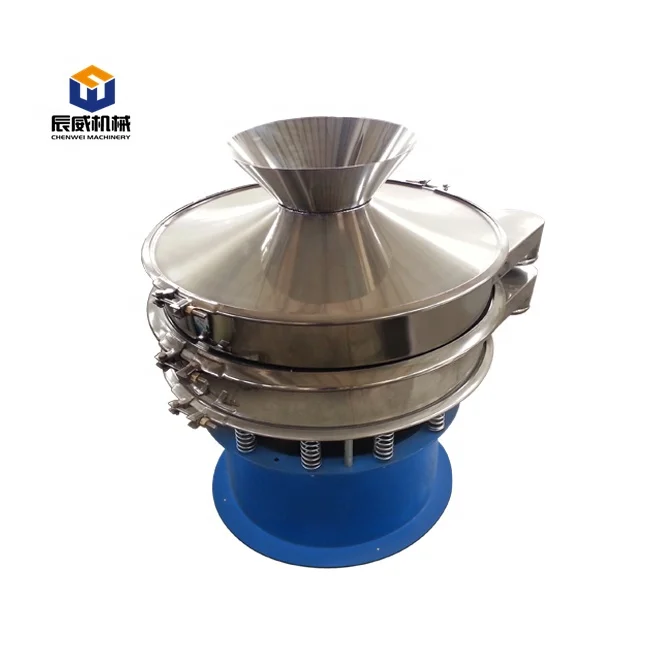

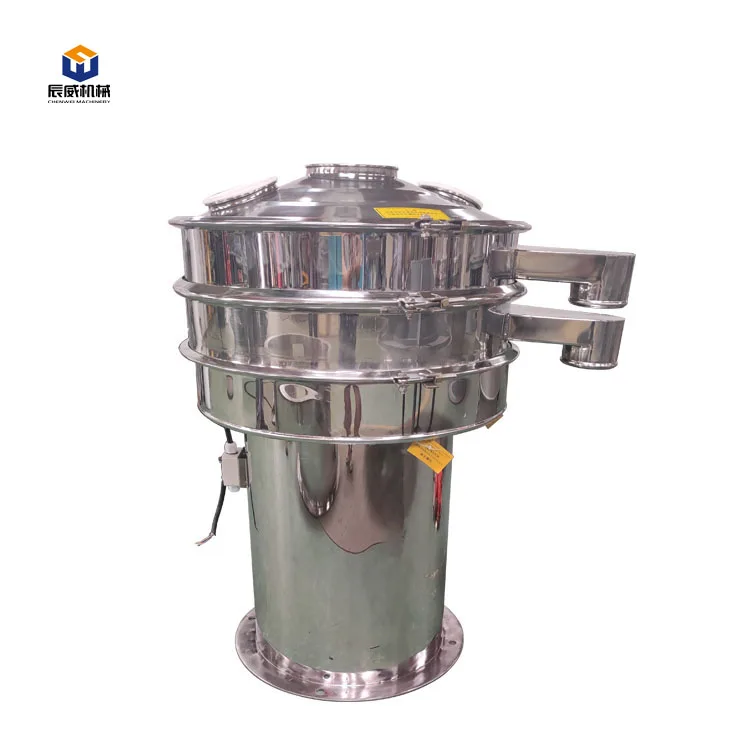

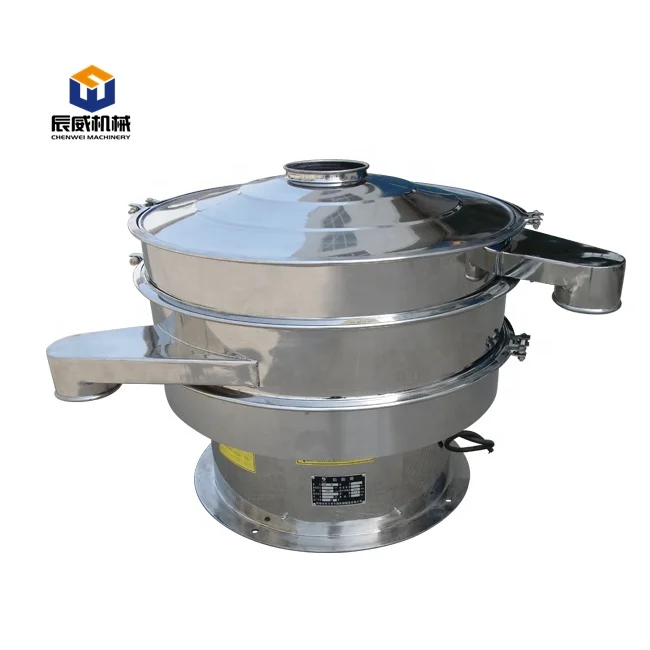

Промышленный Вибрационный сепаратор керамический порошок роторный вибрационный сито
- Категория: >>>
- Поставщик: Xinxiang Chenwei Machinery Co. Ltd.
Сохранить в закладки 1600919469843:
Описание и отзывы
Характеристики
Product Description
Introduction of vibrating sieve
Rotary vibrating screen is an efficient and high-precision screening equipment that utilizes the high-frequency vibration generated by the vibrating motor to generate rotational motion of materials on the screen surface, thereby completing the screening process.
Fine Screening Machine - Rotary Vibrating Screen
1.Filtration:Remove the particles from the liquid.
2.Grading:Classification is put powder and particles of different sizes into particles. With 1 to 5 layers of screens, one three decks vibrating screen can separate 4 size the particle continuously,and have the narrow particle size range control.
3.Impurity:In high flow process, the machine can remove large particles or particles with lower percentage quickly.
2.Grading:Classification is put powder and particles of different sizes into particles. With 1 to 5 layers of screens, one three decks vibrating screen can separate 4 size the particle continuously,and have the narrow particle size range control.
3.Impurity:In high flow process, the machine can remove large particles or particles with lower percentage quickly.
Application
1.Chemical industry: resin, pigment, cosmetic, coatings
2.Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup
3.Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder
4.Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon
2.Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup
3.Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder
4.Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon
Size Information
Model | Diameter(mm) | Deck | Effective diameter | Power(kw) | Maximum material size to process(mm) |
S494-B | 400 | 1-4 | 380 | 0.25 | 20 |
S496-B | 600 | 1-4 | 600 | 0.6 | 20 |
S498-B | 800 | 1-4 | 750 | 0.6 | 30 |
S4910-B | 1000 | 1-5 | 900 | 0.8 | 30 |
S4912-B | 1200 | 1-5 | 1100 | 1.5 | 30 |
S4915-B | 1500 | 1-4 | 1450 | 2.2 | 50 |
S4918-B | 1800 | 1-3 | 1750 | 2.5 | 50 |
S4920-B | 2000 | 1-3 | 1950 | 2.5 | 60 |
Note: the above table data is for reference only, and the specific configuration is mainly based on the scheme designed by the engineer Contact Us
How to quickly obtain prices？
Q: What information do we need to help you choose a perfect machine?
1.Name and feature of the raw material
2.Aim of using: get rid of impurity, filtration, grading
3.Handling capacity: kg /h, L/h
4.The raw material size: (mesh or mm)
5.How many layers you need?
6.The voltage , frequency, phase (single or three) Note:
You'd better send us the relevant pictures or some materials you want to sift , it can assure us to recommend the suitable machine for you. Contact Us
Details Images
The structural characteristics of rotary vibrating screen
1. Made of high-quality steel and stainless steel materials, it has a compact structure and is sturdy and durable.
2. Reasonably configure the vibration motor and adjustment device to improve the screening effect.
3. Different specifications and models of rotary vibrating screens can be customized according to customer needs to meet the requirements of different industries and processes.
2. Reasonably configure the vibration motor and adjustment device to improve the screening effect.
3. Different specifications and models of rotary vibrating screens can be customized according to customer needs to meet the requirements of different industries and processes.
Feed inlet
The size and shape of the feeding port can be adjusted according to the different particle sizes and shapes of the materials
Discharge port
The size and shape of the discharge port can be designed according to different application requirements,
Gate Design
Extends the time for materials to stay on the screen surface, which is beneficial for achieving better screening results
Bouncing ball
To achieve effective net cleaning and improve screening efficiency.
Rotary vibrating screen base
The non-contact material part is made of high-quality carbon steel material, which saves costs
Control switch
Convenient start and stop of the screening machine
Machine Show
Why choose Xinxiang Chenwei Machinery as the supplier of rotary vibrating screens?
1. We have 30 years of professional manufacturing experience and rich experience in production processes and quality control
2. Having a comprehensive technical support system: able to provide customers with comprehensive technical support and after-sales service, including equipment selection, design customization, installation and debugging, maintenance and other services
3. Obtained multiple certifications and honors: The product has passed ISO9001 quality management system certification and CE certification
4. Provide customized services, including design customization, production customization, accessory replacement, etc., to meet the special needs of customers.
1. We have 30 years of professional manufacturing experience and rich experience in production processes and quality control
2. Having a comprehensive technical support system: able to provide customers with comprehensive technical support and after-sales service, including equipment selection, design customization, installation and debugging, maintenance and other services
3. Obtained multiple certifications and honors: The product has passed ISO9001 quality management system certification and CE certification
4. Provide customized services, including design customization, production customization, accessory replacement, etc., to meet the special needs of customers.
Customer site
Our Service
Our Company
Xinxiang Chenwei Machinery has 36 years' experience in producing Sifter, Conveyor, Lift Crusher, Mill and Mixer machines. We mainly specialized in providing solutions for Liquid, powder, particles processing in different industries. Most of our customers come from food,pharmaceutical,PVC, grain processing, food additive, seasoning processing, detergent powder production, snacks processing refine sugar processing Industries. Besides providing single equipment,we can also provide production line,such as 300-500kg/h spices crushing production line, 2 tons/h refine sugar refine sugar process line 50tons/h cloves separation and cleaning line, poultry feed production line and so on.
With ISO 9001:2008 quality management system SGS certification for factory, and CE certificate for all products, Chenwei already formed 6S production management, and 3 stages quality control.For easy to inspect machines, we provide all parts detailed photos and running videos to customer before leave factory. Till now, our products have been exported to 96 countries and regions.
And our agent service is already set in Brazil, Australia, UK, Indonesia, India, Philippines, Vietnam, South Korea, France, Hungary. With 8 years' oversea installation experience, We are able to provide all-time service to you.
FAQ
Q:Can I ask some special and customize design?
A: Yes, we can make a suitable machine for you according to your request.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different.
Похожие товары

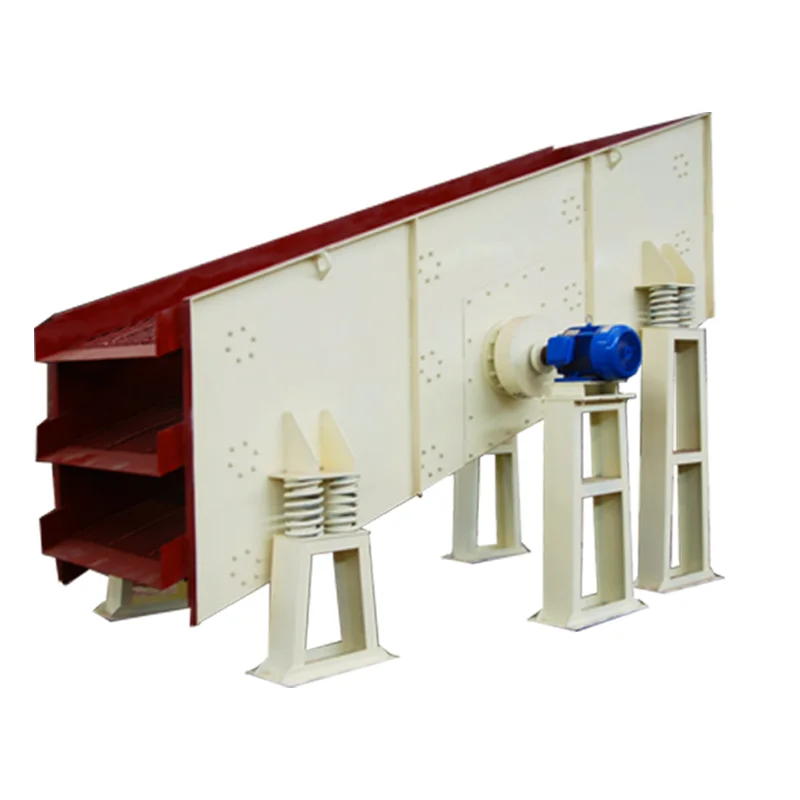

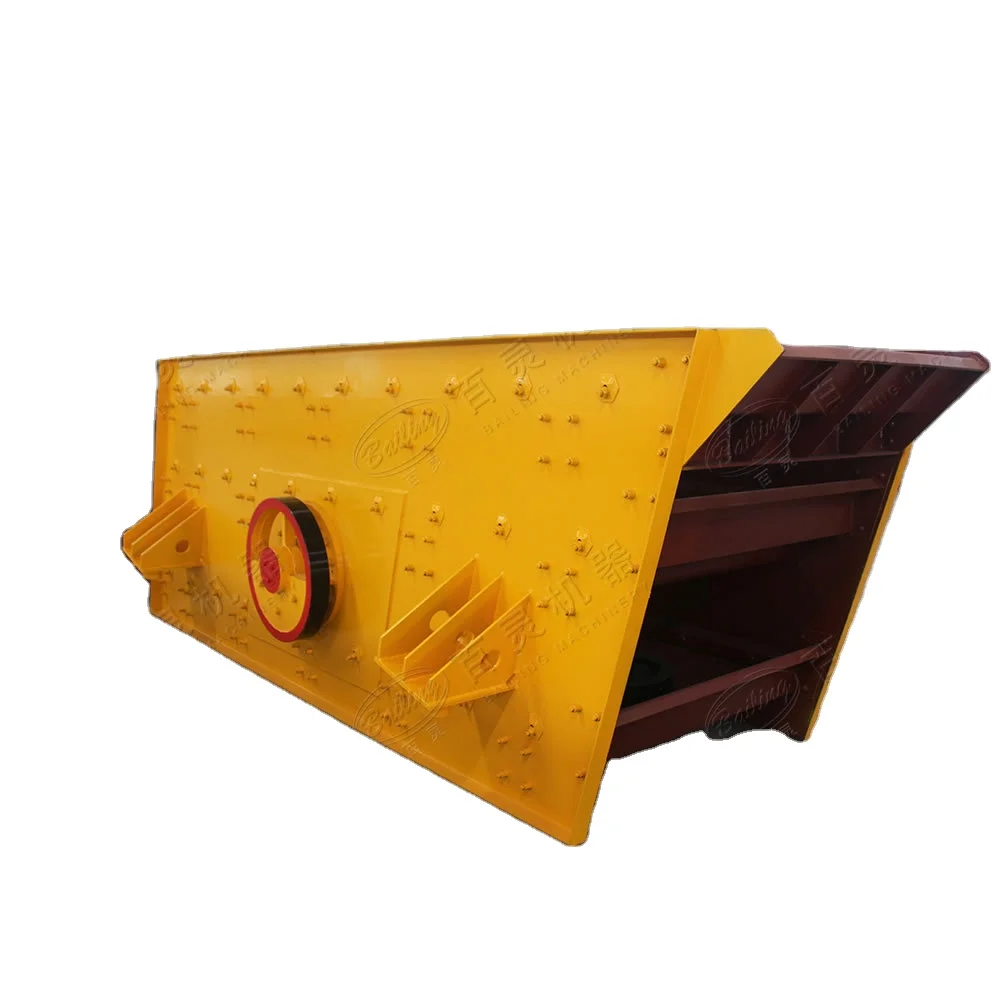

Экран для доломита
327 999,37 ₽ - 445 770,95 ₽

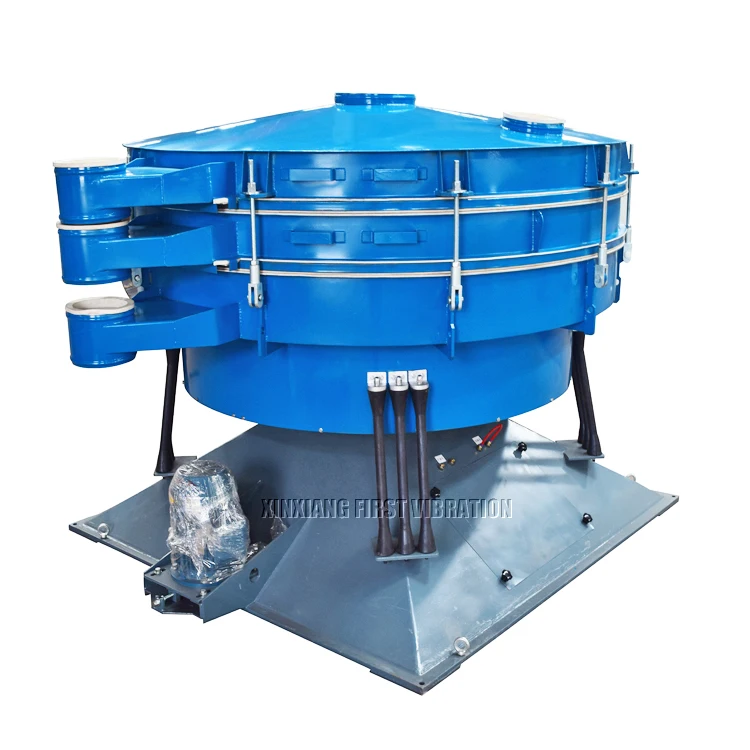

Высокая емкость возвратно-поступательный гираторный экран для пластиковых полимерных удобрений калий сульфат фосфата аммония
2 218 550,00 ₽

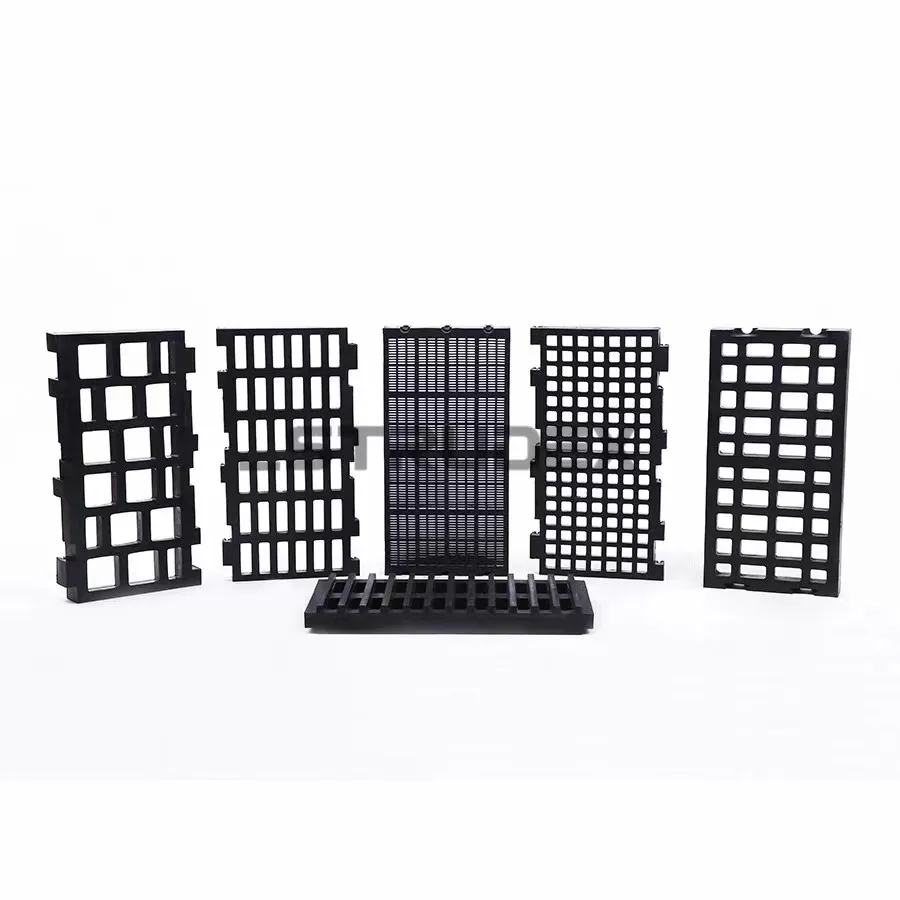

Оптовая продажа модульная резиновая сетчатая полиуретановая ситная пластина средства массовой информации для обезвоживания каменного угля горная вибрационная машина
3 302,01 ₽ - 4 953,02 ₽

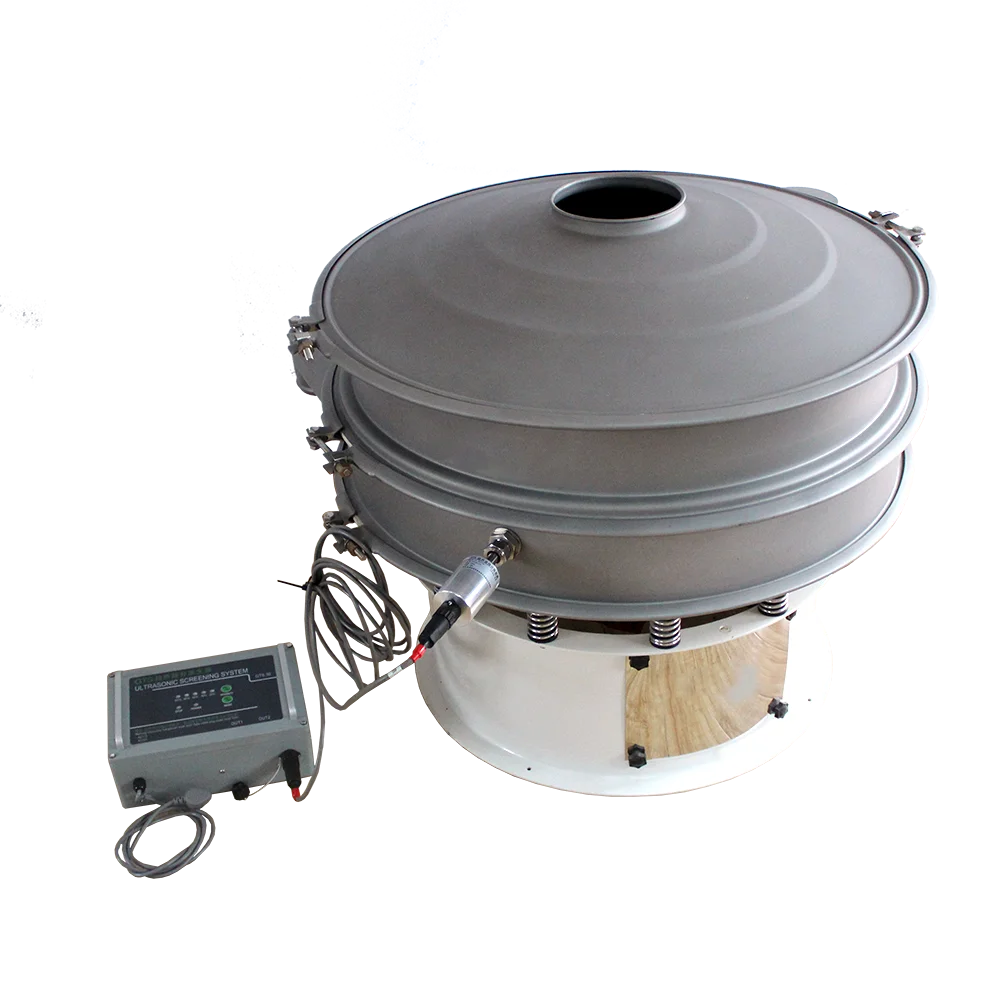

Широко Используемый аппарат для просеивания гранулированного или мелкого порошка ультразвуковой Вибрационный экран
Круговой Вибрационный экран серии YK оборудование для скрининга
554 637,50 ₽

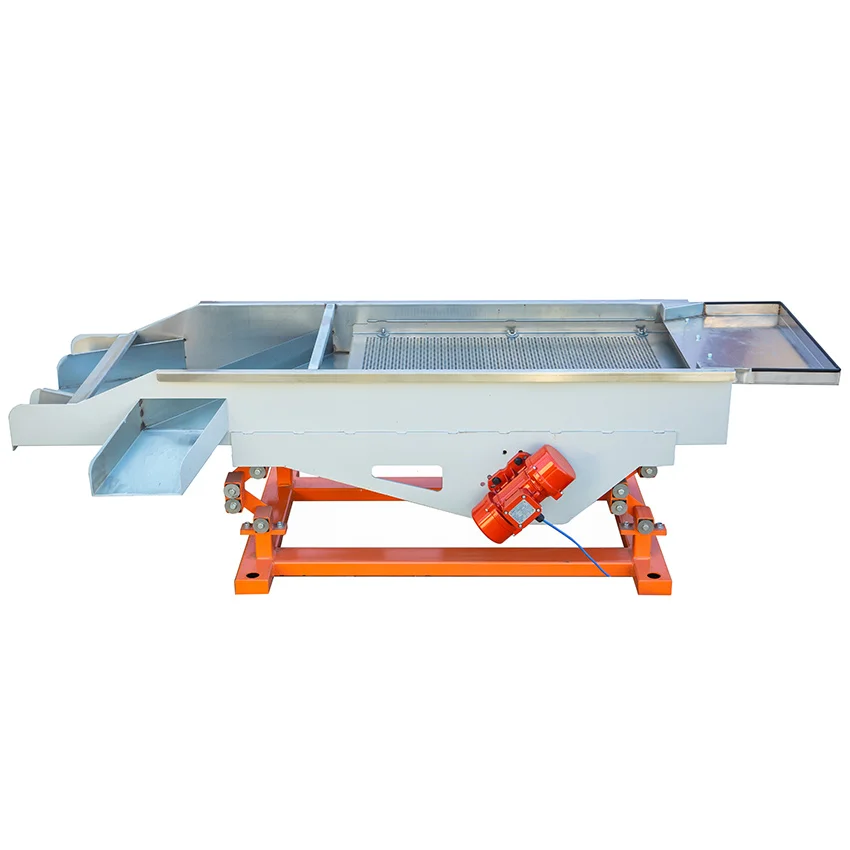

Высокоэффективная линейная вибрационная машина BT600 для стекловолокна по низкой цене Вибрационный сепаратор
