Аккумуляторный модуль Xiho Catl Ncm 14 8 В 180Ah 195Ah 174Ah 159Ah 4S1P Nmc аккумуляторная батарея Nissan Leaf 56KWH 62KWH 64KWH электромобиль

Сохранить в закладки 1600919571127:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Why Choose US:
1.Stable inventory, shipped within a week
2.One-stop purchase, Drop-shipping service
3.OEM, ODM service,Meet personalized customization
4.Ensure that each piece undergoes capacity testing
5.Match voltage & internal resistance before shipment
Notice:


Products Description

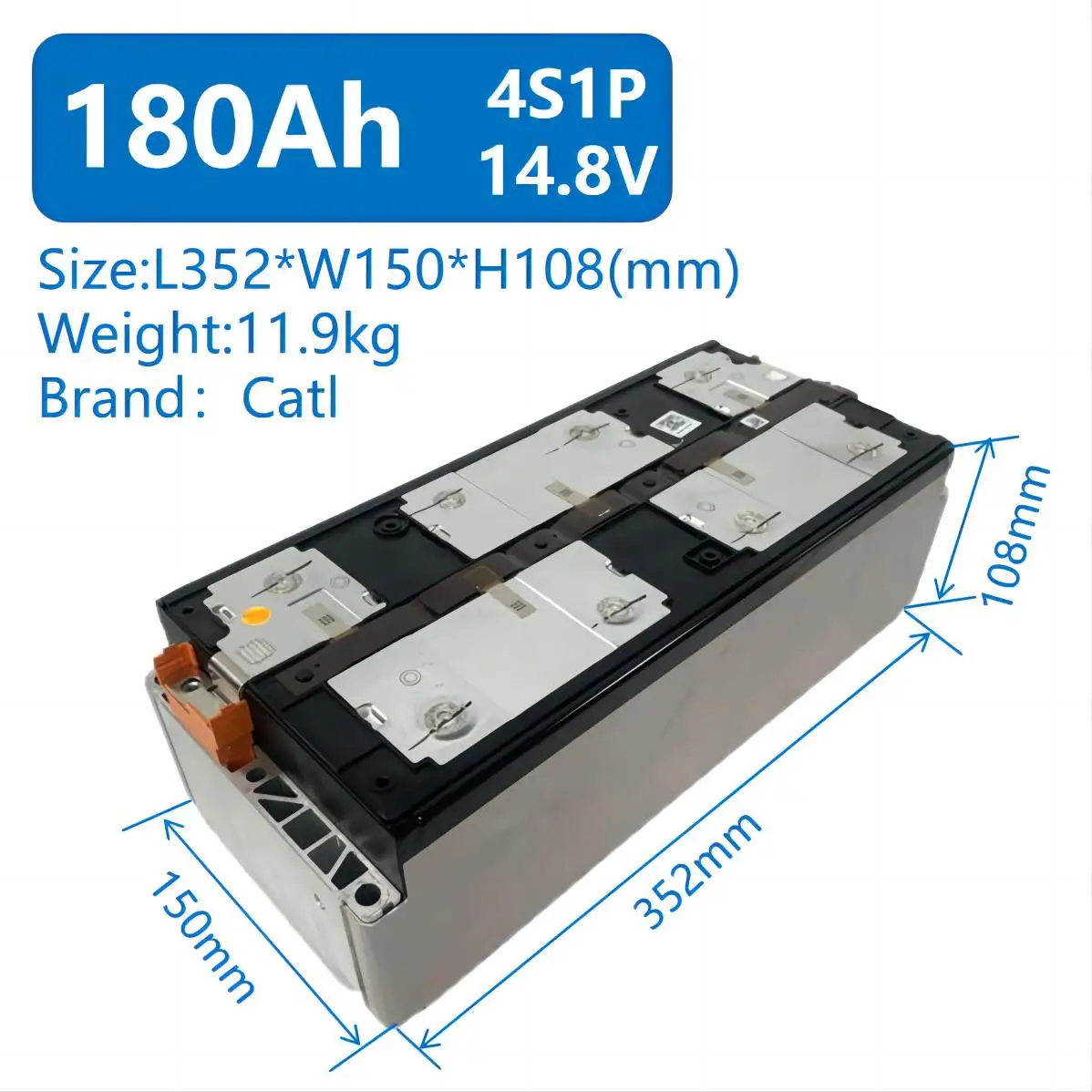

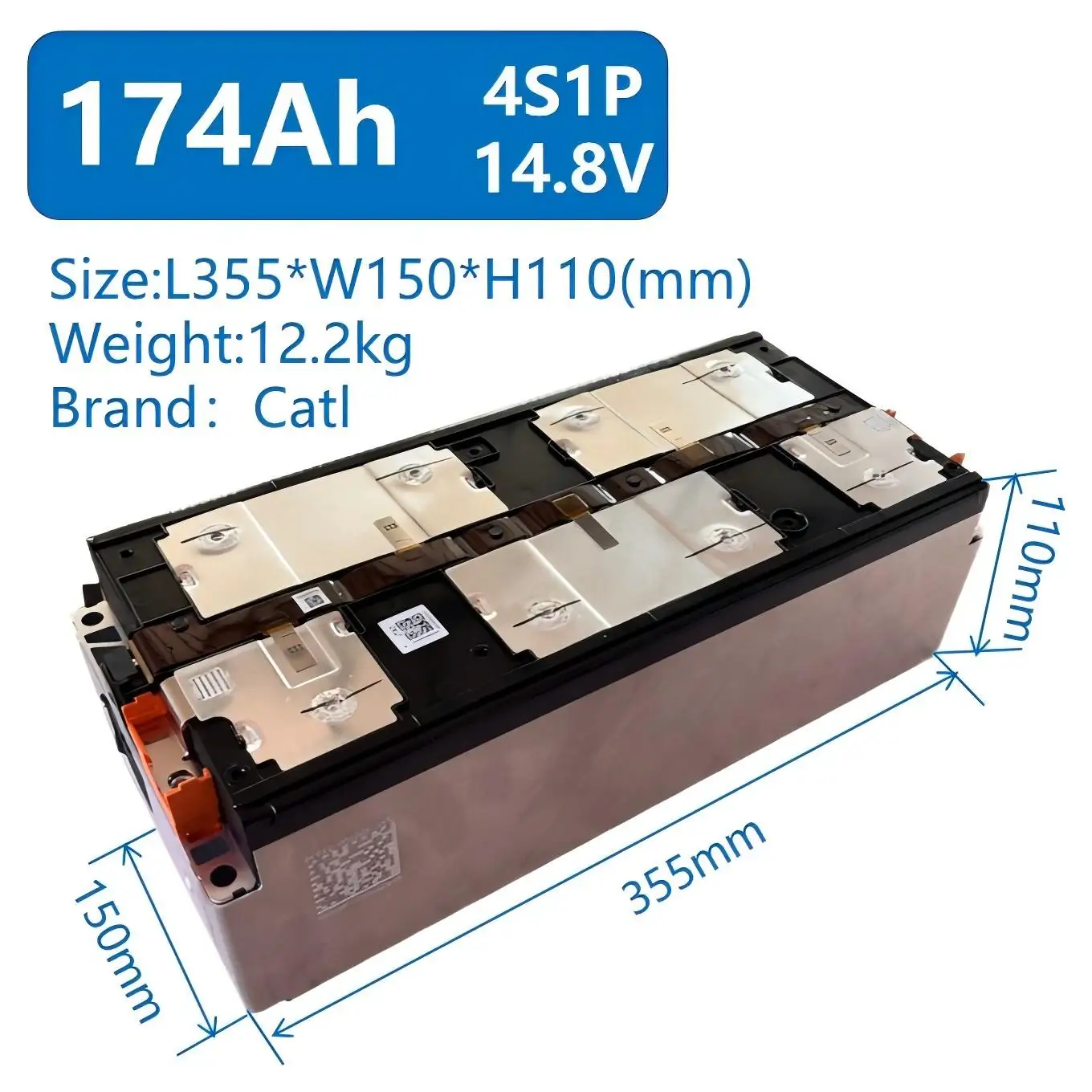

Xiho Catl 14.8V 174Ah 180Ah 195Ah Ev Lithium Battery Pack 4S1P Nmc Battery Module 56KWH 62KWH 64KWH Nissan Leaf Battery Pack


Battery Type:
Battery Module
Nominal Voltage(V):
14.8V
Nominal Capacity(Ah):
180Ah/174Ah 4S1P
Max Charge Voltage(V):
16.8V
Discharge Cut-off Voltage(V):
11V
Max Charge Rate:
1C
Max Discharge Rate:
3C
Internal Resistance:
less than 1.6mΩ
Charge Temperature(℃):
0~55℃
Discharge Temperature(℃):
-30~55℃
Storage Temperature(℃):
0~45℃
Cycle Life:
More than 2000 times, Soc 80%
Weight:
About 11.9Kg
Size:
4S1P(150*355*110)mm




Accessories Service


1. Connector that adapt the module
2.Busbar with different model


Customizable Accessories

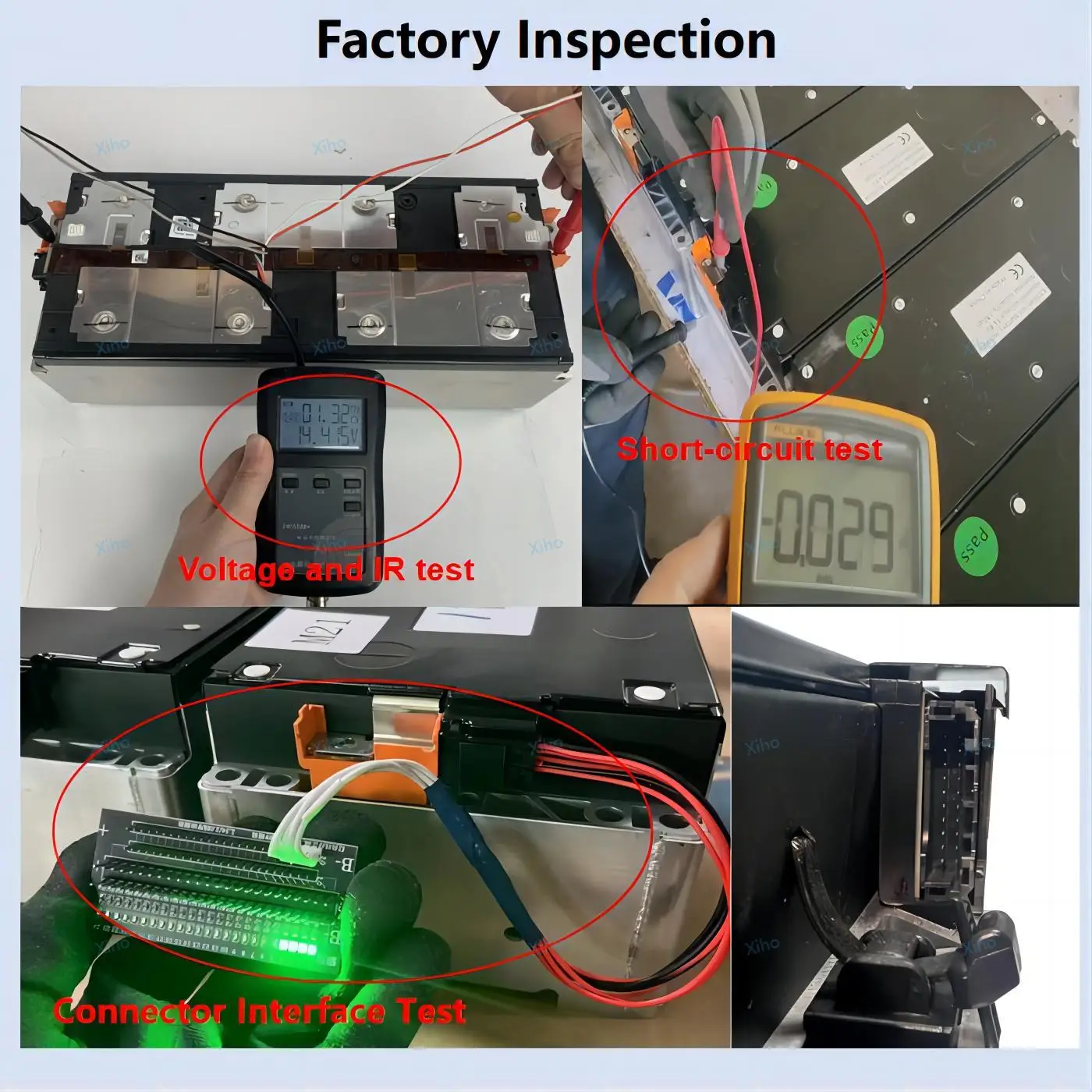

Battery Reliability Test


Capacity check
* High quality,actual capacity around 180AH

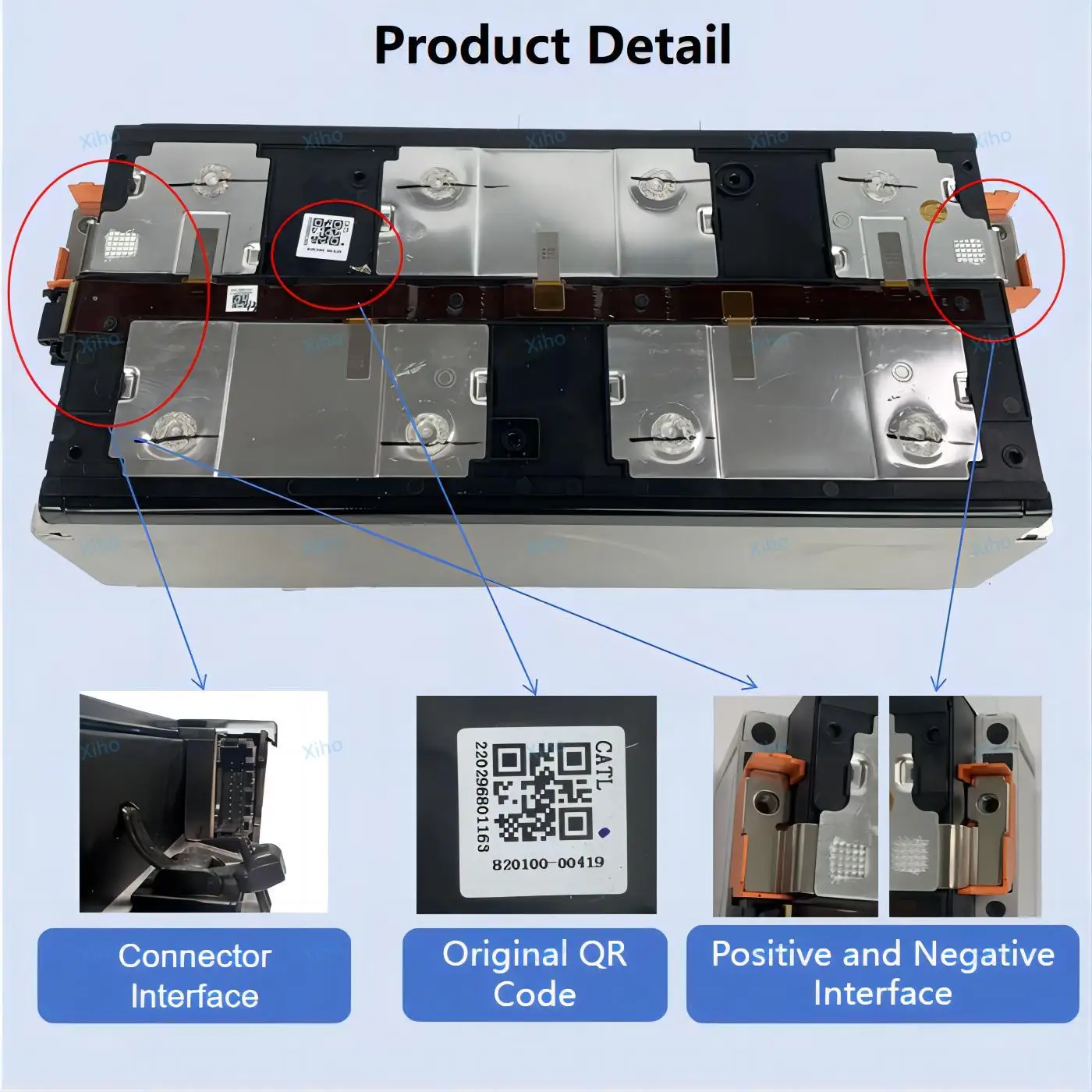

Connector Interface Test
* We will test all the battery Module Connector Interface
* Ensure that each interface can supply power normally




Voltagy & IR Test
* We will test all the battery Voltage and IR before shipment
* Voltage:The deviation less than 0.01V
* Resistance:The deviation less than 0.1mΩ




Discharge Performance
* Max Discharging Rate 3C




Batch test
* Match IR and Volt ensure good consistence

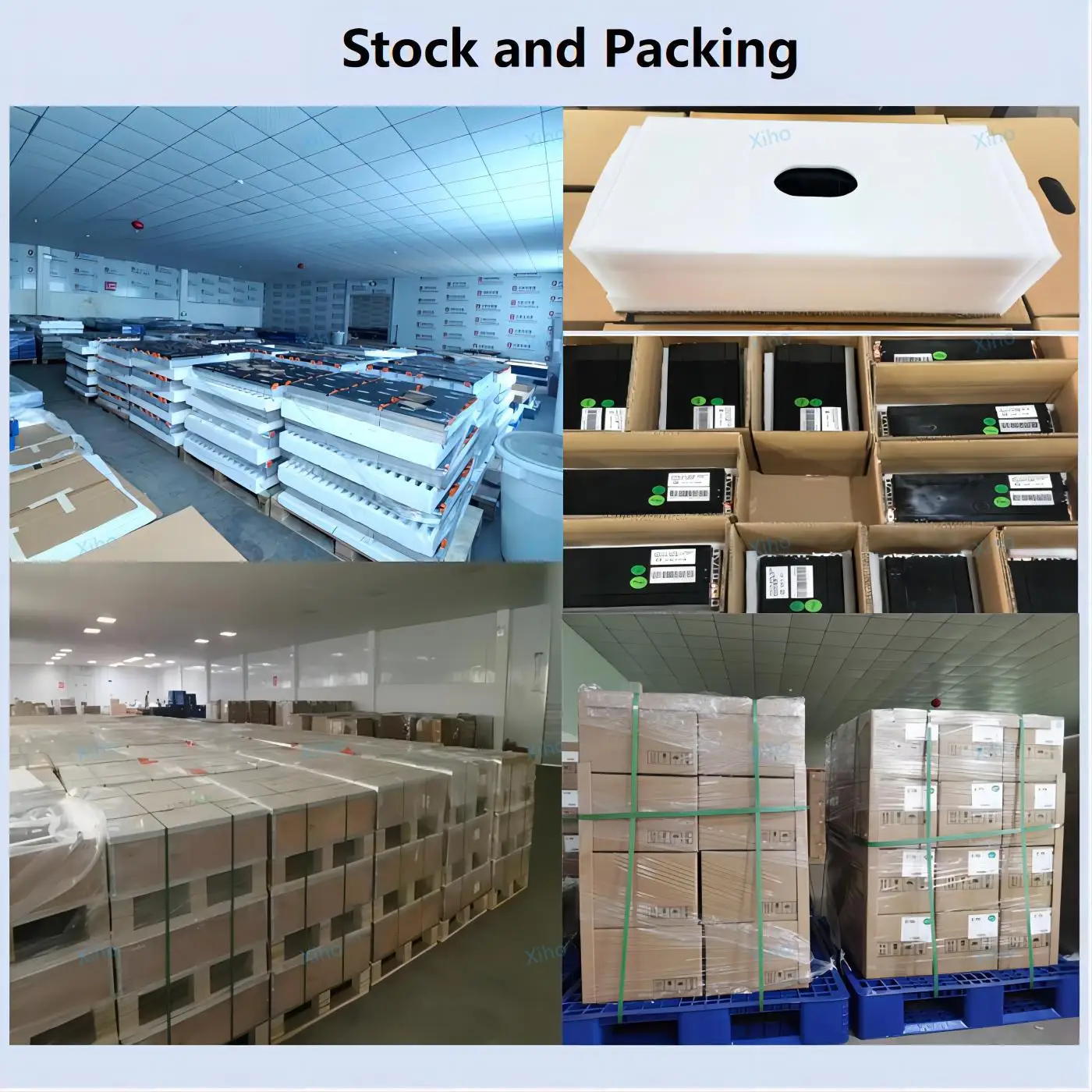

Package and Delivery




●Thick Foam

Customized foam and box to protectthe safety of cells
●Single box with corner protector
Single box with corner protector Strengthen the safety of box with waterproof tape and corner protector.
●Pallet Delivery
Normally Cells over 180pcs, we suggest delivery in pallet, assemble the boxes is convenient for deliver to avoid box loss.


What will we do before delivery?
XIHO Shipping standard of our factory:
1.We will ensure the consistency of each cell before delivery.Check the appearance of battery,no leakage and swell,ensure that it is relatively flat.
2.The voltage difference of each battery within 10 millivolts and the internal resistance within 0.1 milliohms.
3.The capacity difference within 1Ah.
4.We provide 3 days delivery and 5 years warranty.


Shipping Time
1.DDP service by Sea to Europe or America,35-45 days around
2.By Air to Europe or America,10-15 days around
3.By Express to Europe or America,7 days around
4.We also can ship to your agent warehouse
5.Safe and stable channel logistics company cooperation
Notice:


Why Choose Us


Why XIHO is your BEST Partner?




1.Your Expert For Power Solution:
With 10 years of battery industry experience, Xiho have been served more than 8000+ customers from 98 countries. Keep more than 90% repurchase rate & 99% on-time delivery rate & 95% good feedbacks rated by alibaba proved.
2.Source Factory & Direct Distributor:
All of battery 100% original Grade A & Brand New.
Weekly Fresh Date Stocks, New produced cell.
Keep Long-term supply for your project,Don't worry about stocks problem.
3.Quality Assurance:
100% tested guaranteed. The battery will be tested strictly before shipment.
Match IR and Volt ensure aood consistence.
Welcome QC checking,On-line video checking before shipping.
100% technical support & 100% after-sales service.
Support fully refund if used cell or bad quality cell received from us!
4.Customer Service 24 hours &7 days:
Professional pre&post-sale service system will provide tailored solutions for your needs.



About XIHO




Shenzhen XiHo Energy Technology Co.,Ltd is one of the professional battery supplier, which specialized in Lithium ion battery for more than 10 years.
Our factory is assessed, certified, authenticated and inspected by SGS Group. Do long-term business and reliable battery supplier.All of our batteries passed UL,CE, ROHS,CB,UN38.3,MSDS,IEC and other international certifications.Safety, light weight and longer use life is battery features.
We only cooperate with top battery manufacturer and Car manufacturer in China, to ensure the batteries and module we provide in high quality and competitive price.
We have professional technical team and strict QC team for guarantee the quality, which will offer the best quality before delivery.




Production Ability
CAPACITY
Over 6000 square meter factory and strong warehousing capacity,with 40 skilled workers and specialists; Materials subsidiary capable of fast delivery time;Professional testing laboratory.
We are able to meet large-scale order requirements, providing timely
supply and transportation services.


● QUALITY
Through a series of inspections and tests, we ensure the consistency and excellent quality of every batch of batteries, providinghigh-quality products to our partners in most countries worldwide.
● CUSTOMIZED
We offer tailored solutions based on our clients' specific needs, sourcing cost-effective battery supplies and addressing any procurement challenges, ensuring a customized approach for our clients.




FAQ


Q1:Can you test each battery PRIOR to shipping?
A:We will measure each battery‘s’ Voltage、Internal Resistance and Capacity before shipping.
Q2:How about the Warranty?
A:We offer 5 years warranty for lifepo4 battery,and 1 years for Nmc battery.For damaged due to non-human factors, we will refund or send new battery for replacement after providing pictures or videos for evidence.
Q3:Will the package tough enough to protect the cells?
A:The Battery will be packed in good condition with the thicker PE Foam, then put into the 5 layers drop-resistant carton.
Q4:How to proceed an order for lithium ion battery?
A:We accept Alibaba trade assurance order online.Or you can provide your shipping information to us, we will make the online order for you.
Q5:How can I do if I need more help for the order?
A:You can chat our sales online or send inquiry email, our Sales Team will reply to you ASAP
Q6:Which shipping method you usually take?
A:Train/Sea DDP, Express, We can also ship with your own shipping agent.
