XIAOSHU Быстрый нагревательный картридж нагреватель 12 В 24 220

XIAOSHU Быстрый нагревательный картридж нагреватель 12 В 24 220

Категория: Heating Equipment >>>
Поставщик: Yancheng Xiaoshu Technology Co. Ltd.

Цена:2,99 $ - 4,30 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Paramenters

Diameter	2.0mm to 50mm
Diameter tolerance	0mm~0.08mm
Length tolerance	±1mm
Sheath Material	SUS304, SUS321, SUS316, SUS310S, Copper, Tatinium, Incoloy800, Incoloy840
Suggested Maximum Surface Use Temperature	SUS304(650℃), SUS316(650℃), SUS310S(800℃), Incoloy800(850℃）
Cold zone	5~15mm from lead wire; 3~10mm at the bottom
Max surface loading	40w/cm^2
Voltage	1.5V~440V
Insulation resistance	500ohm
Temperature tolerance	±3C
Shape	Straight/ L/ Square/ Split type/ Special-shaped
Material of lead wire	Silicone rubber; Teflon; High Temperature Fiberglass; Metal hose protection; Metal braided
Thermocouple wire	K type,J type,E type ,PT100
Method of lead wire	Internal wire(Swaged) and External wire (Cripmed)

Products Description

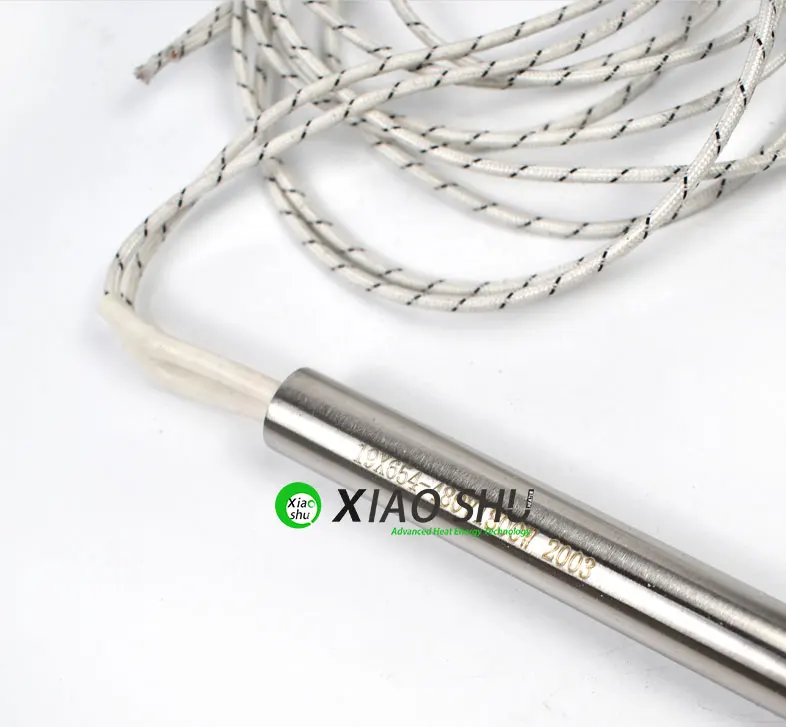

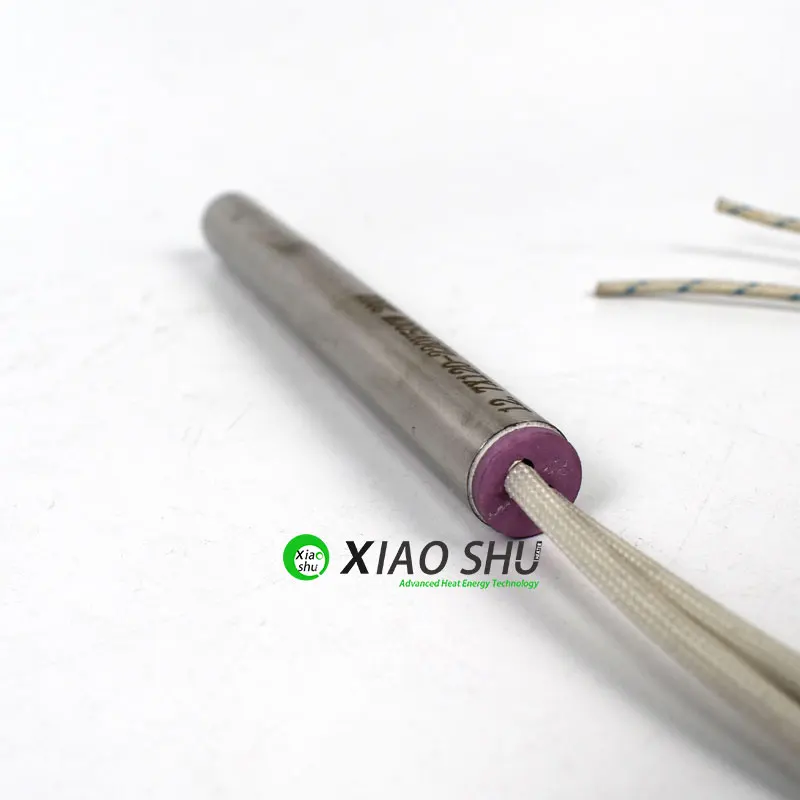

Cartridge Heater

Cartridge heater is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080), high temperature leads and seamless stainless steel sheath(SS304,321,316, Incoloy800,840). Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes. This heater is also multi usage for air heating or immersion liquid heating with screws.

Applications

Cartridge heater is widely used in plate vulcanizing machine, heat transfer printing machine, printing machine, hot scissors, bronzing machine, textile knife mold, submersible heating pipe, heating pipe of radiator, fireplace biological particle ignition rod, water heating blanket, fast sealing machine, footwear industry, semiconductor eutectic welding, crusher, die casting input channel, injection heating without sprue, etc.

Order Notification

1. Confirm whether the heating pipe is heated by mould or liquid?

2. Pipe diameter: the default diameter is negative tolerance, for example, the diameter of 10 mm is 9.8-10 mm.

3. Pipe length: ± 2mm .

4. Voltage: 220V (other 12v-480v) .

5. Power: + 5% to - 10%.
6. Lead length: default length: 300 mm (customized).

Packaging and Delivery

The packaging adopts international carton packaging or wooden box packaging. There is a protective pad in the package. Packaging also accepts customized services.

FCA shipping method. Generally, it takes about 7-15 days for most countries, and the detailed delivery time will be determined according to force majeure factors such as address.

Our Company

Xiaoshu Heat Technology

Xiaoshu Heat technology is a manufacturer focusing on industrial heaters. For example, Mica band heater/Ceramic band heater/Mica heater plate/Ceramic heater plate/Nano band heater and so on .Enterprises with independent innovation brand, establish the product trademark of "Small Heat Technology" "Slight Heat".

At the same time, it has a certain independent research and development ability, and applies advanced technology to the design of electric heating products, and creates the best product value for customers.

The company strictly according to the ISO9001 quality management system for production and manufacturing, and all products are in line with CE and ROHS testing certification.

Our company has introduced advanced production equipment, precision testing instruments, the use of high-quality raw materials; With professional technical team, perfect after-sales service system; For injection molding machine, blister machine, drawing machine, blowing machine, extruder,rubber and plastic equipment and other industries to design and manufacture various types of high quality heater products.

Our Factory

Xiaoshu focuses on the design and production of band heaters, with a professional design team and professional factory production. With a professional production line, strict product quality inspection, fully guarantee the quality of the product.

FAQ

1.Who are we?
We are based in Jiangsu, China, start from 2015,se ll to Eastern Europe(13.00%),North America(13.00%),South
America(12.00%),Western Europe(11.00%),Northern Europe(11.00%),Central America(10.00%),Southern Europe(10.00%),Southeast
Asia(6.00%),Mid East(4.00%),South Asia(3.00%),Africa(2.00%),Domestic Market(2.00%),Eastern Asia(2.00%),Oceania(1.00%). There are
total about 101-200 people in our office.

2.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.What can you buy from us?
Electric heating element,Industrial heater,Band heater, and so on.

4.Why should you buy from us not from other suppliers?
Production Line on electric heater elements more than10 years
Perfect QC Department and Strong R&D Department ODM &OEM
Pre-sales&After-sales service ,Factory directly:ceramic heater,band heater,silicone heater,casting heater,coil heater,bobbin
heater..

5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
