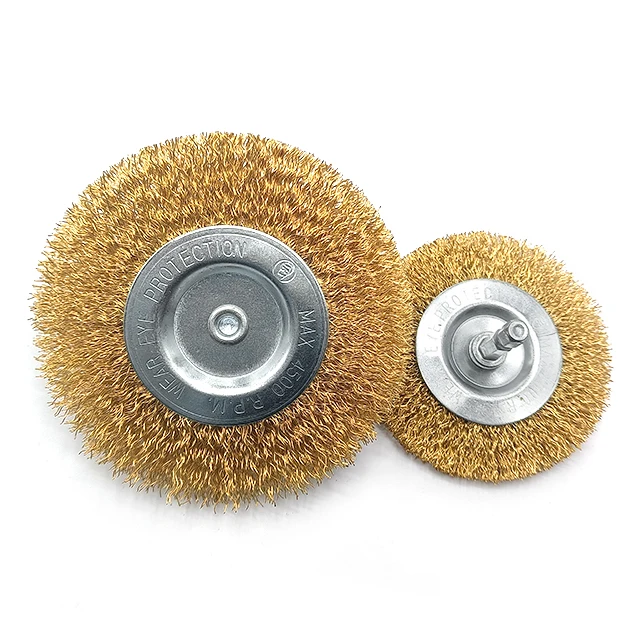

SATC-4-дюймовый поворотный сталь гофрированная проволочная колесная щетка для чистки
74,57 ₽ - 85,53 ₽
RTS разделительная квадратная насадка для сетевого шкафа центра обработки данных
- Категория: >>>
- Поставщик: Suzhou Yudao Precision Manufacture Co. Ltd.
Сохранить в закладки 1600922811926:
Описание и отзывы
Характеристики
Well-known Customer | ||||||||
Yudao Brush has long term supply cabinet wiring brushes and strip brush for companies such as Schneider, APC, HP, Microsoft Cloud,Google Cloud, Amazon Cloud, Baidu Cloud, Alibaba Cloud, Tencent, Whirlpool, Rittal, Foxconn, Delta, Vertiv and charge-point, as well as hair dyeing combs for companies such as L'Oreal, supply elevator safety brushes for Mitsubishi Elevator, wooden handle shoe brushes and cleaning brushes for supermarkets such as Auchan. | ||||||||
Products Description
Product Paramenters
Model Selection Table Eg: P C-190-190-B ①② ③ ④ | ||||||||
Discription and Selection： ①：Design No: P P: Data Center Raised Floor Cable Management Brush Grommet ② : Outline of the grommet: C ③ : Overall dimension of the grommet: 190-190MM ④：The material of the plastic shell and the brush: G: The plastic shell is UL94-V2 ABS+PC, and the bristles material is UL94-V2 PP (low cost) B: The plastic shell is UL94-V0 ABS+PC,, and the bristles material is UL94-V0 PA6 nylon brush wire (high flame retardancy) C: The plastic shell is UL94-VO ABS+PC, and the bristles material is Anti-static nylon PA6 (resistance value：1E10-1E12Q,1E8-1E10Q) | ||||||||
Product Technical Parameters | ||||||||||
Product Parameters | ||||||||||

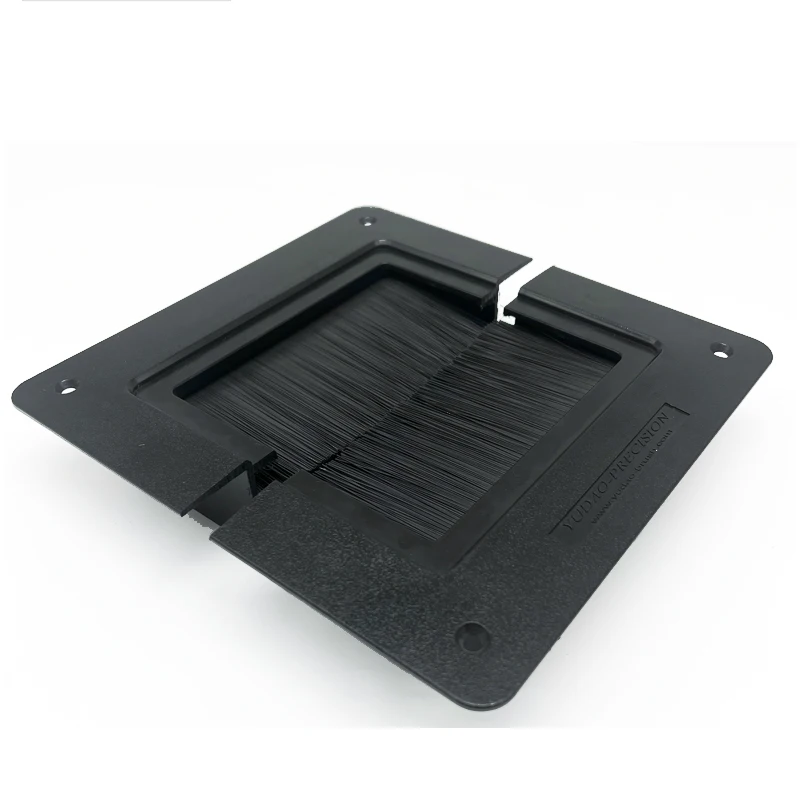

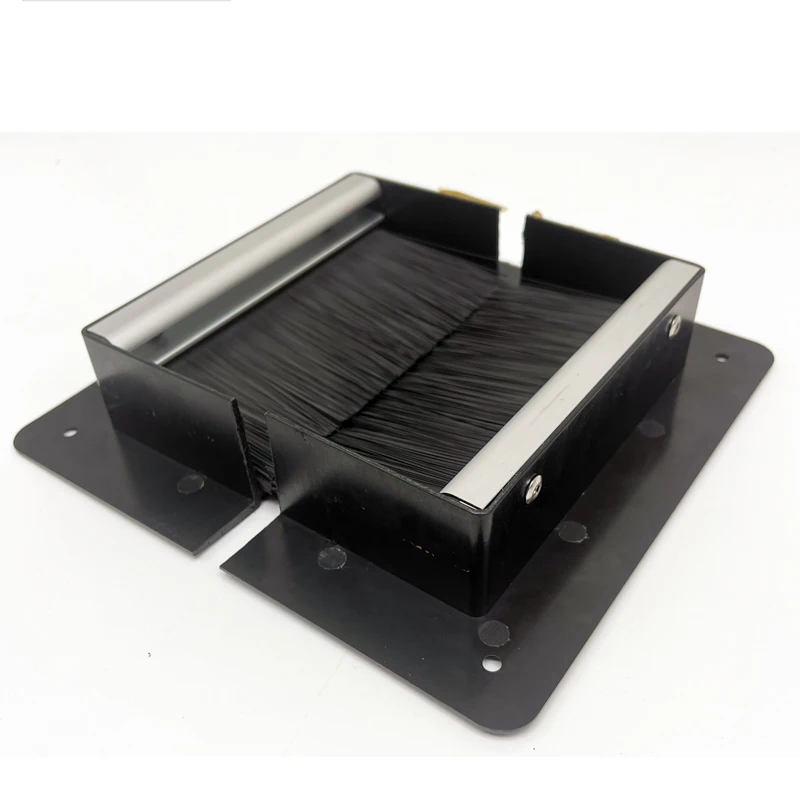

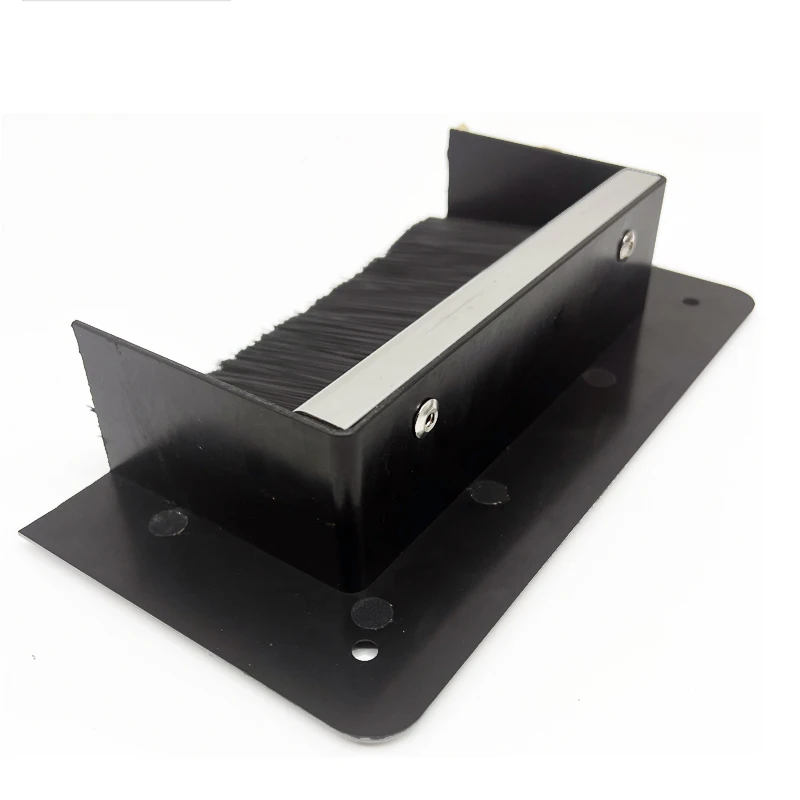

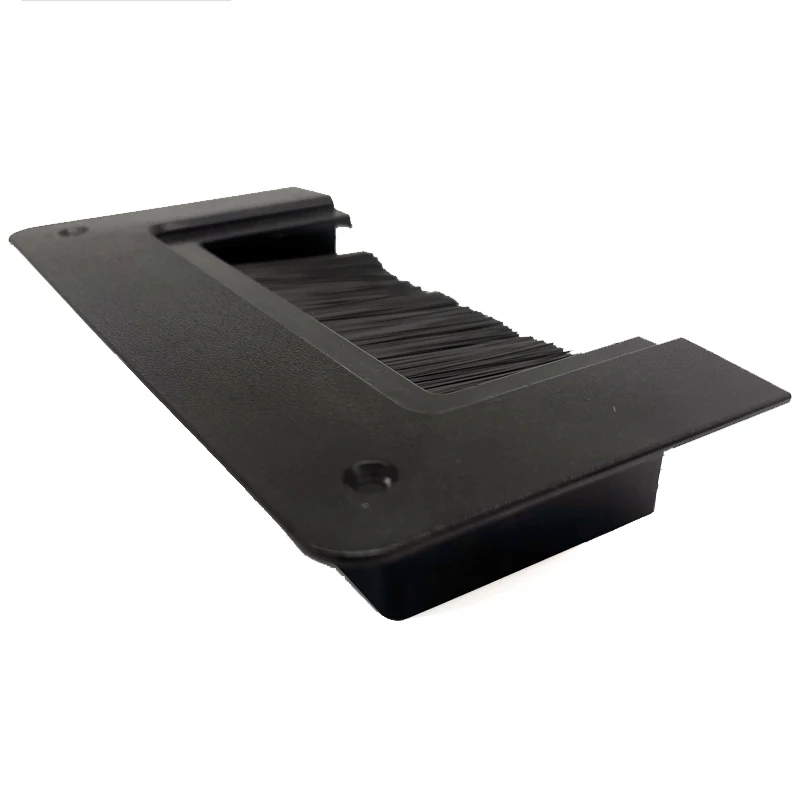

Pruduct Name | P series - Data Center Raised Floor Cable Management Brush Grommet | |||||||||
Model | PA | PB | PC | PD | ||||||
Shell | Shell material | (Optional)UL94-V0/V2 flame retardant ABS+PC | ||||||||
RoHS | Pass (SGS test) | |||||||||
REACH | Pass (SGS test) | |||||||||
UL | Pass(with UL file number) | |||||||||
PAHs | Pass (SGS test) | |||||||||
LOW HALOGEN | Pass (SGS test) | |||||||||
Bristles | Bristles material performance | (Optional)UL94-V2 flame retardant PP bristles (low cost, high flame retardancy, high hardness) | ||||||||
(Optional)UL94-V0 flame retardant PA (nylon) bristles (high recovery, high flame retardant) | ||||||||||
(Optional)anti-static nylon PA6(resistance value：1E10-1E12Q,1E8-1E10Q) | ||||||||||
Bristles diameter | 0.3mm | |||||||||
Bristles shape | Straight | |||||||||
Bristles color | Dark grey near black | |||||||||
RoHS | Pass (SGS test) | |||||||||
REACH | Pass (SGS test) | |||||||||
UL | Pass(with UL number) | |||||||||
PAHs | Pass (SGS test) | |||||||||
LOW HALOGEN | Non conformance, flame retardant bristles contains about 8.5% bromine (SGS test) | |||||||||
Whole grommet | Whole RoHS | Pass (SGS test) | ||||||||
Whole REACH | Pass (SGS test) | |||||||||
Whole UL | Pass (with UL file number) | |||||||||
Whole PAHs | Pass (SGS test) | |||||||||
LOW HALOGEN | Non conformance, flame retardant bristles contains about 8.5% bromine (SGS test) | |||||||||
Overall dimensions | φ 145 * 50mm | 175*175*38mm | 190*190*38mm | 280*210*41mm | ||||||
Available threading area | 70.88CM² | 100CM² | 119.48CM² | 269.99CM² | ||||||
Floors and Openings | Elevated floor thickness | 30-38.5mm | ||||||||
Opening size | φ100mm | 138*138mm | 142*142mm | 241*170mm | ||||||
No 1: The whole series complies with UL RoHS REACH WEEE and can be exported to the United States and Europe with confidence. No 2: Flame retardant bristles do not conform to low halogen. | ||||||||||
Application area
The production capacity of our company is about 12000 iron brushes and 100000 hair planting
brushes per day. The brush products can be widely used in network energy cabinet, server chassis
machinery, elevator escalator, vacuum cleaner, sweeping robot, building automatic door, subway,
bus door, office furniture, home and outdoor cleaning, car washing industry,
beauty salon and other industries.
Contact us
Contact Person: Vito Chen
WhatsApp:+86 138 6256 3662
MP: +86 138 6256 3662
Wechat: 138 6256 3662
E-mail: vito.chen@yudao-brush.com
Website: szyudao.en.alibaba.com
Contact Person: Dawn Sun
WhatsApp:+86 159 0063 7540
MP: +86 159 0063 7540
Wechat: 159 0063 7540
E-mail: dawn.sun123@foxmail.com
Website: szyudao.en.alibaba.com
Packaging display
Defect return
Company introduction
Suzhou Yudao Precision Manufacturing Co., Ltd. specializes in providing brush parts for European and American customers. The products mainly include various cabinet wiring brushes, cabinet channel brushes, raised floor threading boxes, charging pile waterproof brushes, automatic door brushes, office furniture dust brushes, various cleaning brushes, wooden handle brushes, and car wash hub brushes. The company's production capacity is about 12000 iron brushes per day, about 45000 plant bristles, and about 5000 meters of aluminum profiles for bristles. Brush products can be widely used in network energy cabinets, server chassis machinery, automatic doors, subway bus doors, office furniture, home and outdoor cleaning, car washing industry, beauty salon and other industries. The processing techniques used include CNC high-speed hair planting and iron sheet metal strip brush, hob hair smoothing, punch hair smoothing, etc. The main customers include APC, Schneider, HP, Amazon Cloud, Microsoft Cloud, Alibaba Cloud,Tencent, Baidu, Lake Vacuum Cleaner, Jiangnan Jiajie Elevator, etc. With many years of cooperation experience with European and American customers, the company has established a complete quality management system. The advanced American automotive industry CPK system is used for process capability analysis, and the American aviation industry PFMEA system is used to ensure product quality. International standards such as IS02768, ROHS, RAECH, and UL are used to control product size, material environmental protection, and flame retardance. The international standards followed by our company include IS09001 (quality management),ISO2768 (product tolerance), ROHS (environmental protection), REACHSVHC (environmental protection), PAHs (environmental protection), and UL (material performance and flame retardant). Suzhou Yudao Precision Manufacturing Co., Ltd. is recognized by customers with integrity, strength, and quality, striving to become the cornerstone of China's brush supply. Warmly welcome colleagues from all walks of life to visit and negotiate business! | ||||||||
Qualification Certifications
Why choose Yudao Brush Industry
Why choose Yudao Brush Industry | ||||||||
①
15 years of experience
in design customization
Quickly provide solutions
based on customer demands
②
Quality guaranteed
Accurate size,
strict quality inspection,
and compliant material usage
③
Serve customers
with dedication
Urgent customer needs,
Think about customers think
④
Product diversity
Wide customizable range
⑤
2V1 (technology+business)
docking with customers
Produce a customized
product plan on the same day
Customer distribution
FAQ
1. Q: Can I get some samples or customize them according to my drawings and requirements?
A: Yes, sample orders welcomed，It usually takes 1-2 days for us to make samples.
2. Q: Have the items in stock?
A: For most items, we have in stock and will arrange prompt delivery and for large quantity, we will calculate delivery time
accordingly.
3.Q: Could I use my own logo or design the items ?
A: Yes, customized logo and design on mass production are available, but we need authorization.
4.Q: Can I choose the colors?
A: Yes, we normally have several colors optional for each item and OEM color is available on mass production.
5.Q: What is lead time?
A: Prompt delivery normally for sample orders and 5-10 days for mass production.
6. Q: What are your terms of trade? What's the mode of payment?
A: Our terms of trade generally is FOB, we can accept payment by T/T, Western Union, PayPal, Alibaba Payment Link.
7. Q: What's the advantage of your company's products?
A: The product is durable and affordable, with precise dimensions, ECO-friendly, compliant raw materials, and sturdy packaging.
8. Q: Why do I trust you?
A: We are " Alibaba " verified supplier and we have high quality goods and service,We have 5 years of experience in design
customization and Quickly provide solutions based on customer demands,We are Serve customers with dedication，Urgent customer needs, Think about what customers think.
2. Q: Have the items in stock?
A: For most items, we have in stock and will arrange prompt delivery and for large quantity, we will calculate delivery time
accordingly.
3.Q: Could I use my own logo or design the items ?
A: Yes, customized logo and design on mass production are available, but we need authorization.
4.Q: Can I choose the colors?
A: Yes, we normally have several colors optional for each item and OEM color is available on mass production.
5.Q: What is lead time?
A: Prompt delivery normally for sample orders and 5-10 days for mass production.
6. Q: What are your terms of trade? What's the mode of payment?
A: Our terms of trade generally is FOB, we can accept payment by T/T, Western Union, PayPal, Alibaba Payment Link.
7. Q: What's the advantage of your company's products?
A: The product is durable and affordable, with precise dimensions, ECO-friendly, compliant raw materials, and sturdy packaging.
8. Q: Why do I trust you?
A: We are " Alibaba " verified supplier and we have high quality goods and service,We have 5 years of experience in design
customization and Quickly provide solutions based on customer demands,We are Serve customers with dedication，Urgent customer needs, Think about what customers think.
