Машина для пайки, небольшая паяльная машина, сварочное оборудование для 200, волновая паяльная машина
433 743,60 ₽

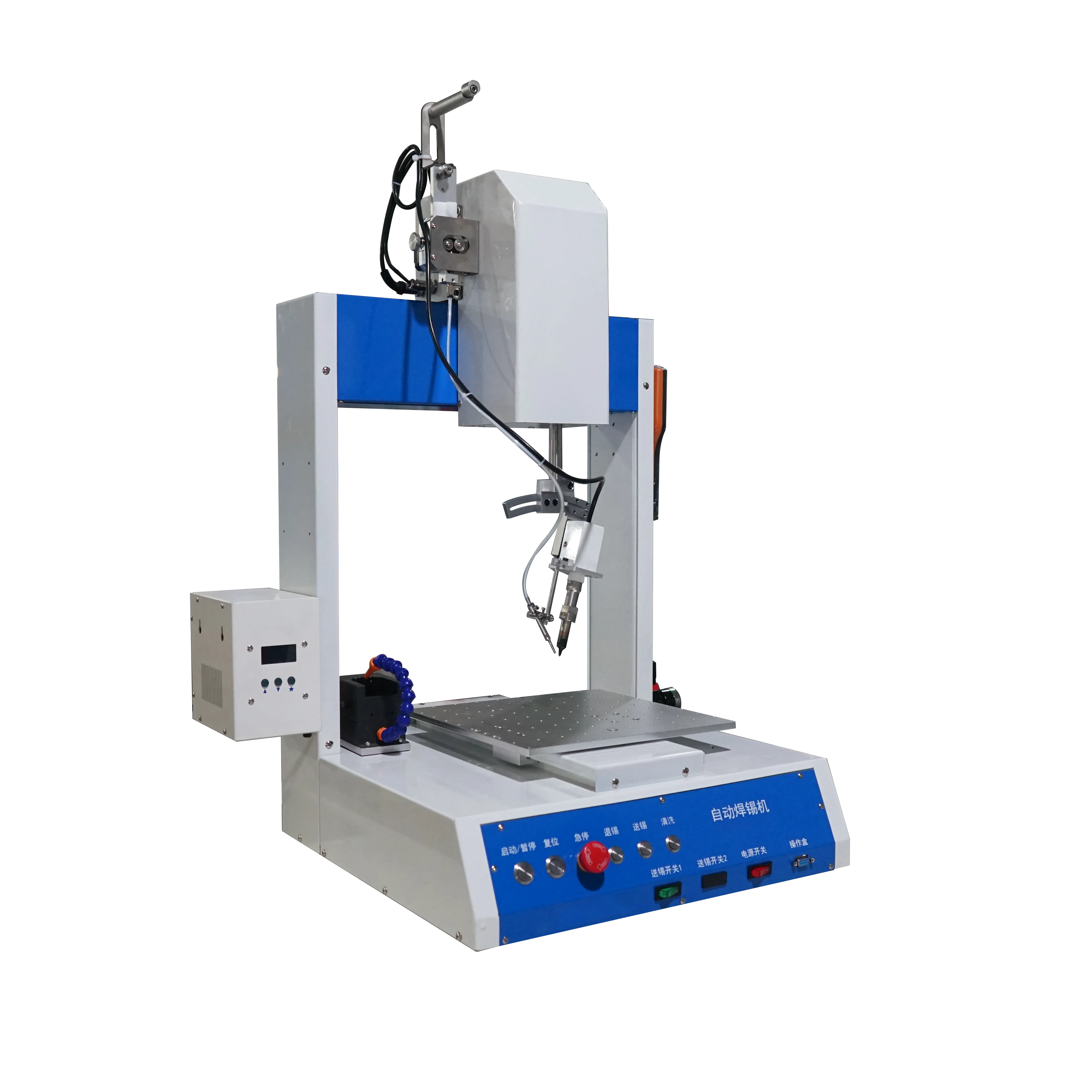

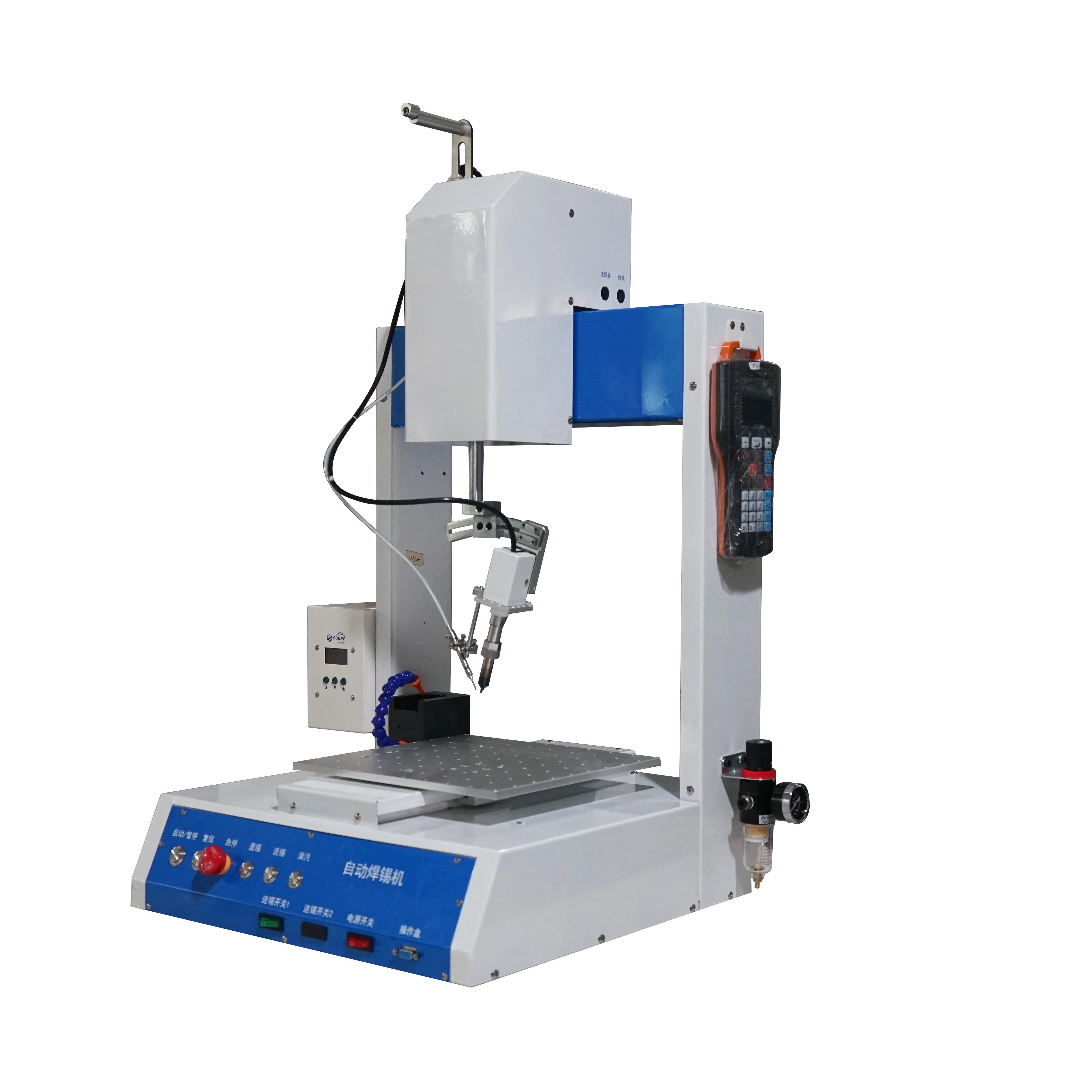

Коннекторы двигатели печатная плата автоматическая паяльная машина с вращающейся осью четырехосная
- Категория: >>>
- Поставщик: Dongguan Jinxiang Automation Technology Co. Ltd.
Сохранить в закладки 1600923884938:
Описание и отзывы
Характеристики
Products Display
Product Description
The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality, widely used in the PCB board welding, charger plug welding, connector soldering, DC end tin, LED light strip connection, automotive electronics, digital, electronic products, electro-acoustic, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, home appliances， speakers and motors Quality welding industry.
The core part of the automatic soldering machine is the soldering system. The soldering system is mainly composed of automatic tin feeding mechanism, temperature control, heating element and soldering iron head. The soldering iron unit can be adjusted to any direction, 360° free rotation for R-axis.
The core part of the automatic soldering machine is the soldering system. The soldering system is mainly composed of automatic tin feeding mechanism, temperature control, heating element and soldering iron head. The soldering iron unit can be adjusted to any direction, 360° free rotation for R-axis.
Features
1)Applicable for different products, soldering temperature can be set freely.
2)With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
3)In the soldering process, the solder tip has rapid heat recovery and a long life span.
4)Two options for soldering tin feeding devices: tin breaking function/no tin breaking function.
5)Accuracy of ±0.02mm ensures the accuracy of the welding position during production.
6)With function of spot welding, drag soldering, automatic cleaning, etc. Each solder joint has an independent parameters of preheating, the length of welding wire, preheating time, welding time, solder wire return time, lifting height, etc.
7)With the function of program editing for soldering points with parameter copy, position correct, position copy, array, batch editing and modification, as well as other fast editing function, can greatly improve editing efficiency and can be easily to operator.
8)Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.
9)With the sleeve design, the soldering tip can be replaced quickly and easily.
10)High power heating controller ensures the tip temperature to reach 350°C within 30 seconds.
11)All kinds of parameters can be set to make sure the high welding quality.
1)Applicable for different products, soldering temperature can be set freely.
2)With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
3)In the soldering process, the solder tip has rapid heat recovery and a long life span.
4)Two options for soldering tin feeding devices: tin breaking function/no tin breaking function.
5)Accuracy of ±0.02mm ensures the accuracy of the welding position during production.
6)With function of spot welding, drag soldering, automatic cleaning, etc. Each solder joint has an independent parameters of preheating, the length of welding wire, preheating time, welding time, solder wire return time, lifting height, etc.
7)With the function of program editing for soldering points with parameter copy, position correct, position copy, array, batch editing and modification, as well as other fast editing function, can greatly improve editing efficiency and can be easily to operator.
8)Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.
9)With the sleeve design, the soldering tip can be replaced quickly and easily.
10)High power heating controller ensures the tip temperature to reach 350°C within 30 seconds.
11)All kinds of parameters can be set to make sure the high welding quality.
Specification
Product Name | Automatic Soldering Machine With R Rotary Axis | ||||
Mode | CBHX-331R | CBHX-441R | |||
Axis range | 300X*300Y*100Zmm*360°R | 400X*400Y*100Zmm*360°R | |||
@Can be customized | |||||
Work range | 270X*300Y*100Zmm | 370X*400Y*100Zmm | |||
Number of Axes | 4 Axes | ||||
Number of platform | 1 set | ||||
Number of soldering head | 1 set | ||||
Temperature error | ±1℃ | ||||
Temperature range | 0 ~550℃ | ||||

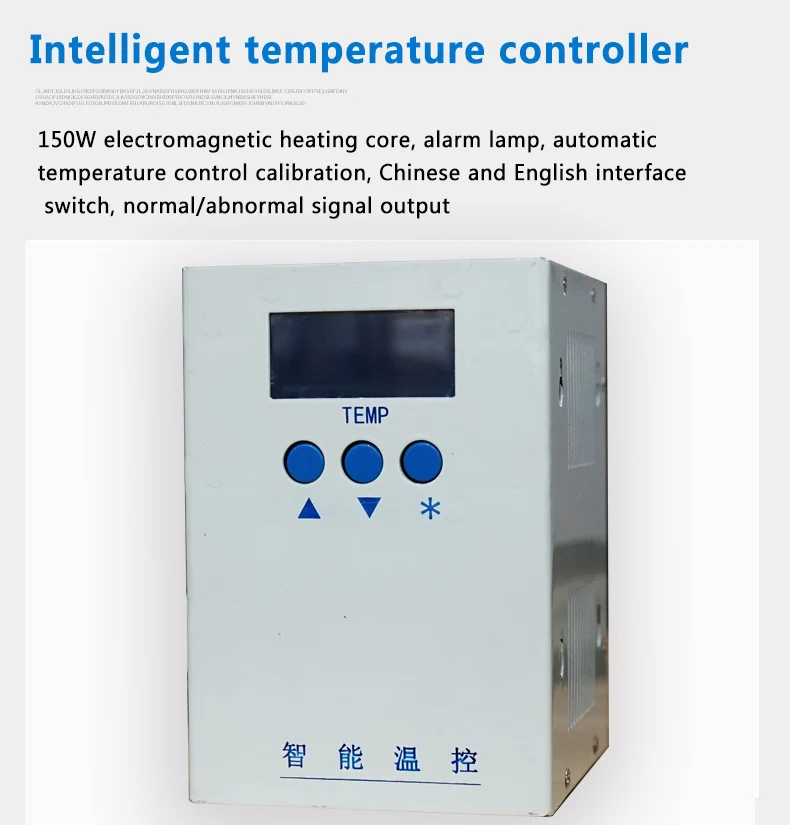

Temperature control Power | 150W(Optional 320W) | ||||
Moving speed(mm/second) | 0~800 | ||||
Repeatability precision | ±0.02mm/(X/Y/Z), ±0.02°R | ||||
Display mode | LCD teaching box | ||||
Motor system | precision micro stepping motor | ||||
Driving mode | Precision stepper motor + precision rail + precision belt | ||||
@(optional closed-loop stepper motor) | |||||
Control system | Special controller for soldering machine | ||||
Voltage | AC110/220V, 50/60Hz | ||||
Maximum Load Weight | 15kg for work platform | ||||
Programming File Capacity | 256MB, up to 9999 files, single file up to 8000 points | ||||
Solder Wire Diameter | Φ0.3～1.6mm | ||||
Tin feeding control | Precision stepper motor | ||||
External Dimensions(L*W*H) | 480*500*725mm | 580*600*725mm | |||
Net weight | 50kg | 60kg | |||
Working Temperature | 0-40℃ | ||||
Working humidity | 20-90% | ||||
Air pressure | 0.4 to 0.6MPa(4～6kg cm2) as dry air | ||||
Main Products
1.Semiconductor products, such as LSI, IC, hybrid IC,CSI, BGA, etc.
2.Electronic mechanical parts: such as printed motherboards, small switches, capacitors, variable resistors, crystal oscillators, LCD. Magnetic head, relay, connector, engine, transformer, etc.
3.Large mechanical products: such as motorcycles, cars, ships, spacecraft, satellites and so on
4.Household appliances: such as DVD, audio equipment, car navigation system, TV game console, TV, radio, washing machine, vacuum cleaner, etc.
5.Precision electronic products: such as camera, camera, VTR, recording camera, electronic clock, personal computer, PDA, printer, copier, calculator, LCD TV, medical equipment and so on.
2.Electronic mechanical parts: such as printed motherboards, small switches, capacitors, variable resistors, crystal oscillators, LCD. Magnetic head, relay, connector, engine, transformer, etc.
3.Large mechanical products: such as motorcycles, cars, ships, spacecraft, satellites and so on
4.Household appliances: such as DVD, audio equipment, car navigation system, TV game console, TV, radio, washing machine, vacuum cleaner, etc.
5.Precision electronic products: such as camera, camera, VTR, recording camera, electronic clock, personal computer, PDA, printer, copier, calculator, LCD TV, medical equipment and so on.
Company Profile
Certificate
Packing & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
Q3: How about the quality?
Q4: Can we be your distributor?
Q5: How’s the package?
Q6: How’s the delivery time?
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
Похожие товары

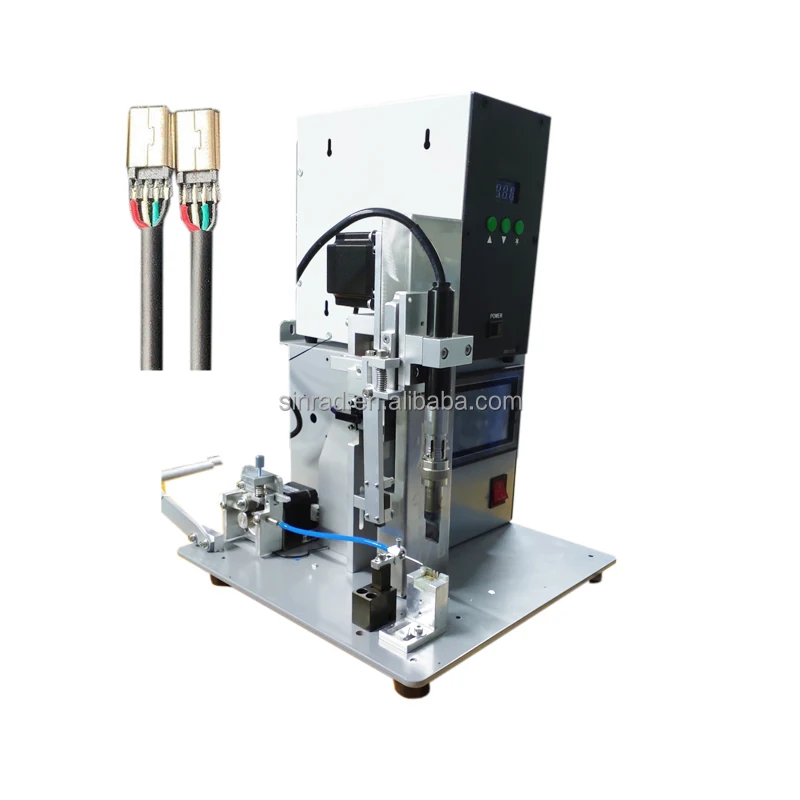

Электронный компонент, выпрямительный мост, паяльная машина, водонепроницаемый разъем, паяльная машина SR-ST150
