Высокоточный мостовой тестер TH2816A
- Категория: >>>
- Поставщик: Hunan Gonoava Instrument Co. Ltd.
Сохранить в закладки 1600925289633:
Описание и отзывы
Характеристики
Products Description

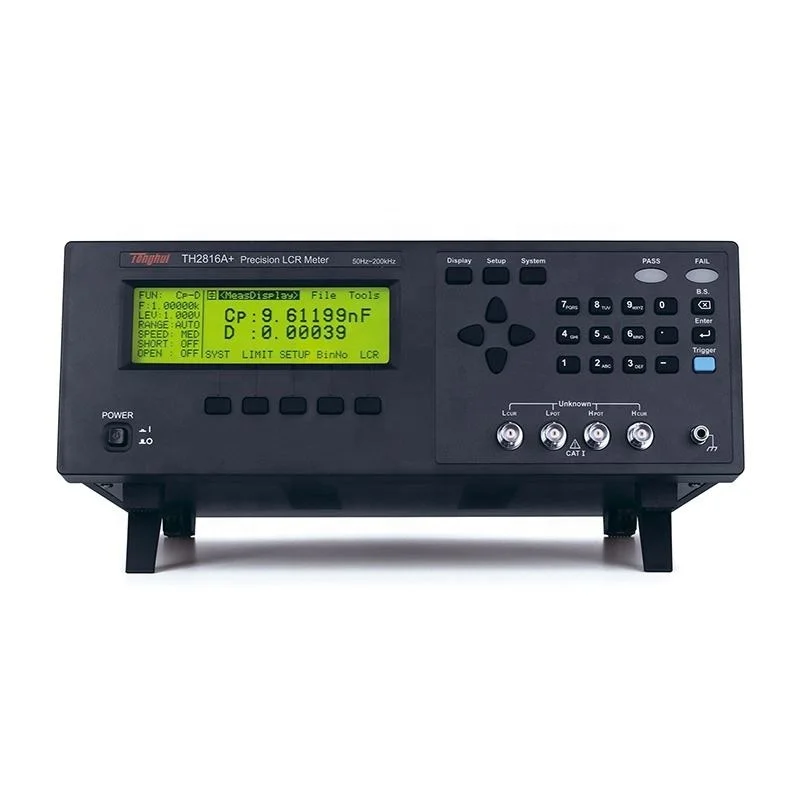

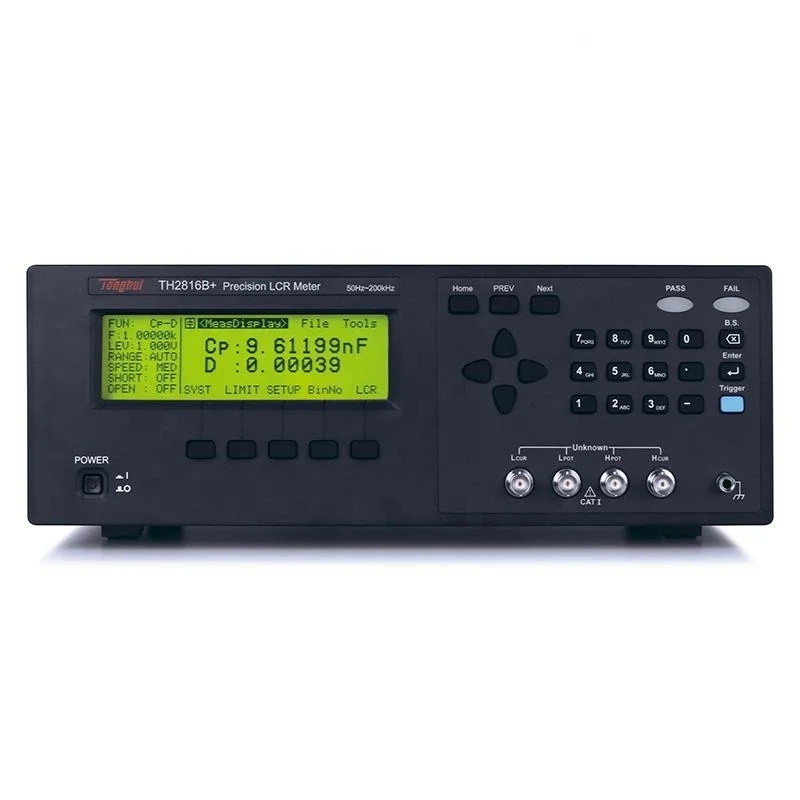

TH2816A+ High precision Bridge tester LCR Meter TH2816B+ TH2816P
Features
• 240×64 dot matrix graphic LCD display
• Humanized operation interface, easy to operate
• 0.02% accuracy (TH2816P), 7-digit reading 0.05% accuracy (TH2816A+/TH2816B+) 6-digit reading
• 10mVrms - 2.0Vrms programmable test level
• Compatible with legacy bias source control
• High stability, high accuracy
• The fastest speed is about 60 times/second
• Accurate load calibration function
• 30Ω/100Ω selectable signal source output impedance
• 4-point frequency/level/list sweep function
• Direct reading, absolute deviation and relative deviation display
• 12 groups of internal instrument setting storage
• Built-in comparator: 10-bin sorting and bin counting (TH2816P/TH2816A+) 4 bins sorting and bin counting (TH2816B+)
• Test level monitoring function
• Keypad lock function
TH2816A+ High precision Bridge tester LCR Meter TH2816B+ TH2816P
• 240×64 dot matrix graphic LCD display
• Humanized operation interface, easy to operate
• 0.02% accuracy (TH2816P), 7-digit reading 0.05% accuracy (TH2816A+/TH2816B+) 6-digit reading
• 10mVrms - 2.0Vrms programmable test level
• Compatible with legacy bias source control
• High stability, high accuracy
• The fastest speed is about 60 times/second
• Accurate load calibration function
• 30Ω/100Ω selectable signal source output impedance
• 4-point frequency/level/list sweep function
• Direct reading, absolute deviation and relative deviation display
• 12 groups of internal instrument setting storage
• Built-in comparator: 10-bin sorting and bin counting (TH2816P/TH2816A+) 4 bins sorting and bin counting (TH2816B+)
• Test level monitoring function
• Keypad lock function
TH2816A+ High precision Bridge tester LCR Meter TH2816B+ TH2816P
Brief Introduction
TH2816P/TH2816A+/TH2816B+ precision LCR meter is the latest generation developed on the basis of TH2816A/B and TH2817A, which are deeply trusted by customers. It integrates our company's many years of mature experience in component testing and uses the latest technology in this field.
TH2816P improves the 0.05% accuracy of the original product to the 0.02% accuracy of the domestic ultra-high level, and at the same time inherits and further improves the stability and consistency of the original product, making it one of the most advanced products in the world. Combined with the low price, it will give our customers super value enjoyment.
TH2816P provides stable 7-bit test resolution, while TH2816A+/TH2816B+ continues to maintain 6-bit test resolution, and the basic frequency and test level indicators are consistent with TH2816A/B and TH2817A series.
The new-generation instrument prompts the test speed to the fastest about 60 times per second, provides 9 levels of fine range, constant 30Ω/100Ω source internal resistance and flexible and humane operation mode, which can meet the requirements of production line quality assurance, incoming inspection and laboratory high precision measurement requirements. The appearance of the new-generation instrument has been changed to the internationally popular black color, which is more beautiful than the old model.
At the same time, it has inherited all its operation function keys and menus, and old users can seamlessly upgrade.

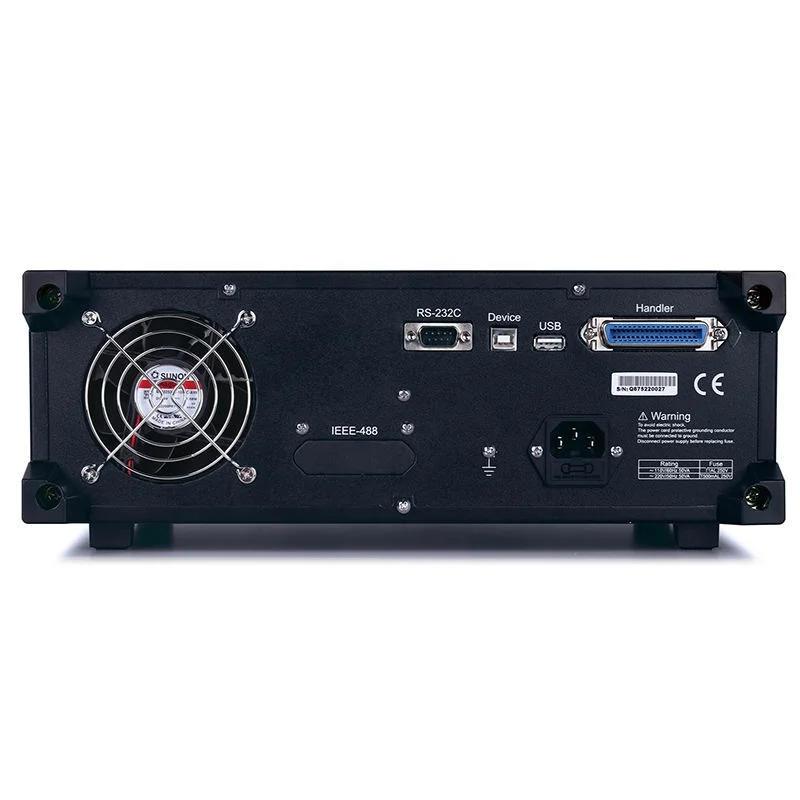

In addition to providing RS232C, HANDLER, and GPIB (option) interfaces like the old models, the new generation of instruments further provides USB HOST and USB DEVICE interfaces. It provides more options for the instrument to be integrated in the automatic component sorting system, communicate with the computer and record the test process data.
TH2816P/TH2816A+/TH2816B+ precision LCR meter is the latest generation developed on the basis of TH2816A/B and TH2817A, which are deeply trusted by customers. It integrates our company's many years of mature experience in component testing and uses the latest technology in this field.
TH2816P improves the 0.05% accuracy of the original product to the 0.02% accuracy of the domestic ultra-high level, and at the same time inherits and further improves the stability and consistency of the original product, making it one of the most advanced products in the world. Combined with the low price, it will give our customers super value enjoyment.
TH2816P provides stable 7-bit test resolution, while TH2816A+/TH2816B+ continues to maintain 6-bit test resolution, and the basic frequency and test level indicators are consistent with TH2816A/B and TH2817A series.
The new-generation instrument prompts the test speed to the fastest about 60 times per second, provides 9 levels of fine range, constant 30Ω/100Ω source internal resistance and flexible and humane operation mode, which can meet the requirements of production line quality assurance, incoming inspection and laboratory high precision measurement requirements. The appearance of the new-generation instrument has been changed to the internationally popular black color, which is more beautiful than the old model.
At the same time, it has inherited all its operation function keys and menus, and old users can seamlessly upgrade.
In addition to providing RS232C, HANDLER, and GPIB (option) interfaces like the old models, the new generation of instruments further provides USB HOST and USB DEVICE interfaces. It provides more options for the instrument to be integrated in the automatic component sorting system, communicate with the computer and record the test process data.
Specification
Model | TH2816P | TH2816A+ | TH2816B+ | ||||
Display | 240×64 dot-matrix LCD display | ||||||
Digits | 7-digit resolution | 6-digit resolution | 6-digit resolution | ||||
Basic accuracy | 0.02% | 0.05% | 0.05% | ||||
Test signal frequency | Range | 50Hz - 200kHz | 50Hz - 200kHz | 50Hz - 200kHz | |||
Dots | 12000 Dots | 12000 Dots | 37 Dots | ||||
Output impedance | 30Ω / 100Ω | ||||||
AC Test level | 10mV - 2Vrms, 10mV steps | ||||||
Test parameter | L, C, R, |Z|, D, Q, G, B, X, θd, θr, Vm, Im, % | ||||||
Measurement display range | |Z|, R, X | 0.00001Ω - 99.9999MΩ | |||||
G, B | 0.00001μs - 99.9999s | ||||||
C | 0.00001pF - 9.99999F | ||||||
L | 0.00001μH - 99.9999kH | ||||||
D | 0.00001 - 9.99999 | ||||||
Q | 0.00001 - 99999.9 | ||||||
θ(DEG) | -179.999º - 179.999º | ||||||
θ(RAD) | -3.14159 - 3.14159 | ||||||
% | -999.999% - 999.999% | ||||||
Measurement terminal | 5 terminals | ||||||
List sweep | List sweep for up to 4 frequencies, signal levels and DC bias levels | ||||||
Graphic scanning | ------ | ||||||
Measuring speed | Fasr+: 16.7ms; Fast: 33ms; Med: 100ms; Slow: 667 ms | ||||||
Equivalent circuit | Series and Parallel | ||||||
Ranging mode | Auto, Hold | ||||||
Trigger mode | Internal, Manual, External and Bus | ||||||
Averaging rate | 1 - 255 | ||||||
Correction function | Open, Short and Load corrections | ||||||
Display Mode | Direct, ΔABS, Δ%, V/I( V/I monitor), Bin number and bin counter | ||||||
Comparator Function | 10 Bins, BIN1 - BIN9, NG, AUX | 4 Bins, BIN1 - BIN3, NG, AUX | |||||
Bins counting function | |||||||
PASS, FAIL front panel display | |||||||
Memory | 12 control settings memory for store/recall | ||||||
Interface | Control | HANDLER | |||||
Communication | RS232C, USB HOST, USB DEVICE, GPIB(Option) | ||||||
Working temperature, humidity | 0℃-40℃, less than 90%RH | ||||||
Input power | Voltage | 198V-242V AC | |||||
Frequency | 47Hz-63Hz | ||||||
Power consumption | Max 80VA | ||||||
Size (mm) | 350(W)×122(H)×310(D) | ||||||
Weight | 6.5 kg | ||||||
TH2816A+ High precision Bridge tester LCR Meter TH2816B+ TH2816P
Our Advantages
Company Profile
HUNAN GONOAVA INSTRUMENT CO LTD Professionally supply kinds of testing machines for different industries,it is a collection development,research,production and sales of high accuracy testing machines,products meet UL,ASTM,JIS,ISO,GB,TAPPI,IEC,EN,DIN BS and other domestic and international standards.Provide customers with better overall laboratory solution,including lab design,machine customize and drawing, instrument selection,installation,
training,maintenance,become one stop for testing instrument and machines.
We have many years export experience,products are exported more than 50 countries,welcome abroad instruments dealer to become our sales agent.Our products is widly used in many industries,such as metal,gold,Ore,Raw material,plastic,packaging,paint,printing ink,leather,shoes,fabric,keyboard,Electronic product,auto and motorcycle ,Toys, mobile phone computer ,Sports equipment,Electroplating industry.
training,maintenance,become one stop for testing instrument and machines.
We have many years export experience,products are exported more than 50 countries,welcome abroad instruments dealer to become our sales agent.Our products is widly used in many industries,such as metal,gold,Ore,Raw material,plastic,packaging,paint,printing ink,leather,shoes,fabric,keyboard,Electronic product,auto and motorcycle ,Toys, mobile phone computer ,Sports equipment,Electroplating industry.
Exhibition
Certifications
Packing & Delivery
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start production once getting the payment.
A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
