EnerCube Новые фотоэлектрические возобновляемые источники энергии 1290 кВтч контейнерная система хранения солнечной Lifepo4
184 937,00-198 278,00 $
1290kWh системный контейнер для хранения энергии литиевый возобновляемой солнечной
- Категория: >>>
- Поставщик: Shenzhen Ace Battery Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600925853413:
Описание и отзывы
Характеристики
Products Display
HIGH SAFETY AND RELIABLE TECHNOLOGY
EV-safe LFP battery technology offers high performance, complete with a standard 3-level battery management system (BMS) and unique "separate cluster, separate management" approach that ensures fault self-diagnosis and self-recovery.
Patented design presents explosion and high-efficiency thermal management system further enhances safety and reliability.
SMART O&M AND CAPACITY CUBE
Optional cloud service and 24-hour cloud intelligent maintenance, with quick fault location and analysis for convenient O&M. Modular battery cabinet design supports DC coupling and AC/DC one-stop system integration, with support for AC coupling and AC prefabricated cabins. Enjoy the flexibility to choose your preferred PCS brand.
HIGH EFFICIENCY
Combined with EMS to maximize revenue and realize precise and efficient control. Design is optimized on hardware and software for higher conversion efficiency, with millisecond response times. Intelligent temperature control reduces power consumption.
CONVENIENT INSTALLATION
Product Paramenters
● High-safety, high-performance LFP battery24-hour cloud-based intelligent maintenance.
● Integration with EMS for maximized revenue and precise, efficient control.
● International standard-sized containers for seamless transportation.
● Modular design of structure and components, adaptable for micro-grid, integrated solar+storage+EV charging,and other industrial and commercial application scenarios with different functional configurations.
● Integration with EMS for maximized revenue and precise, efficient control.
● International standard-sized containers for seamless transportation.
● Modular design of structure and components, adaptable for micro-grid, integrated solar+storage+EV charging,and other industrial and commercial application scenarios with different functional configurations.
Type | EnerCube-1290 | |
Battery Parameters | ||
Cell Type | LFP | |
Battery Capacity (BOL) | 1290kWh | |
Voltage Range | 672V-864V | |
AC Output Parameters | ||
AC Rated Power | Various Options:180kW 360kW ,480kW or 600kW | |
Rated Voltage | AC400V,3P4W+PE | |
Rated Frequency | 50Hz士5Hz/60Hz士5Hz | |
Max Output Current | 690A | |
Power Factor | 1 Lagging | |
Max Harmonic Current | <3%(Rated OutputPower) | |
Isolation Method | No lsolation Transformer | |
General Parameters | ||
Dimension (W*D*H) | 6058mm* 2438mm* 2896mm | |
Weight | 18000kg | |
IP Protection Grade | IP34 | |
Anti-Corrosion Grade | C3 | |
Operating Temperature | -20%°C~ 55°C | |
Operating Altitude | <2000m | |
Battery Room Cooling Method | HVAC | |
Noise | <75dB | |
Fire Fighting Design | FM200 | |
Communication Interface and Protocol | Ethernet, Modbus TCP/IP | |
Design Standard | GB_T36558 | |

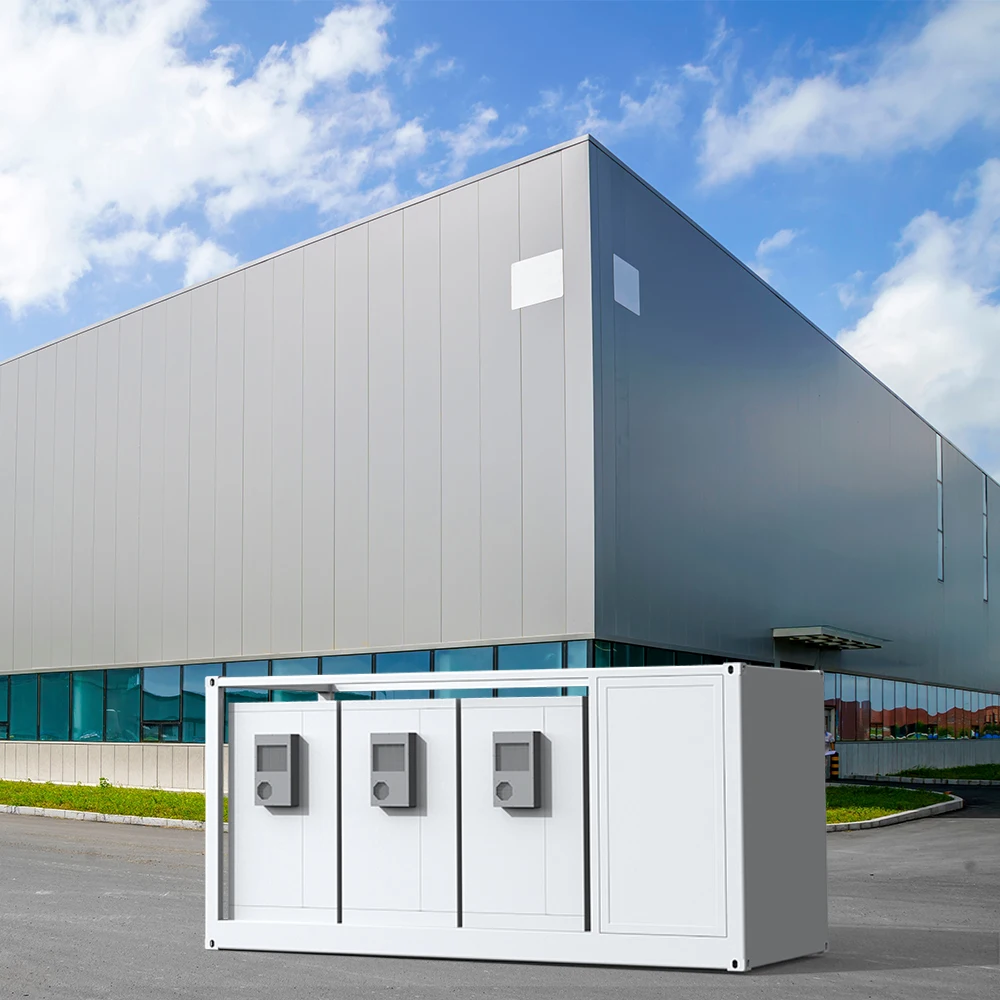

PRODUCT OVERVIEW
EnerCube is a high-safety, integrated energy storage system developed by the ACE team, who boasts 15 years of expertise in electrochemical energy storage R&D and application. Designed for diverse application scenarios, EnerCube is ideal for industrial and commercial emergency power backup, peak-load shifting, system capacity expansion, and new energy power generation. Compliant with IEC62933, GB/T36558, IEC62619, and other domestic and international standards, EnerCube features an all-in-one modular design. This design incorporates battery modules, intelligent power distribution units (PDU), fire suppression systems (FSS), temperature control systems (TCS), and intelligent monitoring systems (IMS) within a container of international standard size. The container is easy to lift, transfer, and is well-suited for ocean and highway transportation. The system's unique patented safety design significantly reduces accident risks and ensures accident isolation.
The EnerCube Battery Management System (BMS) automatically controls and monitors the entire battery system in real time. It also includes functions such as battery balance management and fault self-diagnosis, ensuring the module's safe and seamless operation.
EnerCube adheres to strict production management standards based on ISO quality, environmental, and occupational health and safety management system requirements. To guarantee safe, efficient, and comfortable energy use, hundreds of tests and commissioning processes are conducted before delivery to customers. This approach not only saves on-site construction and operation costs, but also ensures a high-quality product.

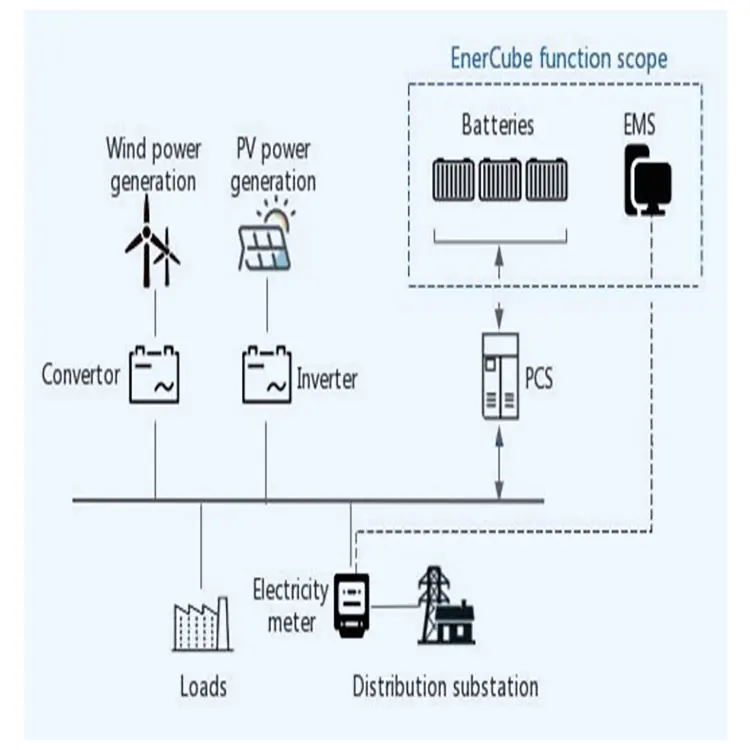

On-grid----Industrial Park
• Integrated with EMS for intelligent operation
• Suitable for peak-load shifting and reducing electricity bills
• Supports capacity expansion and adding charging stations without extra investment in new transmission and distribution facilities
• Compatible with direct access of PV modules
• Promotes energy conservation, emission reduction, and green production
• Suitable for peak-load shifting and reducing electricity bills
• Supports capacity expansion and adding charging stations without extra investment in new transmission and distribution facilities
• Compatible with direct access of PV modules
• Promotes energy conservation, emission reduction, and green production
Off-grid----Powerless and Power-deficient Areas
• On-grid/off-grid switching in milliseconds for seamless transition between utility grid and PV or wind energy storage systems
•Ideal for remote villages, farms, and other locations with limited or no power access
• Prioritizes wind power or PV for load supply and ESS charging; ESS provides power to loads when renewable sources are insufficient
• Flexibly accommodates backup power sources such as diesel and gas generators
Integrated Solar+ESS Charging Station
• Integrated solar+ESS design, compatible with PV access
• Prioritizes clean electricity from PV for new energy vehicles
• Off-grid operation ensures charger functionality during power outages
• Power transfer and peak-load shifting for electricity cost savings
• Prioritizes clean electricity from PV for new energy vehicles
• Off-grid operation ensures charger functionality during power outages
• Power transfer and peak-load shifting for electricity cost savings
Solar PV and Wind Power Absorption
• Patented safety design featuring automotive-grade, high-performance LiFePO4 batteries for safety and reliability
• Integrated with EMS for overall system scheduling
• Power quality control and smooth output
• Electricity savings and reduced energy waste
• Integrated with EMS for overall system scheduling
• Power quality control and smooth output
• Electricity savings and reduced energy waste

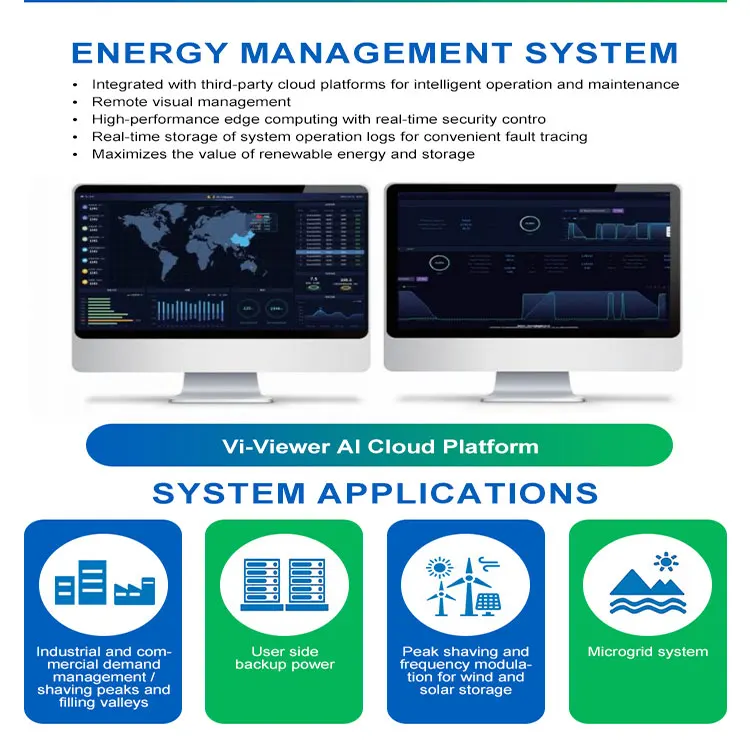

ENERGY MANAGEMENT SYSTEM
• Integrated with third-party cloud platforms for intelligent operation and maintenance
• Remote visual management
• High-performance edge computing with real-time security contro
• Real-time storage of system operation logs for convenient fault tracing
• Maximizes the value of renewable energy and storage
About Us
Certificate
Exhibition
Product Process
Packing & Shipping
FAQ
Q1.Are you a factory or trade company?
Quality Management Systems：
ACE Group has been certified to ISO9001, ISO13485, ISO14001, ISO45001, ISO17025, OHSAS18000 and IATF16949, the world's best-known quality management systems.
Battery Safety and Quality Certifications：
ACE Group's battery certifications include UL2054, UL1973, UL2580, UL9540A, UL1642, IEC62133 and more, which have testing requirements on the safety and quality of batteries, and ensure compliance with relevant rules and regulations.
TÜV Rheinland / UL CTDP & WTDP Authorized Lab：
ACE Group's testing center has been certified as the TUV/UL CTDP authorized lab. The Client Test Data Program (CTDP) is offered to all qualified UL customers with previous experience in the Witnessed Test Data Program (WTDP), for UL1973, UL2580, UL1642, UL2054, UL2056, UL2595, UL2743, UL2271, IEC/UL62368-1, IEC62133-2, JIS C62133-2, IEC62619, IEC61960-3, EN50604-1, and UN38.3 standard testings.
Remark: We can collaborate to complete the certification requirements as long as the business conditions for cooperation are met.
A:We are a manufacturing company with seven well-established factories in China, located in Shenzhen, Sichuan, Henan, and Hunan. We are also planning to establish three new factories in America, Germany, and Mexico. Since our establishment, we have invested in advanced infrastructure and technology to support our operations. Our factories are equipped with automated production lines, ensuring efficient and precise manufacturing processes. With our factories, we have complete control over the production process, allowing us to maintain high-quality standards and ensure the timely delivery of our products.
Q2.Are you open to OEM/ODM partnerships?
A:Absolutely! We have been fully capable of providing OEM/ODM services for our valued partners since the establishment of our company. We are the core partner of many Fortune Global 500. At our company, we are committed to fostering strong OEM/ODM partnerships. We have a dedicated team that specializes in offering comprehensive OEM and ODM services to our esteemed partners.
We value long-term partnerships and are dedicated to providing exceptional support and service to our OEM/ODM clients. If you are interested in exploring an OEM/ODM collaboration with us or have any specific inquiries, please don't hesitate to contact our team. We look forward to the opportunity to work together and bring your vision to life.
Q3.What certifications have your products obtained?
A:Our products undergo rigorous testing and adhere to industry standards to ensure their quality, safety, and compliance. We are proud to hold a lot of certifications for our products, including but not limited to:Quality Management Systems：
ACE Group has been certified to ISO9001, ISO13485, ISO14001, ISO45001, ISO17025, OHSAS18000 and IATF16949, the world's best-known quality management systems.
Battery Safety and Quality Certifications：
ACE Group's battery certifications include UL2054, UL1973, UL2580, UL9540A, UL1642, IEC62133 and more, which have testing requirements on the safety and quality of batteries, and ensure compliance with relevant rules and regulations.
TÜV Rheinland / UL CTDP & WTDP Authorized Lab：
ACE Group's testing center has been certified as the TUV/UL CTDP authorized lab. The Client Test Data Program (CTDP) is offered to all qualified UL customers with previous experience in the Witnessed Test Data Program (WTDP), for UL1973, UL2580, UL1642, UL2054, UL2056, UL2595, UL2743, UL2271, IEC/UL62368-1, IEC62133-2, JIS C62133-2, IEC62619, IEC61960-3, EN50604-1, and UN38.3 standard testings.
Remark: We can collaborate to complete the certification requirements as long as the business conditions for cooperation are met.
Q4.Are you able to handle shipment transportation?
A:Absolutely! Our services include both shipment transportation and customs clearance. Our dedicated team handles logistics, timely delivery, and all necessary documentation for smooth customs clearance. We have expertise in international shipping regulations and work closely with customs authorities to ensure a hassle-free process. You can rely on us for efficient and reliable shipment transportation, including seamless customs clearance.
Q5.What is the duration of the product warranty?
A:Different products have different warranties. You are always welcome to check with our sales team. For example, the Residential Energy Storage System warranty lasts for 10 years.
Q6.How can I effectively address battery issues?
A:Rest assured that our batteries are built for long-lasting performance and come with a comprehensive ten-year warranty. We have integrated a resilient battery management system (BMS) and advanced 4G modules into our batteries, enabling remote monitoring, diagnostics, and hassle-free software updates.
Q7.How to deal with the quality problem?
A:When addressing quality problems, we promptly collect and analyze customer feedback and information regarding any issues or defective products. If the problem is within the warranty period and caused by a battery defect, we provide free replacement or repair services. For issues resulting from improper usage or falling outside the warranty period, we offer paid repair or maintenance assistance. Our ultimate goal is to ensure customer satisfaction by promptly resolving quality problems while considering warranty coverage and user responsibility.
Похожие товары
Все в одном система хранения энергии для промышленной солнечной системы батареи промышленного
158 968,00-199 787,50 $
Контейнер для хранения энергии 1290Kwh 1Mwh 2Mwh
234 387,00 $
Настроенный 1290kWh 672V ~ 871V Контейнер хранения энергии
158 968,00-199 787,50 $

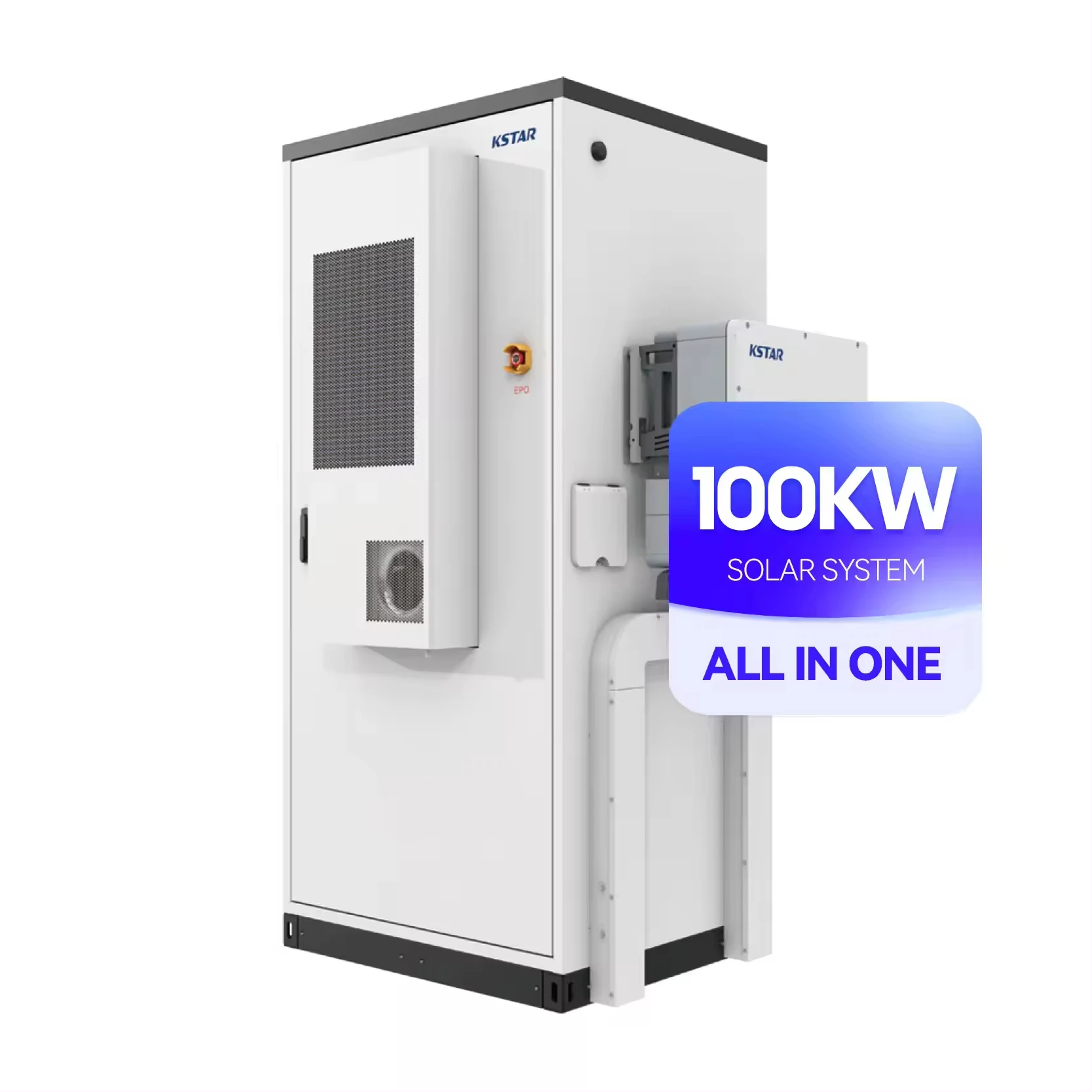

Kstar гибридный Промышленный Шкаф высокого напряжения 100 кВтч 200 контейнер аккумулятор кВт система хранения солнечной энергии
