Products Description




Stone Grapple
featuring heavy duty reinforced legs, internal guide bars, high pressure cylinders, line bored pivot areas, bushes and hardened greaseable pins throughout. The Excavator Forestry Grab is a 230kg (excluding hitch / headstock) grab engineered for 4-6 tonne class excavators.
This grab is supplied in either a non-rotating / fixed configuration which simply operates off the excavators double acting hydraulic hammer circuit, or alternatively with a full 360 degree rigid rotation unit (twin auxiliary services required on the excavator).
The Stone Grapple non-rotating / fixed configuration is supplied with a standard 2 pin quick heads tock or two way cross link (depending on the excavator) enabling the grab to be used in either orientation. Rotating models are supplied with a high quality forestry specification rotator and standard 2 pin head stock.
The Stone Grapple are ideal for scrub, brash, general clearance and all other forestry spec applications.



model
Carrier Weight (Tonnes)
Configuration
Max Opening (mm)
Width (mm)
Minimum Closing (mm)
Leg Thickness (mm)
Height (mm)
Operational Weight (kg)
DG90
1 - 2
Fixed
880
329
65
26
455
80
DG90-P
1 - 2
Rotating
880
329
65
26
580
94
DG130
2 - 3
Fixed
900
423
65
26
461
110
DG130-P
2 - 3
Rotating
900
423
65
26
644
150
DG170
3 - 6
Fixed
1270
450
80
32
679
198
DG170-P
3 - 5
Rotating
1270
450
80
32
861
236
DG170-PR
3 - 6
Rotating
1270
450
80
32
862
271
DG250
4-8
Fixed
1323
474
90
40
759
282
DG250-P
4-5
Rotating
1323
474
90
40
942
328
DG250-PR
5-8
Rotating
1323
474
90
40
943
364
DG420
6-10
Fixed
1497
489
110
40
730
405
DG420-P
7-10
Rotating
1497
489
110
40
914
495
DG580
12-16
Fixed
1747
760
138
49
894
610
DG580-P
12-16
Rotating
1747
760
138
49
1094
847






wood log grapple
The wood log grapple is necessary for tree handling and felling. The single log design allows the operator to accurately grab and cut tree logs and sort them accordingly, with the ability to hold large branches directly from the tree itself.
Our wood log grapple makes handling logs and wood efficient and easy for any operator, making tough work look and feel effortless. Not only does it for quick manoeuvring but it also offers the operator more vision and control, allowing for more precise and accurate control. Our wood log grapple is ideal for anyone operating in the agriculture and forestry industries.
Save enormous amounts of time with the Rotating Fixed Log Grapple, featuring one of the widest openings possible for a log grapple, paired with immense closing pressures, you're able to move gigantic logs or even multiple at once.
With the 360-degree rotation, it's never been easier to maneuver the largest of logs, giving the operator more vision when moving long distances.
Not only is the log grapple good for logs, but also timber, wooden piles, tree trunks, branches, kerb stones and more!

feature:
1.WIDE OPENING
With one of the largest width openings possible with a log grab, this makes grappling the biggest of logs and trees easier than ever before.
2.GRIP STRENGTH
High closing pressures make gripping the smaller, single logs easy and save you time by not having to switch to different grapples.
3.360° ROTATION
Easily maneuver logs for easier operation and provides the operator with more vision when moving long distances.
4.VERSATILE HANDLING
Not only is this grapple good for logs, but also timber, wood, tree trunks, branches, kerb stones and more!


MODEL
ZMT-150
ZMT - 400
ZMT - 500
ZMT-700
ZMT-800
ZMT-1500
ZMT-2000
applicable models
1.5-3.5t
6-9t
7-10t
10-15t
16 - 25T
25 - 30T
30 - 35T
CLOSE HEIGHT
600mm
890mm
930mm
1060 MM
1066 MM
1450 MM
2417 MM
OPEN HEIGHT
820mm
1150mm
1240mm
1400 MM
1495 MM
2565 MM
2417 MM
WIDTH CLAM (INNER/ OUTER)
(242/272) mm
(401/441) mm
(373/534) mm
(415/575) MM
(415/575) MM
(396/600) MM
(634/734) MM
MAX OPENING
920±20mm
1550±20mm
1700±20mm
1800±20 MM
2000±30 MM
2320±20 MM
3200±30 MM
MIN GRIP
≤Φ60mm
≤Φ70mm
≤Φ 90mm
≤Φ 110 MM
≤Φ 110 MM
≤Φ 135 MM
≤Φ 230 MM
MAX GRIP
Φ305mm
Φ500mm
Φ 600mm
Φ700 MM
Φ800 MM
Φ900 MM
Φ1250 MM
WEIGHT
100kg
350kg
450kg
650 KG
900 KG
1800 KG
3000 KG
MODULE/ DIAMETER
M4/160mm
M5/224mm
M5/224mm
M4/315mm
M5/355mm
M7 / 683 MM
M7 / 683 MM
MOTOR PRESSURE
16MPa
16MPa
16MPa
16 MPA
16 MPA
12 MPA
12 MPA
MOTOR FLOW RATE
30.2L/min
44.1L/min
44.1L/min
51.7L/min
57.3L/min
44L/min
44L/min
ROD DIAMETER
Φ30mm
Φ45mm
Φ45mm
Φ50 MM
Φ70 MM
Φ90 MM
Φ110 MM
BORE SIZE
Φ50mm
Φ80mm
Φ80mm
Φ90 MM
Φ110 MM
Φ140 MM
Φ160 MM
PRESSURE
14MPa
21MPa
21MPa
21 MPA
21 MPA
21 MPA
21 MPA
CYLINDER FLOW RATE
10.6L/min
38.6L/min
42.3L/min
63L/min
102.6/min
146.2L/min
174.8L/min






Light Duty Multipurpose Grab
Our Light Duty Multipurpose Grab is a perfect choice for a single machine.
Light-duty design with interlocking fingers, extreme closing pressures and 360-degree hydraulic rotation, this grab ensures minimal load loss with a low barrier to entry to begin capitalising on the benefits of a dedicated grab.
The 5-finger interlocking design paired with extreme closing pressures makes this grab perfect for beginner operators with no experience using a grab before.
The lightweight design keeps the machine running and performing at optimal capacity, meaning you can grab larger loads at once without the need to worry if your machine can handle the weight.
Feature
1.360° ROTATION
Increase productivity and efficiency by utilizing 360-degree hydraulic rotation, maximizing accuracy and visibility for the operator.
2.5-FINGER INTERLOCKING DESIGN
The 5-finger interlocking design gives the grab versatility to pick up both large and small materials whilst keeping a firm grip; minimizing load loss, and increasing productivity.
3.HIGH-GRADE STEEL
Hydraulic Grapples are manufactured around properties of strength and abrasion resistance. High-grade reinforcements plates and components act to increase the sturdiness and durability of the attachment.


MODEL
DGN - 380
DGN - 550
Applicable model
5-9t
10-15t
CLOSE HEIGHT
1273mm
1519mm
OPEN HEIGHT
1296mm
1581mm
Width clam (inner/outer)
(415/700) mm
(415/700) mm
MAX OPENING
1325±20mm
1450±20mm
MIN GRIP
≤Φ110mm
≤Φ135mm
MAX GRIP
≤Φ500mm
≤Φ560mm
WEIGHT
380kg
550kg
MODULE / DIAMETER
M5/224mm
M5/315mm
MOTOR PRESSURE
16MPa
16MPa
MOTOR FLOW RATE
44.1L/min
51.7L/min
ROD DIAMETER
Φ45
Φ50
BORE SIZE
Φ80
Φ90
PRESSURE
21MPa
21MPa
CYLINDER FLOW RATE
33.3L/min
47.7L/min

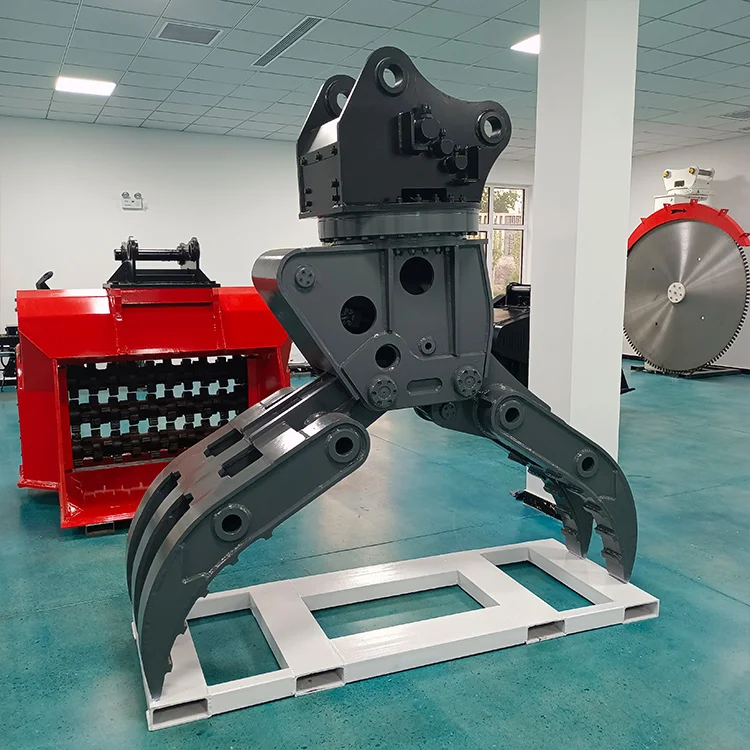

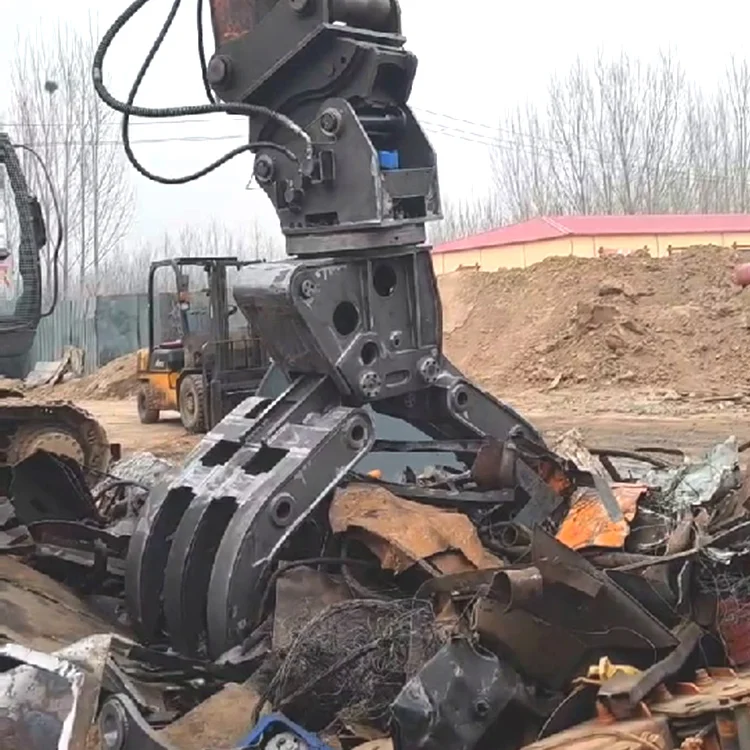

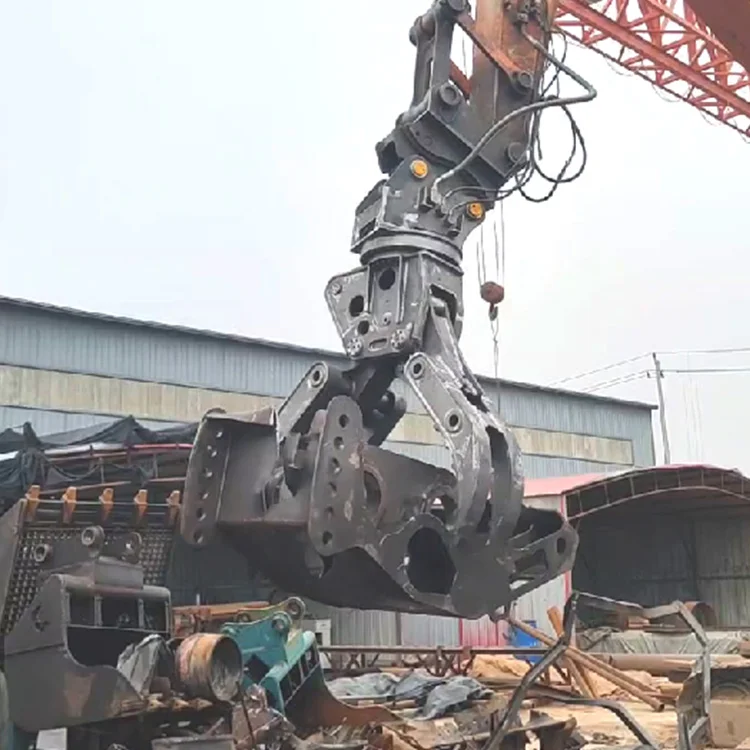

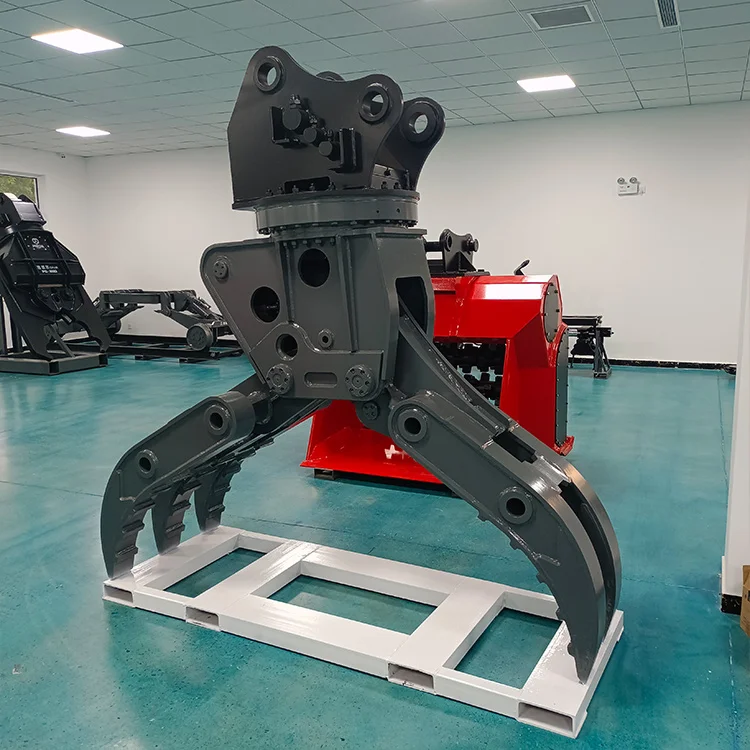

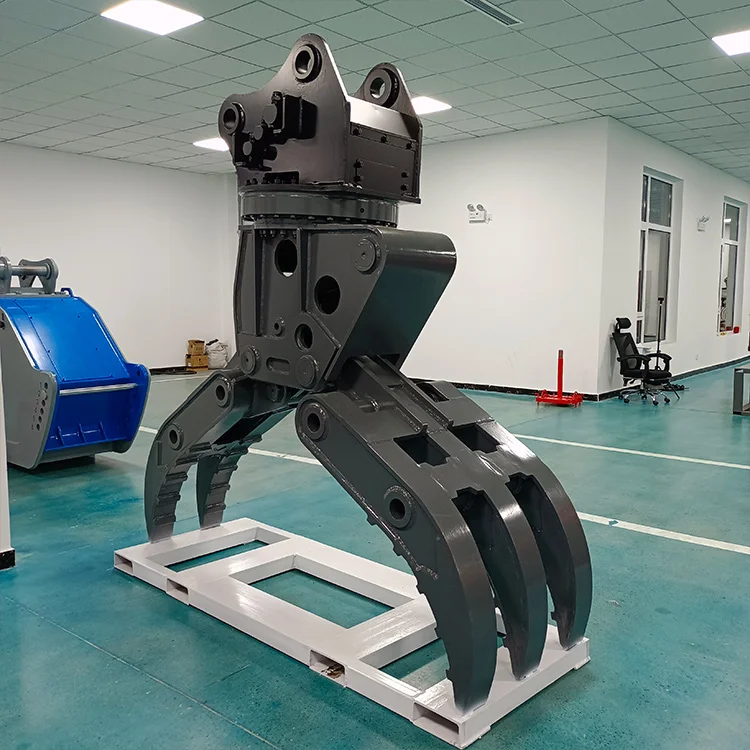

excavator rock grapple
The excavator rock grapple is designed to be reliable through its robust construction, use of high-grade steel, heavy-duty performance, easily accessible grease points and proper quality control measures. These features make the grab capable of securely holding materials, minimising the risk of mechanical failure, and ensuring smooth operation even in demanding work conditions.
The excavator rock grapple is equipped with a sturdy hydraulic rotator that allows for maximum precision work, giving operators the ability to easily move and position the grab in any direction. The powerful hydraulic motor, working in conjunction with the heavy-duty slew ring and pinion, provides the grab with full 360° rotation.
A key feature that contributes to the grab's durability is the use of high-grade steel. This material is known for its strength and abrasion resistance, making it an ideal choice for the construction of heavy-duty equipment like the grab. This allows the grab to withstand the wear and tear of heavy use, and maintain its functionality over an extended period of time.
Not only will you perform outstandingly in operations such as cleaning sites, recycling, stone, demolition, logging, forest residue, sorting, and bulk material handling you will also achieve greater efficiency. They are widely used for processing timber, rocks, demolition and construction materials. Our powerful excavator rock grapple are designed to handle heavy-duty applications and be the most versatile attachment available.
Feature:
1.360°ROTATION
The powerful hydraulic motor, working in conjunction with the heavy-duty slew ring and pinion, provides the grab with full 360° rotation.

2.ROBUST CONSTRUCTION
The hydraulic cylinders are housed within the body of the grab, ensuring maximum protection. These heavy-duty cylinders with a built-in positive load holding valve ensure a positive grip in case of pressure loss.

3.HEAVY-DUTY PERFORMANCE
The hydraulic cylinders are housed within the body of the grab, ensuring maximum protection. These heavy-duty cylinders with a built-in positive load holding valve ensure a positive grip in case of pressure loss.


NAME
ZSQ - 400
ZSQ - 738
ZSQ - 1332
Applicable model
6-10t
10-17t
18-25t
CLOSE HEIGHT
1302mm
1620mm
1900mm
OPEN HEIGHT
1235mm
1540mm
1846mm
WIDTH CLAM (INNER/OUTER)
(224/362) mm
(322/492) mm
(405/706) mm
MAX OPENING
1200±20mm
1600±20mm
1775±20mm
MIN GRIP
≤Φ110
≤Φ110
≤Φ142
MAX GRIP
≤Φ500mm
≤Φ600mm
≤Φ652mm
WEIGHT
400kg
738kg
1332kg
MODULE / DIAMETER
M5/224mm
M5/315mm
M5/315mm
MOTOR PRESSURE
16MPa
16MPa
16MPa
MOTOR FLOW RATE
44.1L/min
51.7L/min
57.3L/min
ROD DIAMETER
Φ40
Φ45
Φ50
BORE SIZE
Φ70
Φ80
Φ90
PRESSURE
21MPa
21MPa
21MPa
CYLINDER FLOW RATE
36.9L/min
60.3L/min
132.7L/min






Company Profile




Dpair Hydraulic Engineering Machinery Co., Ltd. was founded in 2010, located in Bazhou city, Hebei Province, 90 kilometers away from Beijing, covers an area of 18,000 square meters, with 152 employees.  Self-tuning Regulator with Measurable pressure buckets,concrete crushing bucket,drum cutter, self-tuning Rock  Saws,concrete shear for excavator,Eagle Shears,Combi demolition shears.  The company has 63 patent certificates.  The company has been engaged in overseas sales business since the beginning of its inception, and now its products are sold in more than 90 countries, and has agents in Australia, Russia, Dubai, Saudi Arabia, India.
We can produce auxiliary tools for more than 50 different brands of excavators and have received good comments from our customers.
We have advanced production technology and production equipment, can develop or customize products for customers according to their needs.
Sincerely look forward to every customer or friend to visit our company or business negotiations!
I am looking forward to cooperating with you and sending you my best wishes.



Manufacturing Technique




Certifications






Product packaging




Exhibition








sales manager




FAQ


1. Is it in stock? and how many days get it ?

Yes, can send out immediately if we have stock,

if not,will 7-15 days.

2. What is your MOQ ?

One set is MOQ,

Larger MOQ,and better price.

3. What the delivery time ?

All depend on the order quantity,usually bulk

For sample orders, we deliver within 7-15 days

For 3-15 sets, we will deliver in 10-25 days.

For orders of more than 15 units, we deliver in 15-40 days

By ocean 30-45days

4. What payment way you accept ?

Alipay, Paypal, TT,Western Union,MoneyGram


Post-sales service
First of all, the probability of failure of our equipment is very low. According to the customer's feedback, there will be no failure within 2 years under normal working conditions.
Our company has professional translators, can communicate with customers in multiple languages, in order to facilitate the installation and commissioning of products.
When the equipment is delivered, we will give enough worn parts to meet the future maintenance work and daily maintenance work
If the equipment is damaged within 2 years and needs to be repaired, we will send the required accessories by express delivery, which is free of charge.
If our engineers determine that the after-sales service must be on-site, our maintenance engineers will carry out on-site maintenance services within 72 hours.
