Tonghui TH2840A высокоскоростной LCR метр/тестер сопротивления емкости TH2851 015 TH2851 030 TH2851 050 TH2851 080 TH2851 0130
- Категория: >>>
- Поставщик: Hunan Gonoava Instrument Co. Ltd.
Сохранить в закладки 1600927963768:
Описание и отзывы
Характеристики
Products Description

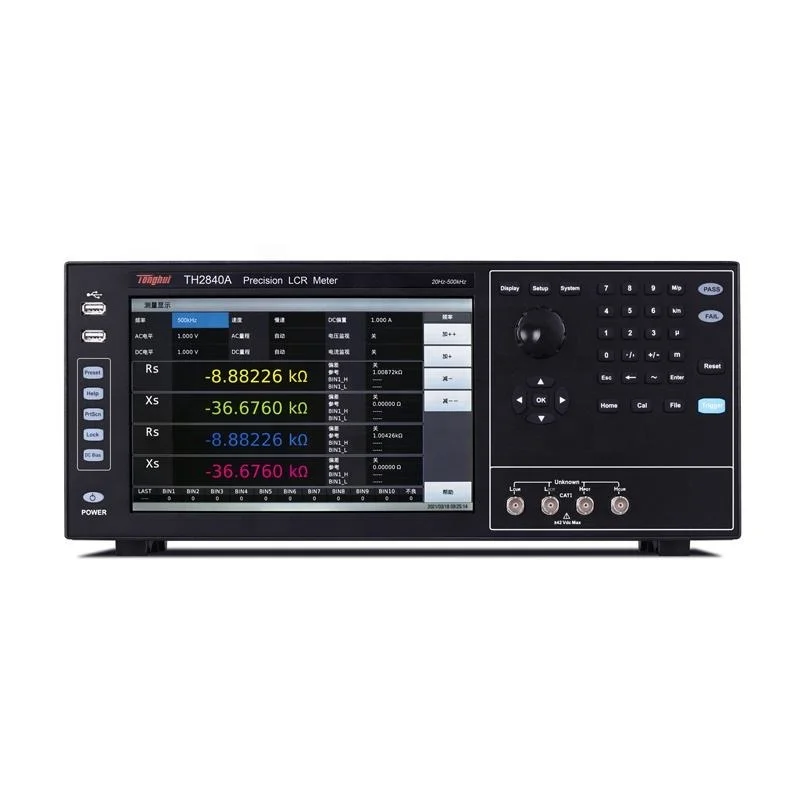

Tonghui TH2840A High speed LCR Meter/Resistance Capacitance Tester TH2851-015 TH2851-030 TH2851-050 TH2851-080 TH2851-0130
Features
High accuracy:Auto-balance bridge technology, 4-terminal pair
High stability and consistency:Up to 15 test ranges
High speed:Up to 7.7ms
High resolution:7- inch, 800×600
201 Points List Sweep Function
Multi-parameter Graphic Sweep Function
Varactor diode automatic polarity function
10 bins sorting, sorting result with sound and light alarm
Storage space: Internal: 40 groups of setting files
USB External: 500 groups of setting files, data log
files and image files
Simultaneous testing for Ls-R DC
High compatibility: Support SCPI commands, compatible with
KEYSIGHT E4980A, E4980AL, HP4284A etc.
Applications
Passive component:
Impedance parameter estimation and performance analysis of
capacitor, inductor, magnetic core, resistor, piezoelectric devices,
transformers, chip components and network components
Semiconductor component
Parasitic parameter test and analysis of LED driver integrated circuit
C-VDC features of varactors
Parasitic parameter analysis of transistors or integrated circuit
Other components
Impedance assessment of printed circuit boards, relays,
High accuracy:Auto-balance bridge technology, 4-terminal pair
High stability and consistency:Up to 15 test ranges
High speed:Up to 7.7ms
High resolution:7- inch, 800×600
201 Points List Sweep Function
Multi-parameter Graphic Sweep Function
Varactor diode automatic polarity function
10 bins sorting, sorting result with sound and light alarm
Storage space: Internal: 40 groups of setting files
USB External: 500 groups of setting files, data log
files and image files
Simultaneous testing for Ls-R DC
High compatibility: Support SCPI commands, compatible with
KEYSIGHT E4980A, E4980AL, HP4284A etc.
Applications
Passive component:
Impedance parameter estimation and performance analysis of
capacitor, inductor, magnetic core, resistor, piezoelectric devices,
transformers, chip components and network components
Semiconductor component
Parasitic parameter test and analysis of LED driver integrated circuit
C-VDC features of varactors
Parasitic parameter analysis of transistors or integrated circuit
Other components
Impedance assessment of printed circuit boards, relays,
Specification
Tonghui Series - Precision Impedance Analyzer (Parameter comparison table) | ||||||||||
Model number | Frequency of test | Level of test | DC offset | Impedance of output | interface | |||||
TH2851-015 | 10Hz-15MHz | AC:5mV-1Vrms.200uA-20mArms | 0V-土40V0mA-士100mA | 25Ω(Typical value) | RS232C.USB HOST.USB DEVICE.LAN. GPIBHANOLER.VGA. HDMI | |||||

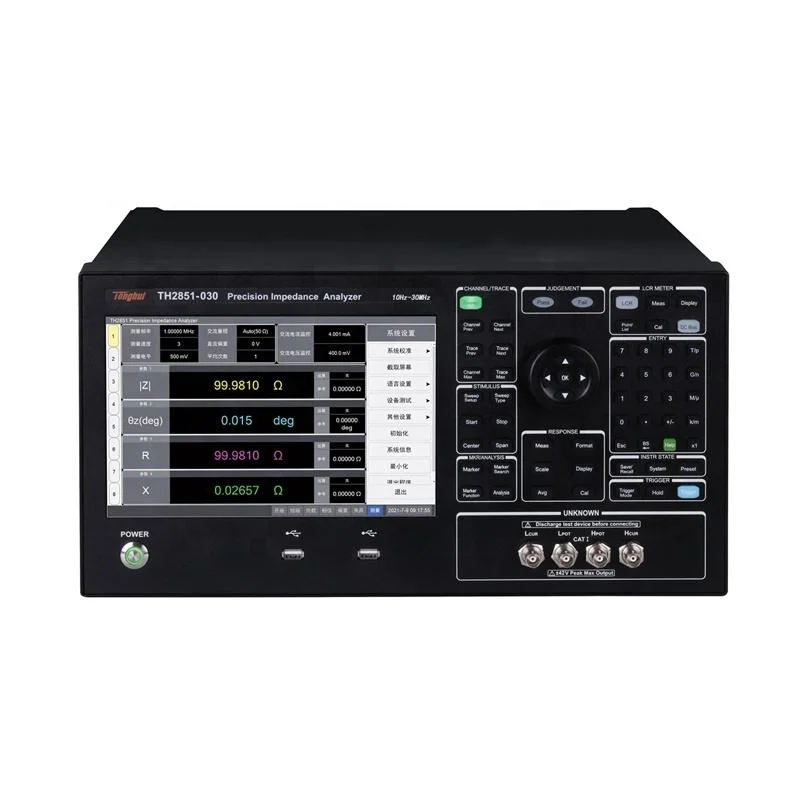

TH2851-030 | 10Hz-30MHz | AC: 5mV-1Vrms.200uA-20mArms | 0V-土40V0mA-士100mA | 25Ω(Typical value) | RS232C,USB HOST.USB DEVICE. LAN.GPIBHANDLER.VGA.HOMI | |||||

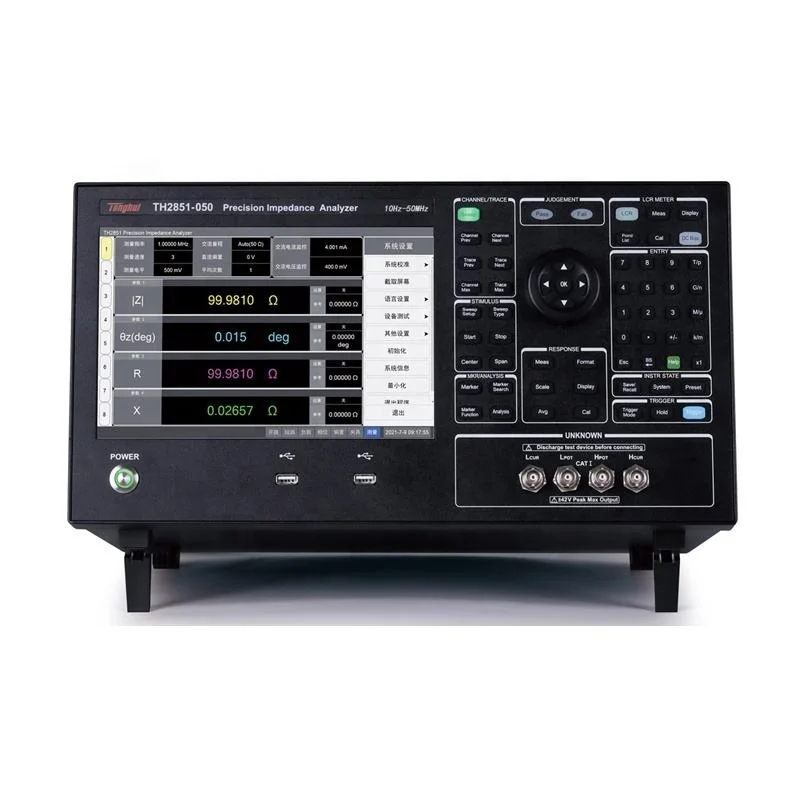

TH2851-050 | 10Hz-50MHz | AC: 5mV-1Vrms.200uA-20mArms | 0V-土40V0mA-士100mA | 25Ω(Typical value) | RS232C. USB HOST.USB DEVICE.LANGPIBHANDLER.VGA. HDMI | |||||

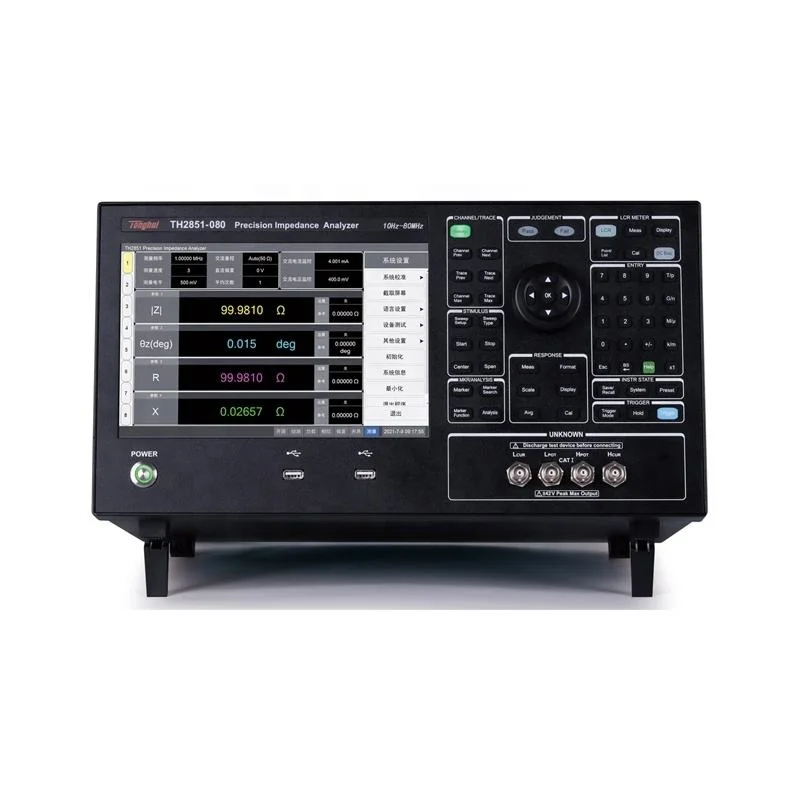

TH2851-080 | 10H2-80MHz | AC: 5mV-1Vrms.200uA-20mArms | 0V-士40V0mA-士100mA | 25Ω(Typical value) | RS232C.USB HOST.USB DEVICE.LAN. GPIBHANDLER. VGA. HDMI | |||||
TH2851-130 | 10Hz-130MHz | AC:5mV-1Vrms.200uA-20mArms | 0V-土40V0mA-士100mA | 25Ω(Typical value) | RS232C.USB HOST.USB DEVICE.LAN. GPIBHANDLER.VGA. HDMI | |||||
TH2840A | 20H2-500kHz | AC:5mVrms-20Vrms.50 Arms-100mArms | 0-40V0mA-士100mA | 30Q,土4%01kHz100 Q,土2%01kHz | USB HOST.USB DEVICELAN, HANDLER,RS232CRS485. External DC BIAS control | |||||

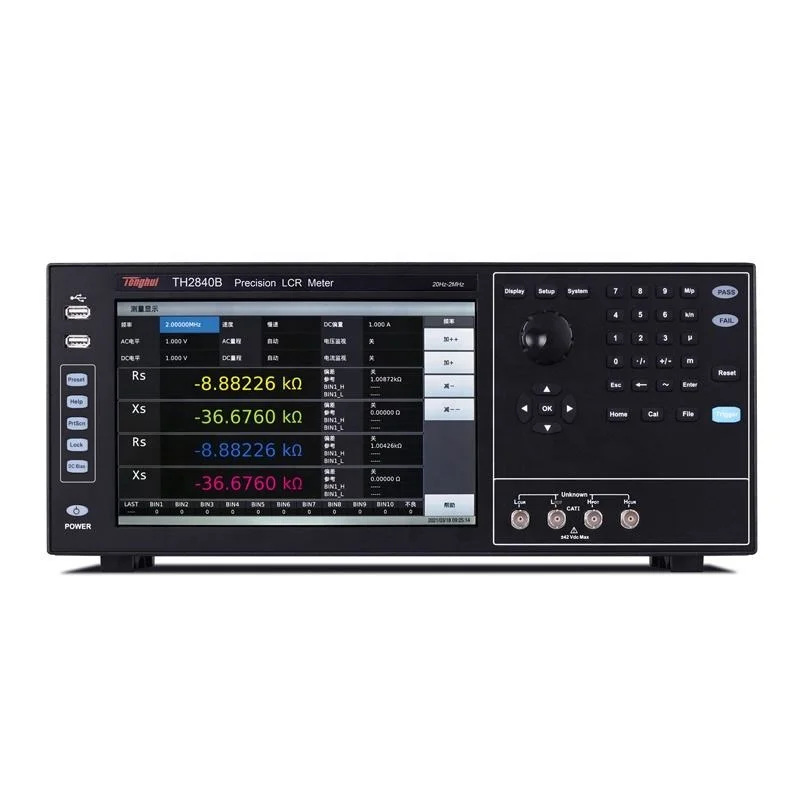

TH2840B | 20Hz-2MHz | AC:F<1MHz 5mVrms-20Vrms.F>1MHz 5mVrms-15Vrms,50 u Arms-100mArms | 0-40V0mA-士100mA | 30Q.土4%01kHz100Q,土2%01kHz | USB HOST.USB DEVICELAN. HANDLER.RS232CRS485. External DC BIAS control | |||||
TH2839 | 20Hz-10MHz | AC: 20Hz-2MHz :5mV-2Vrms2VHz-10MHz :5mV-1Vrms.20Hz-2MHz:50 A-20mArms,2MHz-10MHz:50 A-10mArms :DC: 100mV-2V | 0-土40V0mA-士100mA | 100Ω | USB HOST.USB DEVICELAN, HANDLER.RS232C Option: GPIB | |||||
TH2839A | 20Hz-5MHz | AC:20Hz-2MHz :5mV-2Vrms.2UHz-5MHz :5mV-1Vrms.20Hz-2MHz:50 A-20mArms2Hz-5MHz:50 A-10mArms:DC: 100mV-2V | 0-40V0mA-士100mA | 100Ω | USB HOST, US8 DEVICELAN. HANDLER.RS232C Option: GPIB | |||||
TH2838 | 20H2-2MHz | AC:5mVrms - 2Vrms,50 Arms - 20mArms | 0V-士10V0mA-士100mA | 100 Q. 土1%@1kHz | RS232.USB HOST.LANUSB DEVICE HANDLER Optional: GPIB | |||||
TH2838H | 20Hz-2MHz | AC:5mVrms - 20Vrms.50 !Arms - 100mArms | 0V-土40V0mA-士100mA | 100 Q. 土1%@1kHz | RS232.USB HOST.LANUSB DEVICE. HANDLER Option: GPIB | |||||
TH2838A | 20Hz-1MHz | AC:5mVrms - 2Vrms.50 u Arms - 20mArms | 0V-10V0mA-士100mA | 100 Q. 土1%@1kHz | RS232.USB HOST.LANUSB DEVICE. HANDLER Option: GPIB | |||||
Tonghui TH2840A High speed LCR Meter/Resistance Capacitance Tester TH2851-015 TH2851-030 TH2851-050 TH2851-080 TH2851-0130
Our Advantages
Company Profile
HUNAN GONOAVA INSTRUMENT CO LTD Professionally supply kinds of testing machines for different industries,it is a collection development,research,production and sales of high accuracy testing machines,products meet UL,ASTM,JIS,ISO,GB,TAPPI,IEC,EN,DIN BS and other domestic and international standards.Provide customers with better overall laboratory solution,including lab design,machine customize and drawing, instrument selection,installation,
training,maintenance,become one stop for testing instrument and machines.
We have many years export experience,products are exported more than 50 countries,welcome abroad instruments dealer to become our sales agent.Our products is widly used in many industries,such as metal,gold,Ore,Raw material,plastic,packaging,paint,printing ink,leather,shoes,fabric,keyboard,Electronic product,auto and motorcycle ,Toys, mobile phone computer ,Sports equipment,Electroplating industry.
training,maintenance,become one stop for testing instrument and machines.
We have many years export experience,products are exported more than 50 countries,welcome abroad instruments dealer to become our sales agent.Our products is widly used in many industries,such as metal,gold,Ore,Raw material,plastic,packaging,paint,printing ink,leather,shoes,fabric,keyboard,Electronic product,auto and motorcycle ,Toys, mobile phone computer ,Sports equipment,Electroplating industry.
Exhibition
Certifications
Packing & Delivery
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start production once getting the payment.
A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
Похожие товары

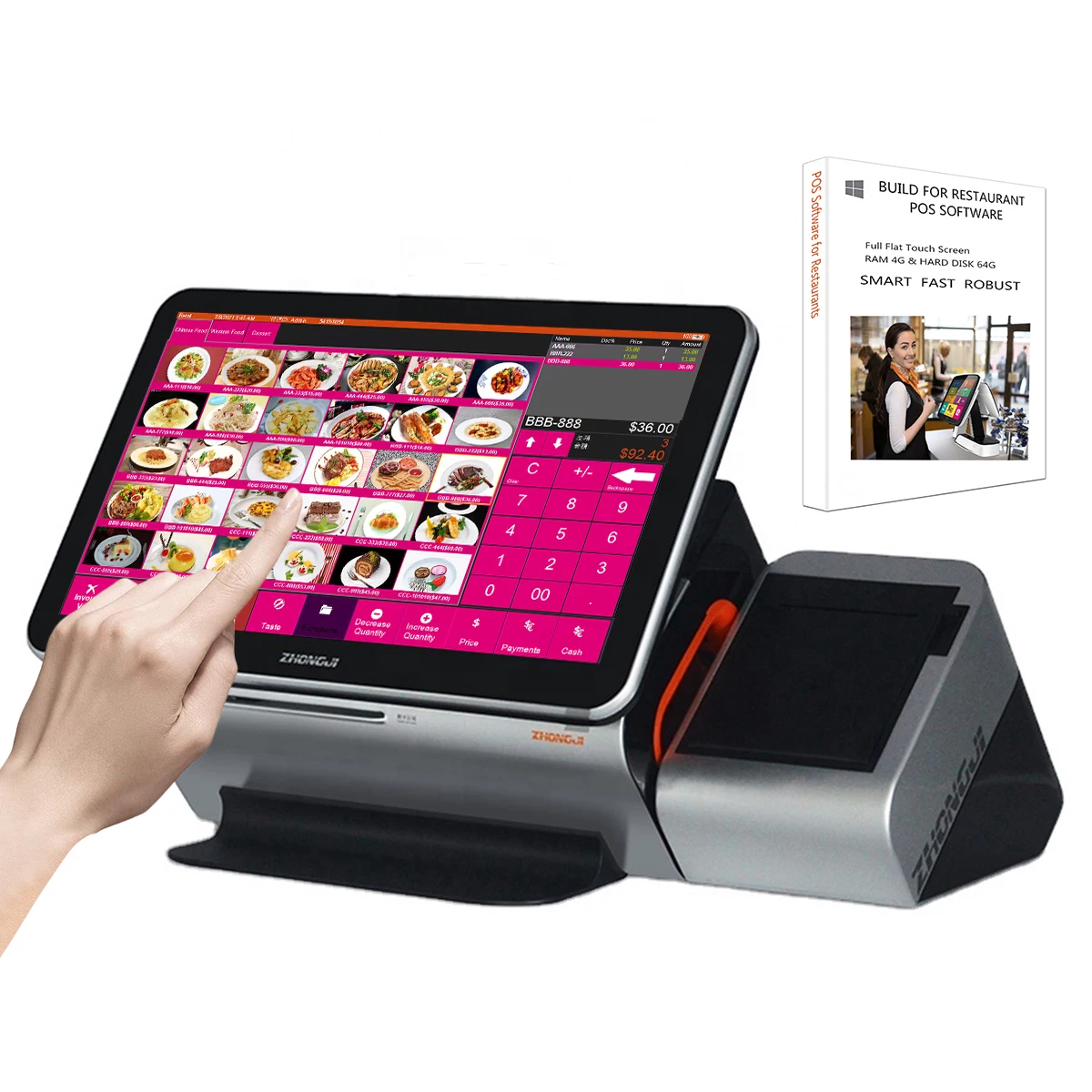

Прямая продажа с завода ZHONGJI, 15,6 дюймовый емкостный сенсорный экран, бары, все в одном, кассовый аппарат для ресторана

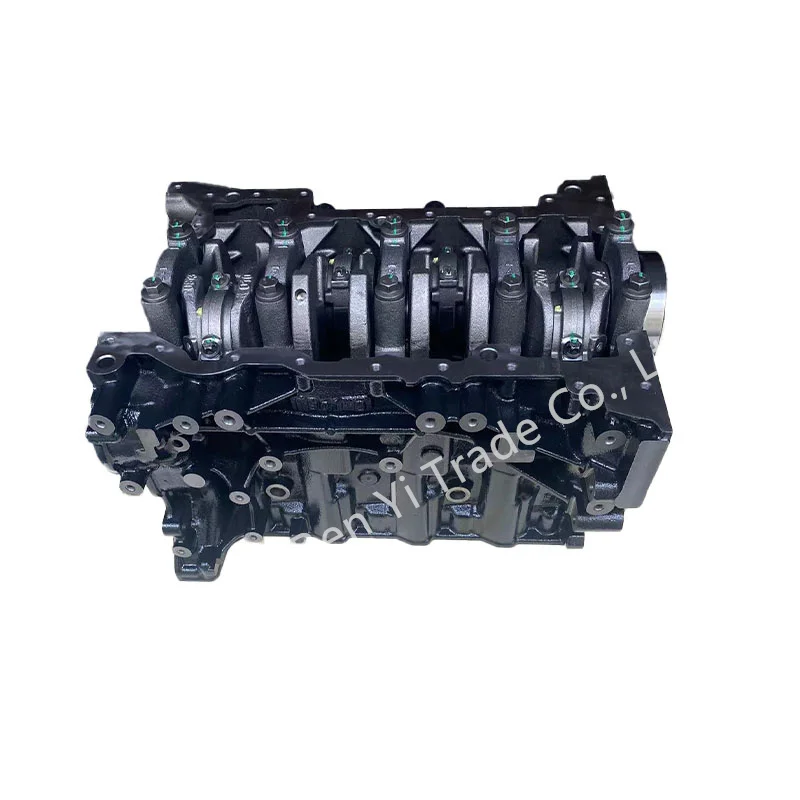

Новый высококачественный дизельный двигатель fomoco2.4, 4-цилиндровый короткий блок для ford Transit Ranger, механические детали автомобильного двигателя
600,00 $ - 1 000,00 $

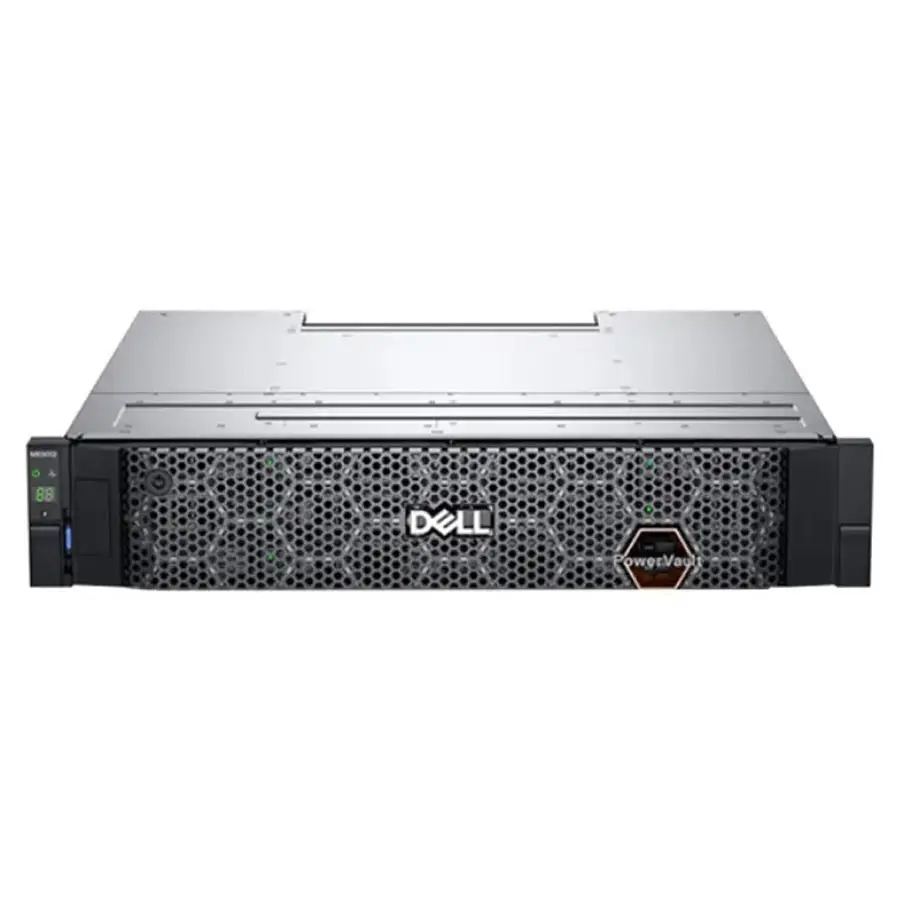

Хит продаж, система хранения данных Dell Powervault Me5 Series Me5012, серверный шкаф расширения Fc, система хранения в сети Emc
1 562,00 $ - 4 999,00 $
Китай, Лидер продаж, декоративный компактный ламинат, послеформовочный Hpl/ HPL
Crosshatch slub аутентичная джинсовая ткань Сера черная удобная стрейч
2,50 $ - 2,70 $
Модифицированная Заводская распродажа, PA6 15% GF, обработанные гидролизом, PA6, 20% GF, гранулы, материал, нейлоновый пластик, цвет черный

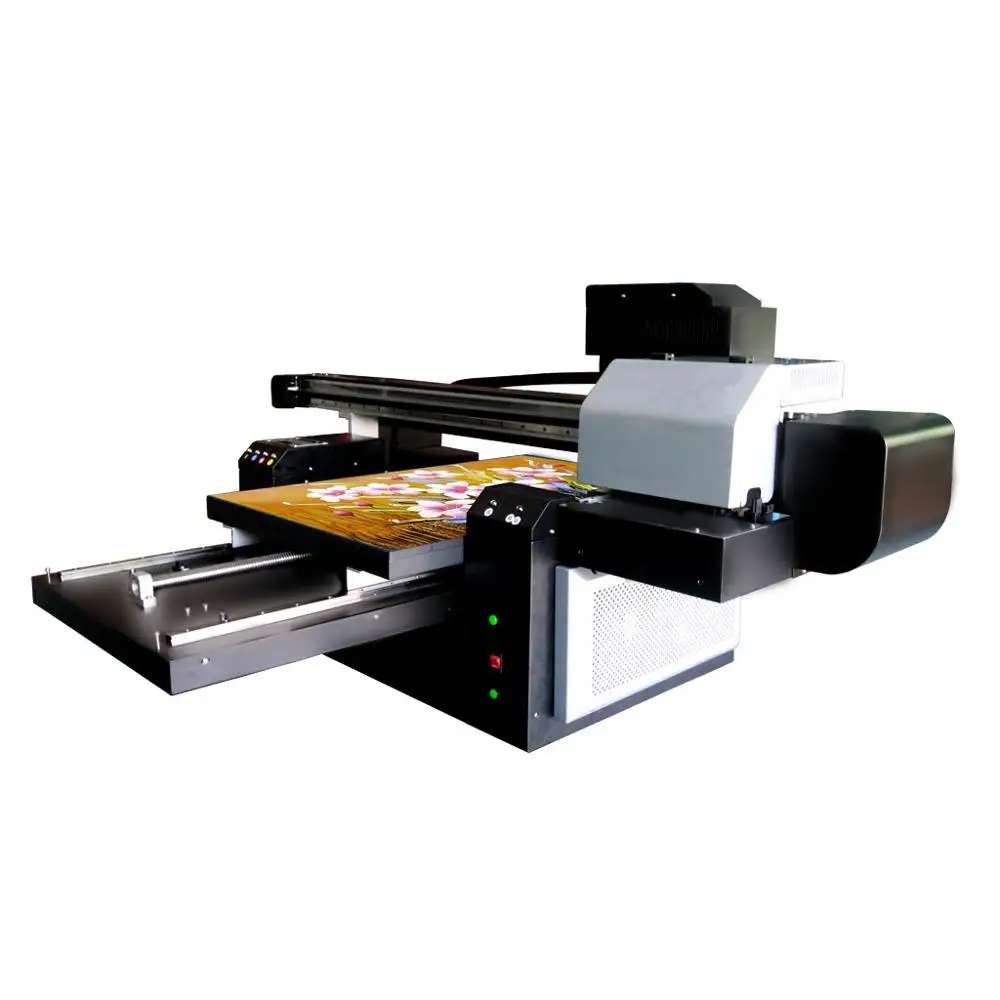

Широкоформатный УФ планшетный принтер формата a1 по низкой цене
