Products Description

Belt sintering machine

The sintering machine is suitable for the sintering operation of large ferrous metallurgy sintering plant. It is the main
equipment in the process of air extraction sintering. It can burn fine and rich mineral powder with different composition and different particle size into blocks, and partially eliminate harmful impurities such as sulfur, phosphorus and arsenic contained in the ore.
Our company has designed and manufactured sintering machine for decades of history, product serialization, complete specifications, from KSH018 to KSH450 a total of 11 specifications. In recent years, our factory has designed and manufactured three kinds of sintering machines through digestion, absorption and transplantation of advanced technology of foreign sintering machines, and the products have reached the advanced level at home and abroad, especially the sintering machine jointly designed and manufactured by our company and foreign countries, has been selected by the national key project Baosteel, and its level has reached the contemporary world advanced level. The product has reliable performance, advanced design, flat work, low energy consumption, and thoughtful service, and is welcomed by users. Sintering machine sintering area is divided into different lengths, different widths of several specifications, users can beselected according to its output or site conditions. The larger the sintering area, the higher the yield.

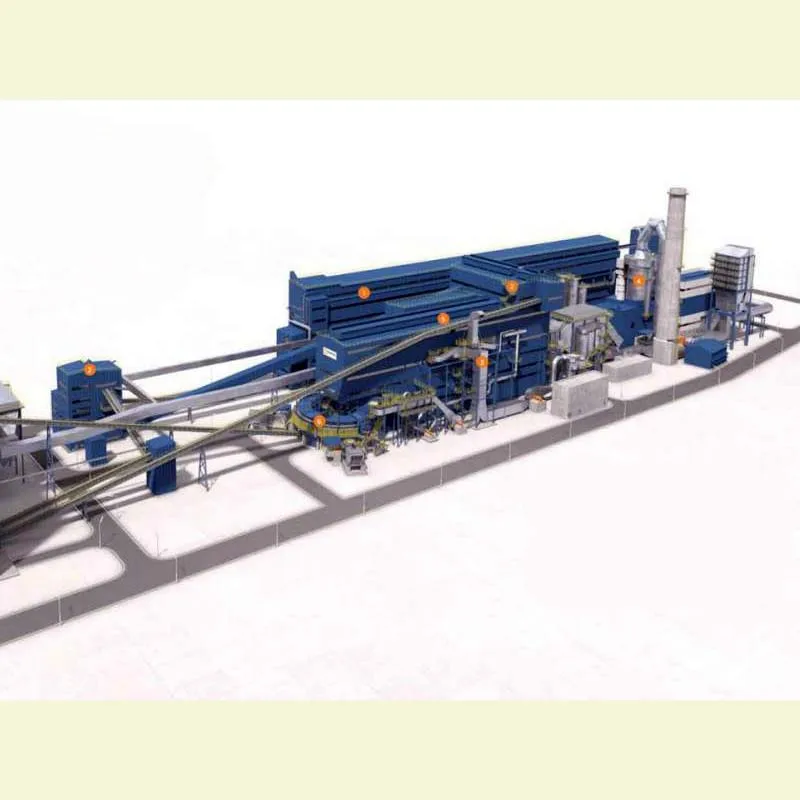

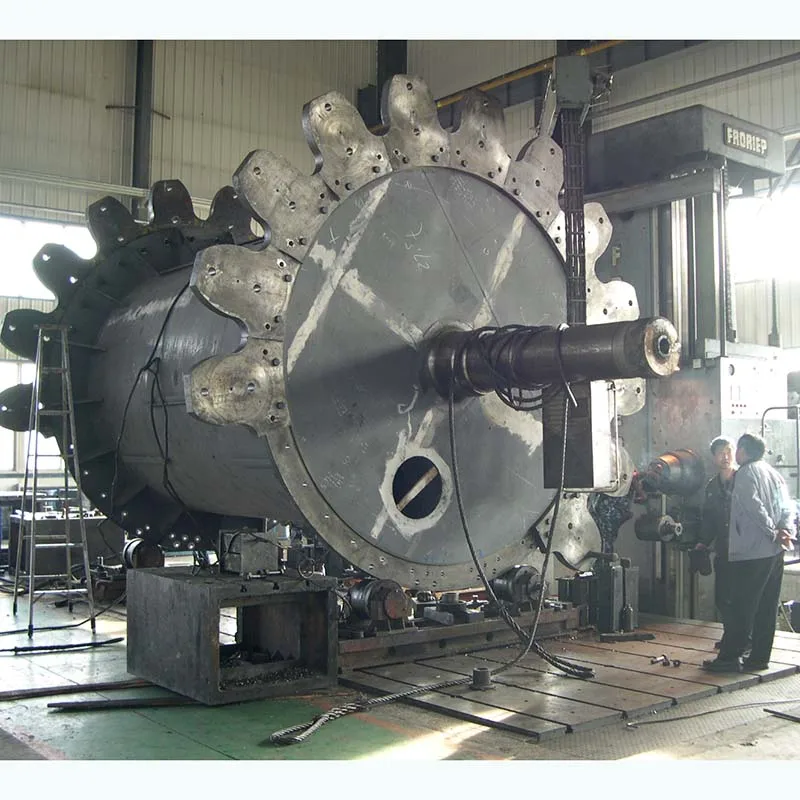

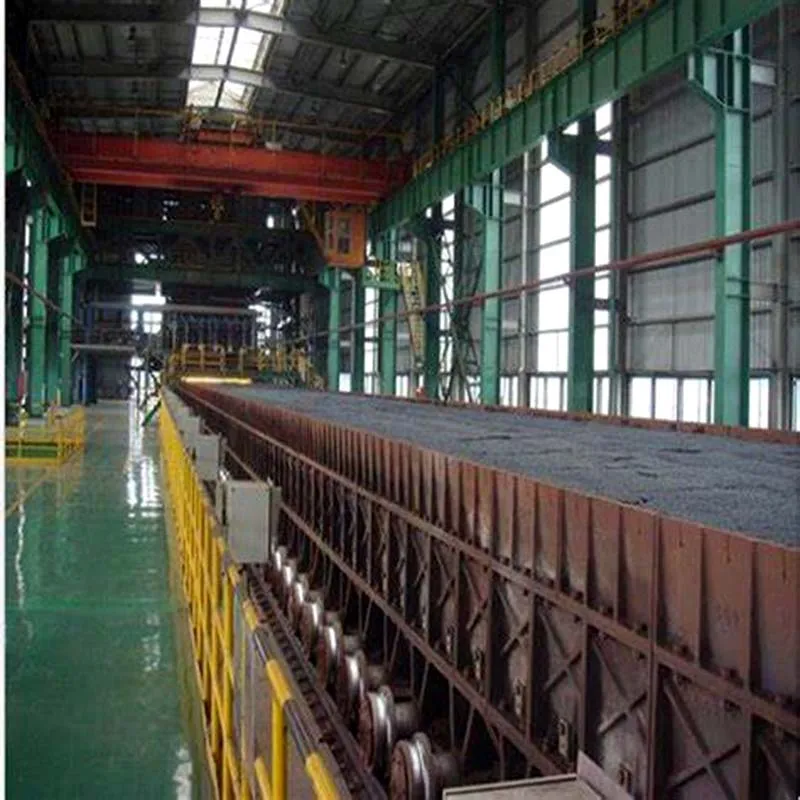

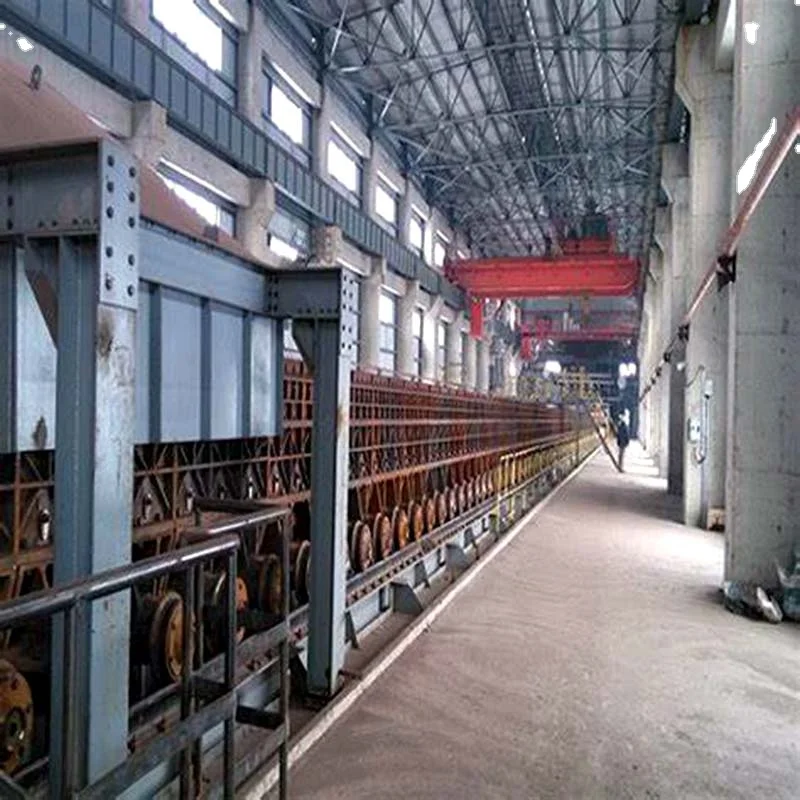

The sintering machine is mainly composed of the following parts: 1) bottom laying device; 2) Raw material feeding device; 3) rawmaterial chute; 4) Multi-flexible transmission device; 5) Head sprocket; 6) suction device; 7) Trolley; 8) Head bench; 9) Middlebench; 10) Tail pedestal; 11) Mobile rack; 12) Ash Box No. 1; 13) Ash Box No. 2; 14) Head end seal; 15) The tail end is sealed; 16) Head seal cover; 17) Tail seal cover; 18) Lubrication system; 19) Heat insulation device; 20) grate roller; 21) Grate cleaner; 22) Bonded ore detection device; 23) Truck spreader; 24) Each testing platform, etc.

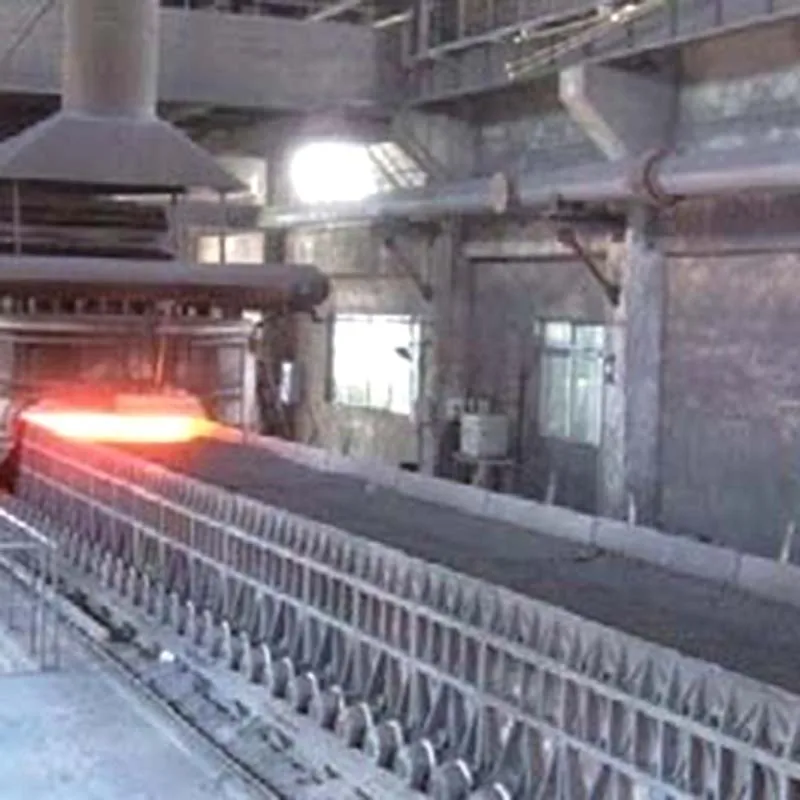

Sintering machine working process: The raw materials mixed and pelleted by the cylinder mixer enter the chute of the sintering machine feeding device through the distributing machine, and then the round roll feeder is quantitatively spread through the raw material chute to the trolley with the base material laid in advance. The trolley after loading is driven by the head sprocket and ignited by the ignition furnace, a combustion belt is formed on the surface. By the suction device located at its lower part, the combustion belt moves downward, and when the tail is close to the ore discharge end, the combustion belt reaches the bottom of the material layer, and the sintering operation is completed. After unloading at the tail, the car is reversed to the lower return lane through the sprocket, pushed by the tail sprocket, along the return lane to the head, and is turned over by the head sprocket to the upper track to continue the sintering operation of the next cycle.

Product Paramenters

Performance parameters table of belt sintering machine
TS			KSH1	KSH2	KSH3	KSH4	KSH5
Effective sintering area ㎡			18	500	75	90	105
Car specifications (W x L)			1.5x1	2x1	2.5x1	2.5x1	2.5x1
Number of blocks of carts			40	70	85	97	124
Effective burning table			12	25	30	36	42
length m
Car moving speed m/min			0.7~2.1	1.6~4.8	1.4~4.2	2~6	1.006~
Maximum thickness of the material layer mm			250	300	300	300	580
Maximum output of equipment t/h			36	124	135	173	throughput 443.7
Number of sprocket revolutions r/min			0.074~ 0.022	0.133 ~0.398	0.165 ~0.499	0.236 ~0.709	0.115~ 0.346
main motor	model	ZO2-81	ZO2-81	JZT62-4	JZT71-4	YTP200L1-6
		power kW	13	13	17	22	18.5
		speed r／min	1000	1000	1200-240	1250-250	320~960
Main reducer ratio			44497.54	203	442	323.78	2773.3
Motor for round roll feeder	model	ZO2-71	ZO2-61	JZT42-4	JZT51-4	YTP160M-6
		power kW	3		5.5	7.5	7.5
		speed r／min	1000	1500	120~1200	250~1250	320~90
Bellows negative pressure			900	1000~1100	1200			1300
Lubricating oil station type			DGZ-500	DGZ-500	DGZ-500			专用

TS			KSH6	KSH7	KSH8	KSH9	KSH10	KSH11
Effective sintering area ㎡			130	181.125	220.5	265.125	360	450
Car specifications (W x L)			2.5x1	3.5x1	3.5x1.5	3.5x1.5	4x1	5x1.5
Number of blocks of carts			129	97	112	129	150	136
Effective burning table			52	51.75	63	75.75	90	90
length m
Car moving speed m/min			2.4~7.2	1.5~4.5	2.06	2.06	1.5~4.5	1.9~5.3
Maximum thickness of the material layer mm			300或	500	460	500	630	600
Maximum output of equipment t/h			234	throughput 800	throughput 1000	throughput 1000	950	625
Number of sprocket revolutions r/min			0.275 ~0.823	0.117 ~0.351	0.154 ~0.462	0.154 ~0.462	0.116~ 0.35	0.147 ~0.441
main motor	model	ZZJ2-51							YTP280-S	SF-KH -250M
		power kW	30							45	45
		speed r／min	680							320~960	300~900
Main reducer ratio			216.63	axle ratio 1935.5	1474.7	1474.7	2744.5	2040.8
Motor for round roll feeder	model	ZO2-91							YTP160L-4	SF-KH -225S
		power kW	7.5	10					15	15
		speed r／min	1000	500~1500					490~1470	300~900
Bellows negative pressure			1200	1300					15000	1800
Lubricating oil station type			DGZ-500	DXZ-630	DXZ-630		专用

Weight of table (t)
ts	KSH1	KSH2	KSH3	KSH4	KSH5	KSH6
Bottom laying device			4.14		7.84	4.14
Raw material feeding device	14.6	9.4	8.7	9.2	17.72	9.6
Feedstock chute			3.2	3.94	5.62	3.18
Flexible transmission device		40.3	2.4	2.71	14.64	4.72
Head sprocket			26.7	34	24.3	26.7
Suction device	9.75	36.51	63.8	76.1	112.61	106
bogie	55.2	158.8	220.2	244.4	395.81	344.1
Head pedestal	14.6	18.2	20	22.3	61.2	20.3
midstand		12	24.2	26.9	59.3	31.2
Stern pedestal		3.97			26.1	20.7
Mobile rack			41.1	46.2	41.84	38.7
Ash box number one			2.2	1.83	2.74	2.2
Second model			2.66	2.77	4.13	2.66
Head ends sealed					5.26
The tail end is sealed					9.84
Head seal					5.91
Tail seal housing			11.3	10.22	4.58	9.81
Lubrication system	0.6	0.32	2.81	3.24	5	4.1
Thermal insulation device			1.77	1.53	-	1.77
Grate roller					0.33
Grate cleaner					一
Bonded ore detection device					一
Truck spreader			0.24	0.25	一	0.24
Each platform			0.967	0.5	一	1.46
Maximum weight	6.3	6.3	33	33	29	33.9

Equipment weight	121.6	315.5	483	516	808 721.7

ts	KSH7	KSH8	KSH9	KSH10	KSH11
Bottom laying device	25	29.62	28.47	27.2	46.7
Raw material feeding device	38.2	39.51	42.14	37.3	58.8
Feedstock chute	12.15	12.13	12.15	Roller fabric groove 3.5	15.6
Flexible transmission device	21.1	21.15	21.15	25.2
Head sprocket	49.32	49.32	49.32	54.65	54
Suction device	162.7	194.8	260.6	260.1	287
bogie	573.3	658.56	762.4	1207.2	1303
Head pedestal	71.9	71.88	71.88	70.6	84.1
midstand	112.2	126.5	159.2	147.7	213
Stern pedestal	56.7	56.6	56.7	57.5	89.1
Mobile rack	99.24	99.24	99.24	91.45	55.5
Ash box number one	3.3	3.28	3.28	7.2	4.03
Second model	6.3	6.31	6.79	4.08	7.71
Head ends sealed	4	3.95	3.95	33.23	9.36
The tail end is sealed	9.4	9.32	9.32	33.23	21
Head seal	6.84	6.84	6.84	9.24	7.765
Tail seal housing	8.2	8.98	8.19	12.68	12.3
Lubrication system	5.3	5.83	0.03	9.7	0.03
Thermal insulation device	1.85	1.85	1.85	2.42	3.8
Grate roller	0.44	0.44	0.44	0.46	0.8
Grate cleaner	4.4	4.4	4.4	-	5.3
Bonded ore detection device	0.51	0.51	0.51	-	0.53
Truck spreader	2.6	2.5	2.6	2	3.06
Each platform	23.64	26.4	37.4	47.4	36.1
Maximum weight	30	30	30	3432	0.1
Equipment weight	1300	1450	1660	2112	3000
note:

Company Profile

222

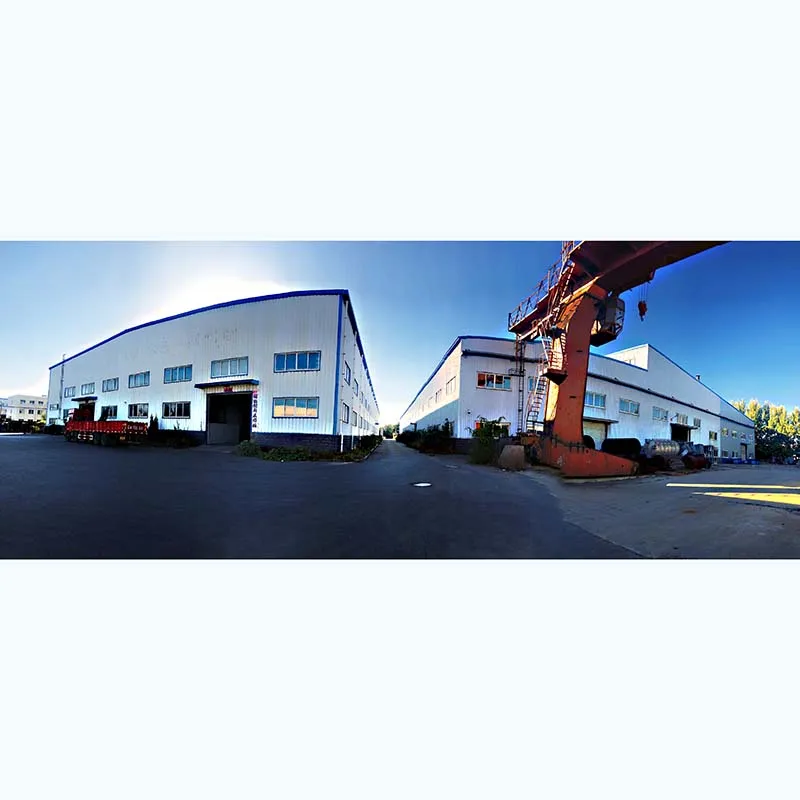

Our company was founded in 1937, a national second-level enterprise, a unit of measurement, with foreign trade rights, is a sophisticated equipment and advanced technology of comprehensive heavy machinery manufacturing enterprises. Its main products are: crushing and grinding equipment, smelting equipment, metal rolling equipment, heavy forging equipment, rubber industry professional equipment, wood-based panel and wood fiber processing equipment, cement equipment, and other products. A total of eight types, more than 1,000 varieties. Since 1949, the output of machine products is nearly one million tons, and the products are not only all over the country, but also exported to nearly 40 countries and regions on five continents.
In recent years, the company has introduced technology from West Germany, internal pot, France, Italy, Japan and other internationally renowned manufacturers and companies, and has cooperated in the production of more than a dozen new products with contemporary world advanced level.
The company has a strong design, scientific research and production capacity, and a dedicated customer service sales team, willing to provide users with all kinds of equipment and accessories required, and can undertake product installation, commissioning, personnel training and other related services.
Now the main stereotyped products and new products developed by the enterprise are edited into four volumes for the design department and the majority of customers to select and order reference. Our company is willing to serve our customers, and look forward to your selection of our products.
Our company from the 1950s began to produce various specifications of belt sintering machine and its ancillary equipment shuttle cloth machine, ball making machine, toothed roll crusher, etc., for China's iron and steel companies have provided a number of reliable sintering equipment.
The two 450㎡ belt sintering machines and their auxiliary equipment provided by our company for Shanghai Baoshan Iron and Steel Company since the 1970s are the result of cooperation with Hitachi Shipbuilding Co., LTD. On the basis of absorbing the advanced technology of 450 square meters sintering machine, two 265 square meters and a 180 square meters sintering machine and its auxiliary equipment have been provided for Angang and Baotou Steel.
Our company is the only enterprise that manufactures modern large-scale sintering equipment in China.
