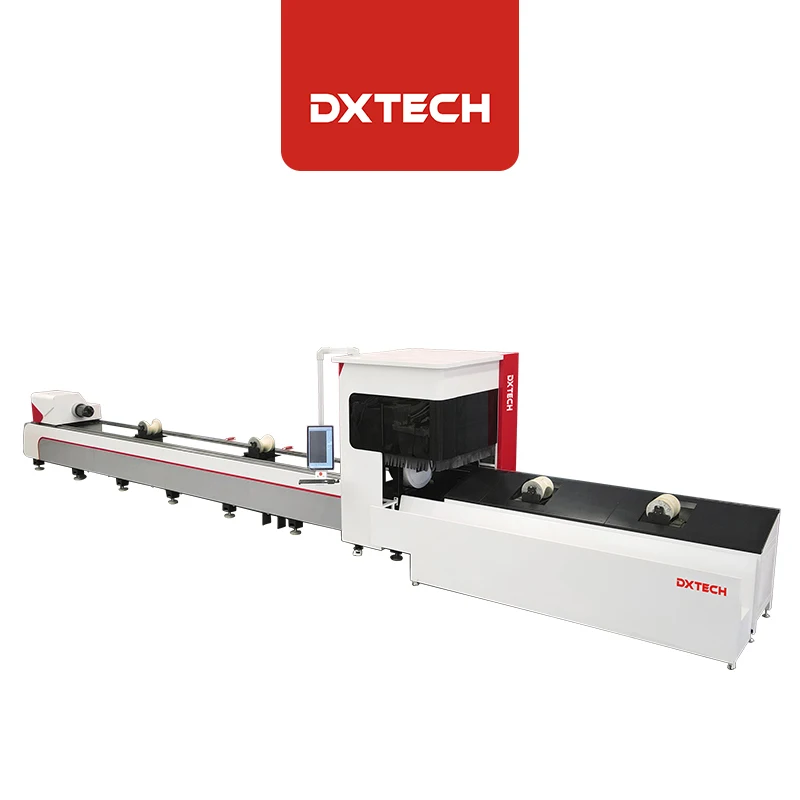

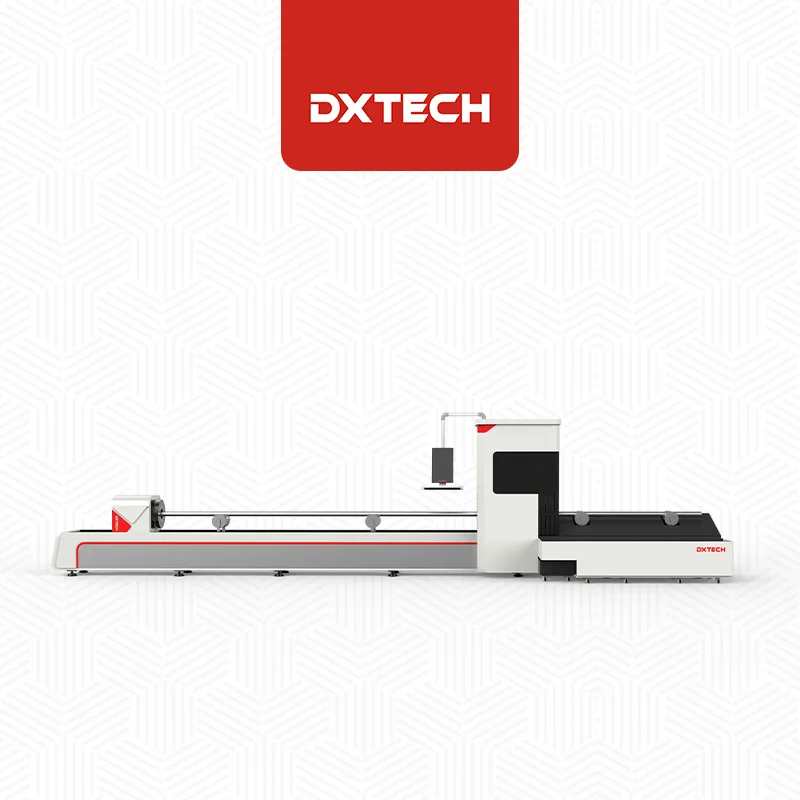

dxtech 1000w fiber laser tube cutting machine for metal tube processing
Products Description
(1) Heavy-duty mechanical structure
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy. (2)Pneumatic self-centering chuck
It has the advantages of high clamping accuracy, fast speed, self-centering gear linkage, and strong pipe loading capability of 120kg.

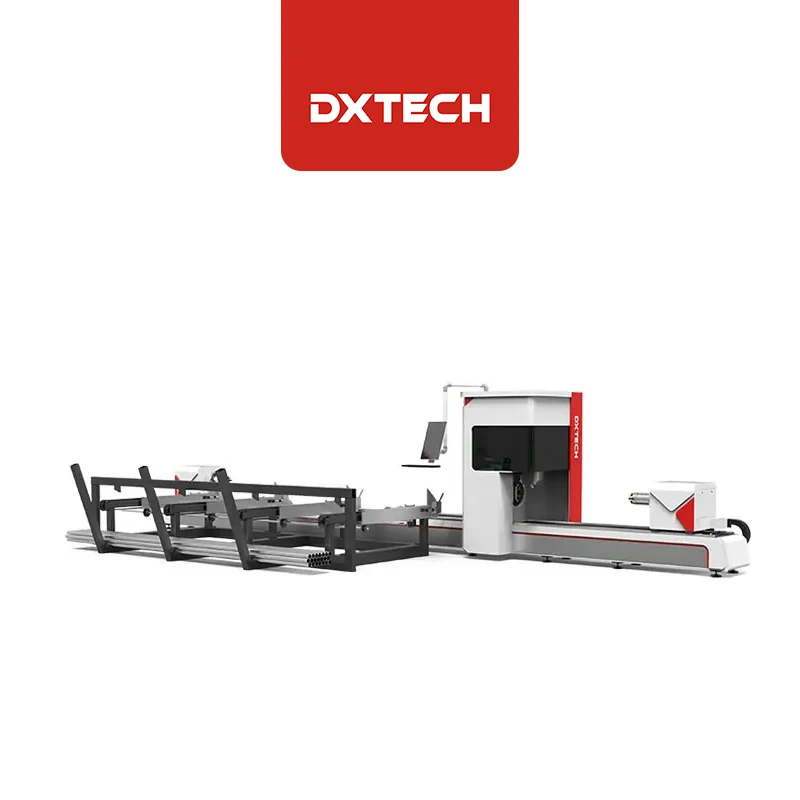

(3)Split automatic support device
The intelligent tube rack solves the deformation problem during the cutting of long metal pipes.
(4)Autofocus
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.

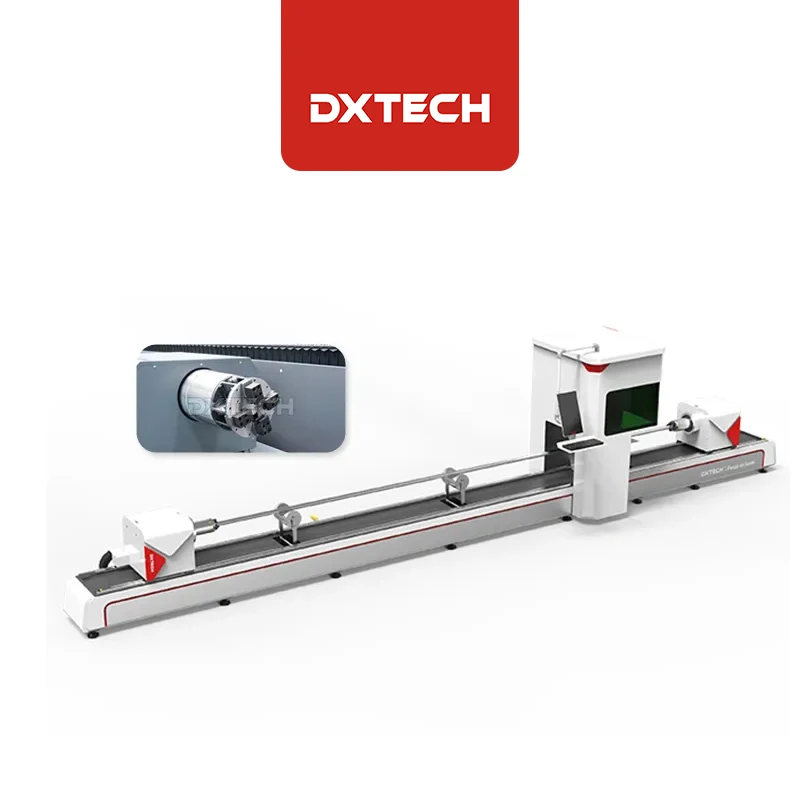

Fully automatic double pneumatic chuck
1) One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading. 2) Pneumatic open
clamp: with large and constant clamping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy. 3)
The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service
life of the chuck.
clamp: with large and constant clamping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy. 3)
The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service
life of the chuck.
TubePro tube cutting software
Tube cutting system： It is a professional tube cutting system, which can realize automatic centering and eccentric compensation of
metal pipes to ensure cutting accuracy. Common edge cutting: It can reduce the residual material and save the production cost.
Corner cutting process: The corners are not burnt, and the section quality is good.
metal pipes to ensure cutting accuracy. Common edge cutting: It can reduce the residual material and save the production cost.
Corner cutting process: The corners are not burnt, and the section quality is good.
Intelligent focusing laser head
Cooling: both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is
added, which effectively protects the nozzle and the ceramics and prolongs the working time. Chasing aperture: through the 35 mm
aperture, the interference of stray light is effectively reduced. Autofocus: without human interference, the focusing speed can
reach 10m/min, and the repeatability is about 50 microns.
added, which effectively protects the nozzle and the ceramics and prolongs the working time. Chasing aperture: through the 35 mm
aperture, the interference of stray light is effectively reduced. Autofocus: without human interference, the focusing speed can
reach 10m/min, and the repeatability is about 50 microns.
Technical Paramenters
Model | T6220/9220 | T6240/9240 | T6300/9300 | T6360/9360 |
Max. tube length | 6.5/9.2m | 6.5/9.2m | 6.5/9.2m | 6.5/9.2m |
Tube shape | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular |
Max. tube weight | 300kg 16kg/m | 350kg 55kg/m | 600kg 30kg/m | 1000kg 83kg/m |
Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
Chuck | Two pneumatic chucks | Two pneumatic chucks | Two pneumatic chucks | Two pneumatic chucks |
Max. chuck rotating speed | 130r/min | 130r/min | 130r/min | 130r/min |
Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
Clamping range | Φ20-Φ220mm□20 – □150mm | Φ20-Φ240mm□20 – □170mm | Φ10-Φ300mm□20 – □210mm | Φ20-Φ360mm□20 – □250mm |

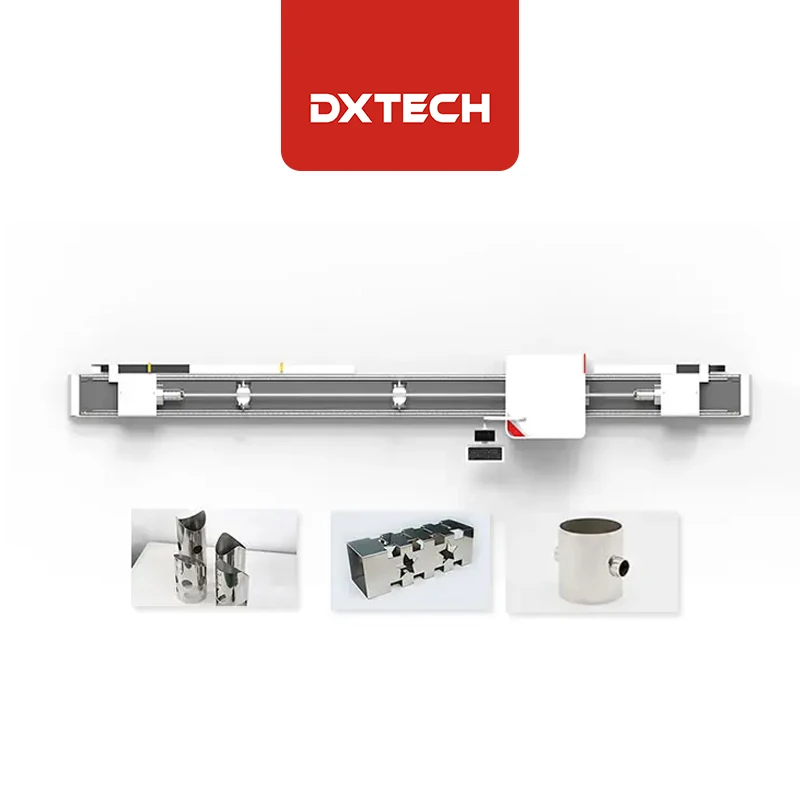

Sample Show
Product Category
Company Profile
Quality Control
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically
pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a
direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information
pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a
direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
Похожие товары
Пластиковые награды на заказ акриловый хрустальный металлический стеклянный экран без острых точек тхэквондо бадминтон голубь мировой трофей
5,00 $ - 10,00 $
IPD IPDA изофорон диамин вастамин ipda Cas 2855-13-2
6,70 $ - 7,00 $

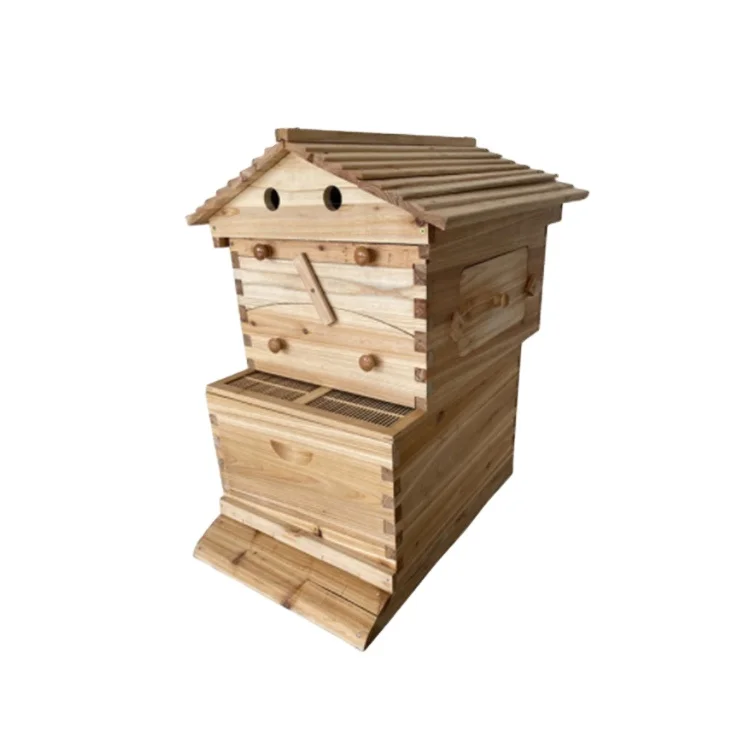

Китайское восковое покрытие кедровое дерево автоматический самоплавный мед пчелиный улей и 7 автоматических рамок оборудование для пчеловодства инструмент улей
106,00 $
Оптовая продажа, нейлоновые куртки-бомберы, нейлоновые летные куртки, военная куртка MA1
FNAF ужасная серия Chica Bunnie Endo Freddy воздушный шар для мальчика Фокси мини Экшн строительный блок фигурка кирпича образование детская
0,65 $ - 0,75 $

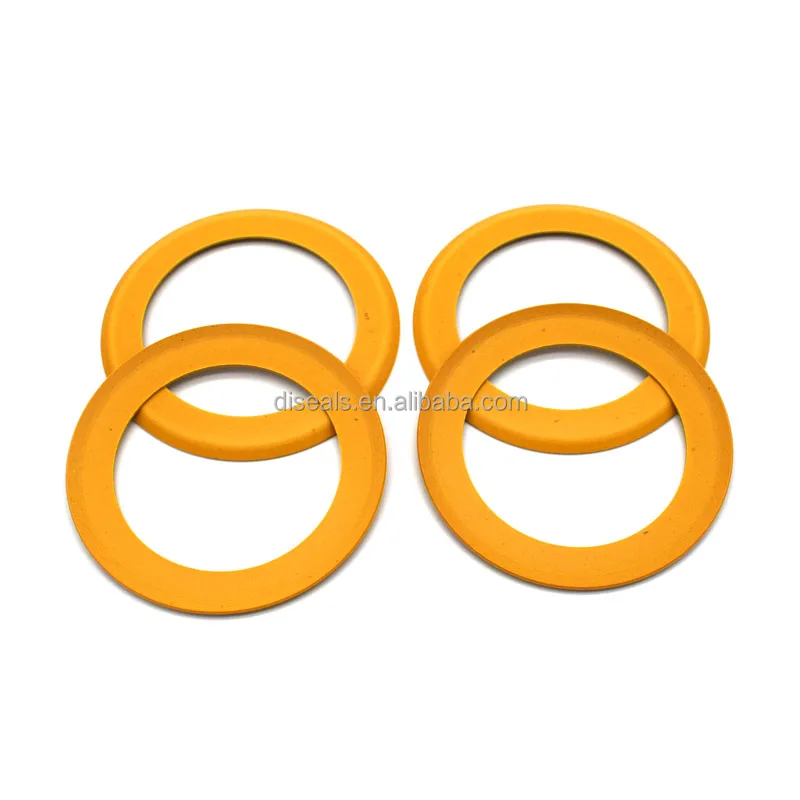

Поршневые кольца 56x74,5x1,2 мм из ПТФЭ для безмасляного воздушного компрессора
