Раздвижные ворота, раздвижные ворота, wifi, дистанционное управление, открыватель гаражных ворот, приемник, wifi смарт-приемник
2 700,16 ₽ - 3 240,19 ₽
AAYEE высокое качество дешевые электрические двери Powertech Wifi раздвижные ворота с дистанционным управлением
- Категория: >>>
- Поставщик: Hangzhou Aayee Technology Co. Ltd.
Сохранить в закладки 1600928740706:
Описание и отзывы
Характеристики
Products Description
SPECIFICATIONS | G6 set | G8 set | G15 set | G20 set |
Power Supply | 86-220V+/-10% | 86-220V+/-10% | 86-220V+/-10% | 86-220V+/-10% |
Power of Motor | 250W | 370W | 550W | 750W |

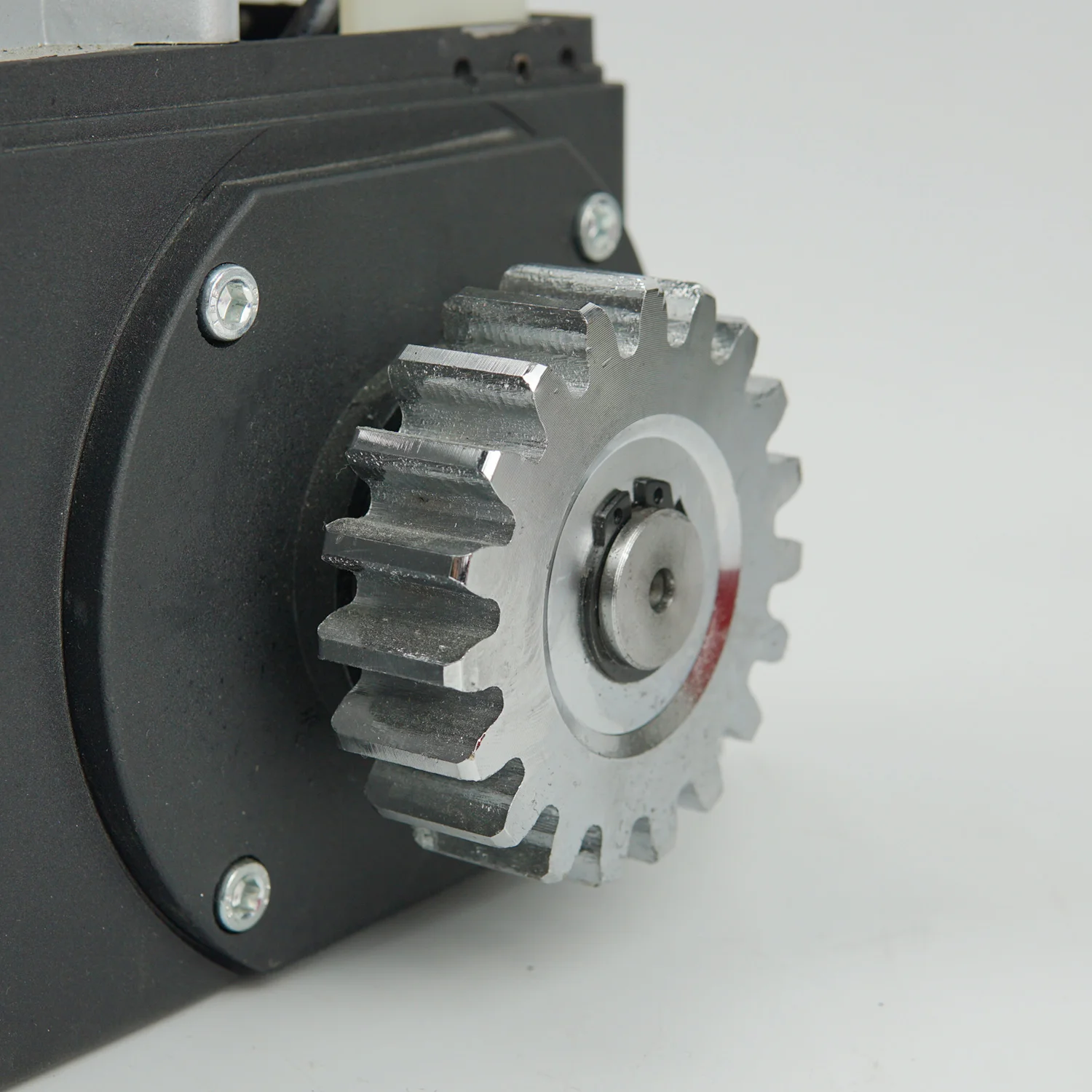

Output Pinion | 19 Tooth Mod 4 | 19 Tooth Mod 4 | 19 Tooth Mod 4 | 19 Tooth Mod 4 |
Operating Speed | 12m/min | 12m/min | 12m/min | 12m/min |
Maximum Gate length | 20m | 20m | 20m | 20m |
Shipping Mass of Unit | 15kg | 15kg | 17kg | 17.5kg |
Maximum Gate Mass | 600kgs | 800kgs | 800~1500kgs | 1500~2000kgs |
Details Images
Accessories
Standard accessories of automatic sliding gate opener set

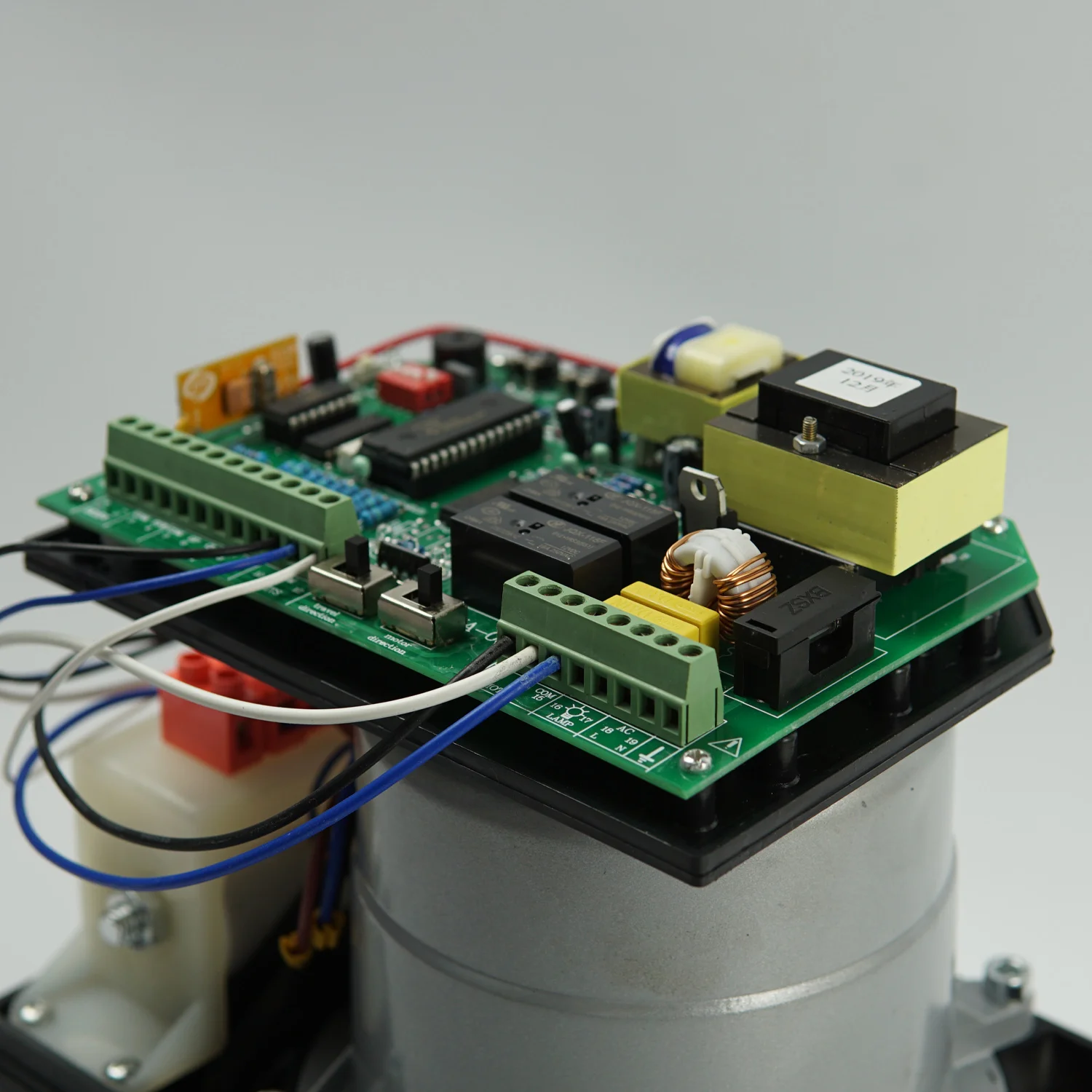

* 1 pcs gate motor * build-in control board
* 4 pcs remote controls
* 4 pcs remote controls
* 2 pair of photocell
* 1 pcs flash lamp
* 4M gear racks

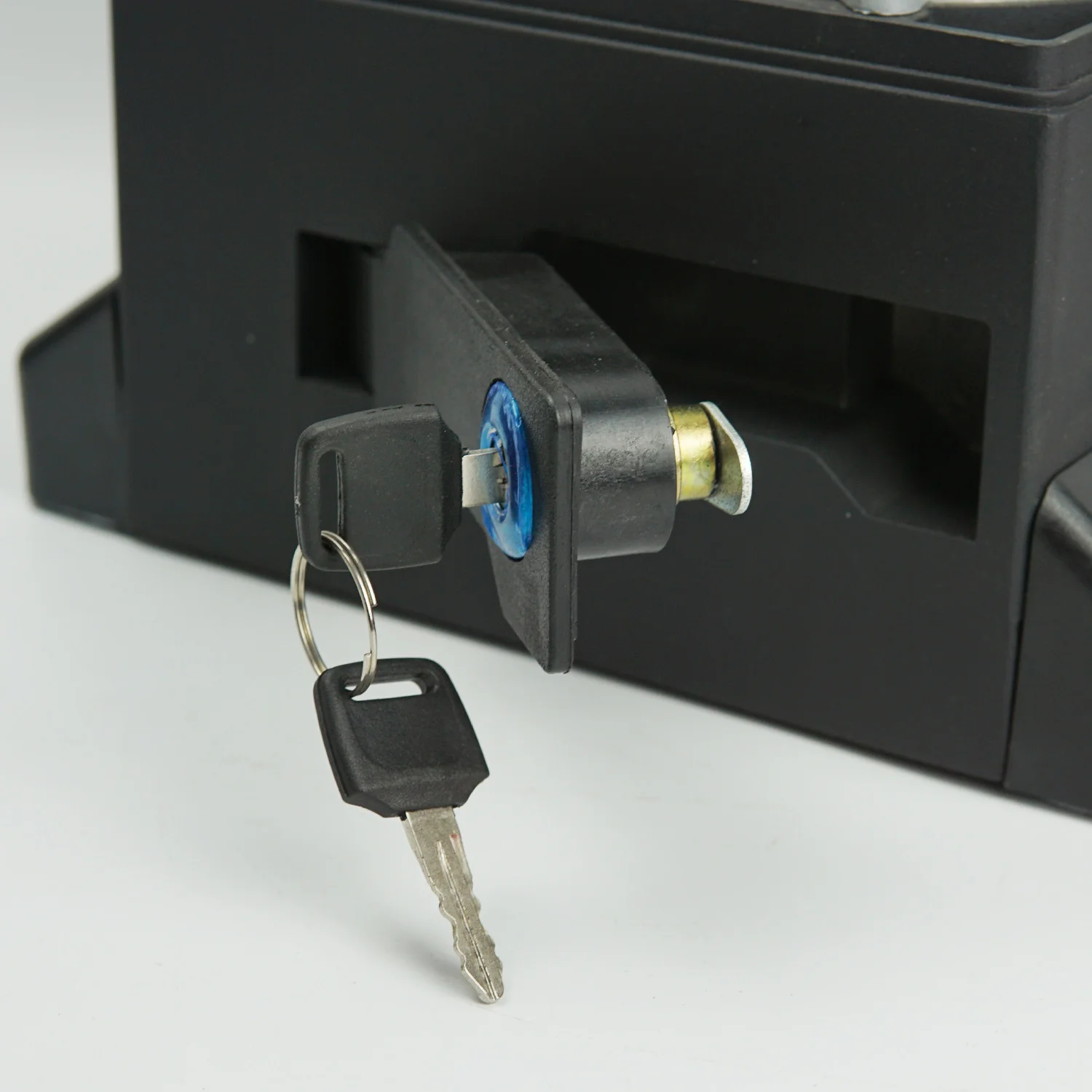

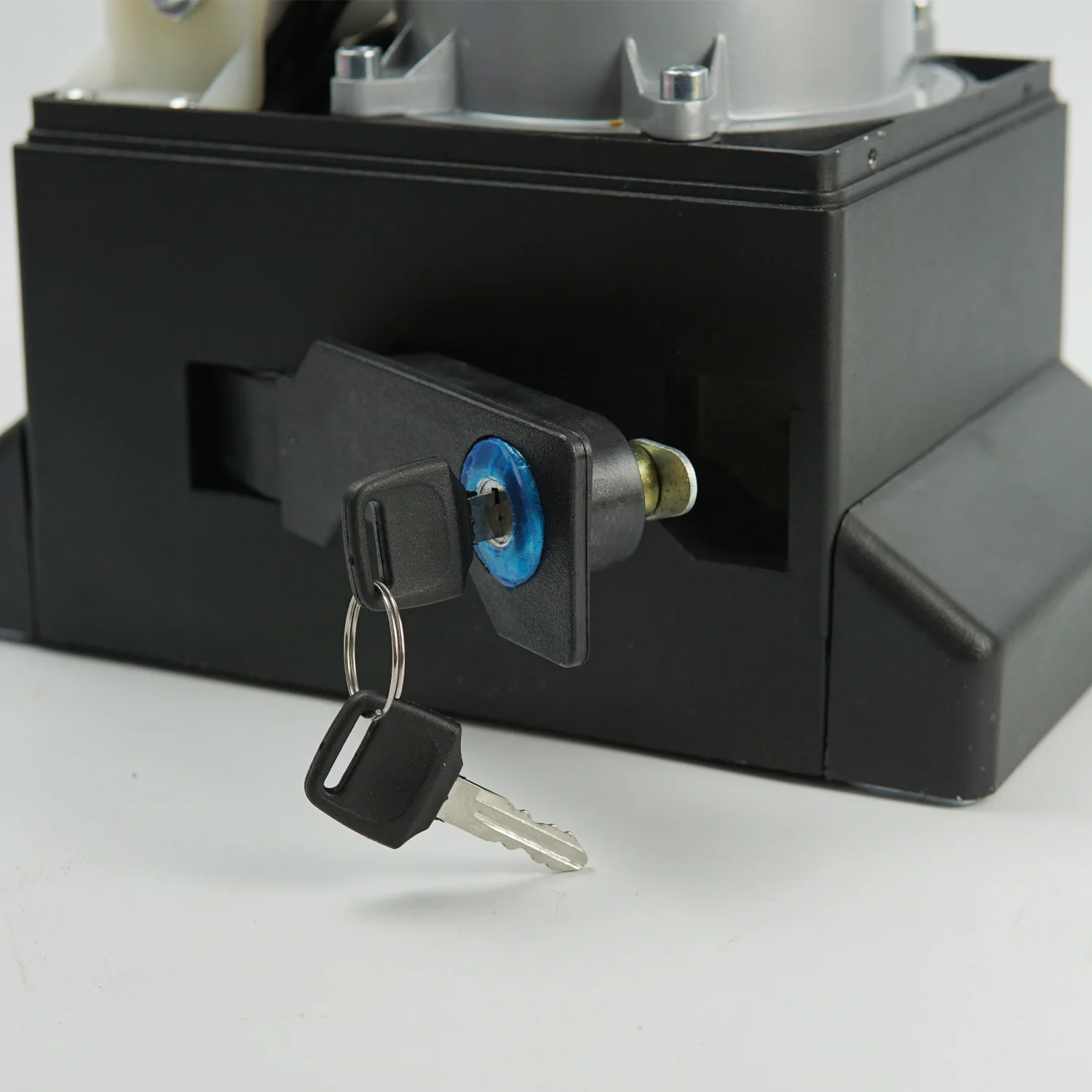

* 2 pcs release keys
* 1 English user manual
* 1 pair of magnets
* 1 metal mounting plate
* bolts & nuts
* 2 pcs release keys
* 1 English user manual
* 1 pair of magnets
* 1 metal mounting plate
* bolts & nuts
Sliding Gate Opener Set Carton Package
Installation Precautions
1. The motor cannot be installed on a slope.
2. In order to prevent the influence of freezing in winter, the running track must be installed in a place with good drainage.
3.Ensure that the door can slide smoothly on the track. Otherwise, the sensor on the sliding door motor will not be able to detect
the obstacle and the door will fail to close.
4. A limit device must be installed at the maximum opening position and closing position of the door, otherwise the door may fall
off the track during emergency unlocking.
5. Any operation and malfunction that may affect safety must be eliminated immediately.
6. The door must be stable and resistant to torsion, that is, it is not allowed to bend or twist when it is opened or closed.
7. The motor of the sliding door cannot compensate the defect of the door or its wrong installation.
8. It is not allowed to operate the sliding door motor in an explosion-hazardous area.
9. It is not allowed to operate the sliding door motor in a room with corrosive gas.
2. In order to prevent the influence of freezing in winter, the running track must be installed in a place with good drainage.
3.Ensure that the door can slide smoothly on the track. Otherwise, the sensor on the sliding door motor will not be able to detect
the obstacle and the door will fail to close.
4. A limit device must be installed at the maximum opening position and closing position of the door, otherwise the door may fall
off the track during emergency unlocking.
5. Any operation and malfunction that may affect safety must be eliminated immediately.
6. The door must be stable and resistant to torsion, that is, it is not allowed to bend or twist when it is opened or closed.
7. The motor of the sliding door cannot compensate the defect of the door or its wrong installation.
8. It is not allowed to operate the sliding door motor in an explosion-hazardous area.
9. It is not allowed to operate the sliding door motor in a room with corrosive gas.
Company Profile
Aayee Tech Group
Our group was established in 2010 and is located near Hangzhou, Shanghai and Ningbo international ports. Easily traffic,perfect supply chain and sufficient spare parts support Aayee Technology to supply Stable quality and perfect service for you. In 2013 Aayee Technology
specialized in sliding gate motors for 3 years, then we extend this business line to swing gate motors,DC24V motors. Now our business production includes sliding gate motors, swing gate opener ,rolling shutter motors, car barrier and solar motor export to all over the world.
specialized in sliding gate motors for 3 years, then we extend this business line to swing gate motors,DC24V motors. Now our business production includes sliding gate motors, swing gate opener ,rolling shutter motors, car barrier and solar motor export to all over the world.
Why Choose Us
We takes the “Quality Is Life” as production standard and principle, executing complete quality assurance system involving the whole process from R&D to manufacture, so our products have enjoyed a good reputation for high quality and low failure rate among our customers.
Sometimes, what they need is very simple–reliable quality, reasonable price, on-time delivery and good service,these are what we can supply.
Contact
FAQ
How to choose the sliding gate opener?
2. Look at the waterproof performance of the motor. The waterproof performance of the motor is determined by the outlet and the sealing ring of the bottom cover. Comparing the good quality sliding door motor with the imitation products on the market, it is easy to find that the outlet wire of the high-quality big brand sliding door motor is fully sealed, and has special waterproof treatment, and the bottom cover sealing ring is made of oil-resistant rubber seal lock up.
3. Look at the length of the motor's life. The selection of materials and manufacturing technology for the worm gear, output sleeve, reducer volute, rotor support structure, mounting seat and other components of the motor determines the length of the motor's service life and the ability to resist bumps and shocks.
4. The choice of the type of automatic gate operator. If the flow of people is small, the gate opening is normal, and the investment budget is small, such as an office or office, you can choose an ordinary gate operator with a lower price. This type of gate operator could generally be used without failure, but the service life will be relatively short. If the purchase unit has good after-sales service and can provide in-place maintenance services at any time, you can use it with confidence.
5. Pay attention to the compatibility of the automatic gate motor, the gate machine is required to be compatible, and these devices can be installed. Some automatic gate operators have this kind of function, which is easy to install, but some gate operators do not have this function, and they must be equipped with many devices to install, which leads to unnecessary expenses.
Certifications
