Product Description

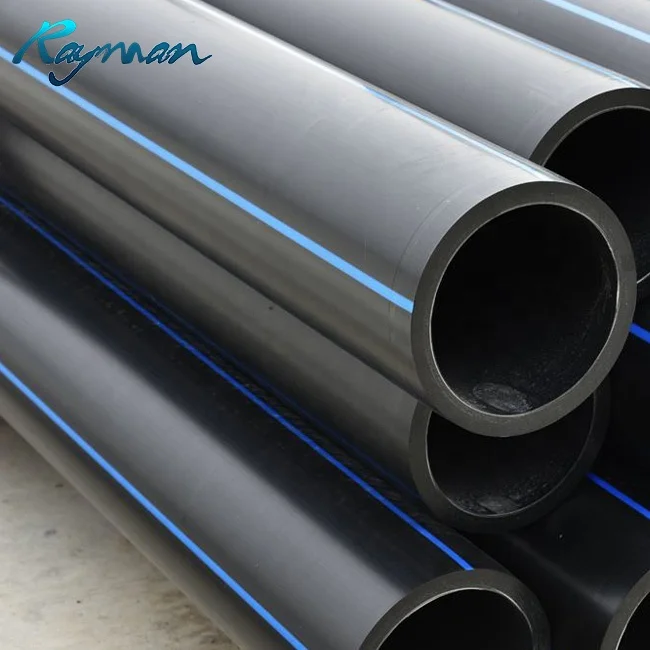

Rayman Irrigation Pipe Pressure 0.6 Bar Drip Irrigation Poly LDPE HDPE Tube 32mm 16mm 20mm 63mm 90mm

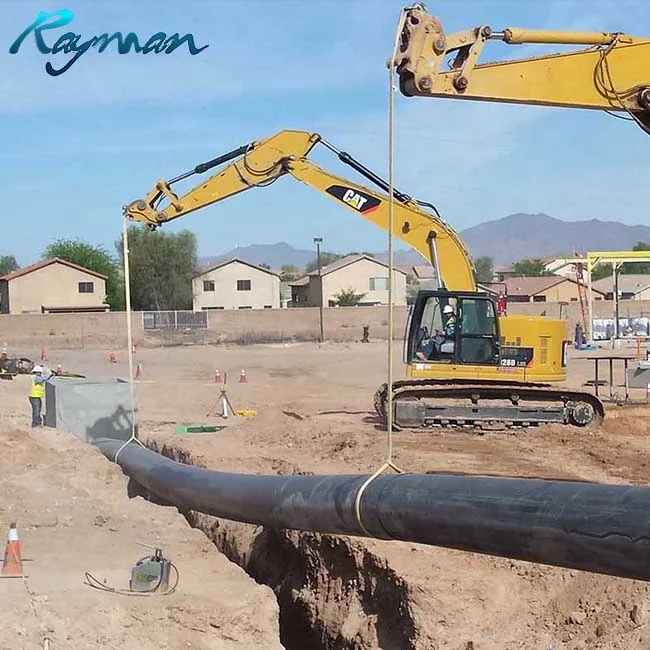

HDPE pipe is made of high density polyethylene resin.The product's physical properties make it applicable to open-trench, horizontal directional drilling,pipe-bursting and slip-lining installations.
PE pipe inner wall is smooth, and does not change with the use of time, small friction resistance, energy saving, pressure loss is about 30% smaller than steel pipe, can choose a smaller diameter than steel pipe. Good hygienic performance, no additives, no
possibility of pollution of drinking water, ISO standard grading polyethylene material is 0 (the lowest level), do not moldy material, compared with some other commonly used plastic materials, polyethylene mildew resistance is much higher, long-term use also does not scale.
possibility of pollution of drinking water, ISO standard grading polyethylene material is 0 (the lowest level), do not moldy material, compared with some other commonly used plastic materials, polyethylene mildew resistance is much higher, long-term use also does not scale.
Guidance to install PE pipe:
1. Cut pipe perpendicularly by scissors or professional devices.
2. Check the cleanliness at the end of pipe and accessories need to be welded.
3. Mark the depth to connect pipe with accessories.
4. Melt pipe accessories at the depth marked by welding machine.
5. Wait until time reached,connect all parts together.
2. Check the cleanliness at the end of pipe and accessories need to be welded.
3. Mark the depth to connect pipe with accessories.
4. Melt pipe accessories at the depth marked by welding machine.
5. Wait until time reached,connect all parts together.
HDPE pipe in the temperature of 190 ℃ n240 ℃ between will be melt, using this feature, the pipe (or pipes) a good contact with both parts of the melt, And maintain the appropriate pressure, after cooling the two can be firmly integrated.
Therefore, the connection mode of PE pipe is different from that of u-pvc pipe. Generally, the two methods are electric hot melt connection and hot melt butt joint. When DN is greater than or equal to 75, hot-melt butt joint or electric melt socket connection is adopted. Connect with different materials using flange or thread connection.
Therefore, the connection mode of PE pipe is different from that of u-pvc pipe. Generally, the two methods are electric hot melt connection and hot melt butt joint. When DN is greater than or equal to 75, hot-melt butt joint or electric melt socket connection is adopted. Connect with different materials using flange or thread connection.
specification
Product Name | PE100 Water Supply HDPE Pipe |
Color | Black with bule line |
Standard | GB/T13663-2000,ISO 4427-1:2007 |
Specification | 20-1200mm |
Pressure | 0.6MPa SDR26,0.8MPa SDR21,1MPa SDR17,1.25MPa SDR 13.6,1.6MPa SDR 11 |
Main application | Water Supplying and Draining |
Advantages:
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
Applications
Applications:
1.Urban area water-supply work system.
2.Fire-fighting pipe.
3.Industrial materials transmission pipe.
4.Landscaping water supply network.
5.Sewage discharge pipes.
6.Slag, mud transfers.
7.Agricultural irrigation pipe.
PE water supply pipe can be used for general purpose pressure water transmission and drinking water transmission. His surface color indicates that his use is mainly for water-related pipes (water supply pipes), gas pipes in yellow, fire-fighting pipes in red and mining pipes.
There are mainly municipal buried water supply, building water supply (drainage), farmland irrigation, waterscape engineering and so on. In water supply pipeline engineering, PE water supply pipe will eventually replace UPVC pipe.
1.Urban area water-supply work system.
2.Fire-fighting pipe.
3.Industrial materials transmission pipe.
4.Landscaping water supply network.
5.Sewage discharge pipes.
6.Slag, mud transfers.
7.Agricultural irrigation pipe.
Our company
RAYMAN is a leading and professional plastic pipes manufacturer in China, has been specializing in the R&D, production and marketing of HDPE pipe and fittings, PVC pipe and
fittings, PPR pipe and fittings for more than 20 years. RAYMAN owns 60 production lines for HDPE pipe&fittings, 50 production lines for PVC pipe and fittings, 50 production lines for PPR pipe and fiitings, also has established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and
production processes to final product quality testing.
fittings, PPR pipe and fittings for more than 20 years. RAYMAN owns 60 production lines for HDPE pipe&fittings, 50 production lines for PVC pipe and fittings, 50 production lines for PPR pipe and fiitings, also has established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and
production processes to final product quality testing.

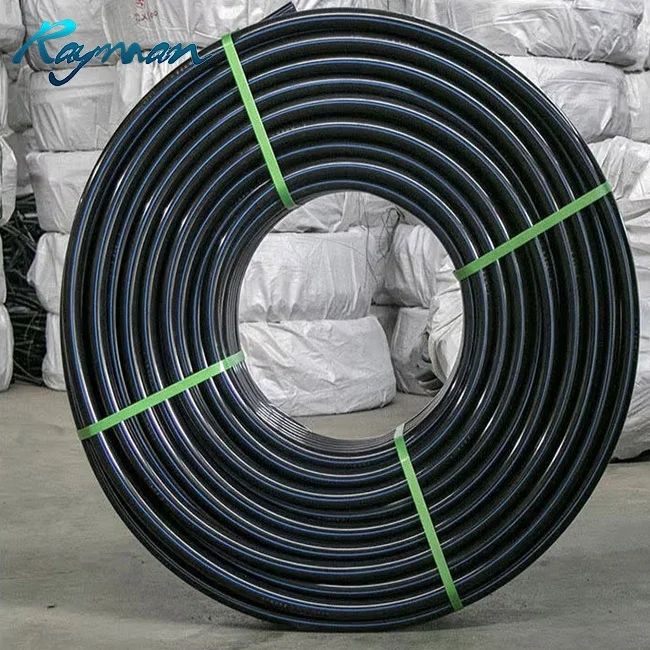

Generally nude package in containers,packages can be according to customers'requirement.
To Fit for 40HQ container,pipe length generally:5.8m&11.8m
To fit for 20FT container,pipe length generally:5.8m.
For bulk load,we can offer steel frames together with pipes. length can be at customer's request.
To Fit for 40HQ container,pipe length generally:5.8m&11.8m
To fit for 20FT container,pipe length generally:5.8m.
For bulk load,we can offer steel frames together with pipes. length can be at customer's request.
FAQ
Q: What is your MOQ?
A: As customer's request.
Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
A: As customer's request.
Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
