Xingkai F304E Поддержка настройки UAV Удаленный Контроллер полета видео передатчик и приемник для дрона
- Категория: >>>
- Поставщик: Shenzhen Xingkai Technology Co. Ltd.
Сохранить в закладки 1600928903074:
Описание и отзывы
Характеристики
Product Description
Product Name | Xingkai F304E-100 |
Function | HD wireless digital video and data transmission device |
Package | Packed in a professional shipping box |
1. Product Performance Description
The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F304E-100 supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
2. Features
* Supporting multiple frequency ranges and bandwidths.
* Having multiple control interfaces.
* High carrier-to-noise ratio
* Wide input voltage range, supporting DC12~30V voltage input.
* Low power consumption.
* Max downlink rate: 30Mbps, bandwidth: 20MHz;
Max. uplink rate : 26Mbps, bandwidth: 20MHz.
* Supporting OTA / local / remote upgrade.
* Supporting point-to-multipoint mode and multiple purposes.
* Having multiple control interfaces.
* High carrier-to-noise ratio
* Wide input voltage range, supporting DC12~30V voltage input.
* Low power consumption.
* Max downlink rate: 30Mbps, bandwidth: 20MHz;
Max. uplink rate : 26Mbps, bandwidth: 20MHz.
* Supporting OTA / local / remote upgrade.
* Supporting point-to-multipoint mode and multiple purposes.
3. Functions
* Working frequency ranges: 1.4GHz for free choice.
* Adjustable bandwidth among 3MHz, 5MHz, 10MHz and 20MHz.
* Adjustable mapping mode among QPSK, 16QAM and 64AQM.

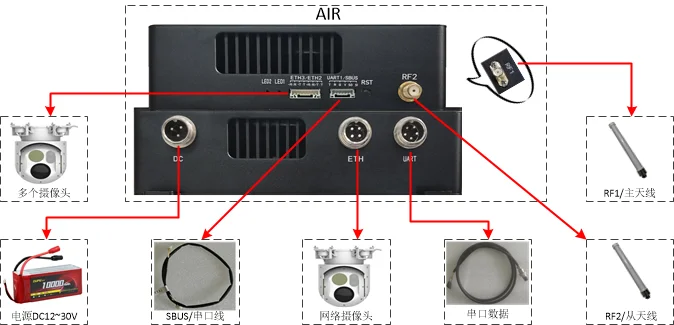

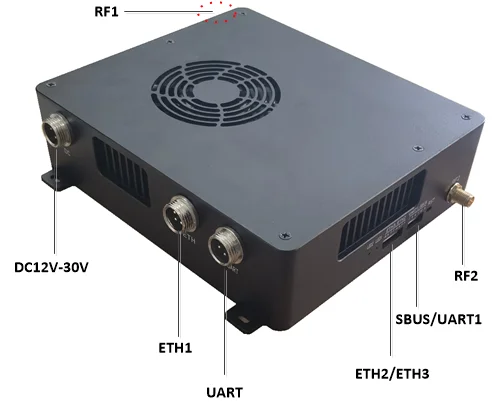

* Supporting three serial ports and one SBUS.
* Supporting simultaneous transmission of at most 3 network ports.
* Support AES128 encryption
* Adjustable bandwidth among 3MHz, 5MHz, 10MHz and 20MHz.
* Adjustable mapping mode among QPSK, 16QAM and 64AQM.
* Supporting three serial ports and one SBUS.
* Supporting simultaneous transmission of at most 3 network ports.
* Support AES128 encryption
4. Technical Parameters
Item | Spec/Parameters | ||
Air Unit | Ground Unit | ||
Operation Voltage | DC12V~DC30V，Standard input DC12V | ||
Power Consumption | ≤20W @ 37dBm | ||
Modulation | OFDM | ||

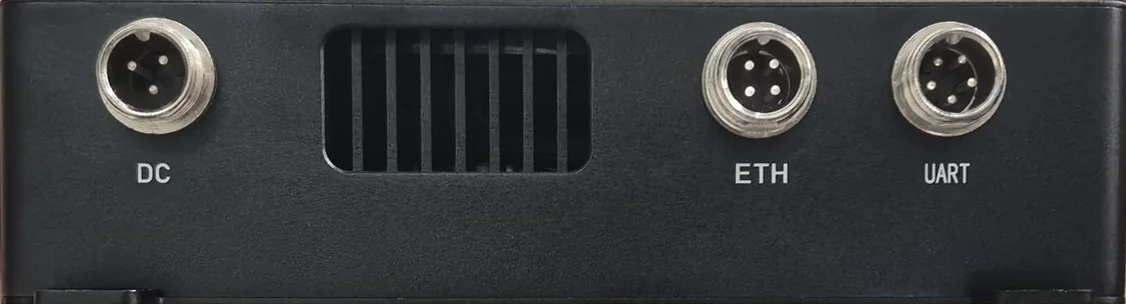

Data interface | UART（TTL/RS232）/SBUS | ||
Frequency | 800MHz/1.4GHz/2.4Ghz(Customizable) | ||
Channel rate | Uplink(Max): 30Mbps，Downlink(Max):26Mbps | ||
Bandwidth | 3/5/10/20MHz | ||
Latency | ≤15ms | ||
Tx Power | ≤37dBm（Adjustable） | ||
Working temperature | -30℃~60℃ | ||
Storage temperature | -40℃~75℃ | ||
Antenna | 3.5dBi | 12-16dBi | |
Communication Protocol | IEEE802.3，Transparent serial data | ||
Communication | Point to Point, Point to Multi-Points relay mode | ||
Dimensions | 125*120*30mm | ||
Weight | ≤470g | ||
Packing&Shipping
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
Company Introduction
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, military radio, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of military C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
Exhibitions
Testing Instruments
Certifications
Cooperative Partners
FAQ
Q1: Who we are?
A1: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
Q2: Could you support OEM&ODM ?
A2: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q3: How can you guarantee quality?
A3: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
Q4: How long is the delivery time ?
A4: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days.
Q5: What is your usual payment terms for orders?
A5: T/T, Western Union.
Q6: How do we make a business long term and good relationship with you?
A6: We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
A1: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
Q2: Could you support OEM&ODM ?
A2: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q3: How can you guarantee quality?
A3: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
Q4: How long is the delivery time ?
A4: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days.
Q5: What is your usual payment terms for orders?
A5: T/T, Western Union.
Q6: How do we make a business long term and good relationship with you?
A6: We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
